Page 1
1
OPERATOR’S MANUAL
AND PARTS LIST
MODEL GRTFN250 FINISH NAILER
Distributed By
Tough as nails
www.grip-rite.com
Page 2
32
TABLE OF CONTENTS
TABLE OF CONTENTS -------------------------------- 2
SPECIFICATIONS --------------------------------------- 3
Fastener Selection Chart ------------------------ 3
SAFETY ---------------------------------------------------- 4
TOOL PARTS --------------------------------------------- 8
PART DESCRIPTIONS--------------------------------- 9
OPERATION--------------------------------------------- 10
Loading Fasteners ------------------------------- 10
Adjusting Nail Drive ------------------------------- 11
Clearing Nail Jams -------------------------------- 11
Tool Operation------------------------------------- 12
MAINTENANCE ---------------------------------------- 13
Lubrication ----------------------------------------- 13
Cleaning --------------------------------------------- 13
Trigger Check-------------------------------------- 13

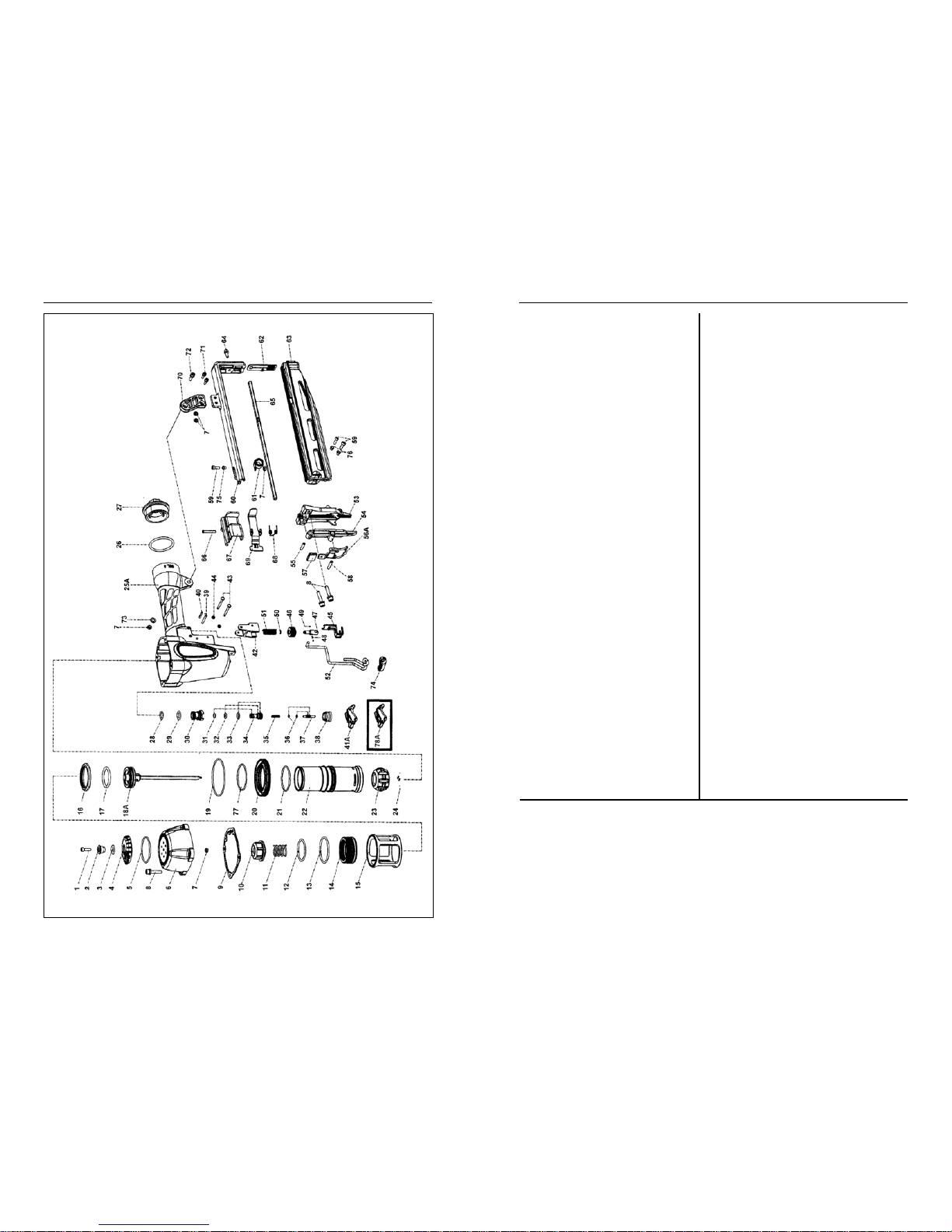

PARTS SCHEMATIC---------------------------------- 14
PARTS LIST --------------------------------------------- 15
TROUBLESHOOTING ------------------------------- 16
TOOL CHECKS ---------------------------------------- 17
WARRANTY --------------------------------------------- 18
SPECIFICATIONS
SPECIFICATIONS
MODEL GRTFN250 FINISH NAILER
FASTENER RANGE 1” - 2 1/2” (25 mm - 65 mm)
FASTENER TYPE 16 Ga. Straight Collated Finish Nails
MAGAZINE CAPACITY 100 NAILS
MAX AIR PRESSURE 110 psi (7.6 bar)
MIN AIR PRESSURE 70 psi (4.8 bar)
AIR CONSUMPTION 2.5 SCFM - 10 Nails/Minute @90 psig (6.2 bar)
TOOL WEIGHT 3.9 lbs. (1.8 kg)
TOOL LENGTH 12 1/2” (31.7 cm)
TOOL HEIGHT 11” (28 cm)
TOOL WIDTH 3” (8.4 cm)
TRIGGER TYPE Sequential
AIR INLET 1/4 NPT
AIR CONNECTION Male Quick Connect Coupler
LUBRICATION 10W Air Tool Oil (Provided)
NOISE CHARACTERISTIC VALUES IN ACCORDANCE WITH ISO 3774, ISO 11201:
A-weighted single-event sound
pressure level at operator’s position ---------------------------------- LpA, 1s = 91 dBA
A-weighted single-event sound power level ----------------------- LwA, 1s = 99 dBA
A-weighted single-event surface sound
pressure level ---------------------------------------------------------------- LpA, 1s = 86 dBA
VIBRATION CHARACTERISTIC VALUES IN ACCORDANCE WITH ISO 8862-1
Weighted root mean square acceleration ---------------------------- = 2.8 m/s
2
IMPORTANT SAFETY INFORMATION
You must read this entire manual and familiarize yourself with all
safety, operating, and service instructions before loading, handling,
or using your tool. When used correctly, pneumatic fastening
tools provide a lightweight, powerful, and safe means of fastening.
Used improperly, these tools can cause serious injury to you and
those around you.
For best results, use only Grip-Rite™ collated fasteners.
SIZE BOX BRIGHT STAINLESS
SKU STEEL SKU
1” (25 mm) 2.5M GRF161 N/A
1-1/8 (29 mm) 2.5M GRF16118 N/A
1-1/4” (32 mm) 2.5M GRF16114 N/A
1-1/2” (38 mm) 2.5M GRF16112 GRF16112SS
1-3/4” (44 mm) 2.5M GRF16134 N/AS
2” (51 mm) 2.5M GRF162 GRF162SS
2-1/4 (57 mm) 2.5M GRF16214 N/A
2-1/2” (63 mm) 2.5M GRF16212 GRF16212SS
FASTENER SELECTION CHART
Page 3
54
SAFETY
SAFETY
SAFETY LABELS
This pneumatic fastening tool includes a warning label to help remind you of
important safety information when operating the tool. The safety label must be
legible at all times, and must be replaced if it becomes worn or damaged.
SAFETY SYMBOLS
These safety symbols provide a visual reminder of basic safety
rules, and the personal injury hazard that may arise if all safety and
operating instructions are not followed. Make sure you understand
the meaning of each of these symbols, and protect yourself and
others by obeying all safety and operating instructions.
SYMBOL
DESCRIPTION
READ THE MANUAL - The manual contains
important safety and operating instructions
that must be followed. All tool users must
read the manual before using the tool.
WEAR SAFETY GLASSES - Tool operator
and bystanders must wear safety glasses
with side shield that meet ANSI Z87.1
requirements.
RISK OF PERSONAL INJURY - Failure to
follow all safety and operating instructions,
or misuse of the tool, can result in serious
injury to tool operator and bystanders.
WEAR SAFETY GLASSES
Always wear safety glasses with side shields that meet ANSI
Z87.1 requirements when operating the tool. Make sure all
others in work area wear safety glasses.
WEAR HEARING PROTECTION
Wear hearing protection to protect your hearing from noise.
Prolonged exposure to loud noise can result in hearing loss.
NEVER OPERATE THE TOOL WITH OXYGEN OR OTHER
BOTTLED GASES
Oxygen and other reactive or high-pressure bottled gases
can cause the tool to explode. Use clean, dry regulated
compressed air from a properly operating air compressor.
DO NOT EXCEED MAXIMUM RECOMMENDED OPERATING AIR
PRESSURE OF 110 PSI /7.6 Bar.
Exceeding the maximum recommended air pressure can
cause the tool housing to burst, or cause premature failure of
components.
NEVER CONNECT THE TOOL TO AN AIR SUPPLY THAT HAS
THE POTENTIAL TO EXCEED 180 PSI/12.4 Bar.
Using a regulated air supply with a line or tank pressure
greater than 180 psi can cause the tool to burst if the air line
regulator fails suddenly.
USE AN AIR HOSE RATED FOR 180 PSI/12.4 Bar OR
GREATER
Always use air hose rated to handle 180 psi or the maximum
potential pressure of the air supply.
ONLY USE A RELIEVING-TYPE AIR COUPLING IN THE TOOL
AIR INLET OPENING.
Use of a non-relieving air coupling on the tool can trap air
inside the tool housing, and allow the tool to drive a fastener
even after the air hose has been disconnected.
SAFETY INSTRUCTIONS
110 psi
4.9 bar
70 psi
7.6 bar
Page 4
76
SAFETY
SAFETY
DO NOT ATTEMPT TO OPERATE THE TOOL IF THE TOOL’S
OPERATING CONTROLS HAVE BEEN MODIFIED OR ARE NOT
WORKING PROPERLY.
Attempting to use a tool with modified or malfunctioning
trigger or workpiece contact can result in a fastener being
driven unintentionally.
USE CORRECT FASTENERS
Only use the correct fastener for the tool. Using fasteners
with incorrect specifications can jam the tool or cause
serious injuries.
USE THE CORRECT FASTENERS FOR THE APPLICATION.
Using the wrong fasteners can cause the workpiece to split
and allow the fastener to fly free.
KEEP TOOL POINTED IN A SAFE DIRECTION WHEN LOADING
FASTENERS.
Never point the tool at yourself or anyone else when loading
fasteners.
DO NOT LOAD TOOL WITH TRIGGER OR WORKPIECE
CONTACT DEPRESSED.
Depressing the trigger or workpiece contact during loading
can result in an unintentional fastener drive if both devices
are accidentally actuated at the same time.
KEEP FINGER OFF TRIGGER UNTIL TOOL IS IN POSITION TO
DRIVE A FASTENER.
An unexpected bump or sudden contact with your body or that
of a bystander can result in serious injuries.
AVOID DRIVING FASTENERS INTO KNOTS, ON TOP OF
OTHER FASTENERS, AT WORKPIECE EDGES, OR INTO
BRITTLE MATERIALS.
Driving fasteners into extremely hard materials, or driving into
workpiece edges, can cause fasteners to deflect away from
the workpiece. Flying fasteners can cause serious injuries.
SAFETY INSTRUCTIONS
KEEP HANDS AND BODY PARTS AWAY FROM AREA BEING
FASTENED.
Fasteners can deflect and turn as they are being driven into
the workpiece, and penetrate fingers, hands, and other body
parts that may be in the fastening area.
DO NOT OVERREACH OR WORK WHILE ON UNSTABLE
FOOTING
If you lose your balance while fastening, you could drive a
fastener into yourself or a bystander.
DO NOT USE TOOL IF TOOL MALFUNCTIONS OR BEGINS
LEAKING AIR.
Operating a malfunctioning tool can result in an unexpected
fastener discharge and injury to yourself or others.
DISCONNECT THE TOOL FROM THE AIR SUPPLY TO RELOAD, CLEAR JAMS, OR PERFORM MAINTENANCE.
Never attempt to reload a tool, clear a jam, or perform
maintenance without first disconnecting the air supply.
NEVER LEAVE A LOADED, PRESSURIZED TOOL
UNATTENDED
A loaded, pressurized tool could be picked up or handled by
someone who is unfamiliar with the tool or that has not read
the tool manual.
KEEP TOOLS OUT OF THE REACH OF CHILDREN
Place the tool back in the tool box after use, and store the tool
out of reach.
DO NOT MODIFY TOOL
Modifications can cause a tool to be unsafe and can cause
the tool to operate improperly.
SAFETY INSTRUCTIONS
Page 5
98
DESCRIPTION
PART DESCRIPTIONS
1. 360° Adjustable Air Deflector - Tool-free adjustment blows exhaust
air away from operator. 12 locking positions for secure settings.
2. Cushioned Grip - Cushioned handgrip reduces fatigue and provides
comfortable operation.
3. Sequential Trigger (STD.) - Actuates tool only when correct trigger
operating sequence is followed. Does not allow bump firing.
Dual Action Trigger (Accessory) - Actuates tool when workpiece
contact is depressed against work surface. Permits contact-trip
(bump fire) or trigger-fire operation.
4. Air Coupling - Quick-disconnect male coupling allows quick
connection to air hose. Dust cap keeps dirt out when tool is not in
use.
5. Safety Warning Label - Provides important safety reminders that
must be followed whenever handling, operating, or servicing the tool.
6. Nail Magazine - Hold fasteners securely and protects nails from
damage. Allows quick check of nail size and quantity.
7. Spring-loaded Pusher - Provides positive fastener feeding in all
tool positions. Latches in loading position for rapid, one-handed
loading.
8. Adjustable Depth of Drive - Tool-free depth of drive adjustment
allows nail drive adjustments to be made at tool for consistent depth
control.
9. No-Mar Workpiece Contact - Spring-loaded contact mechanism
prevents tool from driving a fastener unless tool is pressed down and
held against a work surface. No-mar pad protects delicate work
surfaces.
10. E-Z Clear Latch - Clear jammed fasteners from nose without tools.
11. Tool Housing - Magnesium tool housing reduces tool weight.
12. Cap - Seals tool housing.
Metric Hex Wrenches - Included with tool to allow tightening of
metric screws. Keep tools in tool case for periodic tightening of
screws.
Air Tool Oil - Lightweight oil formulated for use in air tools provides
proper lubrication to o-rings and internal parts.
Safety Goggles - Provide required eye protection
DESCRIPTION

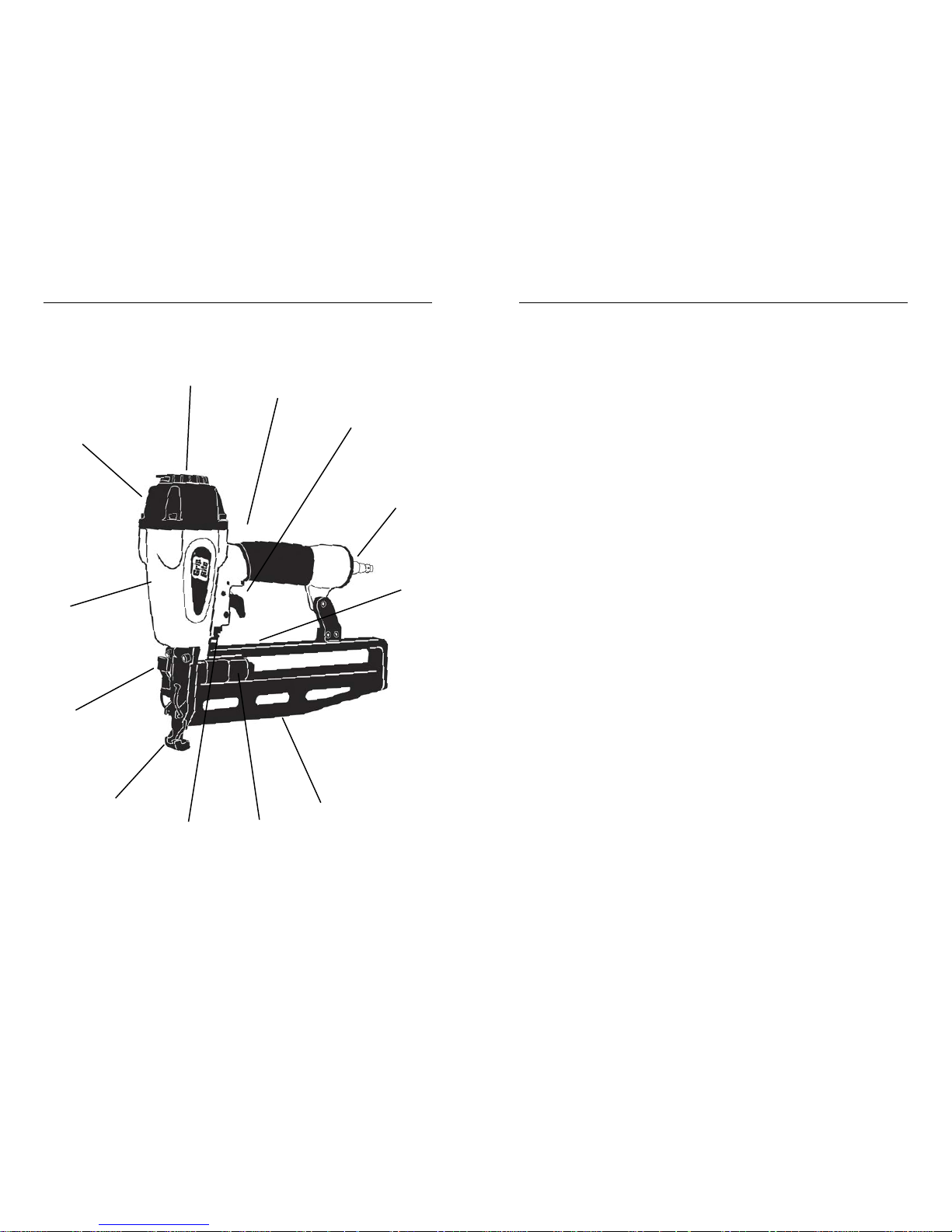

TOOL PARTS
1
2
3
12
5
8
6
11
10
9
7
4
Page 6
1110
OPERATIONOPERATION

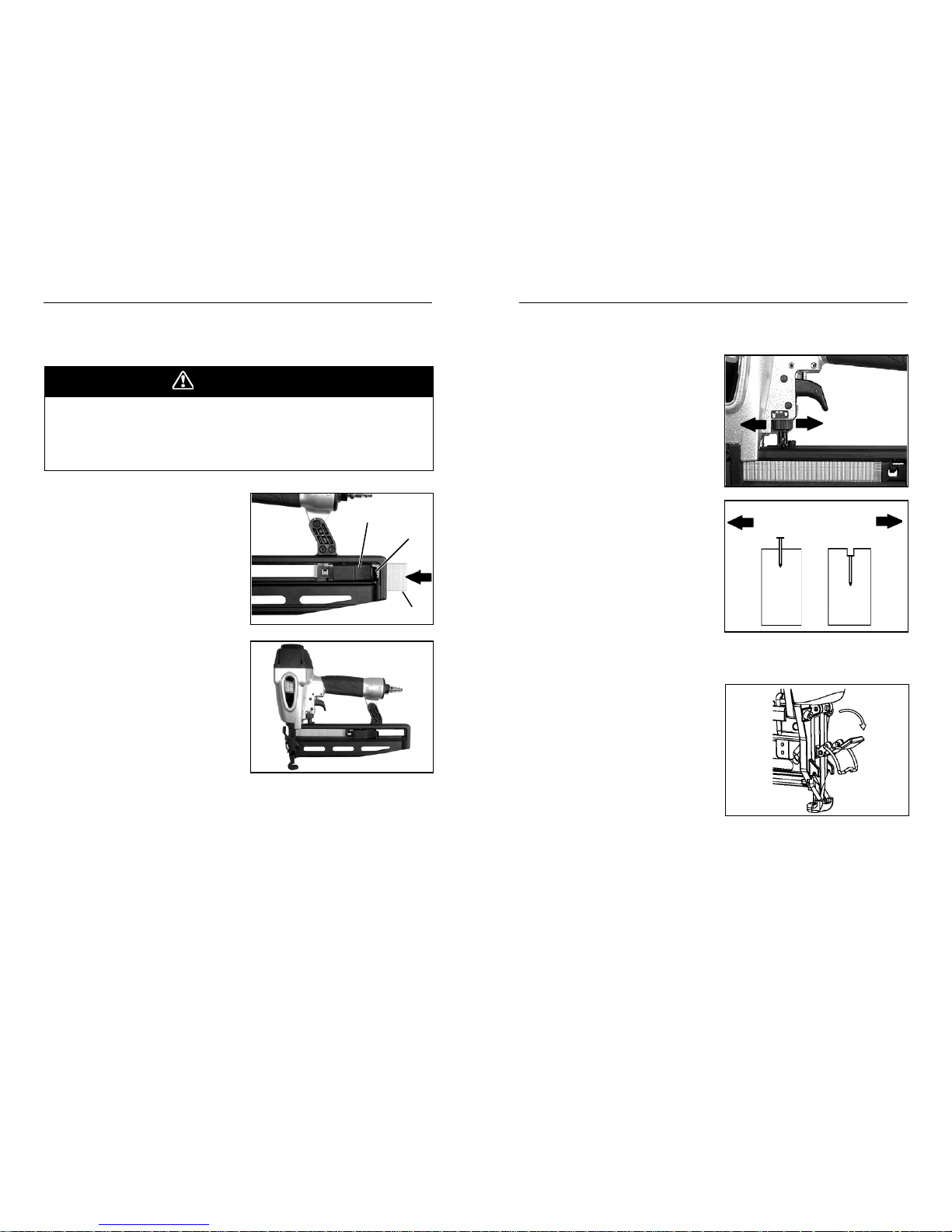

LOADING FASTENERS
LOADING INSTRUCTIONS
A fastener can be driven unintentionally if the trigger and safety bracket
are activated at the same time. Always disconnect tool from air supply
before loading fasteners, making adjustments, or performing any service
on tool. Keep finger off trigger until ready to drive a fastener.
DANGER
1. Pull pusher (A) back to latched
position at rear of magazine.
2. Insert nail strip (B) into rear of
magazine, and allow nails to
slide forward, toward tool nose.
3. Pull pusher (A) back and press
release lever (C) to release
latch, and slide pusher forward
against nail strips.
4. Tool is now loaded and ready
to be connected to an air
supply for operation.
A
C
B
ADJUSTING NAIL DRIVE
1. Disconnect tool from air supply
using quick-connect coupling.
2. Turn adjustment dial backward
to decrease nail drive, or
forward to increase nail drive,
as shown by nail symbols on
tool.
3. Connect tool to air supply, and
drive nails to check for correct
depth of drive.
4. Make depth of drive adjustments as needed to maintain
consistent nail driving.

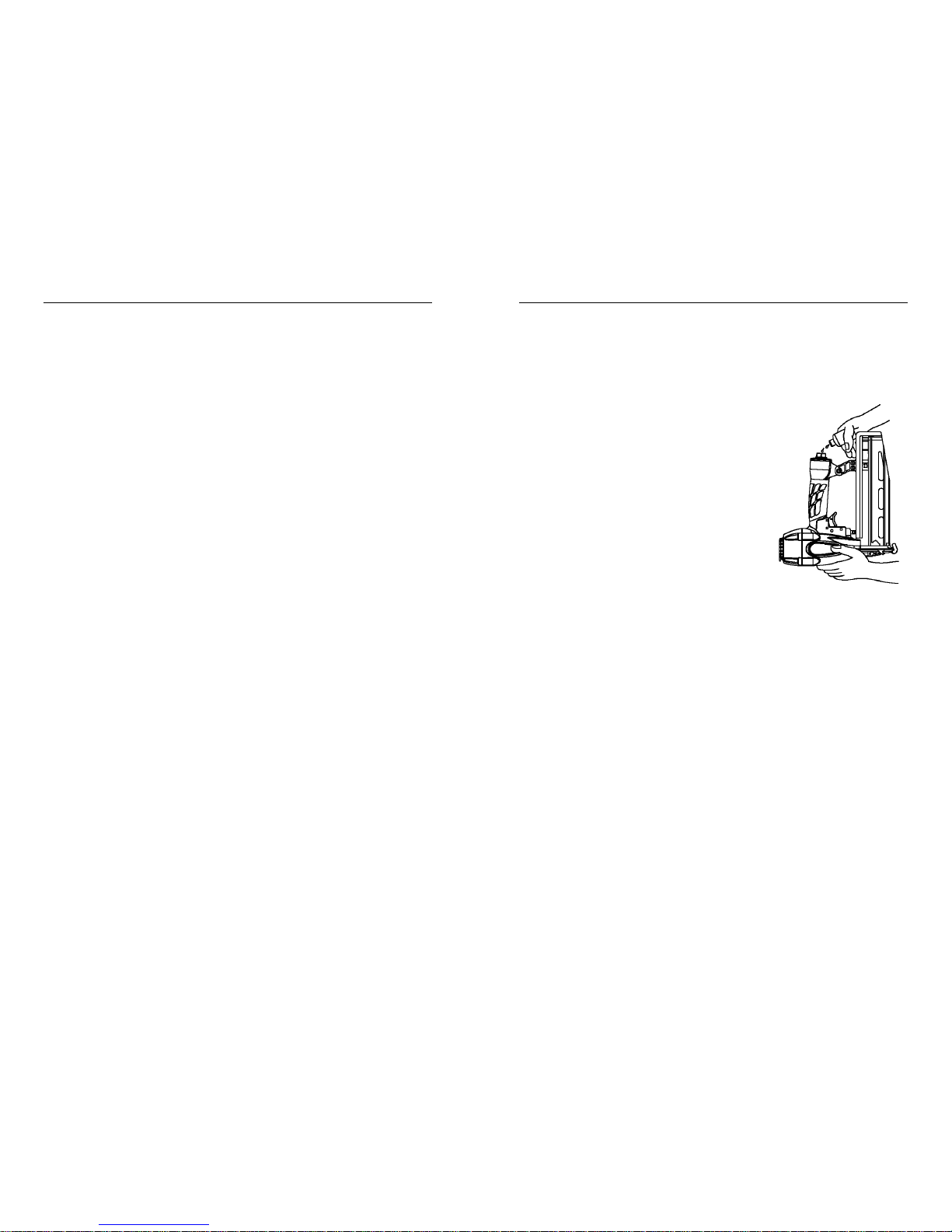

CLEARING NAIL JAMS
1. Disconnect tool from air supply
using quick-connect coupling.
2. Pull pusher back to latched
position at rear of magazine.
3. Open E-Z Clear latch and open
door.
4. Remove jammed fastener.
5. Close door and secure with
latch.
6. Release pusher and slide
forward against nail strips.
7. Connect air supply and check
tool for normal operation.
NAIL TOO HIGH
TURN DIAL
FORWARD
NAIL TOO DEEP
TURN DIAL
BACKWARD
Page 7
1312
MAINTENANCE
MAINTENANCE
Your tool will last longer and perform better if periodic maintenance is
performed. Please use the information below to keep your tool operating
in top condition.
Lubrication
Disconnect tool from the air supply and remove all
fasteners. Apply 3 - 5 drops of air tool oil (provided) in the air inlet two - three times a day. If
the tool will be used outside in the winter, use a
winter grade air tool oil to help keep frost from
forming inside the tool. Do not use other types of
lubricants on this tool, as other lubricants may
contain chemicals harmful to o-rings and other
tool components. Drain compressor tanks and
hoses daily.
Cleaning
Disconnect tool from the air supply and remove all fasteners. Brush tool
off using a parts cleaning brush or clean rag. Open feed pawl door and
magazine cover, and brush out dirt and debris. Check area around trigger
and workpiece contact, and clean as necessary.
OPERATION
Trigger Check
Check trigger operation daily to confirm proper sequential operation:
1. Press the workpiece contact against a safe work surface without
depressing the trigger. THE TOOL MUST NOT CYCLE.
2. Hold the tool above a safe work surface and pull the trigger without
depressing the workpiece contact. THE TOOL MUST NOT CYCLE.
3. Pull and hold the trigger, and then press the workpiece contact
against a safe work surface. THE TOOL MUST NOT CYCLE.
4. With finger off trigger, press the workpiece contact against a safe
work surface. Keep tool pressed against work surface, and pull
trigger. THE TOOL MUST CYCLE ONCE.
5. The trigger must return to the normal position each time finger
pressure is released.
TOOL OPERATION
SEQUENTIAL OPERATION
1. Hold the tool securely using the handgrip. Keep finger off trigger
until tool is in position and you are ready to drive a fastener. NOTE:
Depressing trigger before depressing safety bracket will prevent tool
from actuating.
2. Position the nose of the tool on the workpiece, placing the nose at
the desired fastener driving position.
3. Press the tool down firmly against the work surface, fully depressing
the workpiece contact (safety bracket).
4. Squeeze the trigger once to drive a fastener.
5. Allow the tool to rebound off the work surface, and release the trigger
to reset the workpiece contact. Tool will not drive another fastener
until trigger is released, and cannot be bump-fired with sequential
trigger installed.
6. Check fastener for flush drive, and if needed, turn nail depth adjustment dial to obtain desired fastener drive.
7. If tool adjustments do not provide the desired results, make air
pressure adjustments at the compressor: Increase air pressure to
drive deeper or to drive into harder materials. Reduce air pressure to
reduce drive or to drive into softer materials. For longest tool and
part life, always use the lowest air pressure necessary to drive
fasteners to desired depth.
8. Position the tool for driving the next fastener, and repeat the above
procedure. Always keep hands and other body parts away from
areas being fastened.
CONTACT TRIP (BUMP FIRE) DRIVING METHOD
To operate this tool in contact trip mode (bump-firing), remove the sequential trigger provided on the tool, and install the dual-action trigger provided
with the tool.
1. Position the nose of the tool over the work surface, near the area
where the first fastener is to be driven.
2. Squeeze and hold the trigger in the depressed position.
3. Bump the workpiece contact (safety) against the work surface at
each point where a fastener is to be driven.
4. Using a bouncing motion, continue moving the tool into position for
each fastener drive.
5. When fastening is completed, release the trigger.
Page 8
1514
PARTS LISTPARTS SCHEMATIC
ITEM P/N DESCRIPTION
1 GRTN1880 Hex. Soc. Hd. Bolt
2 GRTN660 Deflector Bushing
3 GRTN2240 O-Ring
4 GRTN670 Exhaust Deflector
5 GRTN2480 O-Ring
6 GRTN2960 C ap
7 GRTN2070 Locknut
8 GRTN1930 Hex. Soc. Hd. Bolt
9 GRTN680 Cap Gasket
10 GRTN690 Piston Stopper
11 GRTN710 Spring
12 GRTN2270 O-Ring
13 GRTN2260 O-Ring
14 GRTN700 Piston, Head Valve
15 GRTN720 Cylinder Seal
16 GRTN730 Seal
17 GRTN2250 O-Ring
18A GRTN760 Driver Assembly
19 GRTN2280 O-Ring
20 GRTN750 Cylinder Spacer
21 GRTN2330 O-Ring
22 GRTN740 Cylinder
23 GRTN770 Bumper
24 GRTN780 Driver Guide
25A GRTN2970 Body Assembly
26 GRTN2290 O-Ring
27 GRTN2980 End Cap
28 GRTN2220 O-Ring
29 GRTN2240 O-Ring
30 GRTN800 Valve
31 GRTN2100 O-Ring
32 GRTN2110 O-Ring
33 GRTN2170 O-Ring
34 GRTN805 Valve Plunger
35 GRTN830 Spring
36 GRTN2230 O-Ring
37 GRTN810 Plunger
38 GRTN820 Plunger Cap
39 GRTN2550 Spring Pin
ITEM P/N DESCRIPTION
40 GRTN2530 Spring Pin
41A GRTN2990 Trigger Assy SEQ.
42 GRTN1440 Contact Trip Guide
43 GRTN790 Trigger Pin
44 GRTN2210 Grommet
45 GRTN880 Upper Contact Trip
46 GRTN920 Adjusting Nut
47 GRTN900 Adjusting Post
48 GRTN940 Adjusting Spring
49 GRTN2640 Steel Ball
50 GRTN2660 E-Ring
51 GRTN890 Safety Spring
52 GRTN950 Lower Safety Post
53 GRTN850 Nose
54 GRTN840 Lower Door
55 GRTN2570 Spring Pin
56A GRTN860 Door Latch Assembly
57 GRTN870 Latch Grip
58 GRTN2580 Spring Pin
59 GRTN1870 Hex. Soc. Hd. Bolt
60 GRTN1030 Magazine Cover
61 GRTN140 Spring
62 GRTN1060 Spring Stopper
63 GRTN960 Magazine
64 GRTN2680 Hex. Soc. Hd. Bolt
65 GRTN970 Nail Guide Liner
66 GRTN990 Roller Shaft
67 GRTN1010 Pusher Guide
68 GRTN1040 Spring
69 GRTN1000 Pusher
70 GRTN1020 Bracket
71 GRTN2690 Hex. Soc. Hd. Bolt
72 GRTN2700 Hex. Soc. Hd. Bolt
73 GRTN2590 Washer
74 GRTN910 Rubber Pad
75 GRTN980 Bushing
76 GRTN1050 Spacer
77 GRTN2140 O-Ring
78A GRTN2950 Trigger Assembly BUMP
A GRDAK200 Driver Maintenance Kit
B GRRBK200 O-Ring Maintenance Kit
C GRTFN250MAN Operator’s Manual
D GRTFN250CASE Tool Case
Page 9
1716
TROUBLESHOOTING
TOOL TROUBLESHOOTING
Your pneumatic fastening tool has been designed for long life and troublefree operation. However, if operating problems arise, please use the
troubleshooting information below to determine how to remedy the problem.
TROUBLESHOOTING
FASTENER DRIVING PROBLEMS
Always disconnect tool from air supply before performing any service on
tool. Correcting a problem while the tool is pressurized may result in
injury from fastener discharge or tool operation.
DANGER
Tool leaks air.
Check for source of leak, and tighten fittings
and screws as required. Discontinue using
tool if air leaks at trigger area or from cap
exhaust. Contact your dealer.
Tool operates, but no
fastener is driven.
Tool won’t operate - nail
jammed in tool nose,
preventing tool from
operating.
Remove jammed fastener. Check magazine
for incorrect, bent, or loose fasteners, and
discard. Reload using Grip-Rite™ nails.
Check magazine for jammed fastener. Clear
jam and reload magazine. Check nail strip for
smooth feeding in magazine.
Fasteners do not drive
completely.
AT COMPRESSOR: Increase air pressure.
Do not exceed 110 psi/7.6 bar
Fasteners do not drive
completely when
driving in quick succession.
Inadequate air flow. Use larger diameter hose.
Use compressor with larger storage tank.
Keep hose lines short. Check air hose for
kinks or other restrictions.
Fasteners drive too
deeply.
AT COMPRESSOR: Reduce air pressure.
(Do not reduce below 70 psi/4.8 bar.)
PROBLEM CORRECTIVE ACTION
Fasteners do not drive
completely after air
pressure is increased.
Driver blade worn or broken. See dealer for
replacement.
FASTENER DRIVING PROBLEMS
AT TOOL: Turn adjustment dial to increase
nail drive depth. Add 2 - 3 drops of air tool oil
to inlet.
AT TOOL: Turn adjustment dial to decrease
nail drive depth.
TOOL CHECKS
Keep your nailer in top working condition by checking it daily. See your
Grip-Rite™ dealer for service if part or operating problems are found. Never
use a malfunctioning tool - it could result in serious injury.
Workpiece Contact & Trigger
Check workpiece contact for proper operation before each use. Workpiece
contact must move freely and return to extended position when lifted from
workpiece. Trigger must operate freely.
Daily Inspection
• Check for broken, damaged, or excessively worn parts, and repair
or replace as needed.
• Check for air leaks at trigger, cap, and nose. Disconnect tool from
air supply immediately if leaks are present, and see dealer for
service.
• Make sure all screws are tightened securely.
Page 10
1918
PNEUMATIC TOOL/COMPRESSOR WARRANTY
Pneumatic nailers, staplers & compressors marketed under the
GRIP RITETM brand are warranted to be free from defects in work-
manship & materials (except rubber o-rings, bumpers, seals, driver
blades, dipsticks, & air filters) for a period of one year from the date
of original purchase.
This warranty will not apply when:
• The original receipt (or copy of the original receipt), showing the
original purchase date, is not provided with tools/compressors sent
in for warranty repair
• The tool/compressor has been misused, abused or improperly
maintained
• Alterations have been made to the original tool/compressor
• Repairs have been attempted/made to the original tool/compressor
by any entity other than a proprietary PRIMESOURCE® service/
warranty center or authorized service/warranty center
• Non- GRIP-RITE TOOLS
TM
/ GRIP-RITE COMPRESSORS
TM /
parts
have been used
• The tool has suffered any physical damage due to the use of nonPRIMESOURCE® approved fasteners*
• Repairs are required due to normal wear & tear
• The tool/compressor has been inadequately packaged leading to
damage in-transit to the service/warranty center.
*Approved fasteners include the following brands GRIP-RITE
FAS’NERSTM, FAS’NERS UNLIMITED
TM
IN NO EVENT SHALL PRIMESOURCE® BE LIABLE FOR ANY INDIRECT,
ACCIDENTAL OR CONSEQUENTIAL DAMAGE FROM THE SALE OR
USE OF THESE PRODUCTS. THIS DISCLAIMER APPLIES BOTH
DURING & AFTER THE TERM OF WARRANTY.
THIS IS OUR WARRANTY & IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(EXCEPT AS MAY BE OTHERWISE PROVIDED BY LAW).
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY, FROM STATE TO
STATE.
WARRANTY
PNEUMATIC TOOL/COMPRESSOR SERVICE INFORMATION
Should any mechanical problems develop during the life of your
equipment the following options are available for service and parts:
• Call (800)676-7777 where you will be routed to the nearest
PRIMESOURCE® distribution center and directed to the nearest
authorized service/warranty center.
• Logging on to our website at www.primesourcebp.com where
you will find a list of our authorized service centers.
• Contact the PRIMESOURCE® Factory Warranty Center directly
at Phone: (800)207-9259 or Fax: (800)207-9614
STEPS TO TAKE WHEN SHIPPING TOOLS
• Adequately package the product to avoid damage in-transit (in
the case of pneumatic tools, the original blow mold plastic
carrying case is considered adequate packaging).
• Provide the original/copy of receipt showing the original purchase
date.
• Insure your shipment with the shipping company.
PRIMESOURCE® will not be responsible for any tool/compressor
that is lost or damaged by the shipper on route to the
PRIMESOURCE® service/warranty center.
WARRANTY
Page 11
20
USE GENUINE GRIP-RITE®
FASTENERS FOR BEST
PERFORMANCE
GRTFN250MAN
www.grip-rite.com
Loading...
