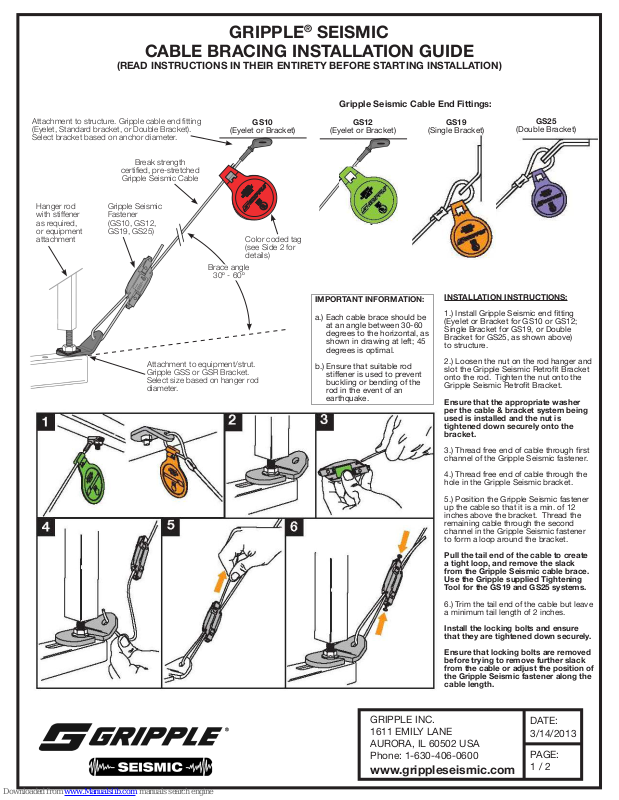

GRIPPLE GS10, GS12, GS19, GS25 Installation Manual
CABLE BRACING INSTALLATION GUIDE
(READ INSTRUCTIONS IN THEIR ENTIRETY BEFORE STARTING INSTALLATION)
Attachment to structure. Gripple cable end tting
(Eyelet, Standard bracket, or Double Bracket).
Select bracket based on anchor diameter.
Break strength
certied, pre-stretched
Gripple Seismic Cable
GRIPPLE® SEISMIC
Gripple Seismic Cable End Fittings:
GS10
(Eyelet or Bracket)
GS12
(Eyelet or Bracket)
GS19
(Single Bracket)
GS25
(Double Bracket)
Hanger rod
with stiffener
as required,
or equipment
attachment
Gripple Seismic
Fastener
(GS10, GS12,
GS19, GS25)
Attachment to equipment/strut.
Gripple GSS or GSR Bracket.
Select size based on hanger rod
diameter.
Brace angle
30º - 60º
Color coded tag
(see Side 2 for
details)
IMPORTANT INFORMATION:
a.) Each cable brace should be
at an angle between 30-60
degrees to the horizontal, as
shown in drawing at left; 45
degrees is optimal.
b.) Ensure that suitable rod
stiffener is used to prevent
buckling or bending of the
rod in the event of an
earthquake.
INSTALLATION INSTRUCTIONS:
1.) Install Gripple Seismic end tting
(Eyelet or Bracket for GS10 or GS12;
Single Bracket for GS19, or Double
Bracket for GS25, as shown above)
to structure.
2.) Loosen the nut on the rod hanger and
slot the Gripple Seismic Retrot Bracket
onto the rod. Tighten the nut onto the
Gripple Seismic Retrot Bracket.
Ensure that the appropriate washer
per the cable & bracket system being
used is installed and the nut is
tightened down securely onto the
bracket.
3.) Thread free end of cable through rst
channel of the Gripple Seismic fastener.
4.) Thread free end of cable through the
hole in the Gripple Seismic bracket.
5.) Position the Gripple Seismic fastener
up the cable so that it is a min. of 12
inches above the bracket. Thread the
remaining cable through the second
channel in the Gripple Seismic fastener
to form a loop around the bracket.
Pull the tail end of the cable to create
a tight loop, and remove the slack
from the Gripple Seismic cable brace.
Use the Gripple supplied Tightening
Tool for the GS19 and GS25 systems.
6.) Trim the tail end of the cable but leave
a minimum tail length of 2 inches.
Install the locking bolts and ensure
that they are tightened down securely.
Ensure that locking bolts are removed
before trying to remove further slack
from the cable or adjust the position of
the Gripple Seismic fastener along the
cable length.
GRIPPLE INC.
1611 EMILY LANE
AURORA, IL 60502 USA
Phone: 1-630-406-0600
www.grippleseismic.com
DATE:
3/14/2013
PAGE:
1 / 2
GRIPPLE® SEISMIC
CABLE BRACING INSTALLATION GUIDE
(READ INSTRUCTIONS IN THEIR ENTIRETY BEFORE STARTING INSTALLATION)
30º- 60º
DOUBLE STACKING:
Gripple Seismic Brackets can be
double stacked as shown.
Ensure that each bracket is in line
with its respective cable brace.
Up to four brackets can be
stacked at one point on rod. It
is advised that no more than two
brackets are stacked at an anchor
point to the structure.
30º- 60º
MAX SYSTEM DESIGN STRENGTHS (LRFD):
BRACE SIZE:
GS10
(5/64” cable)
GS12
(1/8” cable)
GS19
(3/16” cable)
GS25
(1/4” cable)
COLOR CODE:
TRANSVERSE BRACING:
NOTES:
Follow the instructions to install the two
seismic braces.
Tighten cables to remove slack.
Ensure that the cables are in-line with each
other, and in a plane perpendicular to the
service they are bracing.
LRFD:
350 lbs
(158 kgs)
1,050 lbs
(476 kgs)
2,100 lbs
(952 kgs)
3,850 lbs
(1,746 kgs)
Run direction
40º - 50º
30º- 60º
Hanger rod with stiffener
Run direction
‘4-WAY’ BRACING:
NOTES:
Follow the instructions to install the
four seismic braces.
Tighten cables to remove slack.
Two braces are anchored onto each
rod, as shown here. The brackets
must be double stacked as detailed
above.
GRIPPLE INC.
1611 EMILY LANE
AURORA, IL 60502 USA
Phone: 1-630-406-0600
www.grippleseismic.com
DATE:
3/14/2013
PAGE:
2 / 2
