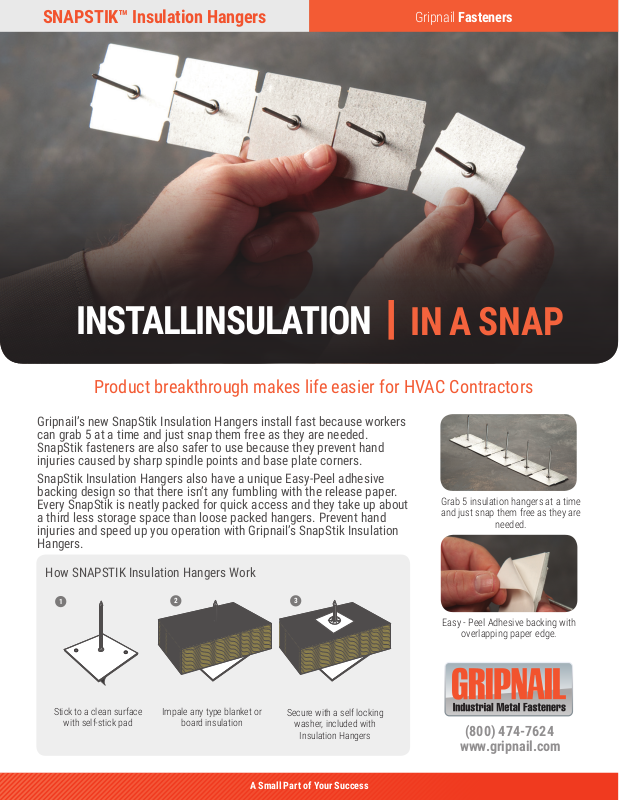

SNAPSTIK™ Insulation Hangers
Gripnail Fasteners
INSTALL INSULATION
Product breakthrough makes life easier for HVAC Contractors
Gripnail’s new SnapStik Insulation Hangers install fast because workers
can grab 5 at a time and just snap them free as they are needed.
SnapStik fasteners are also safer to use because they prevent hand
injuries caused by sharp spindle points and base plate corners.
SnapStik Insulation Hangers also have a unique Easy-Peel adhesive
backing design so that there isn’t any fumbling with the release paper.
Every SnapStik is neatly packed for quick access and they take up about
a third less storage space than loose packed hangers. Prevent hand
injuries and speed up you operation with Gripnail’s SnapStik Insulation
Hangers.
How SNAPSTIK Insulation Hangers Work
1
2 3
IN A SNAP
Grab 5 insulation hangers at a time
and just snap them free as they are
needed.
Easy - Peel Adhesive backing with
overlapping paper edge.
Stick to a clean surface
with self-stick pad
Impale any type blanket or
board insulation
A Small Part of Your Success
Secure with a self locking
washer, included with
Insulation Hangers
(800) 474-7624
www.gripnail.com
SNAPSTIK™ Insulation Hangers
A
N
U
F
A
A
T
Self-stick Insulation Hanger with washers
Gripnail Fasteners
Part No. Spindle Length
820 3/4”
821 1 1/4”
822 1 5/8”
823 2”
824 2 1/2”
Other sizes available
• Fasteners and self-locking washers are manufactured from low
carbon galvanized steel.
• All spindles are 12 gauge. Other spindle lengths, gauges and
materials are available upon request.
• Part Number 820 is packaged 200 pieces per box and 10 boxes per
master carton. 200 washers/box.
• Part Numbers 821, 822, 823 and 824 are packaged 100 pieces per
• Washers measure 1 1/4” X 1 1/8”.
• Load per anchor should not exceed 3 lbs.
• Operating temperatures should not exceed 150 °F.
• Application temperature should exceed 40 °F.
• Shelf life is estimated at 2 years if hangers are stored at room
temperature and at 50% relative humidity.
box and 10 boxes per master carton. 100 washers/box.
Application Instructions
1. The SnapStik Insulation Hanger will only stick to a clean, dry, smooth surface. Remove any oil, rust, loose paint, etc. before applying the
fastener. Cleaning the surface is recommended.
2. Peel off the backing paper. Notice that the Easy-Peel backing paper purposely overhangs the adhesive so that the paper is easy to grasp.
3. Firmly press the fastener against the cleaned surface.
4. Impale the insulation over the point of the fastener.
5. Secure the insulation with the self locking washers.
6. Bend or remove remaining point.
Safety
SnapStik Insulation Hangers - Just Click it and Stick it
Safer to use - no reaching into a box
of sharp points and corners
C
M
T
U
Y
L
R
D
E
D
U
O
I
R
P
Rev 122015
N
ISO 9001:2008 Registered
Made in the U.S.A.
T
H
E
U
N
I
T
E
D
A
C
I
R
E
M
A
F
O
S
S
T
E
An employee owned company
97 Dexter Road, East Providence, RI 02914
Email: gripnail@gripnail.com
(800) 474-7624 Fax: (401) 438-8520
A Small Part of Your SuccessGRIPNAIL
More compact storage -1/3 less space
than conventional packaging
www.gripnail.com
