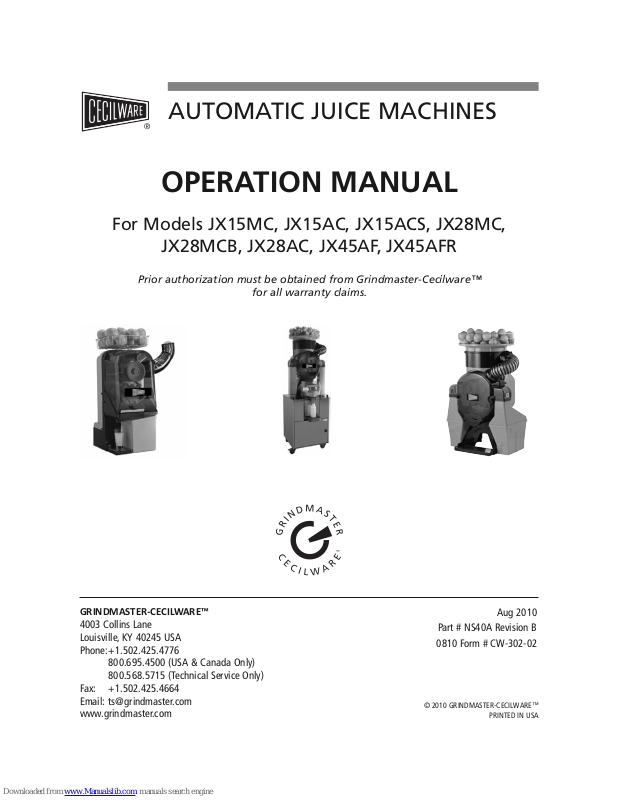

Grindmaster Cecilware JX15MC, JX15AC, JX28MC, JX15ACS, JX28MCB Operation Manual
...
®
AUTOMATIC JUICE MACHINES
OPERATION MANUAL
For Models JX15MC, JX15AC, JX15ACS, JX28MC,
JX28MCB, JX28AC, JX45AF, JX45AFR
Prior authorization must be obtained from Grindmaster-Cecilware™
for all warranty claims.
Aug 2010
Part # NS40A Revision B
0810 Form # CW-302-02
GRINDMASTER-CECILWARE™
4003 Collins Lane
Louisville, KY 40245 USA
Phone:+1.502.425.4776
800.695.4500 (USA & Canada Only)
800.568.5715 (Technical Service Only)
Fax: +1.502.425.4664
Email: ts@grindmaster.com
www.grindmaster.com
© 2010 GRINDMASTER-CECILWARE
™
PRINTED IN USA
Page 2 JX Automatic Fruit Juice Machines
Contents
Model Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setup Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
JX Automatic Fruit Juice Machines Page 3
Model Specifications
Model
Fruit Output
/ Min
Feeder
Capacity
Flow Rate
/ Min
Dimensions
(H xW x D)
Electrical
Ship
Weight
JX15MC 15 6 Orange
25 oz. - 45 oz.
(.7 L - 1.3 L)
33'' x 19.3'' x 17.7''
(84 cm x 49 cm x 45 cm)
120V, .55KW, 9A
111 lbs.
(51 kg)
JX15AC 15
13 lbs.
(6 kg)
34 oz. - 66 oz.
(1 L - 2 L)
36.6'' x 19.3'' x 17.7''
(93 cm x 49 cm x 45 cm)
120V, .55KW, 9A
119 lbs.
(54 kg)
JX15ACS 15
13 lbs.
(6 kg)
34 oz. - 66 oz.
(1 L - 2 L)
36.6'' x 19.3'' x 19.7''
(93 cm x 49 cm x 50 cm)
120V, .55KW, 9A
120 lbs.
(55 kg)
JX28MC 28 6 Fruit
42 oz. - 84 oz.
(1.2 L - 2.5 L)
34'' x 28.7'' x 17''
(86 cm x 73 cm x 43 cm)
120V, .55KW, 9A
96 lbs.
(44 kg)
JX28MCB 28 6 Fruit
42 oz. - 84 oz.
(1.2 L - 2.5 L)
34'' x 28.7'' x 17''
(86 cm x 73 cm x 43 cm)
120V, .55KW, 9A
103 lbs.
(47 kg)
JX28AC 28
40 lbs.
(18 kg)
48 oz. - 96 oz.
(1.4 L - 2.8 L)
39'' x 24.4'' x 19.7''
(99 cm x 62 cm x 50 cm)
120V, .55KW, 9A
109 lbs.
(49 kg)
JX45AF 45
40 lbs.
(18 kg)
57 oz. - 114 oz.
(1.7 L - 3.4 L)
71.3'' x 23'' x 29.5''
(181 cm x 58 cm x 75 cm)
120V, .55KW, 9A
185 lbs.
(84 kg)
JX45AFR 45
40 lbs.
(18 kg)
57 oz. - 114 oz.
(1.7 L - 3.4 L)
71.3'' x 23'' x 29.5''
(181 cm x 58 cm x 75 cm)
120V, .55KW, 9A
214 lbs.
(97 kg)
