Crathco®Beverage Freezers

Operation and Instruction Manual

for

Models 5311, 5511, & 5941

TABLE OF CONTENTS

Warnings and Safety Precautions..................3

Installation...................................................4-6

Operating and Adjustments ......................6-11

Care and Cleaning..................................12-17

Maintenance Service ..............................17-21

Troubleshooting.......................................22-23

Exploded Views.......................................24-34

Electrical Diagrams .................................35-40

Wiring Diagrams .....................................41-49

Refrigeration Diagrams ...........................50-51

Prior authorization must be obtained from Grindmaster Corporation for all warranty claims.

Model 5311

Crathco®5000 Series Manual Page 3

WARNING LABELS

OPERATOR'S SAFETY PRECAUTIONS

1) Read and understand the operating instructions in this manual thoroughly.

2) Note all warning labels on the freezer. If any of the warning labels are missing or damaged replace them immediately.

3) Do not wear loose fitting garments or jewelry which could cause a serious accident.

4) Stay alert at all times during operation.

5) Keep operating area clean.

6) Do not operate freezer if any excessive noise or vibration occurs. Contact your authorized service agent.

Located on the right, left and rear panels.

INSTALLATION

Shipment

Transit

1) The freezer has been operated and tested at the factory. Upon arrival the complete freezer must be thoroughly checked for any

damage which may have occurred in transit. Note: A tip (N) Tell

warning device is placed on each shipping carton at the factory. If the arrow tip is blue, the carton has been tipped in transit. (See Figure A)

2) THE CARRIER IS RESPONSIBLE FOR ALL DAMAGE IN TRANSIT WHETHER VISIBLE OR CONCEALED. DO NOT PAY THE FREIGHT BILL until the freezer has been checked for

damage. Have the carrier note any visible damage on the freight bill. If concealed damage and/or shortages are found later, advise the carrier within 10 days and request inspection. The customer must place any claim for damage and/or shortage with the carrier. Grindmaster Corporation cannot make any claims against the carrier.

Figure A

Page 4 Crathco®5000 Series Manual

Remov

al from Carton and P

allet

1) Remove staples or cut cardboard box around the stapled area.

2) Pull the cardboard box up off machine.

3) Remove the Styrofoam packing and the plastic bag.

4) Remove both side panels with screwdriver.

5) Use a wratchet with a 3 inch extension and a 7/16 socket to remove the shipping bolts (connecting the machine to the pallet) located on both sides of the frame bottom plate.

6) Supporting all four sides, lift machine up and place in appropriate area.

Installing Your Unit

1) Place freezer in a location that allows adequate space at each side and above for proper air circulation. Minimum clearance is: 6” (15 cm) on both sides 0” at back and open above the freezer. (See Figure B)

2) Place the freezer on the self-sealing rubber pad on a level counter that is stable and strong enough to safely support its weight (200lbs.) (90.7kg), or if equipped with legs instead of pad, install legs by screwing them into the four leg holes on the bottom of the unit. (Leg Kit Part #W089.0220 (4) 4” Legs)

3) Place On-Off-Clean switch in OFF position.

4) Install header by removing two screws from the electrical box cover. Carefully remove electrical box cover. Place the header (transparency) between the clear and opaque plates (plastic lens). Slip the electrical box cover back on to machine and reinsert the four screws. (See Figure C)

5) Install the standard one piece carb tube by placing it in the hole in the hopper. If your unit is equipped with a two piece smoothie/shake carb tube place the solid piece in the hole in the hopper with the hole facing front to back. Then place the carb tube sleeve over the solid piece, lining up one of the holes with the hole in the solid piece. (Select the larger hole for thickest products).

6) Connect the power cord to a properly grounded 115V/20 Amp or 208-230V/20 Amp circuit (depending on the voltage of the dispenser).

CAUTION: If equipped with spinner do not lift unit by spinner shaft to avoid serious damage to spinner.

CAUTION: Do not alter or deform the plug in any way! Altering or deforming plug may damage unit and will void warranty! Receptacle required NEMA 5-20R

for model 5311 and NEMA 6-20R for

model 5511.

CAUTION: Failure to allow adequate ventilation will void the warranty and reduce freezer performance.

Figure B

Figure C



Crathco®5000 Series Manual Page 5

Installation of Concealed Air Filter Accessory Kit (optional)

1) Remove the four screws that hold the right side panel on the machine.

2) Install the filter panel over the existing side panel and reinstall screws. (See Figure D)

3) Open top cover of filter cover by raising and rotating away from the existing panel.

4) Slide filter into top of filter cover with removal clip up and the air flow arrows facing the existing panel. (See Figure E)

5) Push filter down until flush with the top of the cover.

6) Close the top cover by rotating the top back toward the existing cover and pushing down once it is in place.

Installation of Exposed Filter Accessor

y Kit

(optional) (Part #W089.0206)

1) Remove the four panel screws.

2) Pull the bottom of the panel out.

3) Run a bead of the silicone adhesive at the inside back of the bottom filter channel. (2)

4) Install the channel over the end of the side panel so the adhesive in the channel contacts the bottom edge of the side panel.

5) Put the panel with the channel added, back in place on the machine and reinstall the two lower panel screws.

6) Apply silicone adhesive to the length of the top edge of the upper filter channel (1) before installing, then wipe off any excess.

7) Install the upper channel using the upper panel screws.

8) Slide filter (3) in from the front with the arrows pointing toward the existing panel. The thick wire side of the filter should face outward.

Figure D

Figure E

Figure G

(Part #s W089.0200 Stainless Steel, W089.0208 Black)

INSTALL THE FILTER PANEL OVER THE EXISTING SIDE PANEL & RE-INSTALL SCREWS.

P/N: W0520101, COMES IN KIT # W0890220 FILTER PANEL

P/N: W0631805

FILTER

SLIDE THE FILTER IN BEHIND THE FILTER PANEL, & IN FRONT OF THE EXISTING SIDE PANEL. TO CHANGE REMOVE, CLEAN, & OR REPLACE.

Page 6 Crathco®5000 Series Manual

OPERATING & ADJUSTMENTS

How to Operate:

1) Sanitize unit following the cleaning instructions on page 12.

2) Fill hopper with product. Allow barrel to fill with product to the proper level, then install carb tube.

3) Turn power switch (toggle switch located underneath the electrical box) to "on" position.

4) Turn mode switch (rocker switch located next to power switch) to freeze position.

5) Allow product to freeze in barrel.

6) To dispense product pull down valve handle and release when done.

7) If product consistency is not as desired, adjust per the instructions on page 9.

Mix Considerations - General

Freezing characteristics are affected by the amount of sweeteners and solids in the mix, called BRIX. BRIX can be measured with an instrument called a refractometer. A BRIX reading of between 11 and 14 will provide optimum freezer operation. Mixes with this brix level will freeze down to a smooth, uniform consistency. Mixes with too high a brix level will take longer to freeze down and will yield a soft, wet, frozen product. Mixes with too low a brix level will have larger ice crystals and will have a tendency to dispense slowly. Note: Always take BRIX measurements using mix that has been thoroughly blended, before it is frozen. Always allow frozen mix to thaw thoroughly before taking a reading.

Alcohol content also affects product-freezing characteristics and may prevent the freezer from serving a product at proper thickness.

For maximum output capacity always pre-chill mix before adding it to the freezer. Pre-chilled mix gives the freezer a head start on the freezing process and will speed both initial freeze down and recovery time.

Figure H

Installation of Spinner/Mixer Accessory Kit (optional) (Part #W089.0053-115V) (Part # W0890124-220V)

1) Turn to "off" and unplug the freezer from the electrical power source.

2) Remove the white plastic plugs covering the threaded holes on the right front panel (facing the freezer).

3) Remove the electrical box cover.

4) Feed the spinner electrical wires through the 7/8” hole in the spinner mounting bracket.

5) Feed these wires up through the 1/4” x 1/2” hole in the right side bottom of the electrical box.

6) Secure the spinner to the front of the freezer with the long 1/4 x 20 screws provided. (See Figure H)

7) Insert the screws through the front of the spinner bracket, then through the spinner rear mounting bracket (making sure that the bracket flange is toward the left facing toward the front of the freezer).

8) See the spinner-wiring diagrams to locate spinner wire connections.

Electrical box

Spinner mounting bracket

Spinner

Mounting screws

Crathco®5000 Series Manual Page 7

Carburetor Assembly

Your new freezer uses a metering device, known as a carburetor, to feed the proper ratio of mix and air into the freezing cylinder. For products such as dairy based shake mixes, the proper mix to air ratio is generally accepted to be two parts mix to one part air. This proportion yields a finished product that is both tasty and profitable. At this ratio, one gallon of liquid mix will yield a volume of one and one-half gallons of frozen product.

The carburetor is a tube with a hole, or series of holes, bored through the side. It is located in the hopper and fits in a hole that leads to the freezing cylinder. Air flows into the freezing cylinder through the top of the tube and mix flows in through a smaller hole in the side of carburetor tube. The size of the mix inlet is balanced with the viscosity (thickness) of the liquid mix and product draw rate, in such a way that the proper amount of mix is fed into the freezer cylinder to blend with air at just the right ratio. Mix viscosity varies by mix type, mix temperature, and mix age. Different serving rates also demand different feed rates. The Crathco carburetor has an outer sleeve that can be rotated to line up with different hole sizes to provide ideal overrun under all operating conditions.

You will need to experiment to determine how much mix to add to the freezing cylinder at start-up. This can be done by watching the level of mix through the clear plastic dispensing valve when filling the hopper. When the correct amount of mix feeds into the freezing cylinder install the carburetor tube in the "Off" position (outer sleeve set between any two holes) and turn the freezer "ON" to freeze down to proper consistency.

Overrun

Overrun is the increase in product volume, expressed as a percentage, resulting from the entrapment of air in liquid mix as it is frozen.

The rotating dasher blends air into the mix as it is frozen, resulting in increased product volume. For example, if one gallon (4.4 liters) of liquid mix is poured into a freezer and one and a half gallons (6.6 liters) of frozen product is drawn out, the result is a fifty percent volumetric increase, or a fifty (50%) percent “overrun”.

Why is overrun important? The introduction of air into the finished frozen product is essential from two standpoints...taste and profitability. Frozen product with a low percentage of overrun costs more to serve, appears wet, and is heavy. The introduction of air makes the finished frozen product taste richer. Too much air causes the finished product to be too light and fluffy, making it less satisfying and adversely affecting sales. The optimum percentage of overrun varies from one type of mix to another, but 50% overrun is a good average. The ingredients in some mixes take on and hold air easier than others. Overrun also affects profitability. For example, an increase from 25% to 50% overrun represents a mix savings of 17%.

Uniform overruns ensures consistent portion costs. If overrun is allowed to drop, it will cost more to serve a portion of finished product.

Computing Overrun

1) Weigh an empty cup.

2) Weigh this cup filled to the top with liquid mix, and subtract the weight of the cup.

Note: Repeat this step only when changing mix sources, as mix weight will vary slightly from one supplier to another.

Page 8 Crathco®5000 Series Manual

Computing Overrun (cont.)

3) Draw a heaping cup of frozen product that contains no air pockets. Note: Use a spatula or other device to help fill the cup completely. Avoid tamping the cup as this artificially reduces overrun.

4) Use a straight edge to scrape off excess product flush with the rim of the cup and weigh the cup.

5) Subtract the cup weight and use the overrun formula to determine overrun.

For Example:

If a full cup of liquid mix weighs 23 ounces (.652kg) and a full cup of frozen product weighs 15-1/2 ounces (.439kg), then:

Note: Several companies manufacture scales that automatically read out the overrun for one-pint samples. A scale of this type is a valuable tool and should be part of any well run operation. A trick is to place the empty cup on the scale and zero it out first; this will then automatically eliminate the weight of the cup from the calculation.

Overrun has a major impact on the size of the finished frozen portion. As the percentage of overrun (air in the frozen product) increases, the size of the finished portion also increases, yet the portion weight remains the same. For example, an increase from 25% to 50% overrun will yield a 20% larger portion. Customers equate size with perceived value so proper overrun will result in increased customer satisfaction. Experiment with carburetor settings to achieve optimum overrun and product quality with each mix. Some products such as Cappuccino taste better with low overrun. Experiment with different carburetor settings to find the ideal combination for each product.

Use of Stand-By Switc

The "STAND-BY" switch allows the operator to retain optimum product quality and conserve energy during extended non-draw periods. The "Stand-by" mode keeps the mix in the hopper at a safe storage temperature and allows the product in the freezing cylinder to return to a refrigerated liquid state. Switching back to "ON" quickly returns the product in the freezing cylinder to proper serving consistency.

At the start of the "STAND-BY" period:

1) Select the "STAND-BY" mode by moving the mode switch to the middle position. The front panel "STAND-BY" light will illuminate.

At the end of the "STAND-BY" period:

1) Turn the switch to the "FREEZE" position by moving the mode switch. The "FREEZE" light will illuminate.

2) When the freezer cycles off by reaching the desired temperatures you are ready to start serving.

IMPORTANT: The STAND-BY SWITCH should not be used in lieu of cleaning and

sanitizing procedures specified by local regulatory agencies.

Mix Lo

w Function

This model will sense when the mix is low in the hopper. The mix low light will illuminate continuously for 2 minutes. After 2 minutes the light will begin to blink off and on for the next 8 minutes. The buzzer in the mix out circuit is 2 minutes off and 5 seconds (or 5 beeps) on for a total of 10 minutes. At the end of the 10-minute time the

Weight of

Liquid Mix

Weight of

Frozen Product

(Minus)

x 100 = OVERRUN

Weight of Frozen Product

23-15 1/2

x 100 = 48.4% Overrun

15 1/2

Crathco®5000 Series Manual Page 9

Mix Low Function (cont.)

buzzer is out of the circuit and the light will illuminate fully again. After the 10-minute cycle the mix out safety function is activated making the unit inoperable. The machine is placed into the standby mode to prevent any damage to the machine from running dry of product. The unit can be reset back to the freeze mode by simply adding mix into the hopper.

1) If the unit is low in mix or the unit shuts down due to extended mix low condition (“Mix Low” safety function has activated), refill hopper with fresh product. The unit will automatically revert back to its original operation mode.

2) If the mix low safety function has activated disabling the unit, and the product has not been added for an extended period of time - verify the product is okay for re-use. If it is not, use fresh product to restart the

unit. Empty the unit of old product and follow sanitizing and start up procedures.

Product Tips

The 5000 Series was designed to dispense a wide variety of frozen beverages including smoothies, frozen cappuccino, shakes and frozen cocktails. These products can be served in consistencies ranging from thin to

fairly thick. For optimum long-term freezer reliability, it is recommended that product thickness not be set too thick.

Two types of white plastic dispensing valve plungers are available. One style, part W048.0462, is used to serve these thin to medium products such as cappuccino and cocktails and has one horizontal outlet slot. The other plunger, part W048.0463, is used to serve thicker product such as shakes and smoothies and has two horizontal outlet slots. These plungers are interchangeable.

Over an extended period of time some products, such as frozen cocktails that contain alcohol, have a tendency to separate, or stratify. Separation of product in the mix storage hopper can result in frozen product quality inconsistency. Simply keeping the product stirred on a regular basis will eliminate this problem.

Some of cappuccino or latte' mixes contain dairy products which can spoil if not refrigerated. If the freezer is to be turned off at night these products m

ust

be removed from the freezer. Contact your local health department

regarding its regulations for proper mix handling and storage.

Product Consistency Adjustment (see Figure I)

1) Remove the front electrical box cover by removing the two screws. (See figure C).

2) If the product in the cylinder has been frozen for more than 30 minutes, draw out 16 ounces (1/2 liter) before checking consistency.

3) Turn the consistency control knob, located at the top center of the circuit board, clockwise to achieve a colder setting or thicker product or counter-clockwise to achieve a less cold setting or less thick product. (See Figure I).

CAUTION: This control setting is very sensitive so always make small adjustments. If you visualize this control as a clock face, with the adjuster set all the way counter-clockwise it would be 5:00. A recommended setting is 7:00. This would be the warmest setting the machine has. A one-hour change will make a noticeable difference in product consistency.

Figure C

Location of electronic control board



Page 10 Crathco®5000 Series Manual

Product Consistency Adjustment (cont.)

4) When making adjustments to a thicker (colder) setting, dispense approximately 16 ounces (1/2 liter) of product and recheck consistency after the compressor has cycled off.

5) If the consistency is still not correct, repeat steps 2 and 3.

"Standby" - Freezing Cylinder Temperature Adjustment

1) Remove the front electrical box cover. (See Figure C).

2) For a colder setting, turn the "Barrel" control adjuster, located at the top left of the circuit board, counter clockwise. (See Figure I).

CAUTION: This control setting is very sensitive so always make small adjustments. If you visualize this control as a clock face, a one-hour change will make noticeable difference in freezing cylinder product temperature. A recommended setting is 11:00.

Hopper Temperature Adjustment

1) Remove the front electrical box cover.

2) For a colder setting, turn the "Hopper" control adjuster, located at the top left of the circuit board, counter

clockwise. (See Figure I).

CAUTION: This control setting is very sensitive so always make small adjustments. If you visualize this control as a clock face, a one-hour change will make a noticeable difference in hopper product temperature. A recommended setting is 10:00.

Note: Some models will have a built in feature (in the freeze mode) that will make the machine inoperable if

the mix gets low and is not refilled after ten minutes. (The normal sequence is five beeps every two minutes for a total of ten minutes, then shut down occurs until the unit is refilled). These same units will also have a forty-five second dasher run time after the compressor turns off.

Consistenc

y Control - Overvie

The “freeze” mode consistency setting adjusts the frozen product thickness. In the “freeze” mode, as the liquid mix in the cylinder freezes, it becomes harder for the motor to turn the dasher assembly. The control board senses the amount of energy that the drive motor consumes as it rotates the dasher assembly through the product in the cylinder. The control board will turn the compressor and barrel solenoid valve off at the proper consistency. The drive motor will continue to run for 45 seconds after the compressor is cycled off. This is called the blending cycle. After the blending cycle is complete the drive motor also is shut off. The drive motor and compressor will run together at any time refrigeration is required in the barrel. The compressor will run independently for the hopper if required. The hopper is controlled by temperature. The thermistor will signal the board and the board will start the compressor and open the hopper solenoid valve.

The unit will remain off until either the timer in the control board (either 10 or 15 minutes dependent upon which value is selected) restarts the drive motor. In this case the drive motor will run for 45 seconds and if no refrigeration is required the drive motor will then shut off. If refrigeration in the barrel is required the freeze cycle is repeated as well as the blending cycle. The unit will also restart the drive motor if the plunger is raised. The plunger switch will start the drive motor and remain on as long as it is held open. After the plunger is closed, the drive motor will continue to run for 45 seconds. The compressor will start, and barrel solenoid valve will open. If refrigeration is required during this time the freeze cycle and blend cycle will follow.

CAUTION: SHOCK HAZARD

THIS ADJUSTMENT REQUIRES REMOVAL OF THE ELECTRICAL BOX COVER AND SHOULD BE MADE BY A QUALIFIED SERVICE TECHNICIAN.



Crathco®5000 Series Manual Page 11

Consistency Control - Overview (cont.)

In the “standby” mode the control board senses the temperature of the product in the barrel. The drive motor is cycled on time only. It will operate for 2 minutes ON then 18 minutes OFF as long as it is in “standby”. The compressor and drive motor are cycled independently for the barrel in the “standby” mode. Once the barrel thermistor signals to the board, the board will start the compressor and the barrel solenoid valve will open as refrigeration is required. It will continue to run until satisfied. The plunger switch is disabled and the drive motor will not start when the plunger is opened. The hopper is still controlled by temperature. If the thermistor signals a raise in temperature the compressor will start and the hopper solenoid valve will be opened. It will continue to run until satisfied.

In the “clean” mode the drive motor will run continuously. (The compressor will not run in the “clean” mode.) This is for emptying out product for cleaning purposes.

There are eleven (11) lights on the circuit board that indicate the following: (See Figure I)

BARREL (D1) - Illuminated when the freezing cylinder (barrel) has achieved the pre-set temperature in the "Standby" mode.

HOPPER (D2) - Illuminated when the hopper has achieved the pre-set temperature in the "Standby" mode.

WASH (D3) - Illuminated when the mode switch is in the wash or "Clean" position.

FREEZE (D4) - Illuminated when the mode switch is in the "Freeze" mode.

DISPENSE (D5) - Illuminated when the dispensing valve is open calling for both the compressor and drive motor to operate.

GREEN CONSISTENCY (D6) - Off when the motor and compressor are off. Illuminated when the compressor and dasher are bringing product to preset consistency. Blinks as preset consistency is achieved and then goes out.

RED CONSISTENCY (D7) - Blinks as preset product consistency is approached. Glows steadily when preset consistency is achieved and then goes out.

COIL (D8) - Compressor contactor energized

COIL (D9) - Drive motor coil energized

COIL (D10) - Hopper refrigeration solenoid coil energized

COIL (D11) - Freezing cylinder refrigeration solenoid coil energized

Figure I Electronic Control Board

Page 12 Crathco®5000 Series Manual

CARE AND CLEANING

Note: Each time the freezer is disassembled, all internal freezer components must be thoroughly washed, scoured,

and sanitized using procedures recommended by your local health department. In lieu of local health department recommendations, use a three compartment sink; one compartment to wash parts in detergent, one compartment to rinse, and one to sanitize.

Drain and Rinse

1. If the freezer is empty, proceed to “Cleaning Following Complete Disassembly of Unit” or “Daily Cleaning Procedure”. If the freezer is full of product, turn the mode switch to "CLEAN".

2. On freezers using the optional electric pump and tank assembly and optional Remote Fill Control, turn the switch on the Remote Fill Control to "OFF" and unplug the pump.

3. On freezers using the optional Remote Fill Control and Proportioning Pump, turn off the water valve on the Proportioning pump, using the valve next to the inlet pressure regulator.

4. Open the front dispensing valve and drain all product from the freezer. Close the dispensing valve and turn

freezer to "OFF".

Note: Use approximately 2-1/2 gallons (10 liters) of cool water to rinse product out of the freezer.

5. Remove the carburetor tube and pour water into the storage hopper. Allow the water to fill the freezing cylinder.

6. Turn the mode switch to "CLEAN" for 5 minutes.

7. Open the dispensing valve and drain the water from the freezer.

Daily Cleaning Procedure (Clean-in-place)

1. Pull out valve handle retaining pin while supporting the valve plunger from the bottom (figure J). Push up on

the valve plunger and remove the stainless handle (figure K). Slide the valve plunger and spring downward to remove (figure L). Remove the plunger “O” Rings as shown in figure M.

Figure J Remove Pin

Figure K Remove Handle Figure L Remove Plunger and Spring

Crathco®5000 Series Manual Page 13

Daily Cleaning Procedure (cont.)

Note: The best way to remove an “O” Ring is to first wipe off all of the lubricant

using a clean paper towel. Pinch the “O” Ring upward with a dry towel between your index finger and thumb. When a loop is formed in the “O” Ring, roll it out of the groove with your other thumb. Always remove the “O” Ring farthest from the end of the plunger first. (See figure M).

2. Take all components to the cleaning area.

3. Carefully inspect the “O” Rings and replace if necessary.

Cleaning Carb

uretor,

Dispensing Valve and Plunger Assembl

1. Prepare 1 gallon solution of hot tap water and a good grade of dish washing detergent.

2. Thoroughly wash valve plunger, spring, carburetor assembly and all “O” Rings in detergent solution.

3. Using medium sized brush (supplied with freezer) clean the bottom of the valve body and the inside of the plunger bore with detergent solution taking care to remove all remaining lubricant (figure N).

Sanitizing Carb

uretor and Valve Components

1. Re-assemble carburetor assembly installing the two “O” Rings at the bottom of the carb tube.

2. Place the carburetor assembly in the bottom of the hopper.

3. Replace “O” Rings on valve plunger and lay plunger assembly on a clean piece of paper towel.

4. Prepare a minimum of 4 gallons (15 liters) of sanitizing solution (Stera Sheen Green Label or equivalent) following the manufacturer’s instructions.

Note: Add 4 ounces of Stera Sheen to 4 gallons (15 liters) of 120° Fahrenheit (50° Centigrade) water to achieve a concentration of 100 parts per million.

5. Dip the medium sized brush (supplied) into the sanitizing solution and sanitize the inside bore of the dispensing valve (figure O).

6. Place a small amount of sanitary lubricant onto a piece of clean paper toweling (figure P).

7. Use a clean piece of paper toweling to pick up the small end of the valve plunger assembly. Apply the lubricant on the other piece of paper toweling to the “O” Rings on the valve plunger assembly (figure P).

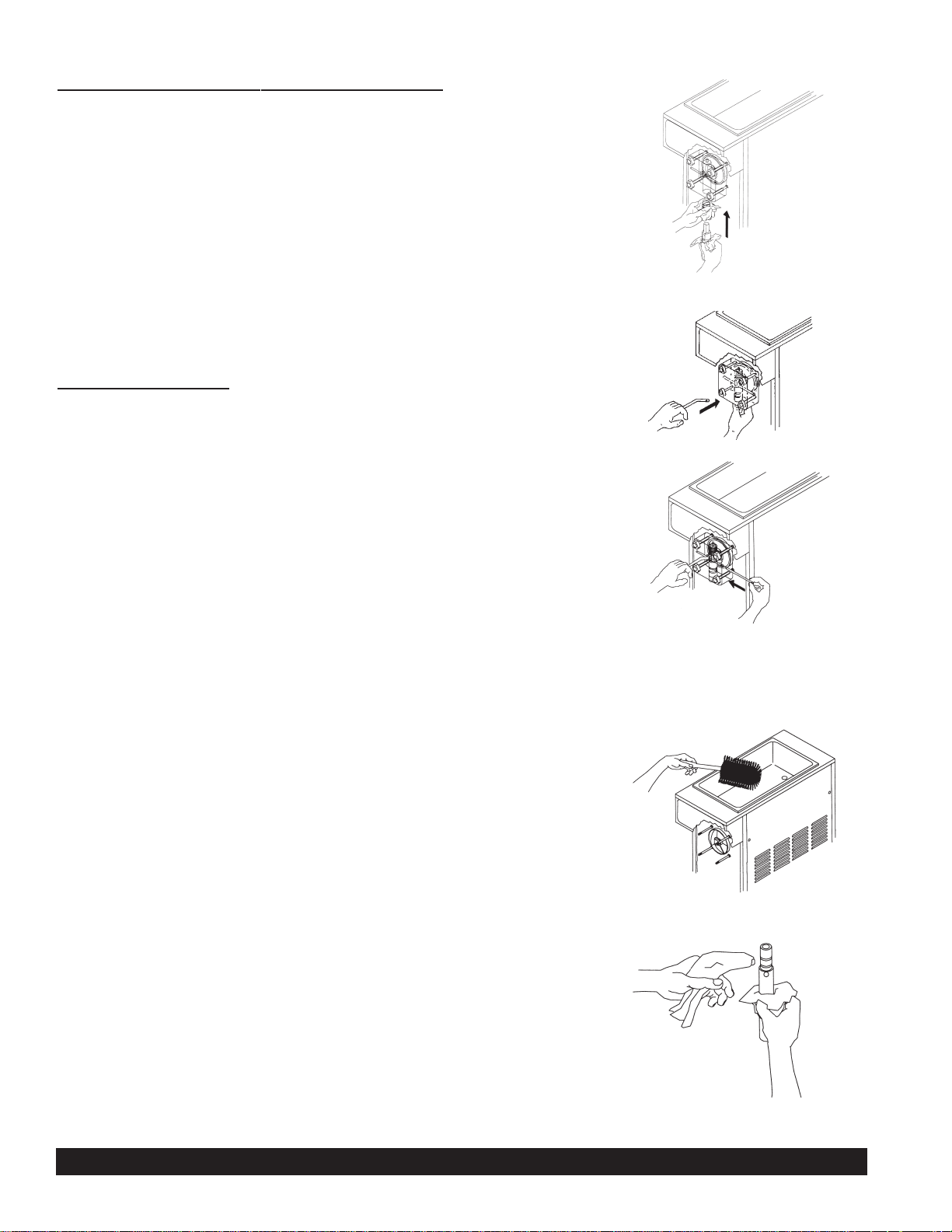

Figure M Ring Removal

Figure N Clean Valve Body

Figure O Sanitize Valve Body

Figure P Lubricate Plunger

Page 14 Crathco®5000 Series Manual

Sanitizing Carburetor and Valve Components (cont.)

8. Slide the valve plunger spring over the small end of the valve plunger and, using another clean piece of paper toweling, pick up the valve plunger at the outlet end and insert plunger and spring into the valve body (figure Q).

9. Push up on the valve plunger and insert the stainless steel handle (figure R).

10. Insert the dispensing valve handle retaining pin (figure S)

Sanitizing and Refilling

1. Pour sanitizing solution into the mix storage hopper and allow the solution to fill freezing cylinder. Use a large brush (supplied) to sanitize all hopper surfaces (figure T).

2. Turn panel switch to “CLEAN” and allow freezer to run for 20 minutes.

3. Open dispensing valve and drain solution. Allow the auger to push remaining sanitizer out of the freezing cylinder.

4. Place a small amount of sanitary lubricant onto another piece of clean paper toweling (figure U).

5. Use a clean piece of paper toweling to pick up the large end of the carburetor from the bottom of the hopper taking care not to touch the sanitized carburetor with your bare hands.

6. Apply the lubricant on the other piece of paper toweling to the two “O” Rings on the bottom of the carburetor assembly (figure U).

7. Place the lubricated carburetor assembly on a clean piece of paper toweling.

8. Use either fresh product or mix new product according to manufacturer’s instructions.

9. Fill mix storage hopper with product.

10. Open dispensing valve. Pour product into the hopper and allow this product to chase out any remaining sanitizer.

Figure Q Installing Plunger and Spring

Figure S Insert Retaining Pin

Figure T Sanitize Hopper

Figure U Lubricate Carb Tube

Figure R Insert Valve Handle

Crathco®5000 Series Manual Page 15

Sanitizing and Refilling (cont.)

11. Watch the product flowing out of the dispensing valve and close the valve when the sanitizer remaining in the cylinder has been purged by the new mix.

12. Use a clean piece of paper toweling to insert the sanitized carburetor assembly into the inlet hole in the hopper (figure V).

13. Fill mix storage hopper with fresh product.

14. Turn front panel switch to “ON”. Allow approximately 20 to 30 minutes for the freezer to reach proper consistency.

Cleaning Follo

wing Complete Disassembly of Unit

1. Remove knobs and carefully remove the front dispensing

valve assembly.

2. Disassemble the dispensing valve assembly by removing the

retaining pin, pushing up on the plunger assembly and pulling out the handle. This will allow the plunger assembly, complete with O-Rings, to be removed as a unit. Remove the spring. Remove the O-Rings from the plunger assembly and back of the dispensing valve body. (See Figure W.)

Note: The best way to remove an O-Ring is to first wipe off all of the lubricant using a clean paper towel. Pinch the O-Ring upward with a dry towel between your index finger and thumb. When a loop is formed in the O-Ring, roll it out of the groove with your other thumb. Always remove the O-Ring farthest from the end of the plunger first. (See Figure X).

Note: Carefully inspect the O-Rings and replace if necessary.

3. Remove the dasher assembly taking care to avoid damaging the rear

seal assembly at the back of the freezing cylinder.

4. Remove stationary portion of the shaft seal assembly from the back end

of the freezer cylinder. This is accomplished by reaching into the cylinder and pulling seal out with your index finger. (See Figure Y)

5. Slide the rotary seal off the the auger shaft. Inspect both seal compo-

nents carefully for nicks or cracks. Replace seal if defective.

Note: To prevent leakage, both surfaces of the seal must be smooth with no chips or cracks. Wash all components in a detergent solution, sanitize and allow to air dry.

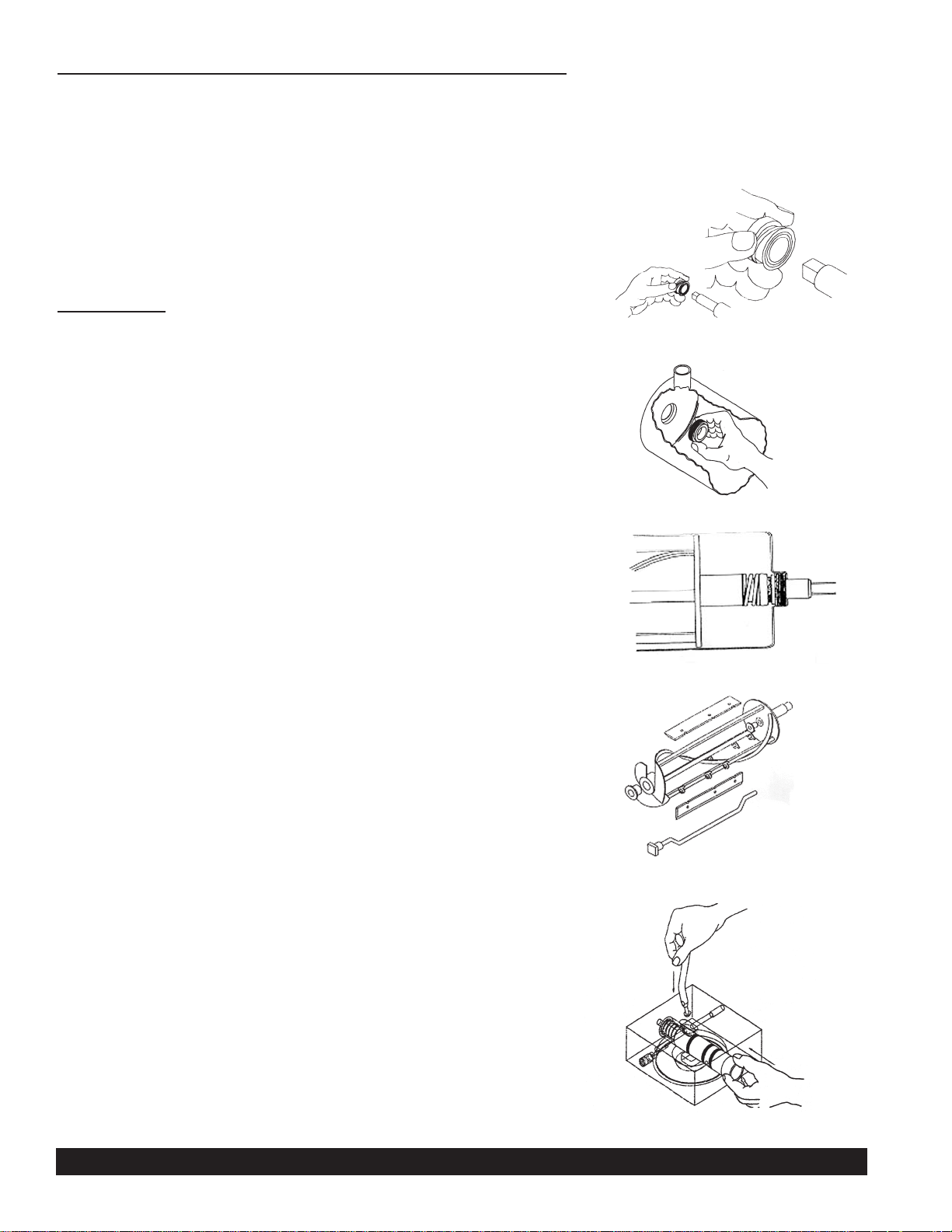

Figure V Carb Tube

Figure X O-Ring Removal

Figure W Exploded View of Dispensing Valve

Figure Y Remove Stationary part of seal

Page 16 Crathco®5000 Series Manual

Cleaning Following Complete Disassembly of Unit (cont.)

IMPORTANT: After disassembly, thoroughly scour each part of the freezer in a warm mild detergent solution including the inside of the freezing cylinder and the mix storage hopper. Rinse each part with clear water. Prepare a minimum of 3-1/2 gallons (13 liters) of sanitizing solution (Divorsol CX or equivalent) following the manufacturer's instructions.

Note: Add 3 ounces (85.4 mg) of Divorsol CX to 3-1/2 gallons (13 liters) of 120° Fahrenheit (50° Centigrade) water to achieve a concentration of 200 parts per million. Dip or wipe each part in sanitizing solution and allow them to dry on clean paper toweling.

Reassembly

1. Wet the inner rubber lip of the rotary portion of the seal and the back end of the auger shaft with water. Slide rotary portion of assembly onto the auger shaft, RUBBER FIRST, with the smooth

sealing surface toward the back of the auger. (See Figure Z)

2. Insert the stationary portion of the seal into the grooved rubber boot with the polished surface facing out (forward). Lubricate the grooved exterior portion of the boot and insert it straight back into recess at the back of the freezing cylinder, RUBBER FIRST. (See Figure AA & BB)

Note: If the circular portion of the seal is white, make sure that the groove is toward the rubber (back of freezer).

3. Reassemble the dasher assembly, as shown in Figure CC. Insert the larger front and smaller rear white plastic bearings into dasher, then slip in the stator rod. Attach scraper blades.

Carefully and slowly guide the auger into the freezing cylinder taking care not to damage the seal assembly. Turn auger shaft

until it engages the square drive coupling.

4. Reassemble the dispensing valve assembly as shown in Figure DD. Thoroughly wash and sanitize all components, lubricate the inside bore of valve body with a thin film of food grade sanitary lubricant. Reinstall the O-Rings on the plunger assembly and lubricate the entire plunger. Reassemble the valve and replace the retainer pin. Inspect and lubricate the large O-Ring and refit it into the rear of

the valve assembly. Install the valve assembly on the front studs

and tighten knobs until they are finger tight.

Do not use tools to tighten knobs.

Figure Z Reassemble rotary

portion of seal as shown

Figure AA Installing the stationary

portion seal

Figure CC

Figure DD

Figure BB Seal Assembly installed correctly

Crathco®5000 Series Manual Page 17

Reassembly (cont.)

5. Disassemble the carburetor assembly and remove the O-Rings. Wash and sanitize all parts.

6. Reinstall and lubricate the O-Rings and slip on the outer tube if equipped. (See Figure EE)

Sanitizing and Refilling

1. Prepare a minimum of 3-1/2 gallons (13 liters) of sanitizing solution (Divorsol CX or equivalent) following the manufacturer's instructions.

Note: Add sanitizer to 3-1/2 gallons of water (warm) to achieve a concentration of 200 parts per million.

2. Pour sanitizing solution into the mix storage hopper and allow the solution to fill freezing cylinder. Use a brush to clean the hopper sides and bottom.

3. Turn panel switch to "CLEAN" and allow freezer to run for 5 minutes.

4. Open dispensing valve and drain solution. Turn freezer to "CLEAN" for a few seconds to allow the auger to push remaining sanitizer out of the freezing cylinder.

5. If you are using a concentrated product, mix the product according to the manufacturer's instructions.

6. Open dispensing valve. Pour product into the hopper and allow this product to chase out any remaining sanitizer. Watch the product flowing out of the dispensing valve and close the valve when the new mix has purged the sanitizer remaining in the cylinder.

7. Sanitize and install the carburetor. (Figure R). Refill mix hopper.

8. Turn front panel switch to "ON". Allow approximately 20 to 30 minutes for the freezer to reach proper

consistency.

MAINTENANCE

Sug

gested Weekly Maintenance

1. Clean, lubricate and sanitize the freezer following guidelines in (Care and Cleaning).

2. Clean the exterior of the freezer using a soft wet cloth.

Thick product

carb tube

Low overrun

carb tube

Standard

carb tube

Figure EE

Page 18 Crathco®5000 Series Manual

How to Clean Exposed Filter:

1. Slide exposed filter out of the rails by pulling forward on the filter. It is recommended to remove the filter by using the palm of your hand and applying even pressure to the face of the filter.

2. Clean filter with liquid soap and water.

3. Soak filter for 15 minutes.

4. Rinse filter with heavy stream of water, opposite the direction of air flow. Allow filter to dry.

5. Slide the filter into the rails until the filter contacts the stop on the top rail.

How to Clean Concealed Filter:

1. For concealed filters lift lid and pull up on filter tab to remove filter.

2. Clean filter with liquid soap and water.

3. Soak filter for 15 minutes.

4. Rinse filter with heavy stream of water, opposite the direction of air flow. Allow filter to dry.

5. Slide filter into top of filter cover with removal clip up and the air flow arrows facing the existing panel.

CAUTION: Disconnect power for maintenance. Do not attempt to perform maintenance on the freezer

until electrical power has been disconnected.

How to Clean Condenser

Note: Loss of refrigeration efficiency will result if condenser is allowed to become dirty. Excessive compressor run

time or loss of capacity is a good indication that the condenser needs to be cleaned.

1) Disconnect electrical power.

2) Remove side panels.

3) Place a damp towel over the side of condenser opposite the fan motor.

4) Use compressed air or CO

to blow out dirt from the fan side of the condenser.

5) An alternate cleaning method is to use a condenser brush and a vacuum cleaner.

CAUTION: Procedure can create a loud noise.

Ann

ual Maintenance

1. Disconnect electrical power.

2. Clean condenser.

3. Remove dispensing valve assembly and replace all O-Rings. (See Care and Cleaning).



Crathco®5000 Series Manual Page 19

Ann

ual Maintenance (cont.)

4. Remove dasher assembly, inspect stator bearings and replace shaft seal set. (See Care and Cleaning).

5. Remove rear panel and inspect "V" belt.

6. Inspect the drive shaft square hole for wear (rounding-out).

7. Check drive shaft and motor shaft bearings for excessive wear.

8. Reinstall side and back panels.

9. Re-connect power supply.

Belt Adjustment

Check the belt tension. The proper belt deflection is 1/2" overall. If the deflection is more than 1/2" the motor will need to be lowered. If the deflection is less than 1/2" the motor will need to be raised. Follow this procedure to adjust the motor to achieve proper belt tension.

1) Unplug the machine and remove both side and the rear panels.

2) Locate the motor flange bearings (#W038.0009). These are the pillow block bearings that hold the motor to the cradle. The motor is double shafted and the shaft extends through a bearing on each end. The bearing is held to the motor cradle by two allen bolts on each bearing.

3) Loosen the allen bolts on each bearing. Do not loosen the set screws that hold the bearing collar to the motor shaft.

4) Lower the motor or raise the motor as needed. The motor must be kept level from front to back. Do not lower or raise only one end of the motor. This will result in excessive belt wear and belt noise.

5) Tighten all four allen bolts down. Align the motor pulley with the top pulley if needed.

6) The motor pulley should be in alignment with the large (driven) top pulley. Use a straight edge along the

top pulley.

7) If the pulleys are not in alignment, remove the setscrew from the motor pulley and move either in or out as needed.

8) Reinstall the setscrew. Use non-permanent loc-tite on the setscrew and tighten it back down on the motor shaft. Be sure the setscrew is tightened down flat on the motor shaft.

9) Return the unit back to service.

CAUTION: Unplug the machine before performing any adjustments. This procedure must be done by a qualified technician.



Page 20 Crathco®5000 Series Manual

5311 FREEZER SPECIFICATIONS:

5511 FREEZER SPECIFICATIONS:

Circuit NEMA# NEMA 5-20R

Electrical

115 volt, 60 Hz, 1 Phase Dedicated 20 Amp circuit

Drive Motor 1/4 hp, Capacitor Start/Run

Compressor 3/4 hp

Cooling Air Cooled (Optional Water Cooled)

Actual Weight 175 lbs. (79.4 kg)

Mix Hopper Capacity 5 gallons (18.9 liters)

Freezing Cylinder Capacity 1-1/2 gallons (5.7 liters)

Refrigerant See Serial Number Plate

Refrigerant Charge See Serial Number Plate

High Side (approximate operating pressure) 275 to 350 psi (19 to 25 k/cm)

Low Side (approximate operating pressure) 35 (w/ standard) to 45 (w/ scraper blade auger) psi (2.5 to 3 k/cm)

High Side Design Pressure 420 psig

Low Side Design Pressure 174 psig

Circuit NEMA# NEMA 6-20R

Electrical

208 volt, 60 Hz, 1 Phase Dedicated 20 Amp circuit

Drive Motor 1/2 hp, Capacitor Start/Run

Compressor 1 hp

Cooling Air Cooled

Actual Weight 185 lbs. (84 kg)

Mix Hopper Capacity 5 gallons (18.9 liters)

Freezing Cylinder Capacity 1-1/2 gallons (5.7 liters)

Refrigerant See Serial Number Plate

Refrigerant Charge See Serial Number Plate

High Side (approximate operating pressure) 275 to 350 psi (19 to 25 k/cm)

Low Side (approximate operating pressure) 40 psig (w/ scraper blade auger)

High Side Design Pressure 460 psig

Low Side Design Pressure 174 psig

5941 FREEZER SPECIFICATIONS:

Circuit NEMA# NEMA 5-15R

Electrical

115 volt, 60 Hz, 1 Phase 15 Amp circuit

Drive Motor 1/4 hp, Capacitor Start/Run

Compressor

N/A; Note: Freezer must not be connected to a condensing unit less than 2 hp.

Actual Weight 140 lbs. (63.5 kg)

Mix Hopper Capacity 5 gallons (18.9 liters)

Freezing Cylinder Capacity 1-1/2 gallons (5.7 liters)

Refrigerant See Serial Number Plate

Refrigerant Charge See Serial Number Plate

High Side (approximate operating pressure) 240 to 270 psig (ambient dependent)

Low Side (approximate operating pressure) 38 to 32 psig (load dependent)

High Side Design Pressure 420 psig

Low Side Design Pressure 174 psig

Crathco®5000 Series Manual Page 21

Par t

Description

Monthly

Every

3 Months

Every

6 Months

Annually

Quantities

to be

Replaced

Shaft seal Inspect &

replace if necessary

Inspect & replace if necessary

Thick Product plunger:2 Standard Product plunger:3

X 2 or 3

Inspect & replace if necessary

Maximum 1

Inspect & clean if necessary

Maximum 1

Drive shaft

Drive belts

Scraper blades on dasher

Square cut o-ring on valve body/face plate

Front stator flange bearing

Rear stator flange bearing

Dispense valve o-rings

Carb tube o-rings

Cleaning brush

Condenser

Refer to the Crathco Parts Price List when ordering the above parts

Page 22 Crathco®5000 Series Manual

TROUBLESHOOTING

Only a qualified service technician should perform electrical and mechanical adjustments or repairs. Always disconnect power before attempting any maintenance procedures.

Problem

Possible Cause

Solution

Freezer will not run or freeze down

• Freezer not plugged in

• Circuit breaker tripped or fuse blown

• Freezer in "CLEAN" position

• Dasher or scraper blades not installed

• Obstructed condenser air flow

• Freezer in "Stand-by" mode

• (Model 5511) High pressure safety

switch tripped.

• Plug in machine

• Reset breaker or replace fuse

• Switch to "FREEZE"

• Install dasher and blades

• Allow 6” (15cm) on sides

• Switch to "FREEZE"

• Clean condenser, check for 6" air clearance on each side of unit

Product too soft

• Improper consistency control setting

• Mixed soft, no overrun

• Carburetor set incorrectly

• Extended non-draw period

• Re-adjust consistency control

• Drain and refill with fresh mix

• Re-adjust carburetor

• Use STANDBY during slow business periods

Improper product taste

• Mix spoiled

• Used rerun/leftover mix

• Frozen product too fluffy and icy (Product frozen too long, low draw)

• Check date code, use only fresh mix

• Use only fresh mix

• Draw out 1 quart (1 liter),

dispose of product. Allow product to refreeze

Frozen product too stiff, or freezer runs continuously

• Consistency control set too firm

• Dispensing valve not fully closed

• Re-adjust consistency control

• Close valve, lubricate properly

Frozen product not dispensing

• Power switch OFF

• Insufficient mix in storage hopper, light on, beeper

• Carburetor in off position,

between holes

• Carburetor inlet hole clogged

• Foam buildup, liquid mix cannot feed properly

• Drive belt broken or off of pulley

• Machine in STAND-BY mode

• Turn Power Switch to ON

• Refill storage hopper

• Set carburetor to proper hole size

• Unclog carburetor

• Remove foam from hopper using sanitized utensil

• Replace or repair

• Set switch to FREEZE

Liquid coming out of drain tube, front of freezer

• Worn, defective or improperly installed seal

• Replace and lubricate per manual

Excessive dispensing valve leakage

• Worn or defective O-Rings

• Replace and lubricate at each cleaning

Scraping sound during freeze down

• Frozen product scraping off of cylinder walls

• Normal sound during freeze down, goes away when product is frozen to proper consistency



Crathco®5000 Series Manual Page 23

TROUBLESHOOTING (cont.)

Problem

Possible Cause

Solution

Clicking sound from electrical box

• Low voltage

• Extension cord or improperly sized electrical wire

• Connect freezer to dedicated circuit of proper rating

• Connect freezer directly to power source using properly sized wiring

Merchandiser light flickers when freezer cycles

• Low voltage

• Connect freezer to dedicated circuit or proper rating

Thumping sound from inside freezer

• Worn drive belt

• Replace belt

If you still need help, call our service department at (800) 695-4500 (USA & Canada only) or (502) 425-4776 (Monday through Friday, 8 am - 8 pm EST) or an authorized service center in your area. Please have the model and serial numbers ready so that accurate information may be given.

Prior authorization must be obtained from Grindmaster Corporation’s Technical Services Department for all warranty claims.

Page 24 Crathco®5000 Series Manual

Exploded View Model 5311

Optional X-large drip pan

for units with spinners

Optional Thick Product plunger

Optional Dasher

Part #0430026

5 10 22 23 25 27 30 32 33 34 35 36 37 38 39 44 48 49 58 61

100 107 120 121 137 138 139 140 141 142

W0110002 W0210171 W0520063 W0520064 W0520065 W0340022 W0340058 W0340210 W0389001 W0430024 W0430028 W0430032 W0430089 W0450008 W0450209 W0451067 W0520094 W0480445 W0480450 W0572286 W0572340 W0630711 W0650913 W0212081 W1431084 W0472064 W0472063 W0472062 W0631631 W0631632 W0670007

Valve Stud Frame Assembly Stainless Steel Rear Panel Stainless Steel Side Panel Left Stainless Steel Side panel Right 213 O-Ring Barrel Gasket Seal Set Standard Modified Flange Bearing Blind Flange Bearing Stator Rod Weldment Stator Flange Bearing Scraper Dasher Pulley (10 inch) Drive V-Belt Drive Shaft Hopper Cover Black Valve Handle Valve Body Electrical Box Cover Electrical Box Assembly Valve Knob Circuit Board Base Assembly Scraper Blade Drip Pan Bracket Drip Pan Insert Drip Pan Form Plastic Drip Pan (white) Plastic Drip Pan (black) Sound Insulation

Item Part Number Description

Crathco®5000 Series Manual Page 25

Exploded View Model 5511

5511-0109-015-3-20-00

5 10 22 23 27 30 32 33 34 35 36 37 38 39 44 45 46 47 48 49 58 61

100 107 120 121 136 137 138

W0110002 W0210171 W0520063 W0520064 W0520065 W0340058 W0340210 W0380025 W0430024 W0430028 W0430032 W0430089 W0450053 W0450209 W0451067 W0520094 W0472062 W0472063 W0631632 W0480445 W0480450 W0572452 W0572454 W0630711 W0650913 W0212000 W1431084 W0201335 W0570617 W0570619

Valve Stud Frame Assembly Stainless Steel Rear Panel Stainless Steel Side Panel Left Stainless Steel Side Panel Right Barrel Gasket Shaft Seal Set Flange Bearing Blind Flange Bearing Stator Weldment Stator Flange Bearing Scraper Dasher Pulley (10 inch) V-Belt Slush Drive Shaft Hopper Cover, Black Drip Pan Bkt For X-LG Drip Pan Insert Plastic Drip Pan Black Valve Handle Valve Body Electrical Box Cover Electrical Box Assembly Valve Knobs Circuit Board Base Assembly Shake Machine Scraper Blade Evaporator Assembly Run Capacitor Start Capacitor

Item Part Number Description

Page 26 Crathco®5000 Series Manual

Exploded View Model 5941

5941 EXPLODED VIEW

ITEM NO.

10 1 W0572458 13 1 W0572452 Electrical Box Cover 14 1 W0480450 15 1 W0340055 17 1 W0480445 VALVE HANDLE 19 1 W0340058 Barrell Gasket 20 1 W0520097 Panel, Rear 5941 21 1 W0520107 Left Side Panel 22 1 W0520065 23 1 W0430089 24 2 W1431084 25 1 W0430028 STATOR WELDMENT PICKLED 26 1 W0430032 STATOR FLANGE BEARING 27 1 W0430024 REAR STATOR BEARING 28 3 W0340022 29 1 W0472062 30 1 W0631632 31 1 W0472074 32 1 W0472064 33 1 W0480462 34 2 W0470015 35 1 W0210258 SPINNER BRKT ASSEMBLY, LEFT 36 4 W0630711 Valve Knob

QTY. PART NUMBER DESCRIPTION

1 1 W0210257 BASE ASSEMBLY 2 1 W0211232 FRAME ASSEMBLY 3 1 W0201346 EVAPAORATOR ASSY, 5311 & 5511 4 4 W0110013 STUD, VALVE NEW STYLE 6 1 W0450053 PULLEY, 10" W/ 1" BORE 7 1 W0450209 V-BELT 3L460 X 3/8" FHP 8 1 W0520094 9 1 W0340201 Shaft Seal Set

Hopper Cover Single

Electrical Box Assy. 5941

Valve Body Valve Square Cut O-Ring

Right Side Panel Dasher, Scraper Scraper Blade, New Style

Plunger O'Rings Pan,Drip Form X-LG Drip Tray Insert, Drip Pan Drip Pan Bracket Plunger, Standard Product 5000 Spinner, DMC180

Crathco®5000 Series Manual Page 27

Exploded View Model 5311 Base Assembly

Item Part Number Description

1 2 3 4 5 6 7 8

9 10 11 12 14

W0210169 0W200123 W0200256 W0200411 W0200412 W0200413 W0201079 W0210041 W0320019 W0320209 W0320286 W0321013 W0380009

Motor Cradle Compressor Condenser Fan Mount Bracket Compressor Spacer Compressor Grommet Fan Shroud Frame Bottom Plate Drive Motor Fan Motor Fan Blade Motor Adj. Nut Flange Bearing

Item Part Number Description

15 16 17 18 19 20 21 22 23 24 25 26 30

W0450016 W0610110 W0610264 W0321025 W0611055 W0611074 W0611082 W0611235 W0611246 W0610657 W0611255 W1611005 W0340111

Pulley #8 X 3/8 Pan Hd.. 10-24 X 1/4 Truss Hd. Motor Stop Bracket 10-24 Hex Nut 1/4-20 Hex Nut 5/16-18 Flange Nut 3/16 Flat Washer 1/4 Lockwasher 5/16-18 X 1/2 Cap 5/16 Split Washer 1/4-20, NC, ESNA Isolation Bumper

Page 28 Crathco®5000 Series Manual

Exploded View Model 5511 Base Assembly

5511-0107-021-5-15-00

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 18 20 21 23 24 27 28 29 30 31 32 33

W0210169 W0200133 W0200256 W0200411 W0200412 W0200413 W0201079 W0210041 W0320020 W0320220 W0320286 W0321013 W0671017 W0380009 W0450016 W0321025 W0611074 W0611082 W0611246 W0610657 W0671018 W0671021 W0671022 W0340111 W0630421 W0610559 W0611248

Motor Cradle Compressor Condenser Fan Mount Bracket Compressor Spacer Compressor Grommet Fan Shroud Frame Bottom Plate Drive Motor Fan Motor Fan Blade Motor Adj. Nut Sound Insulation (Fan) Flange Bearing Pulley Motor Stop Bracket 1/4-20 Hex Nut 5/16-18 Flange Nut 1/4 Lock Washer 5/16-18 x 1/2 Cap Sound Insulation (Cond) Sound Insulation (Shro) Sound Insulation (Motor) Isolation Bumper Nylon Cable Clamp Screw, 1/4-20 x 1 socket Hd. Cap Lock Washer, 1/4” Split z/p

Item Part Number Description

Crathco®5000 Series Manual Page 29

Exploded View Model 5941 Base Assembly

ITEM

QTY. PART NUMBER DESCRIPTION

NO.

1 1 W0210044 BASE PAN ASSEMBLY

2 1 W0210169 CRADLE, MOTOR 3312/5311

3 1 W0320019 MOTOR, DRIVE DUAL CYCLE 1/2 HP

4 1 W0321025

5 2 W0321013 NUT, MOTOR ADJUSTMENT

6 2 W0380009 BEARING, 1" BORE FLANGE

7 1 W0450016 PULLEY, 0K7 X 1/2" BROWNING

8 1 W0340111 BUMPER, ZB-1214 MINOR RUBBER

9 2 W0611044 8-32 Hex Nut Z/P

10 4 W0610559

11 4 W0611249

12 1 W0611082 NUT, 5/16-18 FLANGE, LARGE

13 2 61250

Motor Stop Brkt Assy

Washer, Split, Lock, Z/P

Washer, #8 Split Lock

Page 30 Crathco®5000 Series Manual

5311 Base Assembly Refrigeration

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

W0650501 W0200314 W0650112 W0200123 W0200256 W0650104 W0201120 W0201331 W0620109 W0201114 W0201113 W0201323 W0620102 W0620110 W0201324 W0201325 W0201326 W1650002 W0620103 W0201039

Access Valve Capillary Tube, .042 x 12 Ft. Filter Drier Compressor Condenser Automatic Expansion Valve Hopper Coolant Lines Suction Line 3/8" x 3/8" x 1/4" Tee Evaporator Line Suction Line Exp. Valve Solenoid Coolant Line 1/4" x 1/4" x 1/4" Tee 1/4" Copper Elbow Filter/Condenser Coolant Line Coolant Line Solenoid/Cap Tube Line Solenoid Valves 3/8" Straight Couple Compressor/Condenser Hot Gas Line

Item Part Number Description

5311-105-021-4-29-00

Crathco®5000 Series Manual Page 31

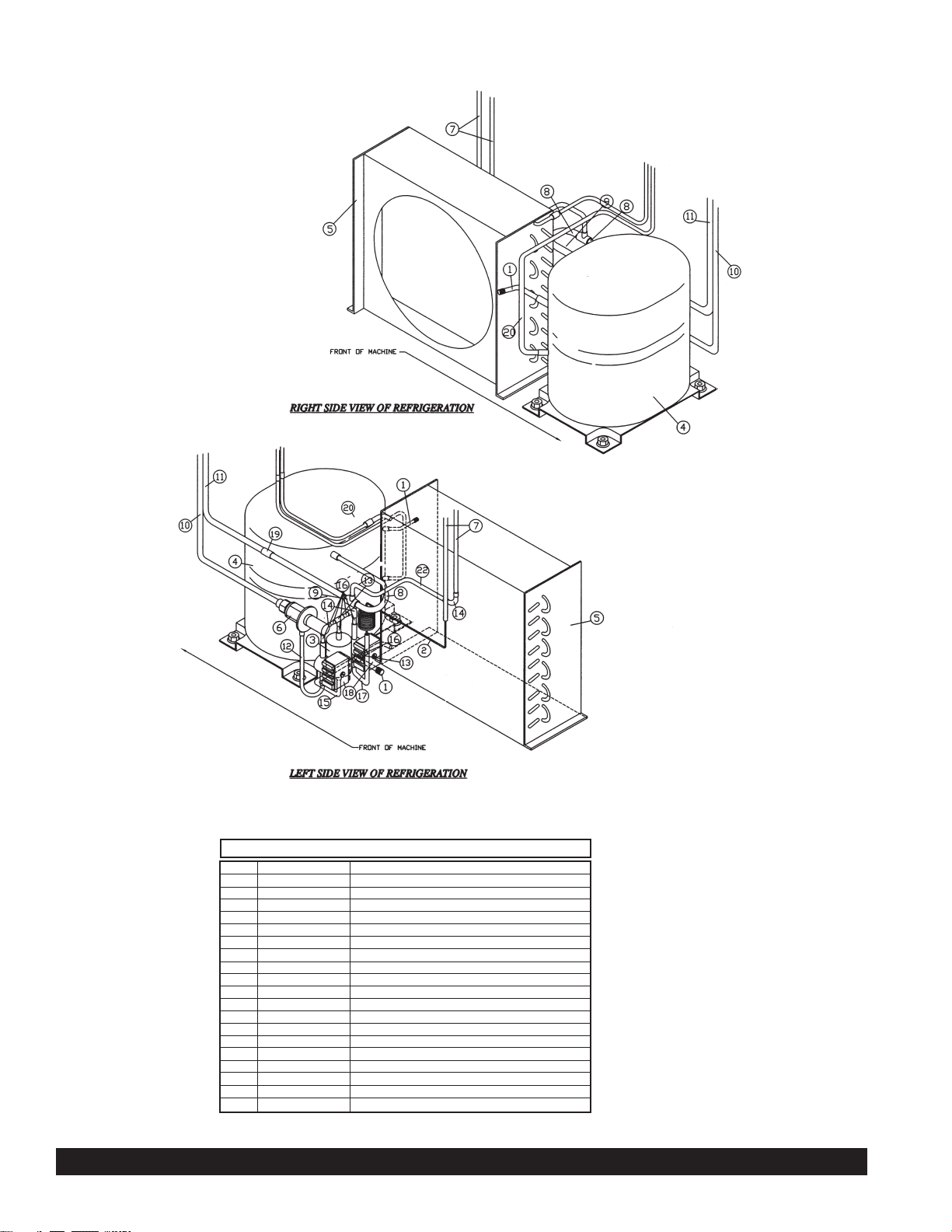

5511 Base Assembly Refrigeration

1 2 3 4 5 6

7 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

W0650501 W0200301 W0650112 W0200133 W0200256 W0650107 W0201120 W0201114 W0201113 W0201323 W0620102 W0620110 W0201324 W0201325 W0201326 W1650002 W0620125 W0201112 W0201371 W0620123 W0201372 W0201373 W0201155 W0650428 W0201220 W0201153 W0201151 W0620112 W0201152

Access Valve Capillary Tube Filter Drier Compressor Condenser Automatic Expansion Valve Hopper Coolant Lines Evaporator Line Suction Line Exp. Valve/Solenoid Liquid Line 1/4" x 1/4" x 1/4" Tee 1/4" Copper Elbow Filter/Condenser Coolant Line Condenser To Tee Liquid Line Solenoid/Cap Tube Liquid Line Solenoid Valves 1/2" Straight Coupling Barrel Warmer Compress./Condenser Hot Gas Line 1/2" 180 Deg. Copper Fitting Suction Line (Short) Suction Line (Bent) Liquid Line High Pressure Cutout Switch Liquid Line 1/4 OD x 3/8 ID 90Þ Bell Reducer 3/8" Dia Condenser Connection 3/8" Coupling 5/16 ID x 3/8 ID Straight Coupling

Item Part Number Description

5511-0108-021-3-20-00

Page 32 Crathco®5000 Series Manual

5941 Base Assembly Refrigeration

ITEM

NO.

QTY. PART NUMBER DESCRIPTION

1 1 100280 BRACKET, MOUNTING, QD 5931

7 1 W0650125 VALVE, THERM EXP, 3/8 X 1/2 ODF, 30" CAP 8 1 W0200312 DRIER, FILTER SPORLAN #C-033-S

9 1 W0200318 10 1 W1650002 SOLENOID, COMP E5S120S-24/50 11 1 W1650005 SOLENOID, COMP E5S130S-24/50

W0620118 male W0620117 male

Quick Disconnect, Male Portion

Tube, Capillary .072 OD x .026 ID x 132"

Crathco®5000 Series Manual Page 33

Exploded View Probe Assembly

S.S PROBE - W0572362

ACETAL DELRIN SLEEVE - W0572361

ADD SILICON SEALANT TO BACK OF SLEEVE ONLY

MACHINE SCREW - W0610299

INTERNAL TOOTH LOCKWASHER - W0611224

RING EYE TERMINAL

FLAT WASHER - W0611241

PLASTIC SPACER - W0572360

HOLE IN REAR OF HOPPER PAN

Page 34 Crathco®5000 Series Manual

Rough Side

of Ceramic

Smooth

Shiny Side

CRATHCO MACHINE ASSEMBLY

CHECK LIST

Slush Cocktail Carb Tube Assy. (W0471075)

5000 Series Standard Product Plunger (W0480462)

5000 Series Thick Product Plunger

(W0480463)

(W0631230)

Crathco®5000 Series Manual Page 35

5311 Electrical Components

Item Part Number Description

LBS & RBS

FU FM DM

101 100

SW2

SC RC CR

SW1

FU2 CB1 FU1

B LT 1 LT 1

TB1

66 67 65

W1650004 W1650004

WI570616 W0320209 W0320019 W0570712 W0570935 W0570655 W0570655 W0570659 W0570939 W0570603 W0570617 W0570693 W0570934 W0570823 W0650913 W0570842 W0570045 W0570043 W0570044 W0570235 W1570010 W1570011 W1570012

HOPPER SOLENOID BARREL SOLENOID FUSE HOLDER FAN MOTOR DRIVE MOTOR POWER CORD SERVE SWITCH DRIVE MOTOR CONTACTOR COMPRESSOR CONTACTOR TRANSFORMER MODE SWITCH START CAPACITOR RUN CAPACITOR COMPRESSOR RELAY ON/OFF SWITCH

3.2 AMP FUSE CIRCUIT BOARD

5.0 AMP FUSE BALLAST FLUORESCENT BULB LIGHT SOCKET CIRCUIT TERMINAL BLOCK YELLOW INDICATOR LIGHT RED INDICATOR LIGHT GREEN INDICATOR LIGHT

(CR)

Page 36 Crathco®5000 Series Manual

5511 Electrical Components

5511-0102-057-3-20-00

Crathco®5000 Series Manual Page 37

5311 Front Electrical Box

(CR)

Page 38 Crathco®5000 Series Manual

5511 Front Electrical Box

5511-0101-057-3-20-00

Crathco®5000 Series Manual Page 39

5511 Electrical Box

Item Part Number Description

1 2 3 4 5 6 7 8

9 10 11

W0570603 W0570617 W0570655 W0570916 W0570638 W0570934 W0572451 W1570901 W0570423 W0572342 W0650913

Start Capacitor Run Capacitor Contactor Reed Switch Compressor Relay On/Off Switch Electrical Box Mode Switch Terminal Strip Circuit Board Support Circuit Board

Item Part Number Description

12 13 14 15 16 17 18 19 20 21 22

W0570043 W0570044 W0630006 W0630811 W0631629 W1570616 W0570823 W0570842 W0630427 W0572704 W0572705

Light Bulb Light Socket Bushings Capacitor Clips Electrical Box Lens Fuse Block

3.2 Amp Fuse

5.0 Amp Fuse Edgemount Standoff Serve Switch Bracket Light Riser

Item Part Number Description

1 2 3 4 5 6 7 8

9 10 11

W0570659 W0572705 W0570655 W0570916 W0570618 W0570912 W0572464 W1570901 W1570213 W0572342 W0650913

Transformer Light Riser Contactor Reed Switch Compressor Relay On/Off Switch Electrical Box Mode Switch Terminal Strip Circuit Board Support Circuit Board

Item Part Number Description

12 13 14 15 16 17 18 19 20 21 22

W0570043 W0570044 W0630006 W1571078 W0631633 W1570616 W0570823 W0570842 W0630427 W0572704

83106

Light Bulb Light Socket Bushings Relay Bracket Electrical Box Lens Fuse Block

3.2 Amp Fuse

5.0 Amp Fuse Edgemount Standoff Serve Switch Bracket Relay

5311 Electrical Box

5311-0214-057-11-16-00

5511-0111-057-11-16-00

Page 40 Crathco®5000 Series Manual

5941 Electrical Box

5941 ELECTRICAL BOX

ITEM

NO.

QTY. PART NUMBER DESCRIPTION

1 1 W0572451 2 1 W0570655. Contactor, 24V Coil 3 1 W0570043 BULB,FLUORESENT 4 1 W0570044 SOCKET,LIGHT-LEVITON 5 1 W0572706 6 1 W0570934 Rocker Switch, DPDT 7 1 83231. Rocker Switch, 3 Position 8 1 w0650913 Control Board

9 3 W0570214 10 1 W0600201 11 2 83248 6-32 x 1/4 Screw 12 1 W0600202 13 1 w0570842 14 1 w0570823 15 2 w1570616 Fuse Block, 1/4" 16 1 0076. 8-32 x 3/8 Hex Head Ground Screw 17 1 83151 Washer, Lock, #8, Ext. Tooth 18 2 86827 6-32 Hex Nut 19 2 w0610015 6-32 x 1/4 Screw 20 2 W0610264 SCREW, 10-24 X 1/4 TRUSS HD S.S. 21 8 W0610131 SCRW, 8-32 x 1/4, Self Thrd Ph 22 2 W0630006 23 1 W0631629 Lens, White, Elec. Box 30 1 101113 Seal, Electrical Box 31 1 101124 32 1 W0570235 Terminal Block, 4 Circuit 33 1 W0570045 Ballast 34 1 W0570659 Transformer 35 2 88031

Lighted Elec. Box 5311

Control Board Mount Assembly

Terminal Strip, 8 Position Decal, 3.2 Amp Fuse

Decal, 5.0 Amp Fuse

5.0 Amp Fuse

3.2 Amp Fuse

Heyco Snap Bushing

Ring Eye, Red, #8

Heyco Snap Bushing

Crathco®5000 Series Manual Page 41

5311 Spinner Hook-Up Wiring Diagram

Page 42 Crathco®5000 Series Manual

5511 Spinner Hook-Up Wiring Diagram

5511-0100-057-9-14-00

Crathco®5000 Series Manual Page 43

5311 Compressor Wiring Diagram

5511 Compressor Wiring Diagram

5511-0106-057-3-20-00

Page 44 Crathco®5000 Series Manual

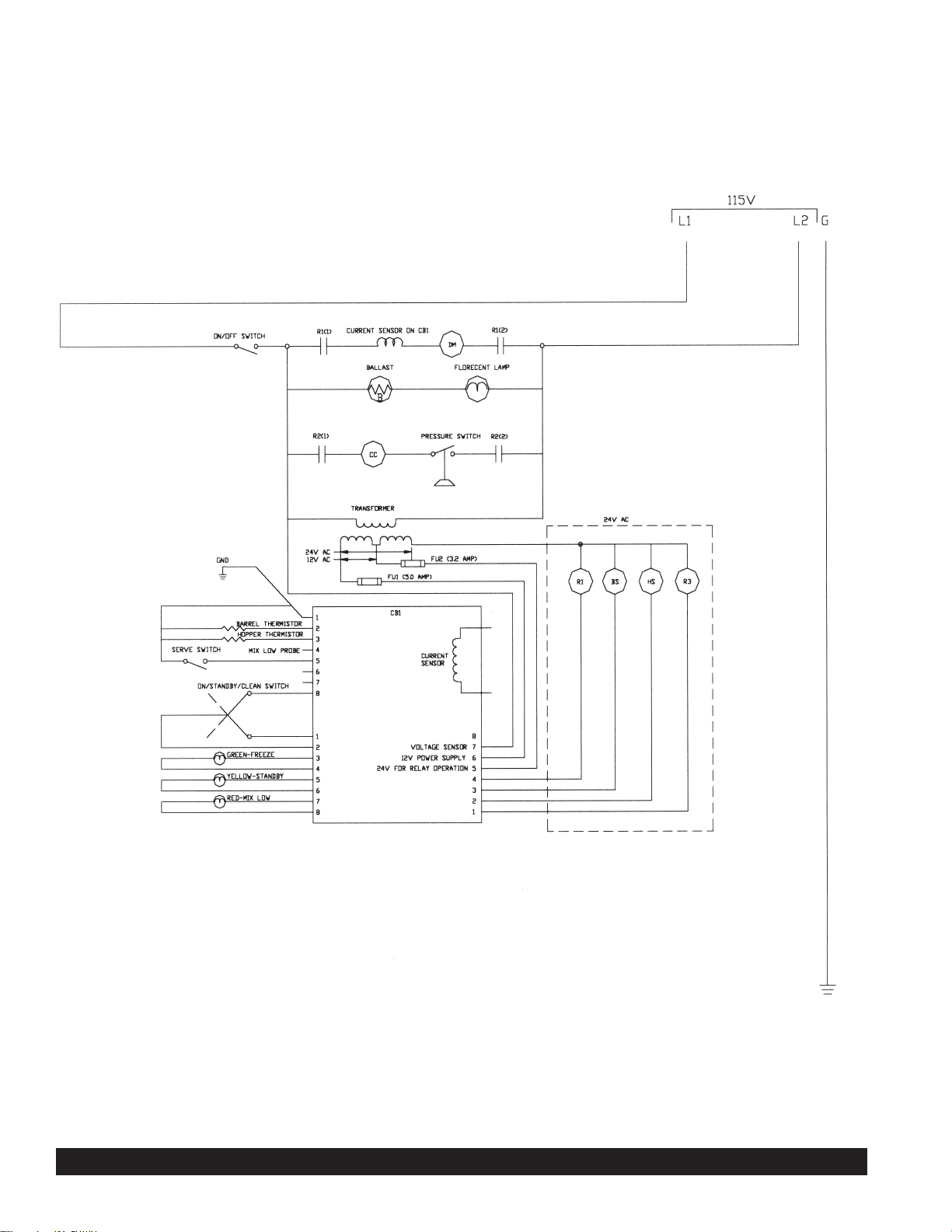

5311 Ladder Diagram 115V 60 Hz

Crathco®5000 Series Manual Page 45

5511 Ladder Diagram 208/230V/50 Hz

5511-0103-057-3-20-00

Page 46 Crathco®5000 Series Manual

5941 Ladder Diagram 115V 60 Hz

CURRENT SENSOR ON CB1

ON/OFF SWITCH

R1(1)

115V

SERVE SWITCH

ON/STANDBY/CLEAN SWITCH

GND

BARREL THERMISTOR

HOPPER THERMISTOR

MIX LOW PROBE

GREEN-FREEZE

YELLOW-STANDBY

RED-MIX LOW

24V AC

12V AC

BALLAST

TRANSFORMER

FU1 (5.0 AMP)

CB1

CURRENT SENSOR

VOLTAGE SENSOR

FLORECENT LAMP

FU2 (3.2 AMP)

24V

12V

R1 B

24V AC

SHS

Crathco®5000 Series Manual Page 47

5311 Wiring Diagram

Item Part Number Description

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19

W0570603 W0570617 W0570655 W0570423 W0570043 W0570638 W1650004 W0650913 W0570044 W0570823 W1570616 W0570659 W0570045 W0570934 W1570901 W1572132 W0570842 W0570935 W0572704

Start Capacitor Run Capacitor Contactor 8 Pin Terminal Strip Bulb Compressor Relay Solenoid Coil Circuit Board Light Socket

3.2 Amp Fuse Fuse Holder Transformer Ballast On/Off Switch Stand-By Switch 6 Wire Cable Sub Assy. Fuse 5 Amp Switch (Serve) Bracket Serve Switch

5311-0212-057-02-06-01

Page 48 Crathco®5000 Series Manual

5511 Wiring Diagram

5511-0216-057-10-25-00

Item Part Number Description

1 2 3 4 6

7 10 11 12 14 15 16 17 18 19 20 21 22

*23 *24 *25 *26 *27

W0570619 W0570617 W0570655 W0570213 W0570618 W0650102 W0570823 W1570616 W0570659 W0570912 W1570901 W1572132 W0570842 W0570916 W0572704 W0570043 W0570044 W0570047 W0572500 W0572501 W0572502 W0572503 W0572504

83106

Start Capacitor Run Capacitor Contactor 8 Pin Terminal Strip Compressor Relay Solenoid Complete

3.2 Amp Fuse Fuse Holder Transformer On/Off Switch (Toggle) Mode Switch 6 Wire Cable Sub-As Fuse 5 Amp Switch (Serve) Bracket Serve Switch Bulb Light Socket Ballast Right Side Harness Right Elec. Box Harness Left Elec. Box Harness Left Side Harness Electrical Box Wire Bundle Relay, Pressure Switch

Crathco®5000 Series Manual Page 49

5941 Wiring Diagram

N.O.

N.C.

BLUE

BLACK

COM

ORANGE

BLACK

RIGHT SPINNER

GREEN

YELLOW

WHITE

RED

BLACK

RED

BLACK

RED

72 33

BLUE

RED

WHT

6 5 4 3 2 1

BARREL SOLENOID

VIOLET/WHT

BLUE

WHT

VIOLET

WHT

BLACK

YELLOW

VIOLET/WHT

BLACK

VIOLET

BLUE

BLUE/WHT

WHT

WHITE

OLET

TERMINAL BLOCK

WHT

GREEN

BLACK

FRAME GROUND CONNECTION

COM

BLACK

RED

BLACK

WHT

BLACK

TO DRIVE MOTOR

WHT

BLACK

POWER CORD

WHITE

VIOLET

BLACK

WHT

BLUE

VIOLET

BLUE/WHT

BLACK

WHT

RED

BLUE/WHT

12 V. 24 V.

COM

LINE

BLACK

WHT

5.0

3.2

BLACK

HOPPER SOLENOID

RED

BLK

BLUE

BLK/WHT

BLUE

BLK/WHT

BLK

RED

RIGHT SPINNER TIMER

ORANGE

GREEN

WHT

GREEN

GRAY/WHT

VIOLET/WHT

Y E

K C A

L B

GRAY/WHT

RED/WHT RED/WHT

1 2

BARREL

HOPPER

4 5

L O

7 8

1 2 3 4

5 6 7 8

BLACK

YELLOW/WHT

BLUE

BLACK

RED

BLACK

YELLOW/WHT

24 V.

12 V.

YELLOW

LEFT SPINNER

RED

GREEN

BLACK

BLUE

RED

BLK/WHT

BLUE

BLK/WHT

70 66

WIRING DETAIL

BLK

8 9

WHT

LEFT SPINNER TIMER

HOPPER THERMISTER

BARREL THERMISTER

ORANGE

TO MIX LOW SENSOR

TO SERVE SWITCH

QTY PART NUMBER DESCRIPTION

ITEM

W0570934

W1570901

761

11101

W0570045

W0570235

W1570616

W0570659

W0570044

W1650002

W1650005

W0570935

112

W0570043 BULB

W0650913

14133

W0570842

115

W0570823

W0570504

W0570676

W0470015

W1570011

W1570010

W1570012

W0320019

W0572068

W0572362

16 1

17 1822 15 SEC. TIMER

19 2

ON/OFF SWITCH

STAND-BY SWITCH

CONTACTORW0570655

BALLAST

TERMINAL BLOCK

FUSE HOLDER

TRANSFORMER

LIGHT SOCKET

SOLENOID COIL(HOPPER)

SOLENOID COIL(BARREL)

SWITCH (SERVE)

CIRCUIT BOARD

8 PIN TERMINAL STRIPW0570423

FUSE 5 AMP

3.2 AMP FUSE

THERMISTER

SPINNER

FREEZE LIGHT

STAND BY LIGHT

MIX LOW LIGHT

DRIVE MOTOR

POWER CORD24

MIX LOW PROBE25

Refrigeration Circuit

Page 50 Crathco®5000 Series Manual

Crathco®5000 Series Manual Page 51

5941 Refrigeration Circuit

ACCUMULATOR

1/2

TUBING

BARREL EVAPORATOR

HOPPER EVAPORATOR

1/4

TUBING

EXPANSION

VALVE

CAPILARY

TUBE

3/8

TUBING

3/8

1/4

TUBING

SOLENOID

VALVE

3/8

TUBING

1/2

LOW

SIDE

HIGH

TUBING

SIDE

SERVICE

VALVE

3/8

TUBING

SERVICE

VALVE

FILTER

DRIER

SOLENOID

BARREL

WARMER

VALVE

Grindmaster® Coffee Grinders and Brewers • PrecisionBrew™ Brewing Systems • Espressimo® Espresso Machines

Crathco® Hot Beverage Dispensers • Crathco® Cold and Frozen Beverage Dispensers • AMW Coffee and Tea Systems

Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500 (USA & Canada only)

P.O. Box 35020 • Louisville, KY 40232 • USA

www.grindmaster.com • email: info@grindmaster.com

Grindmaster 5311 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
