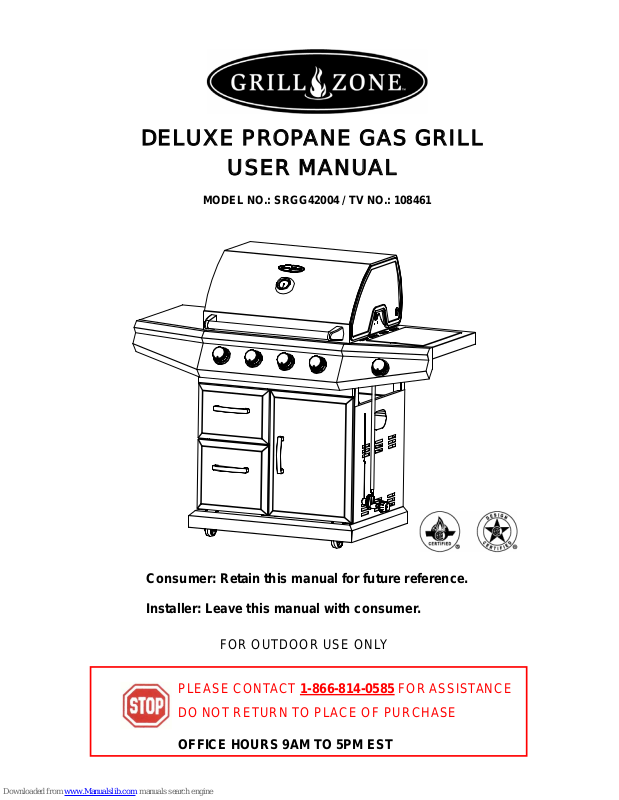

DELUXE PROPANE GAS GRILL
USER MANUAL
Page 2
2
SAFETY INSTRUCTIONS
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open Lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your
fire department.
WARNING
1. Do not store or use gasoline or other flammable liquids OR vapors in the vicinity of this or any
other appliance.
2. An LP cylinder not con nected for use shall not be stored in the vicinity of this or any other
appliance.
Page 3
3
SECTION ONE
Safety Instructions ………………………4
Placement of the Grill ……………………8
SECTION TWO
Exploded View……………………………9
Part List and Hardware List ……………10
Assembly Instructions…….………….…11
SECTION THREE
Gas Hook-Up……………………………. 22
Leak Testing…………………………….. 25
Installer Final Check………………….. 26
Read this User Manual carefully and
completely before using your grill to reduce
the risk of fire, burn hazard or other injury.
SECTION FOUR
Operating Instructions………….……..27
Lighting Instructions………………….. 28
SECTION FIVE
Using the Side Burner………….………30
Care & Maintenance……………………31
How to Replace Main Burner …………32
Trouble Shooting………………………..33
SECTION SIX
Limited Warranty ……………….….……34
TABLE OF CONTENTS
Page 4
4
WARNING
Do not try lighting this appliance without first
reading the “LIGHTING INSTRUCTIONS” section
of this manual.
DO NOT LEAVE THE GRILL UNATTENDED
WHILE COOKING.
SAFETY INSTRUCTIONS
RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS
LP Gas Cylinder must be fitted with Overfill Protection Devi ce (OPD).
DO NOT USE ALUMINUM FOIL TO LINE
THE GRILL RACKS OR GRILL BOTTOM.
This can severely upset combustion airflow or
trap excessive heat in the control area.
INSECT WARNING!!! Spiders and insects can nest
in the burners of this and any other grill, and cause
the gas to flow improperly . This is a very dangerous
condition, which can cause a fire to occur behind
and beneath the valve panel, thereby damaging the
grill and making it unsafe to operate. Inspect the
grill twice a year.
GAS INSTALLATION CODES
The installation must conform with local codes or, in
the absence of local codes, with the national fuel
gas code, ANSIZ223.1/NFPA 54, natural gas and
propane installation code, CSA B149.1, or propane
storage and handling code, B149.2, as applicable.
WARNING:
a) DO NOT store a spare LP-gas cylinder under or near this appliance.
b) NEVER fill the cylinder beyond 80% full.
c) If the information in “a” and “b” is not followed exactly, a fire causing death or serious injury
may occur.
Page 5
5
Keep a spray bottle of soap water near the gas supply
valve and check the connections before each use. See
leak testing section.
Do not attempt to light the grill if odor of gas is present.
Call for customer service 1-866-814-0585
SAFETY INSTRUCTIONS
RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS
WARNING: Always keep your face and body as far away from the burner as possible when lighting.
WARNING: IMPORTANT!
BEFORE LIGHTING…
Inspect the gas supply hose prior to turning the gas “ON”. If there is evidence of cuts, wear , or abrasion, it must
be replaced prior to use. Do not use the grill if the odor of gas is present. Only the pressure regulator and hose
assembly supplied with the unit should be used. Never substitute regulators for those supplied with the grill.
If a replacement is necessary, contact the factory for proper replacement.
Screw the regulator onto the cylinder. Check the hose and regulator connections with a soap and water
solution before operating the grill.
Page 6
6
TESTED IN ACCORDANCE WITH ANSI
Z21.58-2007 / CSA 1.6-2007 STANDARD FOR
OUTDOOR COOKING GAS APPLIANCES. THIS
GRILL IS FOR OUTDOOR USE ONLY.
Check your local building codes for the proper
method of installation. In the absence of local
codes, you must conform with either the National
Fuel Gas Code, ANSI Z223.1/NFPA 54, or
CAN/CSA-B149.1, Natural Gas and propane
Installation Code. Electrical Code, ANSI/NFPA 70.
CALIFORNIA PROPOSITION 65-WARNING
The burning of gas fuel generates some
byproducts, which are known by the State of
California to cause cancer or reproductive harm. To
minimize exposure to these substances, always
operate this unit according to the use and care
manual, ensuring you provide good ventilation
when cooking with gas.
SAFETY PRACTICES TO AVOID
PERSONAL INJURY
When properly cared for, your grill will give safe,
reliable service for many years. However, extreme
care must be used since the grill produces intense
heat and that can increase accident potential. When
using this appliance basic safety practices must be
followed, including the following:
Do not repair or replace any part of the grill unless
specifically recommended in this manual. All other
service should be referred to a qualified technician.
This outdoor cooking gas appliance is not intended to
be installed in or on recreational vehicles and/or
boats.
CHILDREN SHOULD NOT BE LEFT ALONE OR
UNATTENDED IN AN AREA WHERE THE GRILL IS
BEING USED. NEVER ALLOW THEM TO SIT,
STAND OR PLAY ON OR AROUND THE GRILL AT
ANY TIME.
DO NOT STORE ITEMS OF INTEREST TO
CHILDREN AROUND OR BELOW THE GRILL OR IN
THE CART. NEVER ALLOW CHILDREN TO CRAWL
INSIDE OF THE CART.
Never let clothing, pot holders or other flammable
materials come in contact with or too close to any
grate, burner or hot surface until it has cooled. Fabric
may ignite and result in personal injury.
For personal safety , wear prope r apparel . Loose fitting
garments or sleeves should never be worn while
using this appliance. Some synthetic fabrics are
highly flammable and should not be worn while
cooking.
Only certain types of glass, heatproof glass
ceramic, earthenware, or other glazed utensils are
suitable for grill use. These types of materials
may break with sudden temperature changes. Use
only on low or medium heat settings according to
the manufacturer’s directions.
Do not heat unopened food containers as a build-up
of pressure may cause the container to burst.
Use a covered hand when opening the grill lid. Never
lean over an open grill.
WHEN LIGHTING A BURNER, ALWAYS PAY CLOSE
ATTENTION TO WHAT YOU ARE DOING. BE
CERTAIN YOU ARE TURNING THE IGNITER
LABELED FOR THE BURNER YOU INTEND ON
USING.
SAFETY INSTRUCTIONS
Page 7
7
When using the grill, do not touch the grill rack, burner
grate or immediate surroundings as these areas
become extremely hot and could cause burns. Use
only dry potholders. Moist or damp potholders on hot
surfaces may cause burns from steam. Do not use a
towel or bulky cloth in place of potholders. Do not let
potholders touch hot portions of the grill rack.
Grease is flammable. Let hot grease cool before
attempting to handle it. Avoid letting excess grease
deposits collect in the grease slide panel bottom at
the bottom of the grill’s firebox. Clean often.
For proper lighting and performance of the burners
keep the burner ports clean. It is necessary to clean
them periodically for optimum performance. The
burners will only operate in one position and must be
mounted correctly for safe operation.
Clean the grill with caution. Avoid steam burns; do not
use a wet sponge or cloth to clean the grill while it is
hot. Some cleaners produce noxious fumes or can
ignite if applied to a hot surface.
Be sure all grill controls are turned off and the grill is
cool before using any type of aerosol cleaner on or
around the grill. The chemical that produces the
spraying action could, in the presence of heat, ignite
or cause metal parts to corrode.
Do not use the grill for cooking excessively fatty
meats or products, which promote flare-ups. Do not
operate the grill under overhead combustible
construction.
Use only in well ventilated areas. Do not use in
buildings, garages, sheds, breezeways or other such
enclosed areas. THIS UNIT IS FOR OUTDOOR USE
ONLY.
Keep the area surrounding the grill free from
combustible materials, trash, or combustible fluids and
vapors such as gasoline or charcoal lighter fluid. Do not
obstruct the flow of combustion and ventilation air. If the
unit is stored indoors ensure that it is cool. If propane is
used, the cylinder must be unhooked and the propane
cylinder stored outside in a well-ventilated area, out of
the reach of children.
DO NOT USE BRIQUETTES OF ANY KIND IN THE
GRILL.
The grill is designed for optimum performance without
the use of briquettes. Do not place briquettes on the
radiant as this will block off the area for the grill burners
to vent. Adding briquettes can damage ignition
components and knobs, and void the warranty.
Keep the back of the cart free and clear from debris.
Keep any electrical supply cord, or the rotisserie motor
cord away from the heated areas of the grill.
Never use the grill in extremely windy conditions. If
located in a consistently windy area (oceanfront,
mountaintop, etc.) a windbreak will be required (see
below). Always adhere to the specified clearance.
NEVER USE A DENTED OR RUSTY PROPANE
CYLINDER.
SAFETY INSTRUCTIONS
Page 8
8
CLEARANCE
T o Non-Combustible Construction
MINIMUM CLEARANCE:
2’ clearance from both sides of combustible
material, and 3’ clearance from the back.
LOCATIO N
When determining a suitable location take into
account concerns such as exposure to wind,
proximity to traffic paths and keeping any gas supply
lines as short as possible. Locate the grill only in a
well-ventilated area. Never locate the grill in a
building, garage, breezeway, shed or other such
enclosed areas. During heavy use, the grill will
produce a lot of smoke. Lock the wheels after the grill
is placed in a suitable position.
PLACEMENT OF THE GRILL
Page 9
9
EXPLODED VIEW
Page 10
10
PAR T LIST
1. Lid, 1 pc
2. Thermometer, 1 pc
3. Lid handle end cap, 2 pcs
4. Lid handle, 1 pc
5. Heat isolation lid, 1pc
6. Left side panel, 1 pc
7. Left side front panel, 1 pc
8. Rear legs, 2 pcs
9. Front legs, 2 pcs
10. Cart left panel, 1pc
11. Drawer sliding track, 4 pcs
12. Top drawer front panel, 1pc
13. Lower drawer front panel, 1 pc
14. Warming rack, 1 pc
15. Main burner cooking grate, 2 pcs
16. Flame tamer, 4 pcs
17. Tube burner, 4 pcs
18. Grill body heat isolation panel, 1 pc
19. Right side burner lid, 1 pc
20. Right side burner frame, 1 pc
21. Right side burner fire bowl, 1 pc
22. Right side burner, 1 pc
23. Electrode, 2 pcs
25. Grease tray, 1 pc
26. Grill body, 1 pc
27. Right side burner control panel, 1 pc
28. Main burner front heat isolation panel, 1 pc
29. Valve assembly, 1 pc
30. Main burner control panel, 1pc
31. Cart right panel, 1 pc
32. Cart rear panel, 1 pc
33. Drawer rear fixing bar, 1 pc
34. Cylinder locking bolt, 1 pc
35. Cart bottom panel, 1 pc
36. Weight base, 1 pc
37. Control knob, 5 pc
38. Control knob bezel, 5pc
39. Cart horizontal bar, 1 pc
40. Top drawer body, 1 pc
41. Handle, 3 pcs
42. Lower drawer body, 1 pc
43. Drawer front fixing bar, 1 pc
44. Cart door, 1 pc
45. Locking caster, 2 pc
46. Non-locking caster, 2pc
47. Match lighter, 1pc
24. Right side shelf, 1 pc
HARDWARE LIST
M6x12 bolt (16pcs) M5x12 bolt (13pcs)
M6x20 bolt (12pcs) ST5x8 bolt (10pcs)
M4x12 bolt (4pcs) Cylinder locking bolt (1pc)
M6x16 bolt with washer (4pcs)
Page 11
11
ASSEMBLY INSTRUCTIONS
STEP 1
Fix (12) top drawer front panel onto (40) top drawer body with 5pcs M5 x 12 bolts.
STEP 2
Fix (13) lower drawer front panel onto (42) lower drawer body with 5pcs M5 x 12 bolts.
Page 12
12
ASSEMBLY INSTRUCTIONS
STEP 3

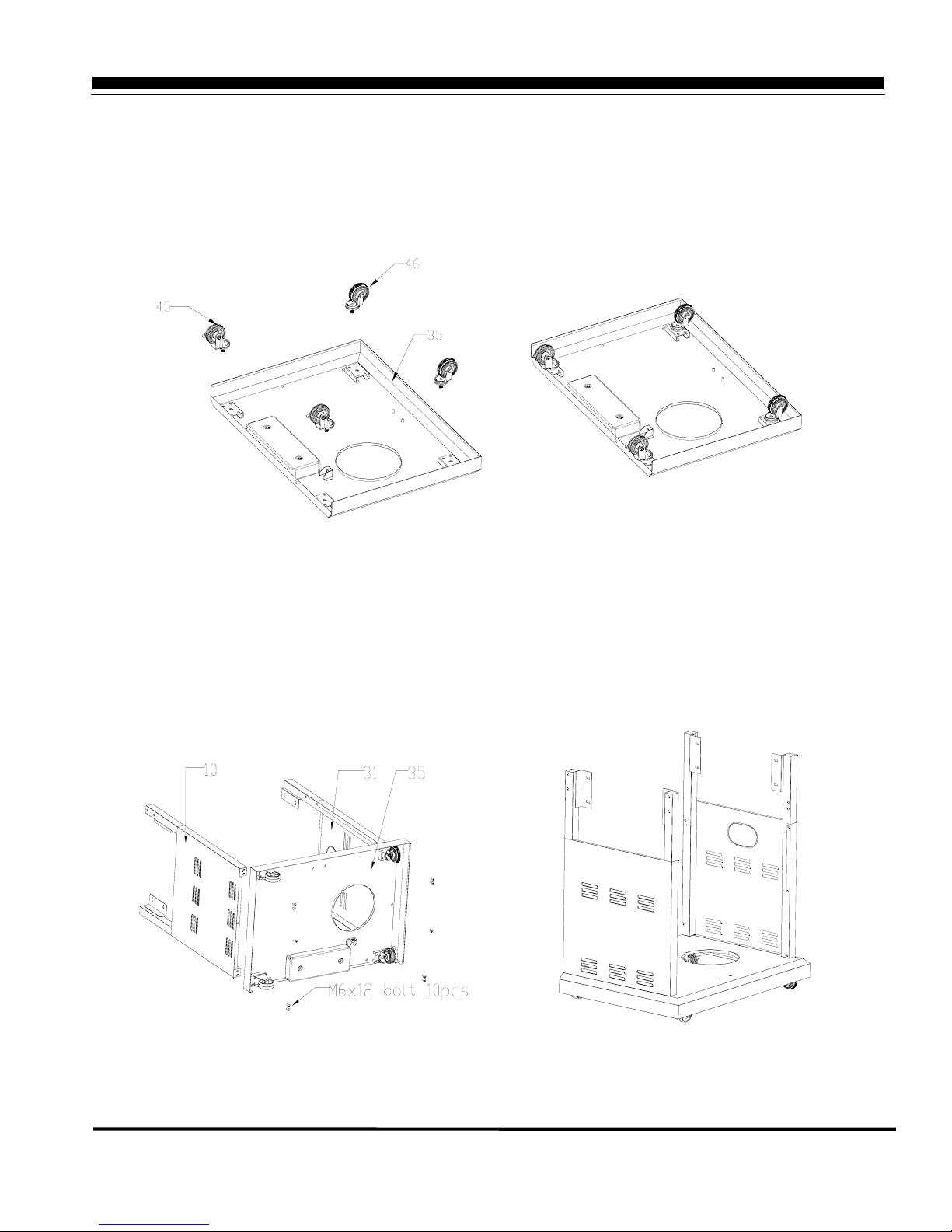

Turn over (35) cart bottom panel, screw 1 pc (45) locking caster and 1pc (47) non-locking caster to the right side of
(35) cart bottom panel, and fix 2pcs (46) wheels on the left side with 8pcs M6 x 12 bolts.
STEP 4
Place (35) cart bottom panel sideway, fix (10 & 31) cart left & right panels onto cart bottom panel with 10pcs M6 x 12
bolts.
Page 13
13
ASSEMBLY INSTRUCTIONS
STEP 5

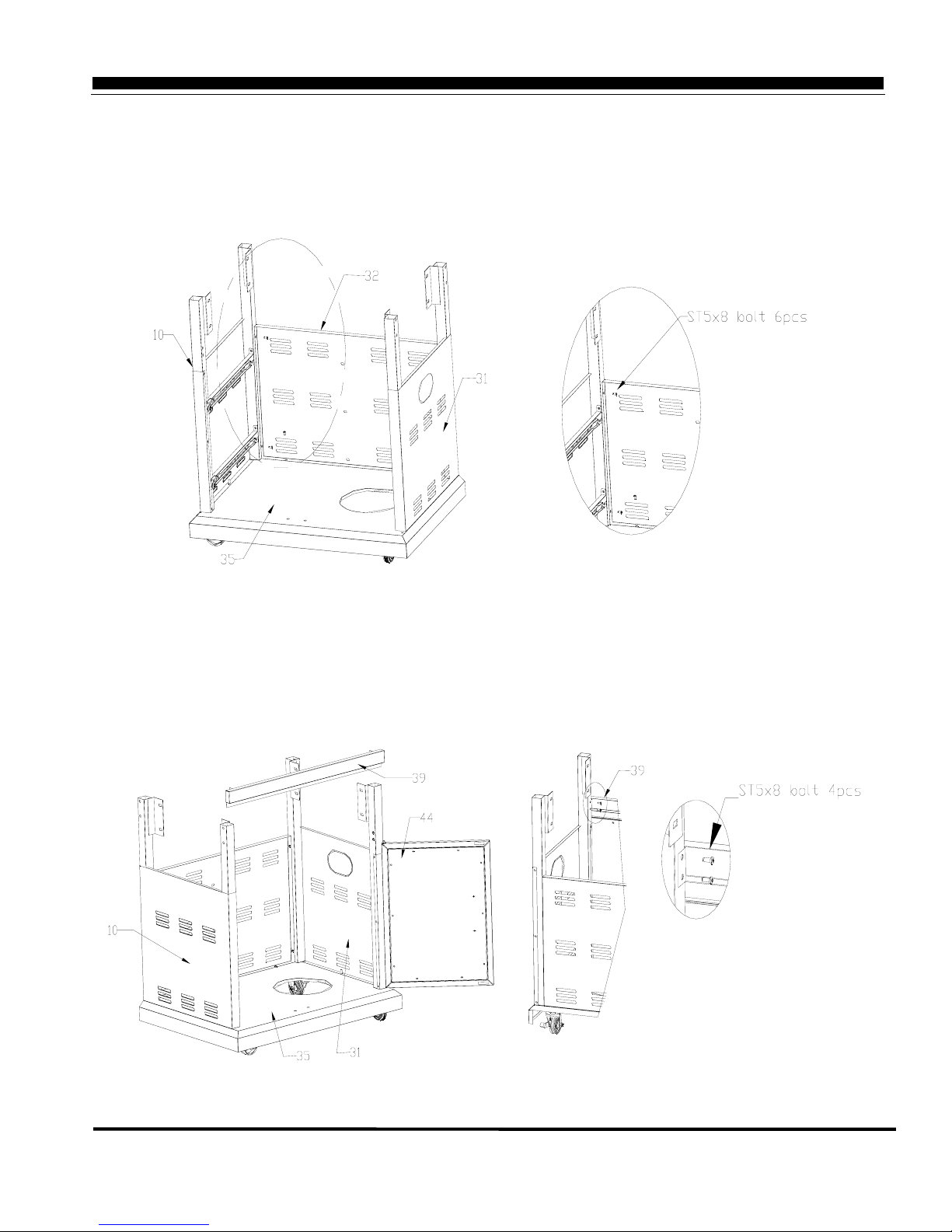

Fix (32) cart rear panel to (10 & 31) cart left & right panels, (35) cart bottom panel with 6pcs ST5 x 8 bolts.
STEP 6
Place the hinges of (44) cart door into the holes on (35) cart bottom panel and (39) cart horizontal bar, fix (39) cart
horizontal bar to the front legs of (10 & 31) cart left & right panels with 4pcs ST5 x 8 bolts.
Page 14
14
ASSEMBLY INSTRUCTIONS
STEP 7

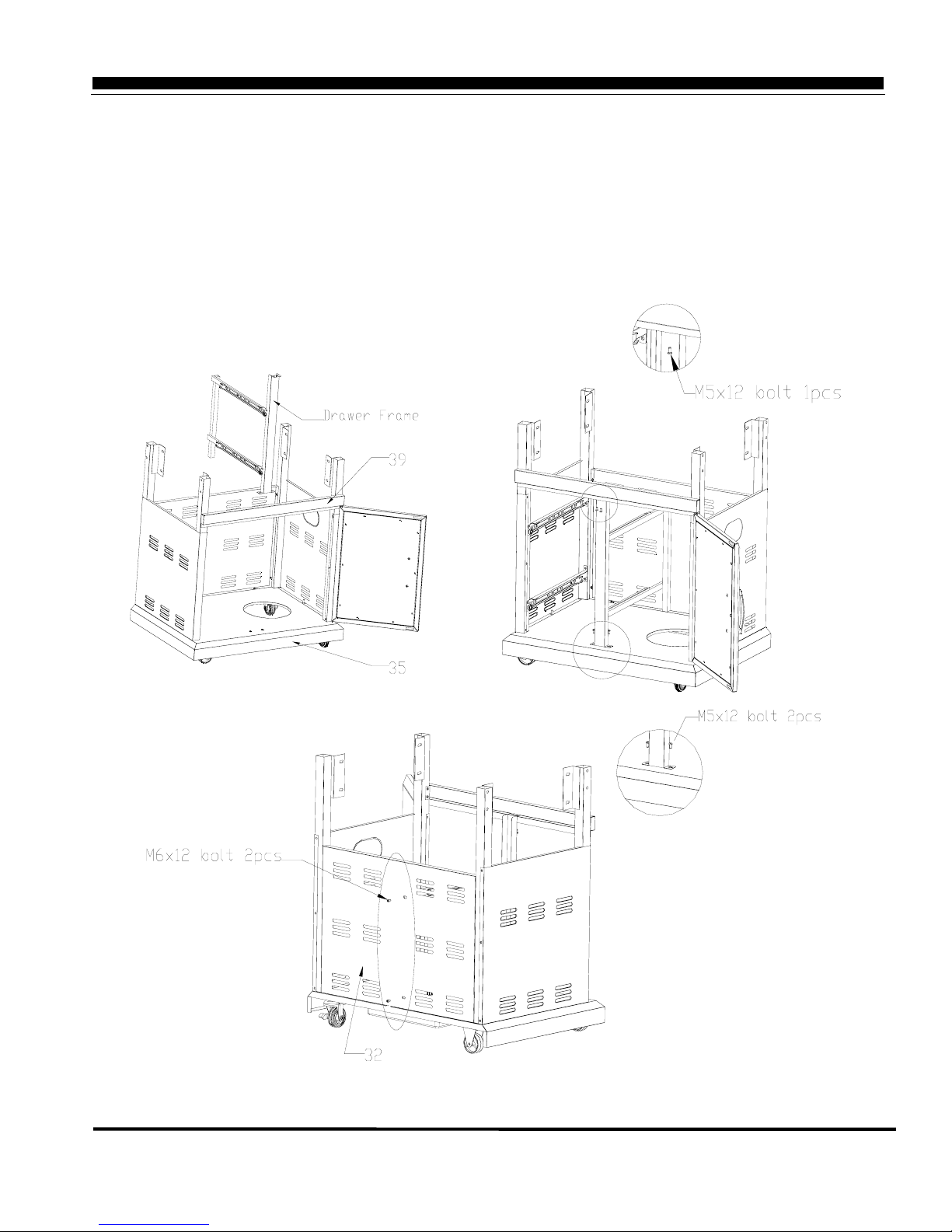

Place the drawer frame inside the cart, fix it onto (35) cart bottom panel and (39) cart horizontal bar with 3pcs M5 x 12
bolts, then onto (32) cart rear panel with 2pcs M6 x 12 bolts.
NOTE: KEEP all bolts half loosen during the assembly of this step until the grill body assembly is placed into the
position correctly.
Page 15
15
ASSEMBLY INSTRUCTIONS
STEP 8
Place the top & lower drawers into the cart, and adjust the drawer frame to fix these two drawers well.
STEP 9

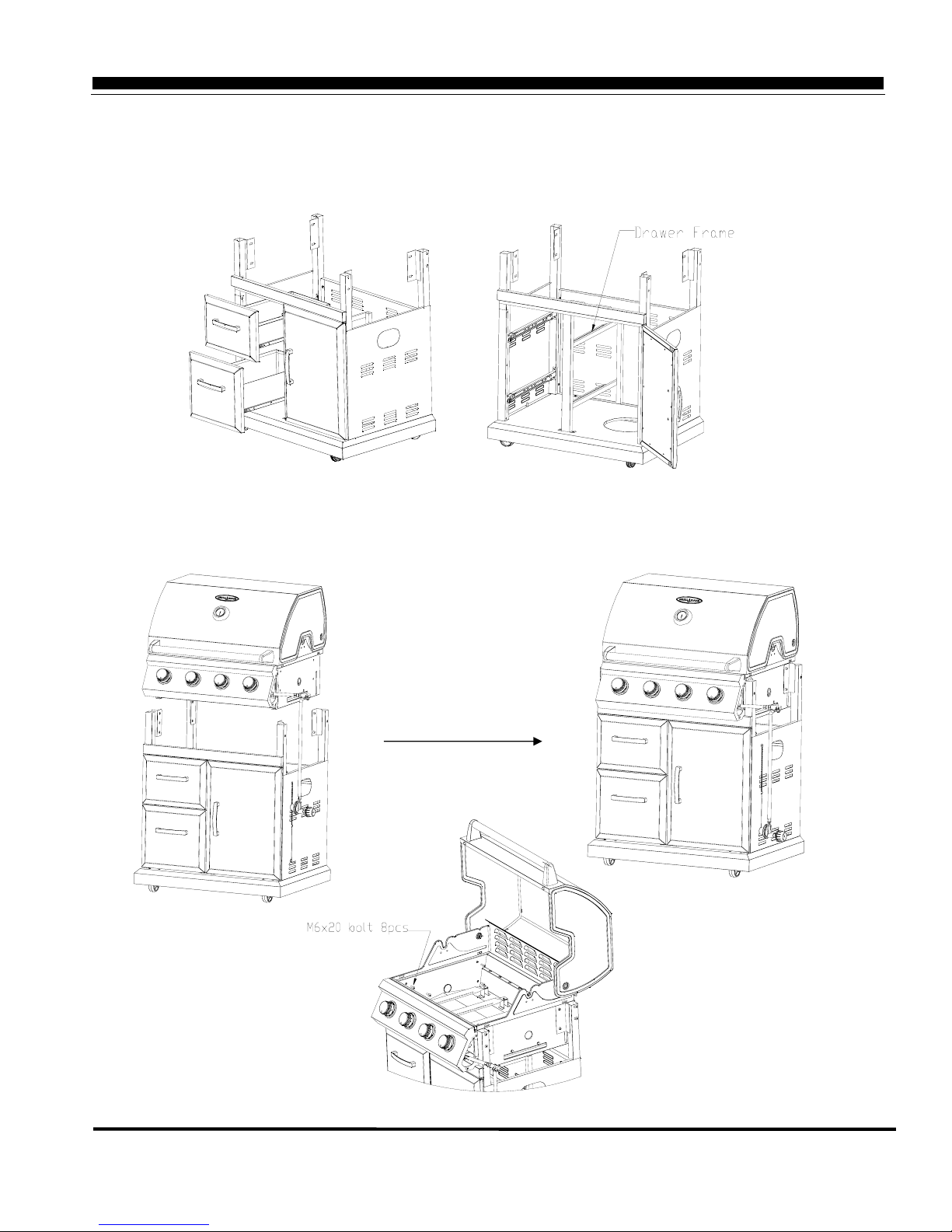

Place grill body assembly flatly onto the cart assembly. Open the lid, line up and fix the grill body and cart assembly
with 8pcs M6 x 20 bolts from inside of the fire bowl.
Page 16
16
ASSEMBLY INSTRUCTIONS
STEP 10

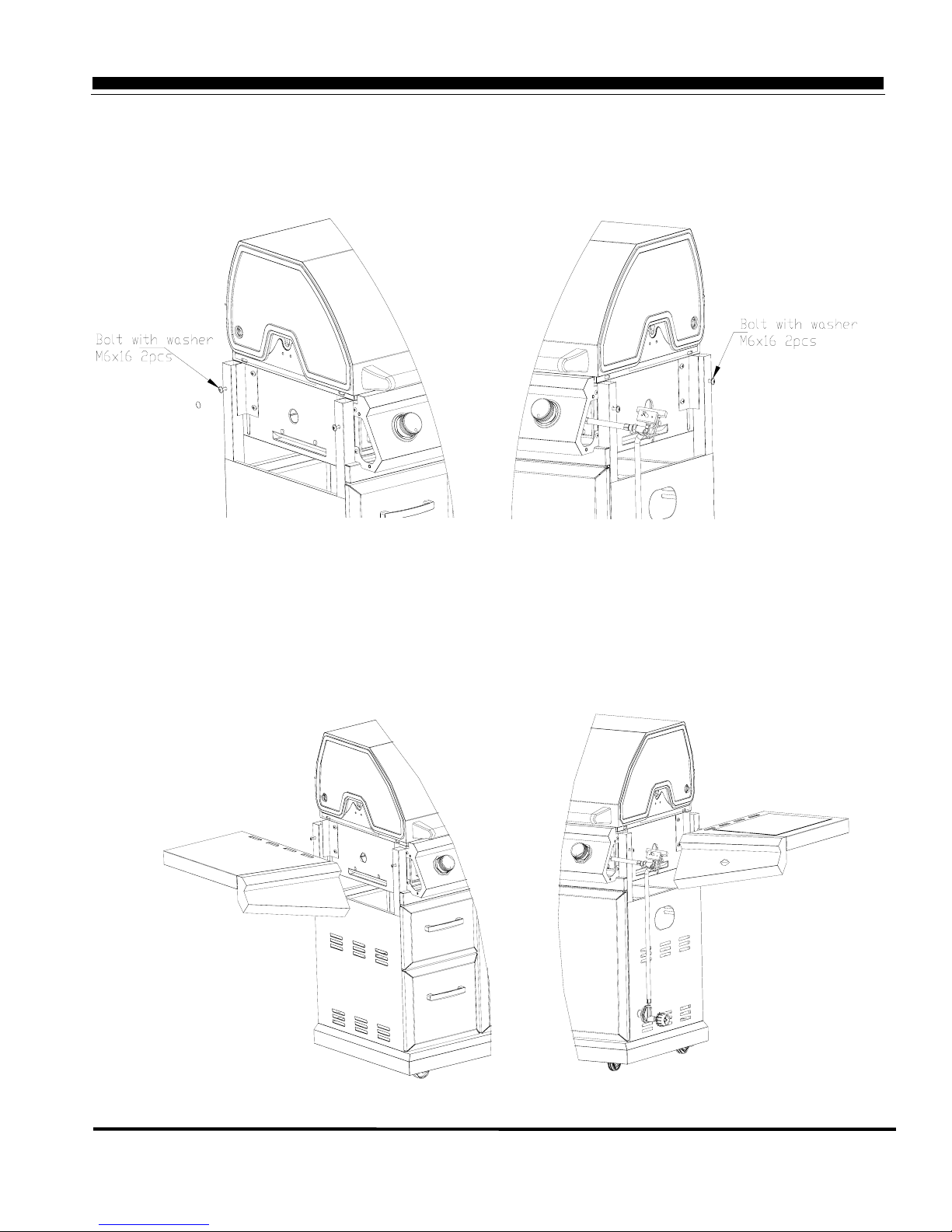

Screw 4pcs M6 x 16 bolts with washer onto four legs, keep the bolts half loosen.
STEP 11
Place the left & right side shelf assembly to two sides of the cart assembly, then tighten the 4pcs M6 x 16 bolts with
washer.
Page 17
17
ASSEMBLY INSTRUCTIONS
STEP 12

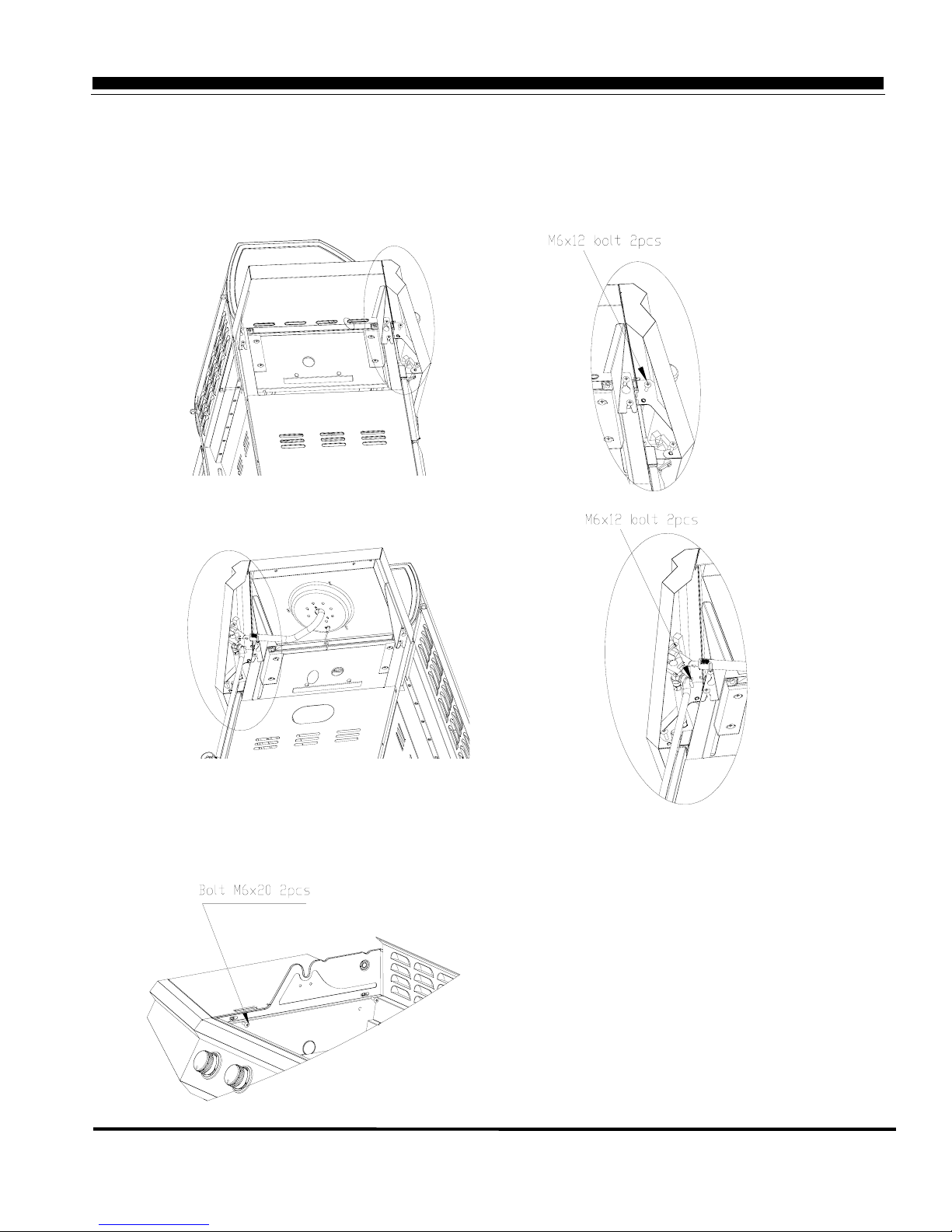

Fix the left & right side shelf assembly to main burner control panel with 4pcs M6 x 12 bolts.
STEP 13
Fix the left & right side shelf assembly to grill body with 4pcs M6 x 20 bolts.
Page 18
18
ASSEMBLY INSTRUCTIONS
STEP 14

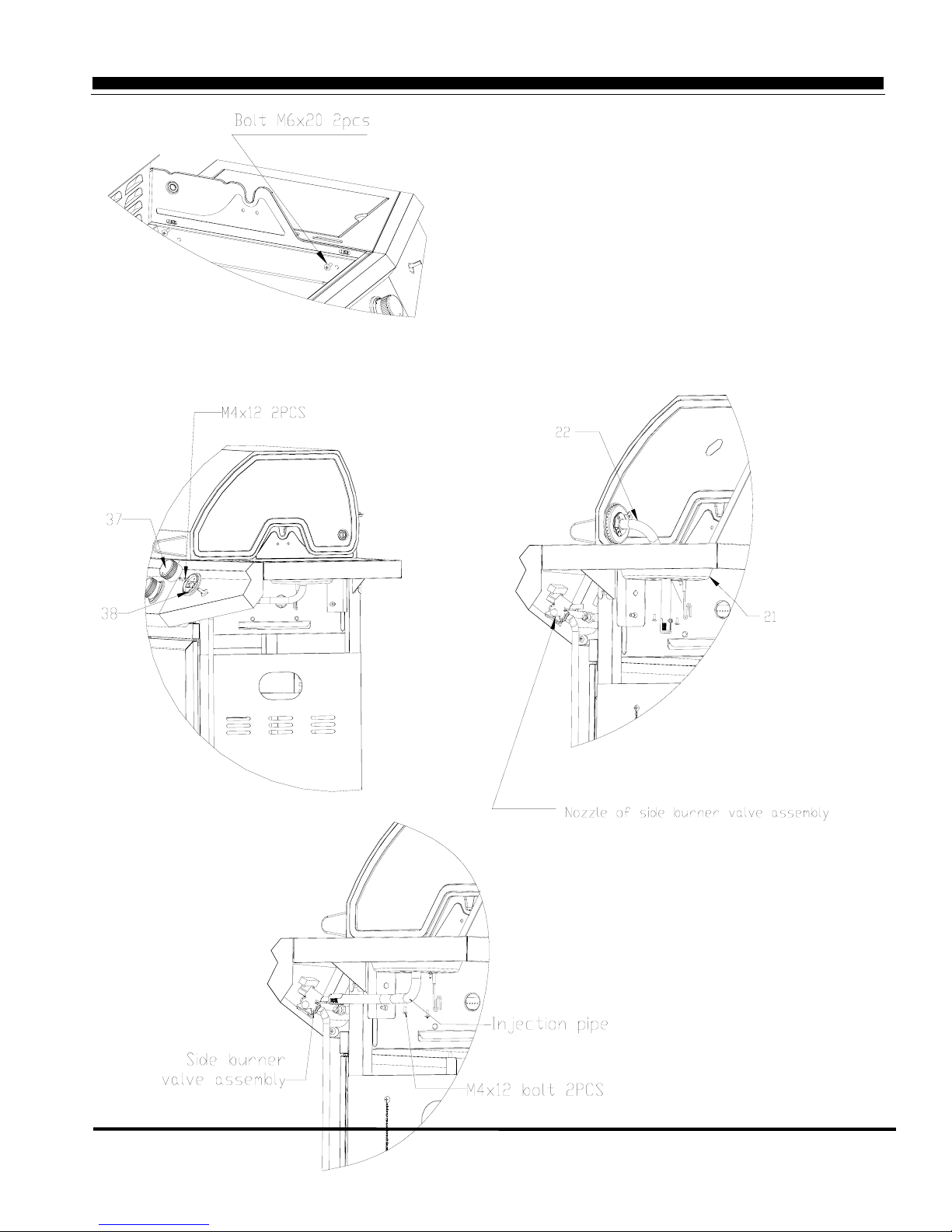

a) Insert side burner valve assembly into the hole on (27) right
side burner control panel, fix (38) control knob bezel onto side
burner valve assembly with 2pcs M4 x 12 bolts, then install (37)
control knob onto the shaft of side burner valve assembly.
b) Insert (22) right side burner onto (21) right side burner fire
bowl, insert the nozzle of side burner valve assembly into the
injection pipe of (22) right side burner, then fix the right side
burner onto right side burner fire bowl with2pcs M4 x 12 bolts.
Page 19
19
ASSEMBLY INSTRUCTIONS
STEP 15

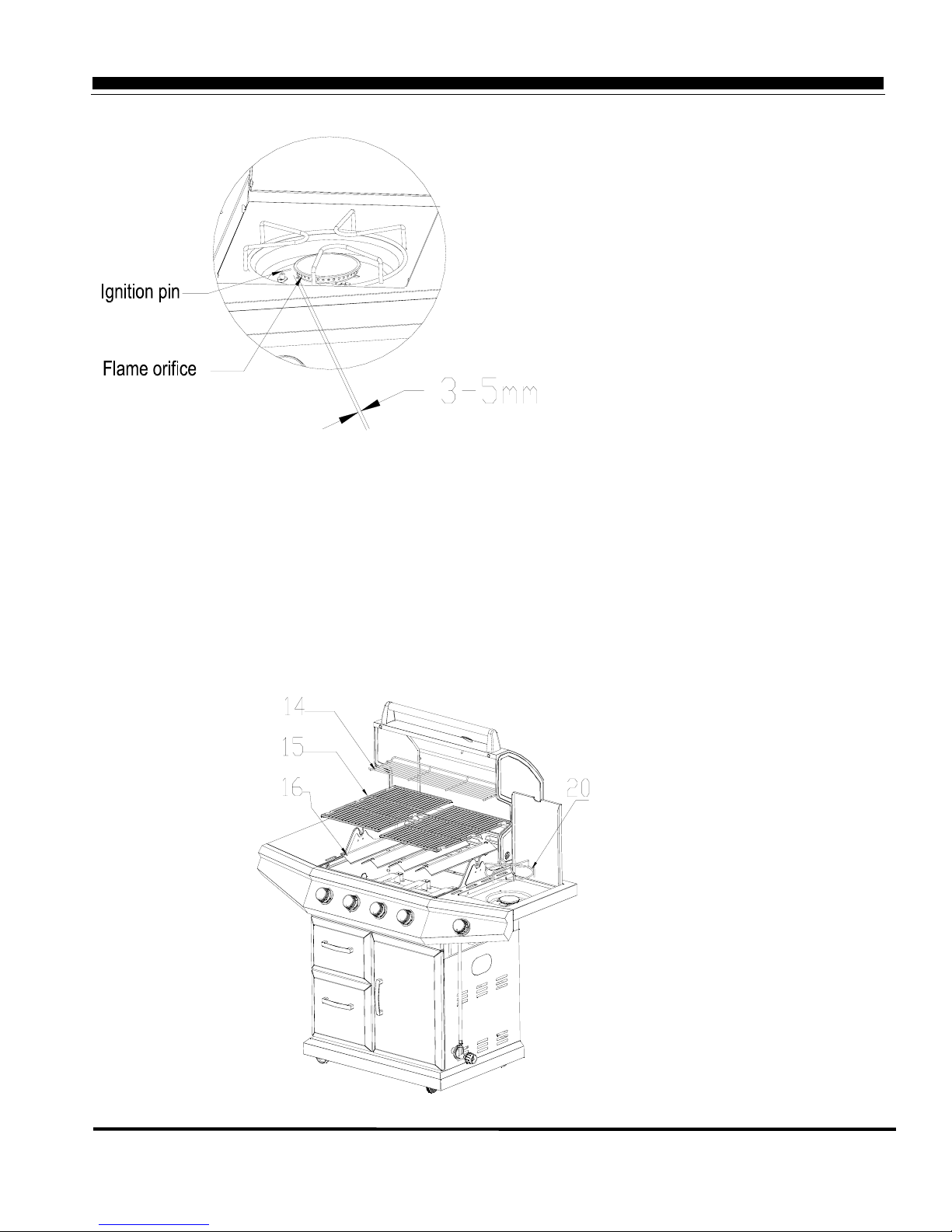

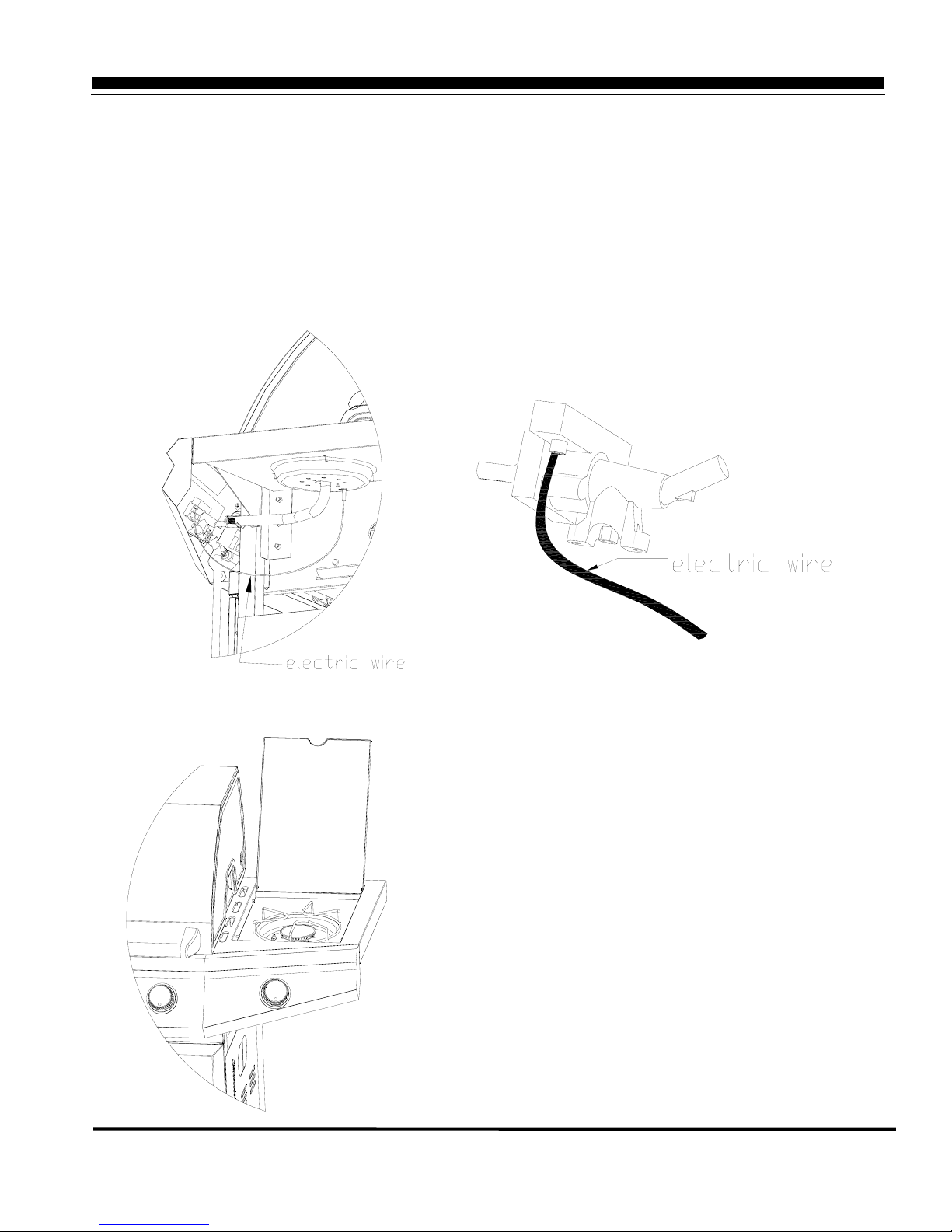

Insert the electric wire into the connector of right side burner valve assembly.
NOTE: Adjust the distance between the Ignition Pin and Flame Orifice to be 3~5mm in case of ignition failure.
Page 20
20
ASSEMBLY INSTRUCTIONS
STEP 16
Open the lid, place (16) flame tamer, (15) cooking grate and (14) warming rack into (26) grill body respectively.
Place right side burner rack onto right side burner bowl.
Page 21
21
STEP 17

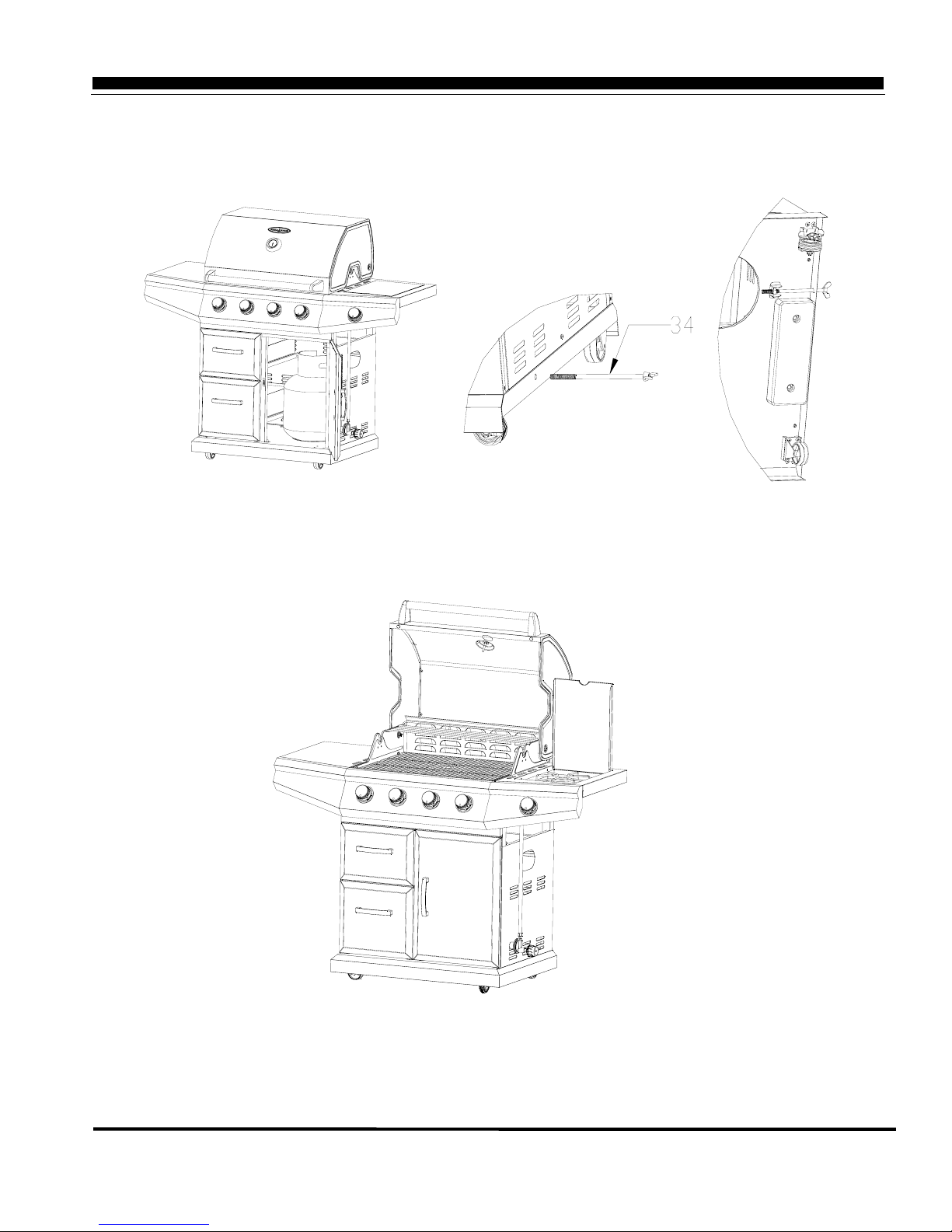

1) Place gas cylinder (not included) into the hole at (35) cart bottom panel.
2) Insert (34) cylinder locking bolt into the hole at the back of cart bottom panel.
Assembled Grill as following illustrated.
Gas Cylinder Placement (NOT INCLUDED)
1) Check to ensure that the valve of gas cylinder is securely shut off prior to the connection. If not, turn the valve
clockwise to tighten it.
Page 22
22
Only the pressure regulator and hose assembly
supplied with the grill should be used. Any
replacement pressure, regulator and hose assembly
must be specified by the grill manufacturer.
This is a liquid propane configured grill.
Do not attempt to use a natural gas supply
Total gas consumption (per hour) of this grill with all
burners on “IGNITE/MAX”:
Main burner 50,000 Btu/hr.
Side burner 12,000 Btu/hr.
Total 62,000 Btu/hr.
The installation of this appliance in Canada must be i n
accordance with the Standard CAN/CSA-B149.2
(installation code for gas burning appliances and
equipment) and local codes.
LP GAS CYLINDER REQUIREMENTS
(20LB. CYLINDER)
A dented or rusty LP Gas Cylinder may be hazardous
and should be checked by your LP supplier. Never
use a cylinder with a damaged valve. The LP gas
cylinder must be constructed and marked in
accordance with the specifications for LP gas
cylinders of the U.S Department of Transportation
(D.O.T) or the National Standard of Canada,
Main Manifold operating pressure: 11” water column
(W.C.)/2.74KPA.
LP Gas Cylinder must be fitted with Overfill Prevention
Device (OPD).
LP GAS HOOK-UP
Ensure that the black plastic grommets on the LP cylinder
valve are in place and that the hose does not come into
contact with the grease tray or the grill head.
CONNECTION
Your grill is equipped with gas supply orifices for use only
with liquid propane gas. It is also equipped with a high
capacity hose/regulator assembly for connection to a
standard 20lb. LP cylinder (18-1/4” high, 12-1/4”
diameter).
TO CONNECT THE L.P. GAS SUPPLY CYLINDER
1. Make sure cylinder valve is in its full off position (turn
clockwise to stop).
2. Check cylinder valve to ensure it has proper external
male threads (type 1 connection per ANSIZ21.81).
3. Make sure all burner valves are in the off position.
4. Inspect valve connections, port and regulator
assembly. Look for any damage or debris. Remove
any debris. Inspect hose for damage. Never attempt
to use damaged or obstructed equipment. See your
local LP
g
as dealer for repair.

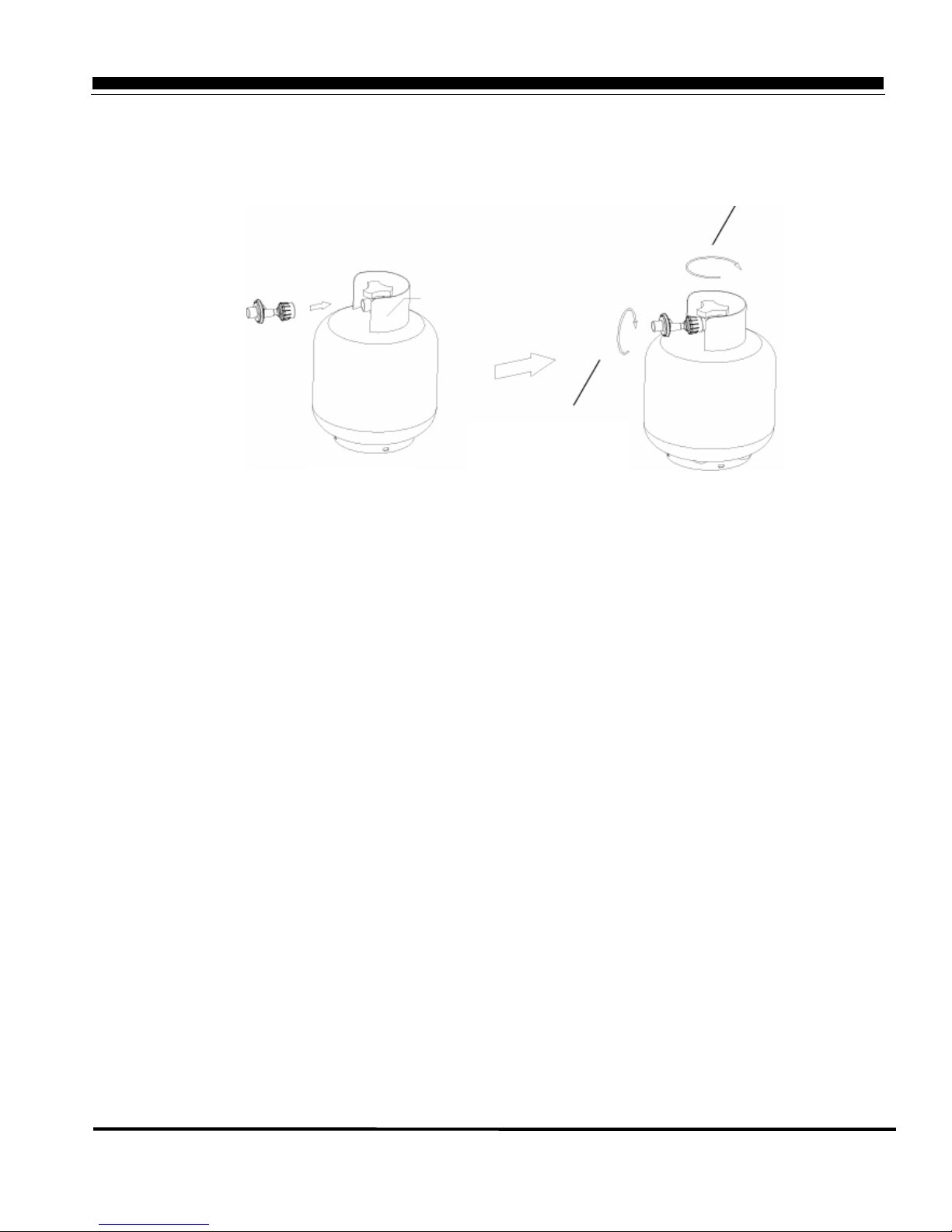

2) Connect the hose and regulator assembly to the gas cylinder. Turn the regulator clockwise to make sure it’s
securely tightened.
GAS HOOK-UP
Shut off gas supply by rotating valve of gas cylinder clockwise.
Fix regulator by
rotating it by rotating
clockwise.
Gas cylinder
Page 23
23
GAS HOOK-UP
To disconnect LP gas cylinder:
1. Turn the burner valves off.
2. Turn the cylinder valve off fully (turn clockwise to
stop). Detach the regulator assembly from the
cylinder valve by turning the quick coupling nut
counterclockwise
A cylinder of approximately 12 inches in diameter by
18-1/2 inches high is the maximum size LP gas cylinder
to use. You must use an OPD gas cylinder which
offers an Overfill Prevention Device.
This safety feature prevents the cylinder from being
overfilled which can cause malfunction of the LP gas
cylinder, regulator and/or grill. In Canada, the LP gas
cylinder must meet the National Standard of Canada,
Can CSA –B339, Cylinders, spheres and Tubes for
Transportation of Dangerous Goods and Commission.
1. The LP gas cylinder must have a shutoff valve,
terminating in an LP gas supply cylinder valve outlet
that is compatible with a Type 1 tank connection
device. The LP gas cylinder must also have a safety
relief device that has a direct connection with the
vapor space of the cylinder.
2. The cylinder supply system must be arranged for
vapor withdraws.
3. The LP gas cylinder used must have a collar to protect
the cylinder valve.
PROPER PLACEMENT AND CLEAR ANCE OF GRILL
* Never connect an unregulated LP gas cylinder to your
gas grill. The gas regulator assembly supplied with
your gas grill is adjusted to have an outlet pressure of
11” water column (W.C.)/2.74KPA for connection to an
LP gas cylinder.
* Replacement regulators and hose assemblies must be
those specified in this manual.
* Have your LP gas cylinder filled by a reputable
propane gas dealer and visually inspected and
re-qualified at each filling.
* a ) Do not store a spare LP gas cylinder under or
near this appliance.
* b) Never fill the cylinder beyond 80 percent full.
* c) If the information in a) and b) is not followed
exactly a fire causing death or serious injury may
occur.
* Always keep LP gas cylinders in an upright position.
* Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this gas grill.
* Do not subject the LP gas cylinder to excessive heat.
*
Never store an LP gas cylinder indoors. If you store
your gas grill in the garage or other indoor location,
always disconnect the LP gas cylinder first and store it
safely outside.
Page 24
24
GAS HOOK-UP
WARNING
A strong gas smell or the hissing sound of gas
indicates a serious problem with your gas grill or the
LP gas cylinder. Failure to immediately follow the
steps listed below could result in a fire or explosion
that could cause serious bodily injury, death, or
property damage.
* Shut off gas supply to the gas grill.
* Turn the control knobs to OFF position.
* Put out any flame with a proper fire extinguisher.
* Open Grill Lid.
* Get away from the LP gas cylinder.
* Do not try to fix the problem yourself.
* If odor continues or you have a fire you can not
extinguish, call your fire department. Do not call
from near the LP gas cylinder because your
telephone is a form of electrical device and could
create a spark resulting in fire and/or explosion.
* The regulator and hose assembly must be
inspected before each use of the grill. If there
is excessive abrasion or wear or if the hose is
cut, it must be replaced prior to the grill being
used again.
*
Keep the gas regulator hose away from hot
grill surfaces and dripping grease. Avoid
unnecessary twisting of hose. Visually inspect
the hose prior to each use for cuts, cracks,
excessive wear or other damage. If the hose
appears damaged do not use the gas grill.
Call 1-866-814-0585
for an authorized
replacement hose.
*
Never light your gas grill with the lid closed or
before checking to ensure the burner tubes
are fully seated over the gas valve orifices.
*
Never allow children to operate your grill.
Page 25
25
GENERAL
Although all gas connections on the grill are leak
tested at the factory prior to shipment, a complete gas
tightness check must be performed at the installation
site due to possible mishandling in shipment, or
excessive pressure unknowingly being applied to the
unit. Periodically check the whole system for leaks
following the procedures listed below. If the smell of
gas is detected at any time, you should immediately
check the entire system for leaks.
BEFORE TESTING
Make sure that all packing material is removed from
the grill including the burner tie-down straps.
DO NOT SMOKE WHILE LEAK TESTING.
NEVER LEAK TEST WITH AN OPEN FLAME.
Make a soap solution of one part liquid detergent and
one part water. You will need a spray bottle, brush, or
rag to apply the solution to the fittings. For the initial
leak test, make sure the L.P. cylinder is full.
TO TEST
Make sure all control valves are in the “OFF” position.
Turn the gas supply on. Check all connections from
the L.P. cylinder up to and including the connection to
the manifold pipe assembly (the pipe that goes to the
burners). Use the soap solution and spray or brush it
onto all of these connections. Soap bubbles will
appear where a leak is present. If a leak is present,
GAS FLOW CHECK
Each grill burner is tested and adjusted at the factory prior
to shipment; however, variations in the local gas supply
may make it necessary to adjust the burners, the flames
of the burners should be visually checked.

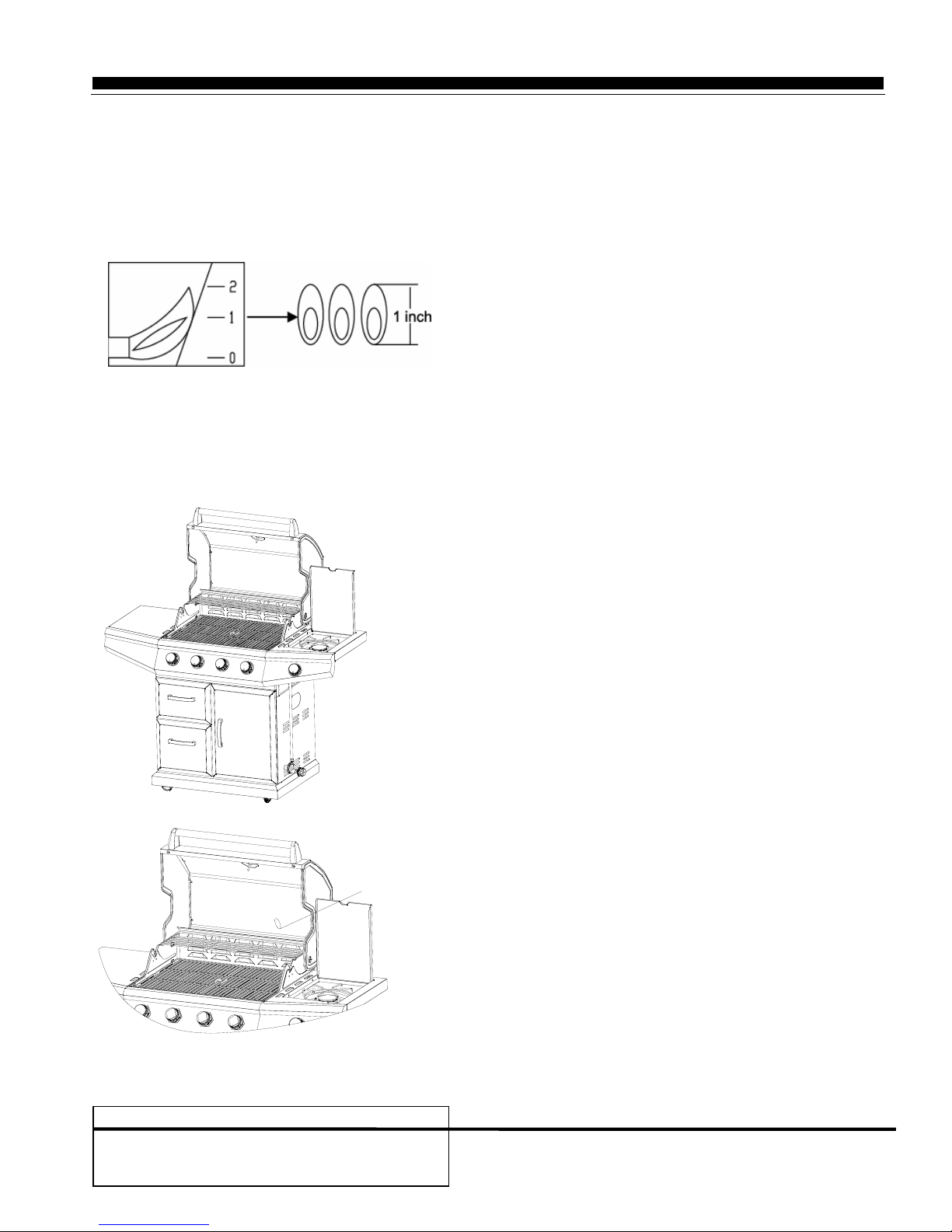

Flames should be blue and stable with no yellow tips,
excessive noise or lifting. If any of these conditions exist,
check to see if the air shutter or burner ports are blocked
by dirt, debris, spider webs, etc. If you have any questions
regarding flame stability, please call customer service at
1-866-814-0585.
ALWAYS CHECK FOR LEAKS AFTER EVERY LP
TANK CHANGE
Check all gas supply fittings for leaks before each
use. It is handy to keep a spray bottle of soapy water
near the shut-off valve of the gas supply line. Spray
all the fittings. Bubbles indicate leaks.
Disconnected L.P. cylinders must have threaded valv e
plugs tightly installed, and must not be stored in a
building, garage or any other enclosed area.
The gas must be turned off at the supply cylinder
when the unit is not in use.
If the appliance is stored indoors the cylinder must be
disconnected and removed from the appliance.
LEAK TESTING
Page 26
26
Specified clearance maintained 2 feet from
sides of combustibles, and 3 feet from the back.
All internal packaging removed.
Knobs turn freely.
Burners are tight and sitting properly on orifices.
Pressure regulator connected and set for 11.0”
W.C. LP gas. Gas connections to grill using
hose & regulator assembly provided (pre-set for
1 1.0” water column).
INSTALLER FINAL CHECK
Unit tested and free of leaks.
User informed of gas supply shut off valve location.
Page 27
27
USING THE GRILL:
Grilling requires high heat for searing and proper browning.
Most foods are cooked at the “IGNITE/MAX” heat setting for
the entire cooking time. However, when grilling large pieces
of meat or poultry, it may be necessary to turn the heat to a
lower setting after the initial browning. This cooks the food
through without burning the outside. Foods cooked for a
long time or foods basted with a sugary marinade may need
a lower heat setting near the end of the cooking time.
TO BIGIN
1. Make sure the grill has been leak tested and is properly
located.
2. Remove any remaining packing material.
3. Light the grill burners using the instructions.
4. Turn the control knob(s) to “IGNITE/MAX” and preheat
the grill for 15 minutes. The grill lid is to be closed during
the appliance preheat period.
5. Place the food on the grill and cook to the desired
doneness. Adjust heat setting, if necessary. The control
knob may be set to any position between “IGNITE/MAX”
and “MIN”.
NOTE: The grill is designed to grill efficiently without the u se
of lava rocks or briquettes of any kind. Heat is radiated by
the stainless steel flame tamers positioned above each
burner.
NOTE: The hot grill sears the food, sealing in the juices.
The longer the preheat lasts, the faster the meat browns
and the darker the grill marks.
OPERATING INSTRUCTIONS
Page 28
28
LIGHTING INSTRUCTIONS
WARNING: IMPORTANT!
BEFORE LIGHTING…
Inspect the gas supply hose prior to turning the gas
“ON”. If there is evidence of cuts, wear, or abrasion, it
must be replaced prior to use. Do not use the grill if
the odor of gas is present. Only the pressure regulator
and hose assembly supplied with the unit should be
used. Never substitute regulators for those supplied
with the grill. If a replacement is necessary, contact
the factory for proper replacement.
Screw the regulator (type QCC1) onto the cylinder.
Leak check the hose and regulator connections with a
soap and water solution before operating the grill, see
leak testing section.
TO LIGHT THE GRILL BURNER
Make sure all knobs are “OFF”, then turn on the gas
supply from the LP tank. Always keep your face and
body as far from the grill as possible when lighting.
The igniter is built in to the valve. To ignite each
burner simply push and turn the control knobs to the
IGNITE/HI setting, you will hear the valve click as it
sends a spark to the pilot flame. If the burner does not
light, wait 5 minutes for any excess gas to dissipate
and then retry.
FLAME CHARACTERISTICS
Check for proper burner flame characteristics. Each
burner is adjusted prior to shipment; however,
Burner flames should be blue and stable with no
yellow tips, excessive noise, or lifting. If any of these
conditions exist, call our customer service line. If the
flame is yellow, it indicates insufficient air. If the flame
is noisy and tends to lift away from the burner, it
indicates too much air.
Visually check the burner flames prior to each use,
the flames should look like this picture, if flames do
not, refer to the CARE & MAINTENANCE of this
manual. If these conditions exist, call our customer
service line. If the flame is yellow, it indicates
insufficient air. If the flame is noisy and tends to lift
away from the burner, it indicates too much air.
TO MATCH LIGHT THE GRILL
If the burner will not light after several attempts then
the burner can be match lit.
1. Open lid before lighting.
2. Turn the burner control knobs to "OFF".
3. Place a paper match in the end of the match lighter .
Strike the match and place through the cooking
grate to the LEFT burner of 1/2" (1 to 2 cm) away.
4. Turn on the LEFT burner control knob to "MAX"
position. The burner should light within 5 seconds.
5. If the burner does not light, turn the control knob to
"OFF" and wait 5 minutes for gas to dissipate and
repeat lighting procedure.
6. Once lit, light adjacent burners in sequence by
pressing in and rotating the control knob to the
"MAX" position.
Page 29
29
LIGHTING INSTRUCTIONS
Keep a spray bottle of soapy water near the gas
supply valve and check the connections before
each use.
Page 30
30
Do not attempt to light the grill if odor of gas is
present. Call for customer service 1-866-814-0585

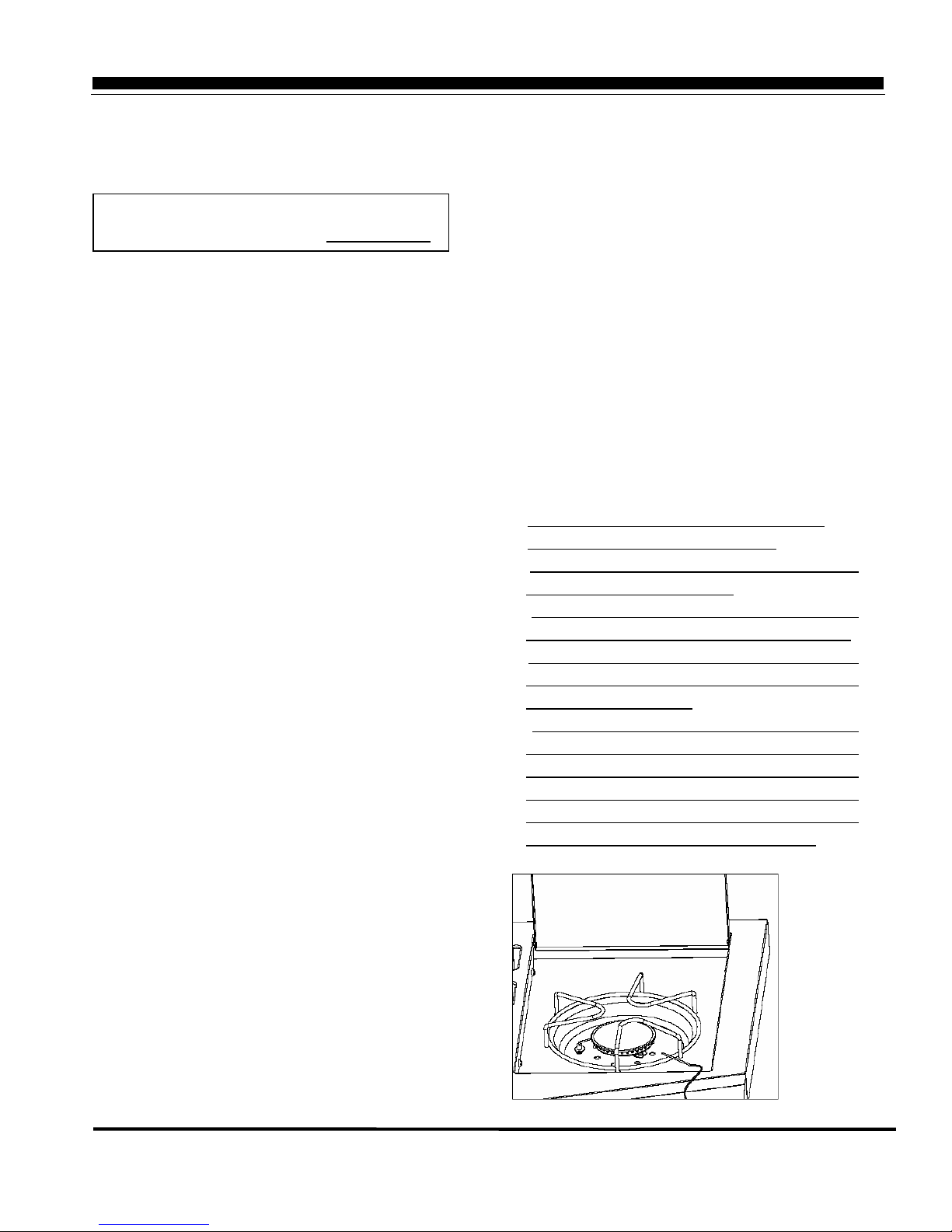

USING THE SIDE BURNER
WARNING: IMPORTANT!
USING THE SIDE BURNER
Inspect the gas supply hose prior to turning the gas
“ON”. If there is evidence of cuts, wear or abrasion,
it must be replaced prior to use. Do not use the side
burner if the odor of gas is present.
WARNING: Always keep your face and body as far
away from the burner as possible when lighting.
LIGHT INSTRUCTION
To light the side burner, remove any cooking
utensils from the burner grate. Push and turn the
control knob counterclockwise to the “IGNITE/MAX”
position. If the burner does not light, turn the control
knob to “OFF”. If the smell of gas is detected and
the igniter is not functioning, immediately turn the
control knob “OFF”. Allow 5 minutes for any
accumulated gas to dissipate. If the side burner
igniter is not functioning, see the following section
for match lighting.
MATCH LIGHTING THE SIDE BURNER
1. Open the lid to the side burner before lighting.
2. Turn the burner control knob to "OFF".
3. Strike and carefully place a match approximately
1/2" (1 to 2 cm) from the burner.
4. Turn the side burner control knob to the "MAX"
position. The burner should light within 5 seconds.
5. If the burner does not light, turn the control knob to
"OFF" and wait 5 minutes for gas to dissipate and
repeat lighting procedure.
6. If the burner does not light within the first few
attempts of match lighting, there is a problem with
the gas supply. Turn off the gas at the burner and
cylinder. DO NOT attempt to operate the grill until
the problem is found and corrected. See "Trouble
Shooting" section of this manual on page 33.
Page 31
31
CARE & MAINTENANCE
STAINLESS STEEL
Under extreme conditions, stainless steel can rust
and may not be removable. These conditions may
become more prevalent in coastal areas. Always use
extra precautions while cleaning the stainless steel by
using a soft non-abrasive cloth and a stainless steel
cleaner/polish to minimize the risk of scratching the
surface.
GRILL
The easiest way to clean grill is to be taken
immediately after finished the cooking and turned off
the flame. Wear a barbeque mitt to protect your hand
from the heat and steam. Dip a brass bristle barbeque
brush in tap water and scrub the hot grill. Dip the
brush frequently in the bowl of water. Steam, created
as water contacts the hot grill, assists the cleaning
process by softening any food particles. The food
particles will fall and burn. If the grill is allowed to cool
before cleaning, cleaning will be more difficult.
BURNERS
Extreme care should be taken when moving a burner
as it must be correctly centered on the orifice before
any attempt is made to relight the grill. Frequency of
cleaning will depend on how often you use the grill.
GRILL BURNER CLEANING
Ensure the gas supply is off and the knobs are in the
“OFF” position. Make sure the grill is cool. Clean the
exterior of the burner with a wire brush. Clear
stubborn scale with a metal scraper. Clear any
GREASE TRAY CLEANING
The grease tray should be emptied and wiped down
periodically and washed in a mild detergent and warm
water solution. A small amount of sand or cat litter may
be placed in bottom of grease tray to absorb the grease.
Check the grease tray frequently, don’t allow excess
grease to accumulate and overflow out of the grease
tray.
SIDE BURNER CLEANING:
Clean the exterior of the burner with a brush. Clear any
clogged burner ports with a straightened steel wire.
Never enlarge the burner ports. Never use a wooden
toothpick as it may break off and clog the port.
Check your grill for the following items every six
months
Make sure the area around the grill free and clear of
combustible materials.
1. Make sure the combustion and ventilation
openings are not obstructed.
2. Make sure the ventilation openings of the cart
are not obstructed.
3. Visually check the burner flames.
4. Clean your grill as described above.
5. Check the grill for insect nests as described in
the troubleshooting section on page 33.
Page 32
32

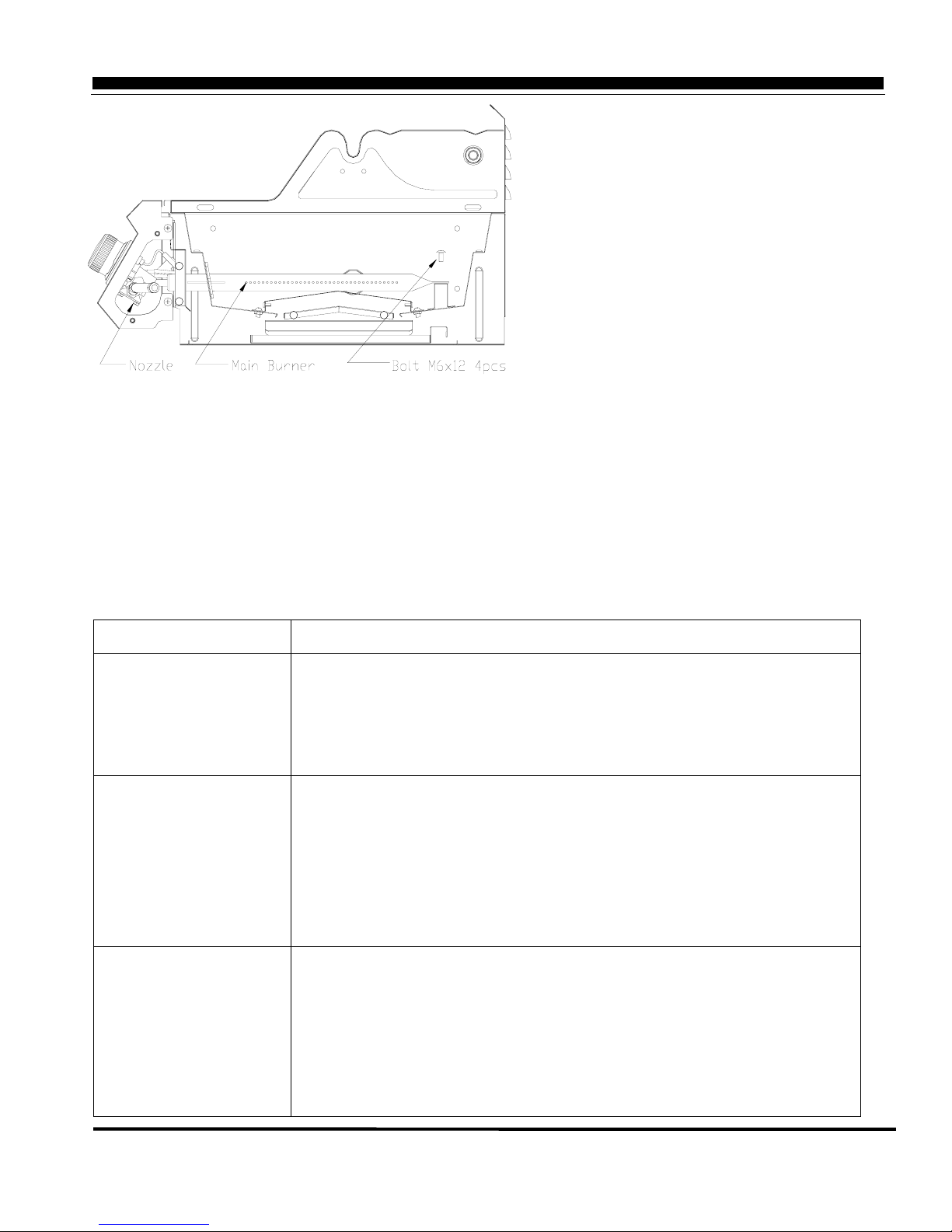

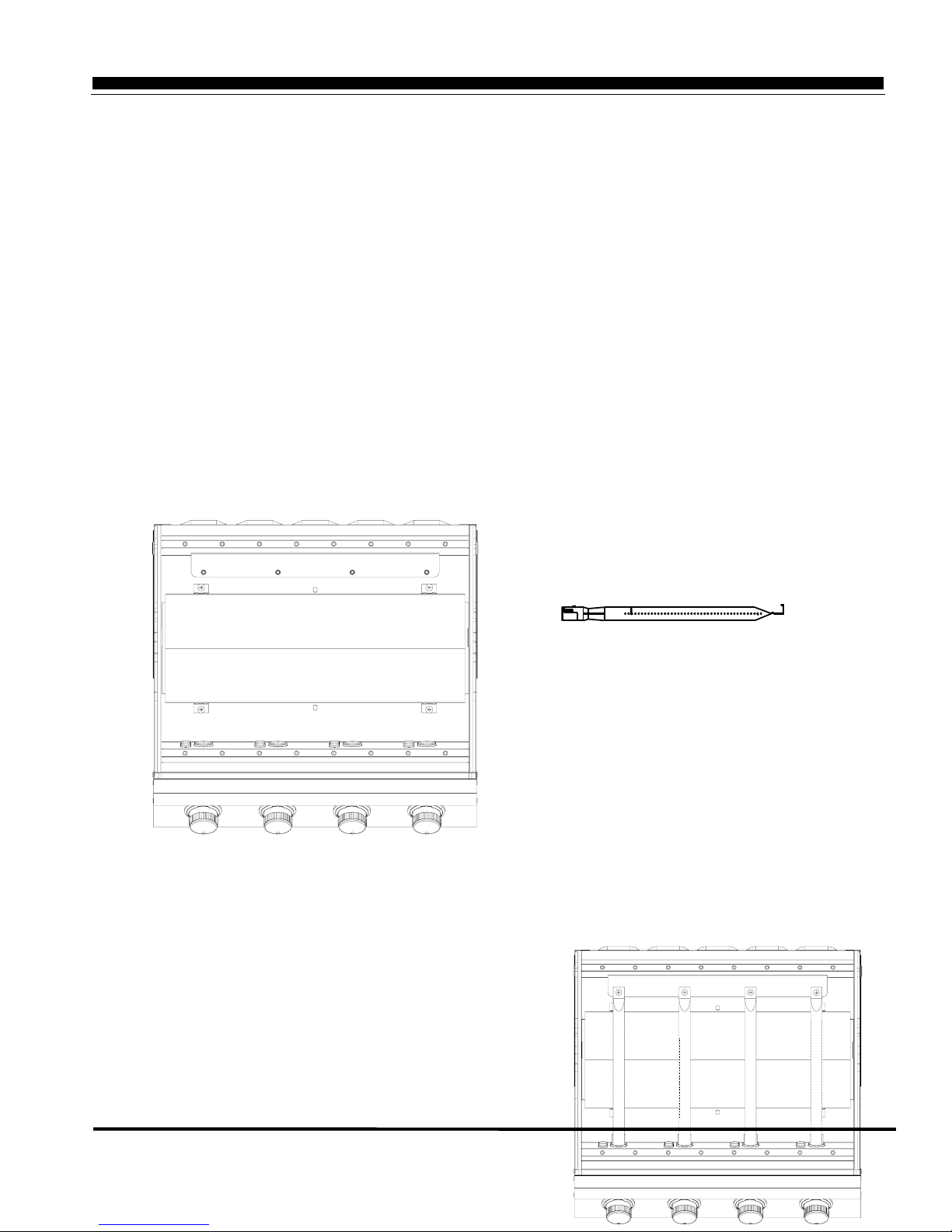

HOW TO REPLACE MAIN BURNER
Ignition hole
(upwards)
Line up burner and burner supporter and secure
both parts by using M6 x 12 bolts.
Main burner image
Page 33
33
TROUBLE SHOOTING
PROBLEM SOLUTION
When I light the grill it, does
not flame immediately.
-- Make sure you have turned on the gas.
-- Make sure it a spark while you are trying to ignite the burner.
-- Push in control knob and turn to ignite/preheat and hold for approximately 5 seconds
and then ignite the grill.
-- Make sure your burner is clean.
Regulator makes noise. -- Vent hose on the regulator may be plugged or regulator may be faulty.
-- Make sure the vent hole on the regulator is not obstructed. Clear the hole, close the LP
cylinder and gas control valves. Wait 10 minutes and re-start.
-- When turning the LP cylinder valve on, do not cover vent hole on the regulator.
-- Check your flames for proper performance if the flames are not correct then replace
regulator.
-- Purge The lines.
Grill only heats to 200-300
degrees.
-- Ensure the temperature gauge is functioning properly. Hold a flame to the probe o
r
compare the grill gauge to an oven thermometer placed in the grill.
-- Ensure correct start procedure. Prior to lighting grill, the gas control knobs should be
off. The propane bottle should be off. If not, wait 15 minutes. Turn cylinder all the way
on. Turn left burner to ignite, wait 5 seconds to ignite. Repeat for additional burners.
-- Check all gas connections for leaks with bubble test. If leaks are found, replace the
part or tighten the fitting.
SPIDER AND INSECT WARNING!!!
Spiders and inse cts can nest in the burners of the grill
and cause the gas to flow from the front of the burner.
This is a very dangerous condition, which can cause a
fire to occur behind the valve panel, thereby damaging
the grill and making it unsafe to operate.
WHEN TO LOOK FOR SPIDERS
You should inspect the burners at least twice a year or
immediately after any of the following conditions occur:
Page 34
34
Grill takes a long time to
preheat.
-- Normal preheat 500-600 degrees, takes about 10-15 min. Cold weather and wind may
effect your preheat time. Volcanic rock and Briquettes should not be used in this BBQ.
Burner flames are not light
blue.
-- Too much or not enough air mixes for the flame.
-- Elevation is the principal cause, however cold weather can affect the mixture. Burne
r
adjustment may be required. Refer to manual for adjustment procedures.
-- Grill is in a windy location.
ONE-YEAR LIMITED WARRA NTY
True Value Company warrants your gas grill to be free from manufacturer’s defects in workmanship or material under
normal operating conditions for one (1) year from the original date of purchase.
This warranty only applies if the item is purchased for use in Canada and is available to the original purchaser only.
This warranty applies only to products sold at retail.
True Value Company will, at its option, repair or replace free of charge any defective part, where the Purchaser has notified
their Retailer within the warranty period. In the event of product replacement, the current equivalent model will be provided.
The obligation of True Value Company under this warranty is expressly limited to such repairs or replacement. This
warranty does not cover the freight costs to and from the authorized repair facility.
Warranty Program:
Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. If you are not
able to provide proof of purchase before or after the warranty has expired, you will be subject to parts, shipping and
handling fees.
Full 30-Day Warranty:
Any missing parts can be replaced at no charge within 30 days from the date of purchase, with a valid proof of purchase.
Limited Warranty:
One (1) year warranty on all parts in regards to damage affecting the operation of the gas grill.
Warranty Provisions:
• This warranty is non-transferable and does not cover failures due to misuse or improper installation or maintenance.
• This warranty is for replacement of defective parts only. We are not responsible for incidental or consequential
damages or labour costs.
• This warranty does not cover chips and scratches of porcelain, non-stick or painted surfaces, nor does it cover
corrosion or discoloration due to misuse, lack of maintenance, hostile environment, accidents, alterations, abuse or
neglect.
• This warranty does not cover damage caused by heat, abrasive and chemical cleansers, resulting in chipped porcelain
enamel parts or any damage to other components used in the installation or operation of the gas grill.
Some provinces do not allow limitations on how long an implied warranty last s, so the ab ove limit ation may not apply to you.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
Page 35
35
exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which vary
from province to province.
If you require service, please first see the “Trouble sh ooting” section of the Owner’s Manual.
Additional assistance can be found by calling our toll-free customer service line at
1-866-814-0585, Monday to Friday from 9:00 AM to 5:00 PM (EST).
Loading...
