Grillpro 269984, 268584, 268744, 268564, 268544 Owner's Manual

E-Z BILT BARBECUES

ASSEMBLY MANUAL & PARTS LIST MANUEL DE MONTAGE & LISTE DE PIECES

266964
266974

268524
268564
268964
2

68544
268584
2

68744
2

68784

269744
269784
2

69984

RETAIN FOR FUTURE REFERENCE VEUILLEZ CONSERVER POUR REFERENCE ULTERIEURE

1-800-265-2150 [email protected]

0507

X10

X8

X12

X17

X2 X2

X1

ǃ

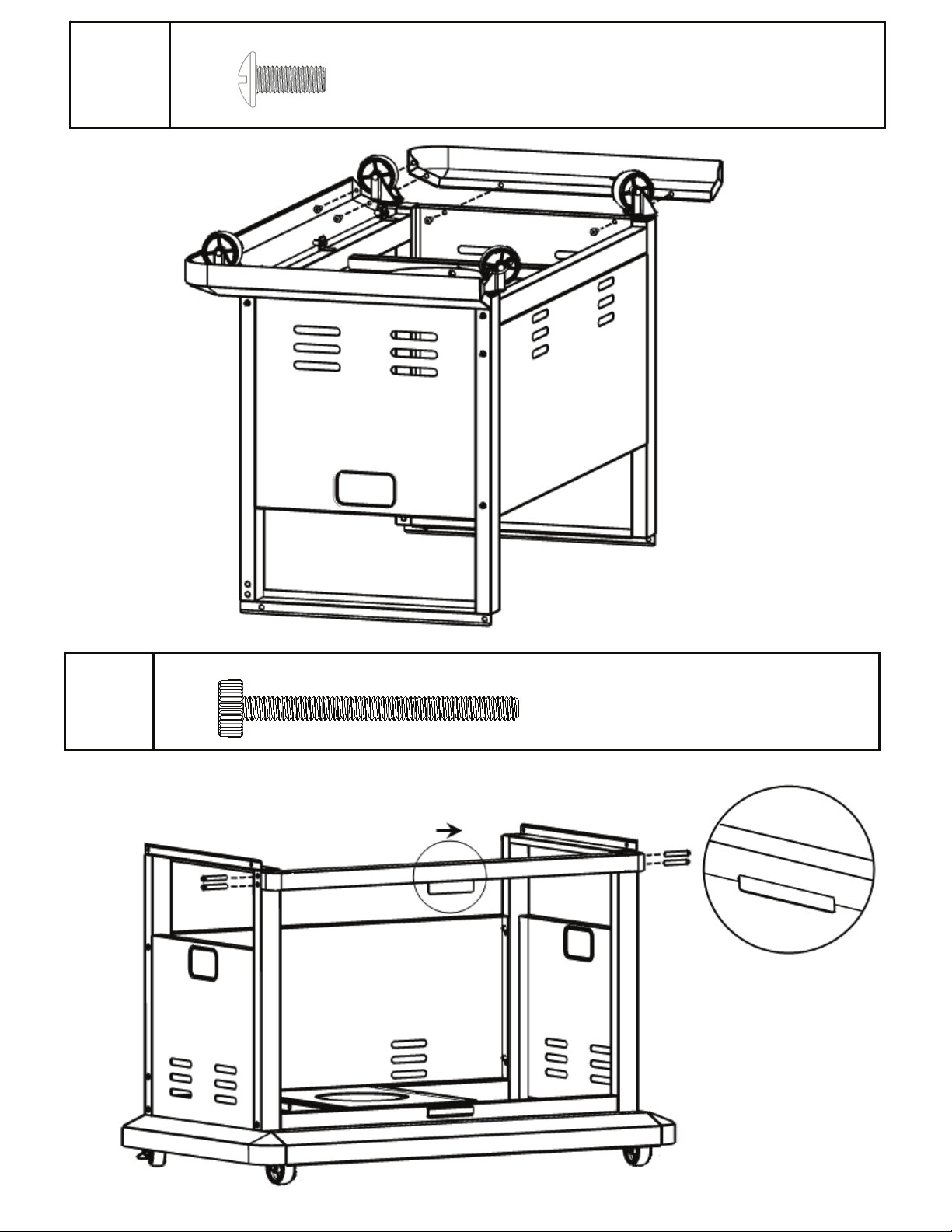

1 (4)

2

B

A

B

A

A

B

3 (4) (4)

4 (3)

5 (4)

6 (4)

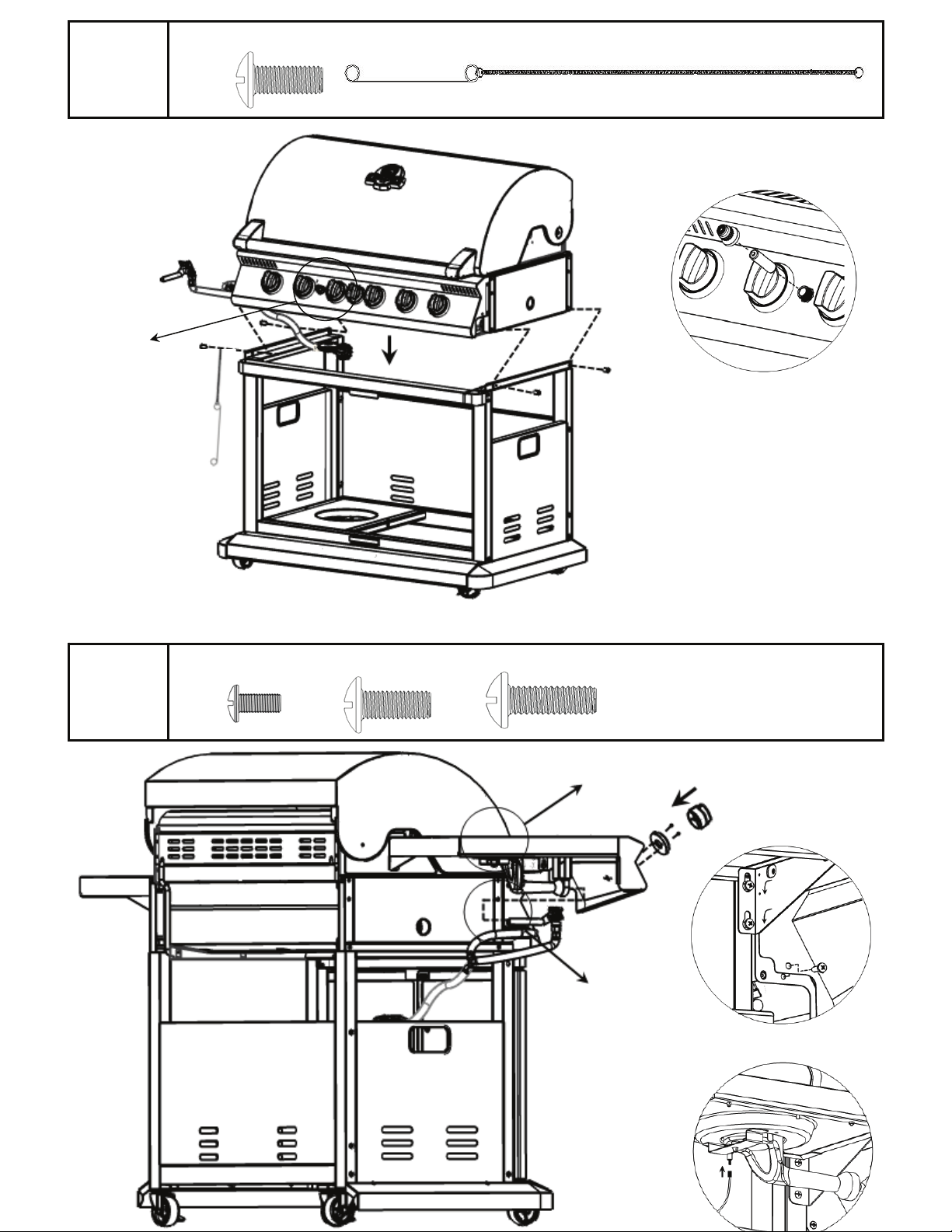

7 (4)

ǃ

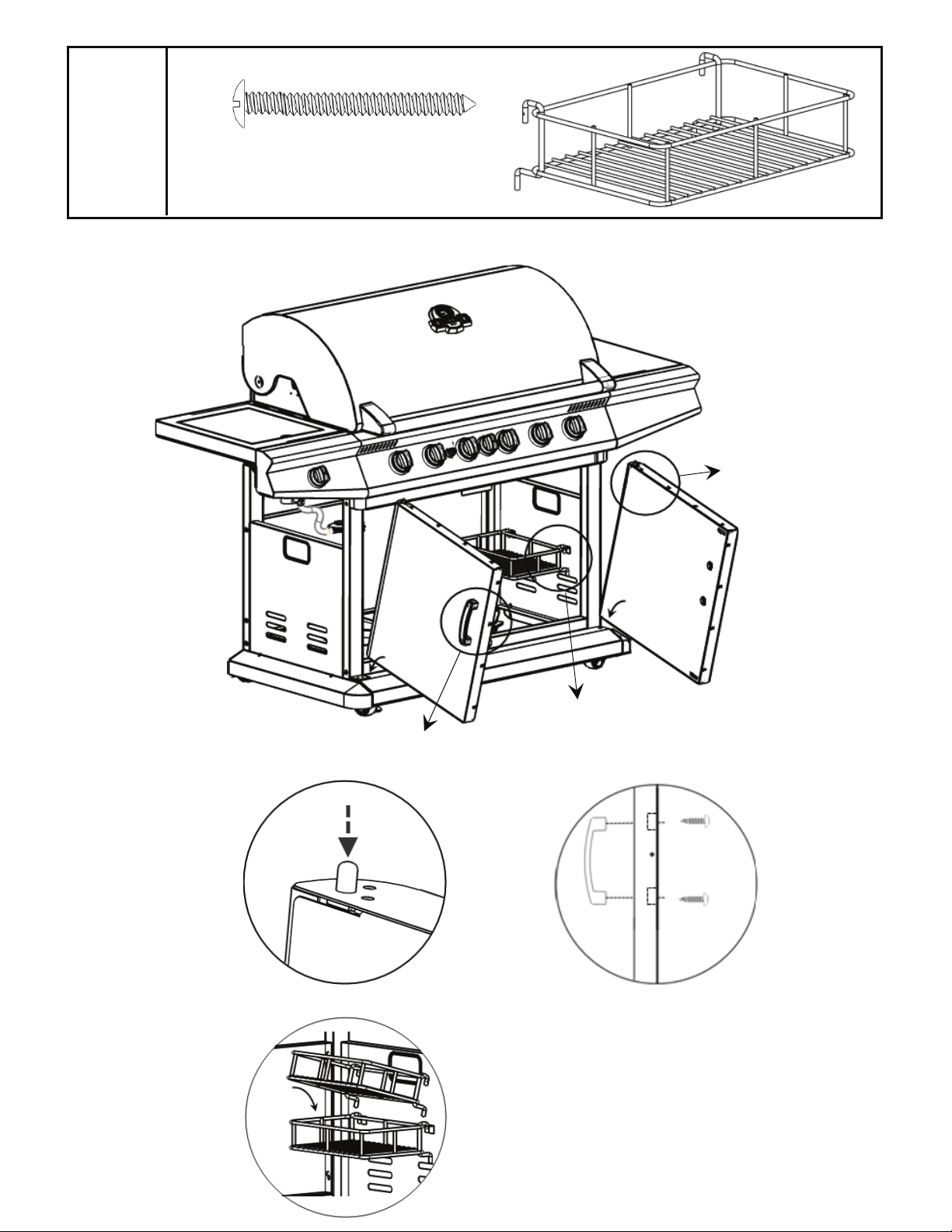

8 (6)

9 (4)

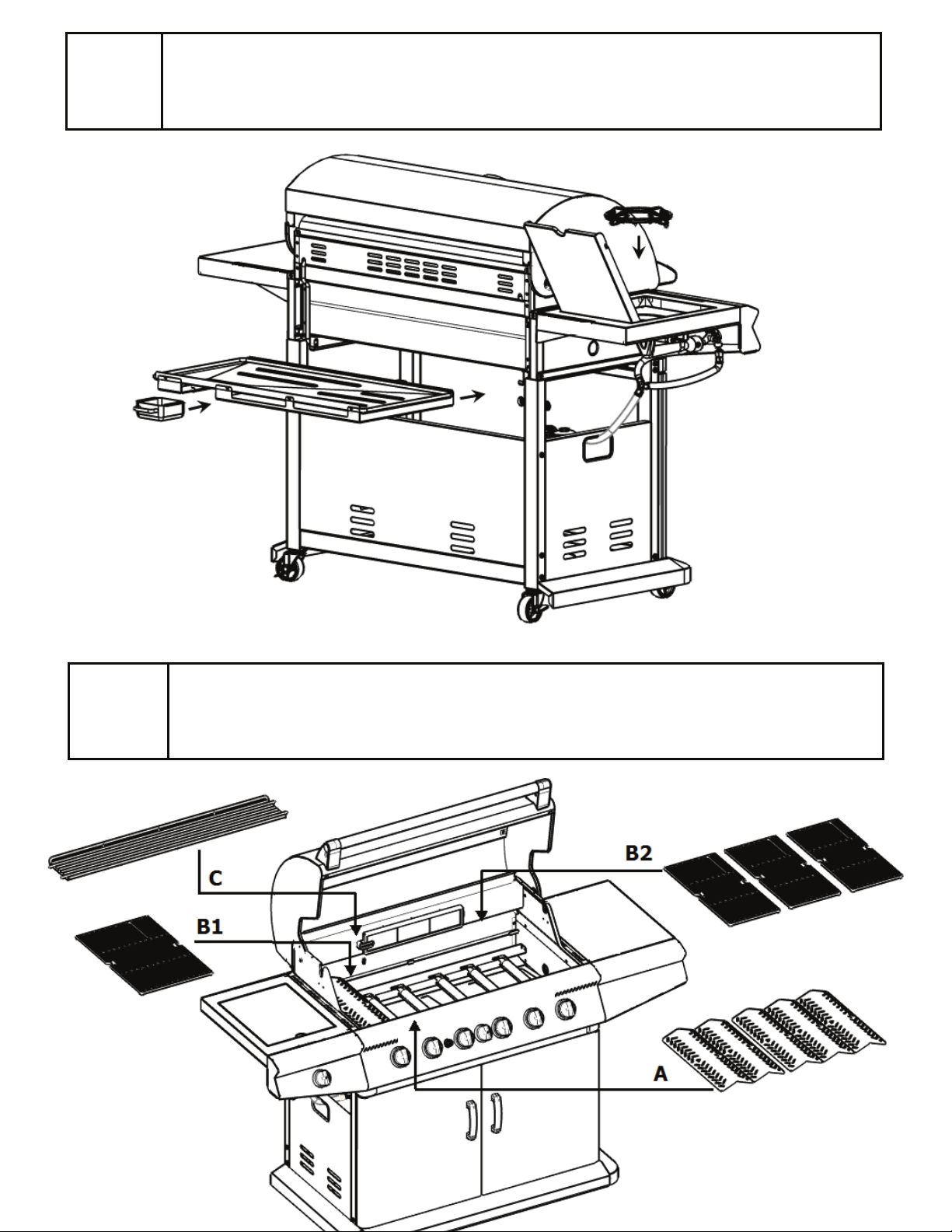

10 (2) (2) (8)

A

B

A

B

B

A

A

A

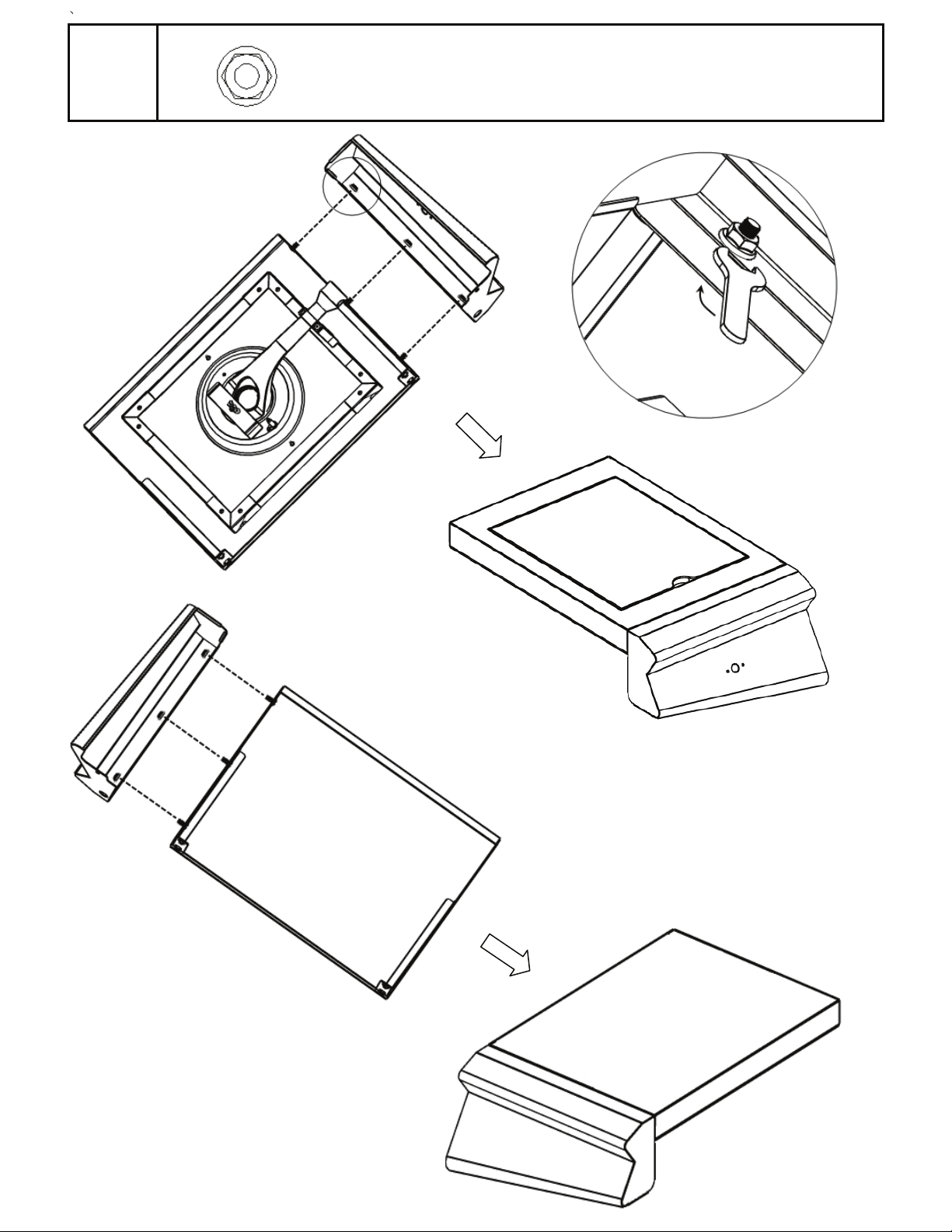

11 (2)

C

A

B

B

A

C

12

13

ARTS LIST / LISTE DES PIECES

P

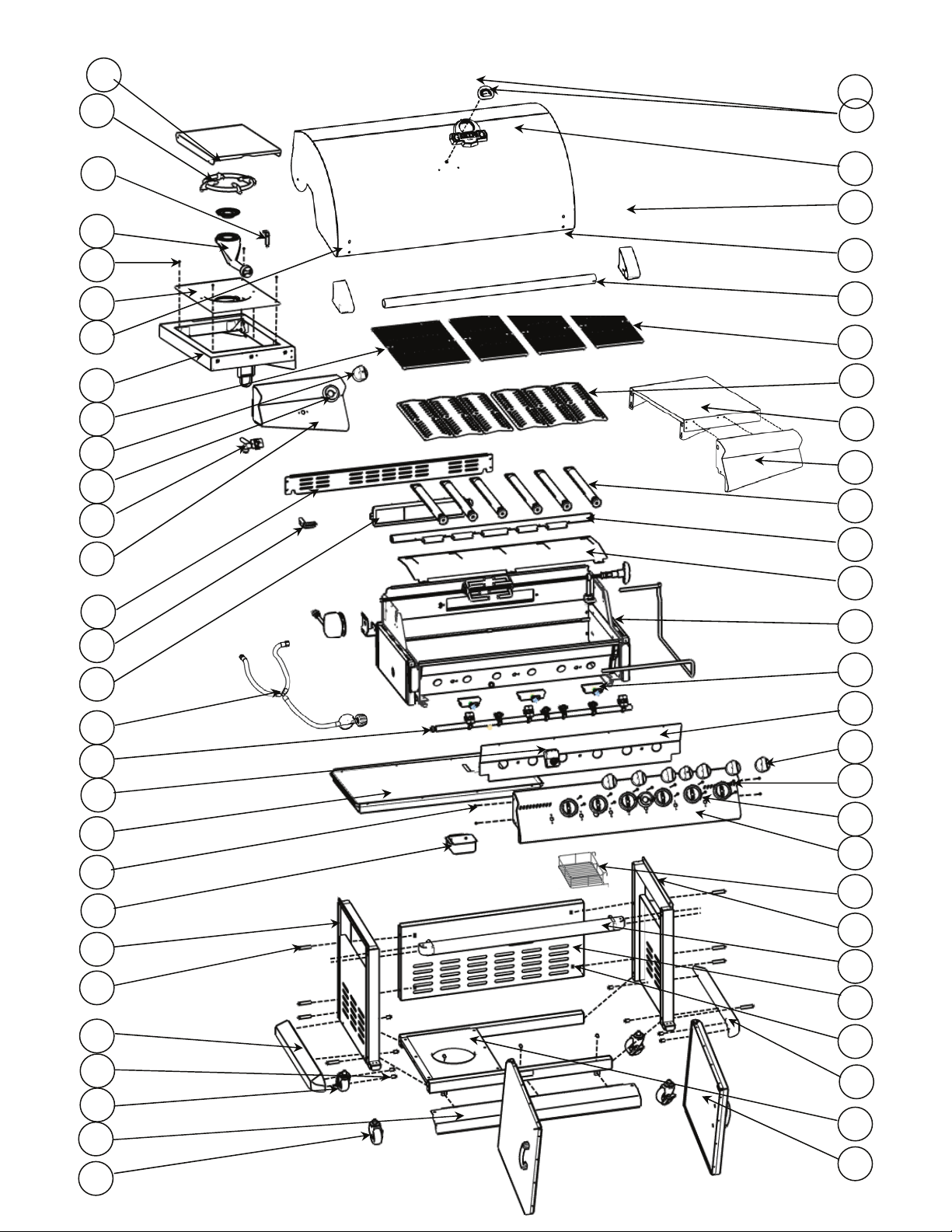

PARTS LIST/LISTE DES PIECES

ITEM PART NUMBER DESCRIPTION 266964 266974 268524 268527 268544 268564 268584 268744 268747 268784 268964 269744 269747 269784 269984
1 909-C600 FIREBOX-BOTTOM ASSY 1 1 1 1
1A 909-C410 FIREBOX-BOTTOM ASSY 1 1 1 1 1 1 1 1 1
1B 909-C300 FIREBOX-BOTTOM ASSY 1 1
2 473-C601 LID ASSY 1 1 1 1
2A 473-C401 LID ASSY 1 1 1 1 1 1 1 1 1 1 1
3 081-C500 NAME PLATE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
4 571-C500 THERMOMETER GUAGE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
5 338-C310 HANDLE SEAT-LEFT 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
6 338-C311 HANDLE SEAT-RIGHT 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
7 338-C613 LID HANDLE 1 1 1 1
7A 338-C413 LID HANDLE 1 1 1 1 1 1 1 1 1 1 1
8 225-C630 WARMING RACK 1 1 1 1
8A 225-C430 WARMING RACK 1 1 1 1 1 1 1 1 1 1 1
9 342-C640 CHANNEL-CROSS LIGHT 1 1 1 1
9A 342-C445 CHANNEL-CROSS LIGHT 1 1 1 1 1 1 1 1 1
9B 342-C345 CHANNEL-CROSS LIGHT 1 1
10 225-C620 GRID-COOKING- CASTING 1 1
10A 225-C621 GRID-COOKING- SS 1 1
11 225-C320 GRID-COOKING- CASTING 3 3 3 3 3 3 3 3
11A 225-C321 GRID-COOKING- SS 3 3 3 3 3 3 3
12 156-C651 SHIELD GREASE 1 1 1 1
12A 156-C451 SHIELD GREASE 1 1 1 1 1 1 1 1 1 1 1
13 393-C500 REAR BURNER ASSY 1 1 1 1 1 1 1 1 1 1
14 393-C641 SHIELD W IND-REAR BURNER 1 1 1 1
14A 393-C441 SHIELD WIND-REAR BURNER 1 1 1 1 1 1 1 1 1 1 1
15 342-C530 ELECTRODE ASSY-REAR BURNER 1 1 1 1 1 1 1 1 1 1
16 156-C620 SHIELD-HEAT 1 1 1 1
16A 156-C420 SHIELD-HEAT 1 1 1 1 1 1 1 1 1
16B 156-C320 SHIELD-HEAT 1 1
17 194-C610 COVER-CONTROL ASSY 1 1 1 1
17A 194-C410 COVER-CONTROL ASSY 1 1 1 1 1 1 1 1 1
17B 194-C310 COVER-CONTROL ASSY 1 1
18 691-C650 VALVE ASSY 1 1
18A 691-C651 VALVE ASSY-N.G 1
18B 691-C450 VALVE ASSY 1 1 1 1 1 1 1
18C 691-C451 VALVE ASSY-N.G 1 1
18D 691-C350 VALVE ASSY 1 1
19 958-C322 SIDE ASSY-L.H.-CABINET 1 1 1 1 1 1 1 1
19A 958-C323 SIDE ASSY-L.H.-CABINET-SS 1 1 1 1 1 1 1
20 472-C512 BEZEL-CONTROL KNOB-MAIN BURNER 3 3 4 4 4 4 4 4 4 4 4 6 6 6 6
21 472-C565 CONTROL KNOB-MAIN BURNER 3 3 4 4 4 4 4 4 4 4 4 6 6 6 6
22 472-C502 BEZEL-CONTROL KNOB-SIDE/REAR BURNER 1 1 1 1 2 1 2 2 2 2 1 2 2 2 2
23 472-C555 CONTROL KNOB-SIDE/REAR BURNER 1 1 1 1 2 1 2 2 2 2 1 2 2 2 2
24 342-C640 IGNITER-ELECTRONIC 1 1 1 1 1 1
24A 342-C540 IGNITER-ELECTRONIC 1 1 1 1 1 1 1 1 1
25 711-C342 SIDE SHELF ASSY-R.H. 1 1 1 1 1 1 1
25A 711-C346 SIDE SHELF ASSY-R.H.-SS 1 1 1 1 1 1 1 1
26 711-C343 FRONT COVER-R.H.-SIDE SHELF 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
27 C13500 MAIN BURNER 3 3 4 4 4 4 4 4 4 4 4 6 6 6 6
28 342-C323 ELECTRODE ASSY-MAIN BURNER 3 3 2 2 2 2 2 2 2 2 2 3 3 3 3
29 222-C560 FLAVOR GUARD-PORCELAIN 3 3 4 4 4 4 6 6
29A 222-C550 FLAVOR GUARD-SS 4 4 4 4 4 6 6
30 958-C321 SIDE ASSY-R.H.-CABINET 1 1 1 1 1 1 1 1
30A 958-C324 SIDE ASSY-R.H.-CABINET-SS 1 1 1 1 1 1 1
31 711-C344 SIDE SHELF ASSY-L.H.- S.B 1 1 1 1 1 1 1
31A 711-C347 SIDE SHELF ASSY-L.H.-S.B-SS 1 1 1 1 1 1 1 1
32 711-C345 FRONT COVER-L.H.-SIDE SHELF 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
33 390-C330 BASE-SEDE BURNER 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
34 390-C333 SIDE BURNER 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
35 342-C325 ELECTRODE ASSY-SIDE BURNER 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
36 440-C335 VALVE ASSY-SIDE BURNER 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
37 225-C353 GRATE-COOKING-SIDE BURNER 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
38 390-C336 COVER-SIDE BURNER 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
39 159-C660 TRAY ASSY-GREASE 1 1 1 1
39A 159-C460 TRAY ASSY-GREASE 1 1 1 1 1 1 1 1 1 1 1
40 114-C370 HOSE REGULATOR-LP 1 1 1 1 1 1 1 1 1 1 1 1
40A 111-C375 HOSE NATURAL GAS 1 1 1
41 C11160 SCREW - 1/4 X 20 IN-SS 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8
42 C11163 SCREW-M4X8 8 10 10 10 12 10 12 12 12 12 10 16 16 16 1 6
43 C15511 CUP-GREASE 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
44 C11162 SCREW - 1/4 X 60 IN-SS 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
45 C11161 SCREW - 1/4 X 15 IN-SS 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17
46 184-C670 BRACKET-DOOR CATCH-SS 1 1 1 1
46A 184-C470 BRACKET-DOOR CATCH 1 1 1 1 1 1 1 1
46B 184-C471 BRACKET-DOOR CATCH-SS 1 1 1
47 711-C652 SHELF-LOW ER-SS 1 1 1 1
47A 711-C452 SHELF-LOWER 1 1 1 1 1 1 1 1
47B 711-C352 SHELF-LOWER-SS 1 1 1
48 958-C620L DOOR ASSY RIGHT - SS 2 2 2 2

958-C620R DOOR ASSY LEFT - SS

48A 958-C420L DOOR ASSY RIGHT - SS 2 2 2 2 2 2 2 2 2 2 2

958-C420R DOOR ASSY LEFT - SS
49 892-C013 CASTOR-FRONT 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
50 958-C690 PANEL REAR-CABINET-SS 1 1 1 1
50A 958-C490 PANEL REAR-CABINET 1 1 1 1 1 1 1 1
50B 958-C390 PANEL REAR-CABINET-SS 1 1 1
51 C11225 NUT - 1/4 IN 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8
52 958-C333 RIGHT SKIRT-CABINET-SS 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
53 958-C334 LEFT SKIRT-CABINET-SS 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
54 958-C635 FRONT SKIRT-CABINET-SS 1 1 1 1
54A 958-C435 FRONT SKIRT-CABINET-SS 1 1 1 1 1 1 1 1 1 1 1
55 C11164 SCREW-M4X15-SS 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
56 225-631 BASKET 1 1 1 1
57 892-014 CASTOR-REAR 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
58 070-C600 HARDW ARE PACK 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
