Grill Master 720-0670E Assembly & Operating Instructions
Liquid Propane Gas Grill
Rona Sku No.: 70005002
Item number : 720-0670E
WARNING:
Read this Owner’s manual carefully and be sure your gas grill is properly assembled,
installed and maintained. Failure to follow these instructions could result in serious
injury and/or property damage. This gas grill is intended for outdoor use only and is not
intended to be installed in or on recreational vehicles or boats.
Note to Installer
Leave this Owner’s Manual with the customer after delivery and/or installation.
!
• Parts
• Assembly
• Safety Rules
• Use and Care
• Troubleshooting
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1- (888)874-8661, 7 a.m. - 5 p.m., PST, Monday - Friday
Assembly & Operating Instructions
100
50
600
500
400C300
200
700
350
250
150
50
F
WARNING
Your grill will get very hot. Never lean over the
cooking area while using your grill. Do not touch
cooking surfaces, grill housing, lid or any other
grill parts while the grill is in operation, or until the
gas grill has cooled down after use.
Failure to comply with these instructions may
result in serious bodily injury.
WARNING
Combustion by products produced when using
this product contain chemicals known to the
State of California to cause cancer, birth defects,
or other reproductive harm.
WARNING
Failure to comply with these instructions could
result in a fire or explosion that could cause
serious bodily injury, death, or property damage.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
!
!
!
2
Table of Contents
Precautions
!
!
Grill Installation Codes
The installation must conform with local codes or,
in the absence of local codes, with either the
national fuel gas code, ANSI Z 223.1/NFPA S4,
Natural gas and propane installation code, CSA
B149.1, or propane storage and handling code,
B149.2, or the standard for Recreational vehicles,
ANSI A 119.2, and CSA Z240 RV series
recreational vehicle code, as applicable.
LP gas grill models are designed for use with a
standard 20 lb. Liquid Propane Gas tank, not
included with grill. Never connect your gas grill to
an LP gas tank that exceeds this capacity.
Warranty------------------------------------------------2
Safety Precautions--------------------------------2~4
Hardware List------------------------------------------5
Parts Diagram -----------------------------------------6
Parts List------------------------------------------------7

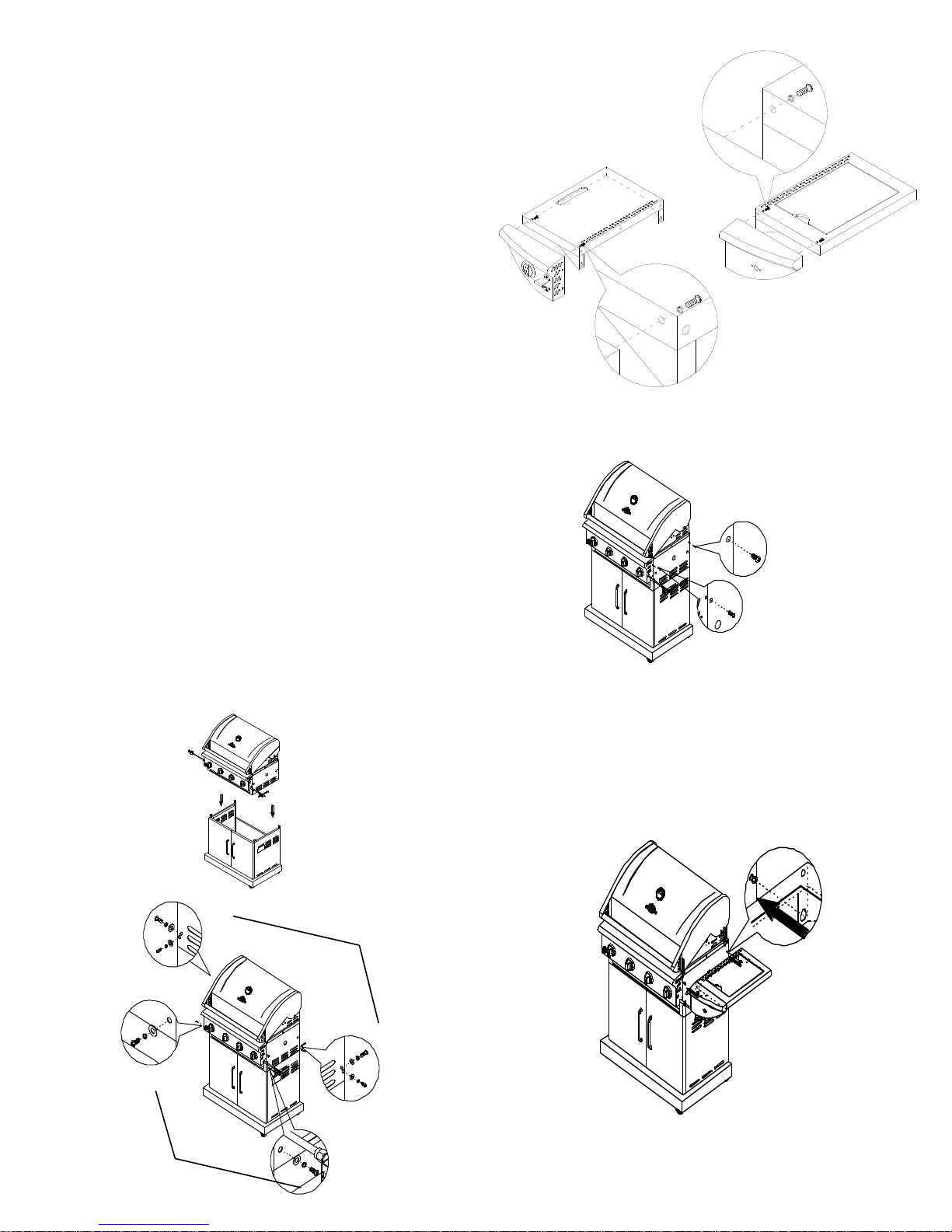

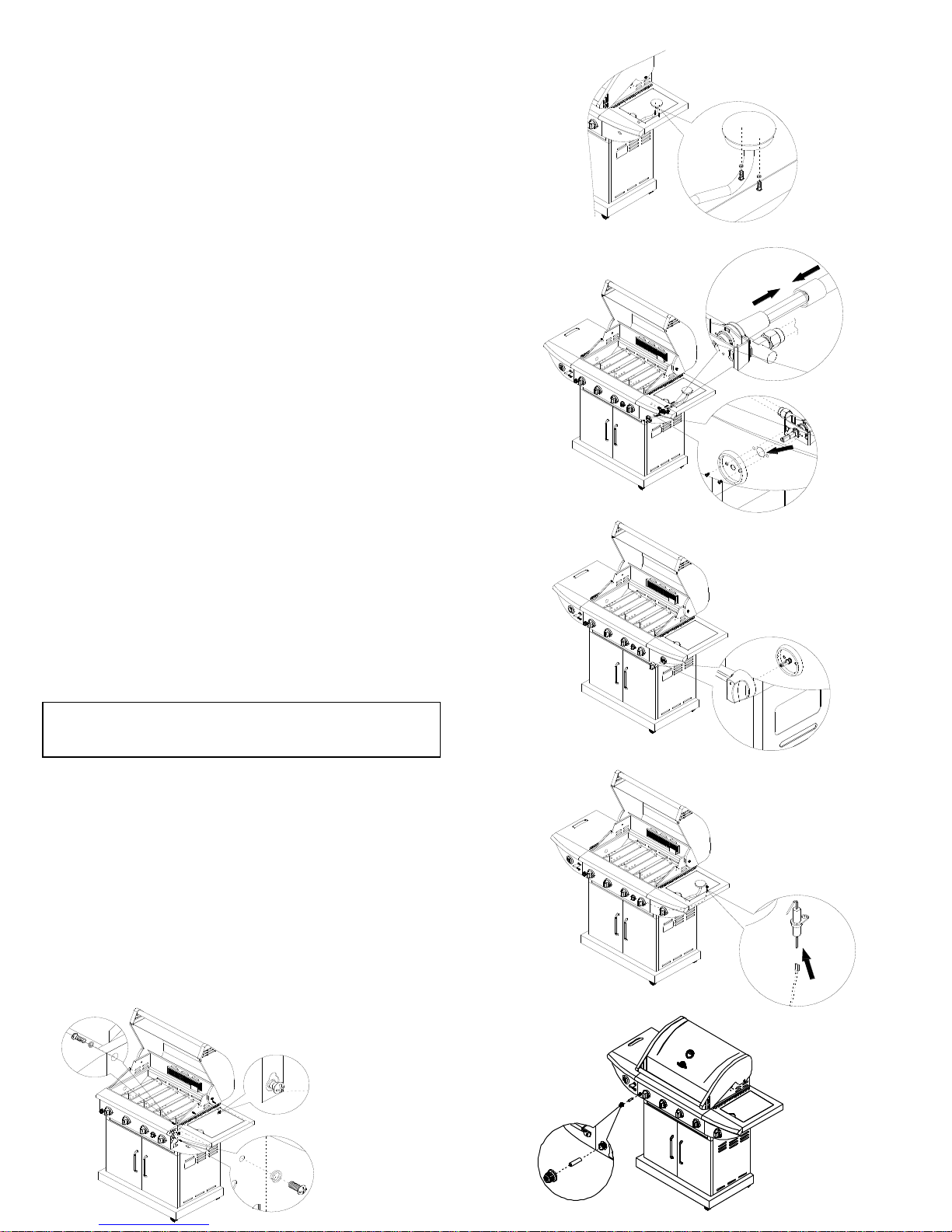

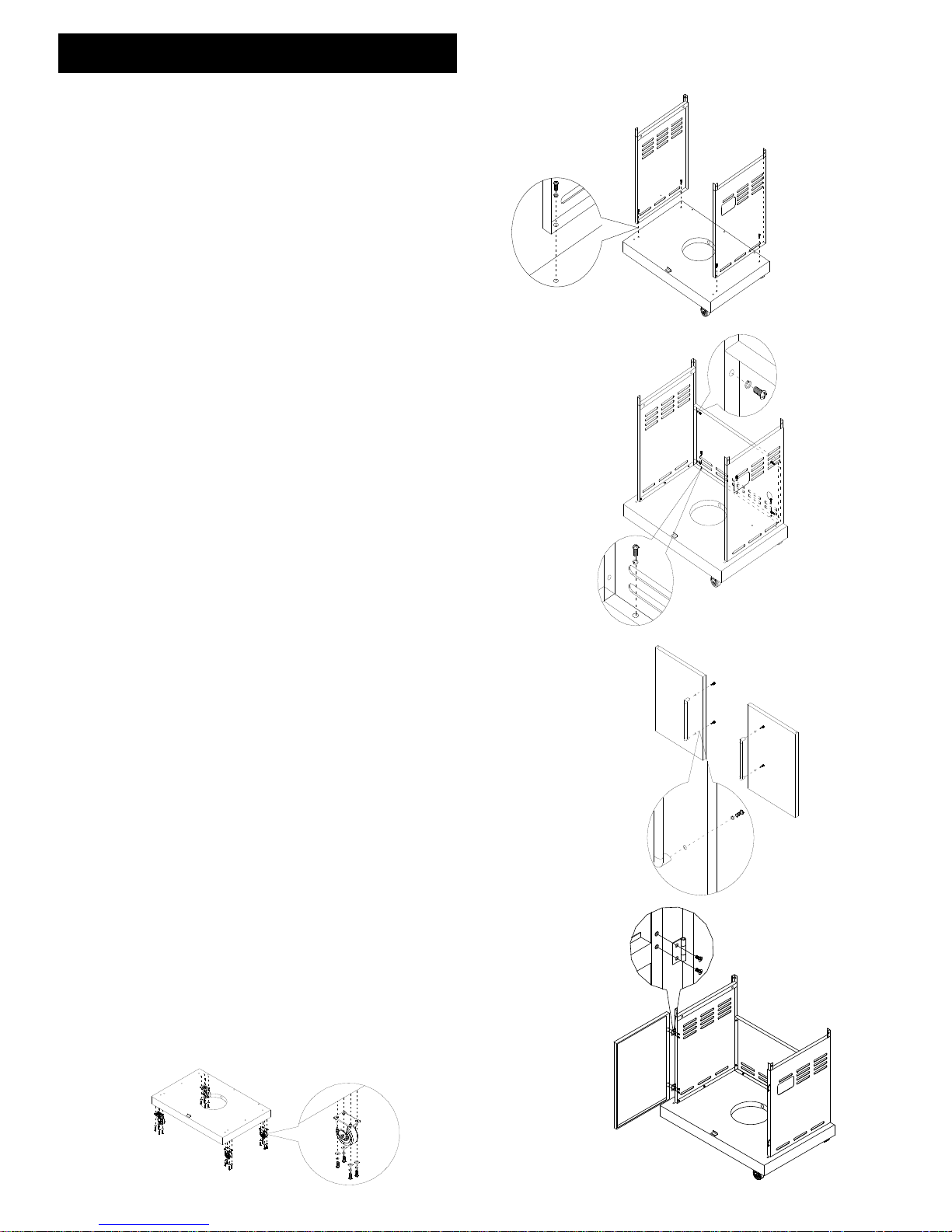

Assembly Instructions---------------------------8~12

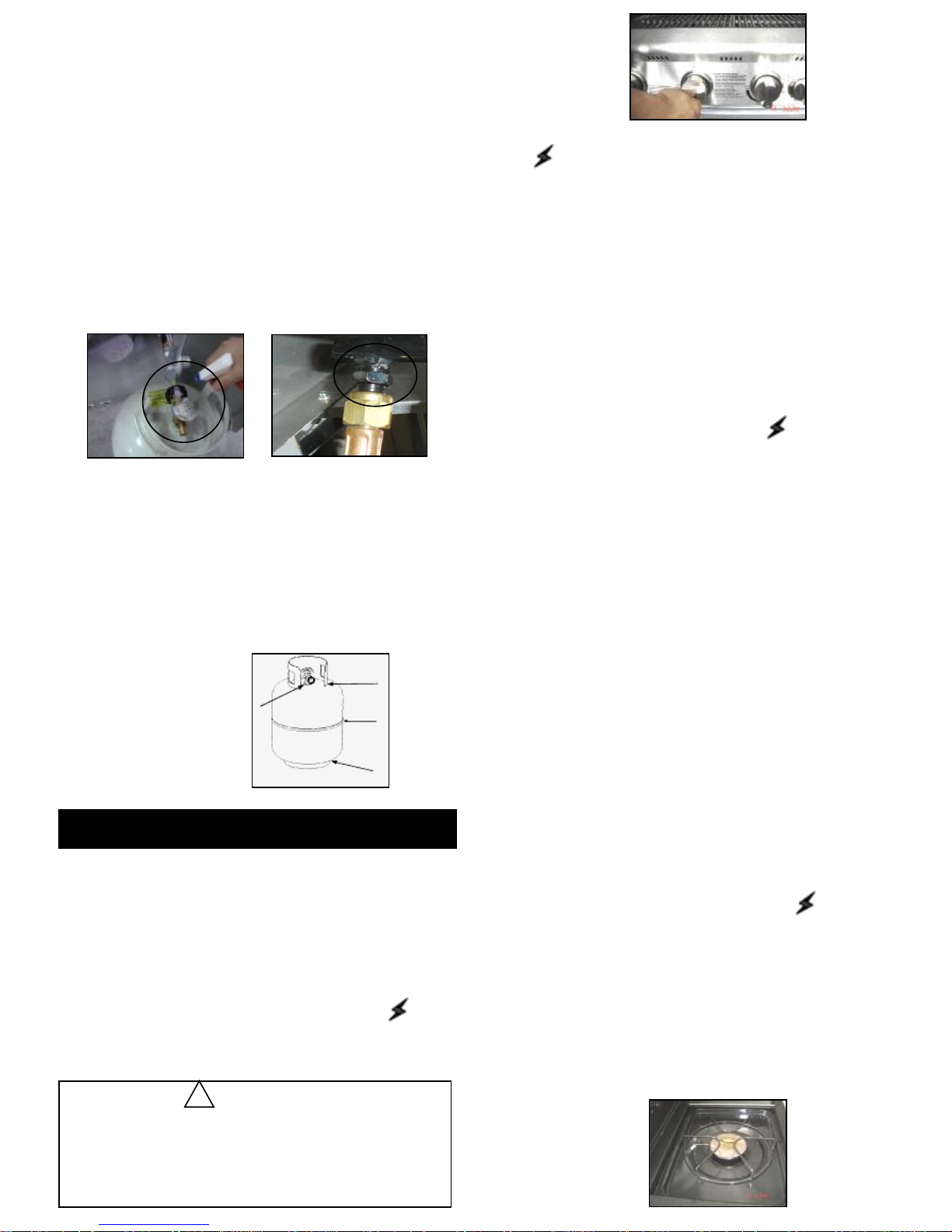

Lighting Instructions----------------------------13~14
Cleaning and Maintenance-------------------14~15
Troubleshooting--------------------------------------16
Cooking Instruction----------------------------------17

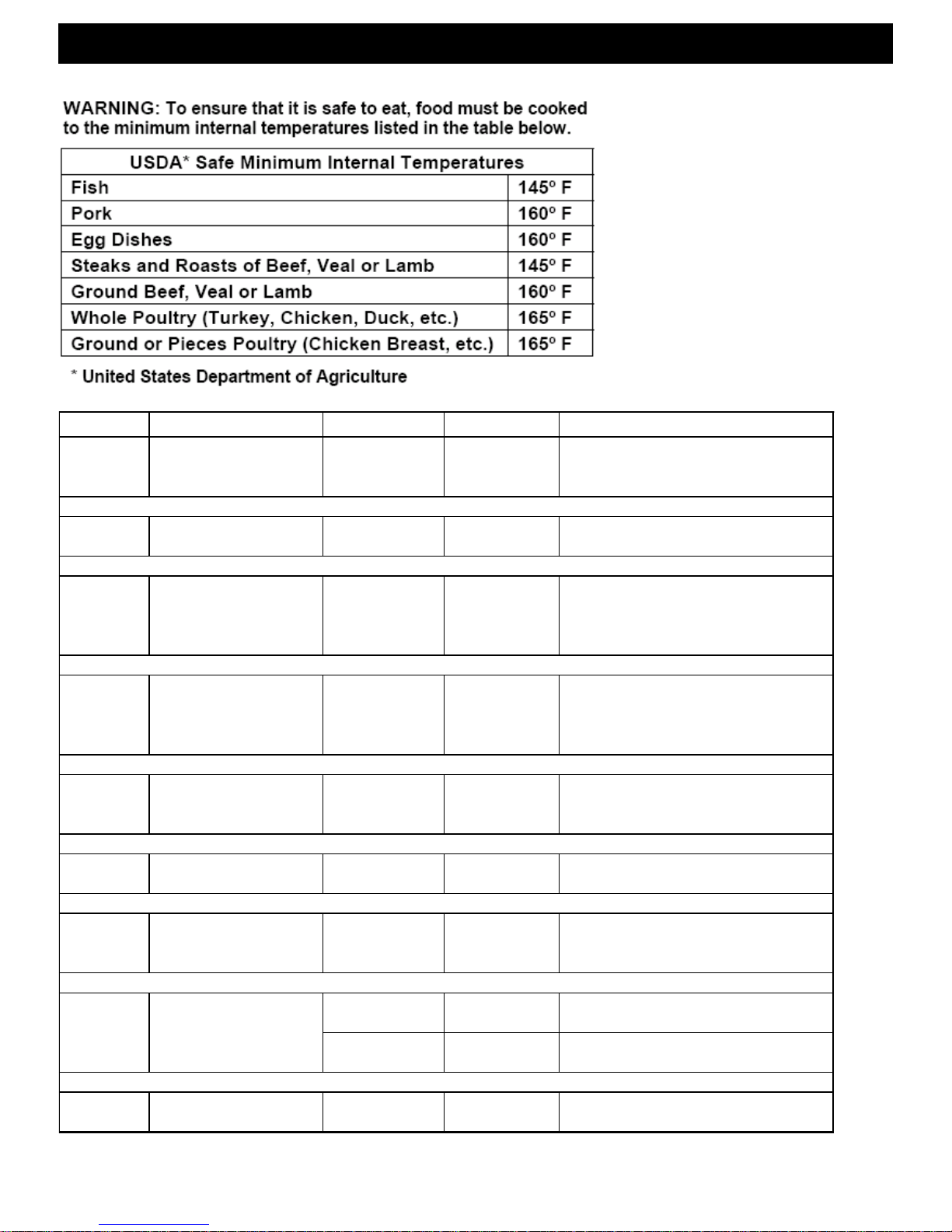

Cooking Chart----------------------------------------18
• Have your LP gas tank filled by a reputable
propane gas dealer and visually inspected and requalified at each filling.
• Do not store a spare LP gas tank under or
• near this appliance.
• Never fill the tank beyond 80 percent full . If this
information is not followed exactly a fire causing
death or serious injury may occur.
• Always keep LP gas tanks in an upright position.
• Do not store (or) or use gasoline or other
flammable vapors and liquids in the vicinity of this
gas grill.
• Do not subject the LP gas tank to excessive heat.
• Never store an LP gas tank indoors. If you store
your gas grill in the garage or other indoor
location, always disconnect the LP gas tank first
and store it safely outside.
• Place dust cap on cylinder valve outlet whenever
the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is
provided with the cylinder valve. Other types of
caps or plugs may result in leakage of propane.
• LP gas tanks must be stored outdoors in a wellventilated area and out of reach of children.
Disconnected LP gas tanks must not be stored in
a building, garage or any other enclosed area.
• When your gas grill is not in use the gas must be
turned off at the LP gas tank.
• The regulator and hose assembly must be
inspected before each use of the grill. If there is
excessive abrasion or wear or if the hose is cut, it
must be replaced prior to the grill being used
again.
• Keep the gas regulator hose away from hot grill
surfaces and dripping grease. Avoid unnecessary
twisting of hose. Visually inspect the hose prior to
each use for cuts, cracks, excessive wear or
other damage. If the hose appears damaged do
not use the gas grill.
• Never light your gas grill with the lid closed or
before checking to ensure the burner tubes are
fully seated over the gas valve orifices.
• Never allow children to operate your grill.
A tank of approximately 12 inches in diameter by 181/2 inches high is the maximum size LP gas tank to
use. You must use an OPD gas tank which offers
an Overfill Prevention Device.
This safety feature prevents the tank from being
overfilled which can cause malfunction of the LP gas
tank, regulator and/or grill.
The LP gas tank must be constructed and marked in
accordance with specifications of the U.S. Dept. of
Transportation (DOT). In Canada, the LP gas tank
must meet the National Standard of Canada ,Can
CSA –B339 , Cylinders , spheres and Tubes for
Transportation of Dangerous Goods and
Commission .
1. The LP gas tank must have a shutoff valve,
terminating in an LP gas supply tank valve outlet,
that is compatible with a Type 1 tank connection
device. The LP gas tank must also have a safety
relief device that has a direct connection with the
vapor space of the tank.
2. The tank supply system must be arranged for
vapor withdraw.
3. The LP gas tank used must have a collar to
protect the tank valve.
Proper Placement and Clearance of Grill
Never use your gas grill in a garage, porch, shed,
breezeway or any other enclosed area. Your gas grill
is to be used outdoors only, at least 24 inches from
the back and side of any combustible surface. Your
gas grill should not be used under overhead
combustible construction . Do not obstruct the flow of
ventilation air around the gas grill housing.
• Do not install this outdoor gas grill in or on
recreational vehicles or boats
• Keep outdoor gas grill area clear and free from
combustible materials, gasoline and other flammable
vapors and liquids
• Do not obstruct the flow of combustion and
ventilation air. Check for this each time prior to using
grill.
• Never connect an unregulated LP gas tank to your
gas grill. The gas regulator assembly supplied with
your gas grill is adjusted to have an outlet pressure
of 11” water column (W.C.) for connection to an LP
gas tank.
• Only use the regulator and the hose assembly
supplied with your gas grill. Replacement regulators
and hose assemblies must be those specified in this
manual.
3
Precautions
WARNING
A strong gas smell, or the hissing sound of gas
indicates a serious problem with your gas grill or
the LP gas tank. Failure to immediately follow the
steps listed below could result in a fire or
explosion that could cause serious bodily injury,
death, or property damage.
• Shut off gas supply to the gas grill.
• Turn the control knobs to OFF position.
• Put out any flame with a proper fire extinguisher.
• Open Grill Lid.
• Get away from the LP gas tank.
• Do not try to fix the problem yourself.
• If odor continues or you have a fire you can not
extinguish, call your fire department. Do not call
near the LP gas tank because your telephone is
a form of electrical device and could create a
spark resulting in fire and/or explosion.
CAUTION: Spiders and small insects occasionally
spin webs or make nests in the grill burner tubes
during transit and warehousing. These webs can lead
to gas flow obstruction which could result in a fire in
and around burner tubes. This type of fire is known as
“FLASH-BACK” and can cause serious damage to
your grill and create an unsafe operating condition for
the user.
Although an obstructed burner tube is not the only
cause of “FLASH-BACK”, it is the most common
cause.
To reduce the chance of “FLASH-BACK”, you must
clean the burner tubes before assembling your grill,
and at least once a month in late summer or early fall
when spiders are most active. Also perform this burner
tube cleaning procedure if your grill has not been used
for an extended period of time.

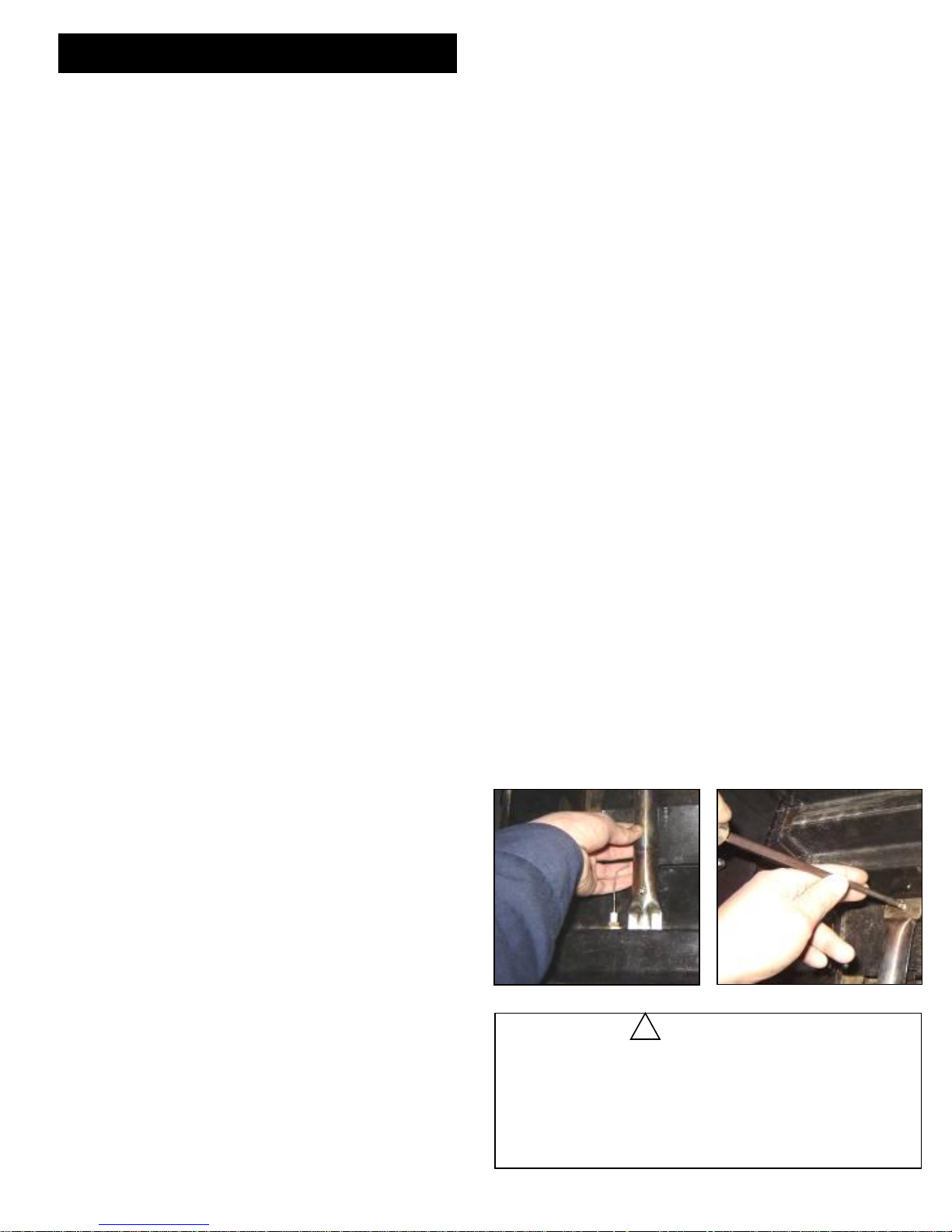

See Cleaning Burner Tubes and Ports on page # 15
NOTE: The normal flow of gas through the regulator
and hose assembly can create a humming noise. A
low volume of noise is perfectly normal and will not
interfere with operation of the grill. If humming noise
is loud and excessive you may need to purge air from
the gas line or reset the regulator excess gas flow
device. This purging procedure should be done every
time a new LP gas tank is connected to your grill. For
help with this procedure refer to page 14, Item 4 of “If
Grill Still Fails To Light”, or call the Customer Service
Helpline 8 AM to 5 PM PST at: 1-(888)-874-8661
Visually check the burner flames prior to each use. The
flames should look like picture, if they do not, refer to the
cleaning burner tubes and ports, see page 15 of this
manual.
!
4
CAUTION: Beware of Flash-Back
Burner Flame Check
The following table illustrates a breakdown of the hardware pack. It highlights what components are used in
the various stages of assembly.
5
Contents for Hardware Pack
Item Description Specification Quantity
Phillips Head Screw
Phillips Head Screw
Phillips Head Screw
Flat Head Screw
Flat Washer
6
Lock Washer
1/4 26pcs
Lock Washer
8 5/64 1pc
3
5/32 x 8mm
19pcs
16 pcs
2
1
1/4 x 15mm
1/4 x 10mm
14 pcs
4
5/32 x 8mm
7
21 pcs
5/32
6pcs51/4
10 pcs
Hex Wrench
01
02
02
03
05
04
04
63
64
62
58
61
60
59
53
51
52
56
54
57
55
07
09
06
12
13
11
10
15
16
17
18
19
22
23
21
20
25
31
34
35
35
33
32
36
37
29
29
28
27
26
30
24
40
44
45
43
49
50
08
42
46
47
48
65
14
39
66
67
41
38
68
69
70
71
72
Par\Part s Diagram
