Page 1
12754
Version: 12754gb
DateD: 2014
eDition: 01/14er
„Gas barbecue„
Assembly and operating manual
Please read before use!
Failure to observe these instructions can aect or damage the device and other objects and lead to personal injury.
We therefore recommend that you read the relevant chapter of these instructions prior to assembly and be-
fore each use. Follow the steps in the order they are specied and please observe the safety warnings.
These instructions form part of the product. They should therefore always be sto-
red with the product and passed on to each subsequent user.
Page 2
2
GRILLCHEF
Table of contents
Specications ..............................................................................................................................................3
Scope of delivery ........................................................................................................................................4
Pack of xing bolts ...............................................................................................................................4
Exploded view .............................................................................................................................................5
Operational elements ..................................................................................................................................6
Function ......................................................................................................................................................6
Utilisation ...................................................................................................................................................7
Warranty and disclaimer .............................................................................................................................7
Safety instructions ......................................................................................................................................8
Denition of terms used .......................................................................................................................8
Danger "Hot surfaces and parts" ..........................................................................................................9
Danger "Gas is highly ammable" ......................................................................................................10
Danger "Gas displaces oxygen" ..........................................................................................................11
Assembly ..................................................................................................................................................12
Assembly procedure ..................................................................................................................................13
Connecting and disconnecting the gas cylinder ........................................................................................21
Connecting the gas cylinder ...............................................................................................................21
Operation ..................................................................................................................................................23
Starting up the barbecue ....................................................................................................................23
Switching o the barbecue .................................................................................................................24
Cleaning ....................................................................................................................................................25
Barbecue ............................................................................................................................................25
Gas system .........................................................................................................................................25
Maintenance .............................................................................................................................................26
Environmental information and disposal measures ..................................................................................26
Troubleshooting ........................................................................................................................................27
Instructions for using liquid gas cylinders .................................................................................................28
Page 3
3
GRILLCHEF
Technical specications
Approvals
TÜV Test number - 1008, Pin/no. 1008 CM 2533
Barbecue
Appliance category I3+ according to DIN EN 498
Total weight approx. 29kg
Dimensions (L x H x W) approx. 1260 x 1055 x 530 mm
cooking area (L x W) 2 x approx. 400 x 275 mm
Gas system
Heat output 3x 3.2 kW + 1x 3.2 kW (= 12.8kW)
Flow rate (mass ow rate) 3x 228.5 g/h + 1x 228.5 g/h = 914 g/h
Gas type Liquid gas (propane/butane)
Gas cylinder Standard gas cylinder with a ll weight of 3, 5 or 11 kg
Gas pressure 28-30 mbar at butane, 37 mbar at propane
Gas hose -approved hose (max 1.5 m)
Ignition Piezo ignition
Flame regulation innitely adjustable 0 - max.
Nozzle diameter 0,85 mm, side burner 0,85 mm
Page 4
4
GRILLCHEF
Exploded View
Scope of delivery
Item * Qty. Designation Item * Qty. Designation
1 1 Lid 16 1 Magnet
2 2 Cooking grill 17 2 Wheel cap
3 4 Flame tamer 18 2 Wheel bolt
4 1 Side shelf 19 1 Wheel
5 1 Barbecue unit (pre-assembled) 20 1 Leg, front left
6 1 Leg, rear right 21 1 Side burner regulator
7 2 lateral cross-struts 22 1 Regulator ring
8 1 Leg, front right 23 1 Leg, rear left
9 1 Cross bar 24 1 Side burner ignition with ignition cable
10 2 Door handle 25 1 Side burner
11 2 Side panel of bottom cabinet 26 1 Side burner table
12 2 Door hinge 27 1 Side burner support
13 1 Door, right 28 1 Rear panel of bottom cabinet
14 1 Door, left 29 2 Grease container
15 1 Suboor - - -
Page 5
5
GRILLCHEF

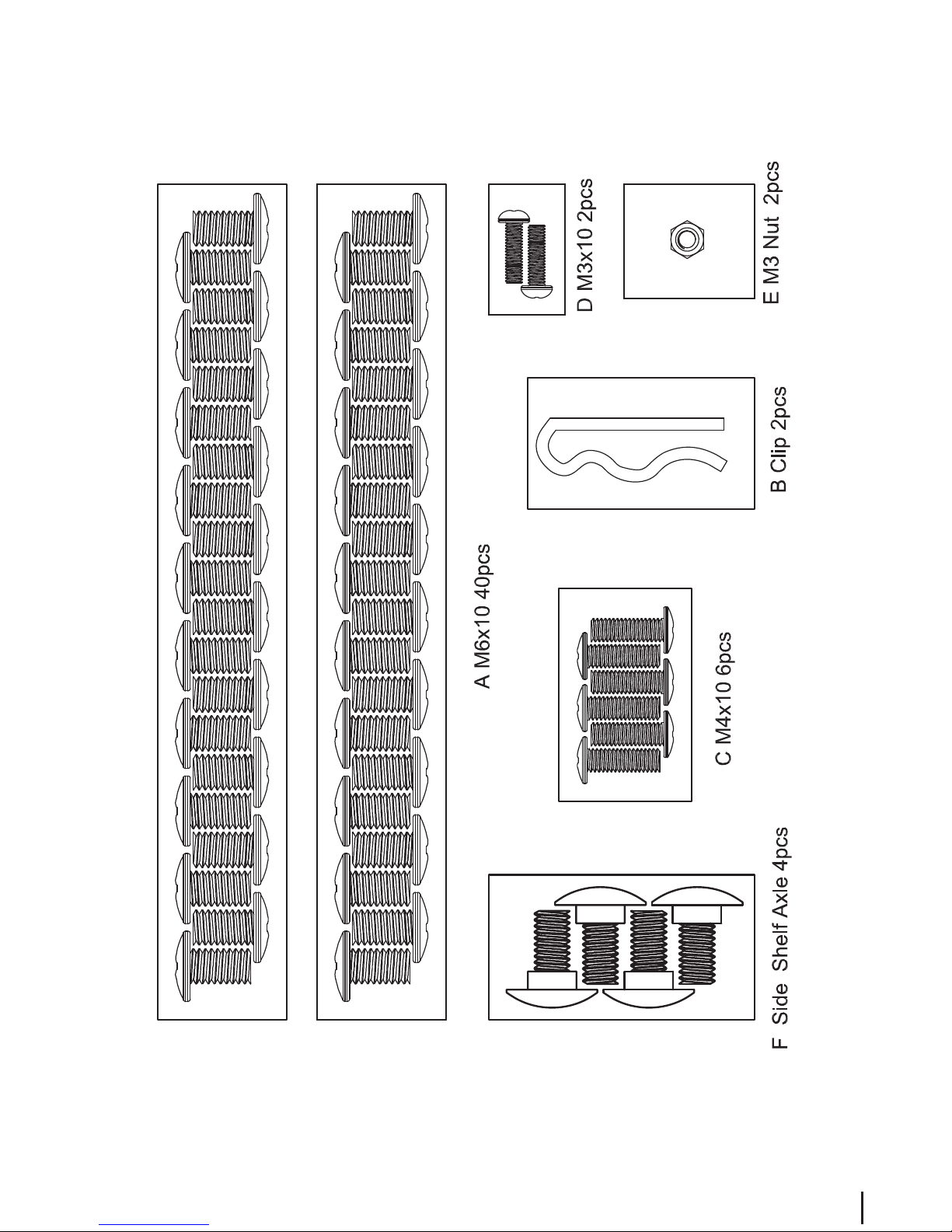

Pack of xing bolts
Page 6
6
GRILLCHEF
Controls
Pos. Designation Function
B Flame regulator middle Fill burner with gas to ignite (keep depressed and turn to „lar-
ge ame“ setting).
After igniting set the heat output for the centre burner (turn).
left Fill burner with gas to ignite (keep depressed and turn to „lar-
ge ame“ setting).
After ignition adjust the heat input for the left burner (turn).
right Ignite the right burner (keep depressed briey and turn to "lar-
ge ame" setting).
After ignition adjust the heat supply for the right burner (turn).
1 Pressure reducer Reduce gas pressure.
2 Gas cylinder for bottle valve Fuel container
3 Rubber hose Directs gas to burner
4 Proper hose clip Fuel container
5 Regulator handle Cut-o safety device with 2 settings:
„-“ setting: Gas o / shut o gas cylinder
„ame“: Gas is on.
Gas o:
Gas on:
Page 7
7
GRILLCHEF
Utilisation
Intended use
This is a gas barbecue that is intended for outdoor use. The intended use comprises the exclusive use for cooking barbecue
food in compliance with all instructions in this manual.
For private use only!
Improper use
Any other use or application beyond the intended purpose is not permitted. This applies to the following types of misuse in
particular:
• Do not operate the barbecue with charcoal or fuel other than liquid gas (propane/butane).
• Do not use the barbecue as a stove with pots and pans.
• Do not use the barbecue as a heating appliance.
Do not use the barbecue to heat materials and substances other than barbecue food.
Warranty and disclaimer
The barbecue has been manufactured according to the general engineering rules - valid at the time manufacturing was
started - and the requirements of the symbol. It is certied and approved by TÜV (test number -1008). The barbecue
left the factory in a technically sound and safe condition.
This barbecue is subject to our warranty for a period of two years from the date of purchase. This warranty covers manufacturing defects and faulty parts (burners, burner covers, cooking grill, warming rack) as well as the replacement of these parts.
Costs for shipping, assembly, replacement of worn parts and others are not covered by this warranty.
The warranty shall expire and any responsibility shall pass over to the executor:
• if the barbecue is not used properly.
• if the barbecue is used despite visible damage or if it is not completely assembled.
• if any technical alterations have been made to the barbecue.
• if accessories are used that are not expressly authorised for this barbecue (if in doubt please contact our customer
service department).
• if original spare parts from LANDMANN GmbH & Co. Handels-KG are not used.
Page 8
8
GRILLCHEF
Safety instructions
Denition of terms used
The following pictograms and signal words are used in these instructions to point out hazards and important information:
Safety instructions
Pictogram and signal word Note on ...
Danger
... a possible danger that can result in severe personal injury or damage
to property if the stated measures are not taken.
Caution
... a possible danger that can result in damage to property if the specied measures are are not taken.
Application instructions
Pictogram Note on ...
... a useful function or tip.
Page 9
9
GRILLCHEF
Danger "Hot surfaces and parts"
During operation some parts of the barbecue can become very hot, particularly those that
are close to the re bowl.
Possible consequences:
• Severe burns from touching parts near the re bowl.
• Fire or smoldering re if ammable materials or substances are near the barbecue.
Precautions prior to barbecuing:
• When setting up the barbecue, make sure that
• there are not, and will not be, any ammable materials or substances nearby. Minimum
distance to ammable materials or substances: 2 m overhead and 1 m to the side. Distance to ame-resistant materials or substances, e.g. walls: at least 0.25 m.
– the barbecue is positioned rmly on a suciently large area. Do not move it during
operation.
Precautions while barbecuing:
• Wear barbecue mittens.
• Never leave the barbecue unattended. Take particular care to ensure that children and
pets are kept away from the barbecue.
Page 10
10
GRILLCHEF
Danger "Highly ammable gas"
Liquid gas is highly ammable and explosive.
Possible consequences:
• Serious personal injury or damage to property if escaping gas ignites in an environment
in which it is not controlled.
Precautions:
• Exclusively use the barbecue outdoors and ensure that the area is well-ventilated.
• Protect the gas cylinder and the gas hose from direct sunlight and other sources of heat
(max. 50°C). Take particular care to ensure that the gas hose does not touch any part of
the hot barbecue.
• Do not place the gas cylinder on the lower shelf, as it is too near the burner.
• Do not lean over the barbecue when igniting the gas ame.
• Close the valve on the gas cylinder immediately after each use (turn the valve clockwise).
• Never leave the barbecue unattended. If the ame extinguishes, relight it immediately
or cut o the supply from the gas cylinder.
• When connecting the gas cylinder, make sure that there are no sources of ignition within
a 5 m radius.
• Important note: to avoid the risk of spark-over, do not to light naked ames, do not smoke and do not actuate the switches of electric devices (appliances, lights, door bells, etc.).
• Before each use, make sure that all gas connections are sealed and intact.
• If necessary, replace the hose in order to comply with the corresponding national requirements.
The barbecue must not be used if the connections for the gas supply are porous or defective. This also applies, for example, to hoses or ttings blocked by insects, as this can
produce a dangerous ashback.
Page 11
11
GRILLCHEF
Danger "Gas displaces oxygen"
Liquid gas is heavier than oxygen. Therefore it settles on the ground and displaces the oxygen
at that level.
Possible consequences:
• Suocation resulting from a lack of oxygen if the concentration of gas is allowed to rise
to a certain extent.
Precautions:
• Exclusively use the barbecue outdoors in a well ventilated area and above ground (i.e.
not in areas that are below ground level).
• Close the valve on the gas cylinder after each use.
• Never leave the barbecue unattended. If the ame extinguishes, relight it immediately
or cut o the supply from the gas cylinder.
• Before each use, make sure that all gas connections are sealed and intact.
• If necessary, replace the hose in order to comply with the corresponding national requirements.
The barbecue must not be used if the connections for the gas supply are porous or defective.
If the barbecue is not being used for a prolonged period, cut o the supply from the gas
cylinder and store properly:
– Fit the gas cylinder valve with a cap nut and safety cap.
– Do not store the gas cylinder in rooms below ground level, in or near stairways,
hallways or passages and thoroughfares between buildings.
– Always store gas cylinders upright, even if they are empty!
Page 12
12
GRILLCHEF
Assembly
Before starting
Here are a few tips to help you assemble your barbecue quickly and successfully:
• Check that no parts are missing by placing all of the individual parts on an empty surface (we reserve the right to make
minor technical alterations, such as the content of the small parts bag).
If, despite careful factory checks, a component is missing, please contact our customer service department (see the last
page). We will immediately attend to your request.
• Sort out the small parts, as some of the screws and bolts, for example, are very similar and can be easily confused.
• For assembly you will need a medium size screwdriver and a suitable spanner (at spanner or box spanner).
You will need a at spanner (AF17) to connect the gas cylinder.
Only use tools that are intact and suitable for the job at hand. Worn or unsuitable tools will not allow you to tighten the
bolts suciently, but will damage them to the extent that they can no longer be turned.
• Always t all connecting elements (screws, bolts, nuts, etc.) as shown in the following illustrations. If you misplace a
connecting element, replace this with an appropriate part. Only by doing this can you ensure that the construction is
strong and safe.
• It is essential that you follow the instructions in the order they are specied!
• Read the text for each step before carrying it out, as useful information is sometimes only provided at the end of the section.
Page 13
13
GRILLCHEF
Assembly procedure

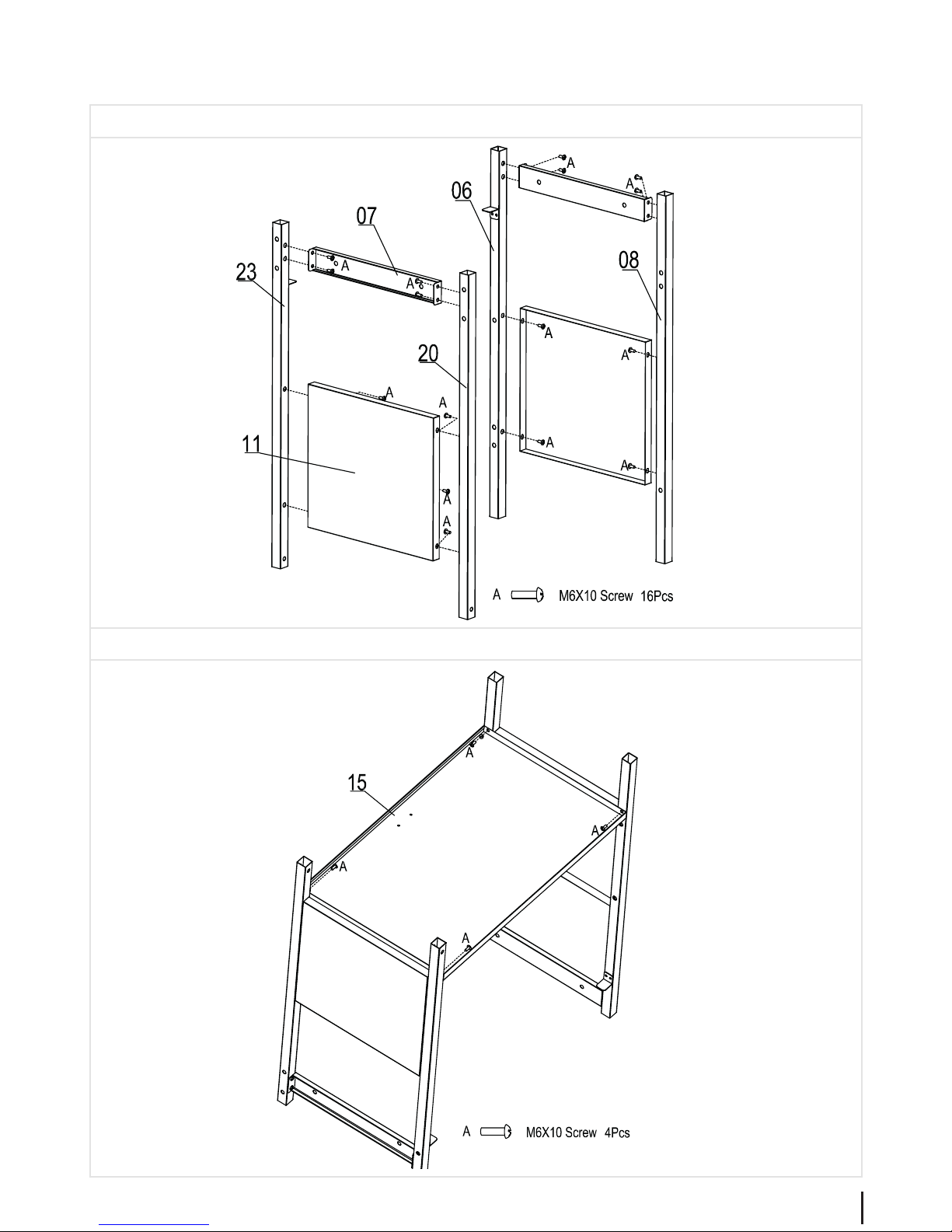

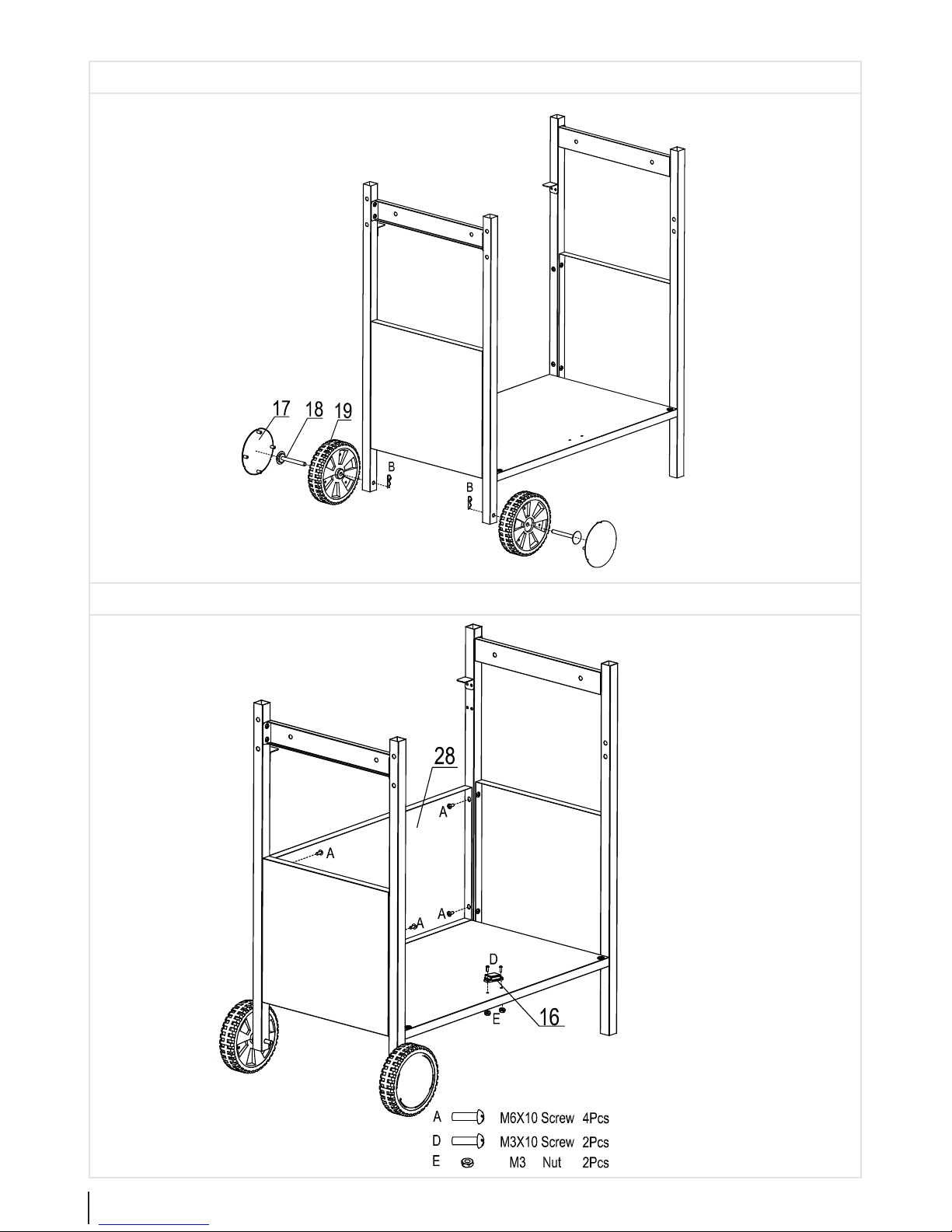

Assembly step 1
Assembly step 2
Page 14
14
GRILLCHEF

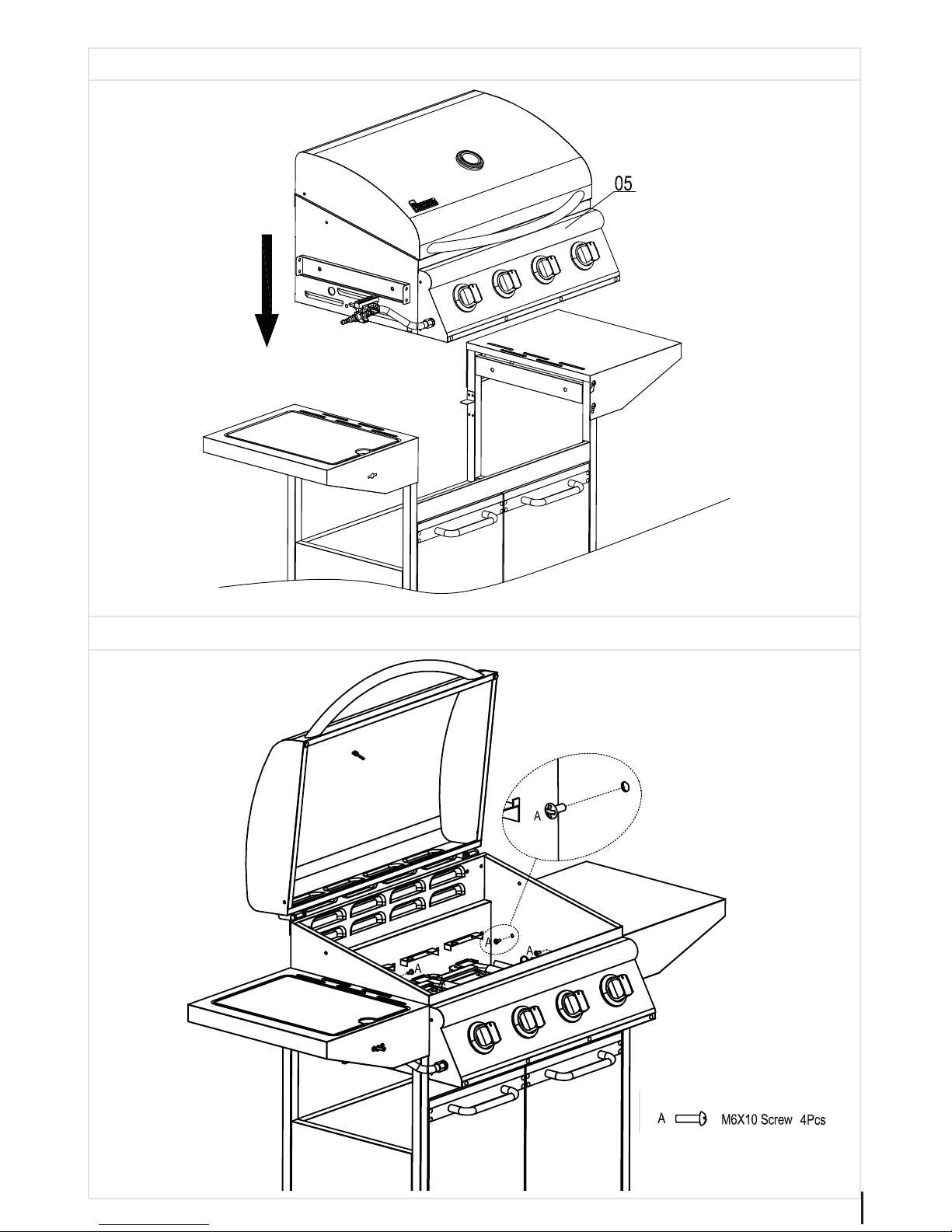

Assembly step 3
Assembly step 4
Page 15
15
GRILLCHEF

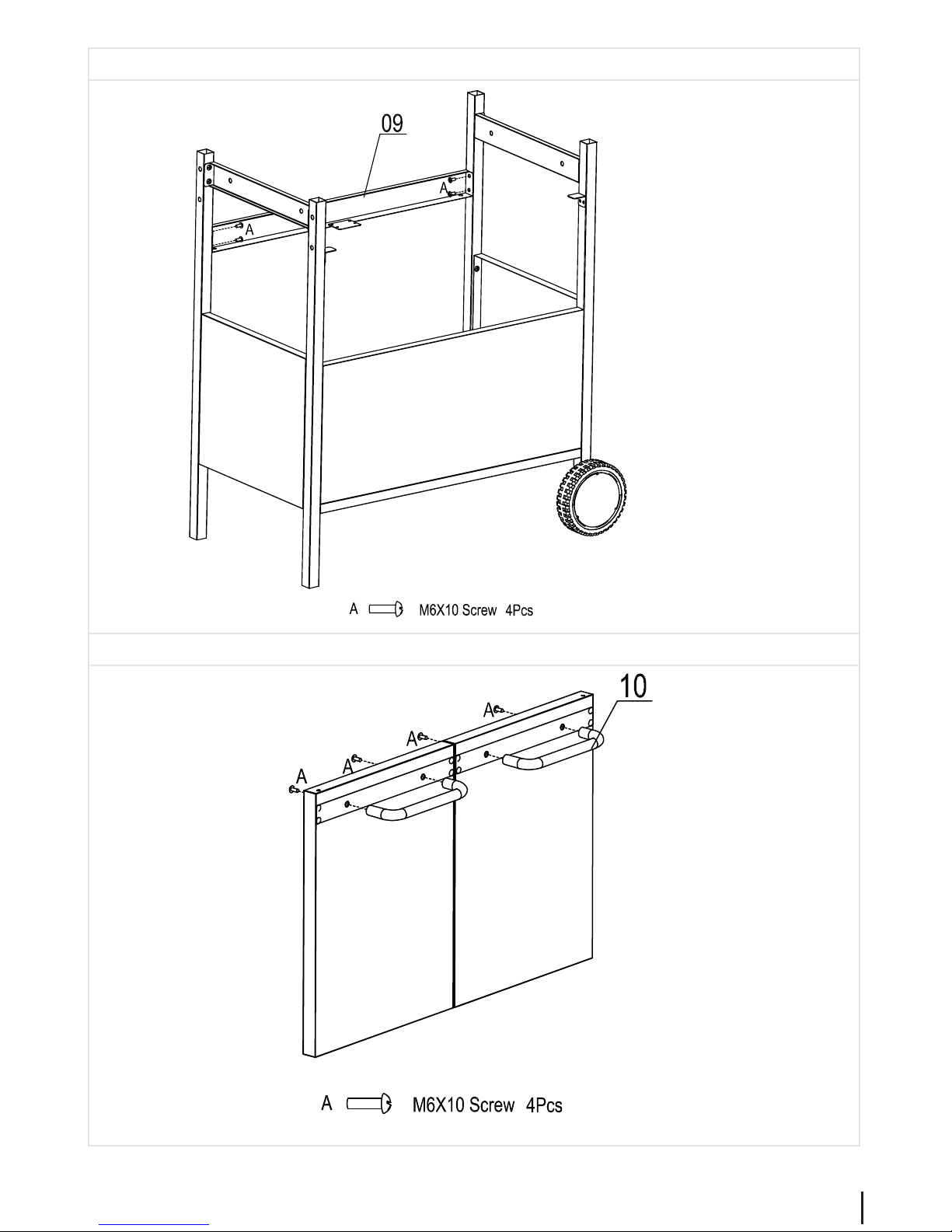

Assembly step 5
Assembly step 6
Page 16
16
GRILLCHEF

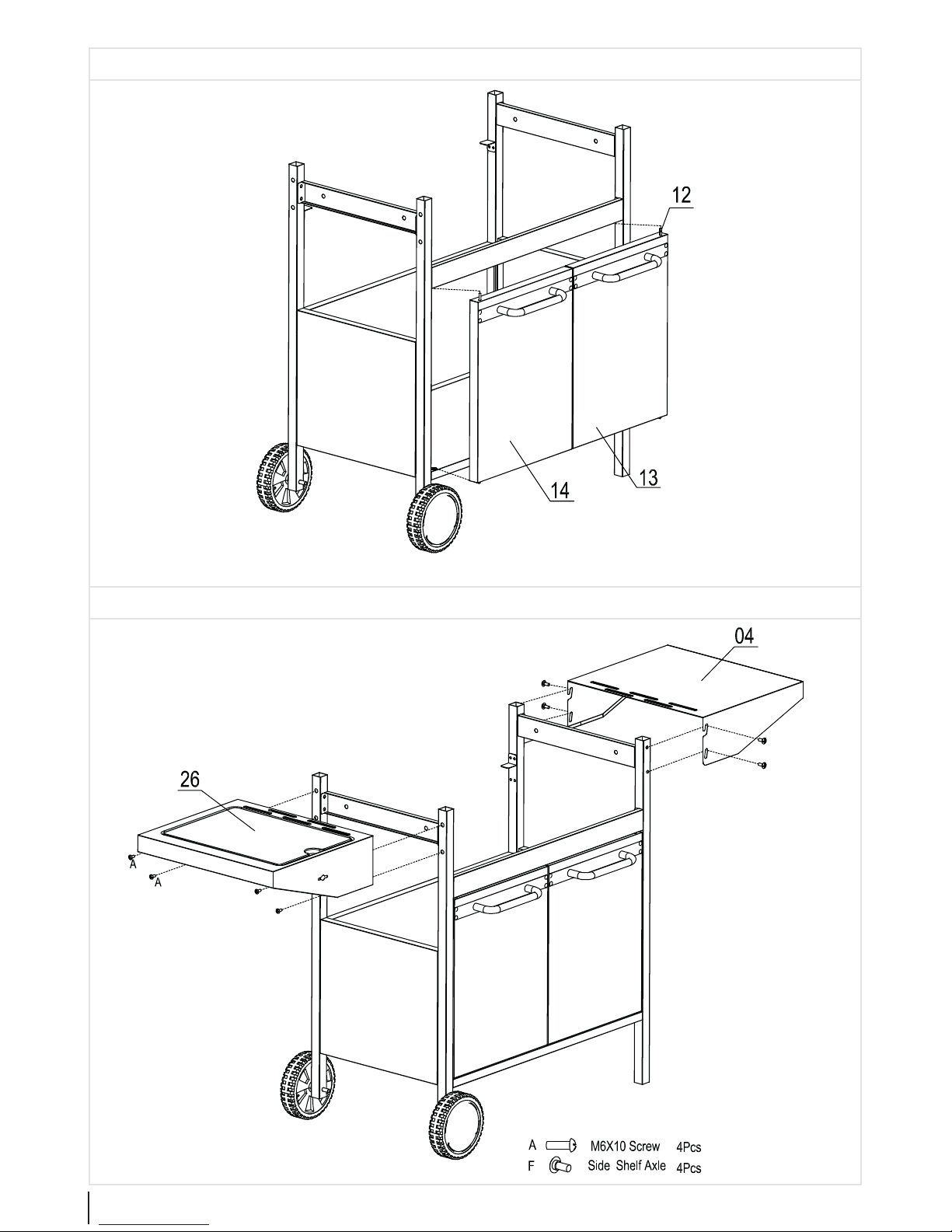

Assembly step 7
Assembly step 8
Page 17
17
GRILLCHEF

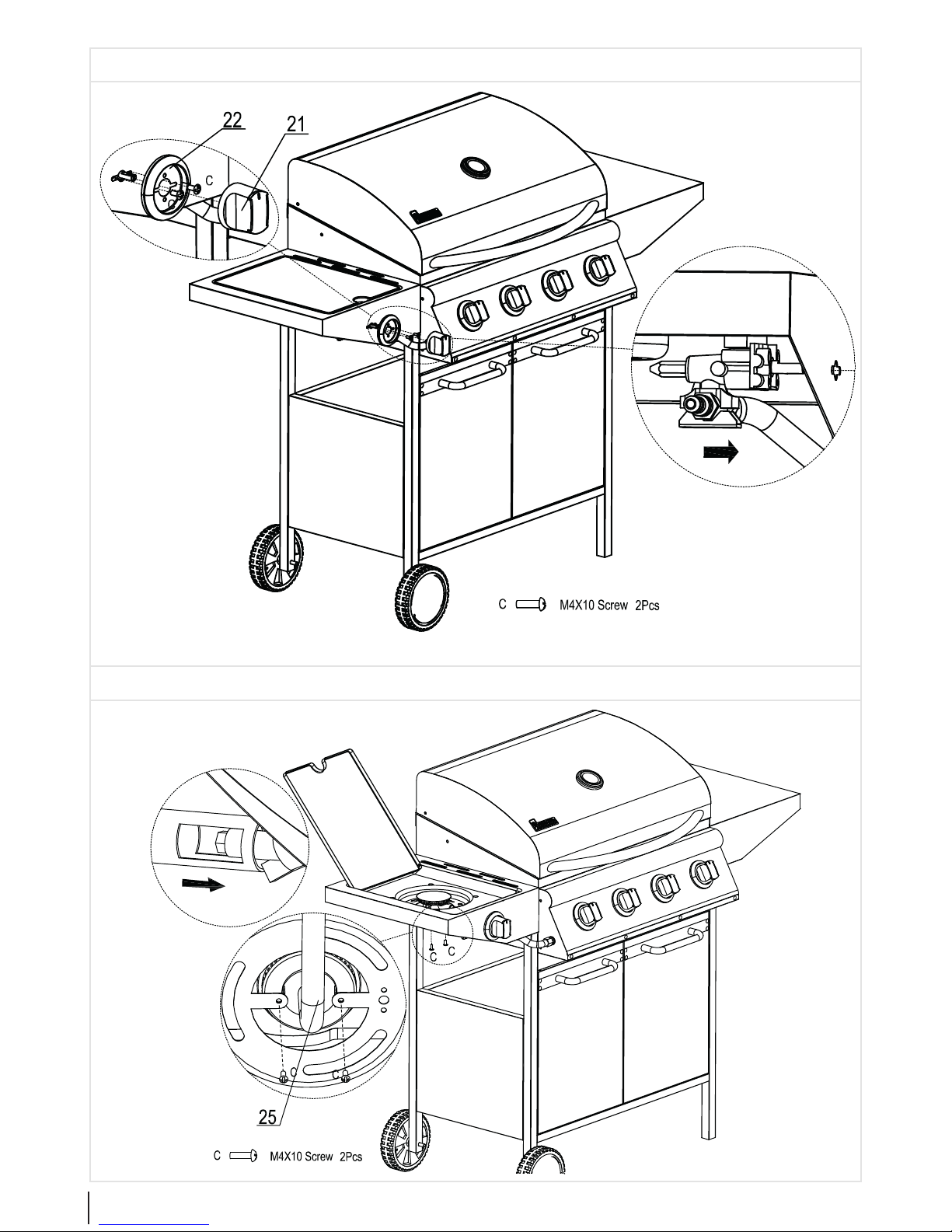

Assembly step 9
Assembly step 10
Page 18
18
GRILLCHEF

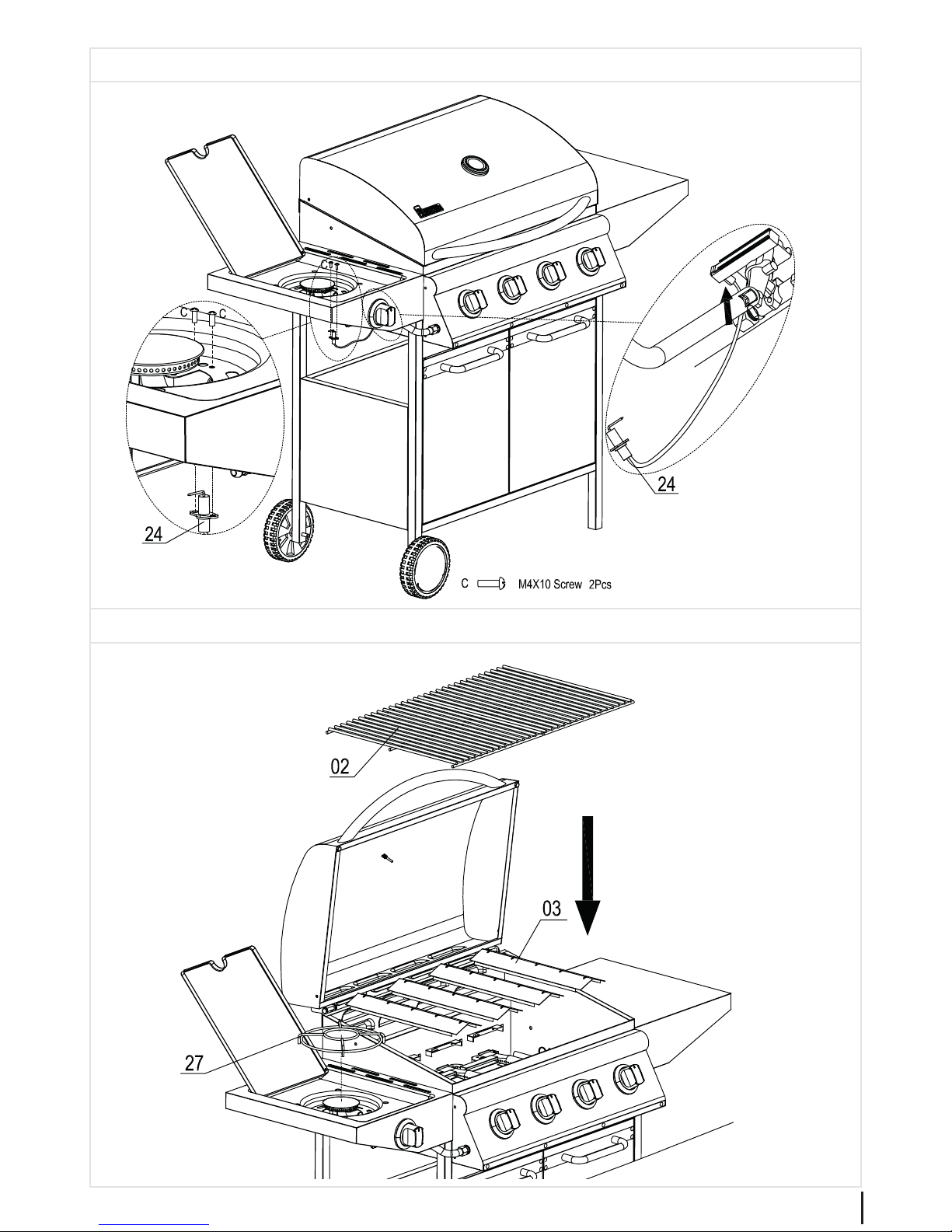

Assembly step 11
Assembly step 12
Page 19
19
GRILLCHEF
Assembly step 13
Assembly step 14
Page 20
20
GRILLCHEF

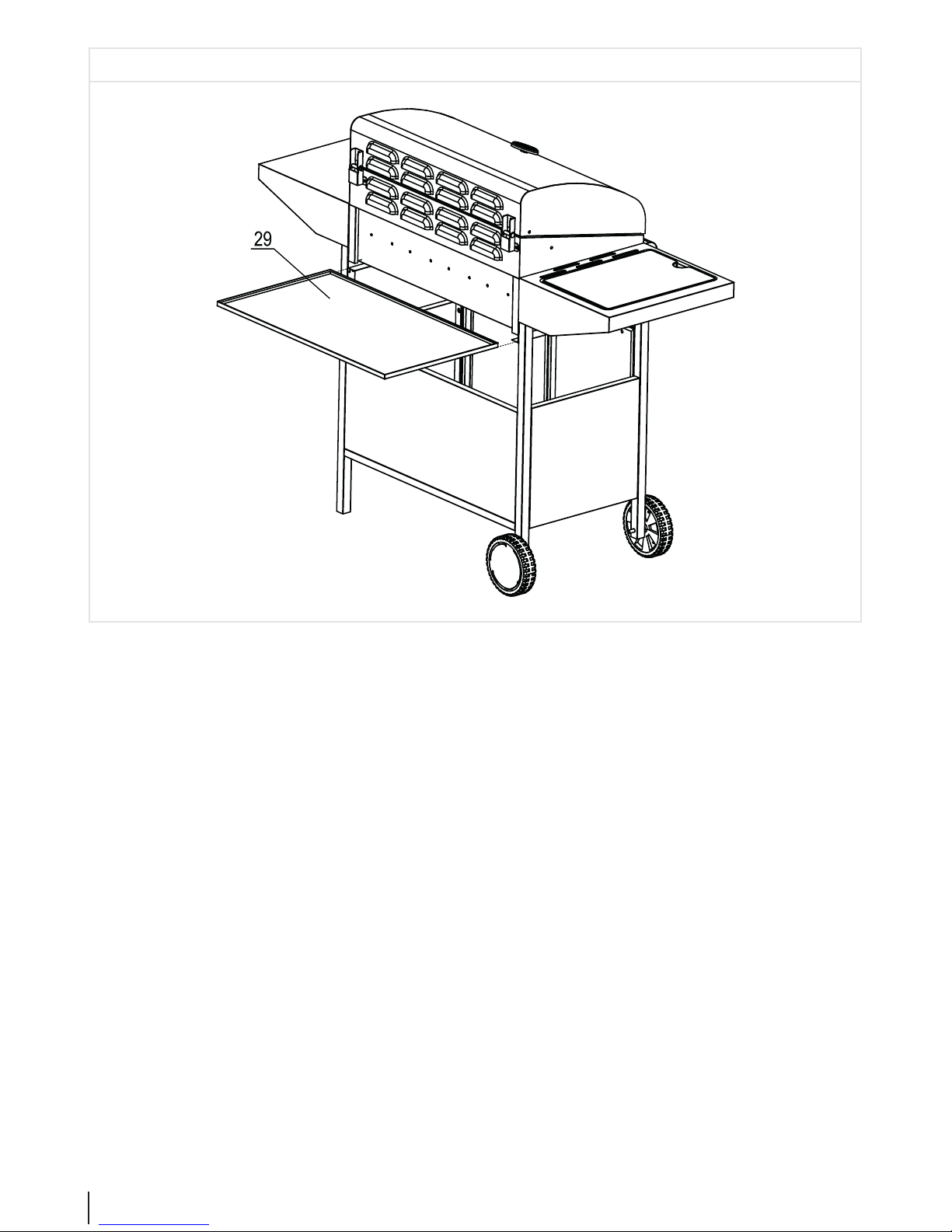

Assembly step 15
Page 21
21
GRILLCHEF
Connecting and disconnecting the gas cylinder
Parts and tools needed
• 17 mm spanner (open-ended spanner SW 17)
• Gas cylinder
A common camping gas cylinder with a ll weight of 3, 5 or 11 kg (e.g. grey camping propane gas cylinder). These are
available at DIY shops or liquid gas suppliers.
• Pressure regulator
Preset and
-approved pressure regulator, max. 1.5 kg/h, operating pressure 28-30 mbar at butane, 37 mbar at pro-
pane, suitable for the gas cylinder used. This type of pressure reducer is also available from your local dealer.
• Leak detector
You can locate any leaks in the gas system using a leak detector. This can be purchased at DIY shops or liquid gas suppliers. Please follow the operating instructions of the leak detector.
The following part is included in delivery. It corresponds to the standards applicable in the country to which it has been
supplied by LANDMANN.
• Gas hose
-approved hose of sucient length; not exceeding 1.5m, allowing installation without any kinks.
Connecting the Gas Cylinder
Danger "Ignition of escaping gas"
Liquid gas is highly ammable and explosive.
Possible consequences:
• Serious personal injury or damage to property if escaping gas ignites in an environment
in which it is not controlled.
Safety precautions:
• When connecting the gas cylinder ensure that there are no sources of ignition within a
5 m radius.
• Take special care not to light any naked ames, do not smoke or switch on electric appliances (devices, lights, door bells), etc. (sparkover possible).
• If necessary, replace the hose in order to comply with the corresponding national requirements.
1. Select a suitable place to set up the cooker. Make sure that ...
– no ammable materials or substances are in close proximity to the cooker. Minimum distance to ammable mate-
rials or substances: 2m above and 1m to the side; distance to ame resistant materials or substances - min 0.25 m.
– the cooker is positioned rmly on a at, suciently large surface area. It must not be moved during operation.
Page 22
22
GRILLCHEF
Before connecting the regulator to the cylinder valve,
Take care that the rubber Hose (3) is correctly assembled
on the regulator hose nozzle.
Insert the hose possibly by using soap solution.
Fix the hose by using the proper hose clip (4), and
advoiding to tighten too much to not damage the
rubber Hose (in some countries the hose clips and
the rubber hoses have standard dimensions).
Verify the gas tight of the ttings
by using the soap solution.
2. Position the gas cylinder next to the barbecue.
– Never lay the gas cylinder on its side or place it on the base shelf.
– The gas hose must not be bent or under tension.
3. Check that the gas cylinder and the pressure reducer (1) are in good working order.
4. Turn the control button (5) to the 3 o‘clock setting and t the pressure reducer (1) onto the gas cylinder valve.
5. Turn the control button (5) to the 3 o'clock setting. Check to ensure that the pressure reducer (1) is securely on the gas
cylinder.
6. Check the connection between the pressure reducer (1) and the gas hose (3) and the gas hose (3) to the setting device
to ensure they are secure.
7. Open the cylinder vale by pulling the red safety catch on the control button (5) forwards a little and by turning the
control button to the 12 o'clock setting. Use a standard leak detector to ensure that all connections are tight.
Please observe the instructions for the leak detection agent!
– Never check for leaks using a naked ame. Listening for leaks is not a reliable method of detection either.
– If the connection is not sealed immediately close the bottle valve (turn control button (5) to 3 o'clock setting) and
tighten the connection or replace the leaking part. Repeat the leak test.
8. If you do not wish to use the barbecue immediately, close the cylinder valve: turn control button (5) to the 3 o'clock
setting.
Shut o Gas Cylinder
– all taps of the consuming appliance is correctly
tted.
– the connecting pipe to the consuming appli-
ance is correctly tted.
– the „Compact Quick-on“ regulator handles is in
the „o“ position .
With no ame on, remove the seal CAP from the automatic valve, place the „Compact Quick-on“ onto the valve
and push down rmly and vertically. You should hear a
„click“ Sound which means the regulator is securely latched (g. No. 2).
1. Close the cylinder valve: turn control button (5) to a 3 o‘clock position).
2. Pull the red safety leverl on the control button (5) forwards a little, turn the control button t(5) to a 3 o‘clock setting and
pull the pressure reducer (1) from the gas cylinder valve.
Page 23
23
GRILLCHEF
3. Store the pressure reducer (1) with the gas hose (3) underneath the barbecue. Make sure that the gas hose is not kinked
or twisted in any way.
4. Storing the gas cylinder correctly:
– Fit the gas cylinder valve with a cap nut and safety cap.
– Do not store the gas cylinder in rooms below ground level, or in or near stairways, hallways or passages and tho-
roughfares between buildings.
– Always store gas cylinders upright, even if they are empty!
Notes: The „Compact Quick-on“ is so designed as to prevent it from being tted to the valve, unless the regulator handle is in the „o“ position; therefore, never attempt to Mount or to dismount it, when the handle is
not in that position.
Operation
Starting up the burner
Before using, wash the roasting tray (2) thoroughly with warm soapy water and allow both to dry well. Then apply
cooking oil to the top side of both parts. This will prevent the cooked food from sticking to the roasting tray.
1. Check to ensure that ....
– no ammable materials or substances are in close proximity to the cooker. Minimum distance to ammable mate-
rials or substances: 2m above and 1m to the side; distance to ame resistant materials or substances - min 0.25 m.
– the cooker is positioned rmly on a at, suciently large surface area. It must not be moved during operation.
2. Check to ensure that ....
– the burner is fully assembled and has no obvious defects.
– the roasting tray (2) is inserted.
Once the „Compact Quick-on“ is correctly mounted on
the valve, Gas supply is possible by turning the regulator
handle (5) upwards (counterclockwise). To shut o the
Gas supply, reverse above procedure; an arrow engraved
on the handle indicates the closing direction (g. No. 3).
Caution: If you are unable to turn the regulator handle to
the „on“ position, this means that your „Compact Quickon“ is not correctly connected to the valve. Do not force
the handle to open, and restart the operations described
under 3 above.
Caution: Do not lean over the cooker during steps 7 and 8. Keep a safe distance.
3. Open the cylinder valve by pulling the red safety catch on the control button (5) forwards a little and turning the control
button to the 12 o‘clock setting.
4. Check to make sure that the gas system is leak-proof. If not, immediately turn the control button (5) to the 3 o‘clock
setting.
5. Push down the middle hand control knob and keep pressing whilst turning anti-clockwise to the ”MAX” position (a
Page 24
24
GRILLCHEF
clicking sound is heard), this will light the middle hand burner via the pilot. If not, repeat this process.
6. When middle hand burner is lit, turn the other burner control buttons like step 5. Ignition is made by the middle burner
part.
7. In case of failure turn burner control to l (O) and wait approx. 5 minutes. Repeat step 5.
8. Press and turn the left ame regulator (B) to "large ame" and keep it depressed until the left of the burner ignites.
9. Press and turn the right ame regulator (B) to "large ame" and keep it depressed until the right side of the burner
ignites.
10. Allow the burner to heat up at full power.
The rst time it is used, the burner should be heated at full power without any food for approximately 20 minutes to
allow the food-safe coating to harden (as is the case with any oven).
11. When the burner has heated up suciently turn the ame regulator (B) to the desired setting (size of ame).
12. You can now place the food on the roasting tray (2). We recommend that you wear barbecue gloves or similar for pro-
tection against the heat.
Replacement of a cylinder
Make Sure that:
– all Taps on the Gas consuming appliance in the „o“ position.
– the „Compact Quick-on“ regulator handle (5) is in the „o“ position.
Then, dismount the „Compact Quick-on“ by pressing horizontally on the handle (5) and pulling upwards at the Same time
(gur No. 4). Do not move thecylinder during operation.
Starting up the sideburner
1. Turn the control knob clockwise to ”OFF” position and open gas bottle valve according to the instruction before.
2. Push down the control knob and keep pressing whilst turning anti-clockwise to the ”MAX” position (a clicking sound is
heard), this will light the burner via the pilot. If not, repeat this process.
3. In case of failure turn burner control to l (O) and wait approx. 5 minutes. Repeat step 2.
4. Adjust burner control to appropriate setting.
Switching o the barbecue
1. Close the cylinder valve on the gas cylinder (turn 1 clockwise).
2. Turn the ame regulator (B) to "•" (o).
3. Wait until all of the parts have cooled down and then clean any soiled components.
4. Close the lid.
5. If the barbecue is not going to be used for a prolonged period:
– Disconnect the gas cylinder (see chapter "Disconnecting the gas cylinder").
– Store the barbecue in a dry place.
Page 25
25
GRILLCHEF
Cleaning
Barbecue
To ensure your barbecue serves you well for many years to come, it should be cleaned after each use with washing-up liquid,
a brush and a cloth - ensure that all parts have cooled down rst. It will be much harder to do this later, once the dirt has
dried.
Caution "Spark plug on burner may deform"
The spark plug on the burner may deform or may snap o during cleaning.
Possible consequences:
• Burner no longer ignites.
Precautions:
• Take special care when cleaning the area around the burner.
Gas system
If necessary, the gas outlet nozzle on the adjusting element (underneath the front panel) can be cleaned with a needle. All
other parts through which gas is passed may only be cleaned by an expert.
Never dismantle the adjusting element!
Page 26
26
GRILLCHEF
Maintenance
The barbecue is maintenance-free. Nevertheless, you should check it at regular intervals. The intervals depend on how often
it is used and the environmental conditions to which it is exposed.
Barbecue
• Make sure that all parts of the barbecue are available and assembled (visual check).
• Check to ensure that all connections are present and securely fastened. Tighten if necessary.
Gas system
The gas system needs to be checked every time a gas cylinder is connected (see chapter "Connecting and disconnecting the
gas cylinder").
If necessary, replace the hose in order to comply with the corresponding national requirements.
Environmental information and disposal measures
Residual substances
DANGER: Risk of re when disposing of the hot residual substance
Only dispose of the residual substances when they have fully cooled down and only then
in the designated metal containers. Observe the local regulations.
Barbecue
Pay attention to cleanliness when handling the barbecue.
To dispose of the barbecue properly, disassemble it into its individual parts. Recycle the metal and plastic components.
Observe the local regulations.
Page 27
27
GRILLCHEF
Troubleshooting
If there is a fault despite due care, this chapter may help you to resolve the fault.
Fault Cause Remedy
There is a smell of gas Leak in the gas system 1. Close the cylinder valve immediate-
ly (turn G1 clockwise)
2. Prevent any ames or sparks (do not
switch on electric devices)
3. Tighten all connections on the gas
system
4. Check all components of the gas
system for visible damage; replace
defective parts with original spare
parts
5. Check for leaks using a leak detector
Burner does not ignite Gas cylinder is empty Replace the gas cylinder
Cylinder valve is closed Turn the cylinder valve (G1) anti-clock-
wise
Nozzles of the adjusting element
(underneath the front panel) are not
inserted into the burner pipes
Conduct a visual check, if necessary align
the nozzles and connection hoses
Distance between the spark plug and
gas outlets on the burner (grill unit )
(5) is incorrect
Visual inspection; correct if necessary
Nozzle on adjusting element (underneath front panel) is blocked.
Remove the front panel and clean the
nozzle of the adjusting element using a
pin
Other gas system blocked The gas system should be cleaned by a
specialist
Barbecue temperature too low Pre-heating time too short Close the lid (grill unit) (1) and set the
ame regulator to max.
Gas outlets on the burner (grill unit)
(1) are blocked
Remove blockage from burner
Deagration or bubbling noise Flashback caused by blockages in the
burner.
1. Close the cylinder valve immediately (turn G1 clockwise)
2. Wait three minutes and then switch
the barbecue back on
3. If the malfunction reoccurs, disassemble and clean the burner
Page 28
28
GRILLCHEF
(Technical regulations for liqueed petroleum gas (TRF); appendix A)
Instructions for using liquid gas cylinders
Operating instructions for liquid gas cylinder systems
(other than propellant gas cylinders and propellant gas cylinder systems)
1. Properties of liquid gas
Liquid gas (propane, butane and mixtures thereof) is a highly ammable, colourless gas with a perceptible odour. It is heavier than oxygen and is ammable with low mixtures of
ambient air. Caution: uncontrolled gas can deagrate or explode.
Liquid gas is pressurised in the cylinder. Protect it from temperatures above 40°C! At higher temperatures, especially when exposed to re, there is a risk of an uncontrolled gas leak and
even to the cylinder bursting.
2. Conduct in the event of malfunctions and leaks: in the case of re:
(e.g. smell of gas, noise of escaping gas): (in buildings/vehicles) additionally:
Notify the re department % 112!
Close the cylinder valve immediately
(clockwise)!
Extinguish any naked ames!
Contact a specialist!
Do not smoke!
Do not actuate any electrical
switches!
Do not use the telephone!
Open windows and doors!
Transfer any leaking cylinders outside immediately!
Evacuate the building/vehicle!
Point out the presence of liquid gas cylinders!
If possible, remove cylinders from any area
that is susceptible to re or cool with water if
necessary.
3. Operation of liquid gas cylinder systems
➱ Liquid gas cylinder systems should only be installed, commissioned, modied and checked by specialised companies.
➱ Liquid gas cylinder systems should only be installed in the commercial sector by trained personnel and checked by an appropriately qualied person or, when dealing with cer tain
cylinder systems, by a person assigned by the contractor (accident prevention regulations (BGV D 34).
➱ The cylinder must be set in an upright position. Cylinders positioned on their side pose a threat of deagration.
➱ The operating instructions provided by the manufacturer of the liquid gas appliance are to be observed carefully by the user for operation and, if necessary, for troubleshooting
measures. Prior to the initial operation, or after making a modication, the operator of a liquid gas cylinder system must be assured of its orderly condition through examination and
certication by a specialised company (commercial systems are to be addressed by a specialised person responsible for the respective commercial sector). The certicates from the
examinations are to be kept by the operator.
➱ If the system is not going to be used for a prolonged period the valves are to be closed; when doing this start from the device shut-o valve towards the cylinder valve. When starting
up the system again the valves are to be opened; when doing this start from the cylinder valve towards the device shut-o valve.
➱ Naked ames and smoking are prohibited in areas where large cylinders are stored and in close proximity to large cylinder systems. The ventilation openings of the installation
area and/or the cylinder cabinet must be kept free.
Warning signs must be applied.
➱ The operator is prohibited from siphoning liquid gas!
4. Changing the cylinder
➱ When changing the cylinder only loosen the regulator connection after the cylinder valve has been fully closed (clockwise). The pressure regulator must be connected and well
sealed. Pay attention to the existing sealing ring (see diagram) Note left-hand thread! Every time the cylinder is changed the seal of the regulator connection must be tested
using foaming agents (e.g. soapy water).
➱ For multi-cylinder systems: Close the shut-o valve of the container connecting line; set switch to full cylinders.
Regulator connection small cylinder
(5 and 11 kg nominal capacity)
Regulator connection small cylinder
(33 kg nominal capacity)
Flaschenventil zu
Dichtring (Aluminium
oder Kunststo auf
der Reglerseite
Flaschenventil zu
Regler mit Schraubenschlüssel
festziehen (Linksgewinde)
Dichtring (Aluminium
oder Kunststo auf
der Reglerseite
5. Safety monitoring of liquid gas cylinder systems
Liquid gas cylinder systems are to be examined on a recurring basis. The examinations are to be initiated by the operator:
➱ Fixed systems in buildings with cylinders up to 11 kg nominal capacity: ...................................................................................... ever y 5 years by a specialised company
➱ Fixed systems in buildings with cylinders between 22 and 33 kg nominal capacity: .................................................................... every 10 years by a specialised company
➱ In accordance with accident prevention regulations BGV D 34 for commercial areas (depending on the type of system): ............every 4 years / every 2 years / annually
➱ Systems in vehicles in the private and commercial sector: ............................................................................................................every 2 years
➱ Systems on boats in the private sector:.........................................................................................................................................every 2 years
Components of the system that are subject to wear (e.g. regulators, hoses, etc.) are to be replaced where applicable.
6. Transport and storage
➱ To avoid damaging the valve and to prevent gas leaks full and empty liquid gas cylinders should only be transported and stored with a closed and protected valve (wear nut and cap).
➱ When transporting in vehicles it must be ensured that there is adequate ventilation in the storage area. The cylinders must be secured from shifting during transport.
➱ The cylinders, even if they are empty, should only be stored upright in well-ventilated areas; they should not be stored below ground level (e.g. basements, shafts, etc.), in stairwells,
corridors, passageways, near emergency exits, escape routes and passages between buildings or in their immediate vicinity. No more than two small cylinders should be stored in a
home - and only then in separate rooms (not bedrooms).
Any use of energy involves a risk of danger.
Therefore please observe these user/operating instructions!
Cylinder valve closed
Soft sealing ring in the cylinder valve
Screw the regulator by hand
(left-hand thread)
Cylinder valve
closed
Tighten the regulator with a
spanner (left-hand thread)
Sealing ring (aluminium or plastic) on the
regulator side
Page 29
29
GRILLCHEF
Page 30
30
GRILLCHEF
Page 31
31
GRILLCHEF
Page 32
k
F
I
H
S
N
Germany Landmann® GmbH & Co. Handels-KG
Am Binnenfeld 3-5, D-27711 Osterholz-Scharmbeck, Deutschland
Tel. **49 - 47 91 - 30 8 - 59 oder 16, Fax **49 - 47 91 - 30 8 - 36
Mo-Do 8:00 bis 16:45 Uhr, Fr 8:00 bis 15:30 Uhr
e-mail: [email protected], internet: www.landmann.com
United Kingdom Landmann® Ltd.
Unit 6 Blackstone Road, Stukeley Meadows Industrial Estate,Huntingdon, Cambs,PE29 6EF,
United Kingdom
Tel: **44 - 0871 2311990
Monday to Thursday 9am to 5pm, Friday, 9am to 4pm.
e-mail: [email protected], internet: www.landmann.co.uk
France Landmann France S.A.S.U.
7, Rue de la Barre F-86500 Montmorillon
Tel. **33 (0) 5 49 - 84 37 80, Fax **33 (0) 549 - 84 55 58
E-Mail: [email protected], Web site: www.landmannfrance.com
Italiy La preghiamo di rivolgersi all’ufficio tedesco.
Hungary Landmann Hungária Kft.
Almáskert u. 4., H-2220 Vecsés
Tel. **36 - 29 - 55 50 70, Fax **36 - 29 - 35 49 32
Hétfő-Csütörtök 8:00 - 16:30, Péntek 8:00 - 16:30
e-mail: infohun@landmann. de, www.landmann.hu
Poland Landmann® Polska Sp.z.o.o.
ul. Kuziennicza 13b, 59-400 Jawor, Polska
Tel. **48 - 76 - 8 70 24 61, Fax **48 - 76 - 8 70 23 88
Poniedziałek - czwartek od 8:00 do 16:45, piątek od 8:00 do 15:30
e-mail: [email protected], internet: www.landmann.pl
Sweden Landmann® Skandinavia AB
Storgatan 70, S-568 32 Skillingaryd, Sverige
Tel. **46 - 3 70 - 69 35 80, Fax **46 - 3 70 - 4 95 80
Måndag-Fredag, 08.00 - 16.00
e-mail: [email protected], internet: www.landmann.se
Norway Landmann® Norge AS
Sandstuveien 60 A, N-1184 Oslo, Norway
Tel. **47 - 23 - 16 50 10, Fax **47 - 23 - 16 50 11
Mandag-Fredag 08:00 - 16:00
e-mail: [email protected], internet: www.landmann.no
Denmark LANDMANN® Danmark A/S
Kastanievej 30, DK – 2670 Greve, Danmark
Tel. **45 - 59 44 74 14, Fax **45 - 59 44 74 41
Mandag-Torsdag: 8.00 - 16.00, Fredag 8.00 - 15.00
e-mail: [email protected], internet: www.landmann.dk
Finland Landmann® Finland OY
Laulakuja 4, PL. 1, SF-00421 Helsinki, Finland
Tel. **358 - 9 - 47 70 93 - 0, Fax **358 - 9 - 47 70 93 50
Maanantai-Perjantai 8:30 - 16:30
e-mail: [email protected], internet: www.landmann.fi
Adresse / Address / Adresse / Indirizzo / Cím / Adres / Adress / Adresse
/ Adresse / Osoite
facebook.com/LANDMANNgermany
Loading...
