Page 1
12200
Version: 12200gb
DATeD: #2016
eDiTion: 10/15er

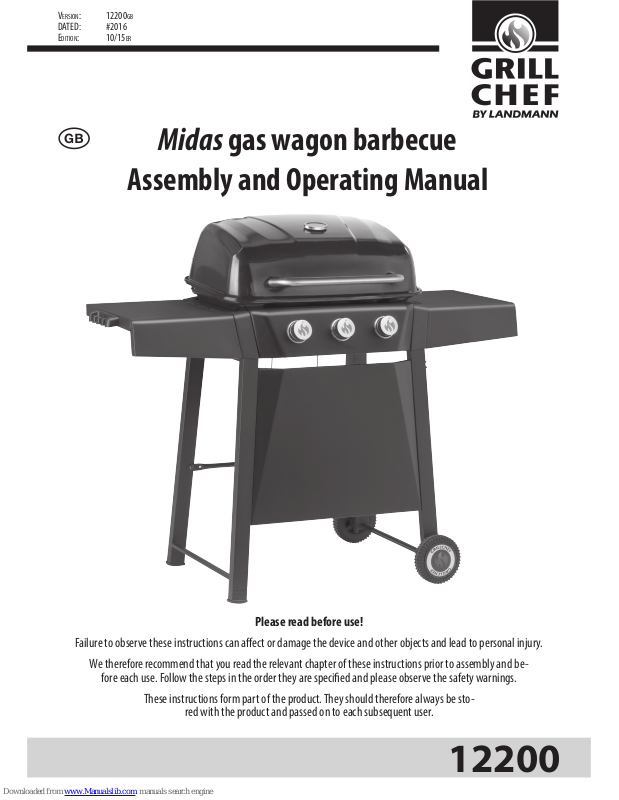

Midas gas wagon barbecue
Assembly and Operating Manual
Please read before use!
Failure to observe these instructions can aect or damage the device and other objects and lead to personal injury.
We therefore recommend that you read the relevant chapter of these instructions prior to assembly and be-
fore each use. Follow the steps in the order they are specied and please observe the safety warnings.
These instructions form part of the product. They should therefore always be sto-
red with the product and passed on to each subsequent user.
Page 2
2
GRILLCHEF
Table of contents
Specications ..............................................................................................................................................3
Safety instructions ......................................................................................................................................4
Denition of terms used .......................................................................................................................4
Danger "Hot surfaces and parts" ..........................................................................................................5
Danger "Highly ammable gas" ...........................................................................................................6
Danger "Gas displaces oxygen" ............................................................................................................7
Scope of supply ...........................................................................................................................................8
Pack of xing bolts ...............................................................................................................................8
Exploded view .............................................................................................................................................9
Controls .....................................................................................................................................................10
Function ....................................................................................................................................................10
Utilisation .................................................................................................................................................11
Warranty and disclaimer ...........................................................................................................................11
Assembly ..................................................................................................................................................12
Assembly procedure ..................................................................................................................................13
Connecting and disconnecting the gas cylinder ........................................................................................20
Connecting the gas cylinder ...............................................................................................................20
Operation ..................................................................................................................................................22
Starting up the barbecue ....................................................................................................................22
Switching o the barbecue .................................................................................................................23
Cleaning ....................................................................................................................................................24
Barbecue ............................................................................................................................................24
Gas system .........................................................................................................................................24
Maintenance .............................................................................................................................................25
Environmental information and disposal measures ..................................................................................25
Troubleshooting ........................................................................................................................................26
Page 3
3
GRILLCHEF
Technical specications
Approvals
IMQ Test number - 0051, pin/no. 51CP4447
Barbecue
Appliance category I3+ according to DIN EN 498
Overall weight approx. 20.5kg
Dimensions (L x H x W) approx. 1325 x 1125 x 610 mm
Cooking area (L x W) approx. 610 x 360mm
Gas system
Heat output 8.12 kW
Flow rate (mass ow rate) G30:590 g/h G31: 580 g/h
Gas type Liquid gas (propane)
Gas cylinder Standard 5 kg or 13 kg gas cylinder.
Gas pressure 28-30/37 mbar
Gas hose Hose (max. 1.5 m) As per DIN 4815-2
Ignition Piezo ignition
Flame regulation Innitely adjustable 0 - max.
Nozzle diameter 0.84 mm
Permissible gas cylinder size
5 kg: Ø 300mm x 390 mm
13 kg: Ø 315mm x 580mm
Page 4
4
GRILLCHEF
Safety instructions
Denition of terms used
The following pictograms and signal words are used in these instructions to point out hazards and important information:
Safety instructions
Pictogram and signal word Note on ...
Danger
... a possible danger that can result in severe personal injury or damage
to property if the stated measures are not taken.
Caution
... a possible danger that can result in damage to property if the specied measures are not taken.
Application instructions
Pictogram Note on ...
... a useful function or tip.
Page 5
5
GRILLCHEF
Danger "Hot surfaces and parts"
During operation some parts of the barbecue may become very hot, particularly those that
are close to the re bowl.
Possible consequences:
• Severe burns from touching parts near the re bowl.
• Fire or smouldering re if ammable materials or substances are near the barbecue.
Precautions prior to barbecuing:
• When setting up the barbecue, make sure that
• there are not, and will not be, any ammable materials or substances nearby. Minimum
distance to ammable materials or substances: 2 m overhead and 1 m to the side. Distance to ame-resistant materials or substances, e.g. walls: at least 0.25 m.
– the barbecue is positioned rmly on a suciently large area. Do not move it during
operation.
Precautions while barbecuing:
• Wear barbecue mittens.
• Never leave the barbecue unattended. Take particular care to ensure that children and
pets are kept away from the barbecue.
Page 6
6
GRILLCHEF
Danger "Highly ammable gas"
Liquid gas is highly ammable and explosive.
Possible consequences:
• Serious personal injury or damage to property if escaping gas ignites in an environment
in which it is not controlled.
Precautions:
• Exclusively use the barbecue outdoors and ensure that the area is well-ventilated.
• Protect the gas cylinder and the gas hose from direct sunlight and other sources of heat
(max. 50°C). Take particular care to ensure that the gas hose does not touch any part of
the hot barbecue.
• Do not lean over the barbecue when igniting the gas ame.
• Close the valve on the gas cylinder immediately after each use (turn the valve clockwise).
• Never leave the barbecue unattended. If the ame extinguishes, relight it immediately
or cut o the supply from the gas cylinder.
• When connecting the gas cylinder, make sure that there are no sources of ignition within
a 5 m radius.
• Important note: to avoid the risk of spark-over, do not to light naked ames, do not smoke and do not actuate the switches of electric devices (appliances, lights, door bells, etc.).
• Before each use, make sure that all gas connections are sealed and intact.
• If necessary, replace the hose in order to comply with the corresponding national requirements.
The barbecue must not be used if the connections for the gas supply are porous or defective. This also applies, for example, to hoses or ttings blocked by insects, as this can
produce a dangerous ashback.
Page 7
7
GRILLCHEF
Danger "Gas displaces oxygen"
Liquid gas is heavier than oxygen. Therefore it settles on the ground and displaces the oxygen
at that level.
Possible consequences:
• Suocation resulting from a lack of oxygen if the concentration of gas is allowed to rise
to a certain extent.
Precautions:
• Exclusively use the barbecue outdoors in a well ventilated area and above ground (i.e.
not in areas that are below ground level).
• Close the valve on the gas cylinder after each use.
• Never leave the barbecue unattended. If the ame extinguishes, relight it immediately
or cut o the supply from the gas cylinder.
• Before each use, make sure that all gas connections are sealed and intact.
• If necessary, replace the hose in order to comply with the corresponding national requirements.
The barbecue must not be used if the connections for the gas supply are porous or defective.
If the barbecue is not being used for a prolonged period, cut o the supply from the gas
cylinder and store properly:
– Fit the gas cylinder valve with a cap nut and safety cap.
– Do not store the gas cylinder in rooms below ground level, in or near stairways,
hallways or passages and thoroughfares between buildings.
– Always store gas cylinders upright, even if they are empty!
Page 8
8
GRILLCHEF
Pack of xing bolts
Scope of supply
Pos. Qty. Designation Pos. Qty. Designation
1 1 Warming rack 15 1 Wheel leg
2 2 Cooking grill 16 2 Leg cap
3 3 Flame tamer 17 1 Front panel
4 1 Lid handle 18 1 Wheel axle
5 1 Thermometer 19 2 Wheel
6 1 Burner unit, pre-assembled 20 2 Wheel cap
7 3 Flame regulator 21 1 Hose holder
8 1 Side shelf, left
9 1 Tool holder
10 1 Side shelf, right
11 1 Grease tray
12 1 Grease tray holder
13 2 Cross bar
14 1 Leg
2x
M6x15
1x
M6x16
26x
M10
2x
Ø6,5x18
8x
A
B C
D
E
Ø6,2
8x
F
Page 9
9
GRILLCHEF
Exploded view
10
5
4
16
15
9
12
13
14
1
6
7
2
8
3
17
18
19
21
20
11
Page 10
10
GRILLCHEF
7
Controls
Pos. Designation Function
7 Flame regulator Fill burner with gas to ignite (keep depressed and turn to
"large ame" setting).
G1 Pressure reducer Reduce gas pressure.
G2 Operating lever Cut-o safety device with 2 settings:
3 o'clock setting: Gas is o - connect / disconnect the pressure
reducer
6 o'clock setting: Gas is on.
G3 Release button Disconnects the pressure reducer from the cylinder valve
G4 Gas bottle with bottle valve Fuel container
G5 Gas hose with hose clip Directs gas to burner.
G5
12
G1
G3
3
G2
G1
G2
G4 G4
Function
When the bottle valve (G2 at a 6 o'clock position) and the ame regulator (7) are open the gas ows through the gas hose
(G5) and the adjusting element into the burner .
The heat output can be adjusted for the burners by using the ame regulator (7).
Page 11
11
GRILLCHEF
Utilisation
Intended use
This is a gas barbecue that is intended for outdoor use. The intended use comprises the exclusive use for cooking barbecue
food in compliance with all instructions in this manual.
For private use only!
Improper use
Any other use or application beyond the intended purpose is not permitted. This applies to the following types of misuse in
particular:
• Do not operate the barbecue with charcoal or fuel other than liquid gas (propane).
• Do not use the barbecue as a stove with pots and pans.
• Do not use the barbecue as a heating appliance.
Do not use the barbecue to heat materials and substances other than barbecue food.
Warranty and disclaimer
The barbeque has been manufactured according to the general engineering rules - valid at the time manufacturing was
started - and the requirements of EU Directive 2009/142/EC. It is certied and approved by IMQ (test number -51CP4447).
The barbecue left the factory in a technically sound and safe condition.
The barbecue is subject to our warranty for a term of three years from the date of purchase. This warranty covers manufacturing defects and faulty parts (burners, burner covers, cooking grill, warming rack) as well as the replacement of these parts.
Costs for shipping, assembly, replacement of worn parts and others are not covered by this warranty.
The warranty shall expire and any responsibility shall pass over to the executor:
• if the barbecue is not used properly.
• if the barbecue is used despite visible damage or if it is not completely assembled.
• if any technical alterations have been made to the barbecue.
• if accessories are used that are not expressly authorised for this barbecue (if in doubt please contact our customer
service department).
• if original spare parts from LANDMANN GmbH & Co. Handels-KG are not used.
Page 12
12
GRILLCHEF
Assembly
Before starting
Here are a few tips to help you assemble your barbecue quickly and successfully:
• Check that no parts are missing by placing all of the individual parts on an empty surface (we reserve the right to make
minor technical alterations, such as the content of the small parts bag).
• If, despite careful factory checks, a component should be missing, please contact our customer service department (see
last page). We will immediately attend to your request.
Sort small parts, as some of the screws and bolts, for example, are very similar and can be easily confused.
• For assembly you will need a medium size screwdriver and a suitable spanner (at spanner or box spanner).
• You will need a at spanner (AF17) to connect the gas cylinder.
Only use tools that are intact and suitable for the job at hand. Worn or unsuitable tools will not allow you to tighten the
bolts suciently, but will damage them to the extent that they can no longer be turned.
• Always t all connecting elements (screws, bolts, nuts, etc.) as shown in the following illustrations. If you misplace
a connecting element, replace it with an appropriate part. Only by doing this can you ensure that the construction is
strong and safe.
• Be sure to follow the instructions in the specied order!
• Read the text for each step before carrying it out, as useful information is sometimes only provided at the end of the
section.
•
Even if you are not experienced at DIY, assembly does not generally take longer than one hour.
Page 13
13
GRILLCHEF
Assembly procedure
1.
2.
16
14
17
14
15
A
A
B C
D
E
F
4x
Page 14
14
GRILLCHEF
3.
4.
13
13
A
A
B C
D
E
F
4x
19
C
18
20
C
D
E
F
2x
Page 15
15
GRILLCHEF
5.
6.
4
5
6
A
F
E
D
A
B C
D
E
F
2x
D
E
F
2x
E
F
2x
F
2x
21
B
A
F
E
A
B C
D
E
F
6x
B
C
D
E
F
1x
E
F
6x
F
6x
Page 16
16
GRILLCHEF
7.
8.
8
9
A
A
B C
D
E
F
2x
8
A
A
A
B C
D
E
F
4x
Page 17
17
GRILLCHEF
9.
10.
A
10
A
B C
D
E
F
4x
2
3
Page 18
18
GRILLCHEF
12
11
11.
Page 19
19
GRILLCHEF
Page 20
20
GRILLCHEF
Connecting and disconnecting the gas cylinder
Parts and tools needed
• Gas cylinder
CommonPatio Gas cylinder, ll weight 5 or 13 kg, (e.g. green Propane Gas cylinder). These are available at DIY shops or
from liquid gas suppliers.
• Leak indicator
You can locate any leaks in the gas system using a leak detector. This can be purchased at DIY shops or liquid gas suppliers. Please follow the operating instructions of the leak detector.
The following part is included in delivery. It corresponds to the standards applicable in the country to which it has been
supplied by LANDMANN.
Gas hose
-approved hose as per EN 4815-2 with sucient length, allowing installation without any kinks.
Pressure regulator
Preset pressure regulator tested as per EN12864, max. 1.5 kg/h, operating pressure 28-30/37 mbar, matching the gas
cylinder used. This type of pressure regulator is also commercially available.
Connecting the Gas Cylinder
Danger "Ignition of escaping gas"
Liquid gas is highly ammable and explosive.
Possible consequences:
• Serious personal injury or damage to property if escaping gas ignites in an environment
in which it is not controlled.
Safety precautions:
• When connecting the gas cylinder ensure that there are no sources of ignition within a
5 m radius.
• Take special care not to light any naked ames, do not smoke or switch on electric appliances (devices, lights, door bells), etc. (sparkover possible).
• If necessary, replace the hose in order to comply with the corresponding national requirements.
Page 21
21
GRILLCHEF
1. Select a suitable place to set up the grill. Make sure that ...
– there are not, and will not be, any ammable materials or substances nearby. Minimum distance to ammable
materials or substances: 2m above and 1m to the side; distance to ame resistant materials or substances - min
0.25 m.
– the grill is positioned rmly on a at, suciently large surface area. It must not be moved during operation.
G5
G1
3
G2
G4
1. Turn the operating lever (G2) to the 3 o'clock position
and then press the pressure reducer (G1) on the valve
of the gas bottle (G4) until you hear a click.
2. Check to make sure they are correctly connected by
pulling the pressure reducer (G1) upwards. It should
not disconnect from the bottle valve.
3. Check the connection between the pressure reducer
(G1) and the gas hose (G5) and the connection between the gas hose (G5) and the setting device.
4. Open the cylinder valve (turn operating lever (G2) to a 6 o'clock position) and use a standard leak detector to make sure
that all of the connections are tight.
– Please observe the instructions for the leak detection agent! Never check for leaks using a naked ame. Listening
for leaks is not a reliable method of detection either.
– If the connection is not sealed properly close the bottle valve immediately (turn operating lever (G2) to a 3 o'clock
position) and then re-tighten the connection or replace the leaking part. Repeat the leak test.
5. If you do not wish to use the barbecue immediately, close the bottle valve (turn operating lever (G2) to a 3 o'clock
position).
Shut o Gas Cylinder
G1
G3
3
G2
G4
1. Close the cylinder valve (turn operating lever (G2) to
a 3 o'clock position).
2. Press the release button (G3) and pull the pressure
reducer (G1) upwards.
3. Store the pressure reducer (G1) with the gas hose (G5) underneath the barbecue. Make sure that the gas hose is not
kinked or twisted in any way.
4. Storing the gas cylinder correctly:
– Fit the gas cylinder valve with a cap nut and safety cap.
– Do not store the gas cylinder in rooms below ground level, or in or near stairways, hallways or passages and tho-
roughfares between buildings.
– Always store gas cylinders upright, even if they are empty!
Page 22
22
GRILLCHEF
Operation
Starting up the grill
1. Check to ensure that ....
– there are not, and will not be, any ammable materials or substances nearby. Minimum distance to ammable
materials or substances: 2m above and 1m to the side; distance to ame resistant materials or substances - min
0.25 m.
– the grill is positioned rmly on a at, suciently large surface area. It must not be moved during operation.
2. Check to ensure that ....
– the grill is fully assembled and has no apparent faults.
– the grill (2) are in place and that the fat catching tray (11) is tted below the re bowl.
12
G2
G1
G4
2. Turn the operating lever (G2) to the 6 o'clock position.
3. Check to make sure that the gas system is leak-proof.
Otherwise, close the cylinder valve immediately (turn
operating lever (G2) to a 3 o'clock position).
6. Open the lid of the re bowl and keep it open when igniting the ame.
Caution: Do not lean over the barbecue during steps 7 and 8. Keep a safe distance.
7. Press and turn the ame regulator (7) to Max
"large ame".
8. If necessary, press the ame regulatro (7) repeatedly until the burner ignites.
9. If the ame goes out, turn the ame regulator (7) to "•" (o), wait for 3 minutes and repeat steps 7 and 8.
10. The right burner section is ignited via the left burner. Press and turn the right ame regulator (7) to MAX
"large ame"
until the right side of the burner ignites.
11. Close the lid and allow the barbecue to heat up at full power.
The rst time you use the barbecue allow it to heat up for approximately 20 minutes before adding any food; this will
allow the food-safe coating to harden (as is the case with any oven).
12. When the grill has heated up suciently turn the ame regulator (7) to the desired setting (size of ame).
13. You can now place your food on the grill. We recommend that you wear barbecue gloves or similar for protection against
the heat.
Page 23
23
GRILLCHEF
Switching o grill
1. Close the cylinder valve on the gas bottle (turn G1 clockwise).
2. Turn the ame regulator (7) to "•" (o).
3. Wait until all of the parts have cooled down and then clean any soiled components.
4. Close the lid.
5. If the Barbecue is not going to be used for a prolonged period:
– Disconnect the gas cylinder (see chapter "Disconnecting the gas cylinder").
– Store the grill in a dry place.
Page 24
24
GRILLCHEF
Cleaning
Barbecue
To ensure your barbecue serves you well for many years to come, it should be cleaned after each use with washing-up liquid,
a brush and a cloth - ensure that all parts have cooled down rst. It will be much harder to do this later, once the dirt has
dried.
Caution "Spark plug on burner may deform"
The spark plug on the burner may deform or snap o during cleaning.
Possible consequences:
• Burner no longer ignites.
Precautions:
• Take special care when cleaning the area around the burner.
Gas system
If necessary, the gas outlet nozzle on the adjusting element (underneath the front panel) can be cleaned with a needle. All
other parts through which gas ows may only be cleaned by an expert.
Never dismantle the adjusting element!
Page 25
25
GRILLCHEF
Maintenance
The barbecue is maintenance-free. Nevertheless, you should check it at regular intervals. The intervals depend on how often
it is used and the environmental conditions to which it is exposed.
Barbecue
• Make sure that all parts of the barbecue are available and assembled (visual check).
• Check to ensure that all connections are present and securely fastened. Tighten if necessary.
Gas system
The gas system needs to be checked every time a gas cylinder is connected (see chapter "Connecting and disconnecting the
gas cylinder").
If necessary, replace the hose in order to comply with the corresponding national requirements.
Environmental information and disposal measures
Residual substances
DANGER: Risk of re when disposing of the hot residual substance
Only dispose of the residual substances when they have fully cooled down and only then
in the designated metal containers. Observe the local regulations.
Barbecue
Pay attention to cleanliness when handling the barbecue.
To dispose of the barbecue properly, disassemble it into its individual parts. Recycle the metal and plastic components.
Observe the local regulations.
Page 26
26
GRILLCHEF
Troubleshooting
If there is a fault despite due care, this chapter may help you to resolve the fault.
Fault Cause Remedy
There is a smell of gas Leak in the gas system 1. Close the cylinder valve immediately
2. Prevent any ames or sparks (do not
switch on electric devices)
3. Tighten all connections of the gas system
4. Check all components of the gas system for external damage; replace defective parts with original spare parts
5. Check for leaks using a leak detector
Burner does not ignite Gas cylinder is empty Replace the gas cylinder
Cylinder valve is closed Turn the cylinder valve
Nozzles of the adjusting element
(underneath the front panel) are
not inserted into the burner pipes
Conduct a visual check, if necessary align
the nozzles and connection hoses
Distance between the spark plug
and gas outlets on the burner is
incorrect
Visual inspection; correct if necessary
Other gas system blocked The gas system should be cleaned by a spe-
cialist
Barbecue temperature too low Pre-heating time too short Close the lid and set the ame regulator to
max. setting.
Gas outlets on the burner are
blocked
Remove blockage from burner
Deagration or bubbling noise Flashback caused by blockages in
the burner.
1. Close the cylinder valve immediately
(turn G1 clockwise)
2. Wait 3 minutes and then switch the
barbecue back on
3. If the problem recurs, remove burner
and clean
Page 27
27
GRILLCHEF
Page 28
k a h
Landmann® GmbH & Co. Handels-KG
Am Binnenfeld 3-5 · D-27711 Osterholz-Scharmbeck
Phone: +49 (0)4791 - 308 16/59
Mon - Thu 8am to 5pm, Fri to 4pm
www.landmann.com
LANDMANN® Ltd.
Unit 6 · Blackstone Road · Stukeley Meadows
Huntingdon · PE29 6EF · United Kingdom
Customer Service +44 (0)14 80 - 42 17 20 · www.landmann.co.uk
U l q N
LANDMANN® Skandinavia AB
Storgatan 70 · S-568 32 Skillingaryd · Sverige
www.landmann.se
LANDMANN® POLSKA Sp. z o.o.
59-400 Jawor, ul. Kuziennicza 13b
Tel. + 48 76 870 24 61 · Fax. + 48 76 870 23 88
www.landmann.pl
H
Forgalmazó/Distributer/Distribuitor/Διανομέας/Търговец:
LANDMANN® Hungária kft.
H-2220 Vecsés. · Almáskert u.4.
Phone: +36 (0)29 555 070
Turkiye Distributoru:
LANDMANN® İstanbul Dış Mek. Ur. Tic. Ltd. Şti.
Kayışdağı Cad. No:3 D:2514 Flora Plaza
Ataşehir İstanbul · Phone: +90 (0)216 575 30 08
HERLAAR AGENTUREN EN HANDELSONDERNEMING
Phone **31 - 6 - 54 33 27 67
Fax **31 - 84 - 74 70 994
E-Mail: [email protected]
facebook.com/LANDMANNgermany
Loading...
