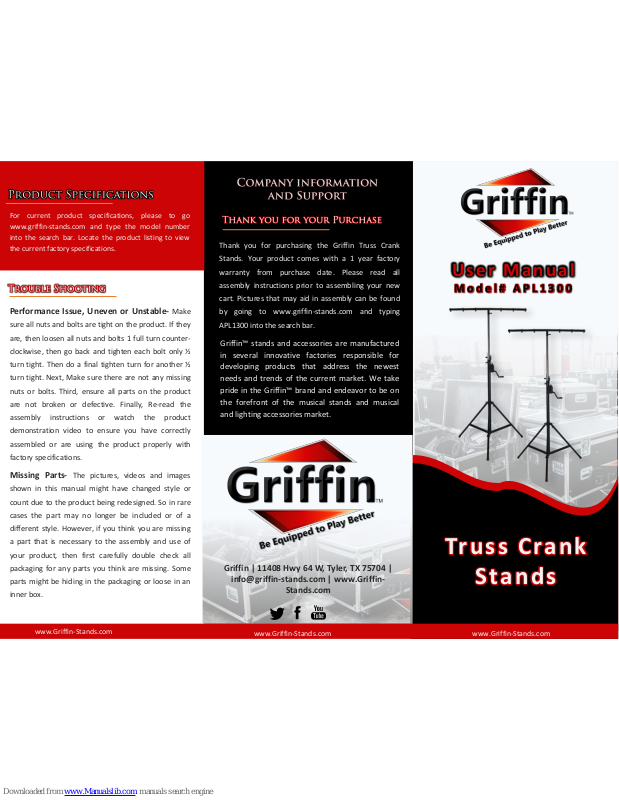

Griffin Technology APL1300 User Manual

www.Griffin-Stands.com

Truss Crank

Stands

www.Griffin-Stands.com

www.Griffin-Stands.com

Griffin™ stands and accessories are manufactured
in several innovative factories responsible for
developing products that address the newest

needs and trends of the current market. We take

pride in the Griffin™ brand and endeavor to be on
the forefront of the musical stands and musical
and lighting accessoriesmarket.

Performance Issue, Uneven or Unstable- Make

sure all nuts and bolts are tight on the product. If they
are, then loosen all nuts and bolts 1 full turn counter­clockwise, then go back and tighten each bolt only ½
turn tight. Then do a final tighten turn for another ½
turn tight. Next, Make sure there are not any missing
nuts or bolts. Third, ensure all parts on the product
are not broken or defective. Finally, Re-read the
assembly instructions or watch the product
demonstration video to ensure you have correctly
assembled or are using the product properly with
factory specifications.

Missing Parts- The pictures, videos and images

shown in this manual might have changed style or
count due to the product being redesigned. So in rare
cases the part may no longer be included or of a
different style. However, if you think you are missing
a part that is necessary to the assembly and use of
your product, then first carefully double check all
packaging for any parts you think are missing. Some
parts might be hiding in the packaging or loose in an
inner box.

User Manual

M odel# A P L 1 3 0 0

Griffin | 11408 Hwy 64 W, Tyler, TX 75704 |

[e-mail] | www.Griffin-

Stands.com

For current product specifications, please to go

www.griffin-stands.com and type the model number

into the search bar. Locate the product listing to view
the current factory specifications.

Thank you for purchasing the Griffin Truss Crank
Stands. Your product comes with a 1 year factory
warranty from purchase date. Please read all
assembly instructions prior to assembling your new
cart. Pictures that may aid in assembly can be found
by going to www.griffin-stands.com and typing
APL1300 into the search bar.

Step 3 – Slide in the T-
Bar at the top of the
stand and tighten the
knob (See Figure 5).
Loosen the knob near
the crank handle and
unlock the pin on the

Please scan the QR Code below for the product
demonstration video. Or go to the URL shown here and find
the product video. www.Griffin-Stands.com/Videos

Step 2 – Take the

handle and place it on

the side of the cranks,
there should be a
protruding screw to
screw in the handle,
use the wing nut to
secure the handle in
place (See Figure 4).

Step 1 – Take the stand
and pull the legs out
and downwards,
tighten the knob and
pull and twist the
locking pin to secure
the legs in place as
shown in Figure 1, 2
and 3.

opposite side of the knob, use the handle to crank
up the stand. Tighten the knob you loosen previously
and also twist the pin to lock the height of the stand
in place (See Figure 6 and 7).

Step 4 – To bring

down the stand,

loosen the knob
and unlock the pin
and crank down the
handle as shown in

Figure 8. Apply

downward force
along the height

adjustment bar if

there is difficulty in
cranking down the
stand.
Step 5 – Use the provided washer and wing nuts to load
your light fixtures and other equipment onto the stand
(Figure 9).

Step 6 – For safety reasons, please always make sure to
test the stability and safety of the product before use.
Double check all nuts and bolts, knobs and connectors,
make sure that these are tight and securely fastened
before mounting items. As a general rule the higher the
height of the system, the less stable the stand will be
and less weight can be mounted. Additionally, spread
the legs wider for a more secure and balanced stand
especially if the stand will be carrying heavy items. The
wider the legs are the more stable the stand will be.
Also, make sure that the weight is evenly distributed
throughout the stand system. Heavier equipment loads
need to be installed near the tripod stand, while lighter
ones can be mounted on the middle truss or further
away from the tripod stand.
