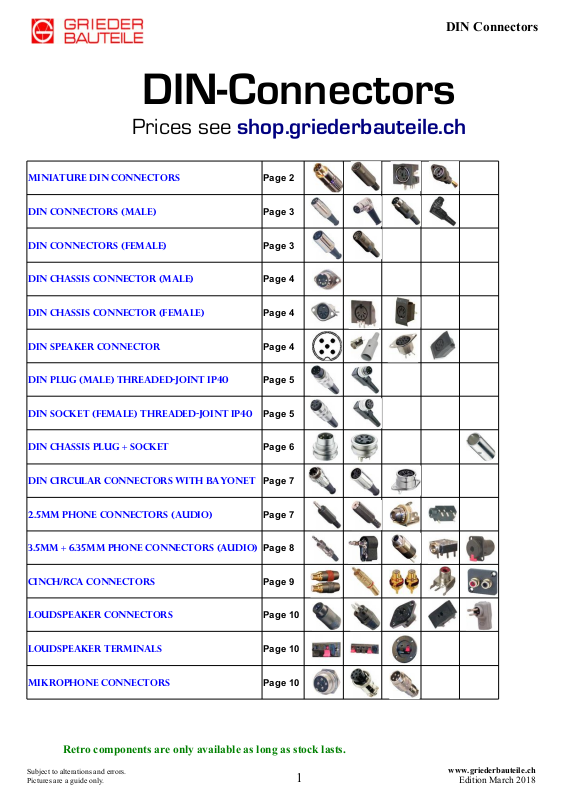

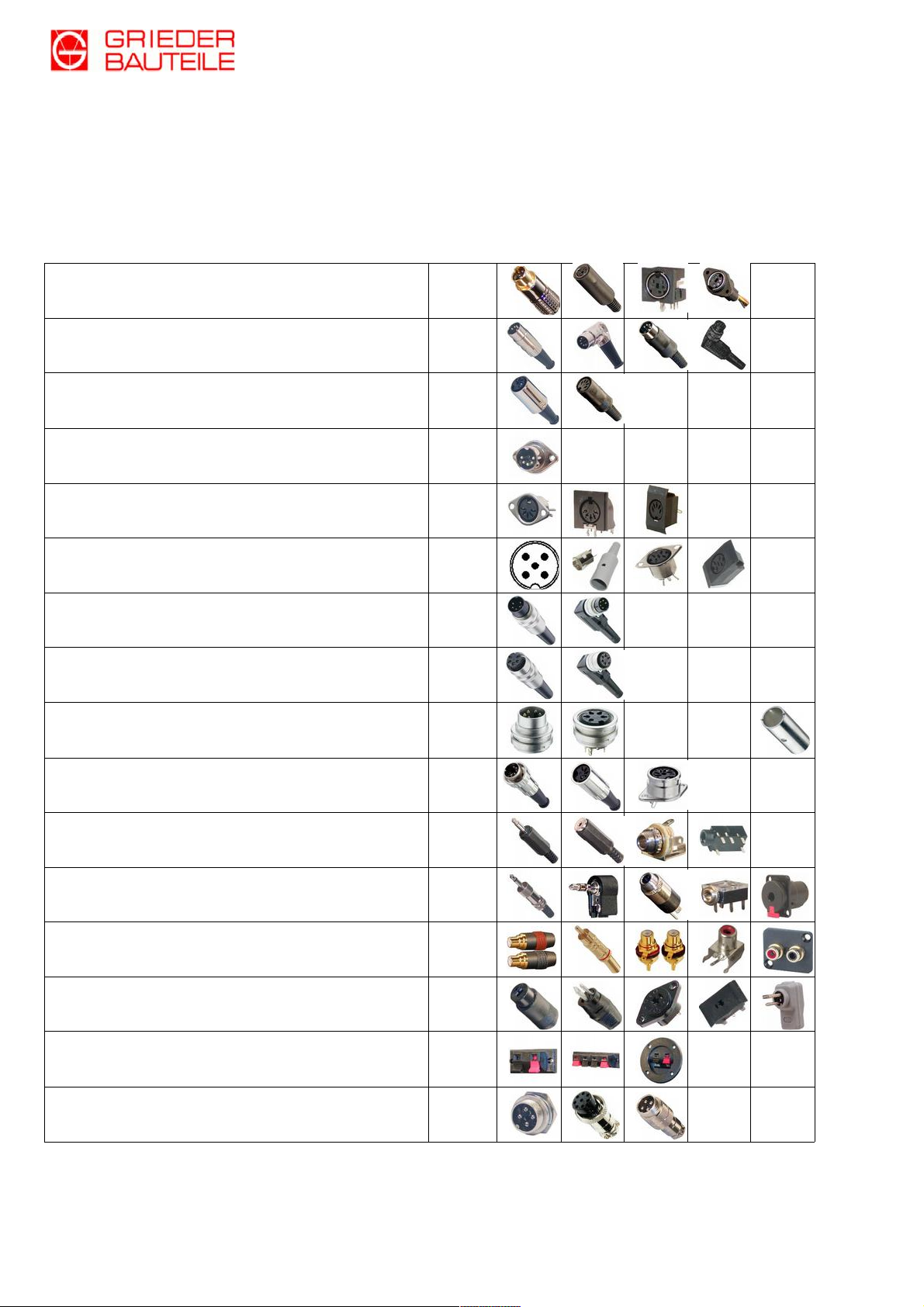

Page 1
DIN Connectors
1
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
Retro components are only available as long as stock lasts.
DIN-Connectors
Prices see shop.griederbauteile.ch
Miniature DIN Connectors Page 2
DIN Connectors (male) Page 3
DIN Connectors (female) Page 3
DIN Chassis Connector (male) Page 4
DIN Chassis Connector (female) Page 4
DIN Speaker Connector Page 4
DIN Plug (male) Threaded-Joint IP40 Page 5
DIN Socket (female) Threaded-Joint IP40 Page 5
DIN Chassis Plug + Socket Page 6
DIN Circular Connectors with Bayonet Page 7
2.5mm Phone Connectors (Audio) Page 7
3.5mm + 6.35mm Phone Connectors (Audio) Page 8
Cinch/RCA Connectors Page 9
Loudspeaker Connectors Page 10
Loudspeaker Terminals Page 10
Mikrophone Connectors Page 10

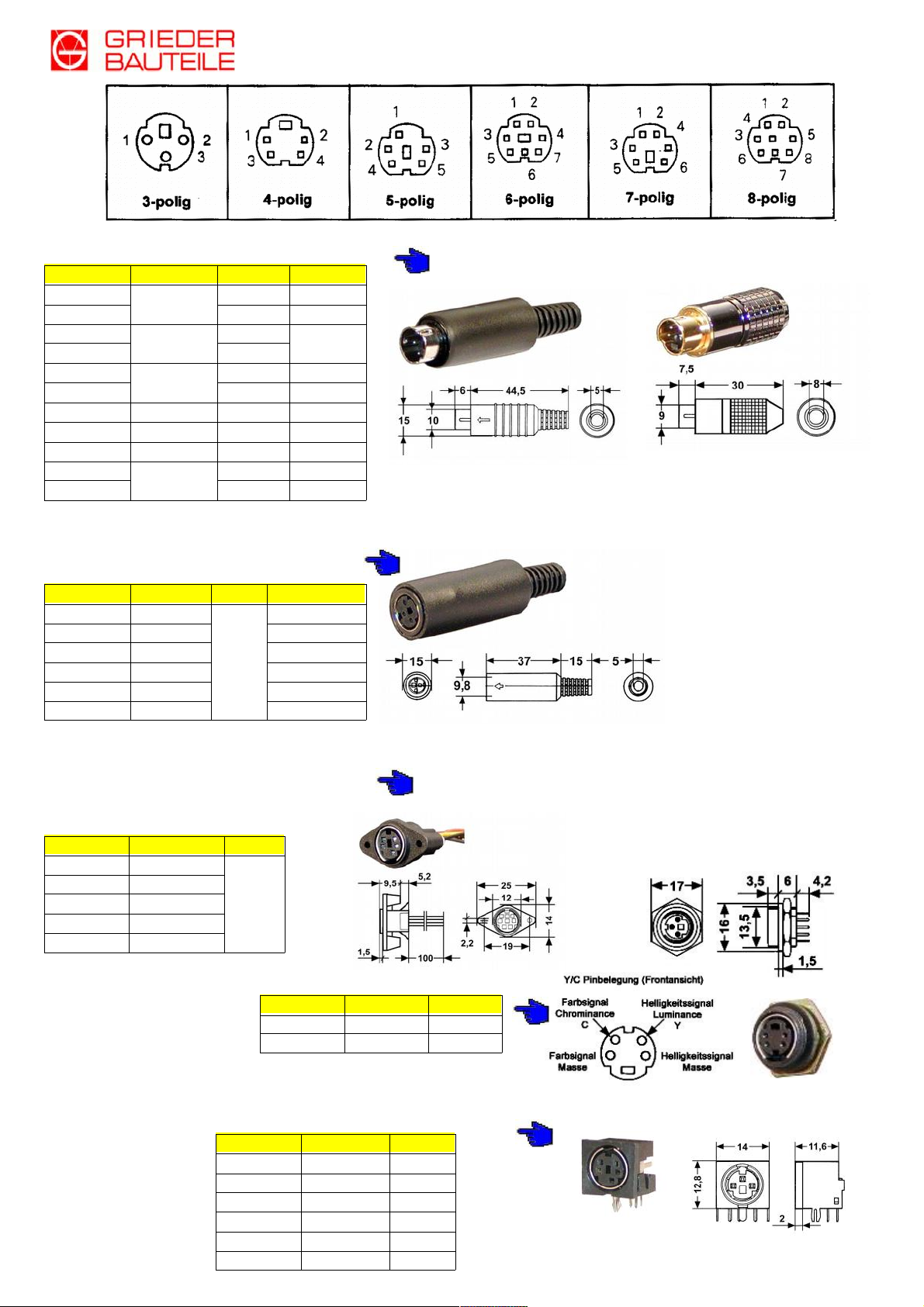

Page 2
DIN Connectors
2
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
Order No Pole s Mate r ial
SGA.MS3K
3
ABS
SGA.MS3MG Metal
SGA.MS4K
4
ABS
(S-V HS)
SGA.MS4MG Metal
SGA.MS5K
5
ABS
SGA.MS5MG Metal
SGA.MS6K 6 ABS (IBM PS/2)
SGA.MS6MG Metal
SGA.MS7K 7 ABS
SGA.MS8K
8
ABS
SGA.MS8MG Metal
Miniature DIN Connector (male)
ABS
Metal
Order No Pole s Mate r ial
SGA.MK3K
3
ABS
SGA.MK4K
4 (S-V HS)
SGA.MK5K
5
SGA.MK6K
6 (IBM PS/2)
SGA.MK7K
7
SGA.MK8K
8
Miniature DIN Connector
(female)
Miniature DIN Chassis Socket
(female)
with Cable AWG26 100mm
Order No Pole s Mate r ial
SGA.MB3KS 3
ABS
SGA.MB4KS 4
SGA.MB5KS 5
SGA.MB6KS 6
SGA.MB8KS 8
Orde r No Poles
SGA.MB4S 4 (S-V HS)
SGA.MB6S 6 (IBM PS/2)
Mini-DIN Chassis Socket
(female)
Order No Pole s
SGA.MB3PS 3
SGA.MB4PS 4 (S-VHS)
SGA.MB5PS 5
SGA.MB6PS 6 (IBM PS/2)
SGA.MB7PS 7
SGA.MB8PS 8
MINI-DIN

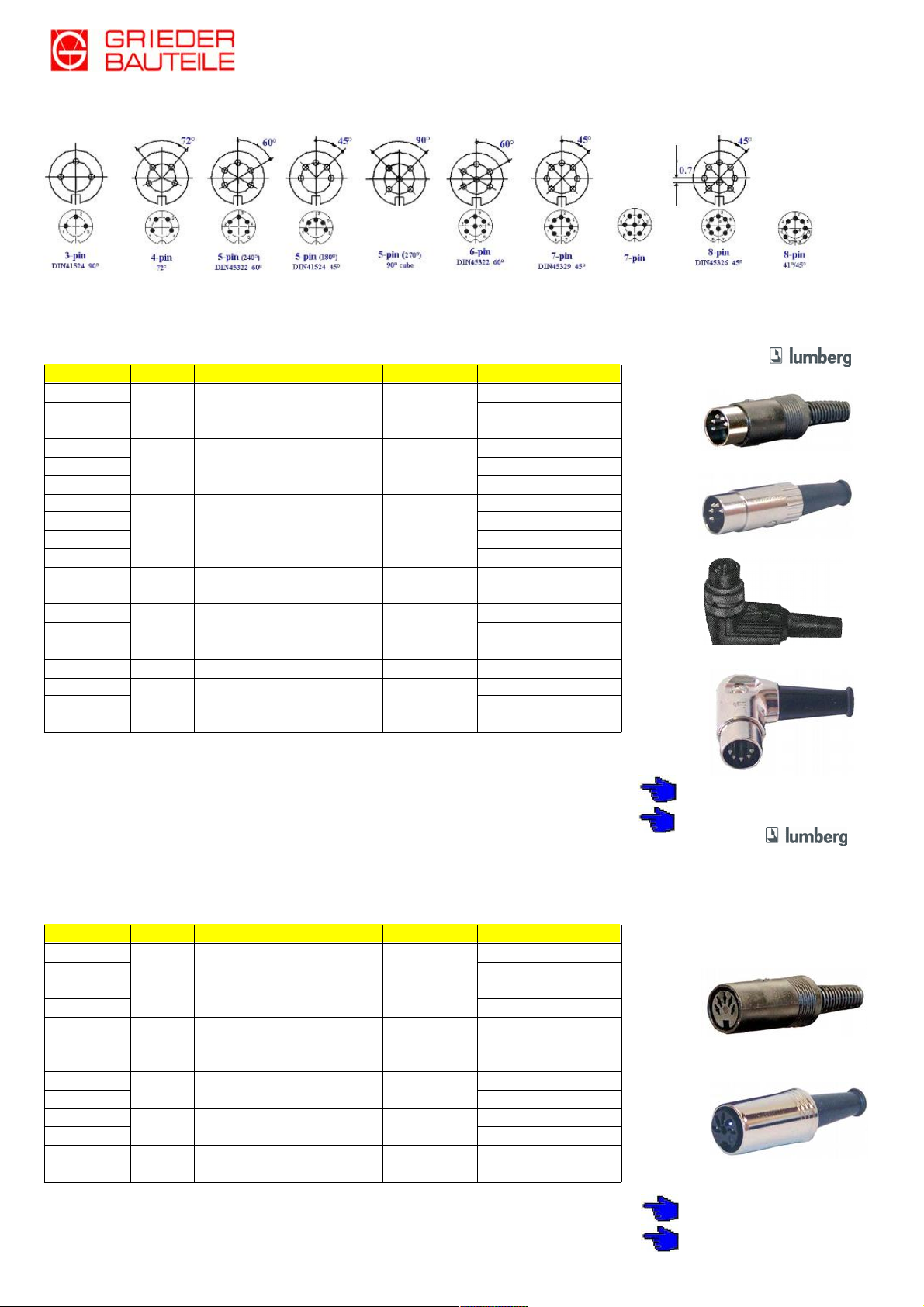

Page 3
DIN Connectors
3
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
Order No Poles Configur ation Angle DIN Ve rs ion
SGA.S3
3 41524
Plastic straight
SGA.SM3 Metal s traight
SGA.SWM3 Metal angled
SGA.SM4
4 72º 216º
Metal s traight
SGA.SW4 Plastic angled
SGA.SWM4 Metal angled
SGA.S5
5 60º 240º 45322
Plastic straight
SGA.SM5 Metal s traight
SGA.SW5 Plastic angled
SGA.SWM5 Metal angled
SGA.SM5S
5S 45º 180º 41524
Metal s traight
SGA.SW5S Plastic angled
SGA.S6
6 60º 240º 45322
Plastic straight
SGA.SM6 Metal s traight
SGA.SWM6 Metal angled
SGA.SM7 7 45º 270º 45329 Metal s traight
SGA.S8
8 45º 270º 45326
Plastic straight
SGA.SM8 Plastic straight
SGA.SW8G 8 41º/45º 262º Plastic angled
90º 180º
DIN Cable Connector (Male)
SGA.Sx
SGA.SMx
SGA.SWMx
SGA.SWx
Order No Poles Configur ation Angle DIN Ve rs ion
SGA.K3
3 41524
Plastic straight
SGA.KM3 Metal straight
SGA.K4
4 72º 216º
Plastic straight
SGA.KM4 Metal straight
SGA.K5
5 60º 240º 45322
Plastic straight
SGA.KM5 Metal straight
SGA.KM5S 5S 45º 180º 41524 Metal straight
SGA.K6
6 60º 240º 45322
Plastic straight
SGA.KM6 Metal straight
SGA.K7
7 45º 270º 45329
Plastic straight
SGA.KM7 Metal straight
SGA.KM8 8 45º 270º 45326 Metal straight
SGA.K8G 8 41º/45º 262º Plastic straight
90º 180º
DIN Cable Connector (Female)
SGA.Kx
SGA.KMx
Plugs plastic
Plugs metal
Sockets plastic
Sockets metal

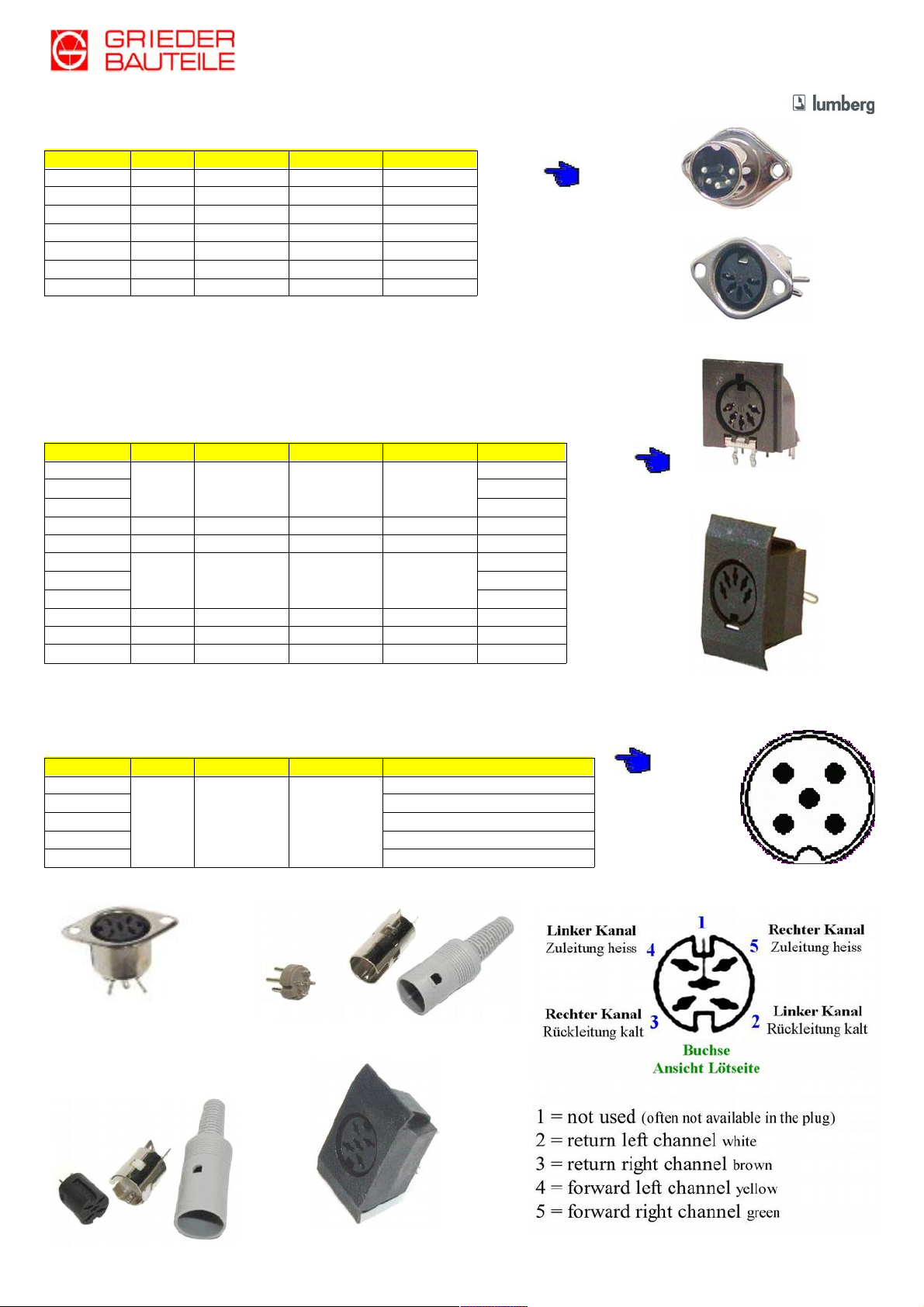

Page 4
DIN Connectors
4
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
Order No Pole s Configur ation Angle DIN
SGA.E3 3 90º 180º 41524
SGA.E4 4 72º 216º
SGA.E5 5 60º 240º 45322
SGA.E5S 5S 45º 180º 41524
SGA.E6 6 60º 240º 45322
SGA.E7 7 45º 270º 45329
SGA.E8G 8 41º/45º 262º
DIN Panel-Mount Plug (Male)
Order No Poles Configur ation Angle DIN Ve rs ion
SGA.B3
3 90º 180º 41524SGA.BS3 Snap-In
SGA.BP3 PCB
SGA.B4 4 72º 216º
SGA.B5 5 60º 240º 45322
SGA.B5S
5S 45º 180º 41524SGA.BS5S Snap-In
SGA.BP5S PCB
SGA.B6 6 60º 240º 45322
SGA.B7 7 45º 270º 45329
SGA.B8G 8 41º/45º 262º
DIN Chassis Jacks (Female)
SGA.Bx: shielded DIN panel sockets with solder terminals
SGA.BSx: unshielded DIN panel jacks in insulated version with solder terminals
SGA.BPx: unshielded DIN panel jacks in insulated PCB version
SGA.Ex
SGA.Bx
SGA.BPx
SGA.BSx
DIN Speaker Connector DIN 45327
Order No Poles Configur ation DIN Ve rs ion
SGD.B
5 90º 45327
Chassis connector (f emale) shielded
SGD.BS Chassis connector (f emale) Snap-In
SGD.K Cable connector (f emale) shielded
SGD.S Cable connec tor (male) shielded
SGD.SF Adapter (male/female)
SGD.B
SGD.BS
SGD.K
SGD.S

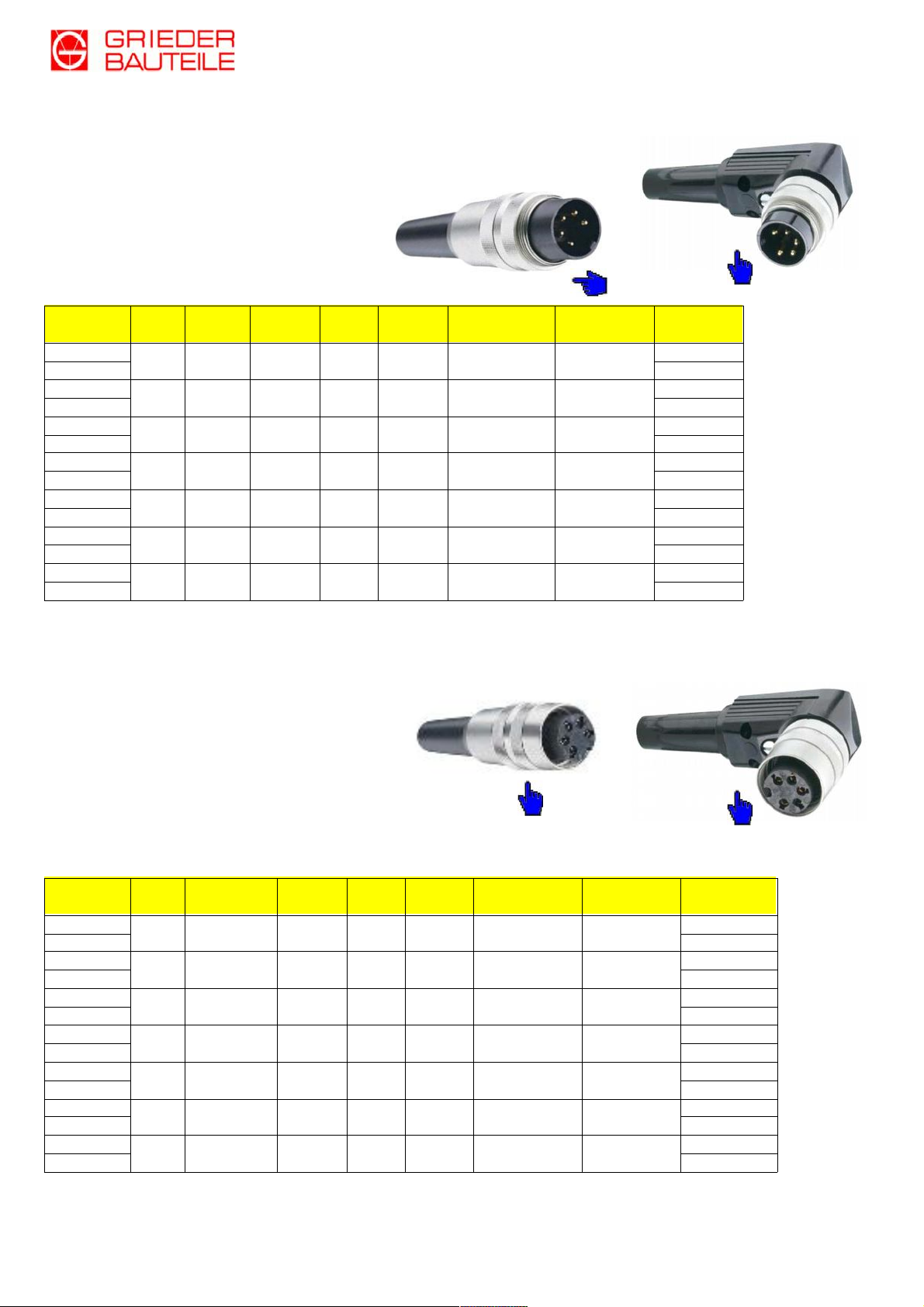

Page 5
DIN Connectors
5
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
DIN Plug (male) with threaded-joint
Order No Poles Angle DIN Wire section Version
SGB.S3
3 41524 250VAC 2kVeff
straight
SGB.SW3
SGB.S4
4 72º 216º 250VAC 2kVeff
straight
SGB.SW4 angled 90º
SGB.S5
5 60º 240º 45322 250VAC 2kVeff
straight
SGB.SW5 angled 90º
SGB.S5S
5 S 45º 180º 41524 60VA C 1kVef f
straight
SGB.SW5S angled 90º
SGB.S6
6 60º 240º 45322 250VAC 2kVeff
straight
SGB.SW6 angled 90º
SGB.S7X
7 60º 360º 250VAC 2kVeff
straight
SGB.SW7X angled 90º
SGB.S8G
8 41º /45º 262º 60V A C 1kVef f
straight
SGB.SW8G angled 90º
Configur a
tion
Rated
Vo ltage
Te s t
Vo ltage /60s
90º 180º
≤ 75mm²
angled 90º
≤ 75mm²
≤ 75mm²
≤ 34mm²
≤ 75mm²
≤ 75mm²
≤ 34mm²
SGB.SWx
SGB.Sx
IP40
Order No Poles Configur ation Angle DIN Wire se ction Ve r s ion
SGB.K3
3 41524 250VAC 2kVeff
straight
SGB.KW3
SGB.K4
4 72º 216º 250VA C 2kV ef f
straight
SGB.KW4 angled 90º
SGB.K5
5 60º 240º 45322 250VA C 2kV ef f
straight
SGB.KW5 angled 90º
SGB.K5S
5 S 45º 180º 41524 60VA C 1kVeff
straight
SGB.KW5S angled 90º
SGB.K6
6 60º 240º 45322 250VA C 2kV ef f
straight
SGB.KW6 angled 90º
SGB.K7X
7 60º 360º 250VA C 2kV ef f
straight
SGB.KW7X angled 90º
SGB.K8G
8 41º/45º 262º 60VA C 1kVeff
straight
SGB.KW8G angled 90º
Rated
Vo ltage
Te s t
Vo ltage /60s
90º 180º
≤ 75mm²
angled 90º
≤ 75mm²
≤ 75mm²
≤ 34mm²
≤ 75mm²
≤ 75mm²
≤ 34mm²
DIN Socket with threaded joint (female)
SGB.Kx
SGB.KWx

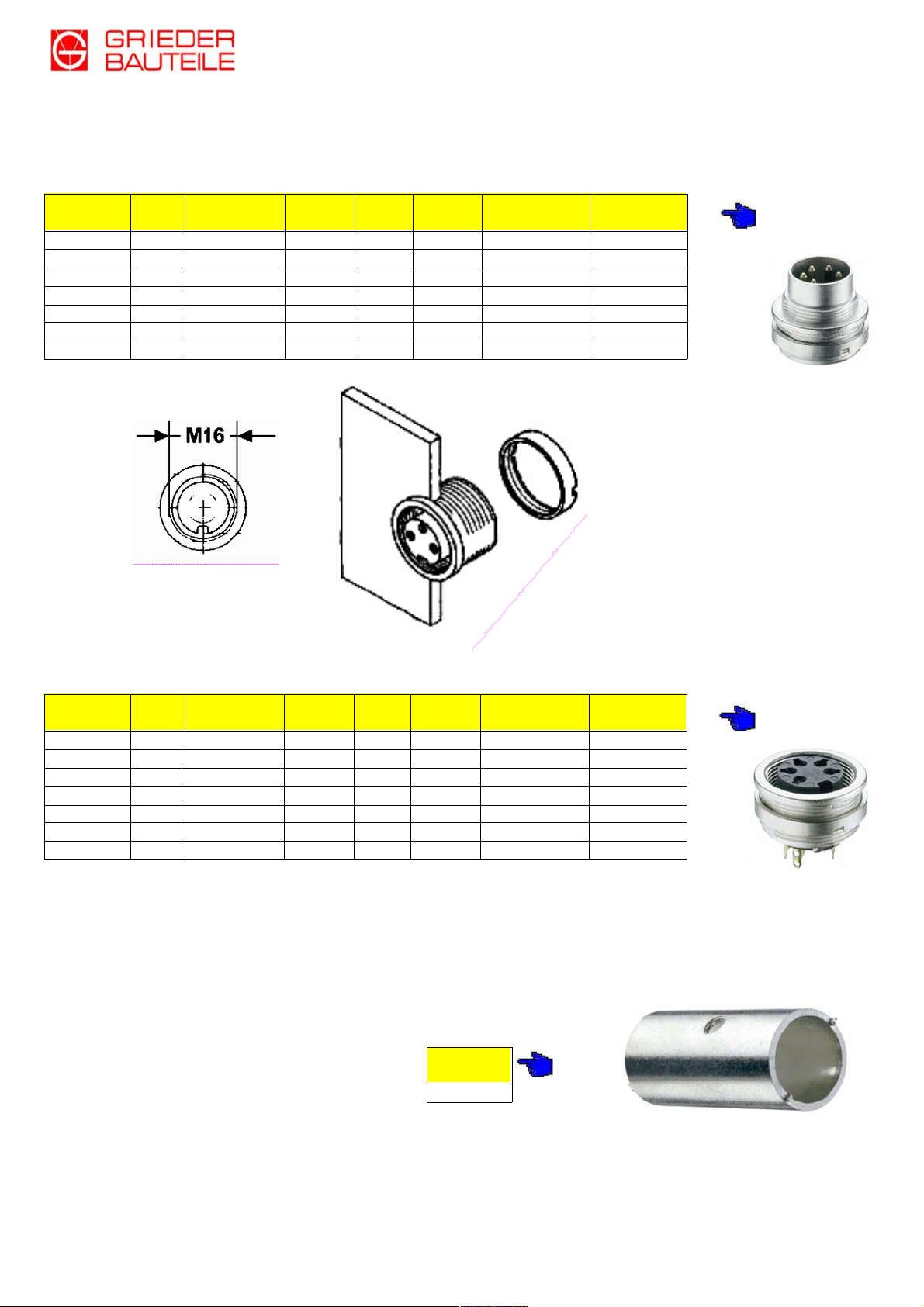

Page 6
DIN Connectors
6
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
Order No Poles Configur ation Angle DIN Wire s ection
SGB.E3 3 41524 250VAC 2kVeff
SGB.E4 4 72º 216º 250VAC 2kVeff
SGB.E5 5 60º 240º 45322 250VAC 2kVeff
SGB.E5S 5 S 45º 180º 41524 60VA C 1kVef f
SGB.E6 6 60º 240º 45322 250VAC 2kVeff
SGB.E7X 7 60º 360º 250VA C 2kVeff
SGB.E8G 8 41º/45º 262º 60VA C 1kVeff
Rated
Vo ltage
Te s t
Vo ltage /60s
90º 180º
≤ 75mm²
≤ 75mm²
≤ 75mm²
≤ 75mm²
≤ 75mm²
≤ 75mm²
≤ 75mm²
Chassis plug with threaded joint (male)
Order No Poles Configur ation Angle DIN Wire se ction
SGB.B3 3 41524 250V A C 2kVef f
SGB.B4 4 72º 216º 250VAC 2kVeff
SGB.B5 5 60º 240º 45322 250VAC 2kVeff
SGB.B5S 5 S 45º 180º 41524 60VAC 1kVeff
SGB.B6 6 60º 240º 45322 250VAC 2kVeff
SGB.B7X 7 60º 360º 250VAC 2kVeff
SGB.B8G 8 41º/45º 262º 60V A C 1kVef f
Rated
Vo ltage
Te s t
voltage /60s
90º 180º
≤ 75mm²
≤ 75mm²
≤ 75mm²
≤ 75mm²
≤ 75mm²
≤ 75mm²
≤ 75mm²
Chassis socket with threaded joint (female)
Wrench for chassis connectors
Order No
SGB.M S

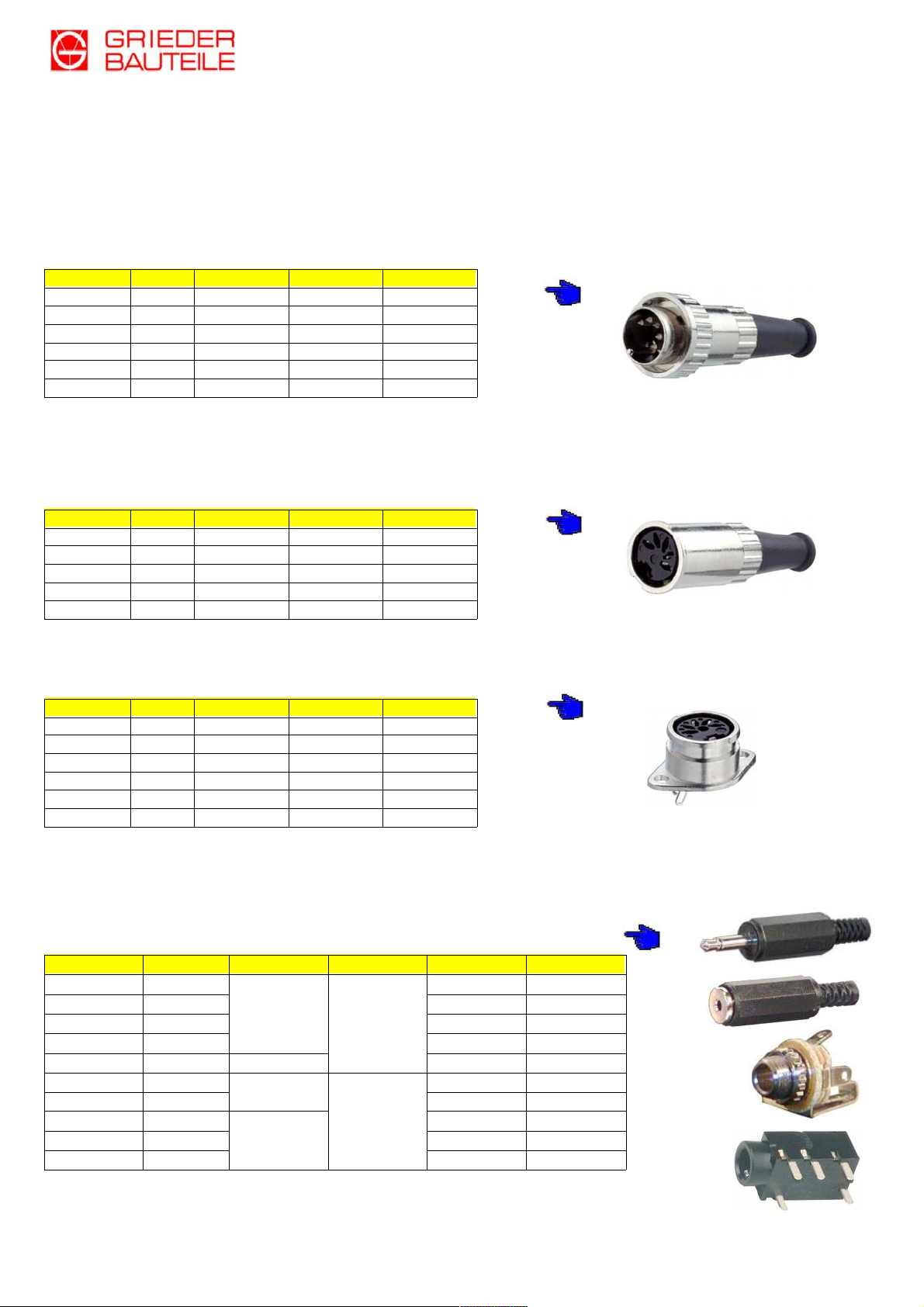

Page 7
DIN Connectors
7
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
Order No Pole s Configur ation Angle DIN
SGB.RS3 3 41524
SGB.RS4 4 72º 216º
SGB.RS5 5 60º 240º 45322
SGB.RS5S 5S 45º 180º 41524
SGB.RS7 7 45º 270º 45329
SGB.RS8 8 45º 270º 45326
90º 180º
DIN Circular Connectors with Bayonet Lock
Plug Straight (male) Shielded Solder Terminals
Order No Pole s Configuar tion Angle DIN
SGB.RK3 3 41524
SGB.RK4 4 72º 216º
SGB.RK5 5 60º 240º 45322
SGB.RK5S 5S 45º 180º 41524
SGB.RK7 7 45º 270º 45329
90º 180º
Socket Straight (female) Shielded Solder Terminals
Order No Pole s Configur ation Angle DIN
SGB.RB3 3 41524
SGB.RB4 4 72º 216º
SGB.RB5 5 60º 240º 45322
SGB.RB5S 5S 45º 180º 41524
SGB.RB7 7 45º 270º 45329
SGB.RB8 8 45º 270º 45326
90º 180º
Chassis-Plug (female)
Order No Pole s Version Ge n de r M ake Type
SGK.S22
2p mono
Cable plug
Male
Lumberg KLS 10
SGK.S23
3p stereo Lumberg KLS 13
SGK.S24
4p Prof itec KP 5
SGK.S24M
4p Prof itec KP 7 M
SGK.S23W
3p stereo Angled plug Prof itec KP 2 W
SGK.K22
2p mono
Jack socket
Female
Lumberg KLK 1
SGK.K23
3p stereo
SGK.B221
Break contac t Lumberg KLB 1
SGK.B230
3p stereo Lumberg KLB 13
SGK.B24P
4p Prof itec TS 48
Jack chas sis
soc ket
2.5mm Phone Connectors (Audio)

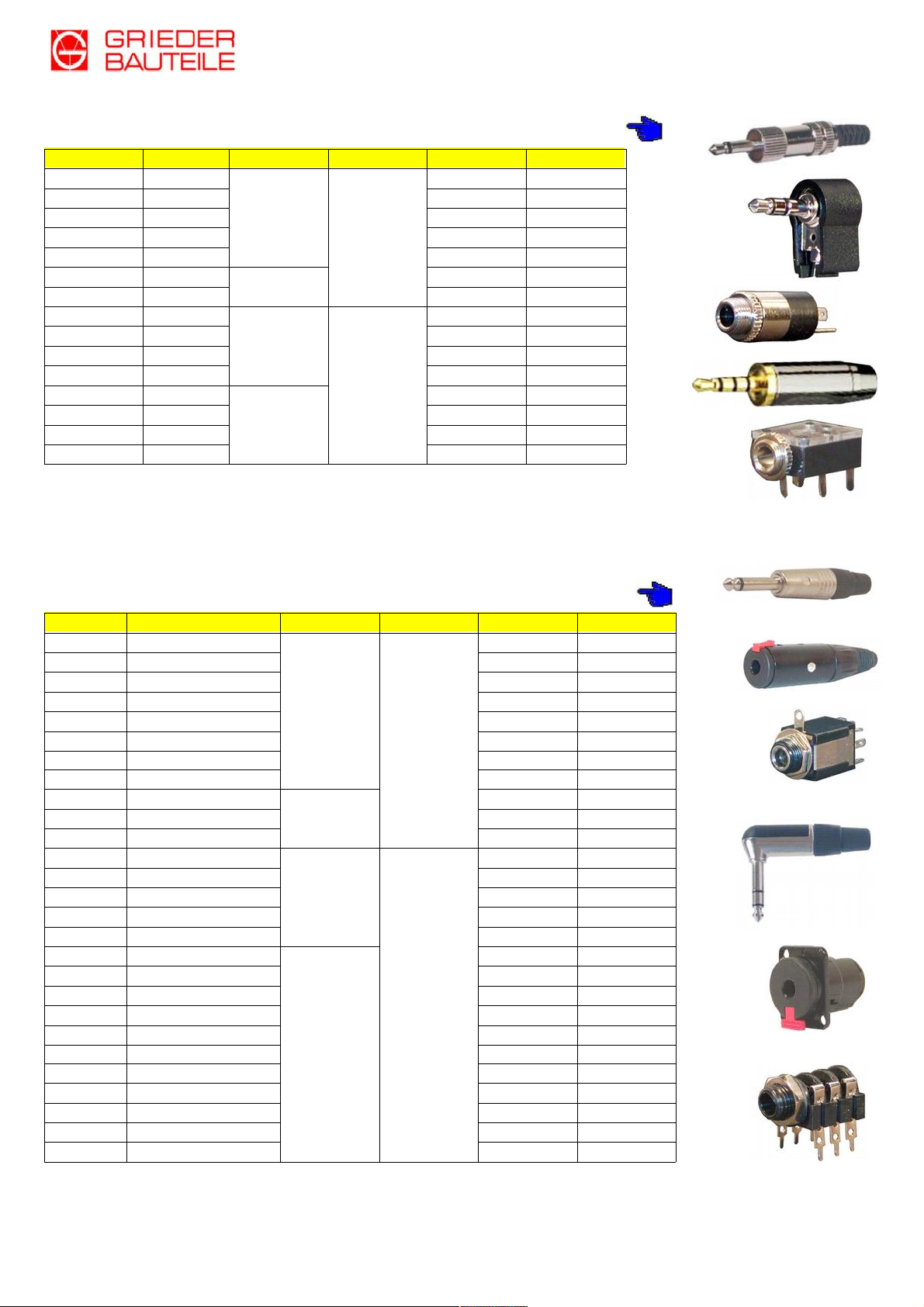

Page 8
DIN Connectors
8
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
Order No Pole s Ve r s ion Gend e r M ak e T ype
SGK.S32M
2p mono
Jack Plug
Male
Lumberg KLS 22
SGK.S33
3p stereo Lumberg KLS 40
SGK.S33M
3p stereo Lumberg KLS 44
SGK.S34M
4p stereo Profitec KP 6 M
SGK.S44
4p stereo
SGK.S32W
2p mono
Angled Plug
Lumberg WKLS 2
SGK.S33W
3p stereo Lumberg WKLS 40
SGK.K32
2p mono
Jack Socket
Female
Lumberg KLK 2
SGK.K32M
2p mono Lumberg KLK 22
SGK.K33
3p stereo Lumberg KLK 4
SGK.K33M
3p stereo Lumberg KLK 44
SGK.B330
3p stereo
Chassis Soc ket
Lumberg KLK 4
SGK.B321
Lumberg KLB 2
SGK.B332P
2x Break Lumberg KLBR 4
SGK.B34P
4p stereo Profitec TS 47
1x Break
3.5mm Phone Connectors (Audio)
Order No Pole s Ve rs ion Ge nde r M ake Type
SFK.S2NN
2p mono
Jack Plug
Male
Neutrik NP2C
SGK.S62W
2p mono Lumberg KLSM 3
SGK.S62M
2p mono Lumberg KLSM 33
SFK.S2SN
2p mono Neutrik NP2C-BAG
SGK.S63M
3p stereo Lumberg KLS 33
SFK.S3NN
3p stereo Neutrik NP3X
SFK.S3SN
3p stereo Neutrik NP3C-BAG
SFK.S3SNG
3p stereo Neutrik NP3X-B
SFK.SW2PN
2p mono
Angled Plug
Neutrik NP2RX
SGK.S62W
2p mono
SFK.SW3PN
3p stereo Neutrik NP3RCS
SGK.K62M
2p mono
Jack Socket
Female
Lumberg
SGK.K62
2p mono Lumberg KLKM 3
SGK.K63
3p stereo Lumberg KLK 3
SFK.K3SN
3p stereo Neutrik NJ3FC6C-BA G
SGK.K3NN
3p stereo Neutrik NJ3FC6C
SGK.6M BJ
2p mono
Chassis Socket
SGK.6M BU
2p mono 1x OFF
SGK.B622
2p mono 2xOFF Profitec CJ 3054
SGK.B630
3p stereo Lumberg KLB 3
SGK.B633
3p stereo
SGK.B6322
3p stereo 2x UM Lumberg KLBPSS-3
SGK.B633U
3p stereo 3x OFF Prof itec CJ 3058
SGK.B620
2p mono Lumberg KLMB 3
SFK.B6CS
3p stereo Neutrik NCJ6FI-S
SFK.B3NS
3p stereo Neutrik NJ3FP6C
SFK.B3SS
3p stereo Neutrik NJ3FP6C-BA
6.35mm Phone Connectors (Audio)
Page 9
DIN Connectors
9
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018

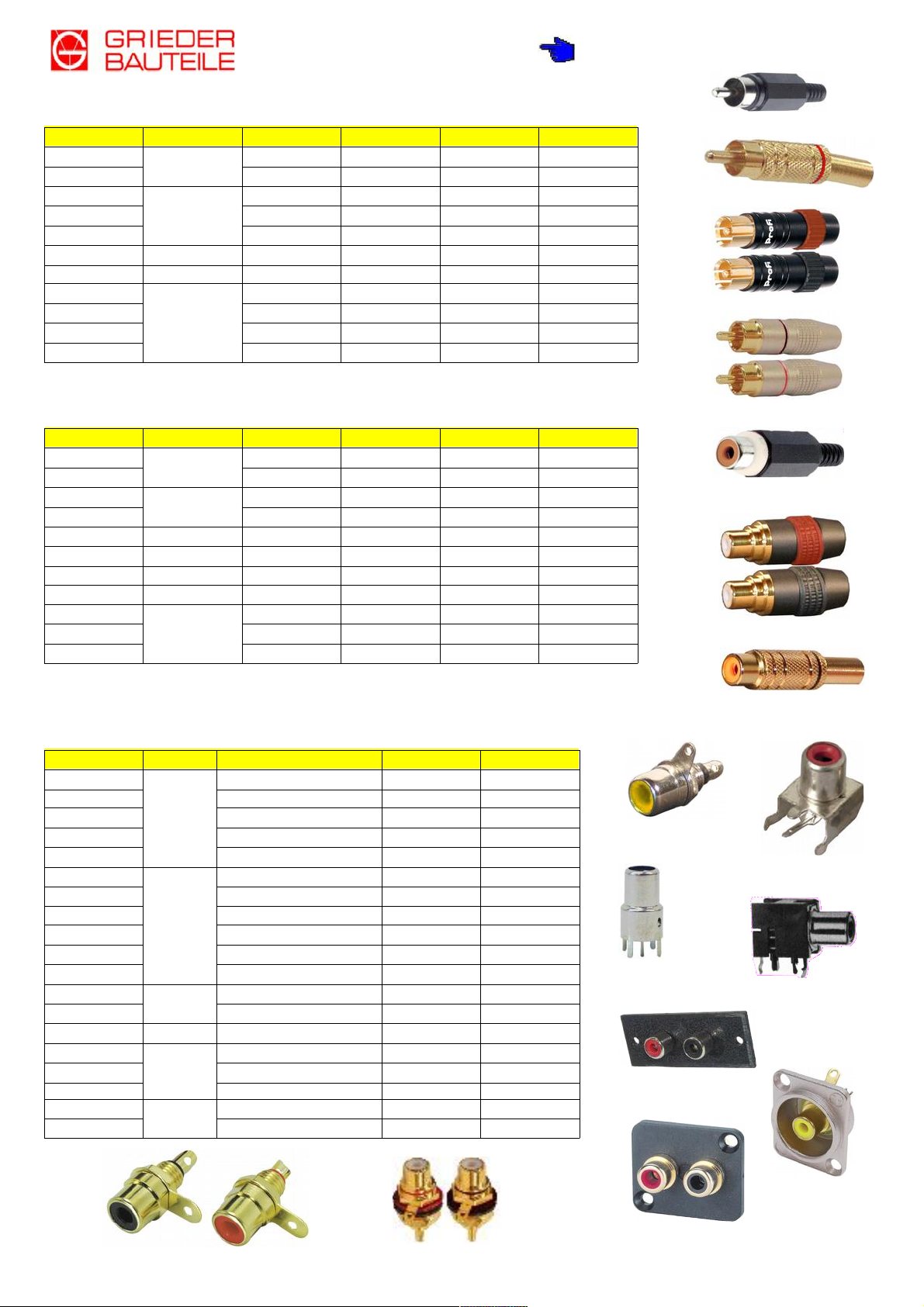

Cinch/RCA Plug (Male)
Order No Colour V e r s ion Make Type
SGO.S0
black
plastic Lumberg XSTO 1 4mm
SGO.SMG0
gold-plated Prof itec CG 536 5.5mm
SGO.S2
red
plastic Lumberg XSTO 1 4mm
SGO.SMG2
gold-plated Prof itec CG 536 5.5mm
SGO.SP2
metal Lumberg STO 11 VR 8mm
SGO.S4
yellow plastic Lumberg XSTO 1 4mm
SGO.S9
w hite plastic Lumberg XSTO 1 4mm
SGO.ST28SG
gold-plated Contrik/Neutrik NF2CT/2 2 – 8mm
SGO.SA24NG
gold-plated Contrik/Neutrik CAP3342/2-4 2 – 4mm
SGO.SA26NG
gold-plated Contrik/Neutrik CAP3342/2-6 2 – 6mm
SGO.SP37SG
gold-plated Contrik/Neutrik NF2C-B/2 3 – 7.3mm
Cable Ø
pair
Black/red
Order No Colour V e r s ion Make Type
SGO.K0
black
plastic Lumberg XKTO 1 4mm
SGO.KM G0
gold plated Profitec CG 536 5.5mm
SGO.K2
red
plastic Lumberg XKTO 1 4mm
SGO.KM G2
gold plated Profitec CG 536 5.5mm
SGO.K4
yellow plastic Lumberg XKTO 1 4mm
SGO.K6
blue plastic Lumberg XKTO 1 4mm
SGO.K9
w hite plastic Lumberg XKTO 1 4mm
SGO.K9A
w hite Lumberg XKTO 1 5mm
SGO.KT28SG
pair black/red
gold plated Contrik/Neutrik NF2CTF/2 2 – 8mm
SGO.KA24NG
gold plated Contrik/Neutrik CCF5712/4T 2 – 4mm
SGO.KA26NG
gold plated Contrik/Neutrik CCF5712/6T 2 – 6mm
Cable Ø
Cinch/RCA Socket (Female)
Order No Colou r Ve rs ion Make Type
SGO.BM G2
red
gold plated solder Lumberg B-126 G/R
SGO.BPW2
horizontal, print Profitec CP 560
SGO.BPWG2
horizontal, print, gold plated Profitec CPG 560
SGO.BM 2
front mounting solder Lumberg BTO 1
SGO.NF2D-2
D-series nickel, solder Contrik/Neutrik NF2D-2
SGO.BPW0
black
horizontal, print Profitec CP 560
SGO.BM 0
front mounting solder Lumberg BTO 1
SGO.BPWG0
horizontal, print, gold plated Profitec CPG 560
SGO.BP
vertical, print Lumberg BTOR 1
SGO.BS
angled
SGO.NF2D-0
D-series nickel, solder Contrik/Neutrik NF2D-0
SGO.BM 4
yellow
front mounting solder Lumberg BTO 1
SGO.NF2D-4
D-series nickel, solder Contrik/Neutrik NF2D-4
SGO.BM 9
w hite f ront mounting solder Lumber g BTO 1
SGO.DBA20
double
gold plated solder Contrik/Neutrik CHS5703/2/DBA
SGO.BB
plastic, solder
SGO.B20G
gold plated solder Contrik/Neutrik CHS5725/2G
SGO.BA80G
gold plated solder
pair
black/red
Cinch/RCA Chassis Connector (Female)
SGO.DBA
SGO.BPW2
SGO.B20G
SGO.BB
SGO.BM4
SGO.BP
SGO.BS
SGO.NF2D-4
SGO.BA80G
SGO.S0
SGO.K9
SGO.KT28SG
SGO.KMG0
SGO.SMG2
SGO.SP37SG
SGO.SS26NG
Cinch/RCA
Page 10

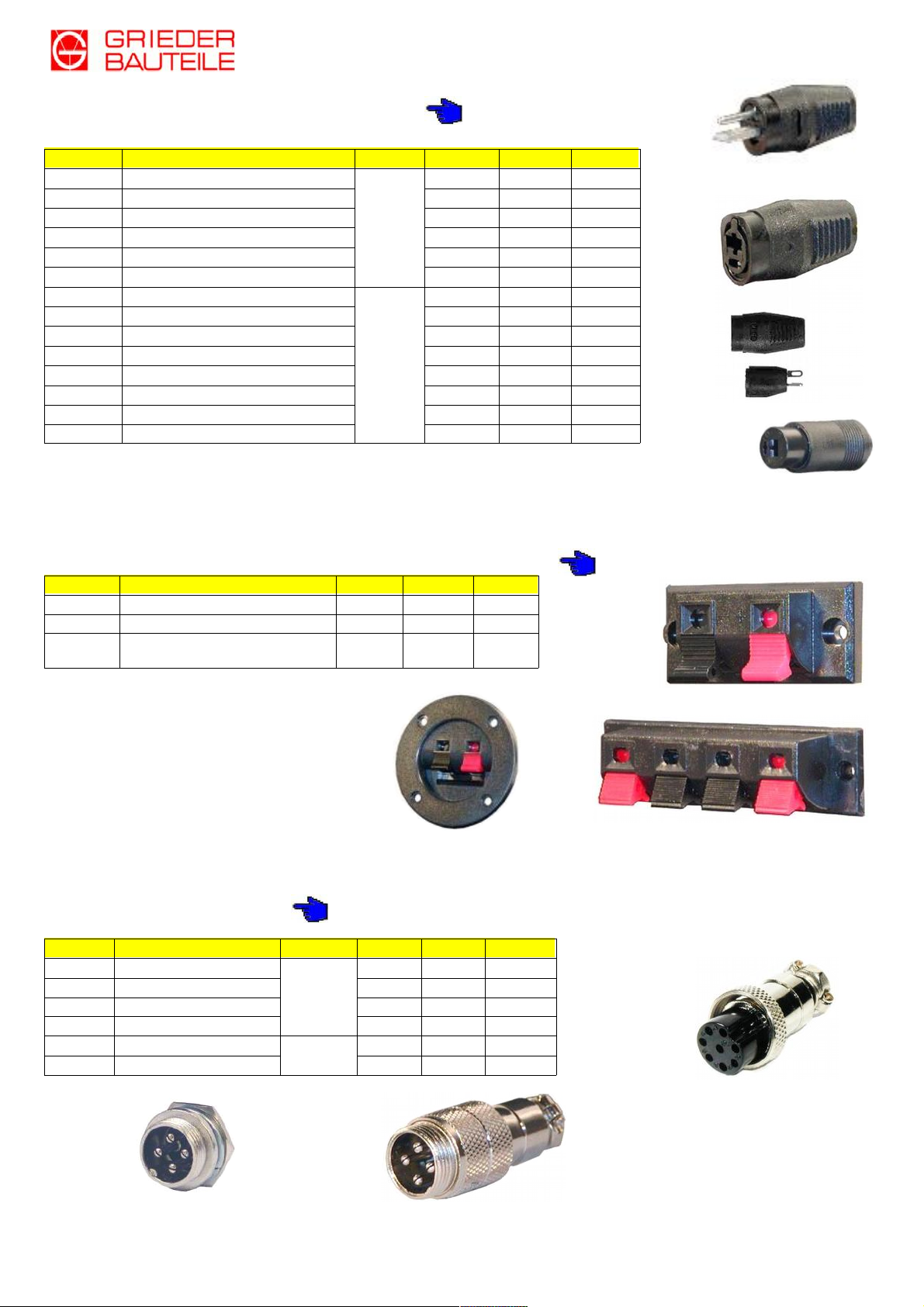

DIN Connectors
10
Subject to alterations and errors.
Pictures are a guide only.
www.griederbauteile.ch
Edition March 2018
Order No Ve rs ion Gende r Mak e Type Colour
SGE.SRS.8
Plug round s crew able
Male
Lumberg LSSN 2 grey
SGE.SRS.0
Plug round s crew able black
SGE.SO
Plug oval solder black
SGE.SR8
Plug round solder Lumberg LSN 2 grey
SGE.SR0
Plug round solder Lumberg LSN 2 black
SGE.SW
Angled plug solder grey
SGE.KR8
Socket round solder
Female
Lumberg LKN 2 grey
SGE.KR0
Socket round solder LKN 2 black
SGE.KRS.8
Socket round screw able Lumberg LKSN 2 grey
SGE.KRS
Socket round screw able black
SGE.KO
Socket oval solder black
SGE.B
Chassis s ocket w ithout sw itch solder Lumberg L 2
SGE.BS
Chassis s ocket w ithout sw itch solder Lumberg LR 21
SGE.BSU
Chassis s ocket w ith sw itch solder Lumberg LR 410
Loudspeaker Connectors
Loudspeaker Cable Push Terminal Board Panel
Order No V e rs ion Gender Poles Mak e Type
SGC.S4
Plug (male) metal shielded
Male
4 Profitec NC 524
SGC.S8
Plug (male) metal shielded 8 Profitec NC 528
SGC.E4
Chassis s ocket shielded 4
SGC.E8
Chassis s ocket shielded 8
SGC.K4
Socket female shielded
Female
4
SGC.K8
Socket female shielded 8
Microphone Connectors
SGE.KRS
SGE.KO
SGE.SO
SGE.X2
SGE.X4
SGE.XR2
SGC.E4
SGC.K4
SGC.S8
Order No Ve rs ion Poles M ak e Type
SGE.X2
Spring-loaded, for scr ew ing 2
SGE.XR2
Round, spring-loaded, for s crew ing 2 Monacor ST-930
SGE.X4
4 Marke PT-932
Spring-loaded, 4p, basic unit,
screw ing on
Loading...
