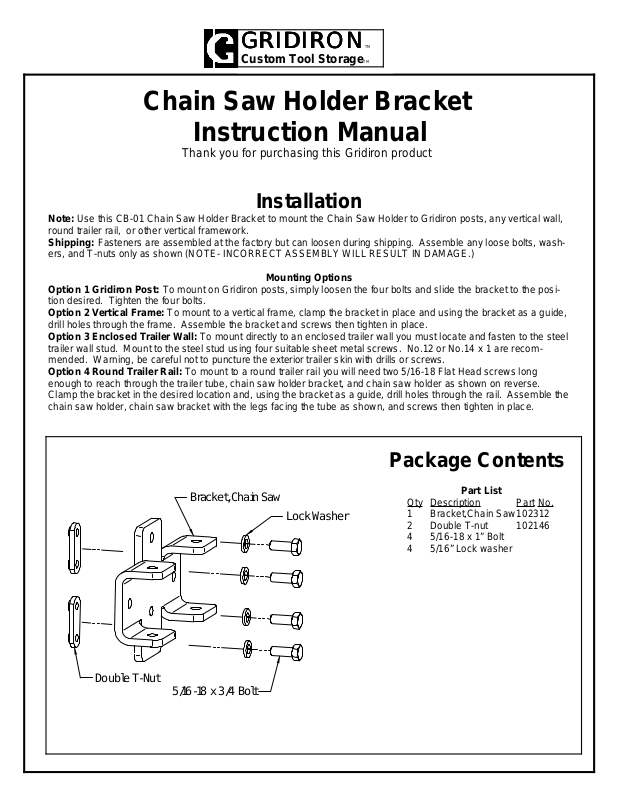

Chain Saw Holder Bracket
Instruction Manual
Thank you for purchasing this Gridiron product
Installation
Note: Use this CB-01 Chain Saw Holder Bracket to mount the Chain Saw Holder to Gridiron posts, any vertical wall,
round trailer rail, or other vertical framework.
Shipping: Fasteners are assembled at the factory but can loosen during shipping. Assemble any loose bolts, washers, and T-nuts only as shown (NOTE- INCORRECT ASSEMBLY WILL RESULT IN DAMAGE.)
Mounting Options
Option 1 Gridiron Post: To mount on Gridiron posts, simply loosen the four bolts and slide the bracket to the posi-
tion desired. Tighten the four bolts.
Option 2 Vertical Frame: To mount to a vertical frame, clamp the bracket in place and using the bracket as a guide,
drill holes through the frame. Assemble the bracket and screws then tighten in place.
Option 3 Enclosed Trailer Wall: To mount directly to an enclosed trailer wall you must locate and fasten to the steel
trailer wall stud. Mount to the steel stud using four suitable sheet metal screws. No.12 or No.14 x 1 are recommended. Warning, be careful not to puncture the exterior trailer skin with drills or screws.
Option 4 Round Trailer Rail: To mount to a round trailer rail you will need two 5/16-18 Flat Head screws long
enough to reach through the trailer tube, chain saw holder bracket, and chain saw holder as shown on reverse.
Clamp the bracket in the desired location and, using the bracket as a guide, drill holes through the rail. Assemble the
chain saw holder, chain saw bracket with the legs facing the tube as shown, and screws then tighten in place.
Double T-Nut
Bracket, Cha in Sa w
5/16-18 x 3/4 Bolt
Lock Washer
Package Contents
Part List
Description Part No.
Qty
1 Bracket,Chain Saw102312
2 Double T-nut 102146
4 5/16-18 x 1” Bolt
4 5/16” Lock washer
Option 1. Gridiron Post
Option 2. Vertical Frame
Option 3. Enclosed Trailer Wall
Option 4. Round Trailer Rai l
CS- 01 Chain Saw Hol der
(not incl uded)
No.12 or 14
Sheet
Me tal
Screws
Ext erior Skin
Interior Wa ll
Wa ll St ud
Chain Saw Br ack et
Dr ill Holes Through Rail
Stud
Center
Line
CS- 01 Chain Saw Holder
(not included)
Acqui re bolt lengt h needed
4.5
show n
Chain Saw Br acket
End View
GRIDIRON
The
We want you to be a satisfied GRIDIRON customer forever so we stand
behind our GRIDIRON products with a lifetime guarantee.
Performance Guarantee
If at any time you are not completely satisfied with the performance of your
GRIDIRON product we will correct or replace it. Simply return it to an authorized dealer.
Replacement agreement for misuse or abuse
Should you damage your GRIDIRON through misuse or abuse, we will replace the item for ½ the current suggested list price. Send the product,
shipping prepaid, along with an explanation to Novae Customer Service.
15 Day unconditional money back guarantee
If at any time within fifteen (15) days after your purchase you are not satisfied with your GRIDIRON product, return it to the an authorized dealer for
full refund.
Some exceptions
The springs, shock cord elements, and finish provided with your GRIDIRON products are subject to normal wear and tear and are not covered
by this guarantee.
Lifetime Guarantee
