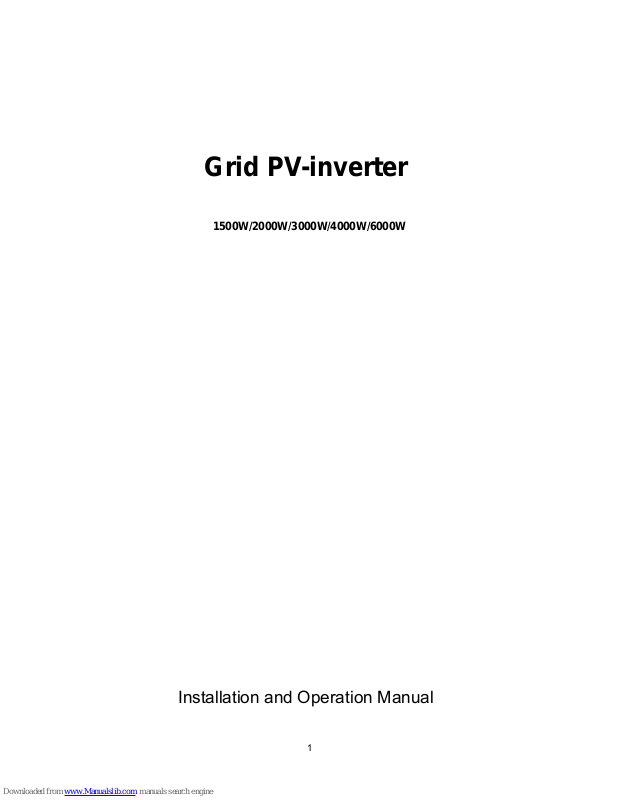

Grid 1500W, 2000W, 4000W, 6000W, 3000W Installation And Operation Manual
1
Grid PV-inverter
1500W/2000W/3000W/4000W/6000W
Installation and Operation Manual
2
Only an electro-skilled person or trained assembly staff can install or
open the Inverter.
3
Before you start…
Thanks for purchasing Grid PV-Inverter. GRID PV-INVERTER is a highly
reliable product due to innovative design and perfect quality control.
This manual contains important information of installation, operation and
safety reminding of this unit. Be sure to read this manual carefully before
enjoying this product.
If you encounter any problem during installing or running this unit, please
check this manual first before contacting with your local dealer or
representative. Most of the problems you encountered will be solved
according to the instruction inside.
Thank you for purchasing our product again. Please keep this manual in
safe place for later use.
4
Safety instructions
z Risk of Electric Shock
1. Do not remove the covers. No user serviceable parts inside. Refer
service to qualified service personnel.
2. Both AC and DC voltage sources are terminated inside this equipment.
Each circuit must be individually disconnected before servicing.
3. When a photovoltaic array is exposed to light, it supplies a DC voltage
to this equipment.
4. Risk of electric shock from energy stored in capacitors. Do not remove
cover until 3 hours after disconnecting all power sources.
5. This unit is designed to feed power to grid (utility) only, do not connect
this unit to AC power supplier. If connecting to those facilities, AC power
supplier will be damaged.
6. Please take out the unit from packaging box carefully. Check if there is
any outside damage. If you find any damage, please contact with your
local dealer.
WARNING: HIGH LEAKAGE CURRENT!
THE EXTERNAL PROTECTIVE EARTH (PE)-TERMINAL (SEE CHAPTER 1
“OVERVIEW”) MUST BE CONNECTED TO THE PE-CONDUCTOR
BEFORE CONNECTING SUPPLY.
5
1. Overview
3000 2000 1500
Front view
Bot tom view
LCD Display: Showing
the inverter status
Display
information switch
Operation LED,
Blue, Working Mode
Operation LED,
Red, fault status
Optional
communication slot:
SNMP and RS485
Input DC switch
Solar panel input
(DC)
RS232 cover
Display and connections
External protective earth (PE)-terminal
USB
AC connector
6
4000
Front view Bottom view
LCD Display: Showing
the inverter status
Display
information switch
Operation LED,
Blue, Working Mode
Operation LED,
Red, fault status
Optional
communication slot:
SNMP and RS485
Input DC switch
Solar panel input
(DC)
RS232 cover
Display and connections
External protective earth (PE)-terminal
USB
AC connector
7
6000
Front view Bottom view
LCD Display: Showing
the inverter status
Display
information switch
Operation LED,
Blue, Working Mode
Operation LED,
Red, fault status
Optional
communication slot:
SNMP and RS485
Input DC switch
Solar panel input
(DC)
RS232 cover
Display and connections
External protective earth (PE)-terminal
USB
AC connector
