Technical Manual of
BR-15
Banknote Recycling Module
Page 2
Document Record
Item Version Date
Technical Manual
of BR-15 Banknote
Recycling Module
Creation/
Modification
V1.0 2014-05 Creation
Participants
Jiangliang Hu
Zhiyuan Zhou
Page 3
BR-15 Technical Manual
Content
DOCUMENT RECORD..............................................................................................I
1. GENERAL DESCRIPTION............................................................................... 1
2. MODEL AND TERMS........................................................................................ 1
3. OVERVIEW..........................................................................................................1
COMPOSITION...................................................................................................................................1
DIMENSIONS.....................................................................................................................................2
4. FEATURES...........................................................................................................2
5. MODULE FEATURES........................................................................................3
UPPER PART.....................................................................................................................................3
DEPOSIT CASSETTE..........................................................................................................................3
REPLENISHMENT CASSETTE.............................................................................................................3
RECYCLING DRUM SET....................................................................................................................4
6. TECHNICALPARAMETERS...........................................................................4
TECHNICAL PARAMETERS................................................................................................................5
ELECTRICAL SPECIFICATIONS..........................................................................................................5
RAMS SPECIFICATIONS...................................................................................................................5
II
Page 4
BR-15 Technical Manual
1. General Description
BR-15, the banknotes recycling module is a core processing module with integration of notes
validation, deposit, recycling and notes automatic replenishment. It features high reliability and
availability and friendly maintenance. Through banknotes recycling change giving, BR-15 reduces
the idle cash in the self-service equipment, lower the frequency of the replacement of deposit
cassette and replenishment cassette. Through loading with different denominations of notes, it
decreases the time consumption for notes replenishment and sorting, thus to raise operation
efficiency. The module features high reliability, accessibility and maintainability in reducing cash
exposure, calculating cost allowance and settling accounts.
BR-15 is mainly applied in small amount cash transaction service industries, such as the AFC
system in mass transit industry, Kiosk with deposit and cash recycling functions in banking
industry, self-service equipment in parking lot and self-service payment system in retailing
industry.
2. Model and Terms
Model number: BR-15 Single banknote recycling module (front access)
Terms: BR——Bill Recycler
3. Overview
Composition

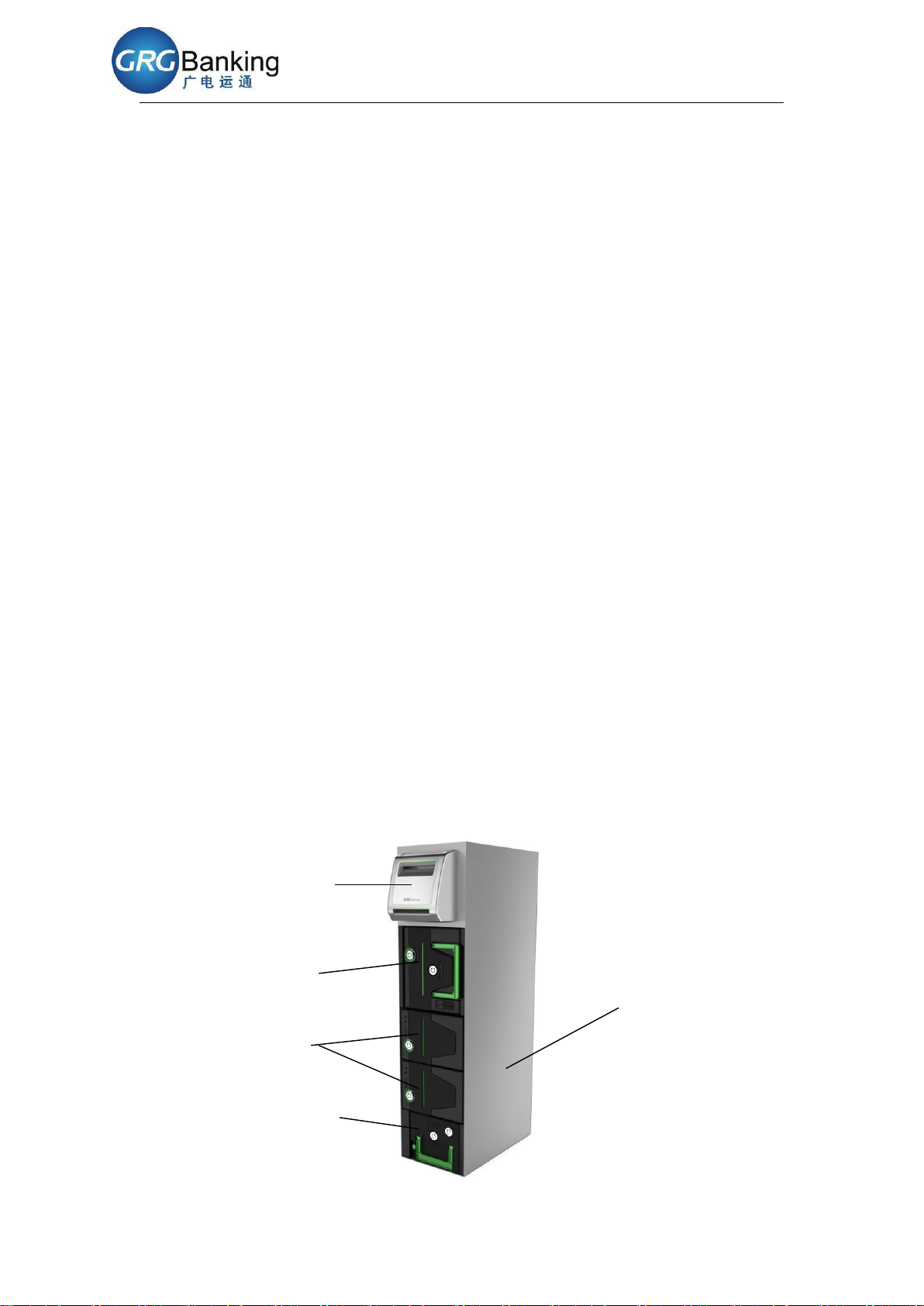

BR-15 module is constituted by five main parts including the upper part, deposit cassette,
replenishment cassette, recycling drums and frame for lower part as shown in the following figure:
Upper part
Deposit cassette
Recycling cassette
Replenishment cassette
Frame
1
Page 5

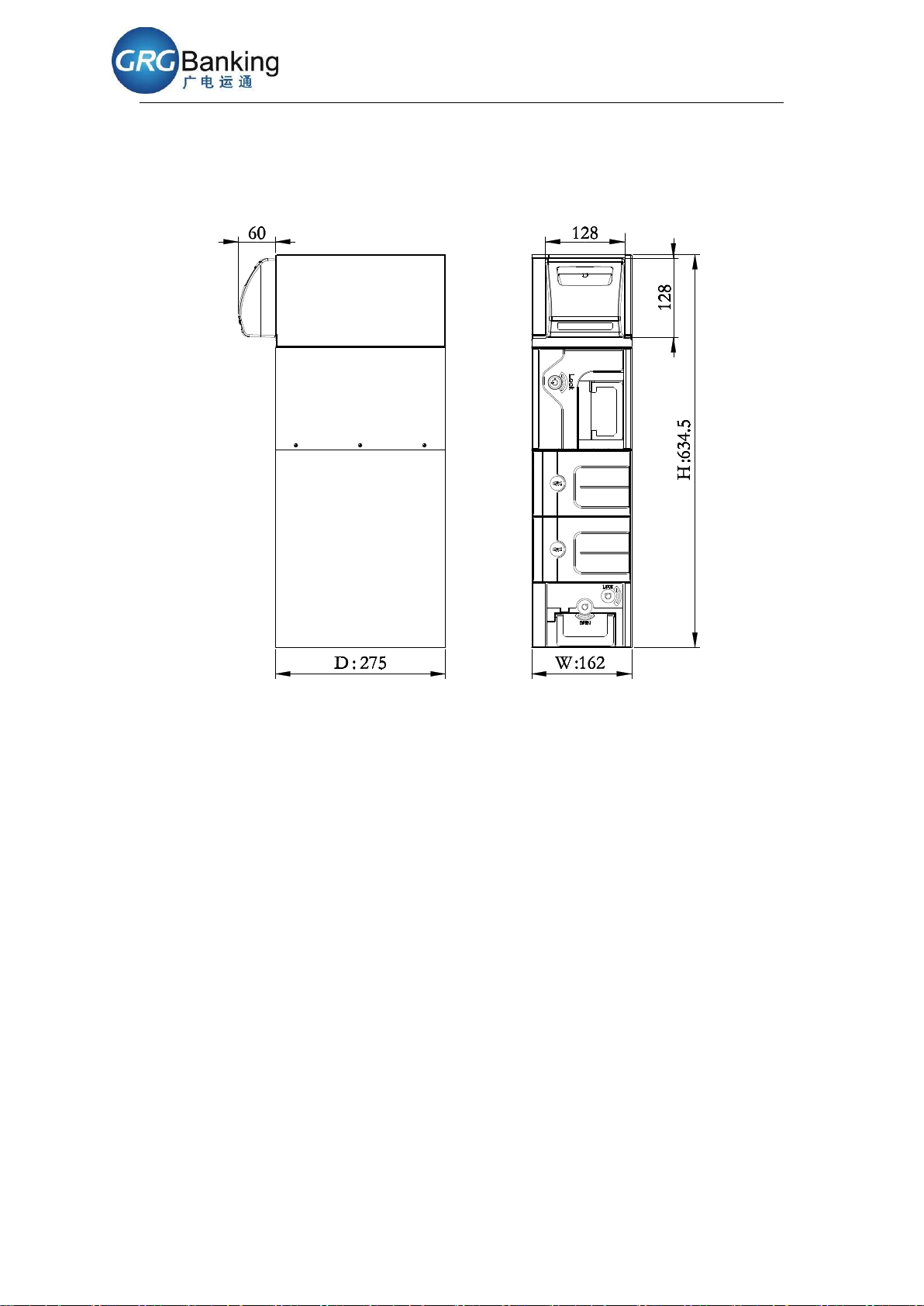

Dimensions
275(L)×162(W)×634.5(H) (Unit: mm)
BR-15 Technical Manual
4. Features
Single banknote acceptance, fast banknote deposit and cash recycling;
n
It is based on proven note validation and forgery-proof technology;
n
Compact banknote acceptance structure and banknote validation system;
n
Banknote recycling in 4 denominations provides more flexible and optimal change giving
n
method;
Recycling drum design ensures reliable banknotes recycling;
n
Replenishment cassette provides faster, safer and more convenient replenishment solution;
n
Lower the cassette replacement frequency;
n
Cassette attached with electronic ID to facilitate automatic validation and management;
n
Maintenance friendly design allows bill jams to be settled with no tools at site.
n
2
Page 6
BR-15 Technical Manual
5. Module Features
Upper Part
Its entrance indicator facilitates patrons to use;
n
Banknotes giving to the patron are up to 20 notes in one transaction with the banknotes of
n
small denomination put on the top;
Fast banknotes accepting, two banknotes accepting interval is less than 1.5 seconds;
n
The banknotes accepting automatic correction device ensures banknotes insertion at any
n
angles;
Entrance/exit shutter design effectively prevent foreign insertion and manipulation;
n
The module frame and transport unit adopt stainless steel to provide more strong and durable
n
structure;
The industrial class electronic components adapt to bad environment of high/low temperature
n
and high degree of humidity;
The module is based on supreme anti-counterfeit technology with 100,000 scanning points of
n
banknote surface;
Multispectral scanning of image (Contact Image Scanning) and detection of magnetic signal on
n
full surfaces of banknote provide more accurate banknote validation result;
The serial number of banknote can be recorded and tracked for providing proof for financial
n
fraud.
Deposit Cassette
Hard and endurable cassette with double safe locks (fixing lock and lid lock);
n
With unique electronic ID;
n
Independent replaceable cassette with no electronic appliances connection features high
n
reliability.
Replenishment Cassette
Hard and endurable cassette with double safe locks;
n
With unique electronic ID;
n
Independent replaceable cassette with no electronic appliances connection features high
n
3
Page 7
BR-15 Technical Manual
reliability;
Automatic loading banknote to the recycling drums ensures less manipulation and corruption
n
in the process of banknote replenishment.
Banknote replenishment in different denominations by loading the cassette with mixed
n
denominations.
Recycling Drum Set
Recycling of up to 260 banknotes in 4 denominations;
n
Last-in-First-out, ensure original notes return to patron; Optimal change giving solution
n
provide better user experience;
The banknote denomination in specific recycling drum can be set through software
n
configuration;
Recycling drums design takes up less space;
n
Intelligent selection of banknotes accepted prevents the old and worn banknote from the
n
recycling process to ensure less bill jams.
6. Technical Parameters
Item Specification
Notes
feeding
Validation
Feeding direction Lengthwise
Face direction 4 directions
Support 100 kinds of different denominations notes
Currency
Material Paper, plastics base (polymer )
Genuine note accepting rate ≥99%
(one country or multinational) in the meantime, see
Annex
Detection
Speed
Notes size Length: 120~180 mm；Width: 60~85 mm
Optics
Magnetics Full image magnetic signal detection
Accepting speed 1.5s/note
Change giving speed
Full image CIS with validation scan points up to
100,000
1.8s/1note, 4.8s/5 notes, 7.5s/10notes, 15s/20
notes
4
Page 8
Replenishment speed 2.2s/note
Escrow 20 notes
Recycling drum(4) 260notes (50notes×2 + 80notes×2)
Capacity
Deposit cassette
Replenishment cassette
800notes
231 (L)×137 (W)×161( H) mm
500notes
230 (L)×123 (W)×102( H) mm
Operation temperature 0℃～50℃
Environm
ent
Storage temperature -20℃～60℃
Humidity 20%RH～90%RH (non-condensing)
Upgrade Upgrading means Online download and upgrade
Notes validator 2kg
Weight
Replenishment cassette (empty) 2kg
Whole set 26kg
Electro-magnetic compatibility
Compliant to International related standards GB/T
17626
BR-15 Technical Manual
Technical Parameters
Electrical Specifications
Item Specifications
Power supply +24VDC±10％, +10A
Power consumption Standby: 15W Average: 80W
Electrical
interface
Socket 4-core power socket
Connector 4-pin power connector
Pin description
Communication
interface
Communication protocol RS232(USB optional)
Baud rate 19200 bps
Inspection method No inspection
Communication parameter
Pin description
pin1——+GND pin2——GND
pin3——+24V pin4——spare
Data bit: 8bits
Starting bit: 1bit
Ending bit: 1bit
Pin3 —— PC-RXD(BR-15 to upper stream)
Pin2 —— PC-TXD( upper stream to BR-15)
Pin1/Pin4 —— PC-GND(signal earth)
RAMS Specifications
(Working environment: 20℃, 50%RH)
5
Page 9
Item Specifications Remarks
Note jam rate Less than 3/100000 70% new or above notes
BR-15 Technical Manual
Mean Time
Between Failures
300,000 times
(MCBF)
Service Life 10 years
Work in standard environment under working
standard
Work in standard environment under working
standard
Note: bill jams and failures recovering under no human interference are not included in the
failure aforementioned.
