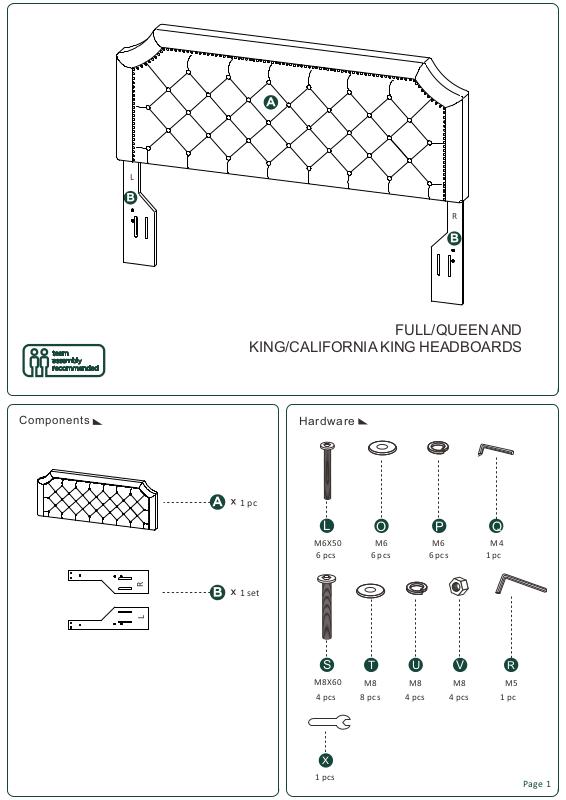

Page 1
L
R

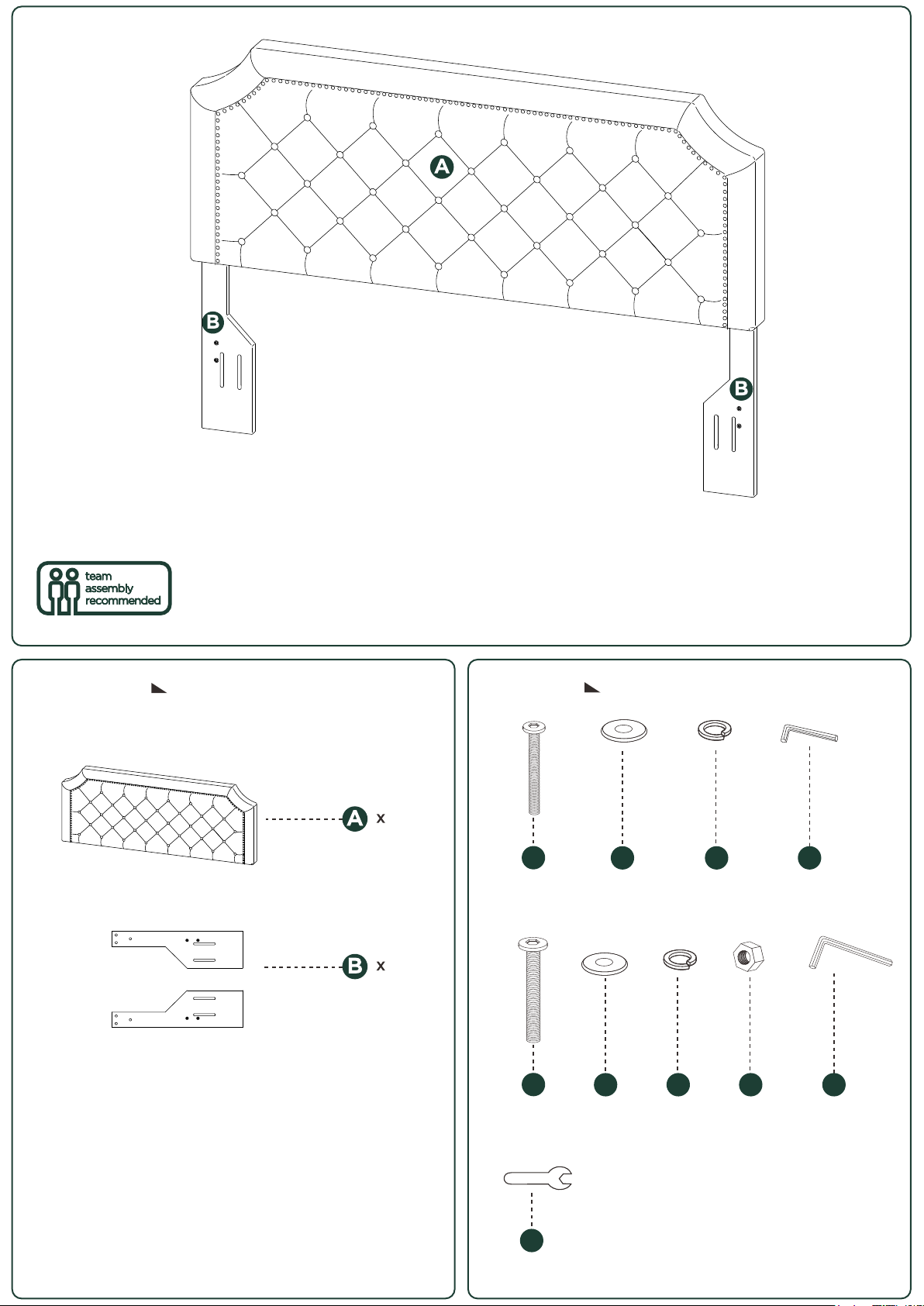

FULL/QUEEN AND
KING/CALIFORNIA KING HEADBOARDS
Components
Hardware
1 pc
L
M6X50
6 pcs
R
1 set
L
S
M8X60
4 pcs
6 pcs
T
M8
8 pcs
O
M6
U
M8
4 pcs
P
M6
6 pcs
V
M8
4 pcs
Q
M4
1 pc
R
M5
1 pc
X
1 pcs
Page 1
Page 2
Page 2
Page 3

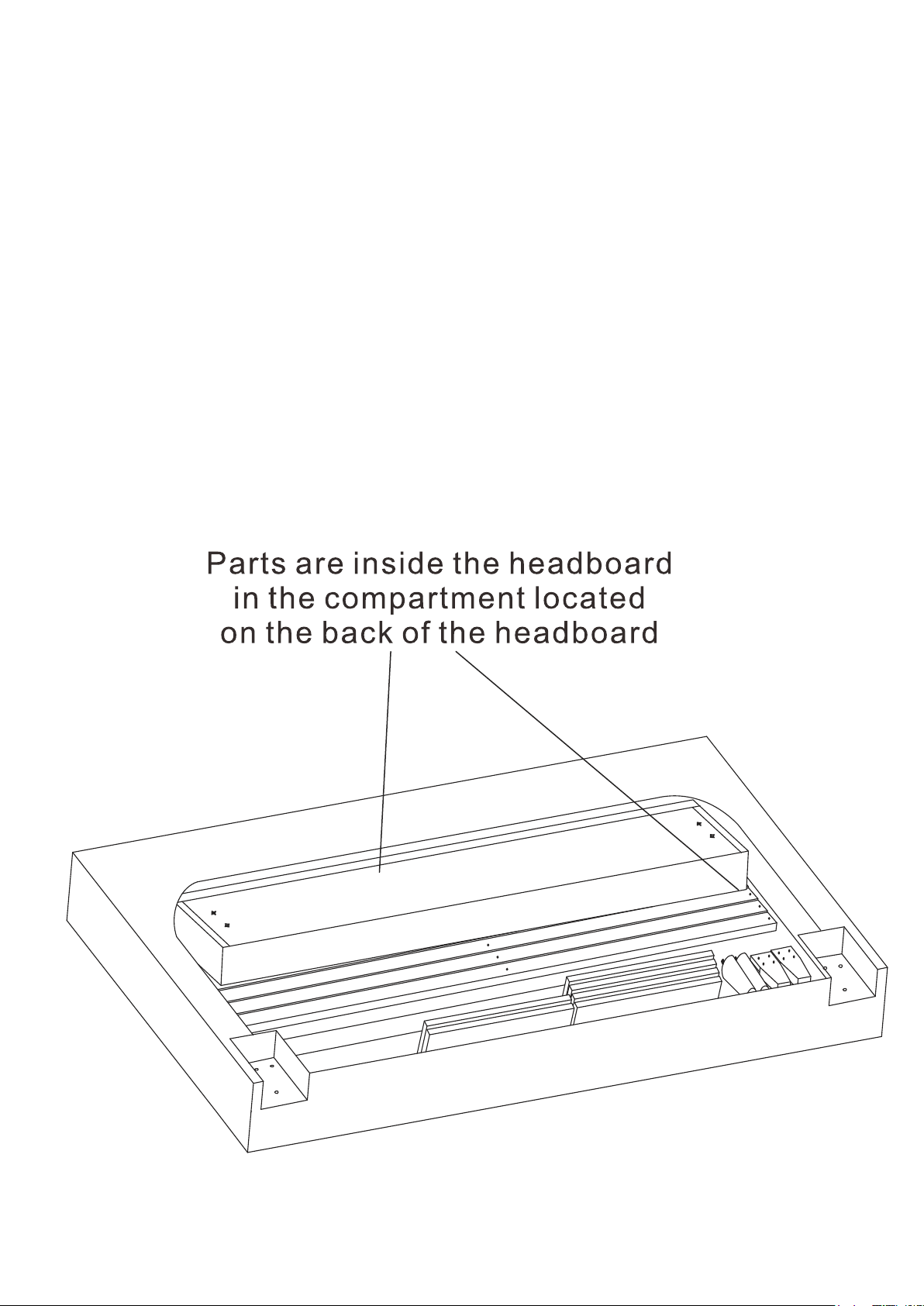

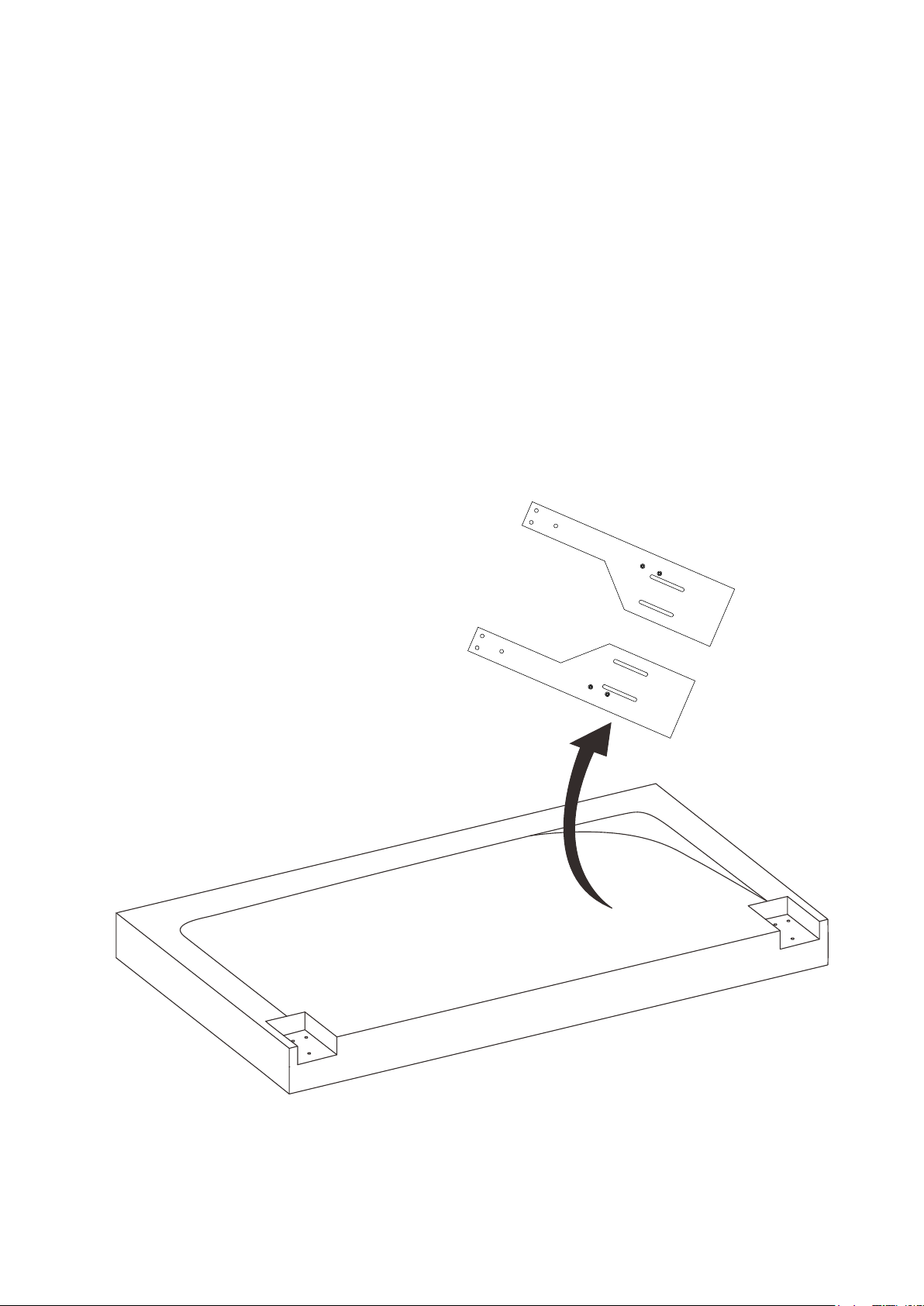

Re move par t s f rom h e a d b oard
compar t m ent
Page 3
Page 4
1
Q
L
P
O
+
L
M6X50
P
+
O
6 pcs

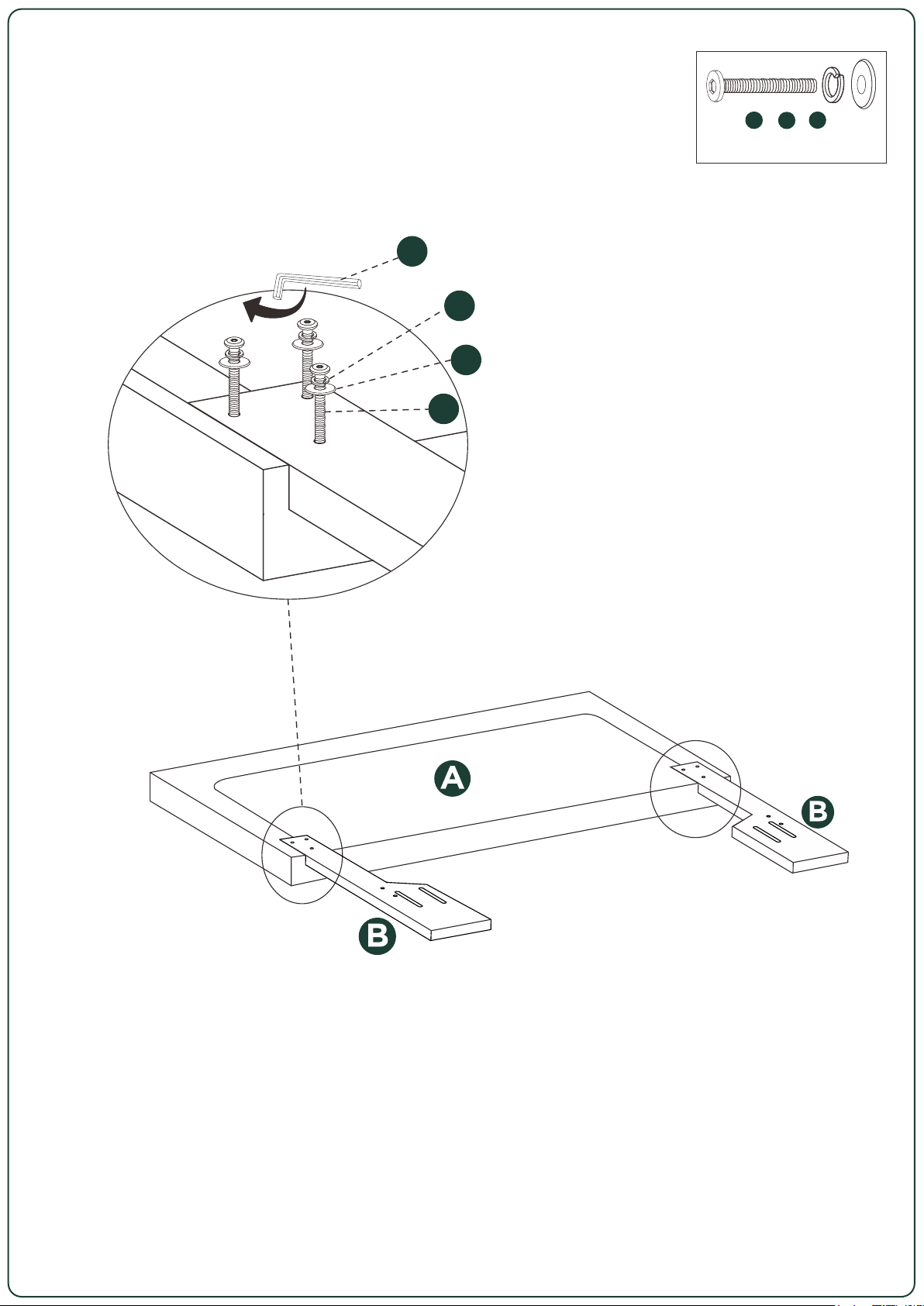

Aach “P”and “O” washers to “L” bolt.
Connect the leg “B” to back of headboard “A”.
Use the bolts to aach.
L
R
Page 4
Page 5
2
X
R
S
U
T
Side rail of
metal frame
V
T

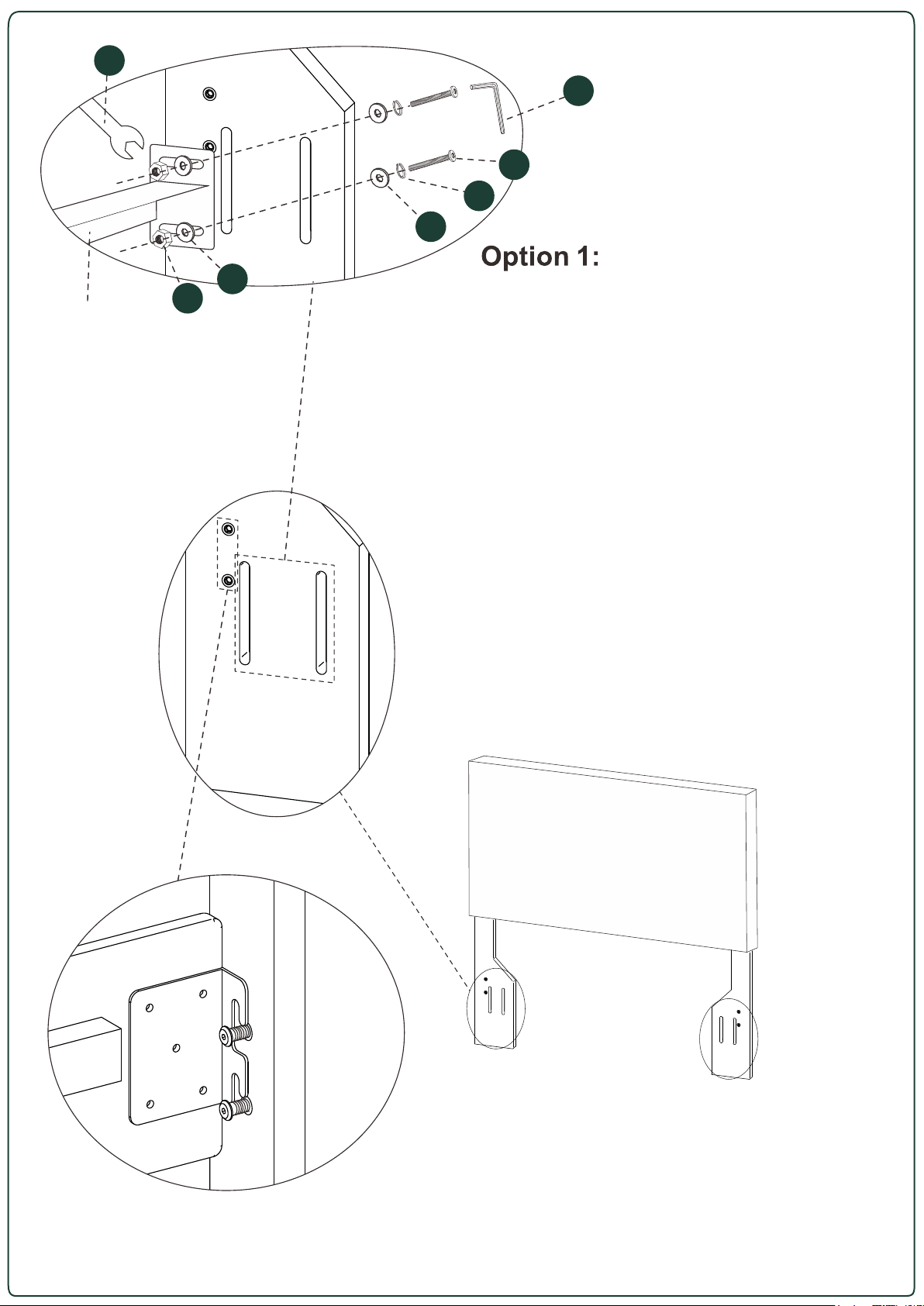

To aach to a bolt-on bed frame, use the slots in the
headboard legs.
For King/California King Headboards: Use the outside slots
for King size, and the inside slots for California King size.
For Full/Queen Headboards: Use the outside slots for Queen
size, and the inside slots for Full size.
Aach the headboard brackets at the end of the bed frame
to the slots in the headboard legs using aachment
hardware. Slide “U” and “T” washers onto “S” bolts. Then,
from the back side of the headboard, insert the bolts
through the slots in the leg for your size bed and into the
slots in the headboard bracket on the bed frame.
Hold the bolts steady with the “R” Allen wrench. Aach a
“V” nut and “T” washer to the other side of the bolt as
shown. Tighten the nut against the bed frame bracket with
the “X” wrench. (Bed frame is not included.)
Option 2:
To aach hook-on side rails to the headboard, first insert 2 pcs
M8 x 20 bolts ( not included) into the holes on the outside of the
slots of both headboard legs. Then slide the hooks on the ends of
the rails over the bolts in the headboard legs.
( Aachment hardware, side rails and footboard are not included ).
Page 5
