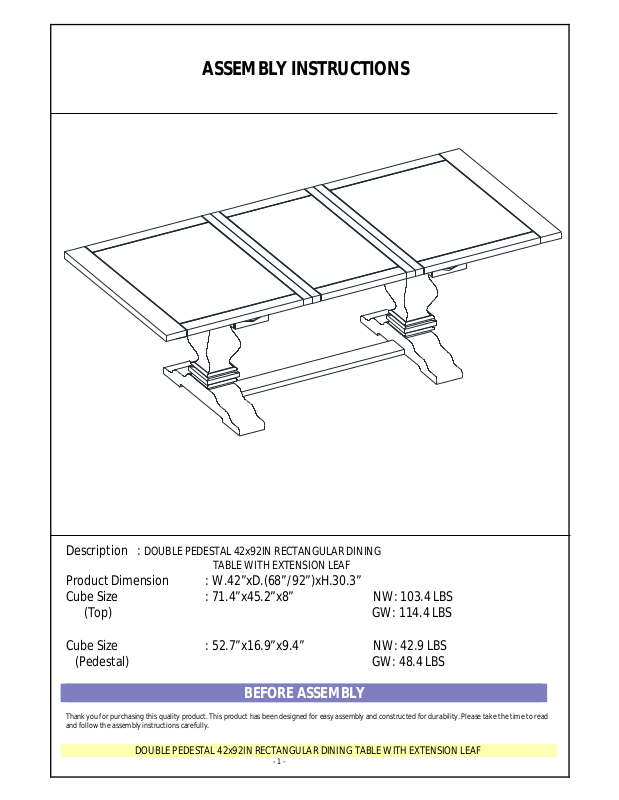

ASSEMBLY INSTRUCTIONS
Description : DOUBLE PEDESTAL 42x92IN RECTANGULAR DINING
TABLE WITH EXTENSION LEAF
Product Dimension : W.42”xD.(68”/92”)xH.30.3”
Cube Size : 71.4”x45.2”x8” NW: 103.4 LBS
(Top) GW: 114.4 LBS
Cube Size : 52.7”x16.9”x9.4” NW: 42.9 LBS
(Pedestal) GW: 48.4 LBS
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take the time to read
and follow the assembly instructions carefully.
DOUBLE PEDESTAL 42x92IN RECTANGULAR DINING TABLE WITH EXTENSION LEAF
- 1 -
Page 2
Be sure to check all packing material carefully for small parts that may have come loose inside the carton during shipment. Please separate, identify, and
HARDWARE LIST
NO Description
Qty Sketch NO Description
Qty Sketch
count all parts and metal hardware. Compare with the part list to be sure all parts are present.
If the hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps, before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A Tabletop 1 B Leaf 1
Pedestal
C
column
E Leg 2
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware:
2 D Cross Bar 1
1
3
5
7
9
Short Bolt
( M6x45)
Hexagon nut
(M8x13mm)
Lock Washer
(Ø6.5x9)
Lock Washer
(Ø8.5x13)
Wrench
(M13mm)
8 2
8 4
8 6
8 8
1
Long Bolt
8
( M8x100)
Flat Washer
8
(Ø6.5x19)
Flat Washer
8
(2xØ8.5x30)
Allen key
1
(4mm)
DOUBLE PEDESTAL 42x92IN RECTANGULAR DINING TABLE WITH EXTENSION LEAF
- 2 -
Page 3
STEP 1
STEP 2
Use the Allen key (8) to loosen the bolts and detach two support plates underneath the tabletop.
Place the plates on top of the pedestal columns (C), attach with washers (6), (7) and nuts (3). Tighten with the Wrench (9),
as shown below.
DOUBLE PEDESTAL 42x92IN RECTANGULAR DINING TABLE WITH EXTENSION LEAF
- 3 -
Page 4
STEP 3
Assemble the group of Pedestals (on step 2) to the Top table (A), use the hardware removed on step 1. Connect the Crossbar
STEP 4
(D) to the Leg (E), use bolts (1) and Washers (4), (5). Tighten them all with Allen key (8), as shown below.
Carefully flip the table, put it stand on the Legs, unlock the underneath tension latches, and pull the tabletop leaves open
out, as shown below.
DOUBLE PEDESTAL 42x92IN RECTANGULAR DINING TABLE WITH EXTENSION LEAF
- 4 -
Page 5
STEP 5
Put the Leaf (B) on then shut the tabletop leaves. Lock the underneath tension latches and finish the assembly.
DOUBLE PEDESTAL 42x92IN RECTANGULAR DINING TABLE WITH EXTENSION LEAF
- 5 -
