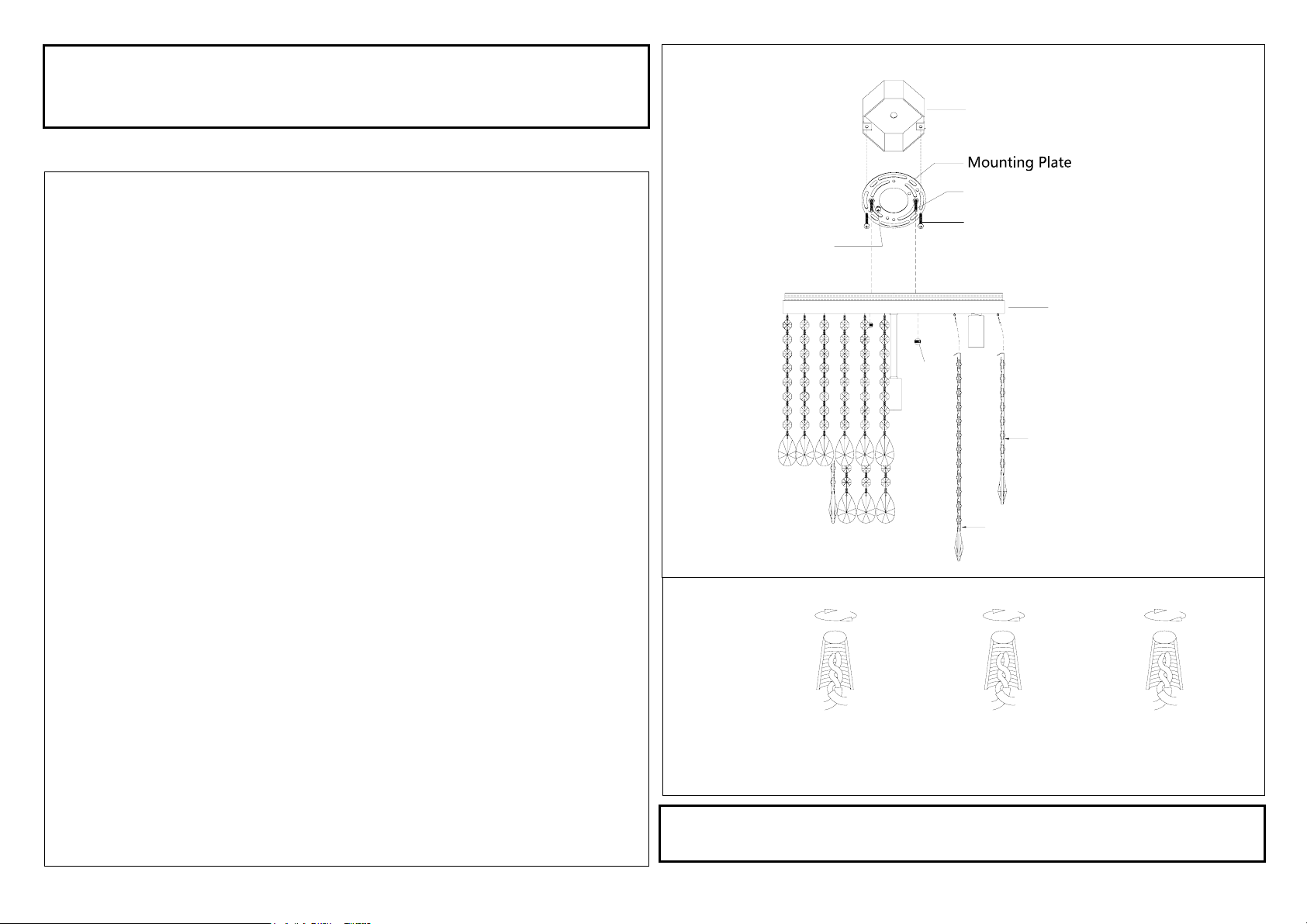

ASSEMBLING & INSTALLATION INSTRUCTIONS
(
)
(
)
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.

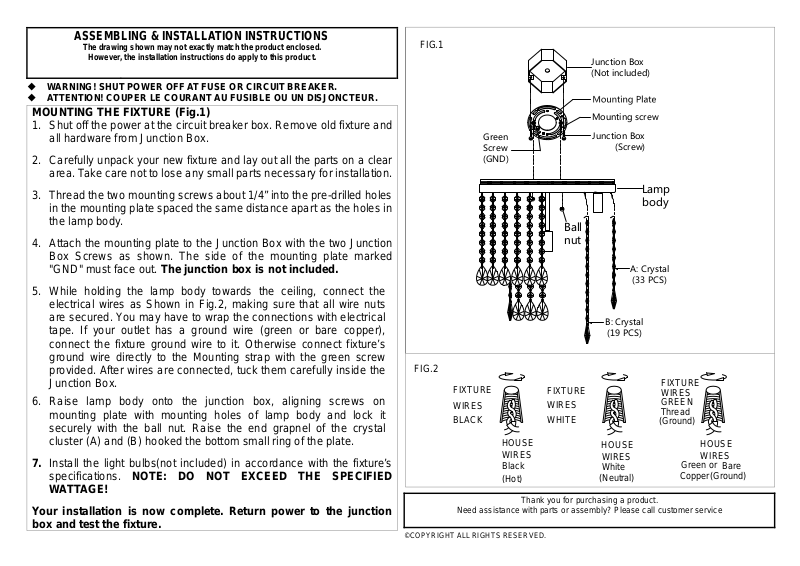

MOUNTING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and
all hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts on a clear
area. Take care not to lose any small parts necessary for inst allation.
3. Thread the two mounting screws about 1/4” into the pre-drilled holes
in the mounting plate spaced the same distance apart as the holes in
the lamp body.
4. Attach the mounting plate to the Junction Box with the two Junction
Box Screws as shown. The side of the mounting plate marked
"GND" must face out. The junction box is not included.
5. While holding the lamp body towards the ceiling, connect the
electrical wires as Shown in Fig.2, making sure that all wire nuts
are secured. You may have to wrap the connections with electrical
tape. If your outlet has a ground wire (green or bare copper),
connect the fixture ground wire to it. Otherwise connect fixture’s
ground wire directly to the Mounting strap with the green screw
provided. After wires are connected, tuck them carefully inside the
Junction Box.
6. Raise lamp body onto the junction box, aligning screws on
mounting plate with mounting holes of lamp body and lock it
securely with the ball nut. Raise the end grapnel of the crystal
cluster (A) and (B) hooked the bottom small ring of the plate.
7. Install the light bulbs(not included) in accordance with the fixture’s
specifications. NOTE: DO NOT EXCEED THE SPECIFIED
WATTAGE!
Your installation is now complete. Return power to the junction
box and test the fixture.
FIG.1
Green
Screw
(GND)
FIG.2
FIXTURE
WIRES
BLACK
HOUSE
WIRES
Black
Hot
Thank you for purchasing a product.
Need assistance with parts or assembly? Please call customer service
©COPYRIGHT ALL RIGHTS RESERVED.
Ball
nut
FIXTURE
WIRES
WHITE
JunctionBox
(Notincluded)
Mountingscrew
JunctionBox
(Screw)
Lamp
body
A:Crystal
(33PCS)
B:Crystal
(19PCS)
HOUSE
WIRES
White
Neutral
FIXTURE
WIRES
GREEN
Thread
(Ground)
Green or
Copper(Ground)
HOUSE
WIRES
Bare
