Page 1
Components and Hardware List
Page 1 of 2
Made in Viet Nam
B
A
Chair Seat
& Back
F
G
I
H
1 pc.
J
5
16
-18 x 25mm
Allen Head Bolt
5
16
" x 12 x 2mm
Spring Washer
5
16
"
x 19 x 2mm
Flat Washer
4mm Allen key
4 pcs.
4 pcs. 4 pcs.
5 pcs.
1 pc. 1 pc.
5 pcs.
C
D E
Seat Control
Metal Base
Frame
Wood Base
Cap
Pneumatic
Cylinder &
Cover
Caster
1 pc.
1 pc.
E
D
F
C
TOOLS REQUIRED
(NOT PROVIDED)
E
If present, remove the
plastic cover from the top
end of the cylinder before
assembling to seat.

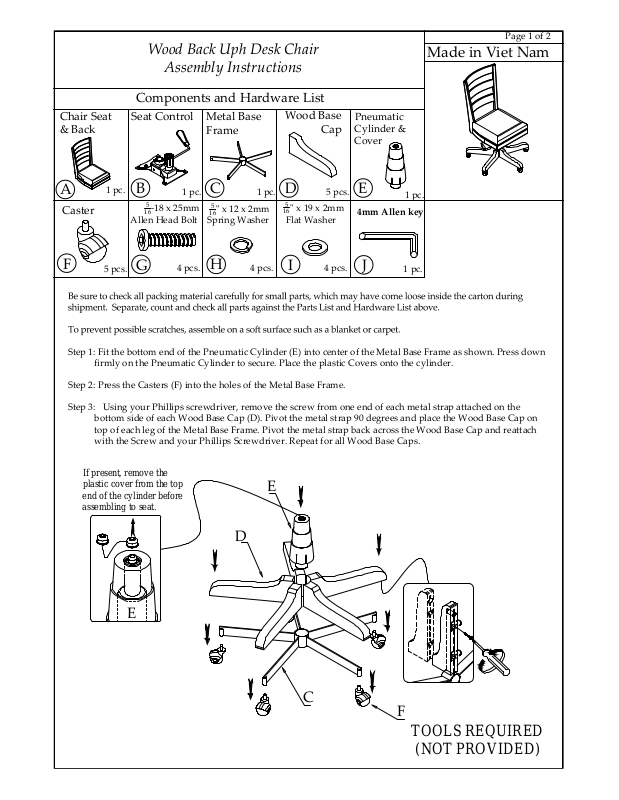

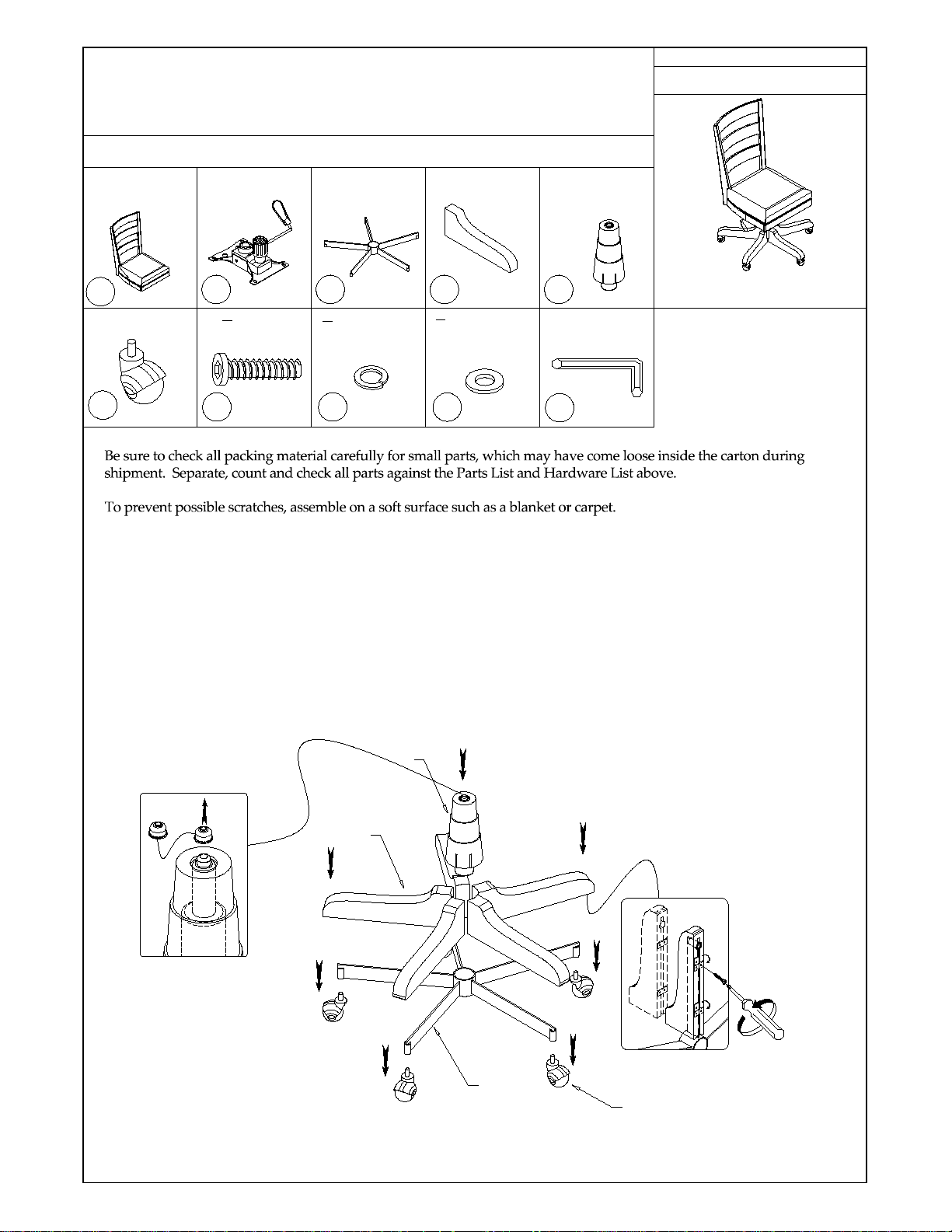

Step 1: Fit the bottom end of the Pneumatic Cylinder (E) into center of the Metal Base Frame as shown. Press down
firmly on the Pneumatic Cylinder to secure. Place the plastic Covers onto the cylinder.
Step 2: Press the Casters (F) into the holes of the Metal Base Frame.
Step 3: Using your Phillips screwdriver, remove the screw from one end of each metal strap attached on the
bottom side of each Wood Base Cap (D). Pivot the metal strap 90 degrees and place the Wood Base Cap on
top of each leg of the Metal Base Frame. Pivot the metal strap back across the Wood Base Cap and reattach
with the Screw and your Phillips Screwdriver. Repeat for all Wood Base Caps.
Wood Back Uph Desk Chair
Assembly Instructions
Page 2
Page 2 of 2
Wood Back Uph Desk Chair
Assembly Instructions
G
J
H
I
A
B

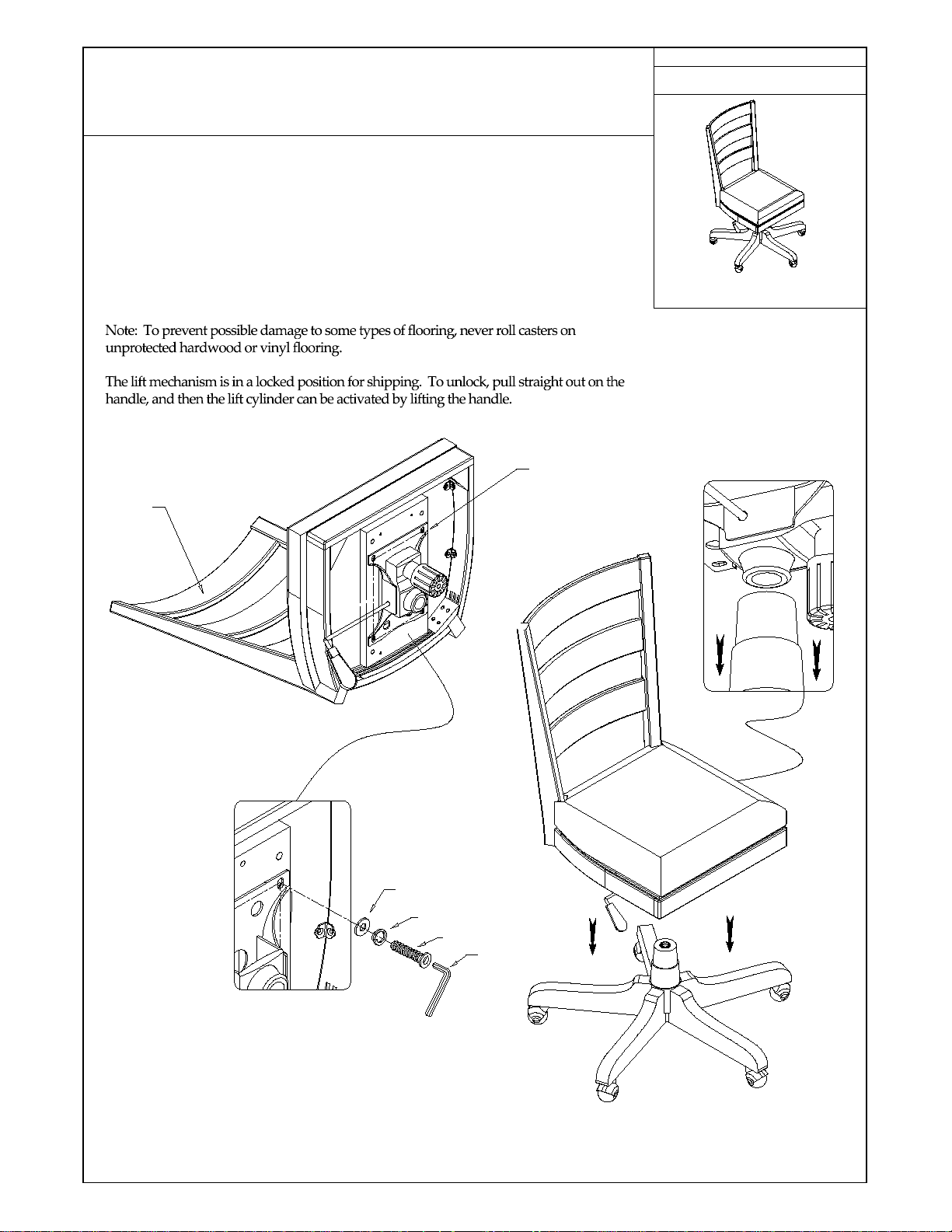

Step 4: Attach the Seat Control (B) to the bottom of the Chair Seat & Back (A) with
Flat Washers (I), Spring Washers (H) and Allen Head Bolts (G) as shown.
Tighten with the Allen Key.
Step 5: Fit the top of the Pneumatic Cylinder into the Seat Control. Sit on the seat to
secure assembly.
Made in Viet Nam
