Leg Desk With Hutch
Assembly Instructions
1 pc.
5mm Allen Key
12 pcs. 14 pcs. 14 pcs.
1 pc. 1 pc. 1 pc.
1 pc.
2 pcs.
2 pcs.
Be sure to check all packing material carefully for small parts, which may have come loose inside the carton
during shipment.

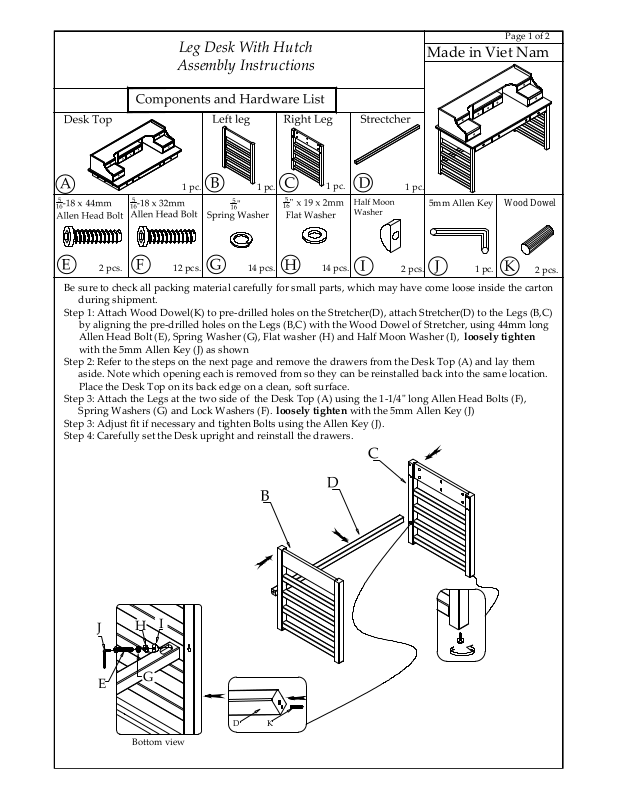

Step 1: Attach Wood Dowel(K) to pre-drilled holes on the Stretcher(D), attach Stretcher(D) to the Legs (B,C)
by aligning the pre-drilled holes on the Legs (B,C) with the Wood Dowel of Stretcher, using 44mm long
Allen Head Bolt (E), Spring Washer (G), Flat washer (H) and Half Moon Washer (I),
loosely tighten
with the 5mm Allen Key (J) as shown
Step 2: Refer to the steps on the next page and remove the drawers from the Desk Top (A) and lay them
aside. Note which opening each is removed from so they can be reinstalled back into the same location.
Place the Desk Top on its back edge on a clean, soft surface.
Step 3: Attach the Legs at the two side of the Desk Top (A) using the 1-1/4" long Allen Head Bolts (F),
Spring Washers (G) and Lock Washers (F). loosely tighten with the 5mm Allen Key (J)
Step 3: Adjust fit if necessary and tighten Bolts using the Allen Key (J).
Step 4: Carefully set the Desk upright and reinstall the drawers.
J
E
G
H
I
Bottom view
Wood Dowel
2 pcs.
D
K
Made in Viet Nam
Page 2 of 2
Leg Desk With Hutch
Assembly Instructions
To remove the drawer if it ever
becomes necessary:
A. Pull the drawer fully open so
the black latch is visible in the
inside channel of the guides.
B. Release the latches by
simultaneously pushing left
side lever up and the right
side down.
C. At the same time, pulling the
drawer forward until the
slides release.
To reinstall the drawers, carefully
align the channels of the
guide and push drawer back
into cabinet. Open and close
drawer fully a couple times to
verify proper operation.
Made in Viet Nam
