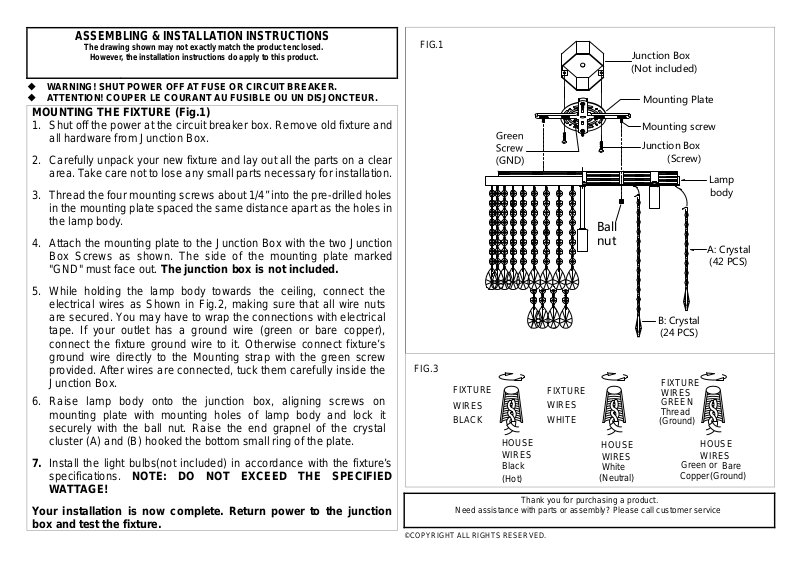

ASSEMBLING & INSTALLATION INSTRUCTIONS

(

)

(

)

The drawing shown may not exactly match the product enclosed.

However, the installation instructions do apply to this product.

 WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
 ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.

MOUNTING THE FIXTURE (Fig.1)

1. Shut off the power at the circuit breaker box. Remove old fixture and

2. Carefully unpack your new fixture and lay out all the parts on a clear

3. Thread the four mounting screws about 1/4” into the pre-drilled holes

4. Attach the mounting plate to the Junction Box with the two Junction

5. While holding the lamp body towards the ceiling, connect the

6. Raise lamp body onto the junction box, aligning screws on

7. Install the light bulbs(not included) in accordance with the fixture’s

Your installation is now complete. Return power to the junction
box and test the fixture.

all hardware from Junction Box.

area. Take care not to lose any small parts necessary for inst allation.

in the mounting plate spaced the same distance apart as the holes in
the lamp body.

Box Screws as shown. The side of the mounting plate marked
"GND" must face out. The junction box is not included.

electrical wires as Shown in Fig.2, making sure that all wire nuts
are secured. You may have to wrap the connections with electrical
tape. If your outlet has a ground wire (green or bare copper),
connect the fixture ground wire to it. Otherwise connect fixture’s
ground wire directly to the Mounting strap with the green screw
provided. After wires are connected, tuck them carefully inside the
Junction Box.

mounting plate with mounting holes of lamp body and lock it
securely with the ball nut. Raise the end grapnel of the crystal
cluster (A) and (B) hooked the bottom small ring of the plate.

specifications. NOTE: DO NOT EXCEED THE SPECIFIED

WATTAGE!

FIG.1

FIG.3

FIXTURE
WIRES

BLACK

HOUSE
WIRES

Black

Hot
