Greijmans MVT-390 User Manual

User Manual

MVT-390

Weed clearing machine

Manufactured by

Greijmans Groep BVBA

Siberiëstraat 47
3900 Overpelt - Belgium

www.greijmansgroep.be

Distributed in UK by
Kersten (UK) Ltd Tel. [phone]
Progrees House

39 Boulton Road Reading, RG2 0NH
www.kerstenuk.com - [e-mail]

EC – Declaration of Conformity

in accordance with Appendix II.1.A of Machinery Directive 2006/42/EC

Greijmans Groep bvba
Siberiëstraat 47
3900 Overpelt
Belgium

We, Greijmans Groep bvba, hereby declare that the machine described as follows:

Purpose: Weed clearing machine
Model / Type: MVT-390
Serial number: 16….

complies with all relevant requirements in Machinery Directive 2006/42/EG, in its latest version.

We also declare that the above mentioned machine complies with all relevant requirements in the
following EC directives:

§ EMC Directive 2004/108/EG, in its latest version;

§ The 2000/14/EG Outdoor Noise Directive, in its latest version;

The following harmonised standards were applied:

!

§ EN ISO 12100:2010: Safety of Machines – General design principles – Risk assessment and
risk reduction

Authorised designer of the technical dossier:

Greijmans Groep bvba
Siberiëstraat 47
3900 Overpelt
Belgium

Person authorised to issue the declaration on behalf of the manufacturer:

Name: Mr. H. Greijmans!
Position: Manager
Signature!

Location: Overpelt - Belgium
Date: !

CONTENTS

Safety
Assembly
Operating feature functions.
Operation.
Maintenance

Maintenance and adjustment
Troubleshooting.
Spare parts.
Storage
Specifications.

------------------------------------------------INTRODUCTION----------------------------------------

MANUAL!

Read the entire manual in detail before using the machine to gain an insight into the safety and operating instructions relating
to its normal use and maintenanc
All references to the left, right, front and rear are provided from the point of view of the user facing forward during
operation.

MODEL AND SERIAL NUMBERS

Always ensure that you have the model and serial number of the machine to hand when ordering spares or submitting
maintenance related queries.

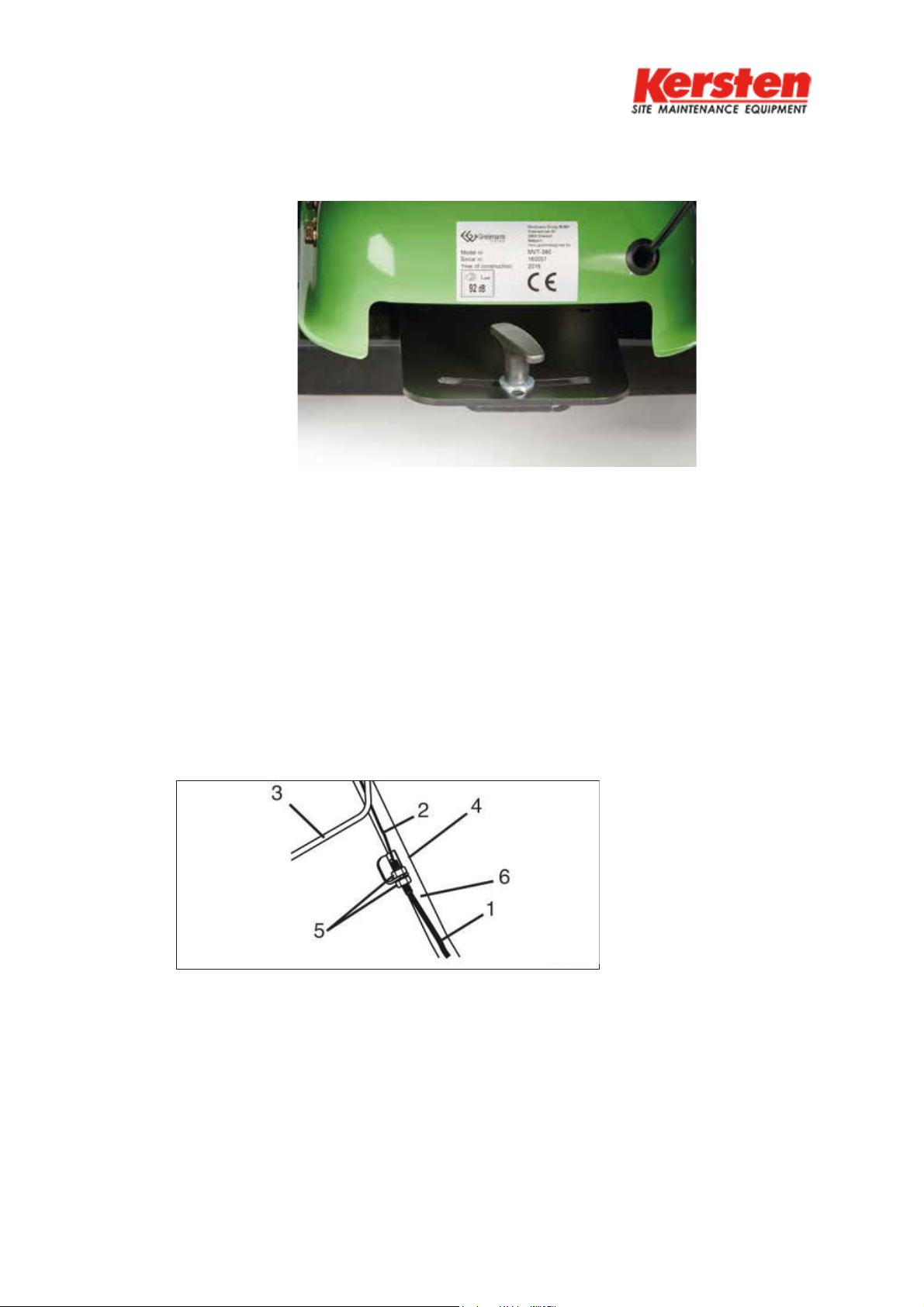

The numbers can be found on the CE identification plate at the rear of the machine.

Make a note of the model and serial number here.

PRODUCT REGISTRAT ION

Any claims within the guarantee period that meet the appropriate conditions shall be honoured. Proof of purchase acts as
proof of guarantee.

NON APPROVED SPARE PARTS

Only use original spare parts.
The use of spares in this machine that are not approved by Greijmans Groep bvba may have an adverse effect on the

performance, durability and safety of the machine and may invalidate the guarantee.
Greijmans Groep bvba shall not be liable for any claims or damage incurred pertaining to the guarantee, damage to property,

injury or death as a result of the use of non approved spare parts.

DELIVERY

Note to the customer: If you have purchased this product without instructions from the seller and/or the item is not fully
assembled, you shall be expected to

• read and understand all the assembly instructions in this manual. If you do not understand all or some of the instructions
please contact your dealer.

WARNING: Incorrect assembly and/or adjustment can result in serious injury.

• Only start using the machine when all operating features are operating as described in this manual.

BEFORE USING THE MACHINE:

1 Ensure that the machine has been fully and correctly assembled.
2 Ensure that you are familiar with all safety instructions in this manual.

3 Read the details on the operating features and use of the machine.

4 Read the section detailing recommended lubrication, maintenance and adjustment

"!

5 Read the applicable guarantee conditions.

WAIVER OF LIABILITY

Greijmans Groep reserves the right to cease or modify the manufacture of products at any time and the right to modify or improve
the product without a need for public notification or other obligations.
The descriptions and specifications in this manual apply at the time of it going to press. Equipment described in this manual may
be optional. Some illustrations may not apply to your type of machine.

--------------------------------------------------SAFETY----------------------------------------------!

WARNING SYMBOLS

Always take note of the following symbols as they indicate important safety instructions. They signify:

AT TENTION!
THINK OF YOUR SAFETY! STAY ALERT!

!

COMPLY WITH THE INSTRUCTIONS!

The above warning symbols and the following key words are used on safety labels and in this manual.
Study any safety information and ensure that you understand it.

.

KEYS

N.B.: General information and references for correct use and maintenance.
IMPORTANT: Specific procedures and/or information that are essential in order to prevent damage to the machine or

attachment.

USE AND INSTRUCTIONS

Comply with the applicable standard preventive measures concerning operating safety, in your own and other people’s
interest. Ensure that you understand and observe any safety related information. Be vigilant with respect to unsafe conditions
and the possibility of minor, moderate or serious injuries or fatal consequences. Familiarise yourself with local regulations and
legislation.

MANDATORY USER TRAINING

If the machine is to be used by someone other than the original purchaser (i.e. is loaned, rented or sold), you must ALWAYS
provide this manual and any necessary safety training before the machine is used.

SAFETY LABELS/LOCATION

ALWAYS replace missing or damaged safety labels. Check the illustration below for the location of the safety labels.

#$%$&'(!')*+,+-)!#$%$&'./0!0+-/$-+.,1!2+33!4)&-$+,35!6789:;!<=!876<>98!>6!?@;@:!

<=A96B!C!D98;!E7!F67G7=;7H"!

2$&,+,I(!J.-),-+$335!#$%$&'./0!0+-/$-+.,1!4./3'!&)0/3-!<=!876<>98!>6!?@;@:!<=A96B!

C D98;!E7!F67G7=;7H"

K)!L+I+3$,-(!J.-),-+$335!#$%$&'./0!0+-/$-+.,1!4./3'!&)0/3-!<=!D<=>6!>6!D>H76@;7!

<=A96B!<?!=>;!F67G7=;7H"!-M<8!D@B!@:8>!E7!987H!;>!M<NM:<NM;!9=8@?7!>F76@;<>=8"!!

• Keep safety features (hoods, screens, switches, etc.) in place and in good working order.

• Look down and behind you before and whilst reversing.

• Do not allow dirt to build up. It can cause fire or overheat the engine.

SAFETY INSTRUCTIONS

If the machine is to be used by someone other than the original purchaser (i.e. is loaned, rented or sold), you must ALWAYS
provide this manual and any necessary safety training before the machine is used.

HAZARD – TO PREVENT SERIOUS OR FATAL INJURY

Read the operating instructions.

Always wear safety goggles with side shields or a full face mask.

Do not use the equipment in the vicinity of children or other bystanders.

Remove objects that might be flung out by the weed clearing machine.

Keep body parts well clear when the weed clearing machine is in operation.

Ensure that you have read, understood and observed all safety related instructions in the manual before commencing assembly.
Non compliance with instructions may result in physical injury and/or machine damage.
ALWAYS disconnect the spark plug lead before starting the assembly. Accidentally starting the engine could result in serious
or fatal injury.
Walk around the machine and across the work area to familiarise yourself with:

• the work area,

• your machine,

• all safety labels.

Remove stones, sticks, wire and other objects that might be picked up and/or flung out, from the work area. Tall weeds may
contain hidden obstacles. Familiarise yourself with the work area and remain alert to holes, stones, rough terrain and other
hidden hazards.
Keep away from steep inclines, ditches and banks where the operator might lose his balance or lose control of the machine.
ALWAYS be aware of the traffic when working alongside the road or pavement.
Ensure that no adults, children or pets are present in the work area. Keep children away from the work area and ensure that
they are supervised by a responsible adult.
ONLY use the machine when visibility and light are satisfactory.
ALWAYS ensure that there is no danger of slipping. Always keep hold of the control handle.
Maintain a steady pace, NEVER run.
The brush should stop when the operator lets go of the control handle. Regularly check this safety feature. If this feature
doesn’t work, disconnect the spark plug lead and adjust the machine, or have it repaired, before using it again.
The machine must only be operated by appropriately trained adults. Actual use of the machine must be part of this training.
Never use the machine after or during the consumption of medication, drugs or alcohol. The machine requires your full and
undivided attention.
NEVER allow children to operate the machine.
ALWAYS keep hands and feet away from rotating parts, as they could sever body parts.
ALWAYS keep hands away from areas where they could be trapped.
Engine exhaust gases could result in serious or fatal injuries. NEVER allow the engine to run in an enclosed space.
ALWAYS protect the eyes, face and body with appropriate safety equipment and clothing. Wear sturdy footwear, gloves and
safety goggles with side shields when using the brush unit. NEVER use it barefoot or whilst wearing open sandals or canvas
shoes.
NEVER wear loose clothing, jewellery or have long hair that might become entangled in moving parts.
Protect the eyes, face and head from objects that might be flung out of the machine.
NEVER stand in front of the discharge outlet whilst using the machine.
NEVER direct the discharge outlet towards bystanders.
The operator is responsible for the safety of bystanders.
DO NOT touch components that have become hot. Wait until they have cooled down. Ensure that safety features or hoods
are in place and operating correctly. NEVER modify or remove safety features.
Make sure that you have read and understood all instructions in the manual and comply with them when starting the
machine. Familiarise yourself with the use of all control features.

• the operation of all control elements,

• how to STOP in the event of an emergency.

NEVER attempt to start the engine before you have familiarised yourself with the control features and their operation.
DO NOT tilt the machine when starting. Keep your feet at a safe distance when starting the engine.
ONLY use the machine when the protective hood has been installed. Objects may be flung out, which could result in
damage or injury.

Only use replacement brushes recommended by the manufacturer.

Ensure that the brush head is ALWAYS in contact with the ground surface when in use.
Implement any necessary preventive measures when leaving the machine unsupervised. ALWAYS switch off the engine and
disconnect the spark plug lead to prevent accidental starting or unauthorised use. Switch off the engine as soon as someone
enters the work area.
NEVER attempt to adjust the machine whilst the engine is in operation (except when specifically instructed to do so). Switch
off the engine, disconnect the spark plug lead and wait until all moving parts are motionless before cleaning or maintaining the
machine.
If you touch an object or the equipment is subject to abnormal vibration, switch off the machine immediately, wait until all
moving parts are motionless and disconnect the spark plug lead. If necessary carry out repairs before restarting the machine.
ALWAYS switch off the engine, allow the brush head to come to a standstill and disconnect the spark plug lead before
removing blockages or cleaning the machine.
DO NOT transport the machine whilst the engine is in operation.
To minimise the risk of fire and/or overheating keep the machine free from grass, leaves, dirt and excess lubricant.
Be particularly vigilant when approaching blind angles, shrubs, trees or other objects that might impair visibility.

DO NOT use the machine at excessive speed. DO NOT change the regulator settings on the engine and do not overload it.
Do not use the machine on gravel or loose material such as sand. Switch off the machine when crossing driveways, paths or
roads to prevent damage or injury from material that may be flung out. DO NOT pull the machine backwards unless absolutely
necessary. Look down and behind you before and during reversing. Be particularly careful if children are in the vicinity.
DO NOT operate on steep inclines.
NEVER leave the machine unsupervised whilst on a slope. Chock the wheels if you decide to park the machine on a slope.
Work across rather than up and down on a slope. Be particularly vigilant when changing direction on a slope.
This unit is equipped with an internal combustion engine. DO NOT use the machine on, or in the vicinity of, rough or wooded
terrain or shrub land, unless the exhaust system is equipped with a spark arrestor which complies with local and national
