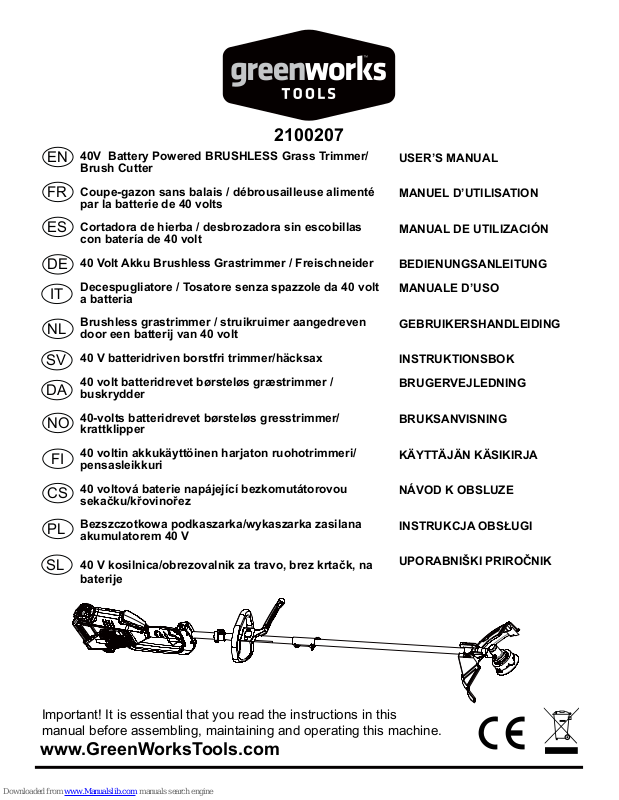

Page 1
www.GreenWorksTools.com
2100207
Important! It is essential that you read the instructions in this
manual before assembling, maintaining and operating this machine.
40V Battery Powered BRUSHLESS Grass Trimmer/
Brush Cutter
Coupe-gazon sans balais / débrousailleuse alimenté
par la batterie de 40 volts
Cortadora de hierba / desbrozadora sin escobillas
con batería de 40 volt
40 Volt Akku Brushless Grastrimmer / Freischneider
Decespugliatore / Tosatore senza spazzole da 40 volt
a batteria
Brushless grastrimmer / struikruimer aangedreven
door een batterij van 40 volt
40 V batteridriven borstfri trimmer/häcksax
40 volt batteridrevet børsteløs græstrimmer /
buskrydder
40-volts batteridrevet børsteløs gresstrimmer/
krattklipper
40 voltin akkukäyttöinen harjaton ruohotrimmeri/
pensasleikkuri
40 voltová baterie napájející bezkomutátorovou
sekačku/křovinořez
Bezszczotkowa podkaszarka/wykaszarka zasilana
akumulatorem 40 V
40 V kosilnica/obrezovalnik za travo, brez krtačk, na
baterije
EN
FR
ES
DE
IT
NL
SV
DA
NO
FI
CS
PL
SL
USER’S MANUAL
MANUEL D’UTILISATION
MANUAL DE UTILIZACIÓN
BEDIENUNGSANLEITUNG
MANUALE D’USO
GEBRUIKERSHANDLEIDING
INSTRUKTIONSBOK
BRUGERVEJLEDNING
BRUKSANVISNING
KÄYTTÄJÄN KÄSIKIRJA
NÁVOD K OBSLUZE
INSTRUKCJA OBSŁUGI
UPORABNIŠKI PRIROČNIK
Page 2
2
English (original instructions)
WARNING
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to
battery-operated (cordless) power tool.
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the
dust or fumes.
Keep all bystanders (especially children and pets) at
least 15m away from the work area. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious
personal injury.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal
injuries.
Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
Do not overreach. Keep proper footing and balance at
Your trimmer has been engineered and manufactured to
a high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you
years of rugged, trouble-free performance. Thank you for
buying a Greenworks tools product.
Save this manual for future reference.
INTRODUCTION
This appliance is not intended for use by persons
(including children) with reduced understanding, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they do
not play with the appliance.
This product has many features for making its use
more pleasant and enjoyable.
Safety, performance, and dependability have been
given top priority in the design of this product making it
easy to maintain and operate.
INTENDED USE
This trimmer is designed for cutting grass and soft
vegetation alike and for trimming grass edges in
private garden areas which are not accessible with a
lawnmower.
Its cutting plane should always be approximately
parallel to the ground. If it is not used in this way, the
possibility of injury to persons and property by thrown
objects significantly increased.
The device is not allowed to be used in public gardens,
parks, sports centres or at roadsides as well as in
agriculture and forestry.
This trimmer is not allowed to be used for cutting or
chopping hedges, shrubs, bushes, and flowers. It
should never be used with the cutting means rotating
vertically.
The national regulation can restrict the use of the
machine.
GENERAL SAFETY RULES
■ While operating the appliance, always wear
substantial footwear and long trousers.
Page 3
3
English (original instructions)
all times. This enables better control of the power tool
in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
It’s necessary for you to daily inspection before use
and after dropping or other impacts to identify any
significant defects
The harness distribute the load from your hands
to your shoulders. They also help reduce operator
fatigue and make it easier to use trimmer head and
brush cutter for extended periods.
Place the pad on your shoulder and adjust your
positioning to get yourself comfortable and balanced.
BATTERY TOOL USE AND CARE
Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the
battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from
those intended could result in a hazardous situation.
SERVICE
Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
MAINTENANCE
After use and before storage, disconnect the machine
from the battery and check for damage.
When not in use store the machine out of the reach
of children.
Grass trimmers should only be repaired by an
authorized repairer.
Use only manufacturers recommended replacement
parts and accessories.
WARNING
The cutter head will continue to rotate for a few
seconds after switching off.
It has been reported that vibrations from the tools
may contribute to a condition called Greenworks
tools’s Syndrome in certain individuals. Symptoms
may include tingling, numbness and blanching of
thefingers,usuallyapparentuponexposuretocold.
Hereditary factors, exposure to cold and dampness,
diet, smoking and work practices are all thought to
contribute to the development of these symptoms. It
is presently unknown what, if any, vibrations or extent
of exposure may contribute to the condition. There
are measures that can be taken by the operator to
possibly reduce the effects of vibration:
Keep your body warm in cold weather. When operating
the unit wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Greenworks tools’s Syndrome.
After each period of operation, exercise to increase
blood circulation.
Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this
condition, immediately discontinue use and see your
physician about these symptoms.
Page 4
4
English (original instructions)
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation
of these symbols will allow you to operate the tool better and safer.
SYMBOL DESIGNATION/EXPLANATION
Beware of blade thrust
Precautions that involve your safety.
Thrown objects can ricochet and result in personal injury or property damage.
Wear protective clothing and boots.
Keep all bystanders, especially children and pets, at least 15m from the operating
area.
Do not use saw blades
Do not expose to rain or in damp conditions.
Keep bystanders a safe distance away from the machine.
Read the operation manual and follow all warnings and safety instructions.
Wear safety footwear.
Wear protective gloves.
Wear head protection.
Wear eyes protection and ears protection.
The maximum rotational frequency of the spindle.
SYMBOLS
M
i
n
i
m
u
m
50 ft. 15m
<6500
Page 5
5
English (original instructions)
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL MEANING
Indicates an imminently hazardous situation, which, if not avoided, will result in
death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in
death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SERVICE
Servicing requires extreme care and knowledge
and should be performed only by a qualified service
technician. For service we suggest you return the product
to your nearest authorized service centre for repair. When
servicing, use only identical replacement parts.
WARNING
The operation of any power tool can result in foreign
objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool
operation, always wear safety goggles, safety glasses
with side shields, or a full face shield when needed.
We recommend Wide Vision Safety Mask for use over
eyeglasses or standard safety glasses with side
shields. Always use eye protection which is marked to
comply with EN 166.
Page 6
6
English (original instructions)
SPECIFICATIONS
40 volt battery powered brushless grass
trimmer / brush cutter
Voltage 40 V D.C.
Max No load speed 6500/min
Cutting head Bump feed/Brush-cutter Blade
Cutting line diameter 2.0 mm
Cutting path diameter 356 mm/254 mm
Features of Bump
feed/ Brush-cutter
Blade
Max speed 10000rpm/4 teeth /
max speed 10000rpm
Measured Sound
pressure level
LPA=83 dB( (A) KPA=3 dB( (A)
Sound power level LwA=96dB(A)
Vibration 3.5m/s, k=1.5m/s2
Battery pack 29727/29717
Charger 29447/29417
Weight with battery
pack
5.465
ANNEX E ANNEX D
NOTE: THE DECLARED VIBRATION TOTAL VALUE
HAS BEEN MEASURED IN ACCORDANCE WITH
A STANDARD TEST METHOD AND MAY BE USED
FOR COMPARING ONE TOOL WITH ANOTHER; THE
DECLARED VIBRATION TOTAL VALUE MAY ALSO
BE USED IN A PRELIMINARY ASSESSMENT OF
EXPOSURE.
WARNING:
THE VIBRATION EMISSION DURING ACTUAL USE
OF THE POWER TOOL CAN DIFFER FROM THE
DECLARED TOTAL VALUE DEPENDING ON THE WAYS
IN WHICH THE TOOL IS USED; AVOID VIBRATION RISK
SUGGESTION: WEAR GLOVE DURING OPERATION
LIMIT OPERATING TIME AND SHORTEN TRIGGER
TIME
ASSEMBLY
This product requires assembly.
Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing list
are included.
WARNING
Do not use this product if any parts on the packing list
are already assembled to your product when you
unpack it. Parts on this list are not assembled to the
product by the manufacturer and require customer
installation. Use of a product that may have been
improperly assembled could result in serious personal
injury.
Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
PACKING LIST
Line trimmer
Grassdeector
Front handle
Brush cutter blade
Operator’s manual
WARNING
If any parts are damaged or missing do not operate
this product until the parts are replaced. Using a
product with damaged or missing parts could result in
serious personal injury.
WARNING
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
WARNING
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from
the product when assembling parts.
DESCRIPTION
1. Battery pack 2. Battery charger 3. Rear handle 4.
Lock-off button 5.Fast/slow button 6.On/off power button
7. Switch trigger 8. Lock latch 9.Front handle 10.Couple
11.Grass deflector 12.Trimmer head 13.Blade 14. Cut-off
Blade.
Page 7
7
English (original instructions)
ATTACHING GRASS DEFLECTOR see figure 2.
WARNING
Avoid contact with the blade. Failure to avoid contact
can result in serious personal injury.
Remove the wing screw(17) from the grass deflector
Insert the tab(16) on the mounting bracket in the
slot(15 ) on the grass deflector
Tighten the screw(17)securely.
WARNING
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a
second is sufficient to inflict serious injury.
WARNING
Always wear eye protection. Failure to do so could
result in objects being thrown into your eyes resulting
in possible serious injury.
WARNING
Do not use any attachments or accessories not
recommended by the manufacturer of this product.
The use of attachments or accessories not
recommended can result in serious personal injury.
INSTALLING AN ATTACHMENT TO THE POWER
HAED see figure 3.
Loosen the knob(19) on the coupler(10) and remove
the hanger cap from the attachment(18).
Push in the button located on the attachment(18)shaft.
Align the button with the guide recess on the power
head coupler(10) and slide two shafts together. Rotate
the attachment shaft until the button locks into the
positioning hole.
Tighten the knob(19) securely.
ATTACHING THE FRONT HANDLEsee figure 4.
Install the main handle(21) onto the shaft, place the
bar(20) on the top of main handle(21),making sure the
bar(20)is pointing left while holding unit.
Place the clam(23) on the back side of the main
handle(21) onto shaft.
Take 2 bolts provided and secure the bolts to clamp
with Philips screw driver(not provided).
TO INSTALL BATTERY PACK SEE figure 5.
Place the battery pack in the trimmer. Align raised ribs
on battery pack with grooves in the trimmer’s battery
port.
Make sure the latch on bottom of the battery pack
snaps in place and that battery pack is fully seated
and secure in the trimmer before beginning operation.
STARTING/STOPPING THE TRIMMER
To start the power head:
Press the power button(6)
Depress the lock-out button(4)and squeeze the switch
trigger(7)
Press high speed button (5)to increase speed
depending upon grass condition.
To stop the power head:
Release the switch trigger(7)
The unit will power itself down after being idle for 1
minute.
WARNING
Noise. A degree of noise from the machine is not
avoidable. Route noisy work is to be licensed and
limits for certain periods. Keep rest periods and they
may need to restrict the working hours to a minimum.
For their personal protection and protection of people
working nearby, an appropriate hearing protection
shall be worn;
Vibration. Always wear safety and anti-vibration glove.
Excessive vibration may cause white finger disease or
carpal tunnel syndrome. If you notice an unpleasant
sensation or skin discoloration during use of the
machine on your hands once you stop working. Place
an adequate work breaks.. And continual and regular
users should monitor closely the condition of their
hands fingers
OPERATING THE TRIMMER see figure 5.
Hold the power head with your right hand on the rear
Page 8
8
English (original instructions)
handle and your left hand on the front handle. Keep
a firm grip with both hands while in operation. Power
head should be held at a comfortable position with the
rear handle about hip height. Always operate power
head at full throttle. If debris becomes wrapped around
the attachment, RELEASE THE SWITCH TRIGGER,
and remove the debris.
WARNING
Contact with the trimmer cutting head while operating
can result in serious personal injury.
CUTTING TIPS SEE FIGURE 6.
Keep the trimmer tilted toward the area being cut; this
is the best cutting area.
The trimmer will cut better when moved from left to
right across the area to be cut; it is less effective when
moved from right to left.
Use the tip of the cutting line to do the cutting; do not
force cutting head into uncut grass.
Wire and picket fences cause extra cutting line wear,
even breakage. Stone and brick walls, curbs, and
wood may wear cutting line rapidly.
Avoid trees and shrubs. Tree bark, wood moldings,
siding, and fence posts can easily be damaged by the
cutting line.
Attach metal knob to the rubber hole on the rear handle
when in use, unlock the metal knob when not in use.
ADVANCING CUTTING LINE
The trimmer is equipped with an Bump head. Bumping
the head to try to advance the line.
With the trimmer running, release the switch trigger.
Wait two seconds, and press the switch trigger.
NOTE: The cutting line will extend approximately 2mm
with each stop and start of the trigger until the cutting line
reaches the length of the grass deflector cut-off blade.
Resume trimming
ADVANCING THE CUTTING LINE MANUALLY
Remove the battery pack.
Push the black button located on the cutting head
while pulling on cutting line to manually advance the
cutting line.
After extending new cutter line, always return the
machine to its normal operating position before
switching on.
LINE CUT-OFF BLADE see figure 6.
This trimmer is equipped with a line cut-off blade on the
grass deflector. For best cutting, advance line until it is
trimmed to length by the line cut-off blade. Advance
line whenever you hear the engine running faster than
normal,or when trimming efficiency diminishes. This
will maintain best performance and keep line long
enough to advance properly.
WARNING
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps,
etc. Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts
are replaced.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean clothes to remove dirt, dust, oil, grease, etc.
WARNING
Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating oils, etc., come
in contact with plastic parts. Chemicals can damage,
weaken, or destroy plastic which may result in serious
personal injury.
L
Only the parts shown on the parts list are intended to
be repaired or replaced by the customer. All other parts
should be replaced at an Authorised Service Centre.
WARNING
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
Page 9
9
English (original instructions)
the line in the direction of the arrow on the spool. One
side of the line should lay in slot ‘C’ and the other side
in slot ‘B’.
To temporarily retain the line, use notch ‘E’.
ASSEMBLY THE BRUSH CUTTER see figure 9.
Warning: Be careful of sharp edges and to wear gloves
Remove the battery pack.
Ensure the 'F’ is installed on the shaft of the trimmer.
Insert a suitable screw driver through the two holes.
Place the Brush-cutter Blade 'G' on top of the spacer
'F' ensuring it is centered.
Place washer 'H on top of the Brush-cutter Blade 'G'
Place cover 'I' over washer 'H'
Using a 19mm or 3/4" wrench tighten the lock-nut 'J'
Counter-clockwise to 44-58" N.M or 32-42 ft/lbs of
torque.
Spin the Brush-cutter Blade 'B' to ensure Brush-cutter
Blade is secured tightly.
STORING THE TRIMMER
Remove the battery pack from the trimmer before
storing.
Store it in a place that is inaccessible to children.
Keep away from corrosive agents such as garden
chemicals and de-icing salts.
Store and charge your batteries in a cool
area. Temperatures above or below normal room
temperature will shorten battery pack life.
Store the battery pack where the temperature is below
27˚Candawayfrommoisture.
All batteries gradually lose their charge. The higher the
temperature, the quicker they lose their charge. If you
store your unit for long periods of time without using
it, recharge the batteries every month or two. This
practice will prolong battery pack life.
Secure the trimmer during transport to prevent damage
or injury. Clean and maintenance before storage, use
of guards on cutting attachments with metal blades.
Use of cover for metal blades during transport and
storage.
WARNING
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
BATTERY PACK REMOVAL AND PREPARATION FOR
RECYCLING
Contact customer service for the latest replacement parts
and accessories.
WARNING
Upon removal, cover the battery pack’s terminals with
Heavy-duty adhesive tape. Do not attempt to destroy
or Disassemble battery pack or remove any of its
componets. Lithium-ion and nickel-cadmium batteries
must be recycled Or disposed of properly. Also, never
touch both terminals With metal objects and/or body
parts as short circuit may Results. Keep away from
children. Failure to comply with These warnings could
result in fire and/or serious injury.
SPOOL REPLACEMENT see figure 7.
Use only 2mm diameter monofilament cutting line.
Remove the battery pack.
Push in tabs on side of spool cover. Pull spool cover
up to remove.
Remove the old spool.
To install the new spool, make sure the cutting line is
captured in the slot on the new spool. Make sure the
end of the cutting line is extended approximately 15cm
beyond the slot.
Install the new spool so that the cutting line and slot
align with the eyelet in the cutting head. Thread the
cutting line into the eyelet.
Pull the cutting line extending from the cutting head
so the cutting line releases from the slot in the spool.
Reinstall the spool cover by depressing tabs into slots
and pushing down until spool cover clicks into place.
CUTTING LINE REPLACEMENTsee figure 8.
Remove the battery pack.
Remove the spool from the spool cover
Bend one 8’ length (3m) of line in the middle and hook
the string in location ‘D’
Hold the spool by the hub ‘a’ and wind both halves of
Page 10
10
English (original instructions)
DISPOSAL
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device,
please use the return and collection systems or
contact the retailer where the product was purchased.
They can take this product for environmental safe
recycling.
Page 11
11
English (original instructions)
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
String will not
advance when
using the autofeed head.
String is welded to itself. Lubricate with silicone spray.
Not enough string on spool.
Install more string, refer to string replacement earlier in this
manual
String is worn too short. Pull string while pressing line release button
String is tangled on spool.
Remove string from spool and rewind. Refer to string
replacement earlier in this manual
Grass wraps
around shaft
housing and string
head
Cutting tall grass at ground
level
Cut tall grass from the top down to prevent wrapping
Unit will not start.
Battery is not secure.
To secure the battery pack, make sure the latch on bottom of
the battery pack snaps into place.
Battery is not charged.
Charger the battery pack according to the instructions
included with you model
Shaft not connected
completely.
Make sure lower shaft is fully seated in shaft coupler on upper
shaft and secure shaft coupler.
Page 12
12
English (original instructions)
EC DECLARATION OF CONFORMITY
Name: Changzhou Globe Co., Ltd.
Address: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, China
Nameandaddressofthepersonauthorisedtocompilethetechnicalfile:
Name: Dennis Jacobson (Director of Outdoor Power Equipment)
Address:GLOBE TOOLS EUROPE ,
1 Etage
Schillingsrotterstr.38
50996 Cologne
Germany
Herewith we declare that the product
Category ....................................................................40V Battery Powered BRUSHLESS Grass Trimmer/Brush Cutter
Model ...................................................................................................................................................................2100207
Serial number ..............................................................................................................................See product rating label
Year of Construction ....................................................................................................................See product rating label
SatisfiestherequirementoftheCouncilDirectives:
2006/42/EC
2011/65/EU
2004/108/EC
2000/14/EC & 2005/88/EC, Measured sound power level 93.7dB(A) Guaranteed sound power level 96 dB(A)
and conforms with the norms:
EN 60745-1+A11
EN ISO 11806-1
EN 55014-1+A1+A2
EN 55014-2+A1+A2
ITSTesting&Certification,DavyAvenue,Knowlhill,MiltonKeynes,MK58NL
Place, date: Changzhou, 28/05/2014
Signature:
Dennis Jacobson ((BEng, CEng, MIET)
Vice president of Engineering
EN
Loading...
