40V 14’’ BRUSHLESS CHAINSAW
CS-140-T
Owner’s Manual
TOLL-FREE HELPLINE: 1-833-493-5483
www.greenworkselite.com
Read all safety rules and instructions carefully before operating this tool.
CONTENTS
Contents .............................................................................................................................. 2
Product Specications ......................................................................................................... 2
Important Safety Instructions ............................................................................................... 3
Symbols ............................................................................................................................... 8
Know Your Chainsaw ......................................................................................................... 10
Assembly Instruction .........................................................................................................11
Operation Instruction ......................................................................................................... 15
Maintenance ...................................................................................................................... 24
Environmentally Safe Battery Disposal ............................................................................. 33
Troubleshooting ................................................................................................................ 34
Warranty ............................................................................................................................ 36

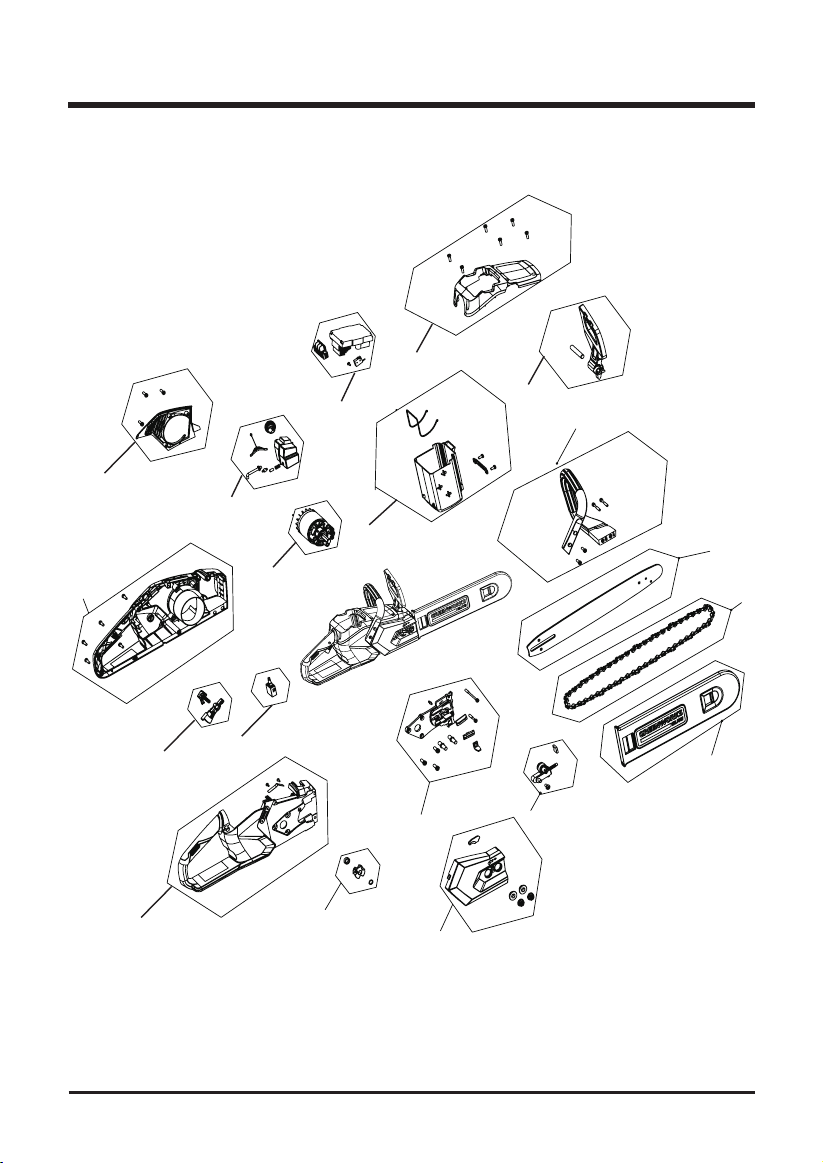

Exploded View ................................................................................................................... 37
Part List ............................................................................................................................. 38
PRODUCT SPECIFICATIONS
40V 14'' CORDLESS CHAINSAW
Type ......................................................................................................................... Cordless
Motor.....................................................................................................Brushless (Direct Drive)
Voltage..............................................................................................................40V Lithium-Ion
Bar Length......................................................................................................... 14" (350 mm)
Chain Pitch...................................................................................................3/8" LP (9.5 mm)
Chain Gauge................................................................................................... .043" (1.09 mm)
Drive Links........................................................................................................................52 DL
Chain Type ....................................................................................................11112A521SH1HF
Guide Bar Type .............................................................................................12DML1400211Ca
Greenworks Replacement Chain.................................................................................2906802
Greenworks Replacement Bar and Chain Combo......................................................290 6902
Chain Brake................................................................................................................Electronic
Chain Speed..................................................................................................................19.8 m/s
Oil Tank Capacity.............................................................................................................180 ml
Unit Weight without Battery .............................................................................8.15 lbs (3.7 kg)
Unit Weight with Batter y ........................................................................................11 lbs (5 kg)
Charge time (With 3Ah Battery and Standard Charger)................................................ 9 0 Min
YEAR/ANS/AN
TOOL WARRANTY
GARANTIE DE
L'OUTIL
GARANTÍA DE LA
HERRAMIENTA
2
IMPORTANT SAFETY INSTRUCTIONS
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read and understand all instructions before using this product.
instructions listed below may result in electric shock, re, and/or serious personal injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your mains-operated (corded) power tool.
1. WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of am-
mable liquids, gases or dust. Power tools create sparks which may ignite thedust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2. ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
Failure to follow all
3. PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious
personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropri-
ate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or pack, picking up or carrying the tool. Carrying power
tools with your nger on the switch or energising power tools that have the switch on invites
accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
3
IMPORTANT SAFETY INSTRUCTIONS
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
• If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
4. POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use
of the power tool for operations different from those intended could result in a hazardous
situation.
5. BATTERY TOOL USE AND CARE
• Recharge only with the charger specied by the manufacturer. A charger that is suitable
for one type of pack may create a risk of re when used with another pack.
• Use power tools only with specically designated packs. Use of any other packs may
create a risk of injury and re.
• When pack is not in use, keep it away from other metal objects, lik paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the terminals together may cause burns or a re.
• Under abusive conditions, liquid may be ejected from the ; avoid contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical
help. Liquid ejected from the may cause irritation or burns.
• Use only with Greenworks Elite batteries: L-300, L600
• Use only with Greenworks Elite Chargers: C-220, C-400
6. SERVICE
4
IMPORTANT SAFETY INSTRUCTIONS
Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
7. CHAINSAW SAFETY WARNINGS
• Keep all parts of the body away from the saw chain when the chainsaw is operating.
Before you start the chainsaw, make sure the saw chain is not contacting anything. A
moment of inattention while operating chainsaws may cause entanglement of your clothing or
body with the saw chain.
• Always hold the chainsaw with your right hand on the rear handle and your left hand on
the front handle. Holding the chainsaw with a reversed hand conguration increases the risk of
personal injury and should never be done.
• Hold the chainsaw by insulated gripping surfaces only, because the saw chain may
contact hidden wiring. Saw chains contacting a “live” wire may make exposed metal parts of
the chainsaw “live” and could give the operator an electric shock.
• Always use two hands when operating the chainsaw. Contact of the guide-bar tip with any
object should be avoided.
• Tip contact may cause the guide bar to move suddenly upward and backward, which may
cause serious injury.
• Wear safety glasses and hearing protection. Further protective equipment for the head,
hands, legs, and feet is recommended. Adequate protective clothing will reduce personal
injury by ying debris or accidental contact with the saw chain.
• Do not operate a chainsaw in a tree. Operation of a chainsaw while up in a tree may result in
personal injury.
• Always keep proper footing and operate the chainsaw only when standing on xed,
secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of
balance or control of the chainsaw.
• When cutting a limb that is under tension, be alert for spring back. When the tension in
the wood bers is released, the spring loaded limb may strike the operator and/or throw the
chainsaw out of control.
• Use extreme caution when cutting brush and saplings. The slender material may catch the
saw chain and be whipped toward you or pull you off balance.
• Carry the chainsaw by the front handle with the chainsaw switched off and away from
your body. When transporting or storing the chainsaw always put on the scabbard. Proper
handling of the chainsaw will reduce the likelihood of accidental contact with the moving saw
chain.
• Follow instructions for lubricating, chain tensioning, and changing accessories.
Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery
which can cause loss of control.
• Cut wood only. Do not use chainsaw for purposes not intended. For example: do not
use chainsaw for cutting plastic, masonry, or non-wood building materials. Use of the
chainsaw for operations different than intended could result in a hazardous situation.
• Store idle power tool indoors. when not in use, power tool should be stored in an indoor dry
and look-up place, out of reach of children.
5
IMPORTANT SAFETY INSTRUCTIONS
W A R N I N G (PROPOSITION 65)
This product contains a chemical known to the state of California to cause cancer, birth defects
or other reproductive harm. Some dust created by power sanding, sawing, grinding, drilling and
other construction activities contains chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending on how often you do this type of work.
To reduce your exposure to these chemicals, work inven a well-ventilated area, and work with
approved safety equipment, such as dust masks that are specially designed to lter out microscopic
particles.
CHILD SAFETY
Tragic accidents can occur if the operator is not aware of the presence of children.
• Keep children out of the working area and under the watchful care of a responsible adult.
• Do not allow children under the age of 14 to operate this chainsaw. Children who are 14
years of age and older must read and understand the operating instructions and safety
rules in this manual and must be trained and supervised by a parent.
• Stay alert, and turn the chainsaw off if a child or any other person enters the working area.
• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other
objects that may obscure your view of a child who may run into the path of the chainsaw.
6
IMPORTANT SAFETY INSTRUCTIONS
W A R N I N G
Kickback may occur when the moving chain contacts an object at the upper portion of the tip of the
guide bar or when the wood closes in and pinches the saw chain in the cut. Contact at the upper
portion of the tip of the guide bar can cause the chain to dig into the object and stop the chain for
an instant. The result is a lightning fast reverse reaction which kicks the guide bar up and back
toward the operator. If the saw chain is pinched along the top of the guide bar, the guide bar can
be driven rapidly back toward the operator. Either of these reactions can cause loss of saw control
which can result in serious injury. Do not rely exclusively upon the safety devices built into the saw.
As a chainsaw user, you should take several steps to keep your cutting jobs free from accident or
injury.
CAUSES AND OPERATOR PREVENTION OF KICKBACK
1. Maintain a rm grip, with thumbs and ngers encircling the chainsaw handles, with both
hands on the saw and position your body and arm to allow you to resist kickback forces.
Kickback can be controlled by the operator, if proper precautions are taken. Do not let go of the
chainsaw.
Rotational
Kickback
Kickback
Danger Zone
2. Do not overreach and do not cut above shoulder height.
contact and enables better control of the chain saw in unexpected situations.
3. Only use replacement bars and chains specied by the manufacturer.
replacement bars and chains may cause chain breakage and/or kickback.
4. Follow the manufacturer’s sharpening and maintenance instructions for the saw chain.
Decreasing the depth gauge height can lead to increased kickback.
This helps prevent unintended tip
Incorrect
7
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and
safer.
SYMBOLS DESIGNATION EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
hrs Hours Time
n
o
/ min Per Minute
No Load Speed Rotational speed, at no load
Revolutions, strokes, surface speed, orbits etc., per
minute.
Direct Current Type or a characteristic of current
Lithium-ion Battery
Recycling
Safety Alert Symbol Precautions that involve your safety.
Read the Instruction
Manual
Eye Protection Wear eye protection when operating this equipment.
Wear Ear Protection Wear ear protection when operating this equipment.
Designates that this tool is in compliance with
lithium-ion battery recycling program requirements.
To reduce the risk of injury, user must read and
understand the Instruction manual before using this
product.
.
Gloves
Kickback DANGER! Beware of kickback.
Operate With Two Hands Hold and operate the saw properly with both hands.
One Handed Do not operate the saw using only one hand.
Bar Nose Contact Avoid bar nose contact.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Wear non-slip, heavy-duty protective gloves when
handling the chainsaw and the blade.
8
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
SYMBOL SIGNAL MEANING
avoided, will result in death or serious injury.
could result in death or serious injury.
may result in minor or moderate injury.
result in property damage.
DANGER
WARNING
CAUTION
CAUTION
Indicates an imminently hazardous situation, which, if not
Indicates a potentially hazardous situation, which, if not avoided,
Indicates a potentially hazardous situation, which, if not avoided,
(Without Safety Alert Symbol) Indicates a situation that may
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualied
service technician. For service we suggest you return the product to your nearest
SERVICE CENTER
WARNING
To avoid serious personal injury, do not attempt to use this product until you have read this Owner’s
Manual thoroughly and understand it completely. If you do not understand the warnings and
instructions in this Owner’s Manual, do not use this product. Call the Toll-free Helpline (1-833-493-
5483) for assistance.
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before operating a power tool, always wear safety goggles,
safety glasses with side shields, or a full face shield when needed. We recommend a Wide Vision
Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye
protection that is marked to comply with ANSI Z87.1.
for repair. When servicing, use only identical replacement parts.
AUTHORIZED
SAVE THESE INSTRUCTIONS
9
KNOW YOUR CHAIN SAW
KNOW YOUR CHAIN SAW
The safe use of this product requires an understanding of the information on the product and in
this operator’s manual as well as a knowledge of the project you are attempting. Before use of
this product, familiarize yourself with all operating features and safety rules.
1
2
6
5
4
10
7
9
12
11
1. Safety Lock 7. Guard
2. Trigger 8. Bar
3. Rear Handle 9. Bar Nuts
4. Front Handle 10. Chain Tensioner Screw
5. Oil Cap 11. Wrench
6. Low Kickback Chain 12. Scabbard
3
8
10
ASSEMBLY INSTRUCTION
Before beginning to operate this product, make sure all parts are present. Compare parts with
package contents list. If any part is missing or damaged, do not attempt to operate the product.
UNPACKING
This product has been shipped completely assembled.
• Carefully remove the product and any accessories from the box. Make sure that all items
listed in the package contents section are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
• If any parts are damaged or missing, please call 1-833-493-5483 for assistance.
PACKING LIST
PART NAME FIGURE
Chainsaw
Scabbard
Wrench
Operator’s
40V 14’’ BRUSHLESS CHAINSAW
manual
TOLL-FREE HELPLINE: 1-888-90WORKS
Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
www.GreenWorksTools.com
QTY
1
1
1
CS40L01
(888.909.6757)
1
11
ASSEMBLY INSTRUCTION
WARNING
If any parts are damaged or missing, do not operate this product until the parts are replaced.
Using a product with damaged or missing parts could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING
Do not insert the battery until assembly is complete. Failure to comply could result in accidental
starting and possible serious personal injury.
ADDING BAR AND CHAIN LUBRICANT
Use a bar and chain lubricant with this product. It is designed for chains and chain oilers, and is
formulated to perform over a wide temperature range with no dilution required.
• Remove oil cap. Open the removable cover and then rotate the cover counterclockwise to
remove it.
• Carefully pour the bar and chain oil into the tank.
• Wipe off excess oil and replace cap.
• Repeat as needed.
12
ASSEMBLY INSTRUCTION
NOTE: Chainsaw comes from the factory with no bar and chain oil added. The level should also be checked
after every 20 minutes of use and relled as needed.
NOTE: 1. Do not use dirty, used or otherwise contaminated oils. Damage may occur to the bar or chain. 2. It is
normal for oil to seep from the saw when not in use. To prevent seepage, empty the oil tank after each use then
run for one minute. When storing the unit for a long period of time (three months or longer) be sure the chain is
lightly lubricated; this will prevent rust on the chain and bar sprocket.
IMPORTANT
To preserve natural resources, please recycle or dispose of oil properly. Consult your local waste
authority for information regarding available recycling and/disposal options.
BATTERY
TO INSTALL THE BATTERY:
1. Align the battery with the battery opening.
2. Insert the battery into the battery opening until the battery release button locks into place.
3. Push down on the battery until it locks into place. You should hear a “click” once it is
installed.
13
ASSEMBLY INSTRUCTION
TO REMOVE THE BATTERY:
1. Press the battery release button on the battery.
2. Grasp the chainsaw rmly and pull the battery out of the handle.
IMPORTANT
The battery may not be charged when it is purchased. Before using the chain saw for the rst time,
place the battery in the battery charger and charge it fully. Be sure to read all safety precautions
and follow the instructions in the battery and charger manuals. When storing the chain saw for
a prolonged period of time, remove the battery. When the chain saw is going to be used again,
charge the battery for at least a full charging period. The battery has no memory effect.
WARNING
Follow these instructions in order to avoid injury and to reduce the risk of electric shock or re:
• Replace the battery or the charger immediately if the battery case or charger acord is
damaged.
• Read, understand, and follow the instructions contained in the charger manual.
14
OPERATION INSTRUCTION
STARTING AND STOPPING THE CHAINSAW
A. To start the chainsaw:
• Make sure chain tension is at desired setting. Refer to adjusting the chain tension in the Care
and Maintenance section of this manual.
• Make sure the chain cover lock knob is tight to the chain cover.
• Make sure no objects or obstructions are in the immediate vicinity which could come in
contact with the bar and chain.
• Fit the battery into the chainsaw.
• Press in the safety lock. This makes the trigger operational.
• Press and hold the trigger, and keep it pressed for continued operation.
B. To stop the chainsaw:
• Release the trigger.
• Upon release of the trigger switch, the safety lock will be automatically reset to the lock
position.
NOTE:
Safety Lock
Trigger
It is normal for the chain to coast to a stop once the trigger is released.
15
OPERATION INSTRUCTION
PREPARING FOR CUTTING
Proper grip on handles
See General Safety Rules for appropriate safety equipment.
• Wear non-slip gloves for maximum grip and protection.
• Hold the saw rmly with both hands. Always keep your left hand on the front handle and your
right hand on the rear handle so that your body is to the left of the chain line.
• Maintain a proper grip on the saw whenever the motor is running. The ngers should
encircle the handle and the thumb is wrapped underneath. This grip is least likely to be
broken by a kickback or other sudden reaction of the saw. Any grip in which the thumb and
ngers are on the same side of the handle is dangerous because a slight kickback of the
saw can cause loss of control.
Proper hand grip position
Chain line
Proper grip
Improper grip
WARNING
DO NOT operate the trigger with your left hand and hold the front handle with your right hand.
Never allow any part of your body to be in the chain line while operating a saw. Never use a
lefthanded (cross-handed) grip or any stance that would place your body or arm across the chain
line.
16
OPERATION INSTRUCTION
PROPER CUTTING STANCE
• Balance your weight with both feet on solid ground.
• Keep left arm with elbow locked in a “straight arm” position to withstand any kickback force
• Keep your body to the left of the chain line.
• Keep your thumb on underside of front handle.

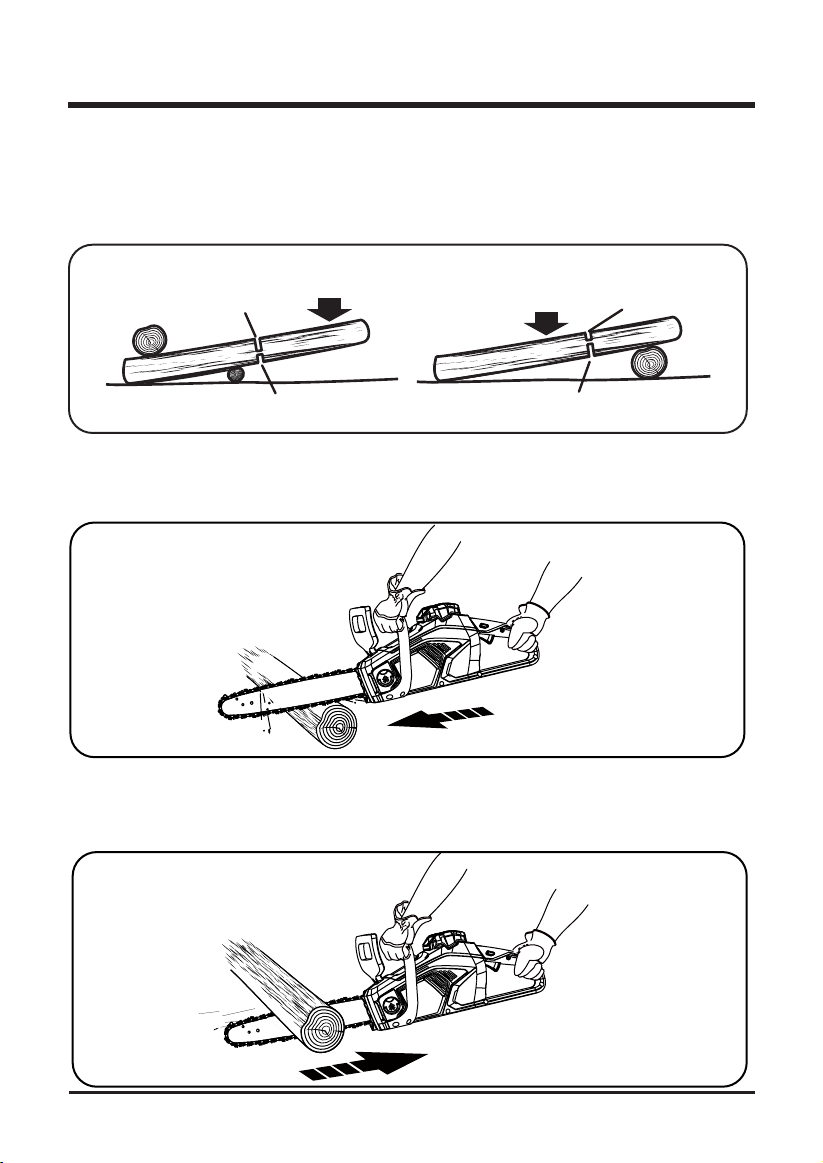

BASIC OPERATING/CUTTING PROCEDURES
Practice cutting a few small logs using the following technique to get the “feel” of using the saw
before you begin a major sawing operation.
• Take the proper stance in front of the wood.
• Press the safety lock in and squeeze the trigger, then release the safety lock and let the
chain accelerate to full speed before entering the cut.
• Begin cutting with the saw against the log.
• Keep the unit running the entire time you are cutting, maintain a steady speed.
• The chain will cut for you; exert only light downward pressure. Forcing the cut could result in
damage to the bar, chain, or motor.
• Release the trigger switch as soon as the cut is completed, allowing the chain to stop. If you
run the saw without a cutting load, unnecessary wear can occur to the chain, bar, and unit.
• Do not put pressure on the saw at the end of the cut.
Thumb on
underside of
Handle Bar
17
Chain Line
Straight Arm
OPERATION INSTRUCTION
f
f
REMOVING BUTTRESS ROOTS
A buttress root is a large root extending from the trunk of the tree above the ground. Remove
large buttress roots prior to felling. Make the horizontal cut into the buttress rst, followed by the
vertical cut. Remove the resulting loose section from the work area. Follow the correct tree felling
procedure as stated in Proper Procedure For Tree Felling after you have removed the large
buttress roots.
Planned Line o
all
Vertical Cut
Loose section
Horizontal
135°from planned
line of fall
Path of safe retreat
Cut
PROPER PROCEDURE FOR TREE FELLING
• Felling a tree — When bucking and felling operations are being performed by two or
more persons at the same time, the felling operation should be separated from the
bucking operation by a distance of at least twice the height of the tree being felled.
Trees should not be felled in a manner that would endanger any person, strike any
utility line or cause any property damage. If the tree does make contact with any utility
line, the utility company should be notied immediately.
• Operator should keep on the uphill side of terrain as the tree is likely to roll or slide after it
is felled.
• Pick your escape route (or routes in case the intended route is blocked). Clear the
immediate area around the tree and make sure there are no obstructions in your planned
path of retreat. Clear the path of safe retreat approximately 135° from the planned line of
fall.
• Consider the force and direction of the wind, the lean and balance of the tree, and the
location of large limbs. These things inuence the direction in which the tree will fall. Do not
try to fell a tree along a line different from its natural line of fall.
• Remove dirt, stones, loose bark, nails, staples, and wire from the tree where felling cuts
are to be made.
• Notched Undercut. Cut a notch about 1/3 the diameter of the trunk on the side of the tree.
Make the notch cuts so they intersect at a right angle to the line of fall. This notch should
be cleaned out to leave a straight line. To keep the weight of the wood off the saw, always
make the lower cut of the notch before the upper cut.
18
OPERATION INSTRUCTION
• Felling Backcut. As the felling cut gets close to the hinge, the tree should begin to fall. If
there is any chance the tree may not fall in the desired direction or it may rock back and bind
the saw chain, stop cutting before the felling cut is complete and use wedges of wood, plastic or
aluminum to open the cut and drop the tree along its desired line of fall. Make the backcut level
and horizontal, and at a minimum of 2 in. (5 cm) above the horizontal cut of the notch.
• On large diameter trees, stop the back cut before it is deep enough for the tree to either fall
or settle back on the stump. Then insert soft wooden or plastic wedges into the cut so they
do.
• As tree starts to fall, stop the chain saw and put it down immediately. Retreat along the
cleared path, but watch the action in case something falls your way.
Planned
Line of fall
Back cut
135˚
135˚
45˚
45˚
Hinge
Path of
safe
retreat
90˚
Back cut2” (5cm)
Wedge
HINGE
2 in. (5 cm) OR 1/10 DIA
NotchApprox.
1/3
Diameter
of trunk
19
OPERATION INSTRUCTION
BUCKING
Bucking is the term used for cutting a fallen tree to the desired log length.
• Always make sure your footing is secure and your weight is distributed evenly on both feet
• Cut only one log at a time.
• Support small logs on a saw horse or another log while bucking.
• Keep a clear cutting area. Make sure that no objects can contact the guide bar nose and
chain during cutting as this can cause kickback. Refer to Kickback earlier in this manual
• When bucking on a slope, always stand on the uphill side of the log. To maintain complete
control of the chain saw when cutting through the log, release the cutting pressure near the
end of the cut without relaxing your grip on the chain saw handles. Do not let the chain contact
the ground. After completing the cut, wait for the saw chain to stop before you move the chain
saw. Always stop the motor before moving from tree to tree.
BUCKING WITH A WEDGE
If the wood diameter is large enough for you to insert a soft bucking wedge without touching the
chain, you should use the wedge to hold the cut open to prevent pinching.
20
OPERATION INSTRUCTION
BUCKING LOGS UNDER STRESS
When the log is supported on one end, cut 1/3 the diameter from the underside. Then make
the nished cut by overbucking to meet the rst cut. When the log is supported on both ends,
cut 1/3 of the diameter from the top overback. Then make the nished cut by under bucking
the lower 2/3 to meet the rst cut.
Log Supported At One End
Finishing Cut
1St Cut 1/3 Dia
Load
Log Supported At Both Ends
Load 1St Cut 1/3 Dia
Finishing Cut
OVERBUCKING
Begin on the top side of the log with the bottom of the saw against the log; exert light pressure
downward. Note that the saw will tend to pull away from you.
UNDERBUCKING
Begin on the under side of the log with the top of the saw against the log; exert light pressure
upward. During under bucking, the saw will tend to push back at you. Be prepared for this reac-
tion and hold the saw rmly to maintain control.
21
OPERATION INSTRUCTION
LIMBING
Limbing is removing branches from a fallen tree.
• Work slowly, keeping both hands on the chain saw with a rm grip. Always make sure your
footing is secure and your weight is distributed evenly on both feet.
• Leave the larger support limbs under the tree to keep the tree off the ground while cutting.
• Limbs should be cut one at a time. Remove the cut limbs from the work area often to help.
• Keep the work area clean and safe.
• Branches under tension should be cut from the bottom up to avoid binding the chain saw.
• Keep the tree between you and the chain saw while limbing. Cut from the side of the tree
opposite the branch you are cutting.
PRUNING
Pruning is trimming limbs from a live tree.
• Work slowly, keeping both hands on the chain saw with a rm grip. Always make sure your
footing is secure and your weight is distributed evenly on both feet.
• Do not cut from a ladder. This is extremely dangerous. Leave this operation for
professionals.
• Do not cut above chest height as a saw held higher is difcult to control against kickback.
• When pruning trees it is important not to make the nishing cut next to the main limb or
trunk until you have cut off the limb further out to reduce the weight. This prevents stripping
the bark from the main member.
• Underbuck the branch 1/3 through for your rst cut.
• Your second cut should overbuck to drop the branch off.
• Now make your nishing cut smoothly and neatly against the main member so the bark will
grow back to seal the wound.
Load
Second
cut
First Cut
1/3 Diameter
Finishing
Cut
Cut Limbs One At A Time And
Leave Support Limbs
Under Tree Until Log Is Cut
22
OPERATION INSTRUCTION
When bucking on a slope always stand on the uphill side of the log. when cutting through to
maintain complete control release the cutting pressure near the end of the cut without relaxing
your grip on the chainsaw handle. Don’t let the chain contact the ground. After completing the
cut wait for the saw chain to stop before you move the chainsaw. Always stop the motor before
moving from tree to tree.
Bucking a log
Stand on uphill side when
cutting because log may roll
CUTTING SPRINGPOLES
A springpole is any log, branch, rooted stump, or sapling which is bent under tension by other
wood so that it springs back if the wood holding it is cut or removed. On a fallen tree, a rooted
stump has a high potential of springing back to the upright position during the bucking cut to
separate the log from the stump. Watch out for springpoles — they are dangerous.
SPRINGPOLE
WARNING
If the limbs to be pruned are above chest height, hire a professional to perform the pruning.
WARNING
Springpoles are dangerous and could strike the operator, causing the operator to lose control of
the chain saw. This could result in severe or fatal injury to the operator.
23
MAINTENANCE
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use clean cloths to
remove dirt, dust, lubricant, grease, etc., rmly to maintain control.
• Do not at any time let brake uids, gasoline, petroleum-based products, penetrating oils,
etc., come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic,
which may result in serious personal injury.
LUBRICATION
• All of the bearings in this product are lubricated with a sufcient amount of high grade
lubricant for the life of the unit under normal operating conditions. Therefore, no further
lubrication is required.
WARNING
• When servicing, use only identical replacement parts. Use of any other parts may create a
hazard or cause product damage.
• Always wear safety goggles or safety glasses with side shields during power tool operation
or when blowing dust. If the operation is dusty, also wear a dust mask.
WARNING
Never start the motor before installing the guide bar, chain, chain cover, and chain cover lock
knob. Without all these parts in place, the clutch can y off or explode, exposing the user to
possible serious injury.
WARNING
• To avoid serious personal injury, read and understand all the safety instructions in this section.
• Before performing any maintenance, make sure the battery is removed. Failure to heed this
warning could result in serious personal injury.
WARNING
Always wear gloves when handling the bar and chain; these components are sharp and may
contain burrs.
Never touch or adjust the chain while the motor is running. The saw chain is very sharp; always
wear protective gloves when performing maintenance to the chain to avoid possible serious
lacerations.
NOTE:
When replacing the guide bar and chain, always use the specied bar and chain listed in
the bar and chain combinations section later in this manual.
24
MAINTENANCE
REPLACING THE GUIDE BAR AND CHAIN
• Remove the battery from the chain saw.
• Remove the two chain cover lock nuts
from the chain cover by rotating them
counterclockwise with the wrench.
• Remove the chain cover from the mounting
surface.
• The bar and chain can now be removed by
lifting it away from the main body of the saw
and releasing the chain from the sprocket.
• Remove the old chain from the bar.
• Lay out the new saw chain in a loop and
straighten any kinks. The cutters should face
in the direction of chain rotation. If they face
backwards, turn the loop over.
• Place the chain drive links into the bar groove.
NOTE:
Make certain of direction of the chain.
• Position the chain so there is a loop at the
back of the bar.
• Hold the chain in position on the bar and place
the loop around the sprocket.
• t the bar ush against the mounting surface
so that the bar studs are in the long slot of the
bar. Ensure that the chain is over the sprocket.
NOTE:
When placing the bar on the bar studs,
ensure that the adjusting pin is in the chain tension
pin hole.
• Replace the chain cover.
• Remove all slack from the chain by turning
the chain adjustment screw clockwise until the
chain sea ts snugly against the bar with the
drive links in the bar groove.
25
Cutters
Chain drive links
Chain drive links
Chain rotation
Bar
groove
MAINTENANCE
• Lift the tip of the guide bar up to check for sag.
• Release the tip of the guide bar and turn the
chain adjustment screw 1/2 turn clockwise.
Repeat this process until sag does not exist.
• Hold the tip of the guide bar up and tighten the
chain cover lock nuts by turning them with the
wrench.
• The chain is correctly tensioned when there
is no sag on the underside of the guide bar,
the chain is snug, but it can be turned by hand
without binding.
NOTE:
If the chain is too tight, it will not rotate.
Loosen the chain cover lock nuts slightly and turn the
chain adjustment screw 1/4 turn counterclockwise.
Lift the tip of the guide bar up and retighten the chain
cover lock nuts. Ensure that the chain will rotate
without binding.
ADJUSTING THE CHAIN TENSION
• Loosen the chain cover lock nuts with the
supplied wrench. The chain cover lock nuts do
not have to be completely removed in order to
adjust the chain tension.
• Rotate the chain adjustment screw clockwise
to increase the chain tension and rotate
counterclockwise to decrease the chain
tension.
• Once the chain is at the desired tension,
tighten the chain cover lock nuts.
WARNING
Never touch or adjust the chain while the
motor is running. The saw chain is very sharp.
Always wear protective gloves when performing
maintenance on the chain.
NOTE:
During normal saw operation, the
temperature of the chain increases. The drive
links of a correctly tensioned warm chain will hang
approximately 1/16 in. (1,58 mm) out of the bar
groove.
NOTE:
New chains tend to stretch; check the chain
tension frequently and tension as required.
26
1/16 in. (1,58 mm)
MAINTENANCE
10. With the bar nuts slightly loosened,
QUICK REFERENCE OF CHAIN & BAR ASSEMBLY
1. Unscrew the bar nuts from the bar
1. Unscrew the bar nuts from the bar
cover by rotating them counterclockwise
cover by rotating them counterclockwise
with the wrench. Remove the bar cover.
with the wrench. Remove the bar cover.
4. The chainsaw can now be cleaned.
4. The chainsaw can now be cleaned.
Remove dust and oil with a brush or rag.
Remove dust and oil with a brush or rag.
7. Wipe the oil from the rubber block and
7. Wipe the oil from the rubber block and
bar, which helps keep the tension on the
bar, which helps keep the tension on the
chain.
chain.
2. Then loosen the adjustment screw 2
2. Then loosen the adjustment screw 2
or 3 turns.
or 3 turns.
5. Once the chainsaw is clean, replace
5. Once the chainsaw is clean, replace
the bar and chain. Loop the chain over
the bar and chain. Loop the chain over
the sprocket and place the bar against
the sprocket and place the bar against
the alignment groove.
the alignment groove.
8. Replace the bar cover. 9. Tighten the bar cover by rotating the
8. Replace the bar cover.
3. The bar and chain can now be
3. The bar and chain can now be
removed by lifting it away from the main
removed by lifting it away from the main
body of the saw. Remove the chain from
body of the saw. Remove the chain from
the sprocket.
the sprocket.
6. Ensure the adjusting block is located
6. Ensure the adjusting block is located
in the tensioning hole.
in the tensioning hole.
bar nuts clockwise with the wrench. Do
bar nuts clockwise with the wrench. Do
not tighten down the bar nuts all the way.
not tighten down the bar nuts all the way.
Refer to step 10.
Refer to step 10.
the chain tensioning screw clockwise to
the chain tensioning screw clockwise to
tighten the chain. Once chain is properly
tighten the chain. Once chain is properly
tensioned, fully tighten the bar nuts.
tensioned, fully tighten the bar nuts.
NOTE: 1. Chains stretch with use, chec k and tension often. 2. Never tension a warm chain before storing, as
chains shrink when cool, this can damage chain bar and saw.
11. There should be enough play that the
turn
11. There should be enough play that the
chain can be pulled away from the bar,
chain can be pulled away from the bar,
but not enough where the runners can
but not enough where the runners can
be pulled out of the bar.
be pulled out of the bar.
27
12. When the chain is properly adjusted,
12. When the chain is properly adjusted,
tighten the bar nuts all the way.
tighten the bar nuts all the way.
MAINTENANCE
CHAIN MAINTENANCE
Use only a low-kickback chain on this saw. This fast-cutting chain provides kickback reduction
when properly maintained. For smooth and fast cutting, maintain the chain properly. The chain
requires sharpening when the wood chips are small and powdery, the chain must be forced through
the wood during cutting, or the chain cuts to one side. During maintenance of the chain, consider
the following:
• Improper ling angle of the side plate can increase the risk of severe kickback
• Raker (depth gauge) clearance.
• Too low increases the potential for kickback.
• Not low enough decreases cutting ability.
• If the cutter teeth hit hard objects such as nails or stones, or are abraded by mud or sand on
the wood, have an authorized service center sharpen the chain.
Raker (Depth Gauge) Clearance
1/32 in. (0.6 mm)
NOTE:
• Inspect the drive sprocket for wear or damage when replacing the chain. If signs of wear
or damage are present in the areas indicated, have the drive sprocket replaced by an
authorized service center.
• If you do not fully understand the correct procedure for sharpening the chain after reading
the instructions that follow, have the saw chain sharpened by an authorized service center or
replace with a recommended low-kickback chain.
28
MAINTENANCE
SHARPENING THE CUTTERS
• Be careful to le all cutters to the specied angles and to the same length, as fast cutting
can be obtained only when all cutters are uniform.
• Tension the chain prior to sharpening.
• Use a 5/32 in. (4 mm) diameter round le and holder. Do all of your ling at the midpoint of
• the bar.
• Keep the le level with a top plate of the tooth. Do not let the le dip or rock.
• Using light but rm pressure. Stroke towards the front corner of the tooth.
• Lift the le away from the steel on each return stroke.
• Put a few rm strokes on every tooth. File all left hand cutters in one direction. Then move
to the other side and le the right hand cutters in the opposite direction.
• Remove lings from the le with a wire brush.
Parts Of A Cutter
Top Place
Rivet Hole
Heel
Gullet
WARNING
• Make sure the battery is removed from the chain saw before you work on the saw.
• The saw chain is very sharp. Always wear protective gloves when performing maintenance
to the chain to prevent serious personal injury.
• A dull or improperly sharpened chain can cause excessive motor speed during cutting,
which may result in severe motor damage.
Cutting Corner
Side Plate
Depth Gauge
Toe
Left hand
Cutters
Right hand
Cutters
29
MAINTENANCE
TOP PLATE FILING ANGLE
• CORRECT 30° – le holders are marked with guide marks to align le properly to produce
correct top plate angle.
• LESS THAN 30° – for cross cutting.
• MORE THAN 30° – feathered edge dulls quickly.
Top Place Filling Angle
Side Plate Filling Angle
Correct
Hook
Incorrect
Backward Slope
Incorrect
Raker (Depth Gauge) Clearance
1/32”
(0.6 mm)
SIDE PLATE ANGLE
• Correct 80° – Produced automatically if you use the correct diameter le in the le holder.
• Hook – “Grabs” and dulls quickly; increases the potential of kickback. Results from using a
le with a diameter too small or a le held too low.
• Backward Slope – Needs too much feed pressure; causes excessive wear to the bar and
chain. Results from using a le with a diameter too large or le held too high.
30
MAINTENANCE
SIDE PLATE ANGLE
• Maintain the depth gauge at a clearance of 1/32 in. (0.6 mm). Use a depth gauge tool for
checking the depth gauge clearances.
• Every time the chain is led, check the depth gauge clearance.
• Use a at le and a depth gauge jointer to lower all gauges uniformly. Use a 1/32 in.
• (0.6 mm) depth gauge jointer. After lowering each depth gauge, restore original shape by
rounding the front. Be careful not to damage adjoining drive links with the edge of the le.
• Depth gauges must be adjusted with the at le in the same direction the adjoining cutter
was led with the round le.
• Use care not to contact cutter face with at le when adjusting depth gauges.
Depth Gauge Jointer
Restore
Original
shape by
Rounding
the front
Flat file

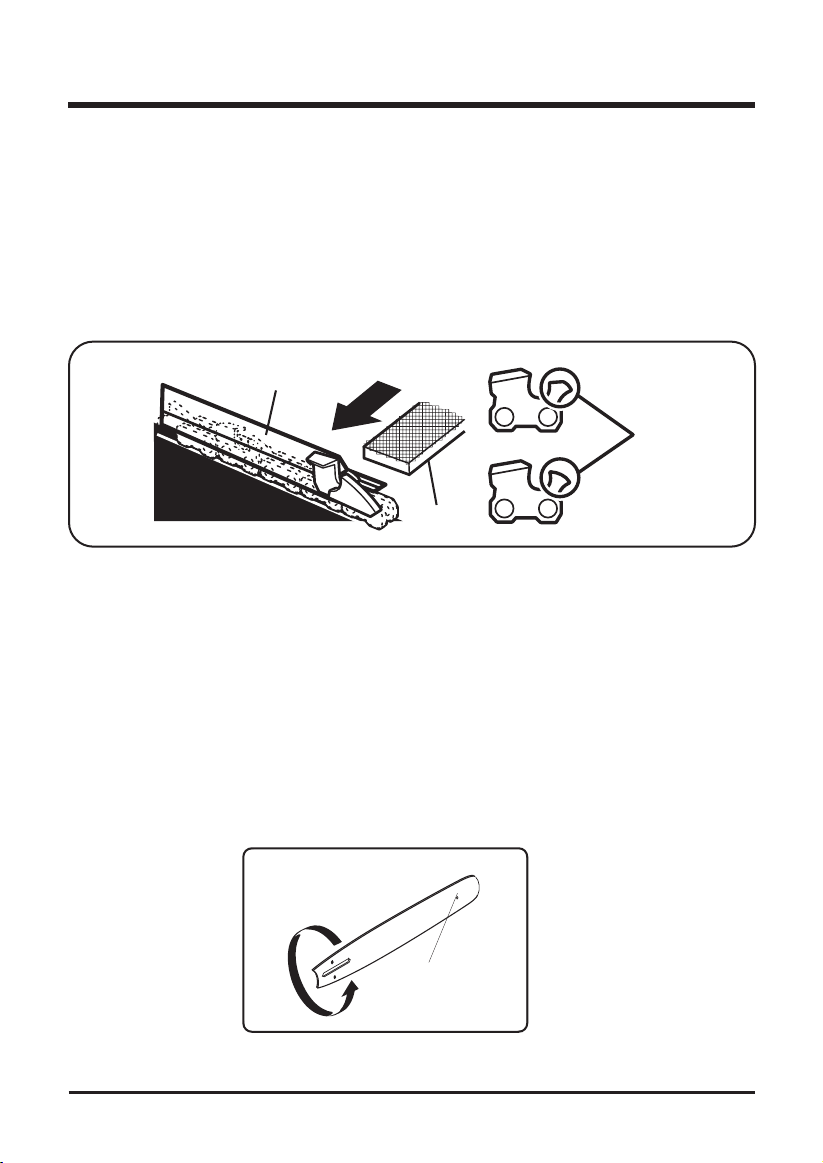

MAINTAINING THE GUIDE BAR
Every week of use, reverse the guide bar on the saw to distribute the wear for maximum bar life.
The bar should be cleaned every day of use and checked for wear and damage. Feathering or
burring of the bar rails is a normal process of bar wear. Such faults should be smoothed with a le
as soon as they occur. A bar with any of the following faults should be replaced:
• Wear inside the bar rails that permits the chain to lay over sideways
• Bent guide bar
• Cracked or broken rails
• Spread rails
Lubricate guide bars weekly with a sprocket at their tip. Using a grease syringe, lubricate weekly in
the lubricating hole. Turn the guide bar and check that the lubrication holes and chain groove are
free from impurities.
Lubricating hole
31
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The batteries used in this chainsaw's battery pack contain the following toxic and corrosive material: LITHIUM-ION.
WARNING
Toxic materials must be disposed of in a specic manner in order to prevent contamination of the
environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your
local waste disposal agency or the local Environmental Protection Agency for information and
specic instructions. Take the batteries to a local recycling and/or disposal center that is certied
for disposal. If the battery pack cracks or breaks, whether it leaks or nort, do not recharge it and do
not use it. Dispose of it and replace it with a new battery pack.
DO NOT ATTEMPT TO REPAIR IT!
Follow these instructions and to avoid damage to the environment:
• Cover the battery's terminals with heavy-duty adhesive tape.
• Do not attempt to remove or destroy any of the components of the battery pack.
• Do not attempt to open the battery pack.
• If a leak develops, the electrolytes that are released are corrosive and toxic. Do not get the
solution in the eyes or on the skin, and do not swallow it.
• Do not place batteries in regular household trash.
• DO NOT incinerate batteries.
• DO NOT place batteries where they will become part of any waste landll or municipal solid
waste stream.
• Dispose of batteries at a certied recycling or disposal center.
32
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Bar and saw chain
running hot and
smoking.
Motor runs,
but chain is not
rotating.
Motor runs, chain
rotates but does
not cut.
Chainsaw does not
start.
Check saw chain tension for
overtightened condition.
No oil in the oil tank. Rell oil into the oil tank.
The discharge port is blocked by
debris.
Oil tank is blocked by debris. Clean out the oil tank and rell with clean
Bar and chain oil tank cap is
blocked by debris.
The sprocket or guide wheel is
clogged with debris.
Saw chain tension is too tight. Refer to Saw Chain Tension Guide earlier
Check guide bar and saw chain
assembly.
Check guide bar and saw chain
for damage.
Dull chain. Sharpen or replace the saw chain.
Chain on backwards. Refer to Replacing the Bar and Saw Chain
Chain tension could be
overtightened or too loose.
The chain brake is engaged. Pull the chain brake towards you until the
Tension saw chain.
Refer to the manual to remove the bar and
clean out the debris.
oil.
Clean the debris off the oil cover.
Clean and remove debris from sprocket
and guide wheel.
in this manual.
Refer to Replacing the Bar and Saw Chain
assembly earlier in this manual.
Remove the battery from the unit. Take the
bar cover off, and remove the bar and saw
chain. Clean all debris from the chainsaw.
After all debris is cleared, insert battery and
run the chainsaw. If the sprocket is spinning
your motor is okay. If the sprocket is not
spinning, call customer service.
assembly earlier in this manual.
Refer to Re-tensioning the saw chain in the
manual.
chain brake is disengaged.
No electrical contact between the
chainsaw and battery.
The battery pack is depleted. Charge the battery pack.
The lock-off lever and trigger are
not depressed simultaneously.
The battery and power tool is too
hot or too cold.
To secure the battery, make sure the
latches on the battery compartment snap
into place.
Press down the lock-off lever and hold
it, then depress the trigger to turn on the
chainsaw.
Refer to the battery and charger maintaince
part in the manual.
33
TROUBLESHOOTING
Motor running, but
cutting abnormal.
Motor stops after about 3
seconds.
If the unit cuts off and beeps
during a cut, it went into
protection mode. This protects
the PCB from damage.
Battery is not charged. Charge the battery. Refer to the battery
The saw chain needs lubrication,
and will increase friction if not
properly maintained.
Incorrect battery storage
temperature.
Recharge the battery.
Release the trigger and restart the
chainsaw. Let the chainsaw do the work
and do not force the cut.
and charger manual for correct charging
procedures.
Make sure the chain is always lubricated by
never letting the bar and chain oil run low.
Allow the battery pack to cool until it drops
to room temperature.
34
LIMITED WARRANTY
YEAR/ANS/AN
TOOL WARRANTY
GARANTIE DE
L'OUTIL
GARANTÍA DE LA
HERRAMIENTA
GREENWORKS ELITE hereby warranties this product, to the original purchaser with
of purchase
, for a period of four (4) years against defects in materials, parts or workmanship.
proof
GREENWORKS ELITE, at its own discretion will repair or replace any and all parts found to
be defective, through normal use, free of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not been hired or rented for industrial/
commercial use, and that have been maintained in accordance with the instructions in the
owners’ manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect,
accident, improper maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in accordance with the owner's
manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior nish due to use or exposure.
GREENWORKS ELITE HELPLINE:
Warranty service is available by calling our toll-free helpline at 1-833-493 -5483.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power equipment unit or attachment are the
responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges
for any part submitted for replacement under this warranty unless such return is requested in
writing by GREENWORKS ELITE.
35
EXPLODED VIEW
18A
2A
20A
19A
1A
3A
4A
5A
16A
12A
13A
14A
15A
11A
10A
36
6A
7A
9A
8A
PARTS LIST
NO. NO DE PIÈCE QTÉ DESCRIPTION
1A 311152030 1 KIT, HOSING COVER ASSEMBLY
2A 311072030 1 KIT, OIL TANK ASSEMBLY
3A 311062030 1 KIT, CHAIN BRAKE ASSEMBLY
4A 311092030 1 KIT, AUXILIARY HANDLE
5A 311122030B 1 KIT, BAR
6A 311232030 1 KIT, CHAIN
7A 34114405A 1 KIT, SCABBARD
8A 311142030 1 KIT, SIDE COVER ASSEMBLY
9A 311122030 1 KIT, CHAIN TENSION ASSEMBLY
10A 311112030 1 KIT, BAR BRACKET ASSEMBLY
11A 311132030 1 KIT, SPROCKET ASSEMBLY
12A 311012030 1 KIT, RIGHT HOUSING ASSEMBLY
13A 311022030 1 KIT, SWITCH TRIGGER ASSEMBLY
14A 36300590 1 KIT, SPEED SWITCH
15A 361012024 1 KIT, MOTOR
16A 311002030 1 KIT, LEFT HOUSING ASSEMBLY
17A 311102030
18A 311032030
19A 311042030
20A 311052030
1
1
1
1
KIT, OIL PUMP ASSEMBLY
KIT, MOTOR COVER ASSEMBLY
KIT, BATTERY PACK CASE ASSEMBLY
KIT, PCB
37
Greenworks Tools
P.O. Box 1238
Mooresville, NC 28115
TOLL-FREE HELPLINE: 1-833-493-5483
Rev: 00 (11-03-17)
