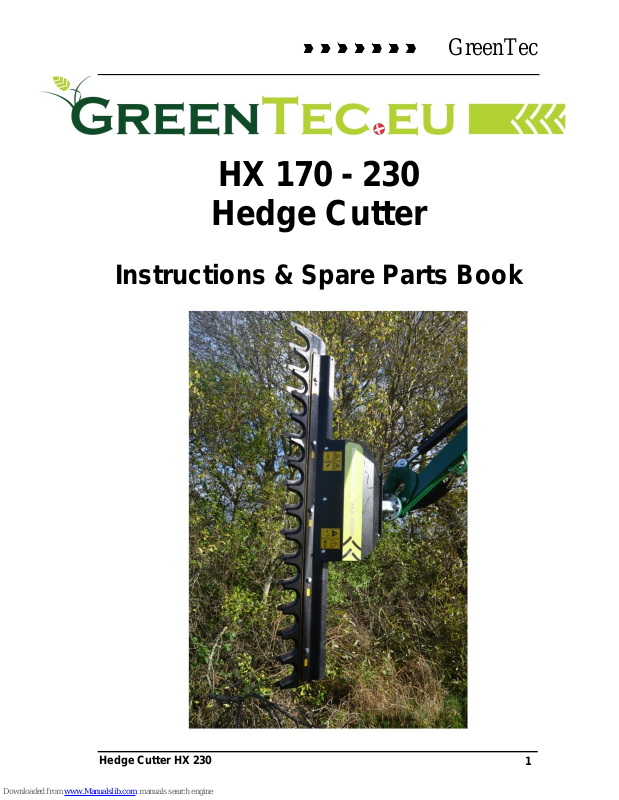

Page 1
GreenTec
Hedge Cutter HX 230
1
HX 170 - 230
Hedge Cutter
Instructions & Spare Parts Book
Page 2
GreenTec
Hedge Cutter HX 230
2
This page is left blank
intentionally
Page 3
GreenTec
Hedge Cutter HX 230
3
Important Information
HX 170 - 230
Manual
1st edition – January 2014
IMPORTANT
The contents of this Manual are based on the applicable information at the time of
publication.
However, as our products are regularly updated, the specifications will be subject
to occasional changes. In case you find information in this Manual that deviates
from the product in question, please contact our ”Aftersale” department for
guidance.
© GreenTec Limited 2014
Ensure that this Manual is seen by the operator prior to his first use of the
machine. It is important that the operator fully understands the contents of
this Manual prior to using the equipment.
(In case of resale, this Manual must follow the equipment!)
GreenTec A/S
Merkurvej 25
DK-6000 Kolding
Denmark
Tel: +45 75553644
Fax: +45 75554243
Email: [email protected]
http: www.greentec.eu
Page 4
GreenTec
Hedge Cutter HX 230
4
Contents
Contents ....................................................................................................................... 4
Introduction .................................................................................................................. 5
Useful Information ....................................................................................................... 6
EC Declaration of Conformity ..................................................................................... 7
Safety ............................................................................................................................ 8
Recommendations ..................................................................................................... 10
Pay attention to the following risks ........................................................................... 10
Do's .......................................................................................................................... 10
Don'ts ....................................................................................................................... 11
Product Description ................................................................................................... 12
Specifications............................................................................................................. 12
Prior to start-up of work ............................................................................................ 13
Setting of Working Posture ....................................................................................... 13
Starting the Tool ....................................................................................................... 13
Stopping the Tool ..................................................................................................... 13
Driving Instructions ................................................................................................... 13
High-Voltage Cables ................................................................................................ 14
Mounting / Dismounting ............................................................................................ 14
Field of Application ................................................................................................... 15
Charts ......................................................................................................................... 16
Maintenance ................................................................................................ ............... 17
Service Check / Re-tightening .................................................................................. 17
Lubrication ................................................................................................................ 17
Hydraulic Hoses ....................................................................................................... 17
Oil Supply ................................................................ ................................ ................. 18
Table: Regular Maintenance .................................................................................... 19
Bolts and Bushings ................................................................................................... 19
Storage ..................................................................................................................... 20
Troubleshooting ......................................................................................................... 21
Noise Measurement ................................................................................................... 21
Supplier Details and CE Marking .............................................................................. 22
Bans - Cautions - Regulations .................................................................................. 22
Dismantling ................................................................................................................ 22
GreenTec Warranty Provisions................................................................................. 23
Spare Parts ................................................................ ................................ ................. 24

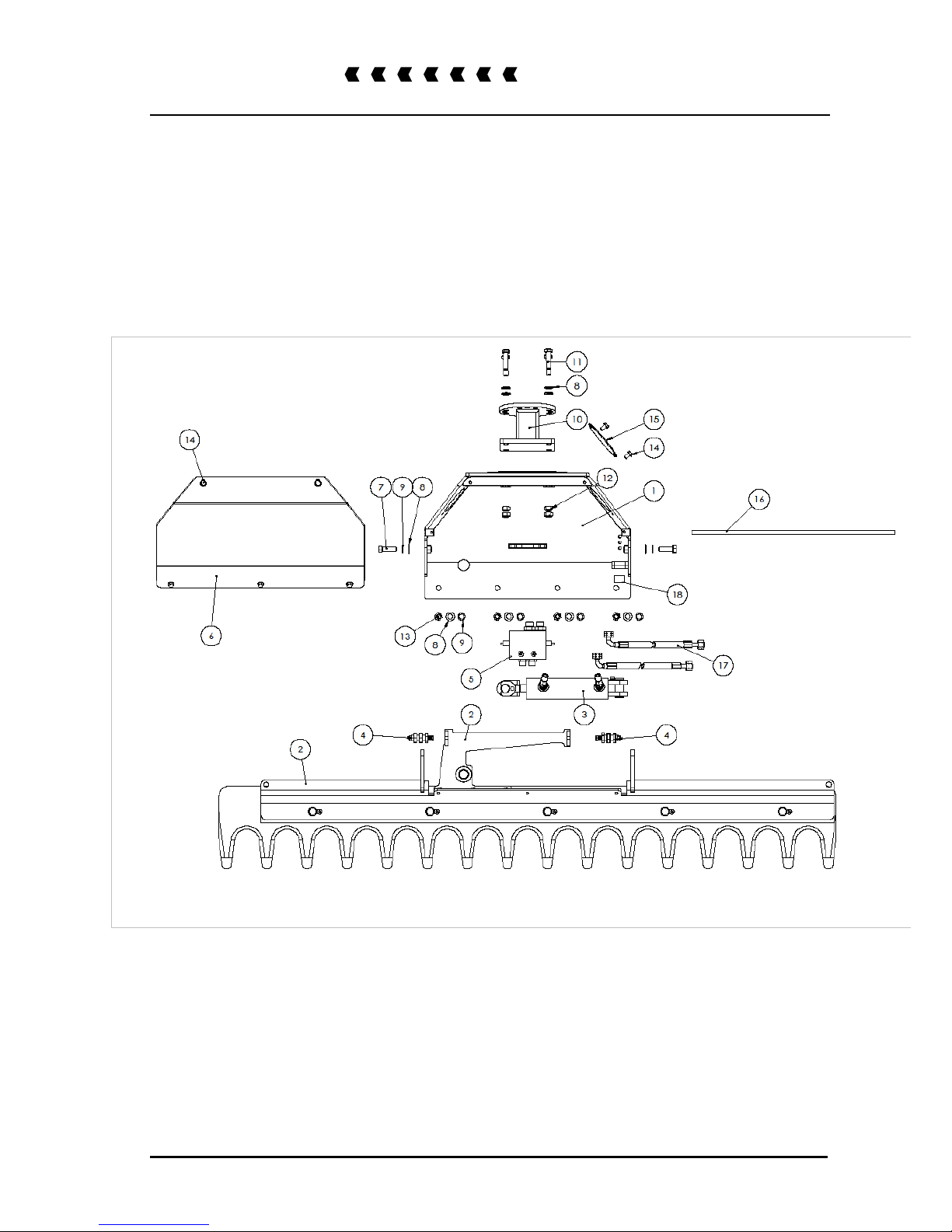

Overview - Main Parts .............................................................................................. 24
Overview - Main Parts .............................................................................................. 25

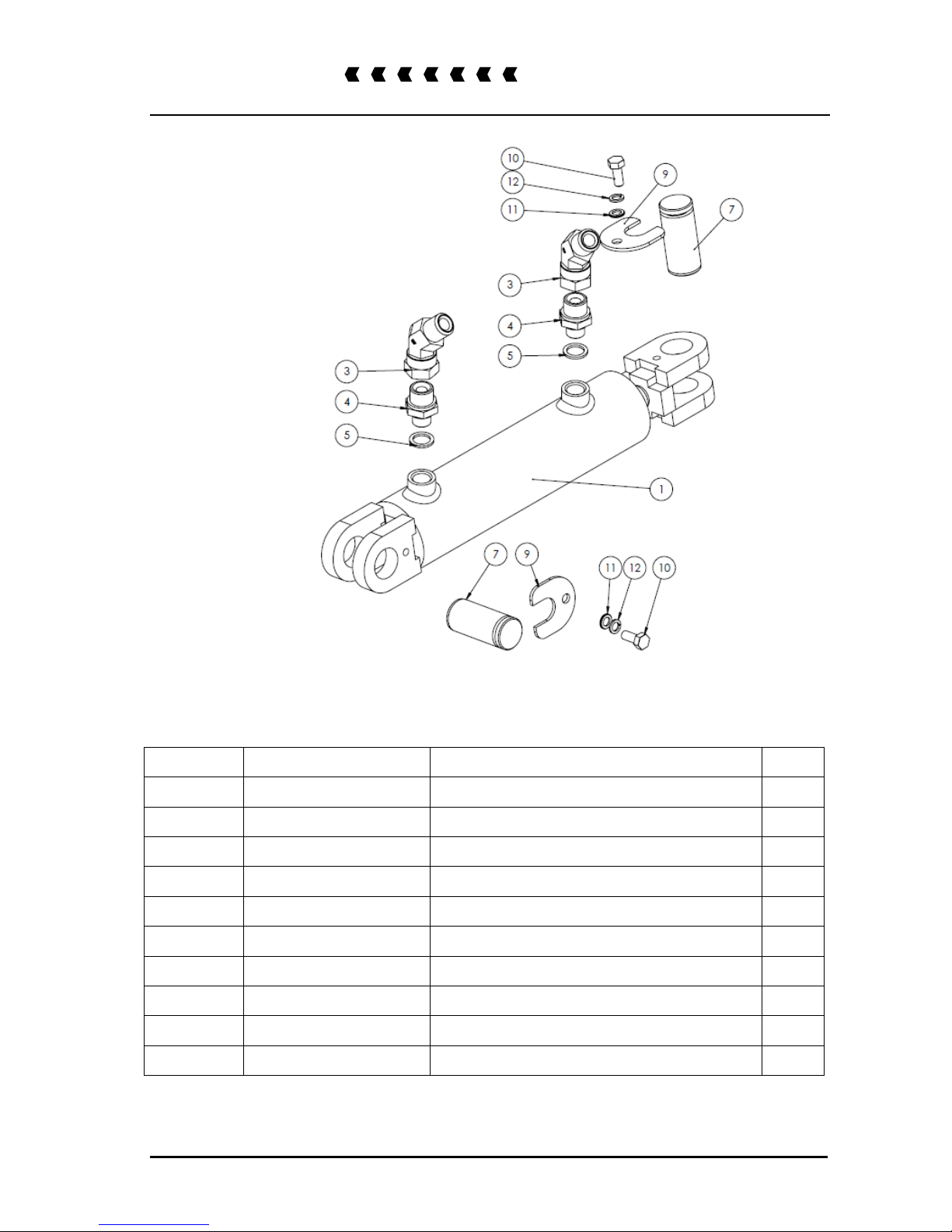

Ram .......................................................................................................................... 26

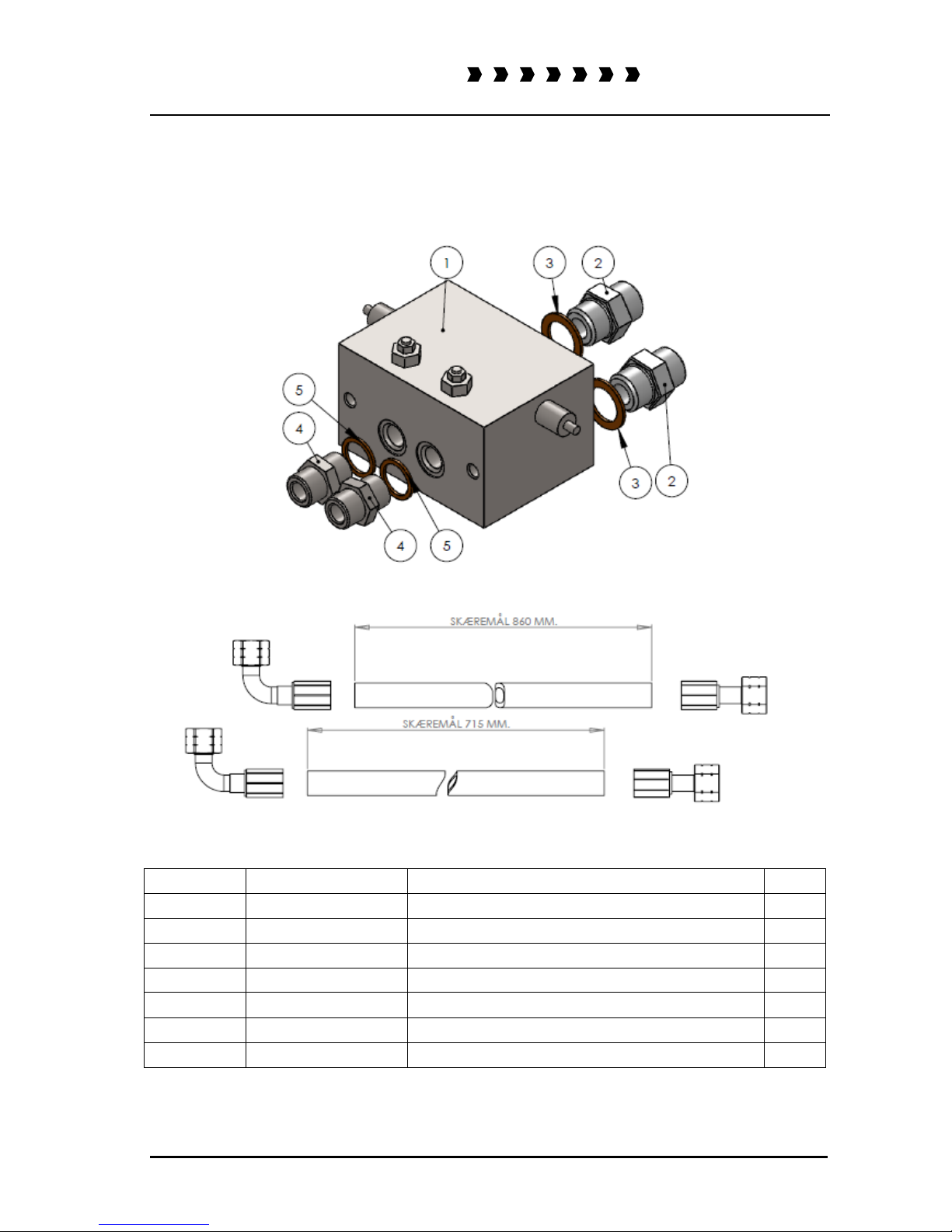

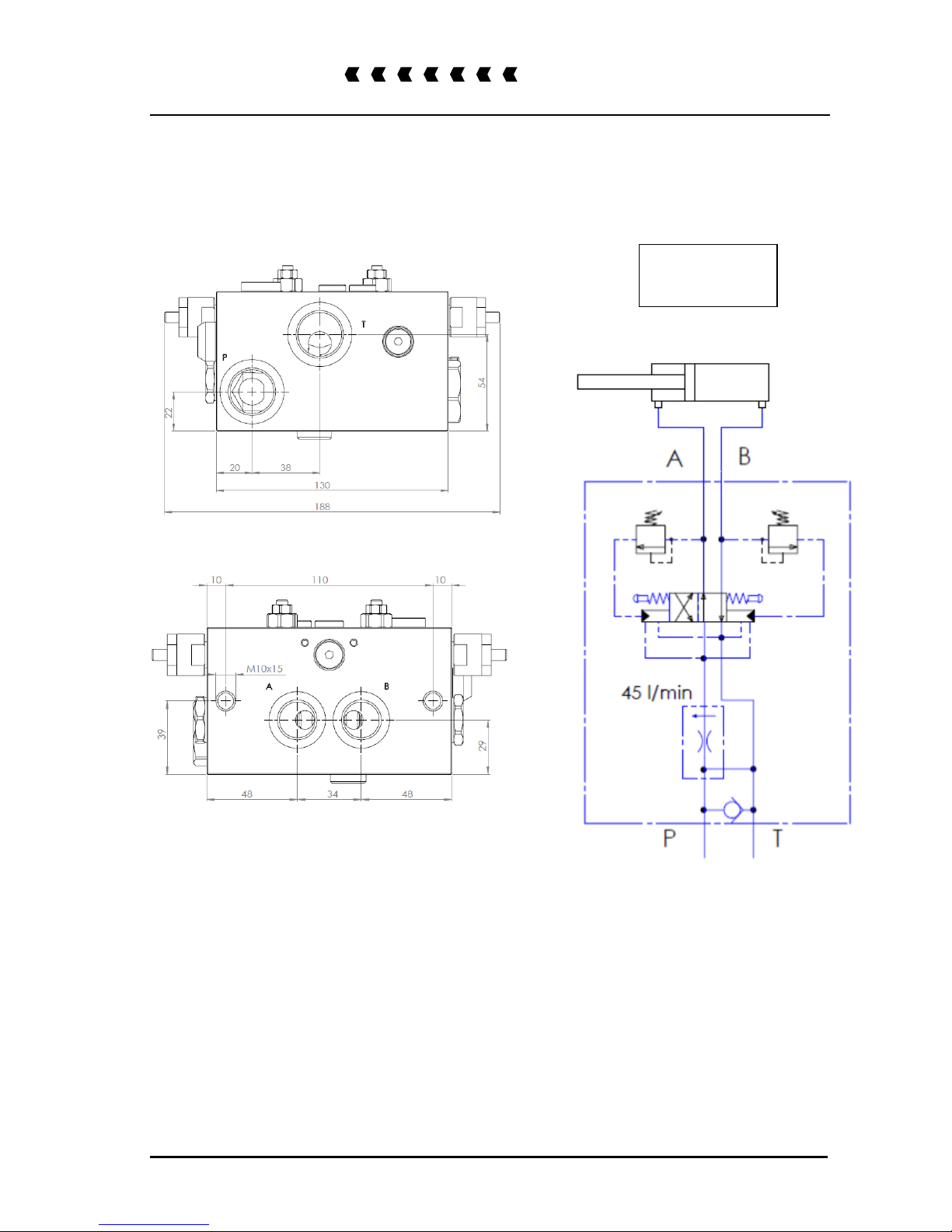

Two-way Valve ......................................................................................................... 27
Cutting knifes, complete ........................................................................................... 28

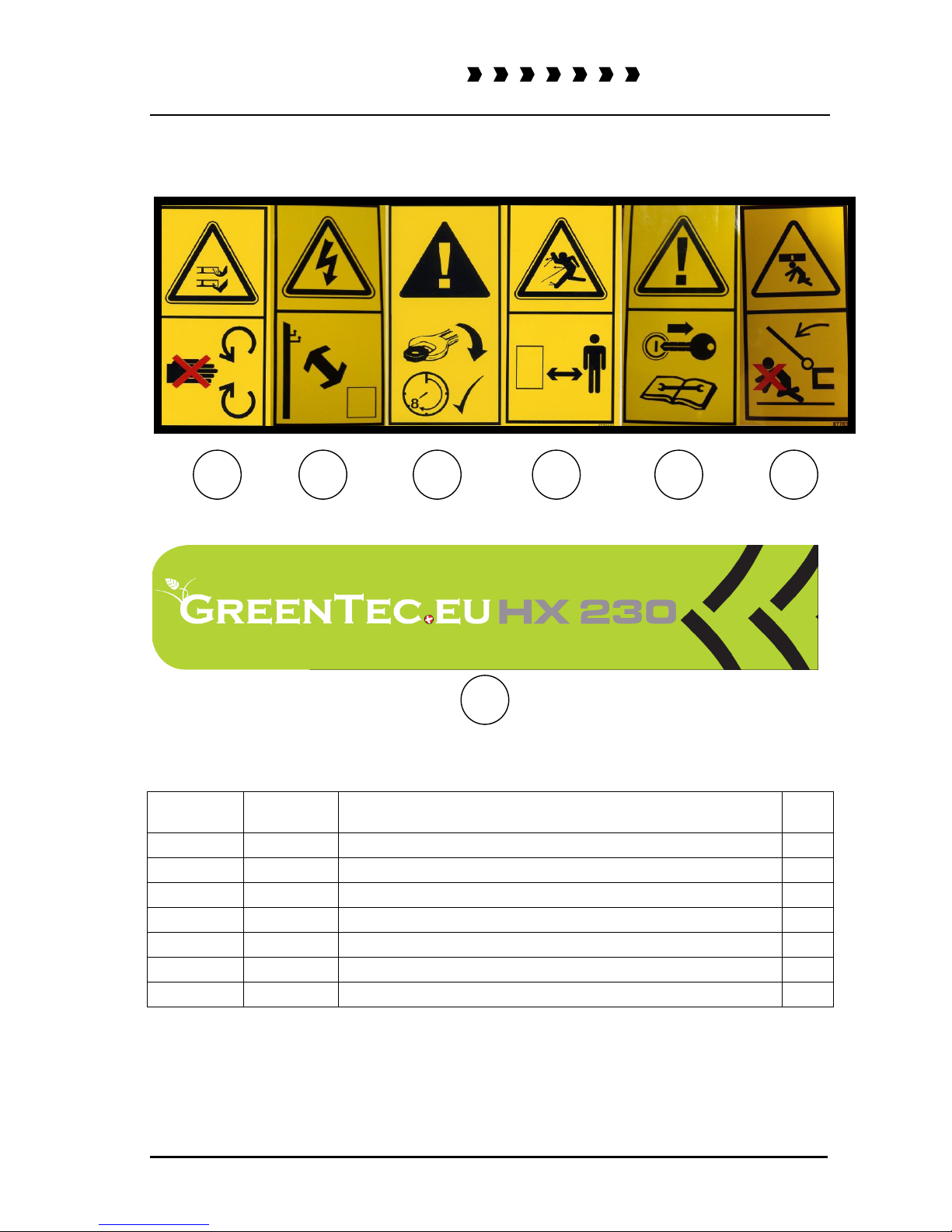

Stickers .................................................................................................................... 29
Page 5
GreenTec
Hedge Cutter HX 230
5
Introduction
Dear Customer!
Your new GreenTec hedge cutter was designed based on more than 20 years of experience with tractor
mounted equipment for the maintenance of green spaces. The hedge cutter was produced using the
newest technology and in accordance with recognized safety provisions, standards and regulations.
Our goal is to provide a product that will not give cause damage, injury or misunderstandings during use,
transport or maintenance.
This User Manual contains information and instructions that are important and useful in order to
preserving the operational reliability and value of your GreenTec hedge cutter. Consequently, you
should carefully read this Manual as it will give you knowledge of its fitting, use, care and maintenance.
Please pay extra attention to the safety instructions.
We invite you to take a look at our website at www.greentec.eu – where you will have access to the
latest instructions and spare parts books updates concerning our entire product portfolio via the vendor
login. The vendor login password is: PUBLISHER
We hope that you will enjoy your new GreenTec machine.
Kind regards,
John Christensen
Sales Director, GreenTec A/S
At GreenTec, our vision is to develop and sell quality machines for the maintenance of green
spaces, at farms, plants, airports, local government locations etc. Using innovative product
development, we aim to become leading within our field.
We use a simple and functional design for all our machines and work closely with vendors and endusers. It is our goal to cover all market segment needs, preferably providing them with two different
solutions. Using in-depth demand analysis and serious guidance, we strive to provide our customers
with the best possible solution that fulfills all individual needs by means of a modular product portfolio.
Furthermore, we aim to offer the best possible after sales service as well as expedient and efficient
spare parts deliveries.
Page 6
GreenTec
Hedge Cutter HX 230
6
Useful Information
In connection with the first use of the machine, the seller must ensure that the buyer
receives this User Manual and that they fully understand its contents before they are is
allowed to proceed. If the machine is resold, this User Manual MUST be handed over
to the new owner.
Please insert the following data. Then you will have the necessary information at hand
when you order spare parts or otherwise contact us.
Serial no.
Date of delivery
Vendor
Tel / fax
GreenTec A/S
Merkurvej 25
DK-6000 Kolding
Denmark
Tel: +45 75553644
Fax: +45 75554243
Email: [email protected]
http: www.greentec.eu
Opening Hours: Mon thru Fri 8:00 am to 4:00 pm
Page 7
GreenTec
Hedge Cutter HX 230
7
EC Declaration of Conformity
adapted EEC Directive
89/392/EEC, 91/368/CEE
The Undesigned, GreenTec A/S, Merkurvej 25, DK-6000
Kolding,
do hereby declare that
Product
Model
Serial no. & Date
Type
that was manufactured by the above-mentioned company
conforms to the relevant guidelines of Directives 89/392/EEC,
98/37/EC and AMD 91/368/EEC, AMD 93/44/EEC, AMD
93/68/EEC and corresponds to European standard BSEN
292, part 1: 1991 Safety of machinery - Terminology,
methodology; part 2: 1991 Safety of machinery -Technical
specifications and other national standards that are
associated with its design and construction as mentioned in
the technical documentation.
On behalf of GreenTec A/S
Signed..................................................................
Title............................................. Date .....................
GreenTec
170 - 230
Page 8
GreenTec
Hedge Cutter HX 230
8
Safety
Caution
Liquids under pressure.
Please refer to the
Technical Manual for
information about service
procedures.
Caution
Flying objects. Keep
a safe distance from
the machine when in
use.
Caution
Keep a safe distance
from the cutter
knives when the
machine is in use.
Never remove safety
guards / guarded
Caution
Stay outside the swivel
range of the tools.
Caution
Turn off the engine and
remove the key before
performing any
maintenance or repair work
on the machine.
Caution
Check that all bolts and
nuts are tightened every 8
hours.
Caution
Read the User Manual prior
to operating the machine.
Follow all instructions and
safety provisions when using
the machine.
Page 9
GreenTec
Hedge Cutter HX 230
9
This User Manual contains basic references to construction, operation and
maintenance. Thus, this User Manual should be studied by and made available to the
staff prior to start-up.
Never allow the HX 170 - 230 to be operated or maintained by individuals that are not
familiar with this User Manual or the associated risks. The driver is responsible for and
must monitor the staff. Should the staff not be sufficiently trained, such training must
be provided. Furthermore, the driver must ensure that the staff knows and fully
understands the contents of this User Manual.
Maintenance tasks that are not mentioned in this User Manual must be performed by
authorized technicians only.
Failure to observe the safety signs may result in the following risks:
Danger to people near non-secured work areas
Failure of vital machine functions
Failure of designated methods of maintenance or repair
Danger to people in case of mechanical or chemical impact.
Environmental hazards due to hydraulic oil spills
Never work in the vicinity of the machine unless it is completely stopped. The
procedure mentioned in this User Manual to completely halt the machine must be
followed.
Maintenance work with a raised tool is allowed only when appropriate support
elements have been applied. Use appropriate tools and work gloves when replacing
spare parts.
Oil and grease must be discarded properly and responsibly.
Page 10
GreenTec
Hedge Cutter HX 230
10
Recommendations
Pay attention to the following risks
You may get stuck when the machine is coupled or decoupled.
The machine may fall over when the wing/wings is/are raised (not all models).
You may get caught by the rotating shaft from the power take-off. (not all models)
You may get hit or caught by moving parts such as knives, saw blades, driving shaft or
wings.
You may get hit by flying objects or machine parts in case of breakdowns.
The machine may fall over when not in use (not all models).
Sprays of oil under high pressure from damaged screw-joints or hydraulic hoses.
Accidents from collisions with other machines or lost objects on the ground.
Pay attention to the freely swinging knives when the wings are folded up. Crush
hazard! (not all models)
Do's
Ensure that the operator has read this Manual and has been trained in the use of the
machine.
Ensure that all guards are in place and that the tractor's windows are closed.
We recommend using impact-proof guards on the tractor.
Before leaving the driver's cab, ensure that the machine is resting on the ground, that
its hydraulics is not pressurized and that the saw blades / knives have stopped rotating
(not all models).
Check that all guards are correct mounted and that the equipment is free from
damaged or loose parts. Take extra care to ensure that all knives, flails and saw blades
are present and free from cracks or other damage.
Check the work area and remove any cords, poles, large stones or other dangerous
objects prior to starting the work.
Ensure that all warning signs are visible, present, undamaged and legible.
Use ear protection when operating the machine from a non-soundproof cab or with the
cab windows opened.
Ensure that all tractor guards are undamaged and adequately fitted.
Drive at speeds suited for the terrain and any other vehicles or obstacles.
Ensure that the tractor complies with the manufacturer's minimum weight
recommendations - use extra ballast if necessary.
Check that all fittings, connectors and couplings are in good condition.
Follow the manufacturer's instructions for coupling and decoupling the machine to/from
the tractor.
Always use knives that are recommended by the manufacturer and ensure that they
are adequately fitted and undamaged.
Ensure that all hydraulic tubes and hoses are correctly placed in order to avoiding
rubbing, stretching, crushing or bending (not all models).
Check that all knives, flails and saw blades have stopped rotating before folding the
machine to its transport position (not all models).
Disconnect the machine, stop the engine and remove the key before exiting the cab,
notwithstanding the reason for exiting.
Remove remaining plant debris and loose objects from the work area.
Always secure the machine using the provided holders when it is not connected to the
tractor (not all models).
Page 11
GreenTec
Hedge Cutter HX 230
11
Don'ts
Never operate the machine with people standing nearby due to the risk of debris or
stones being thrown out in front of and behind the machine.
Never operate the machine prior to having read and understood this Manual and
familiarized yourself with the maneuvering handles.
Never use a machine that is not properly maintained or which has missing or damaged
guards.
Never allow an inexperienced person to operate the machine without supervision.
Never use or mount the machine on a tractor that does not comply with the
manufacturer's specifications.
Never use the machine if the hydraulic system appears damaged.
Never attempt to locate a hydraulics leak using your hand; use a piece of cardboard
instead.
Never allow children to play on or near the machine.
Never perform maintenance or adjustments without disengaging the hydraulics and
power take-off, lowering the machine to ground, turning off the tractor's engine and
activating the tractor's parking brake.
Never leave the cab without removing the key from the ignition.
Never operate the tractor or the maneuvering handles from any other position but the
driver's seat.
Never stop the engine while the power take-off is engaged.
Never use the machine with missing knives, flails or saw blades.
Never use the machine with string or steel wire caught around a rotor. If so, stop
immediately. (not all models)
Never drive with the wing up as this increases the risk of stones or plant debris being
thrown towards the cab (not all models).
Never attempt to use the machine for any other purpose but the intended purpose.
Never transport the machine with the hydraulics engaged.
Never enter the work area (risk of injury to persons)
Never activate the power take-off with the wings folded (not all models)
Never exceed the specified oil flow.
Page 12
GreenTec
Hedge Cutter HX 230
12
Product Description
The Hedge cutter primarily consists of a non-movable lower knife and a movable upper
knife that both are made from Hardox steel and driven by an hydraulic ram. The
double-effect cylinder is controlled by a reversing valve that is operated over a
suspended bottom adjustment. The suspended bottom adjustments are directly
connected to the ramrod, thereby allowing the smooth rotation of the cutting direction.
The basic tool is mounted using a mounting arm with high pressure hydraulic hoses
The knife guard may be mounted on the Hedge cutter using the extension spring.
Specifications
Hedge cutter for mounting on hydraulically driven Armmowers.
Consists of two Hardox cuttings edges that are hydraulically driven over a flow divider,
two-way valve and hydraulic ram. The cutting edges are operated via external oil
supply from the hydraulically driven vehicle.
The Hedge cutter may be fitted with an adapter to facilitate mounting on various
vehicles.
The hydraulic system is completely covered.
Description
GreenTec HX 170 - 230
Operating width
1700 - 2300 mm
Oil level
45-50 L/min (integrated flow divider)
Operating pressure
Hydraulic Mode
Soft turn control
Weight
190 - 220kg
Steel quality, cutting edge
Hardox
Work output
5 – 100mm branches
Stroke frequency
60 double strokes per minute
Work application
Vertically +/- 450
Page 13
GreenTec
Hedge Cutter HX 230
13
Prior to start-up of work
Setting of Working Posture
Remove any transport protection and swing the arm into working posture.
Start the tool with a low oil flow (low RPMs / low oil flow).
Adjust the HX 170 - 230 to vertical hedge cutting and raise it to the working
posture.
Starting the Tool
Select low engine RPMs
Ensure that the area around the tool is secured.
Warm start – Start the tool.
Cold start – Never start with max. oil flow. Allow the tool to run without too
much load for about 15 min. to heat up the oil.
Slowly increase the amount of oil until the relevant speed has been achieved.
Never attempt to restart a loaded tool. Remove whatever is stuck before
restarting the tool.
Stopping the Tool
Reduce the engine RPM to fast idling. Stop the tool.
Never quickly increase or reduce the amount of oil as this may damage the
hydraulic system in the long term.
Place the tool on the ground when taking a break.
Driving Instructions
We recommend that you drive slowly at first and pay attention to the terrain and
whether the hedge is free from fencing wire, steel poles and other foreign objects.
Adjust the cutting angle to a position approx. 90 degrees relative to the branches. In
case of large branches, adjust the cutting height to the center of the cutting opening.
Never drive too fast to allow clean cutting.
Low speeds = Nice cuts, nothing sticks out.
High speeds = Frayed cuts, twigs sticking out.
Page 14
GreenTec
Hedge Cutter HX 230
14
High-Voltage Cables
Mounting / Dismounting
Turn the arm system to a position next to the HX 170 - 230
Mount the bolts or snap the Quickshift (optional) together
Mount the hydraulic hoses
Lift the tool free
Dismount the knife guard
Test the function Count the strokes (optional) 60 double strokes per minute (45 - 50
L/min.)
Always pay attention to overhead cables. You may
hit the overhead cables between the power poles.
When in doubt - contact the local power plant and
inquire about the safety distance
Page 15
GreenTec
Hedge Cutter HX 230
15
Field of Application
The tool is designed for cutting hedges and branches with a max. diameter of 100mm
without fraying the branches. Branches over 70mm in diameter should be cut
individually.
Vertical cutting is allowed up to a 45 degree angle. Horizontal cutting is possible on
hedges with a max. width of 1m and a branch thickness of max. 40mm. In case of
larger branches, the cutting edges may stop and get stuck in the machine.
Page 16
GreenTec
Hedge Cutter HX 230
16
Charts
Hydraulic
Chart
Page 17
GreenTec
Hedge Cutter HX 230
17
Maintenance
Service Check / Re-tightening
Re-tighten everything after 2 hours of operation. Pay special attention to hydraulics
and cutting edges.
Re-tighten everything after 10 hours of operation.
Re-tighten / check all bolts every 8 hours.
Dismount the hydraulic system protective cover and remove twigs and dirt from the
housing.
Following service, remount all shields, guards and protective plates.

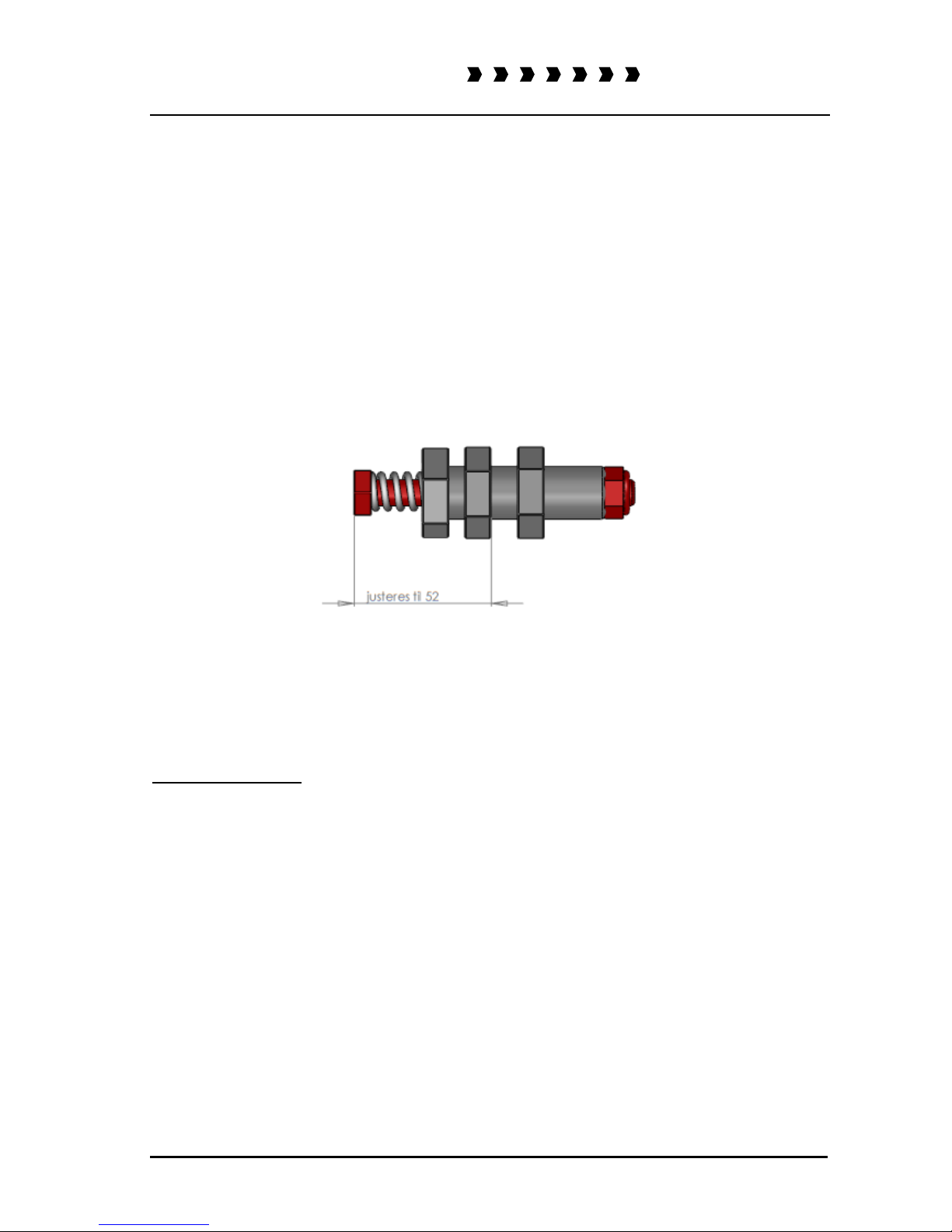

Check the spring stop bolt tension. Adjust to 52 mm. See Illustration 2.
Illustration 2.
Lubrication
Lubricate the machine every 8 operating hours. Use more lubrication when working in
a particularly demanding environment.
Following cleaning:
Lubricate all machine parts and auxiliary equipment each time the machine has been
cleaned.
Hydraulic Hoses
Carefully check the condition of all hoses regularly. Ensure that hoses are not rubbing
against machine edges, bolts or similar.
Check the condition of all hydraulic hoses and fittings daily. Immediately correct any
and all damaged or leaking parts. This is part of the daily maintenance routine and it is
your responsibility to ensure that the machine will have a long service life.
Replace hoses with broken metal bands.
The hydraulic system uses a very high pressure. Always use original hoses. Ruptured
hoses may be lethal.
Page 18
GreenTec
Hedge Cutter HX 230
18

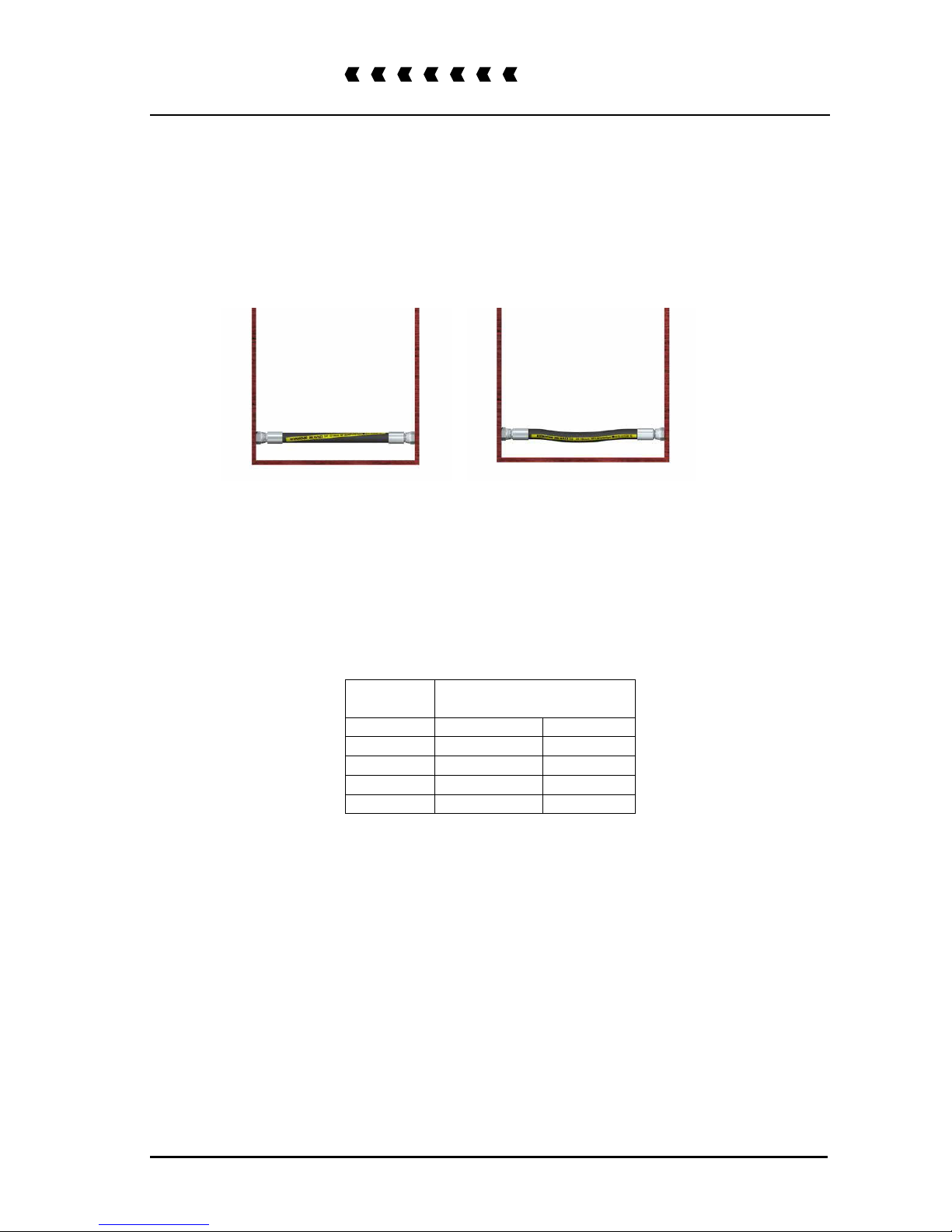

Avoid twisting the fittings when replacing a hose. Use two single-head wrenches to
loosen and tighten hoses etc. Hoses will be impaired if they are twisted during
installation. Pressure pulses in twisted hoses tend to stress the steel net of the hose.
See Illustration 1.
Always ensure that protective hoses are in good condition. It is cheaper to replace a
protective hose than to replace valuable hoses.
Illustration 1.
The warranty on the hoses covers only the replacement of hoses due to defective
materials or manufacturing defects. The warranty does not cover the following:
1. Hoses that are damaged due to rubbing
2. Wear and tear
3. Hoses that have been cut or crushed during operation
4. Damage to threads due to excessive tightening
BSP
(size)
Tightening torque
¼”
24 Nm
18 ibs/ft
⅜”
33 Nm
24 ibs/ft
½”
44 Nm
35 ibs/ft
¾”
84 Nm
62 ibs/ft
1”
115 Nm
85 ibs/ft
Oil Supply
Check the oil level in the tank every day prior to start-up.
It is good practice to constantly check the oil level gauge as a ruptured oil hose may
empty the tank in a few minutes.
A pump or motor that runs out of oil will be damaged beyond repair.
Change the oil if it appears contaminated (discolored).
Oil replenishment precautions:
- Carefully clean the area around the filler neck before removal.
- Use a clean container when refilling the system.
- Check the filter system regularly.
- Never allow the oil level to fall below the liquid indicator.
Page 19
GreenTec
Hedge Cutter HX 230
19
Check daily that the hydraulic connections and fittings are in good condition.
Immediately correct any and all defects or leaks. It is a part of the day-to-day
maintenance that will reduce the expenses and extend the service life of the machine.
Use two single-head wrenches for tightening fittings. Avoid excessive tightening.
Change any and all fittings that keep leaking.
Table: Regular Maintenance
Service
Hours Service Points Grease Drain Check Clean Replace
Bolts and Bushings
All main turning points are fitted with replaceable bushings; change on signs of wear
and tear. All bushing are delivered from GreenTec's spareparts warehouse.
1 – 4
hours
Bolts are fully tightened
X
Valve block seals (change immediately in
case of leakage)
X ( X )
Check for leaking fittings and hoses
X
Grease and tighten Bolts and bushings
X X
Caution!
Never use grease with molybdenum disulfide on nylon
bushings or wear washers
Page 20
GreenTec
Hedge Cutter HX 230
20

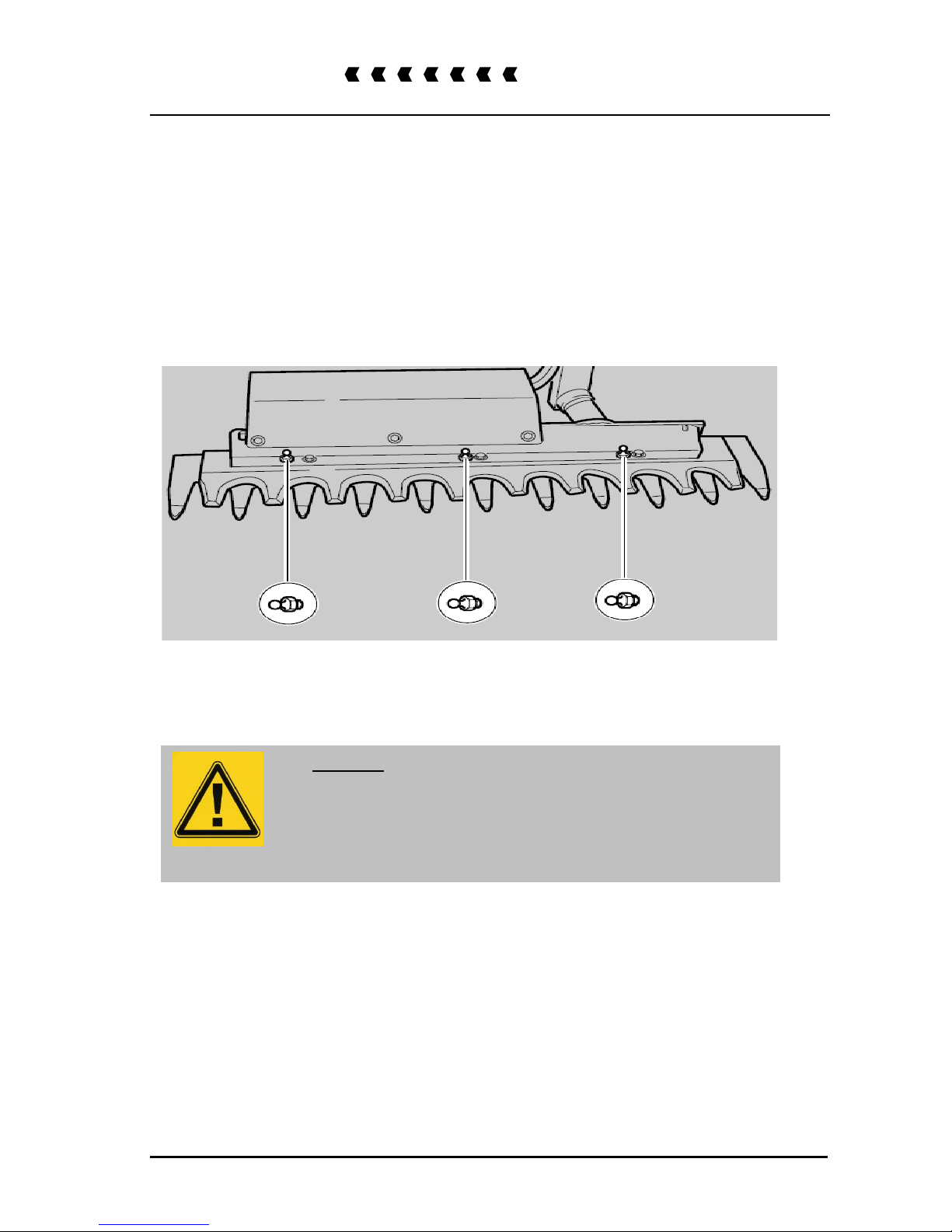

Storage
Carefully clean the machine before placing it in storage. Remove all traces of wood
chips and dirt. Dirt attracts moisture and results in corrosion. Be careful. Never use
high-pressure watercleaner close to the finish. Be very careful with steam cleaning.
Rinse off all cleaning agents to prevent discoloration or damage to the finish. Grease
all greasepoint until fresh grease emerges. The machine must be stored under covers
or indoors to protect it from rain and sunlight. Place the machine on a level surface.
Remember that regular maintenance greatly extends the service
life of the machine.
Caution!
Before attempting to repair, maintain or adjust the
machine, check that the knife has stopped, the ignition key
is removed, the PTO disengaged, the parking brake
engaged and that the head rests safely on the ground.
Page 21
GreenTec
Hedge Cutter HX 230
21
Troubleshooting
Problem
Cause
Solution
Knife is not moving
Too much oilflow
Check the oilflow
Hoses not connected correctly
Switch the hoses
The pump is off
Activate the pump
The knife locks after a
stroke
Hoses not connected correctly
Switch the hoses
Low pump pressure
Consult a specialist shop
Twigs have frayed ends
The knives are worn
Consult a specialist shop
Surface-grinding of knife and
bushings. Consult a specialist
shop
Knife bolts are loose
Tighten the bolts and grease
well
Too high forward speed
Adjust the speed
Knife runs too fast
Too much oilflow
Check the oilflow
Too much oilflow
Mount the flow divider
Overheating
Incorrect tool speed
Test the speed of the tool
Low oil level in tank
Check the oil level
Wrong type of oil
Empty the tank, add correct type
of oil
Clotting near cutting knifes
Remove branch, debris etc.
Noise Measurement
The following noise measurement was performed on the machine under normal
operating conditions at GreenTec A/S using an Elma 1350B decibel meter, ICE 651
type II.
The equivalent A-weighted continuous sound pressure level is less than 85 dB (A).
The above measurements were taken 1 meter from the critical noise emitters of the
equipment and 1.5 meters above the ground.
Page 22
GreenTec
Hedge Cutter HX 230
22
Supplier Details and CE Marking
Company Name : GreenTec A/S
Address : Merkurvej 25
Zip code / Town : DK-6000 Kolding
Country : Denmark
Phone : +45 75 55 36 44
Fax : +45 75 55 42 43
CE Marking
Manufacturer : GreenTec A/S
Phone : +45 75 55 36 44
Fax : +45 75 55 42 43
Machine no. : HX 170-230
Date of delivery :
Year of delivery : 2014
Bans - Cautions - Regulations
Caution!
Always disconnected the cutter hydraulically for all types of maintenance work, repair
work etc.
Caution!
Only authorized staff may perform service on the equipment
Regulation!
Read this Manual thoroughly before operating the machine.
Dismantling
Disconnect all connections.
To ensure optimal eco-friendly discarding, dismantle the machine and sort the parts
into the following categories
Category: Examples of parts:
Rubber or plastic parts Hoses, plastic components, etc.
Technical components Pumps, hydraulic hoses, etc.
Pure metal Steelplates, profile tubes, gearboxes etc.
Discard the various parts according to the applicable national and European provisions
Page 23
GreenTec
Hedge Cutter HX 230
23
GreenTec Warranty Provisions
GreenTec warrants that the GreenTec machine indicated on the Warranty Registration Form
will be free from defective materials and manufacturing defects for 12 months following the
date of sale. This Warranty does not affect your statutory rights; it is merely an addition. Please
contact you GreenTec vendor or GreenTec's Service Department if you encounter problems
within 12 months of the date of sale. During said period, any and all parts found to be defective
will be replaced or repaired, at the discretion of GreenTec, by the vendor or by one of
GreenTec's service technicians.
1. Complete and return the Warranty Registration Form (provided green sheet) within 7 days
of the date of sale.
2. This Warranty does not cover damage resulting from wear and tear, intentional damage,
negligence, misuse, sub-normal working conditions, use in competitions, failure to follow
instructions from GreenTec (oral or written including any and all instructions and
recommendations mentioned in this User Manual) and changes to or repairs on the
machine without the approval of GreenTec.
3. The machine must be maintained according to the User Manual. The service notes must
be up to date and made available to the vendor in case of service, repair or claims under
the Warranty.
4. This Warranty does not cover claims regarding worn parts such as knives, flails, finish,
tires, belts, hydraulic hoses, bearings, bushings or lifting hooks, top links or ball-ends
unless it is a matter of manufacturing or material defects. Furthermore, this Warranty does
not cover the expenses for standard service items such as oil or grease.
5. This Warranty does not cover costs or losses resulting from the machine being inoperative
due to repairs or parts replacement under the Warranty.
6. This Warranty cannot be expanded to cover parts, materials or equipment that are not
manufactured by GreenTec unless the manufacturer in question has provided GreenTec
with a warranty covering such parts, materials or equipment. Claims for damages will be
considered only for original GreenTec replacement parts.
7. Any and all parts replaced under the Warranty will be the property of GreenTec and must
be returned to GreenTec should GreenTec so demand. No one will have the right to
dispose of such parts until after a claim for damages has been accepted and processed by
GreenTec.
8. Under this Warranty, GreenTec is not responsible for repairs that were performed without
the written consent from GreenTec or without GreenTec having had the opportunity to
examine the machine that is the object of the claim. Consequently, the written consent from
GreenTec must be obtained prior to the performance of repairs or replacement of parts.
Using parts that are not manufactured by GreenTec will void this Warranty. Dismounting
components without permission from GreenTec will void this Warranty.
9. All claims for damages must be forwarded to GreenTec using GreenTec's Compensation
Claim Form within 30 days of the performance of the work under the Warranty.
Using the machine requires familiarity with and acceptance of these instructions and the
limitations described in this Manual
Page 24
GreenTec
Hedge Cutter HX 230
24
Spare Parts
Overview - Main Parts
Page 25
GreenTec
Hedge Cutter HX 230
25
Overview - Main Parts
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
8751501
Cylinder box
1
2
Complete cutting knife
See Cutting Knifes, complete
1
3
Complete ram
See Ram
1
4
8752001
Replacement of complete spring
2
5
Complete two-way valve
See Two-way valve
1
6
8751502
Guard
1
7
933160502
Bolt M16x50
2
8
2770454
Facet washer M16
10
9
905016001
Spring washer M16
6
10
87151500
Adapter for Spearhead Twiga
1
11
2770423
Bolt M16x60
4
12
985162
Lock nut M16
4
13
933160302
Bolt M16x30
4
14
200104.0
Bolt M 10x20 Special
7
15
8751503
Cover 1 16
8751504
Rod 1 17
HX 230 hose set
See Two-way valve
1
18
8754001
Ram bush
1
Page 26
GreenTec
Hedge Cutter HX 230
26
Ram
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
8753002
Ram Ø60x150
1
* 2
8753003
Gasket set (not shown)
1
3
22BP08
Angle 900
2
4
02BP0806
Adapter
2
5
PP45-C
Gasket 2 7
8751505
Bolt 2 9
8751506
Nut lock
2
10
931080202
Bolt M8x20
2
11
2770456
Facet washer M8
2
12
127B082
Lock washer M8
2
*= Part not shown / Teil nicht abgebildet
Page 27
GreenTec
Hedge Cutter HX 230
27
Two-way Valve
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
8753001
Valve, complete
1
2
01BP12
Adapter ¾”
2
3
PP45-F
Gasket ¾”
2
4
01BP08
Adapter ½”
2
5
PP45-D
Gasket ½”
2
*
8753004
Pressure switch (side mount)
2
*
8753005
Relief valve (top mount)
2
*= Part not shown / Teil nicht abgebildet
Page 28
GreenTec
Hedge Cutter HX 230
28
Cutting knifes, complete
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
05-07-03-01 ver2
Cutting knife, lower
1
2
05-07-03-02 ver2
Cutting knife, upper
1
3
8751000
Wearing block
5
4
8754002
Slide bar, brass
1
5
Heel arm HX 230
Heel arm
1
6
933160302
Bolt M16x30
3
7
905016001
Spring washer M16
8
8
Ø12x30 tension pin
Tension pin Ø12x30
2
9
Support rail HX 230
Support rail
1
10
933160502
Bolt M16x50
5
11
2770454
Facet washer M16
5
12
2770467
Grease-point
5
13
8754001
Bush
1
Page 29
GreenTec
Hedge Cutter HX 230
29
Stickers
1 2 3 4 5 6
7
ITEM NO.
PART NO.
DESCRIPTION
QTY
. 1 8770361
Beware of rotating parts
1 2 8770359
Beware of electrical wires
1
3
8770306
Tighten every 8 hours
1 4 8770357
Keep a safe distance
1 5 8770358
Read the Instructions / Spare Parts Book
1 6 8770368
Beware of crush hazard
1 7 8758001
Transfer set HX-230 (incl. pos. 1, 2, 3 , 4 , 5 , 6 & 7)
1
Loading...
