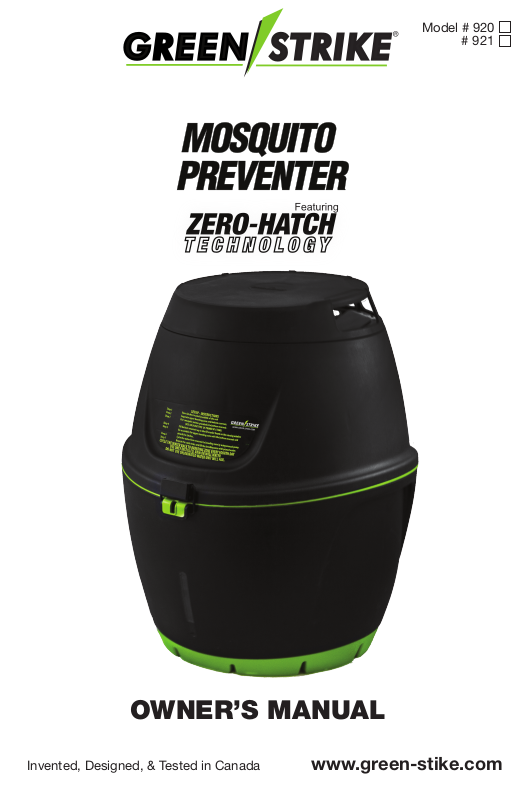

Green-Strike B2397713 User Manual

Model # 920

# 921

OWNER’S MANUAL

Invented, Designed, & Tested in Canada www.green-stike.com

SAFETY INFORMATION:

• This owner’s manual contains important information necessary for the proper
assembly and safe use of this product.

• Read and follow all warnings and instructions before assembling and using
the product.

• Keep this manual for future reference.

WARNINGS:

• AVOID all contact with eyes, ears, nose and mouth. After handling attractants,
throughly wash contacted skin. Keep out of reach of children and animals.
Avoid inhaling or ingesting.

• For outdoor use only! Do NOT use indoors!

• Store all attractants in a cool, dry place away from any source of intense heat
or moisture. Dispose of attractants in a trash receptacle.

• Do NOT empty water from Breeding-Zone in wet areas around your yard.

NOTICE TO USER:

This mosquito control device is intended to trap mosquito eggs and help to
reduce the overall mosquito population. Maxtech Mosquito Control Inc. does not
guarantee a complete elimination of mosquito populations in your area.

This is a pest control solution and is to be used only in accordance with the
directions on the label. The user assumes the risk to persons or property that
may arise from such use of this product.

Be diligent. Watch the news. Stay updated on potential mosquito diseases in
your area. Never use multiple attractants in the same unit.

Visit www.green-strike.com, follow us on Facebook, Twitter & Instagram for
frequent updates on mosquito born diseases that are potentially in your area.

WARRANTY:

warranties to the original purchaser that this product is free from
defective materials and workmanship. This warranty is limited to remedy any
defective part for a period of one year from the date of the original purchase.
Retain your original receipt as proof of purchase. This warranty does not apply
to electrical components, nor to, in our judgment, misuse or abuse. If this unit
has been altered, no warranty is in force. In no case shall be liable
for any accidental, punitive, consequential or any other damages of any kind
for breach of this or any other warranty, expressed or implied.

Register your warranty online through www.green-strike.com/register.

173 Roger Street
Waterloo, Ontario N2J 1B1
Toll Free: 1-800-265-8847 ©2018

ABOUT YOUR MOSQUITO PREVENTER

Now that you have purchased a Mosquito Preventer, you are on
your way to preventing mosquitoes in your outdoor living areas. Just a reminder
that the Mosquito Preventer works great at reducing “second generation”
mosquitoes that otherwise would be multiplying in your backyard.

Please carefully read through this manual to understand how to use and
maintain this device.

INCLUDED IN BOX:TABLE OF CONTENTS:

How To Setup Your Preventer pg 3,4,5
How To Maintain Your Preventer pg 6
Monthly Maintenance pg 7
Where To Place The Preventer pg 8
NOTE pg 9

Breeding-Zone

Pump Landing Strips

1x Bottom Reservoir
1x Breeding-Zone
1x Reactor
2x Landing Strips

Drain Handle

Instructions

Latch

Water Level Indicator

Landing Strips

Bottom Reservoir

Reactor With

Attractant

HOW TO SETUP YOUR MOSQUITO PREVENTER FOR THE FIRST TIME

Step 1: Open the box & remove
product from packaging.

Step 2: Separate the Breeding-Zone
from the Bottom Reservoir.

Step 3: Peel along the dotted line on the
Landing Strip’s packaging. Remove
out the TWO Landing Strips from
their plastic packaging. Gently peel
off the Glue Protection plastic.
Ensure that the Glue Protection
side of the strips are facing down.
Align the slots of the Landing
Strips up with the Tabs on the
Mosquito Preventer. Gently
press down on the area of the
Landing Strips that has the glue.
Fold the landing area of the
strips downward along the edge
of the Tank.

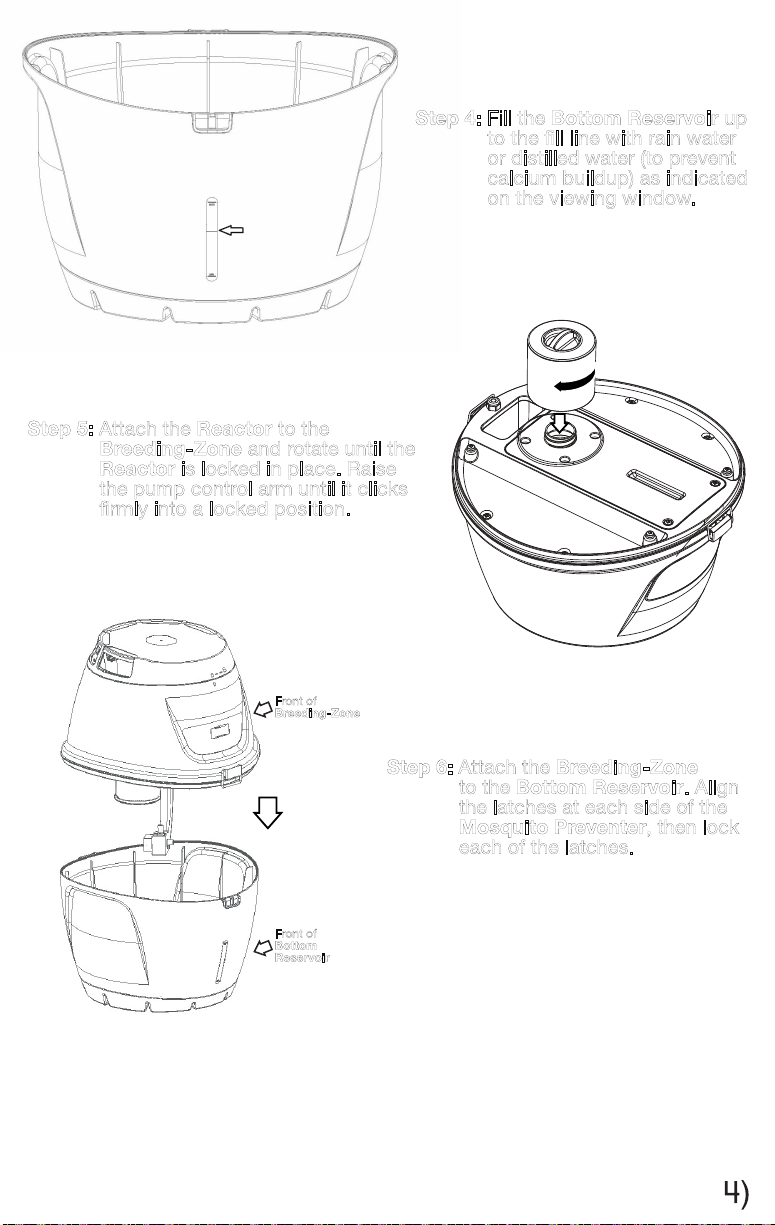

Step 5: Attach the Reactor to the
Breeding-Zone and rotate until the
Reactor is locked in place. Raise
the pump control arm until it clicks
rmly into a locked position.

Step 4: Fill the Bottom Reservoir up
to the ll line with rain water
or distilled water (to prevent
calcium buildup) as indicated
on the viewing window.

Front of

Breeding-Zone

Front of

Bottom
Reservoir

Step 6: Attach the Breeding-Zone

to the Bottom Reservoir. Align
the latches at each side of the
Mosquito Preventer, then lock
each of the latches.

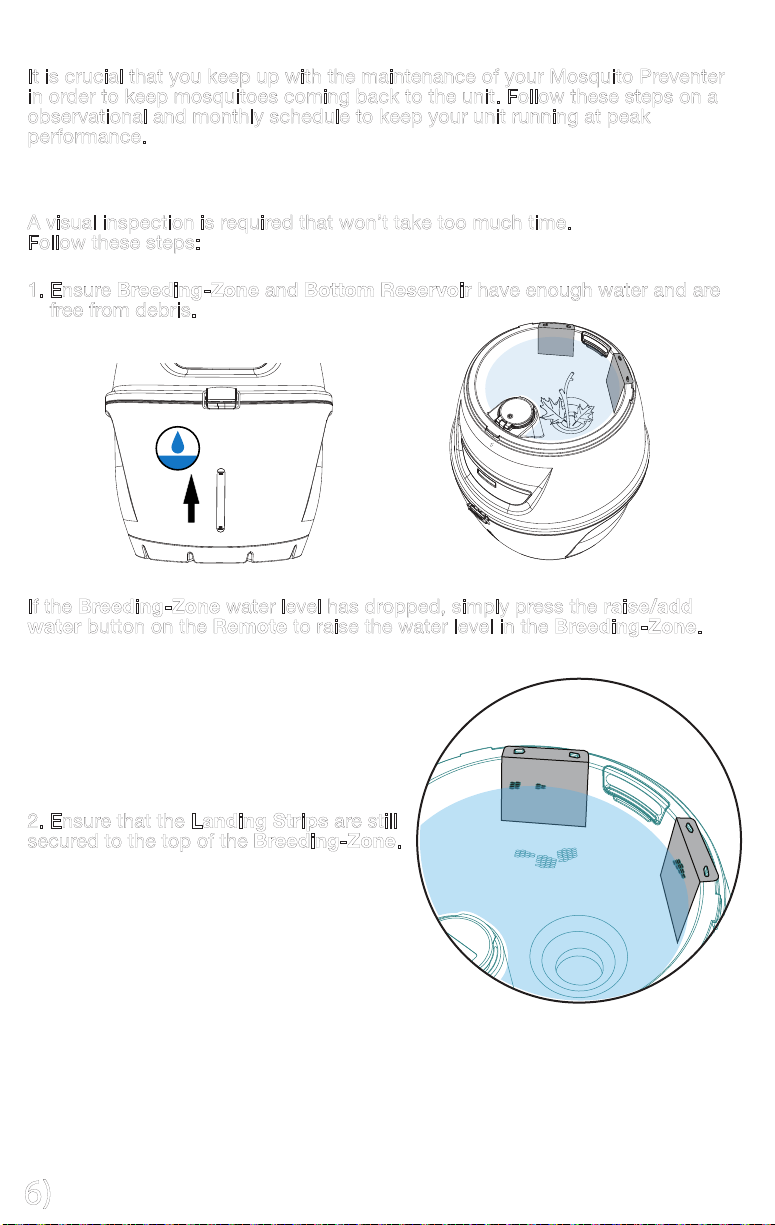

HOW TO MAINTAIN YOUR MOSQUITO PREVENTER

It is crucial that you keep up with the maintenance of your Mosquito Preventer
in order to keep mosquitoes coming back to the unit. Follow these steps on a
observational and monthly schedule to keep your unit running at peak
performance.

OBSERVATIONAL MAINTENANCE

A visual inspection is required that won’t take too much time.
Follow these steps:

1. Ensure Breeding-Zone and Bottom Reservoir have enough water and are
free from debris.

If the Breeding-Zone water level has dropped, simply press the raise/add
water button on the Remote to raise the water level in the Breeding-Zone.

2. Ensure that the Landing Strips are still
secured to the top of the Breeding-Zone.

6)

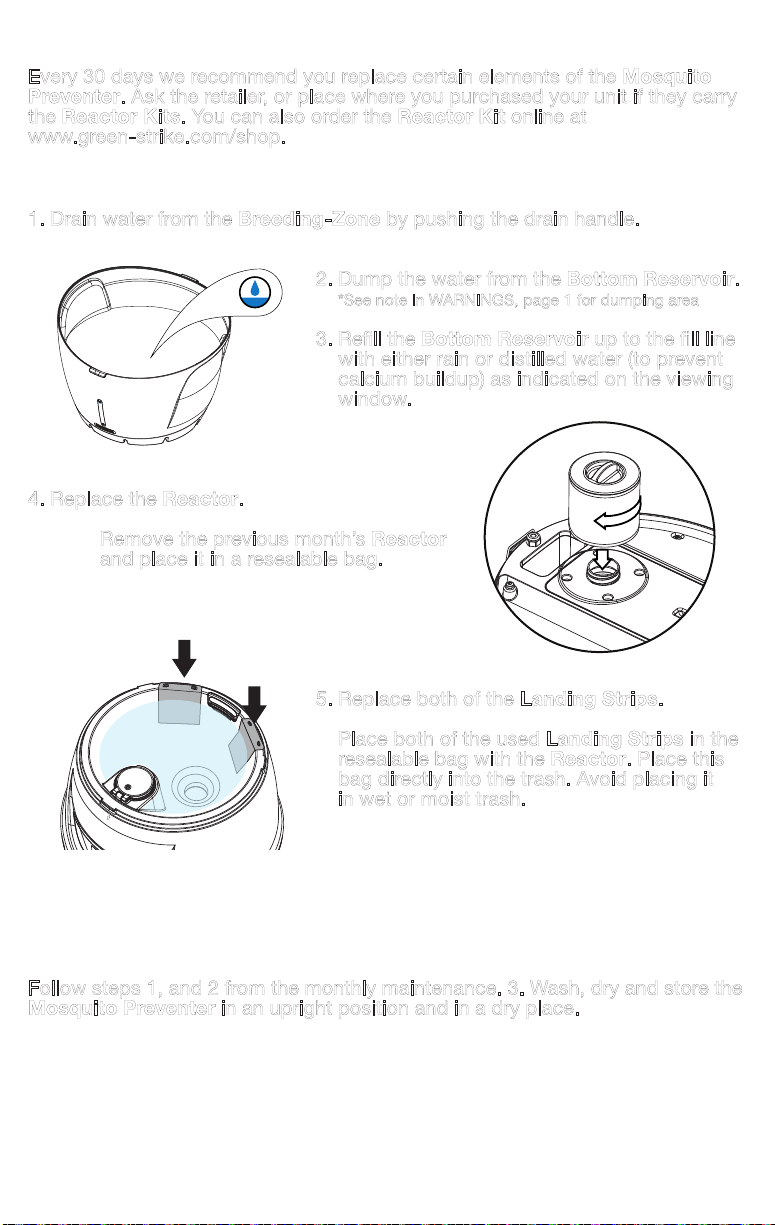

MONTHLY MAINTENANCE (EVERY 30 DAYS)

Every 30 days we recommend you replace certain elements of the Mosquito
Preventer. Ask the retailer, or place where you purchased your unit if they carry

the Reactor Kits. You can also order the Reactor Kit online at
www.green-strike.com/shop.

Follow these steps:

1. Drain water from the Breeding-Zone by pushing the drain handle.

2. Dump the water from the Bottom Reservoir.
*See note in WARNINGS, page 1 for dumping area

3. Rell the Bottom Reservoir up to the ll line
with either rain or distilled water (to prevent
calcium buildup) as indicated on the viewing
window.

4. Replace the Reactor.

Remove the previous month’s Reactor
and place it in a resealable bag.

5. Replace both of the Landing Strips.

Place both of the used Landing Strips in the
resealable bag with the Reactor. Place this
bag directly into the trash. Avoid placing it
in wet or moist trash.

END OF SEASON MAINTENANCE

Follow steps 1, and 2 from the monthly maintenance. 3. Wash, dry and store the
Mosquito Preventer in an upright position and in a dry place.

7)

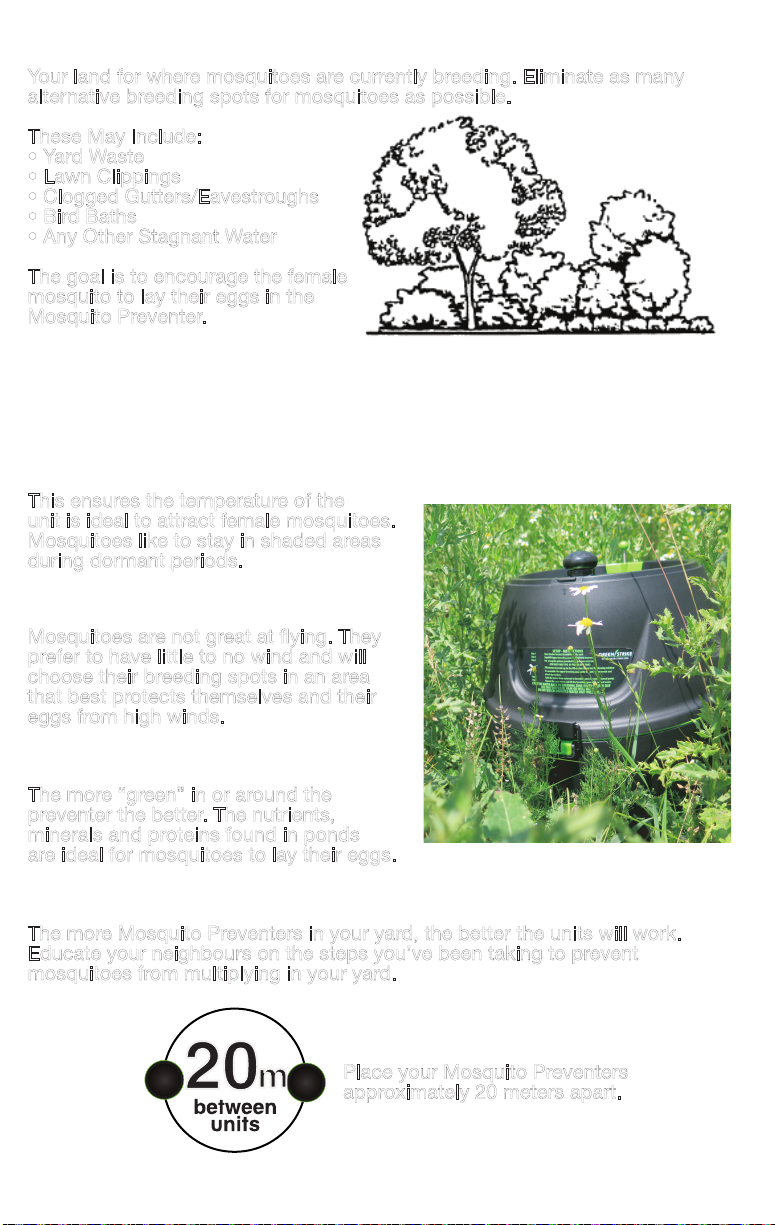

WHERE TO PLACE THE MOSQUITO PREVENTER

Your land for where mosquitoes are currently breeding. Eliminate as many
alternative breeding spots for mosquitoes as possible.

These May Include:

• Yard Waste

• Lawn Clippings

• Clogged Gutters/Eavestroughs

• Bird Baths

• Any Other Stagnant Water

The goal is to encourage the female
mosquito to lay their eggs in the
Mosquito Preventer.

TRY TO PLACE THE MOSQUITO PREVENTER IN A SPOT THAT MEETS AS
MUCH OF THE BELOW CRITERIA AS POSSIBLE:

1) ALL DAY SHADE

This ensures the temperature of the
unit is ideal to attract female mosquitoes.
Mosquitoes like to stay in shaded areas
during dormant periods.

2) PROTECTION FROM WIND

Mosquitoes are not great at ying. They
prefer to have little to no wind and will
choose their breeding spots in an area
that best protects themselves and their
eggs from high winds.

3) LOTS OF VEGETATION

The more “green” in or around the
preventer the better. The nutrients,
minerals and proteins found in ponds
are ideal for mosquitoes to lay their eggs.

If you have two (2) Mosquito Preventers:

The more Mosquito Preventers in your yard, the better the units will work.
Educate your neighbours on the steps you’ve been taking to prevent
mosquitoes from multiplying in your yard.

Place your Mosquito Preventers
approximately 20 meters apart.

8)

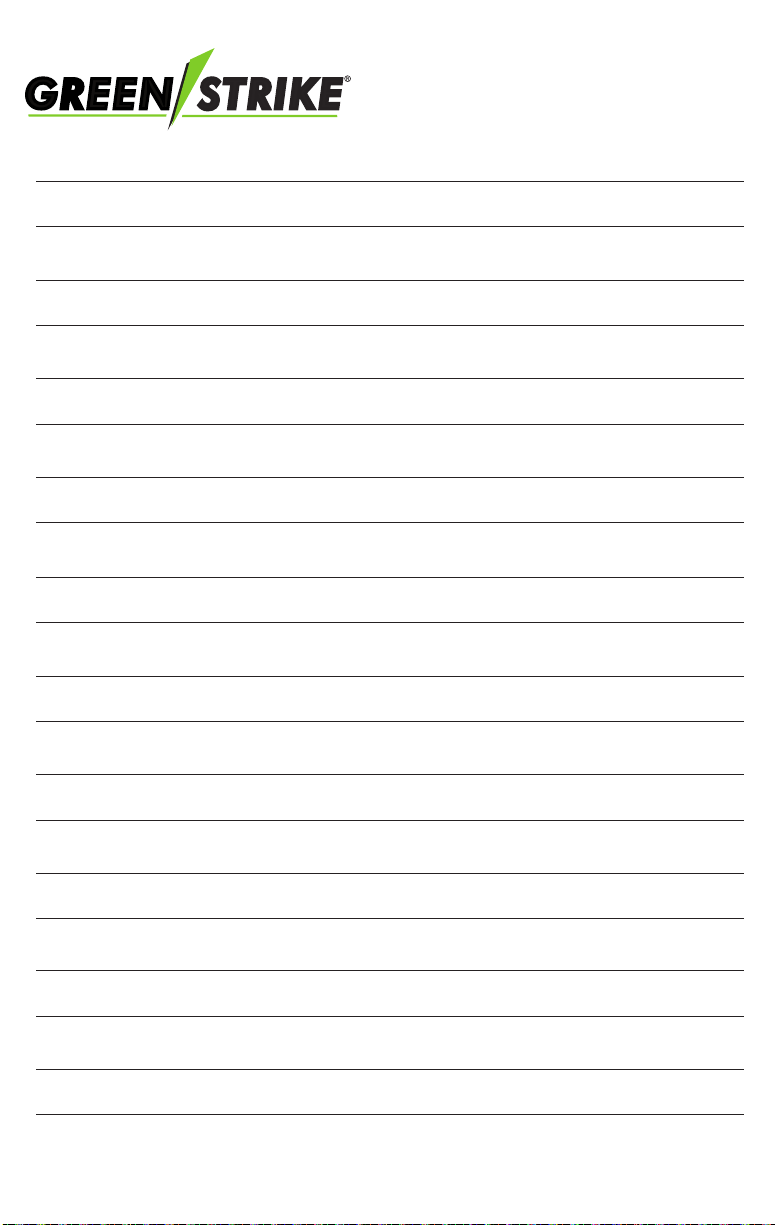

NOTES

Step 7: Cycle the primed water from Bottom Reservoir to the Breeding-Zone using

the manual pump. Push the drain handle to ush the solution into the
Bottom Reservoir from the Breeding-Zone. Repeat the process twice and
ll the Breeding-Zone to the marked level.

Drain Handle

Pump

Instructions

Step 8: Primed water MUST be cycled through the system once a week.

5)

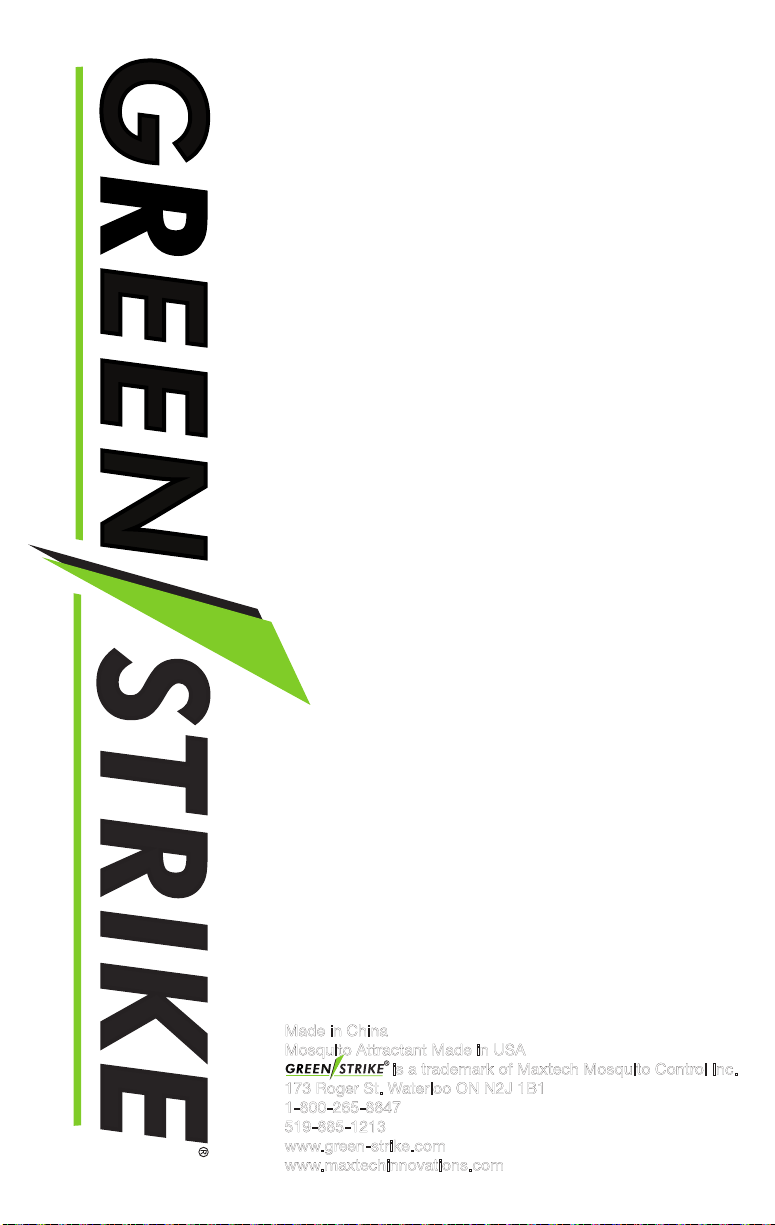

Made in China
Mosquito Attractant Made in USA
is a trademark of Maxtech Mosquito Control Inc.
173 Roger St. Waterloo ON N2J 1B1
1-800-265-8847
519-885-1213
www.green-strike.com
www.maxtechinnovations.com
