Page 1
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
SOLARIS
INSTRUCTIONS, SPECIFICATIONS, AND INSTALLATION MANUAL
Page 2
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
CONTENTS
Preface and General Specifications 3! !
!!
Technical Specifications 4! !
!!
Medium Distribution Lighting Pattern 6! !
!!
Modules 7! !
!!
Dimensions, Packaging, and Contents 8! !
!!
Installation Guide 9! !
!!
!
!!
Page 3
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
Preface
The Green Star LED Solaris interior lighting systems are a state-of-the-art line of
products that can be configured from 48 LEDs up to 72 LEDs to comply with
even the strictest lighting and energy consumption needs. It is an ideal product
for indoor use in warehouses, storage facilities, covered garages as well as in
any canopy applications such as gas stations and underneath bridges.
General Specifications
Modern and versatile design
• Excellent performance in lighting when installed at heights between 12 and 35
feet, given its use of custom-made G5 lenses
• Use of our patented “zero air gap" construction that allows for high heat
extraction and ensures longer LED and power supply life
The whole luminaire acts as an efficient heat sink
“Cutoff” lighting performance, anti-glare design, fully IESNA compliant
Very high power factor (0.99+) and high efficiency power supply
Long maintenance-free life (60.000+ hours)
Certified by ETL (UL specs), CE, RoHS, NOM, IP65, NEMA, and IESNA
Page 4
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
Technical Specifications
• Advanced heat dissipation technology for better performance, reliability, and
longer life
• Thermally-isolated power supply
• “Zero air gap” technology for better heat extraction from LEDs
• Metal core LED boards
• Modular construction for ease of repairs and maintenance
• LEDs are Philips Lumileds Luxeon ® Rebel ES rated at 60.000+ hours
Page 5
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
• Custom made lens design by LEDIL
• Texas Instruments microprocessors and components
• “Cutoff” rated, which reduces light pollution
• Certified by ETL (UL specs), CE, RoHS, NOM, CSA,
• Complies with IP65, NEMA, IESNA
• Futurist design
Page 6
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com

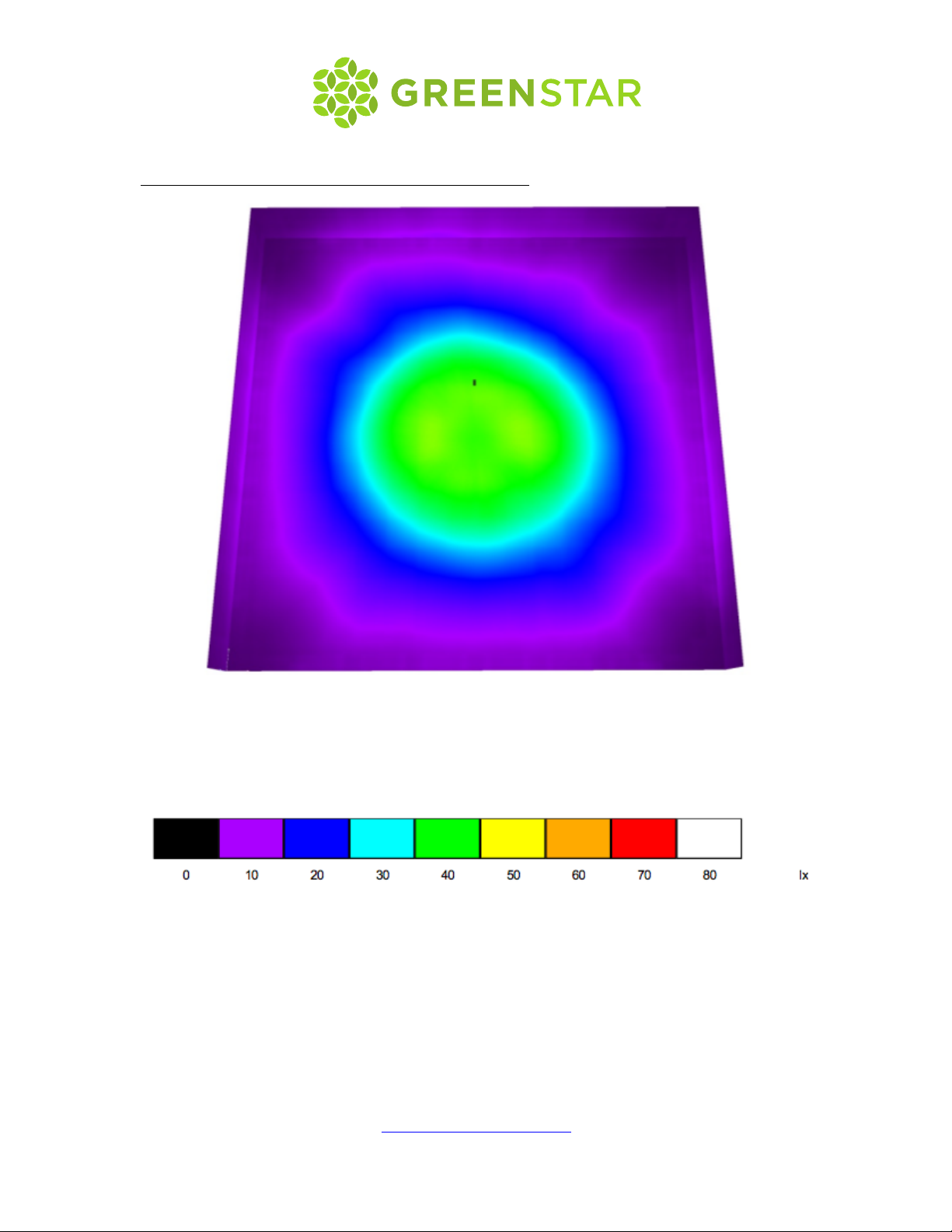

Medium Distribution (G5 Lens) Lighting Pattern
SOL 72 lighting pattern at 21 feet height and in a 36 x 36 feet plane
Max: 45 lux, Min 3.94 lux, Avg: 18 lux, Max/avg: 2.5 and Max/min: 11.3.
Page 7
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com

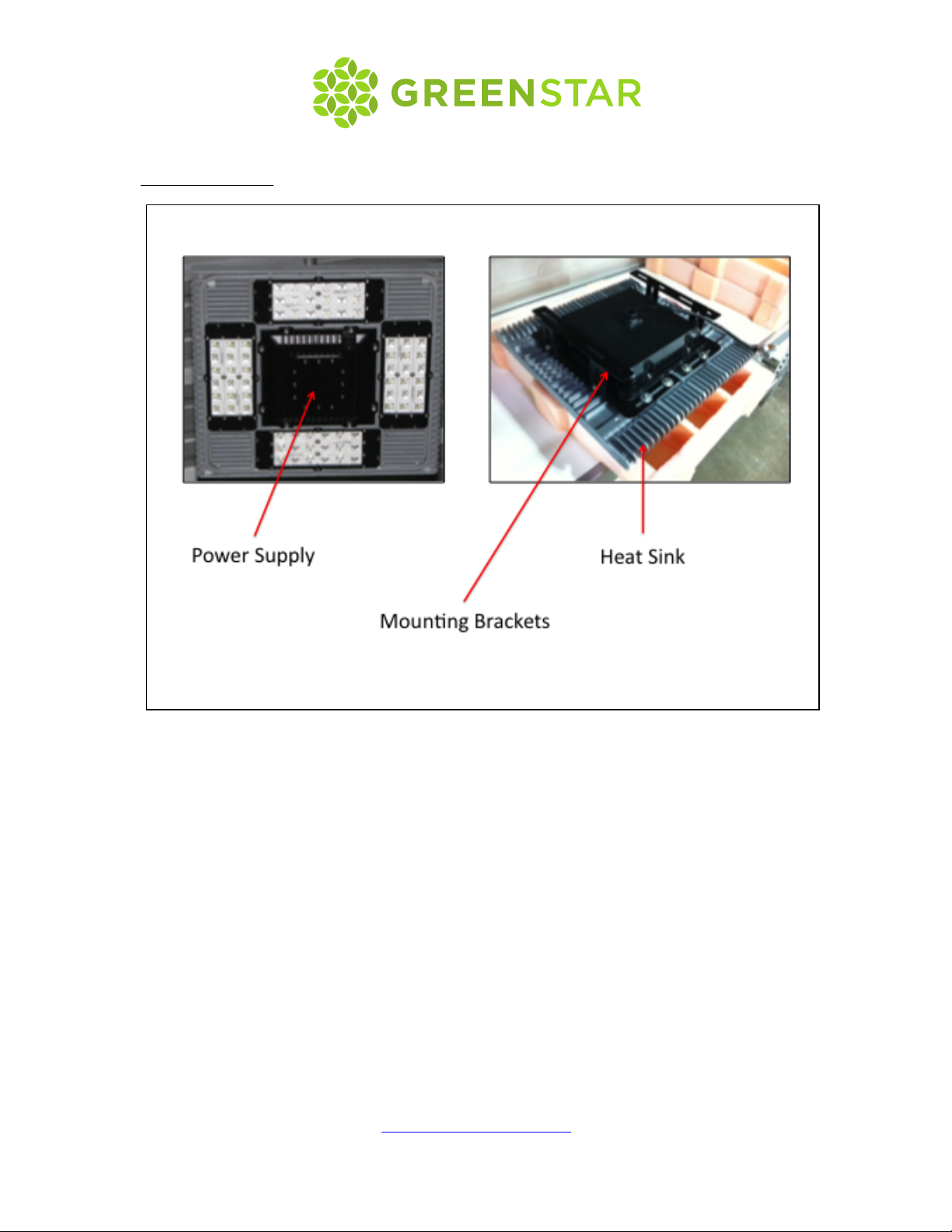

Solaris Modules
Page 8
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
Dimensions
16 x 16.5 x 4.75 in / 406.4 x 419.1 x 120.65 mm
Packaging
Box size (one light per box): 20x20x9 in / 508x508x229 mm
Gross weight: 25 lb / 11.3 kg
Net weight: 18 lbs / 8.2 Kgs
Contents
One Solaris luminaire with one set of mounts
Page 9
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
Installation
Introduction:
The following are instructions on mounting the Solaris luminaire on a concrete
ceiling and using the mounting brackets configuration. However, this product can
be installed on beams or hung from cables with slight variations.

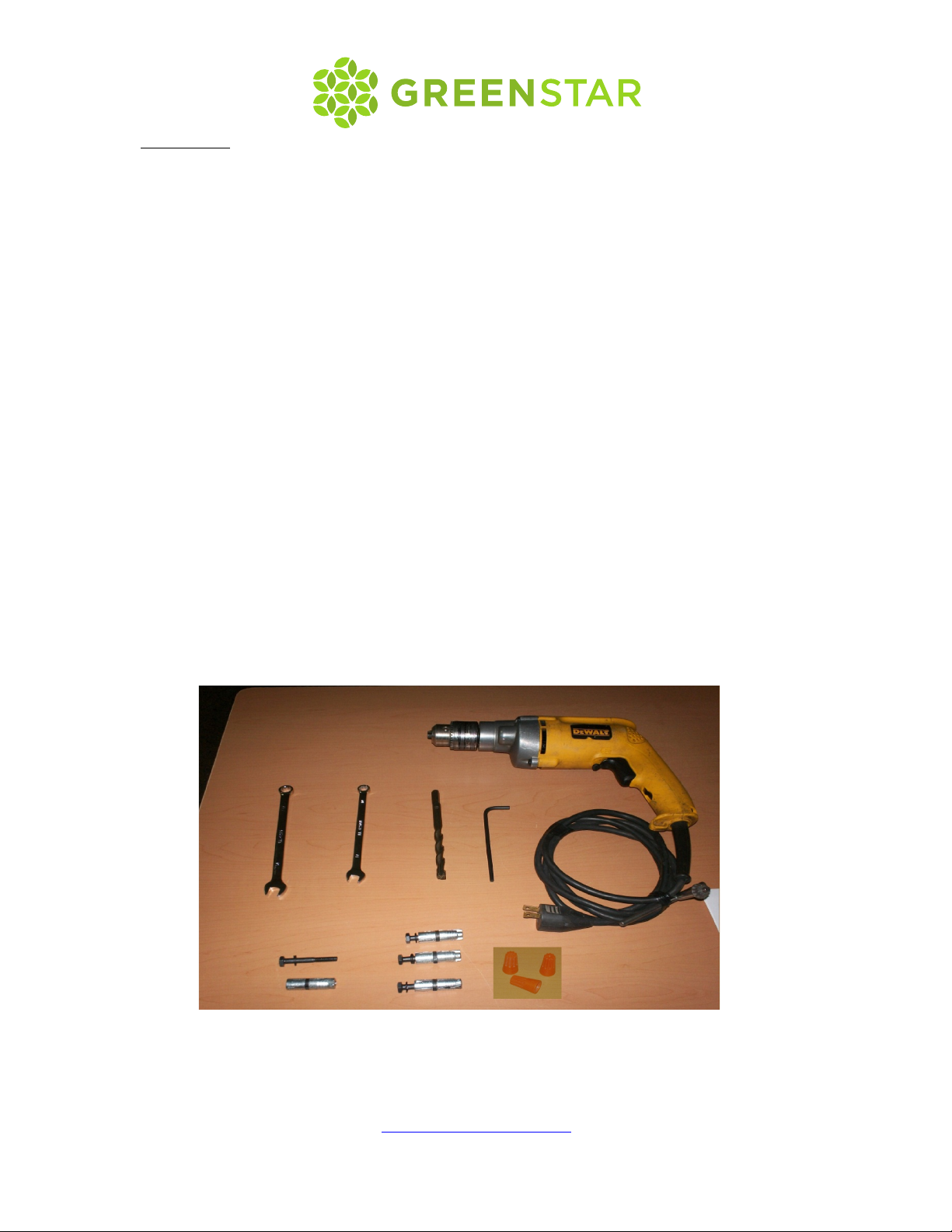

Tools:
" 1 7/16” wrench
" 1 # 10 metric wrench
" 1 ½” drill
" 1 ½” concrete drill bit
" 1 3/16” allen wrench
" 1 electrician pliers
Materials:
" 4 concrete ram-plugs
" 4 ¼”x 2” screws
" 3 wire nuts
Page 10
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
Steps:
1. Choose the mounting spot
The spot must be able to hold the light’s weight and be close to the
electrical installation.
2. Identify the incoming current and voltage
Measure the incoming voltage and identify the cables (phase, neutral, and
ground). Make sure that the light is right for this incoming voltage. All
Solaris are 85VAC-285VAC.
3. Mark the spots to drill
Take off the light’s mount and place it on the desired position in the ceiling.
Mark those spots.
Page 11
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
4. Drill the mounting holes
Drill the holes in the chosen positions and insert the ram-plugs.
5. Fix the mounts.
Align the mounts with the holes and insert the expansion screws. Tighten
them well.
Page 12
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com
6. Fix the luminaire to the mounts
Place the luminaire on the mounts and tighten the required nuts and bolts
at the chosen height.
Page 13
!
Green Star Products Inc.
6900 Alamo Downs Pkwy. Ste. 120, San Antonio TX 78238
www.greenstarled.com

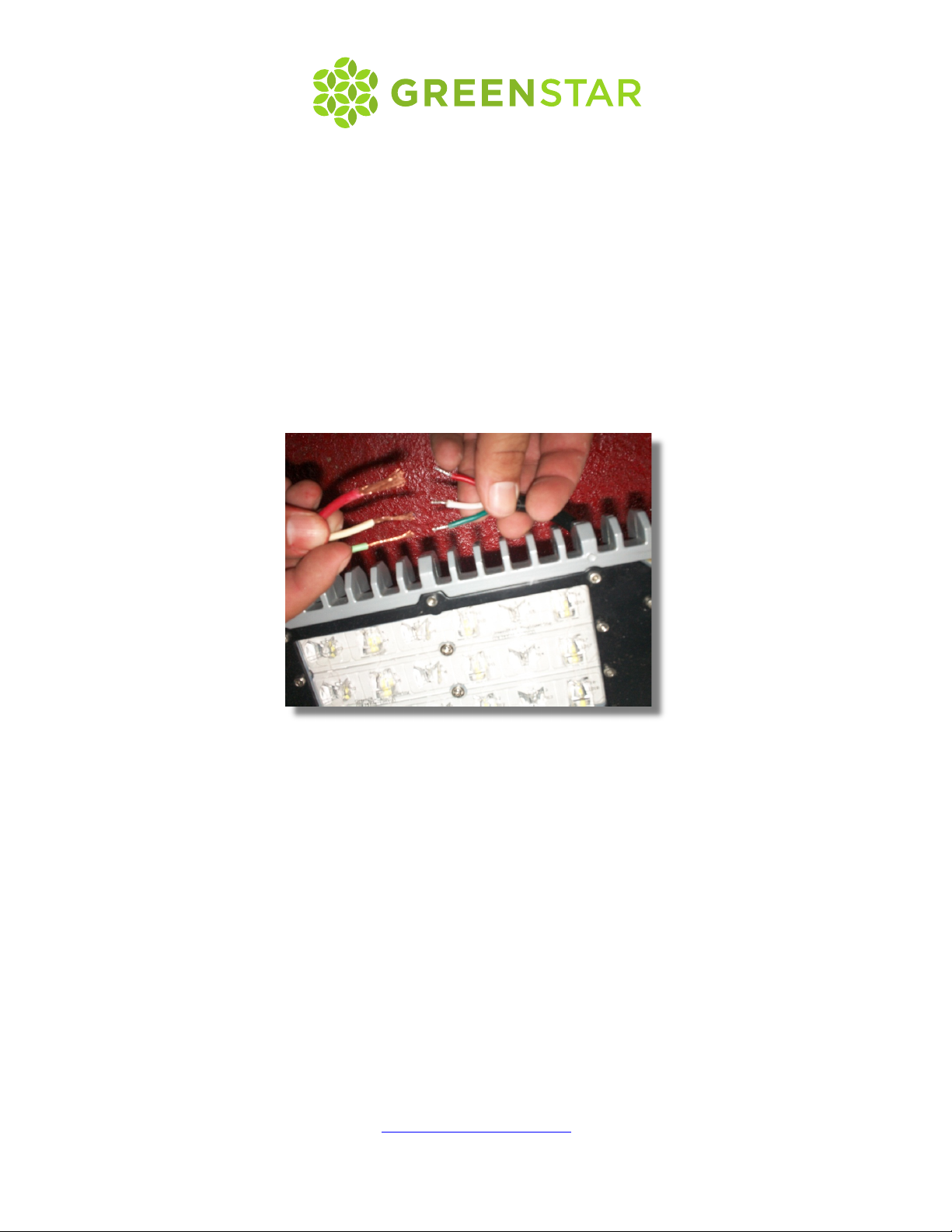

7. Connect wiring
Use wire nuts to tie the right cables (red=phase, white=neutral, and
green=ground). Make sure that the ground cable is by no means
connected to phase.
8. Last check
Make sure the luminaire is firmly attached to the ceiling and all cables are well
connected before connecting the power.
