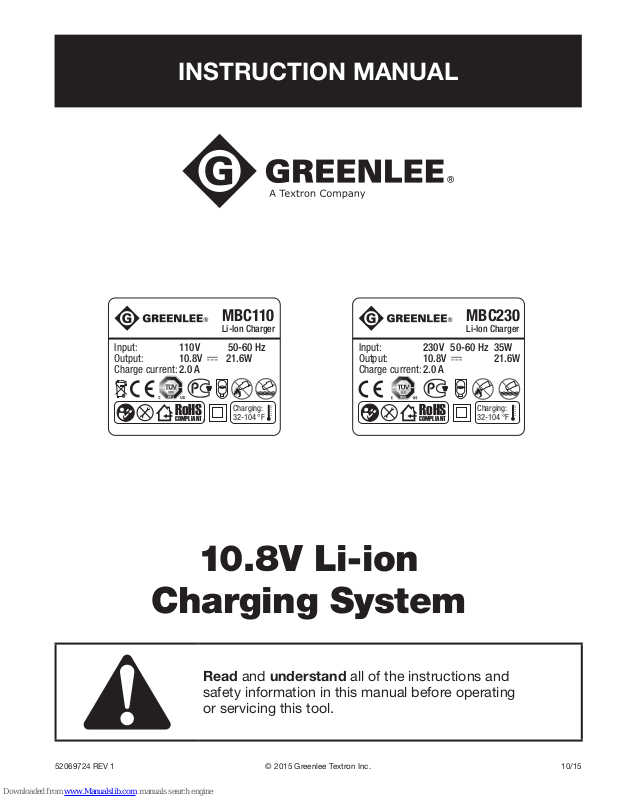

INSTRUCTION MANUAL
MBC110
Li-Ion Charger
Input: 110V 50-60 Hz
Output: 10.8V 21.6W
Charge current: 2.0 A
RoHS
COMPLIANT
Charging:
32-104
°F
10.8V Li-ion
Charging System
Input: 230V
Output: 10.8V
Charge current: 2.0 A
RoHS
COMPLIANT
MBC230
Li-Ion Charger
35W50-60 Hz
21.6W
Charging:
32-104
°F
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
52069724 REV 1 © 2015 Greenlee Textron Inc. 10/15
Page 2
Important Safety Information
Operating Instructions
Charging time: 40 minutes
Do not dispose of batteries in a re. They will vent
fumes and may explode.
Failure to observe this warning could result in severe
injury from harmful fumes or burns from ying
debris.
Do not allow anything to contact the battery
terminals.
• Do not immerse the batteries in liquid. Liquid may
create a short circuit and damage the battery.
If batteries are immersed, contact your service
center for proper handling.
• Do not place the battery into a pocket, tool pouch,
or tool box with conductive objects. Conductive
objects may create a short circuit and damage the
battery.
• Do not place a battery on moist ground or grass.
Moisture may create a short circuit and damage
the battery.
Failure to observe these precautions may result in
injury or property damage.
1
2
3
4
5
6
1. Charger is plugged into socket.
2. Battery is charging.
3. Battery is fully charged.
4. Battery is defective.
5. Battery is too hot or too cold.
6. Charger is defective.
• Do not store the battery at more than 122 °F
(50°C) or less than –4 °F (–20 °C). Damage to the
battery can result.
• Do not use another manufacturer’s charger. Other
manufacturers’ chargers may overcharge and
damage the battery.
• Do not attempt to open the battery. It contains no
user-serviceable parts.
Failure to observe these precautions may result in
injury or property damage.
Remove the battery before unplugging the charger
from the receptacle to prevent the battery from
discharging and potentially burning up.
Failure to observe this precaution may result in injury
and property damage.
Warranty
The warranty for this unit is two years if operated
according to its intended use. Excluded are damages
that can be related to overload or inappropriate
treatment.
4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
An ISO 9001 Company • Greenlee Textron Inc. is a subsidiary of Textron Inc.
www.greenlee.com
USA Tel: 800-435-0786
Fax: 800-451-2632
Canada Tel: 800-435-0786
Fax: 800-524-2853
International Tel: +1-815-397-7070
Fax: +1-815-397-9247
