OPERATION MANUAL
ES32ML
ES32FML
EBS12ML
Battery-powered
Micro Cutters
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
52078039 © 2016 Greenlee Textron Inc. 2/16
Register this product at www.greenlee.com
Page 2
Battery-powered Micro Cutters
Table of Contents
Description ..................................................................... 2
Safety ............................................................................. 2
Purpose of this Manual .................................................. 2
Important Safety Information ..................................... 3–4
Identication ................................................................... 5
Specications ................................................................. 6
Battery and Charger ....................................................... 7
Operation .................................................................... 8–9
Maintenance ................................................................. 10
Troubleshooting ............................................................ 11
Description
Greenlee’s Battery-powered Micro Cutters are
hand-held, self-contained cutting tools intended to cut
the following:
• ES32ML Cable Cutter: Aluminum and copper cable
only.
• ES32FML Cable Cutter: Fine stranded cable only.
• EBS12ML Single Use Lock Cutter and Bolt Cutter:
Bolts, steel rods, one-time disposable locks, and sea
container seals or similar soft metal devices.
These tools are protected by U.S. Patent No. 6,276,186,
6,401,515, 6,718,870, 7,086,979, and 7,254,982.
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This manual and any
markings on the tool provide information for avoiding
hazards and unsafe practices related to the use of this
tool. Observe all of the safety information provided.
Purpose of this Manual
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
following Greenlee tools:
• ES32ML Battery-powered Cable Cutter
• ES32FML Battery-powered Cable Cutter
• EBS12ML Battery-powered Single Use Lock Cutter
and Bolt Cutter
Keep this manual available to all personnel.
Replacement manuals are available upon request at
no charge at www.greenlee.com.
Do not discard this product or throw away!
For recycling information, go to www.greenlee.com.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
All specications are nominal and may change as design
improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.
KEEP THIS MANUAL
2
Page 3
IMPORTANT SAFETY INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for preventing or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result
in severe injury or death.
Hazards which, if not avoided, COULD result in
severe injury or death.
Battery-powered Micro Cutters
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily
punctures skin. If injured, seek
medical attention immediately to
remove oil.
Failure to observe this warning
could result in serious injury, gangrene, or death.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning
could result in severe injury or death.
Electric shock hazard:
This tool is not insulated. When
using this unit near energized
electrical lines, use proper personal
protective equipment.
Failure to observe this warning
could result in severe injury or death.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
Cutting hazard:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the cutting
head when cutting.
Failure to observe these warnings
could result in severe injury or death.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
3
Page 4
Battery-powered Micro Cutters
IMPORTANT SAFETY INFORMATION
Do not dispose of batteries in a re. They will vent
fumes and may explode.
Failure to observe this warning could result in severe
injury from harmful fumes or burns from ying
debris.
Inspect tool and blades before use. Replace any
worn or damaged parts. A damaged or improperly assembled tool can break and strike nearby
personnel.
Failure to observe this warning could result in severe
injury or death.
• Do not twist work piece or tool during cutting
operation. Blade failure could result.
• This tool is not designed for continuous use. After
LED indicator (red) indicates tool has become too
hot, allow the cutting tool to cool for 15 minutes.
• Do not secure this tool in a vise. This tool is
designed for hand-held operation.
• This tool may be used in damp or wet environments; however, air-drying is recommended before
use if the tool becomes soaked. Damage may
result when the tool is operated prior to thorough
drying when electrical components are soaked.
• Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Do not allow anything to contact the battery
terminals.
• Do not immerse the batteries in liquid. Liquid may
create a short circuit and damage the battery.
If batteries are immersed, contact your service
center for proper handling.
• Do not place the battery into a pocket, tool pouch,
or tool box with conductive objects. Conductive
objects may create a short circuit and damage the
battery.
• Do not place a battery on moist ground or grass.
Moisture may create a short circuit and damage
the battery.
Failure to observe these precautions may result in
injury or property damage.
• Do not store the battery at more than 122 °F
(50°C) or less than –4 °F (–20 °C). Damage to the
battery can result.
• Do not use another manufacturer’s charger. Other
manufacturers’ chargers may overcharge and
damage the battery.
• Do not attempt to open the battery. It contains no
user-serviceable parts.
Failure to observe these precautions may result in
injury or property damage.
Do not perform any service or maintenance other
than as described in this manual. Injury or damage
to the tool may result.
Failure to observe this precaution may result in injury
and property damage.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Note: Keep all decals clean and legible, and replace
when necessary.
4
Page 5

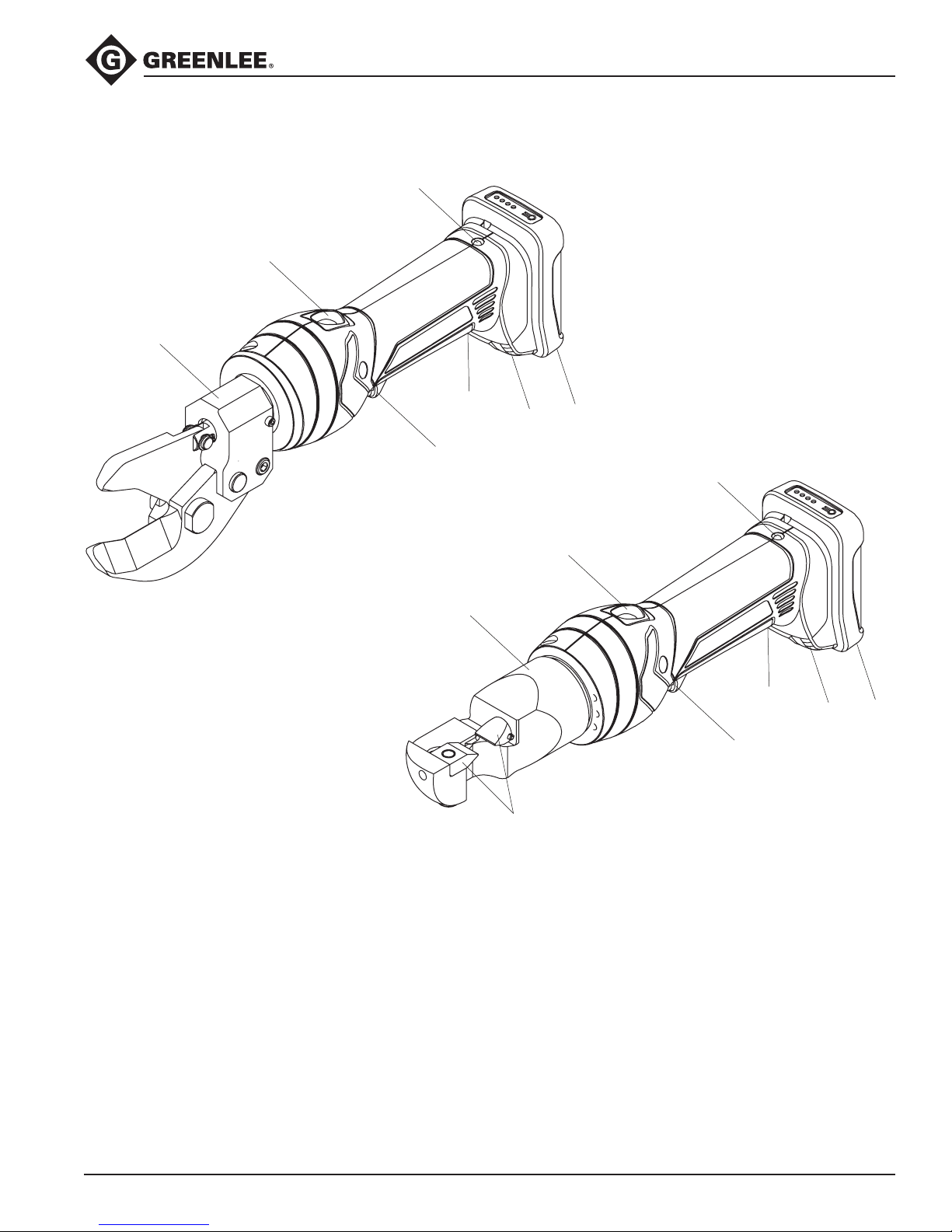

Identification
1a
Battery-powered Micro Cutters
3
2
ES32ML
ES32FML
6
7
1b
8
5
4
2
EBS12ML
3
6
5
7
4
1a. Cutting Head
1b. Bolt Cutter Head
2. Retract Button
3. LED Indicator (red)
4. Battery Cartridge
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Battery-powered Micro Cutters
5. Battery Lock
6. LED Work Light (white)
7. Trigger
8. Cutting Blades (EBS12ML)
5
Page 6
Specifications
ES32ML
Cutting Tool
Length (with battery) .................................................................................. 14.09" (358 mm)
Width ............................................................................................................. 2.80" (71 mm)
Depth ........................................................................................................... 4.33" (110 mm)
Weight (with battery) ...................................................................................... 4.0 lb (1.8 kg)
Cutting Capacity
Maximum Cable Size with 2 Cutting Cycles
Copper .................................................................................600 kcmil (MCM) (304 mm2)
Maximum Cable Size with 1 Cutting Cycle ..........................................................................
Copper .................................................................................400 kcmil (MCM) (240 mm2)
Aluminum .............................................................................750 kcmil (MCM) (380 mm2)
ES32FML
Cutting Tool
Length (with battery) .................................................................................. 14.09" (358 mm)
Width ............................................................................................................. 2.80" (71 mm)
Depth ........................................................................................................... 4.33" (110 mm)
Weight (with battery) ....................................................................................... 4.0 lb (1.8 kg)
Cutting Capacity
Fine Stranded Copper Cable only ................................................... ø1.25" (31.8 mm) max.
Not for cutting regular stranded cable or steel
Battery-powered Micro Cutters
EBS12ML
All Models
Cutting Tool
Length (with battery) .................................................................................. 13.07" (332 mm)
Width ............................................................................................................. 2.80" (71 mm)
Depth ............................................................................................................. 3.78" (96 mm)
Weight (with battery) ....................................................................................... 4.0 lb (1.8 kg)
Cutting Capacity
Common Bolt ........................................................................................................ 1/2" dia.
Grade 5 Bolt ........................................................................................................ 7/16" dia.
Grade 8 Bolt ........................................................................................................ 5/16" dia.
Threaded Rod ........................................................................................................ 1/2" dia.
One-Time Disposable Lock ....................................................................4 AWG Alumoweld
Boa Lock ...................................................................................................................... BL-9
Grade 40 Rebar ..................................................................................................... 3/8" dia.
Steel Rod ....................................................................... 3/8" dia. (1/2" dia. using 2 cycles)
Ground Rod ................................................................... 3/8" dia. (1/2" dia. using 2 cycles)
Copper and Aluminum Cable ............................................................................... 2/0 AWG
ACSR ................................................ 3/0 AWG Pigeon (4/0 AWG Penguin using two cuts)
Guy Strand ............................................................... 5/16" dia. (3/8" dia. using two cycles)
EHS Guy Strand .................................................................................................. 5/16" dia.
Aircraft Cable .......................................................................................................... 1/4" dia.
Not recommended for fine stranded cables.
Cutting Tool
Hydraulic Oil ......................................................... 52057878 biodegradable hydraulic uid
Recommended Operating Temperature Range ..................5 °F to 122 °F (–15 °C to 50 °C)
Battery Charger .................................Read the instructions supplied with the battery charger
52068603 Charger, 10.8 V lithium-ion batteries, 110 V
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
6
Page 7

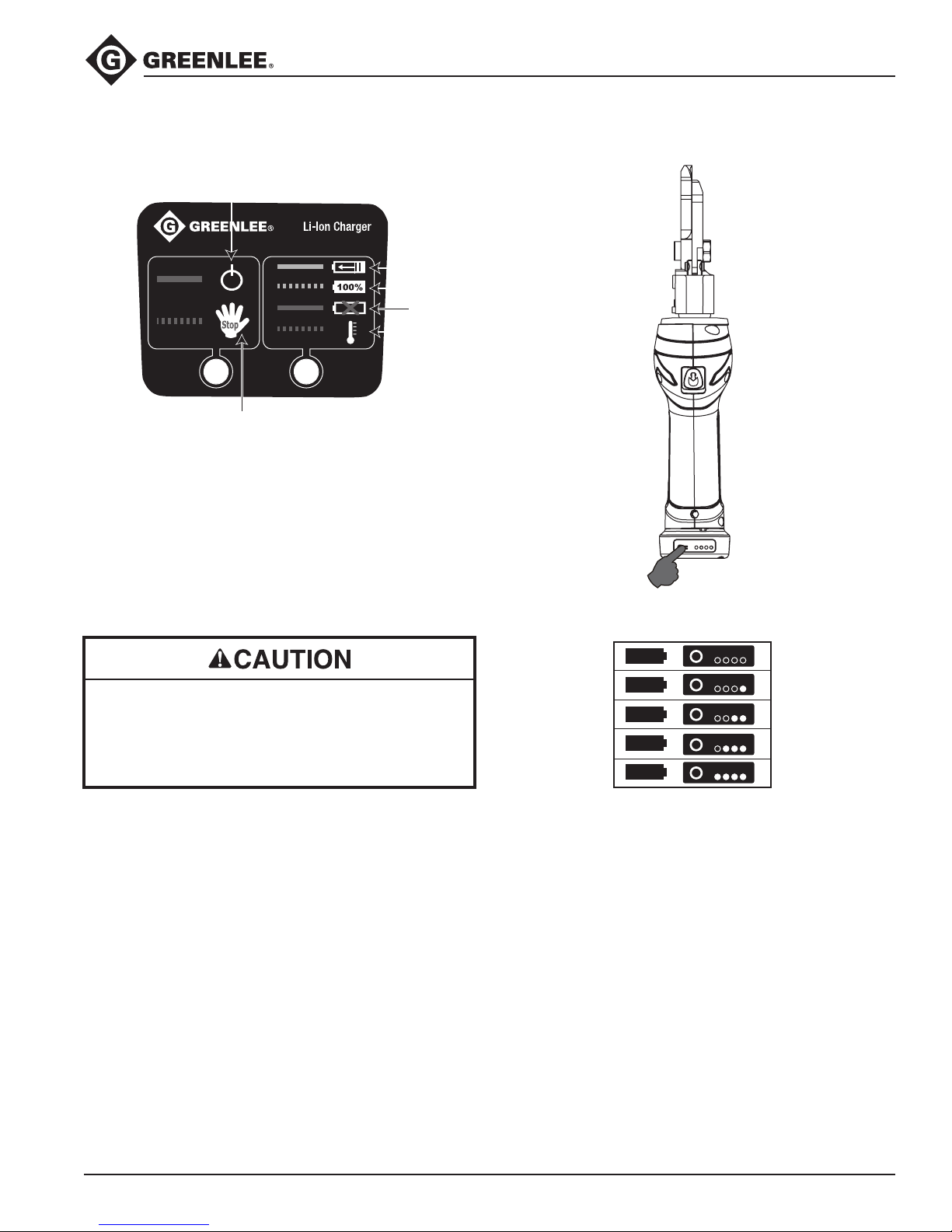

Battery and Charger
1
6

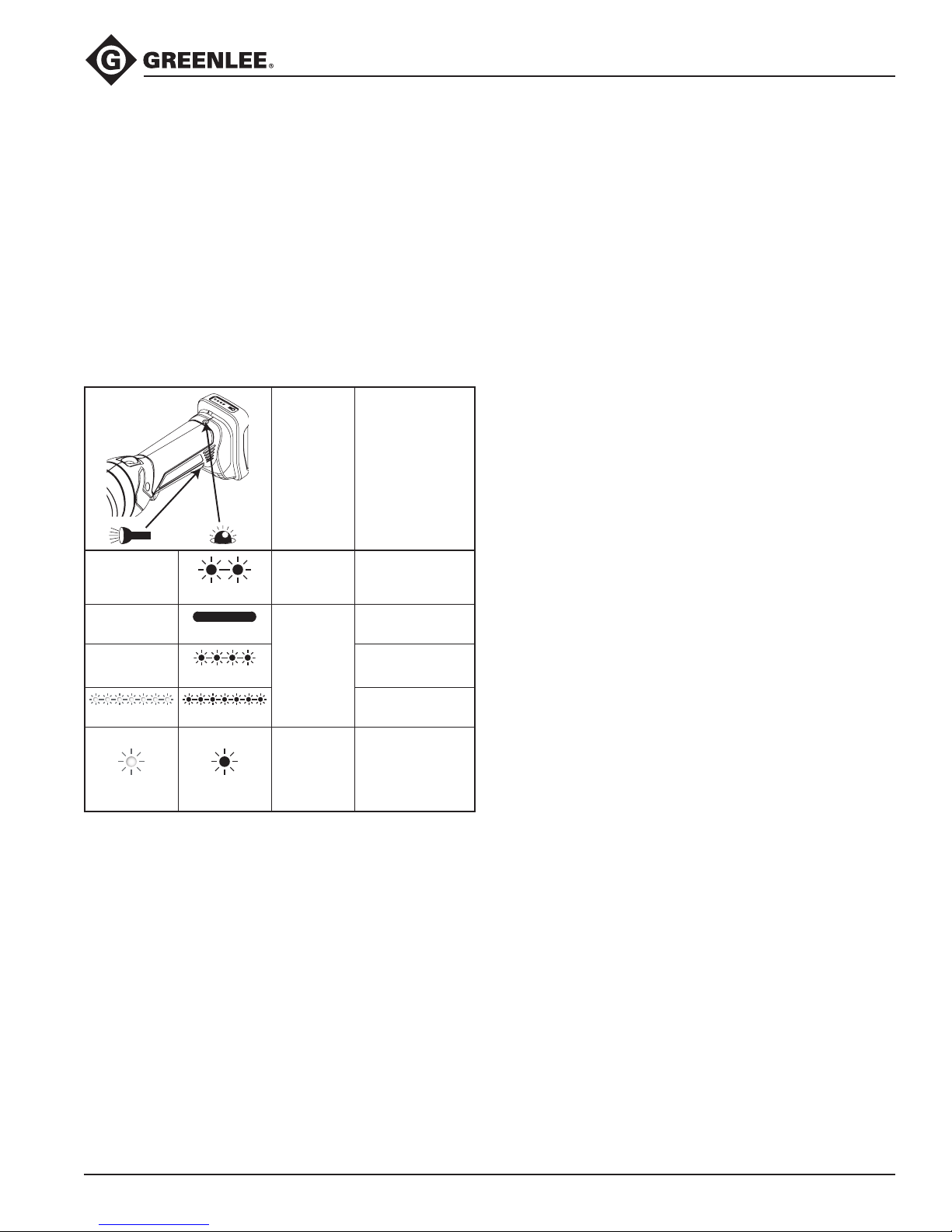

1. Charger is plugged into socket.
2. Battery is charging.
3. Battery is fully charged.
4. Battery is defective.
5. Battery is too hot or too cold.
6. Charger is defective.
Battery-powered Micro Cutters
2
3
4
5
Remove the battery before unplugging the charger
from the receptable to prevent the battery from
discharging and potentially burning up.
Failure to observe this precaution may result in injury
and property damage.
% Charge Remaining
100%
75%
50%
25%
0%
i
i
i
i
i
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
7
Page 8
Operation
Battery-powered Micro Cutters
Inspect tool and blades before use. Replace any
worn or damaged parts. A damaged or improperly assembled tool can break and strike nearby
personnel.
Failure to observe this warning could result in severe
injury or death.
Electric shock hazard:
This tool is not insulated. When
using this unit near energized
electrical lines, use proper personal
protective equipment.
Failure to observe this warning
could result in severe injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Cutting hazard:
• Remove battery before changing
dies, adapters, or jaws.
• Keep hands away from the cutting
head when cutting.
Failure to observe these warnings
could result in severe injury or death.
• Do not twist work piece or tool during cutting
operation. Blade failure could result.
• This tool is not designed for continuous use. After
LED indicator (red) indicates tool has become too
hot, allow the cutting tool to cool for 15 minutes.
• Do not secure this tool in a vise. This tool is
designed for hand-held operation.
• This tool may be used in damp or wet environments; however, air-drying is recommended before
use if the tool becomes soaked. Damage may
result when the tool is operated prior to thorough
drying when electrical components are soaked.
• Use this tool for the manufacturer’s intended
purpose only.
Failure to observe these precautions may result in
injury or property damage.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
8
Page 9
Operation (cont’d)
Battery-powered Micro Cutters
Charging the Battery
Read the instructions supplied with the battery charger.
LED Work Light (white)
This LED automatically turns on when the trigger is
pulled. It remains on for 10 seconds after the trigger is
released.
LED Indicator (red)
This tool is equipped with a special circuit board incorporating several important features to inform the user
about the current status of the unit. The LED signals in
the following cases:
When What it means
2 x
20 sec
20 sec/2 Hz
20 sec/5 Hz 20 sec/5 Hz
1 x
1 x
After
inserting
the battery
After
working
cycle
After
interruption
Battery is
inserted in tool
Low battery
Contact Greenlee
service
Tool has become
too hot
Error – manual
interruption
of cutting
cycle prior to
completion
Important Features of All Models
• The hydraulic unit incorporates an automatic retraction, which returns the piston and movable blade to
the starting position when the maximum cutting force
is achieved.
• The unit is equipped with a special brake, which stops
the forward motion of the piston when the trigger is
released.
• The cutting heads have been designed to turn 350°
around the longitudinal axis in order to gain the best
access to tight corners and other difcult working
areas.
Cutting Procedure—ES32ML and ES32FML
1. Insert the cable to be cut into the cutting head.
2. Pull the trigger to make the cut.
3. Hold the trigger down until the cutting tool achieves
pressure relief, which is accompanied by an audible
“pop”.
4. The cutting tool returns automatically.
Note: If it is necessary to retract the ram before a
cutting cycle is completed, push the retract button.
Pushing the retract button will result in the complete
retraction of the ram.
Note (ES32ML only): For some cables more than one
cutting cycle may be required to complete the cut. If
the cable is not fully cut during the first cycle, move the
cable as close to the jaw pivot as possible and cycle the
tool again.
Cutting Procedure—EBS12ML
1. Check cutting head to ensure the piston and
movable blade are fully retracted. If necessary, pull
the retract slide in the direction of the arrow.
2. After positioning the wire/bolt between the open
cutting blades, actuate the trigger to start the
cutting cycle.
Note: Do not twist work piece or tool during cutting
operation. Blade failure could result.
Note: The cutting process can be interrupted at any
moment by releasing the trigger. By actuating the retract
slide, the piston and movable blade will return to the
starting position.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
9
Page 10
Maintenance
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from
ying debris or hydraulic oil.
Skin injection hazard:
Do not use hands to check for oil
leaks. Oil under pressure easily
punctures skin. If injured, seek
medical attention immediately to
remove oil.
Failure to observe this warning
could result in serious injury, gangrene, or death.
Battery-powered Micro Cutters
Daily
Before use:
1. Inspect the tool for wear or damage, such as cracks,
gouges, or chips.
2. Inspect the tool for damage or leaks.
3. Inspect the rotation of the head assembly. Fully
retract the ram. The head should rotate no more
than 350°. If damage is detected, contact Greenlee
customer service at 800-435-0786 for warranty
service or repair.
After use:
1. Use a damp cloth and mild detergent to clean the
housing. Allow the housing to dry.
2. Fully retract the ram. Place the tool in the carrying
case and store in a cool, dry place.
3. If necessary, recharge the batteries. Refer to the
instructions supplied with the battery charger.
Monthly
1. Thoroughly clean all surfaces.
2. Check the oil level.
Do not use solvents or ammable
liquids to clean the tool body.
Solvents or ammable liquids could
ignite and cause serious injury or
property damage.
Cutting hazard:
Keep hands away from the cutting
head when cutting.
Failure to observe these warnings
could result in severe injury or death.
Relief valve adjustments must be done by an
authorized service center.
Annually or After 10,000 Cuts
1. Replace the hydraulic oil.
2. Contact Greenlee customer service at
800-435-0786 for warranty service or repair.
Checking the Oil Level
1. Remove the screws holding the housing cover
together.
2. Point the cutting head downward and remove the oil
reservoir plug. Fill reservoir if necessary.
3. Replace the oil plug and housing cover.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
10
Page 11
Troubleshooting
Battery-powered Micro Cutters
Before You Begin
1. Make sure that the battery is charged. Recheck
the battery after several minutes to make sure the
battery is holding its charge.
Problem Possible Cause Probable Remedy
Tool is inoperative. Dirt, contaminants, etc., in
ram area oftool.
Tool components worn or
damaged.
Motor is inoperative. Low or uncharged battery. Try known charged battery. Inoperative battery may be
Broken switch components. Contact Greenlee customer service at 800-435-0786
Motor runs but tool will
not complete a cycle.
Oil level low. Contact Greenlee customer service at 800-435-0786
Air in hydraulic system. Pull trigger and hold retract button simultaneously.
2. Use a nonflammable contact cleaner or pencil
eraser to clean the electrical contacts on the battery
and tool.
3. Reinstall the battery and check the tool again.
Clean tool.
Contact Greenlee customer service at 800-435-0786
for warranty service or repair.
discharged or may have reached life expectancy.
for warranty service or repair.
for warranty service or repair.
Run for approximately 10 seconds, and then attempt
to cut. If unsuccessful, contact Greenlee customer
service at 800-435-0786 for warranty service or repair.
Cold oil. Pull trigger and hold retract button simultaneously to
warm oil. Store tool in warm area.
Dies stop during
operation.
LED glows for 20
seconds.
Tool loses oil. Damaged internal seal. Contact Greenlee customer service at 800-435-0786
Oil level low. Contact Greenlee customer service at 800-435-0786
for warranty service or repair.
Air in hydraulic system. Pull trigger and hold retract button simultaneously.
Hold for approximately 10 seconds.
Battery charge low. Charge or replace battery.
for warranty service or repair.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
11
Page 12
4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
An ISO 9001 Company • Greenlee Textron Inc. is a subsidiary of Textron Inc.
www.greenlee.com
USA Tel: 800-435-0786
Fax: 800-451-2632
Canada Tel: 800-435-0786
Fax: 800-524-2853
International Tel: +1-815-397-7070
Fax: +1-815-397-9247
Loading...
