Page 1
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
BEDIENUNGSANLEITUNG
Español.............19
Français ...........35
Deutsch ............51
CM-1360 • CM-1560
CMH-1000 • CMI-1000
Clamp Meters
Medidores con pinza
Contrôleurs à pince
Zangenmessgeräte
Read and understand all of the instructions and safety information in this manual
before operating or servicing this tool.
Lea y entienda todas las instrucciones y la información sobre seguridad que aparecen
en este manual, antes de manejar estas herramientas o darles mantenimiento.
Lire attentivement et bien comprendre toutes les instructions et les informations sur
la sécurité de ce manuel avant d’utiliser ou de procéder à l’entretien de cet outil.
Vor Bedienung oder Wartung dieses Messgerätes bitte alle Anweisungen und
Sicherheitsinformationen in diesem Handbuch genau durchlesen und beachten.
52066381 REV 2 © 2016 Greenlee Textron Inc. 3/16
www. .com
[email protected]1.800.561.8187
Page 2
Description
The Greenlee CM-1360, CM-1560, CMH-1000, and CMI-1000 Clamp Meters are hand-held testing devices
with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip™,
frequency, non-contact electric field (EF) detection, resistance, and capacitance. They also check diodes
and verify continuity. These meters are designed to be placed on or removed from insulated or uninsulated
conductors.
Additional functionality specific to each model includes:
Function CMI-1000 CM-1560 CMH-1000
AC + DC Voltage • •
DC Current AmpTip™ • •
DC + AC Current AmpTip™ • •
DC Current • •
Flashlight • •
µDC Current • •
Temperature (K-style thermocouple) • •
Motor Rotation • •
Phase Rotation • •
Peak RMS Capture • • •
5 ms Crest • • •
Other capabilities include:
• Hold Mode to capture the present LCD value
• Record Minimum, Maximum, or Average Mode
• Zero Mode
• Intelligent Auto Power Off
• Automatic ranging
• Backlit LCD
Safety
Safety is essential in the use and maintenance of Greenlee tools and equipment. This instruction manual
and any markings on the tool provide information for avoiding hazards and unsafe practices related to the
use of this tool. Observe all of the safety information provided.
Purpose of This Manual
This instruction manual is intended to familiarize all personnel with the safe operation and maintenance
procedures for the Greenlee CM-1360, CM-1560, CMH-1000, and CMI-1000 Clamp Meters.
Do not discard this product or throw away!
All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.
® Registered: The color green for electrical test instruments is a registered trademark of TextronInnovations Inc.
AmpTip is a trademark of BTC.
KEEP THIS MANUAL
2
www. .com
[email protected]1.800.561.8187
Page 3
CM-1360 • CM-1560 • CMH-1000 • CMI-1000
Important Safety Information
SAFETY ALERT SYMBOL
This symbol is used to call your attention to hazards or unsafe practices which could result in an
injury or property damage. The signal word, defined below, indicates the severity of the hazard. The
message after the signal word provides information for preventing or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result in severe injury or death.
Hazards which, if not avoided, COULD result in severe injury or death.
Hazards or unsafe practices which, if not avoided, MAY result in injury or property damage.
Read and understand this material before operating or servicing this equipment.
Failure to understand how to safely operate this tool could result in an accident
causing serious injury or death.
Electric shock hazard:
Contact with live circuits could result in severe injury or death.
Electric shock and fire hazard:
• Do not expose this unit to rain or moisture.
• Do not use the unit if it is wet or damaged.
• Clamp meter, test leads or any other clamp accessory, when used to make a measurement, create
a System. The System is rated for CAT III 1000 V or CAT IV 600V when using the test leads or
accessories provided with the meter. The System CAT and voltage rating is limited by the lowest rated
component in the System when using test leads or accessories not provided with the meter.
• Inspect the test leads or accessory before use. They must be clean and dry, and the insulation must be
in good condition. Do not use the test lead if the contrasting inner layer of insulation is visible.
• Use this unit for the manufacturer’s intended purpose only, as described in this manual. Anyotheruse
can impair the protection provided by the unit.
Failure to observe these warnings could result in severe injury or death.
Electric shock hazard:
• Do not apply more than the rated voltage between any two input terminals, or between any input
terminal and earth ground.
• Keep hands and fingers below the barriers on the test leads and the clamp meter body.
Failure to observe these warnings could result in severe injury or death.
www. .com
[email protected]1.800.561.8187
3
Page 4
Important Safety Information
Electric shock hazard:
• Do not operate with the case open.
• Before opening the case, remove the test leads from the circuit and shut off the unit.
Failure to observe these warnings could result in severe injury or death.
Electric shock hazard:
• Unless measuring voltage, current, or frequency, shut off and lock out power. Make sure that all
capacitors are discharged. Voltage must not be present.
• Set the selector and connect the test leads so that they correspond to the intended measurement.
Incorrect settings or connections can result in incorrect measurements or damage to the unit.
• Using this unit near equipment that generates electromagnetic interference can result in unstable or
inaccurate readings.
Failure to observe these warnings could result in severe injury or death.
Electric shock hazard:
• Do not change the measurement function while the test leads are connected to a component or
circuit.
• Do not clamp the jaw around a conductor carrying a frequency greater than 400Hz. The magnetic
circuitry may reach a hazardous temperature if this frequency is exceeded.
Failure to observe these precautions may result in injury and can damage the unit.
Electric shock hazard:
• Do not attempt to repair this unit. It contains no user-serviceable parts.
• Do not expose the unit to extremes in temperature or high humidity. Refer to “Specifications.”
Failure to observe these precautions may result in injury and can damage the unit.
4
www. .com
[email protected]1.800.561.8187
Page 5
CM-1360 • CM-1560 • CMH-1000 • CMI-1000

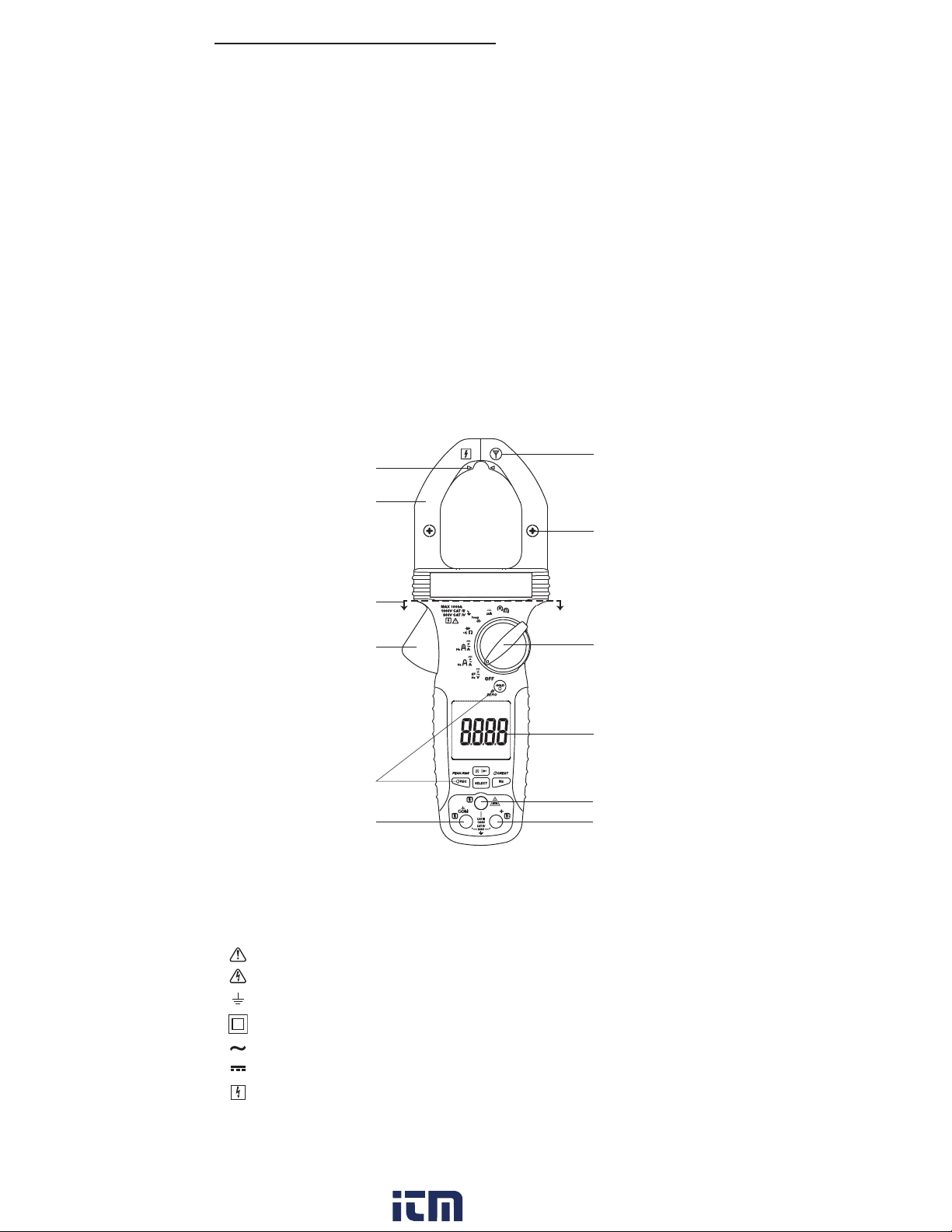

Identification
1. Antenna for non-contact EF detection
2. Jaw center indicator for best current accuracy; polarity indicator for DC amps
3. Selects a function or turns power off
4. LCD
5. Input jack for phase and motor rotation functions only
6. Positive input terminal; L2 input for motor and phase rotation
7. Negative, common, or ground input terminal; L1 input for motor and phase rotation
8. Refer to explanation under “Using the Features.”
9. Jaw lever
10. Keep hand or fingers below the dashed line during operation.
11. Jaw
12. Center indicator for AmpTip™ function
12
11
10
1
2
9
8
7
3
4
5
6
Symbols on the Unit
Warning—Read the instruction manual
Warning—Risk of electric shock
Earth ground
Double insulation
AC (alternating current)
DC (direct current)
Application around or removal from hazardous live conductors is permitted.
www. .com
5
[email protected]1.800.561.8187
Page 6

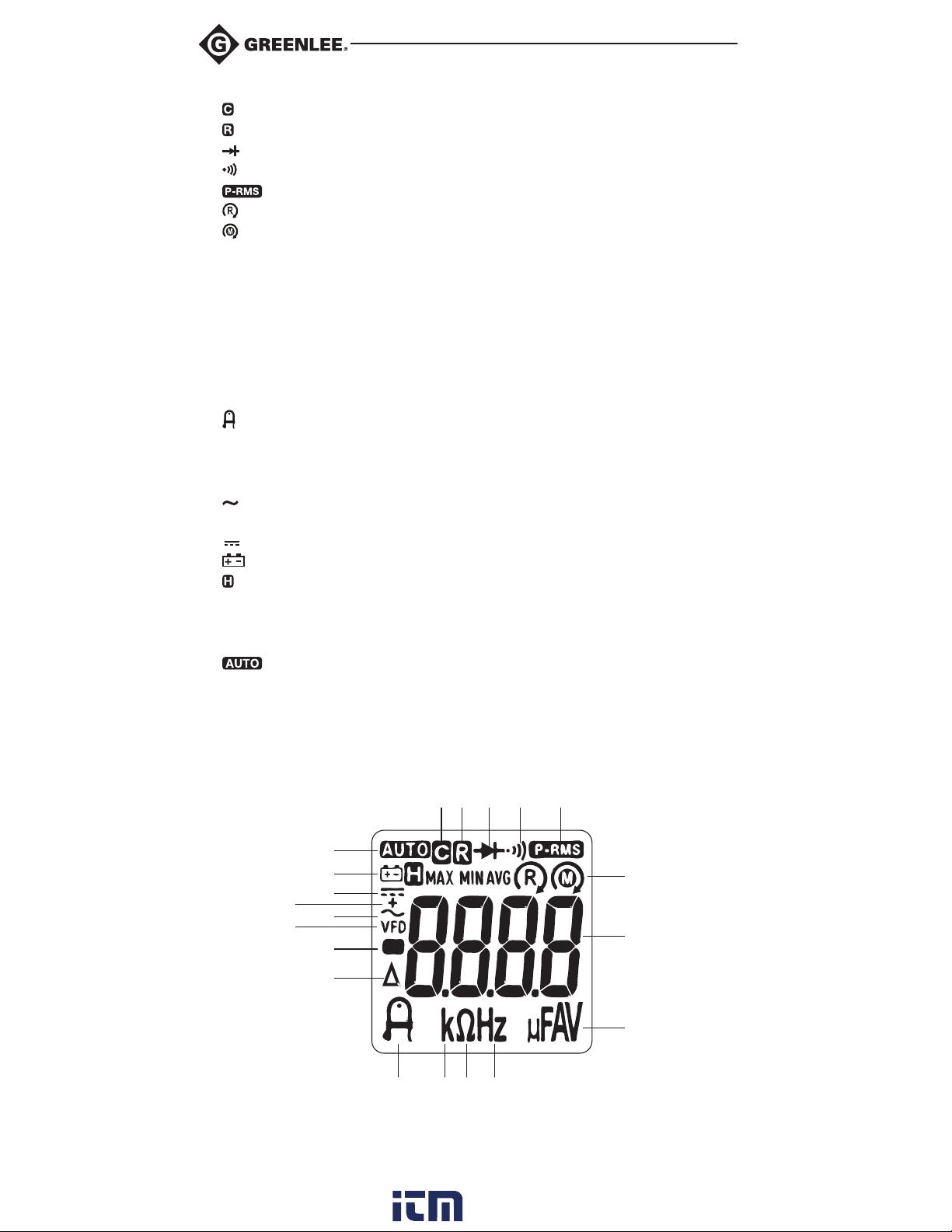

Display Icons
1. Crest
2.
Record function is enabled.
3.
Diode
4.
Continuity
5.
6.
7. Motor rotation
8. 8.8.8.8 Numeric display
9. µ Micro (10
10. F Farad
11. A Ampere
12. V Volt
13. Hz Hertz (frequency in cycles per second)
14. Ohm
15. k Kilo (10
16.
17. ∆ Relative zero function is enabled.
18. – Polarity indicator
19. VFD AC measurement with filter for accuracy on variable frequency drives
20. AC measurement is selected.
21. + AC + DC measurement is selected.
22.
23. Low battery
24. Hold function is selected.
25. MAX Maximum value being displayed
26. MIN Minimum value being displayed
27. AVG Average value being displayed
28.
PEAK-RMS mode is enabled.
Phase rotation main supply
-6
)
3
)
AmpTip™ function is enabled.
DC measurement is selected.
Automatic ranging is enabled.
1
2 3 4 5
28
23-27
22
21
20
19
18
17
16 15 14 13
6
www. .com
6-7
8
9-12
[email protected]1.800.561.8187
Page 7
CM-1360 • CM-1560 • CMH-1000 • CMI-1000
Using the Features
All Models
• Intelligent Auto Power Off (APO): The meter automatically turns off after approximately 32 minutes
of inactivity to extend battery life. Active meter function is specified as: selector switch is rotated or
pushbuttons are pressed; readings above 8.5% of the range; non-OL readings for resistance, continuity,
or diode function; non-zero readings for Hz function; phase rotation segment moving. To wake up the
meter from APO, press the SELECT button momentarily and release or turn the rotary switch OFF and
then back on. Always turn the rotary switch to the OFF position when the meter is not in use.
•
: Press the button momentarily to toggle the LCD backlight. The backlight automatically
turns off after 32 seconds to extend battery life.
• : Press the
after 32 seconds to extend battery life.
•
CREST: Press for 1 second to activate. LCD will indicate when mode is active. This mode will
capture current or voltage peaks in duration of as small as 5 ms. Press CREST to toggle between MIN
and MAX. Add 250 digits to accuracy for changes > 5 ms.
•
HOLD: Press momentarily to hold the present value on the display. Press again to exit this mode.
• REC: Press momentarily to activate MAX/MIN/AVG recording mode. and “MAX MIN AVG” appear
on the display. The meter beeps when new maximum or minimum reading is updated. The average
reading is calculated over time. Press the button momentarily to read the MAX, MIN, and AVG readings
in sequence. Press the button for 1 second to exit MAX/MIN/AVG recording mode. APO is disabled
automatically in this mode.
• SELECT: Press momentarily to toggle between functions, measurement modes, or display modes. The
last used setting becomes the default when that function is selected again. To change the default, select
a new setting. The setting will be stored in nonvolatile memory.
• ∆: Press the ∆ button for 1 second to toggle between zero and normal mode. In zero mode the value
on the LCD when the button is pressed becomes the offset. As the input value changes, the offset is
subtracted from the actual value. This modified value is shown on the LCD.
Note: ∆ operation when DCA or DC + ACA functions are selected offsets any magnetic hysteresis in the
jaw. If DCA or DC + ACA reading before measuring is not zero, press the ∆ button for 1 second. The LCD
will display “dc_0”. When this clears, the meter is ready for operation. When measuring more than 5 A,
this mode is disabled. As an indication, the meter will beep three times.
button momentarily to toggle the flashlight. The flashlight automatically turns off
CM-1560, CMH-1000, and CMI-1000 Only
• PEAK-RMS: Press the PEAK-RMS button for 1 second to activate PEAK-RMS mode to capture inrush
current or voltage in duration as short as 80 ms.
1second to exit PEAK-RMS mode. APO is disabled automatically in this mode.
appears on the display. Press the button for
CMH-1000 and CMI-1000 Only
• and : If desired, press and hold the REC button while turning the meter ON to enable the Beeper
feature. If the segments indicate a clockwise movement, the beeper sounds a single long beep per
segment cycle. If the segments indicate a counterclockwise movement, the beeper sounds three short
beeps per segment cycle.
•

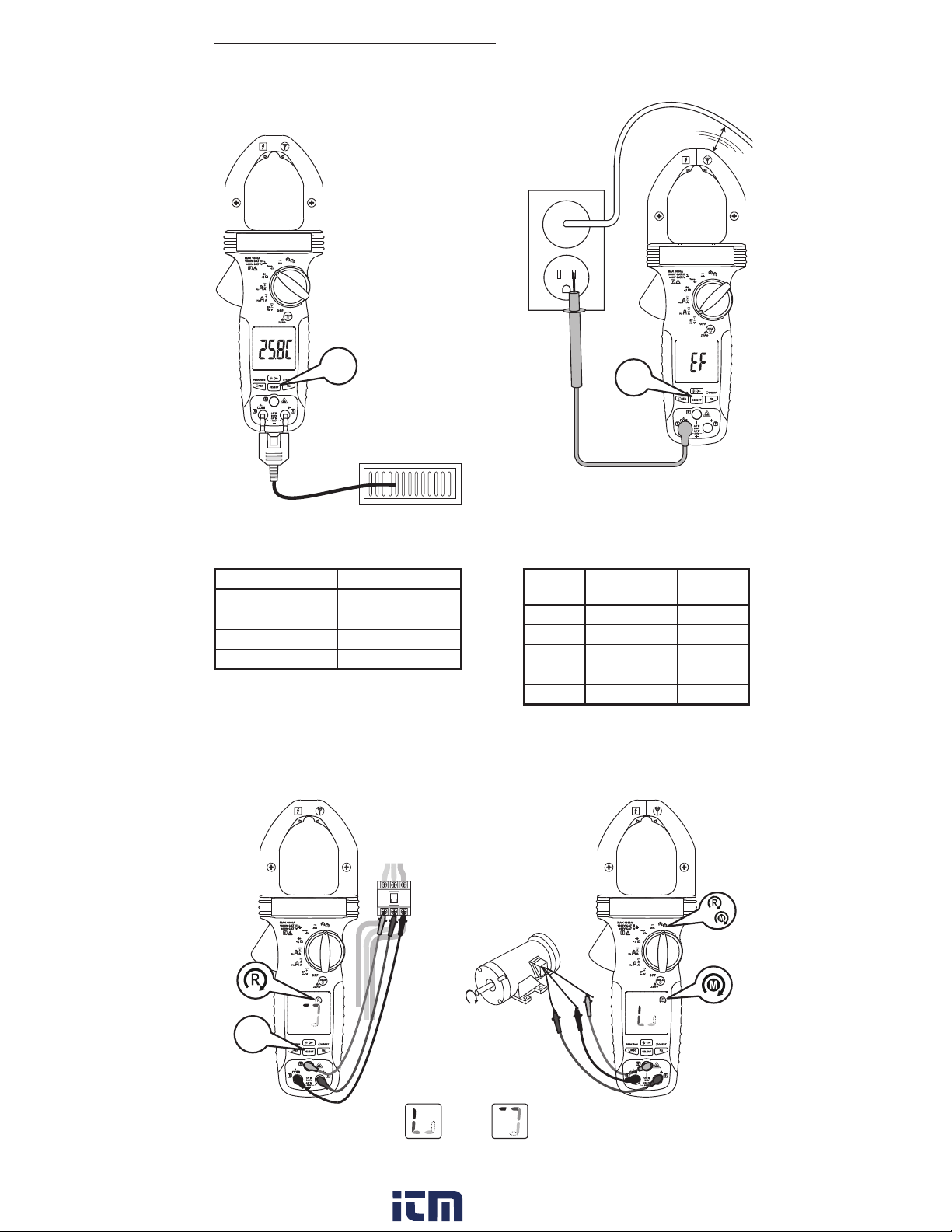

: Ensure the motor is electrically isolated from its power source. Press the SELECT button
momentarily to select Motor function. Connect the meter to the motor as described in the “Settings
Table” section of this manual. From the perspective of looking down the shaft of the motor, spin it
clockwise. If the meter indicates a clockwise movement, the motor leads connected to L1, L2, and
L3 of the meter are T1, T2, and T3, respectively. If the meter indicates a counterclockwise movement, swap any two connects between the meter and motor. Then retest.
•
: Press the SELECT button momentarily to select Phase function. Connect the meter to the
phases as described in the “Settings Table” section of this manual. If the meter indicates a
clockwise movement, the phases connected to L1, L2, and L3 of the meter are L1, L2, and L3,
respectively. If the meter indicates a counterclockwise movement, swap any two connects between
the meter and phases. Then retest.
www. .com
7
[email protected]1.800.561.8187
Page 8

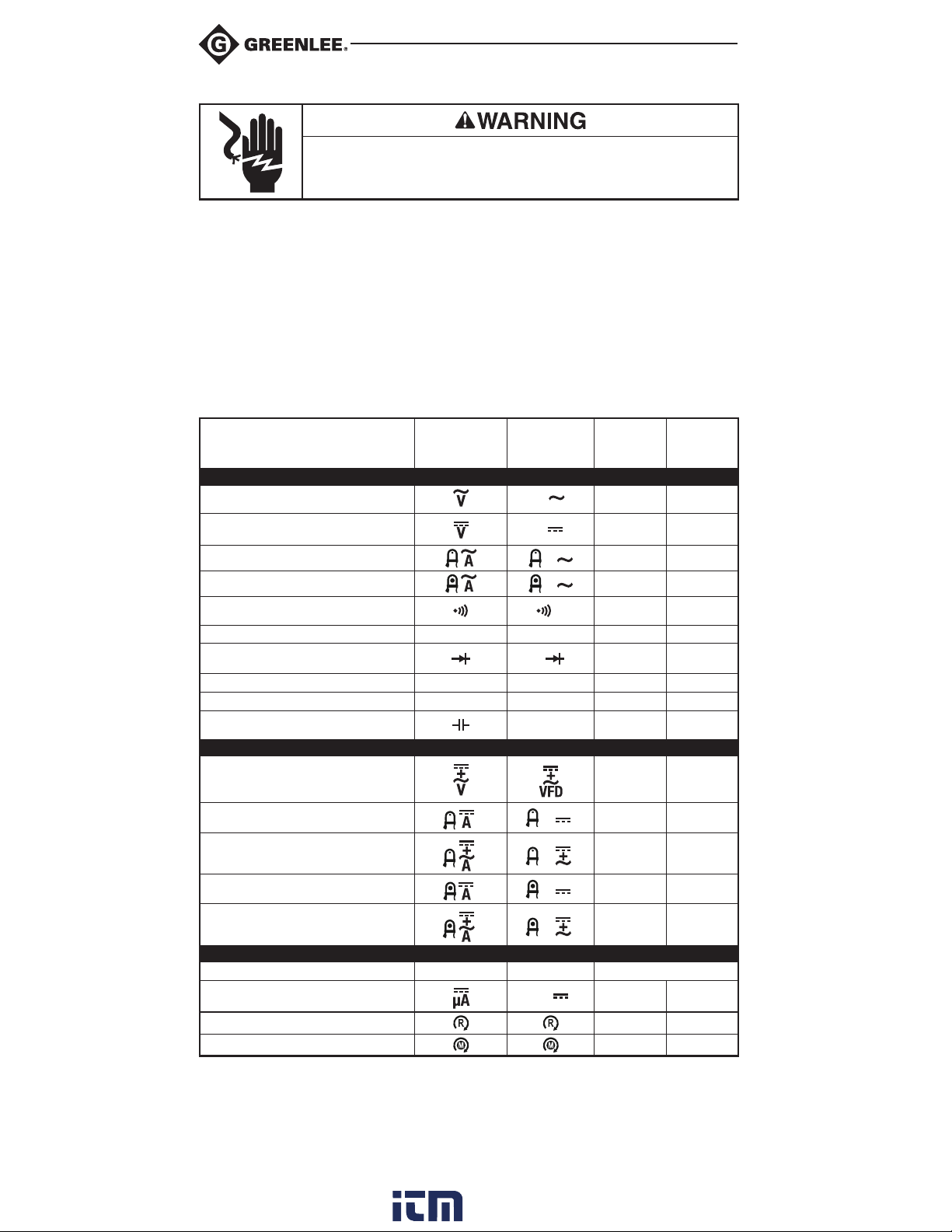

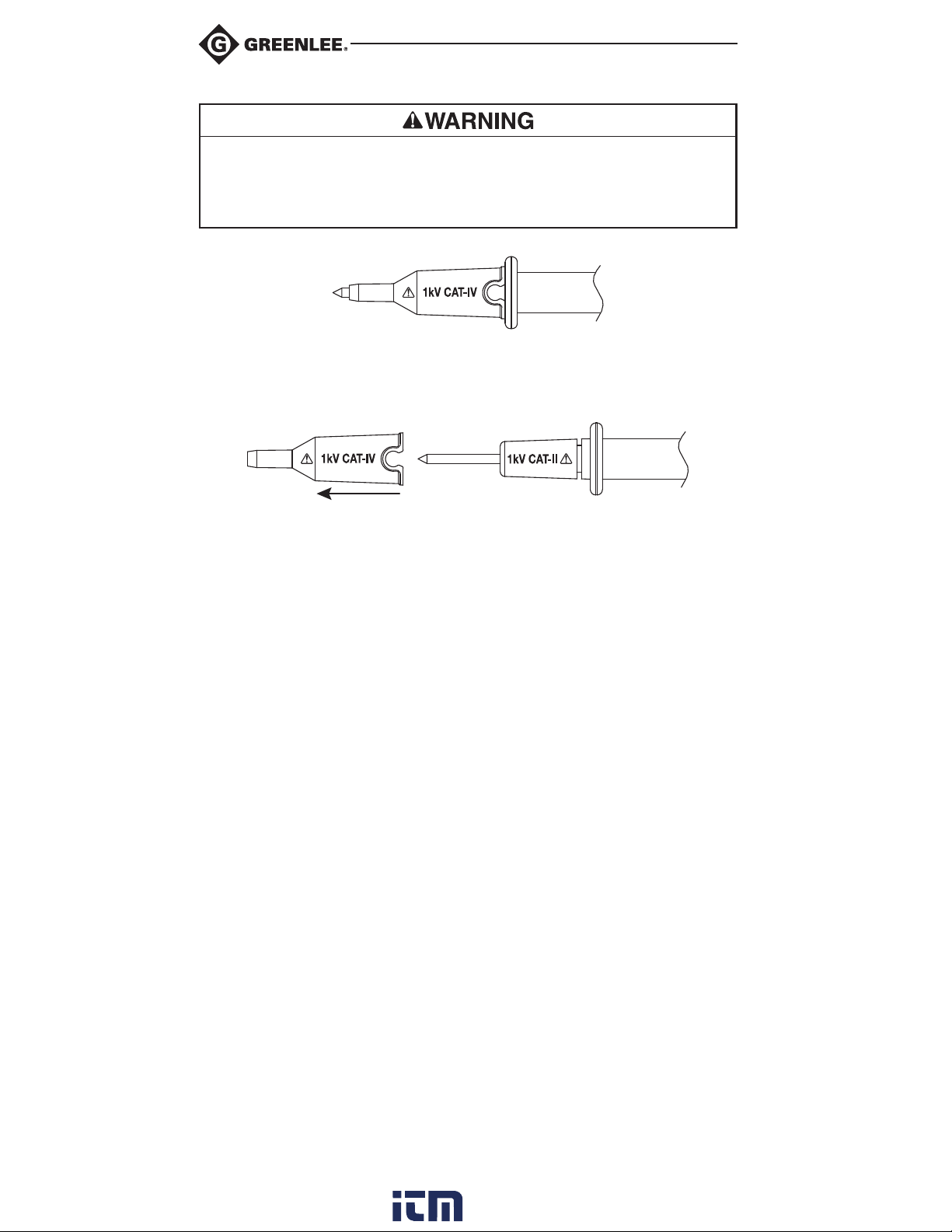

Using the Test Leads
Electric shock hazard:
The test leads supplied with this product comply with safety standards that limit the exposed length of
the probe tip to 4 mm for measurement categories III and IV. These test leads include a cap that must be
in place when used in measurement category III or IV applications.
Failure to observe this warning could result in severe injury or death.
Cap must be in place for measurement category III or IV applications.
Cap can be removed for measurement category I or II applications.
8
www. .com
[email protected]1.800.561.8187
Page 9
CM-1360 • CM-1560 • CMH-1000 • CMI-1000

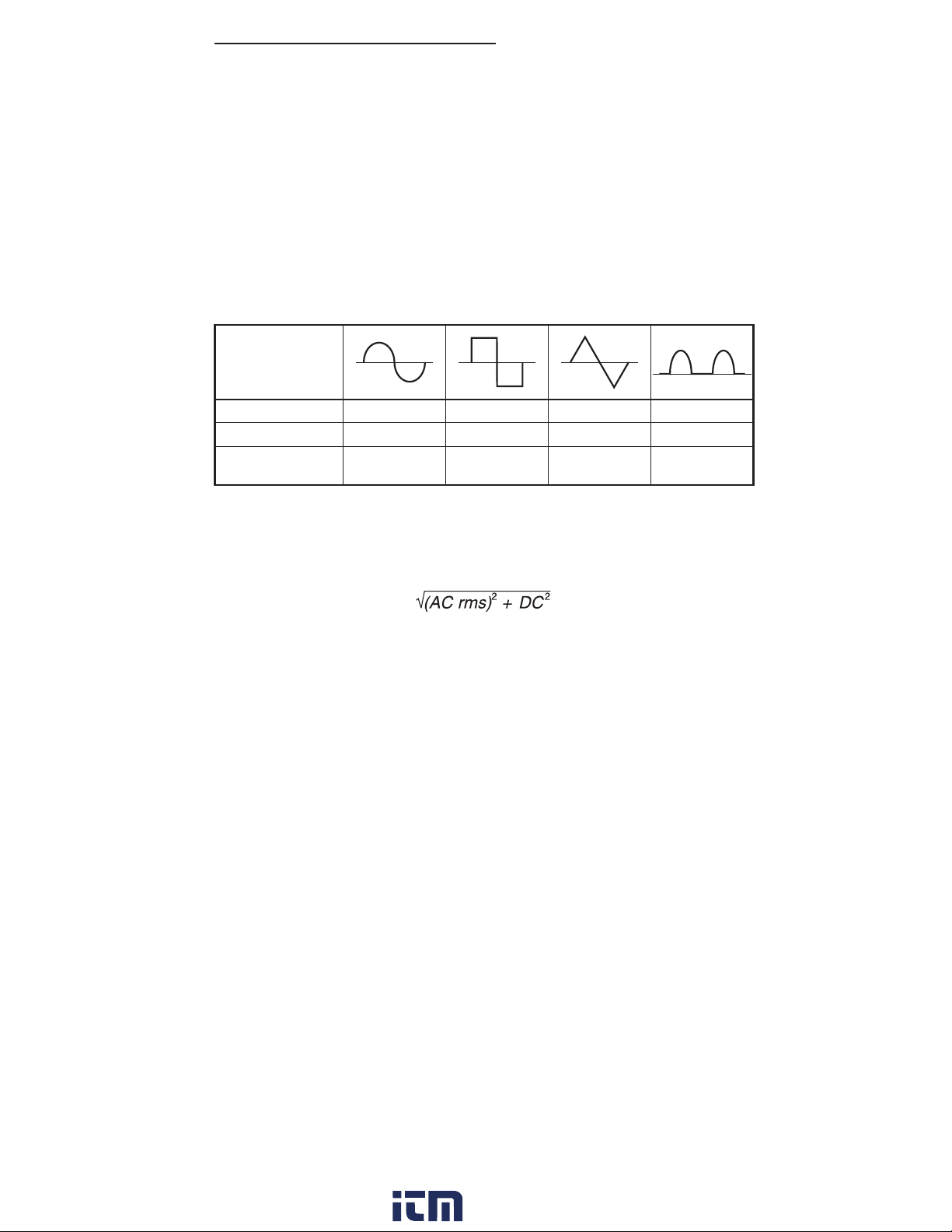

AC Measurement
AC measurements are usually displayed as RMS (root mean square) values. The RMS value is equal to the
value of a DC waveform, which would deliver the same power if it replaced the time-varying waveform.
Two AC measurement methods are average-responding RMS calibrated and true RMS-reading.
The average-responding RMS calibrated method takes the average value of the input signal after full wave
rectification, multiplies it by 1.11, and displays the result. This method is accurate if the input signal is a
pure sine wave.
The true RMS-reading method uses internal circuitry to read the true RMS value. This method is accurate,
within the specified crest factor limitations, whether the input signal is a pure sine wave, square wave,
triangle wave, half wave, or signal with harmonics. The ability to read true RMS provides much more measurement versatility. The Greenlee CM-1360, CM-1560, CMH-1000, and CMI-1000 are true RMS meters.
The Waveforms and Crest Factors table shows some typical AC signals and their RMS values.
Waveforms and Crest Factors
Waveform
RMS Value 100 100 100 100
Average Value 90 100 87 64
Crest Factor*
(j)
* The crest factor is the ratio of the peak value to the RMS value;
it is represented by the Greek letter j.
1.414 1 1.73 2
AC + DC True RMS
AC + DC true RMS calculates both of the AC and DC components given by the expression
when making measurements and responds accurately to the total effective RMS value regardless of the
waveform. Distorted waveforms with the presence of DC components and harmonics may cause:
• Transformers, generators, and motors to overheat
• Circuit breakers to trip prematurely
• Fuses to blow
• Neutrals to overheat due to the triplen harmonics present on the neutral
• Bus bars and electrical panels to vibrate
CM-1560 and CMI-1000 can be set to display AC true RMS or AC + DC true RMS.
AC Bandwidth
AC bandwidth is the range of frequencies over which AC measurements can be made within the specified
accuracy. It is the frequency response of the AC functions—not of the frequency measurement functions. A
meter cannot accurately measure the AC value with frequency spectrums outside its bandwidth. Complex
waveforms, noise, and distorted waveforms contain frequency components that are much higher than the
fundamental; for example, high frequency noise on a 50/60 Hz power line.
www. .com
9
[email protected]1.800.561.8187
Page 10
Operation
Electric shock hazard:
Contact with live circuits could result in severe injury or death.
Operating Procedure
1. Refer to the “Settings Table.” Set the selector to the proper setting, press SELECT (when instructed to
do so), and connect the test leads to the meter.
2. Refer to “Typical Measurements” for specific measurement instructions.
3. Test the unit on a known functioning circuit or component.
• If the unit does not function as expected on a known functioning circuit, replace the batteries.
• If the unit still does not function as expected, call Greenlee for technical assistance at
800-435-0786.
4. Take the reading from the circuit or component to be tested.
Settings Table
To measure
this value …
Voltage (AC)
Set the
selector to this
symbol…
ALL MODELS
These icons
appear on the
display …
V
Connect
the red lead
to…
+ COM
Connect the
black lead
to …
Voltage (DC)
Current, AmpTip™ (AC)
Current (AC)
Continuity
Resistance
Diode
Frequency
Electric Field (EF)*
Capacitance**
CM-1560 and CMI-1000 Only
Voltage (AC + DC)
Current, AmpTip™ (DC)
Current, AmpTip™ (AC + DC)
Current (DC)
Current (AC + DC)
CMH-1000 and CMI-1000 Only
Temperature
Current (µDC)
Phase Rotation†
Motor Rotation†
* Use the top side of the stationary jaw, or for more precise measurements use a probe in the COM
terminal.
** Discharge capacitor before measurement. Refer to “Typical Measurements” regarding polarized
capacitors.
*** Thermocouple + connects to +, thermocouple – connects to COM.
† Yellow lead connects to L3.
k
Hz Hz
EF EF
Temp C or F
V
V
µA
A
A
A
A
A
A
µF
+ COM
N/A N/A
N/A N/A
+ COM
+ COM
+ COM
+ COM
N/A COM
+ COM
+ COM
N/A N/A
N/A N/A
N/A N/A
N/A N/A
***
+ COM
+ COM
+ COM
10
www. .com
[email protected]1.800.561.8187
Page 11
CM-1360 • CM-1560 • CMH-1000 • CMI-1000

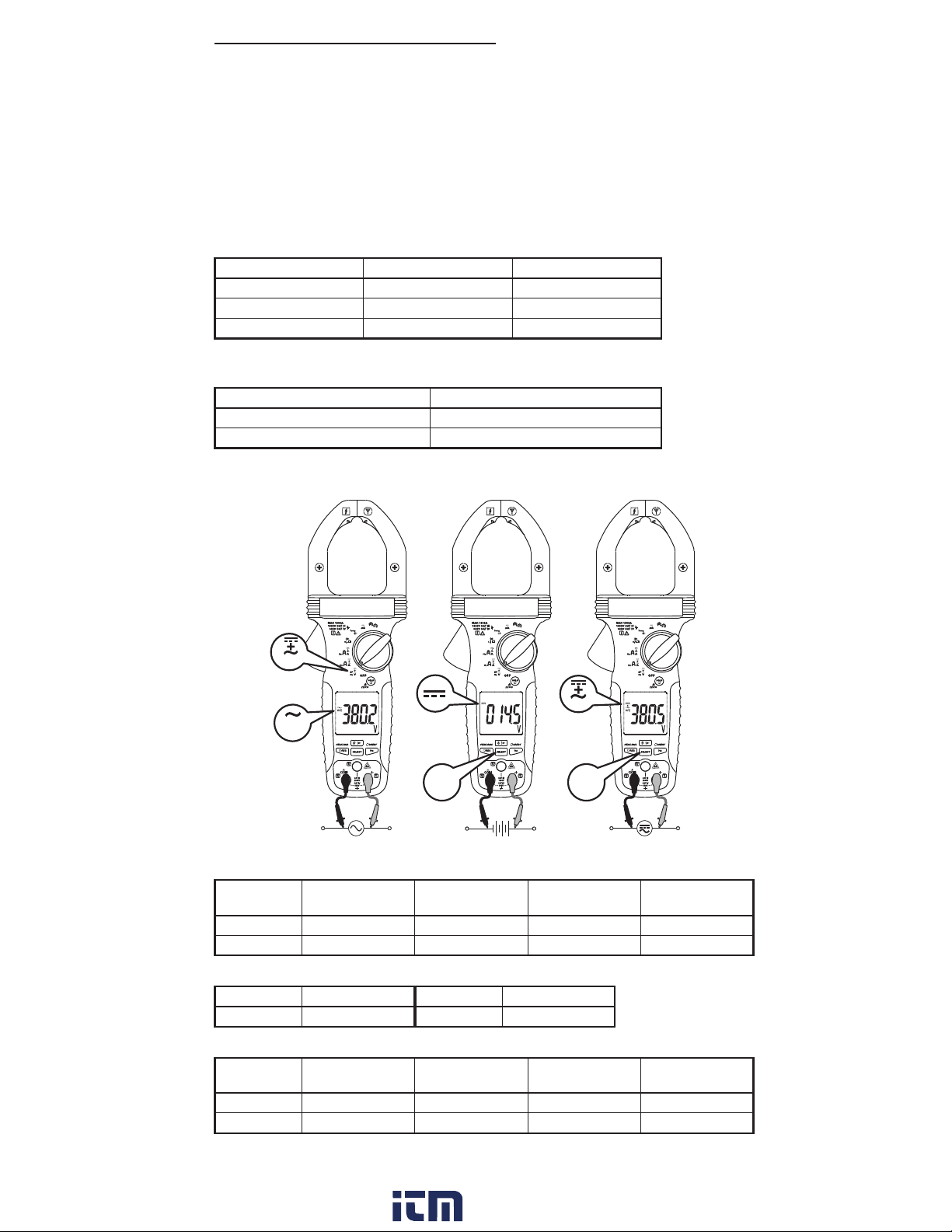

Typical Measurements and Accuracy
Refer to the “Specifications” section for operating conditions and temperature coefficient.
Accuracy is specified as follows: ± (a percentage of the reading + a fixed amount) at 23 °C ± 5 °C
(73.4°F ± 9 °F).
Frequency must be within the specified bandwidth for non-sinusoidal waveforms. Crestfactors, unless
otherwise specified, are as follows:
• Crest factor < 2.5:1 at full scale
• Crest factor < 5.0:1 at half scale
Frequency
Function Sensitivity (Sine RMS)* Range
600 V, 1000 V 50 V 5.00 Hz ~ 999.9 Hz
60.0 A AmpTip™ 40 A 40.00 Hz ~ 400.0 Hz
60.00 A, 600.0 A, 1000 A 40 A 40.00 Hz ~ 400.0 Hz
* DC bias must be less than 50% of the Sine RMS value.
Accuracy of Frequency Range
Display Range Accuracy
xx.xx ± (1.0% + 0.05 Hz)
xxx.x ± (1.0% + 0.5 Hz)
Voltage
Measurement
EF
VHz
VFD
VFD
SELECT SELECT
AC Voltage
Range
600.0 V ± (1.5% + 0.5 V) ± (0.8% + 0.5 V) ± (1.5% + 0.5 V) ± (10% + 0.5 V)
1000 V ± (1.5% + 5 V) ± (0.8% + 5 V) ± (1.5% + 5 V) ± (10% + 5 V)
Accuracy at
20 Hz to 50 Hz
Accuracy at
50 Hz to 60 Hz
Accuracy at
60 Hz to 200 Hz
Accuracy at
200 Hz to 400 Hz
DC Voltage
Range Accuracy Range Accuracy
600.0 V ± (0.8% + 0.5 V 1000 V ± (0.8% + 5 V)
AC + DC Voltage (CM-1560 and CMI-1000 only)
Range
600.0 V ± (1.8% + 0.7 V) ± (1.0% + 0.7 V) ± (1.8% + 0.7 V) ± (12% + 0.7 V)
1000 V ± (1.8% + 7 V) ± (1.0% + 7 V) ± (1.8% + 7 V) ± (12% + 7 V)
Input Impedance: 10 M, 100 pF nominal
Accuracy at
40 Hz to 50 Hz
www. .com
Accuracy at DC,
50 Hz to 60 Hz
Accuracy at
60 Hz to 200 Hz
Accuracy at
200 Hz to 400 Hz
[email protected]1.800.561.8187
11
Page 12

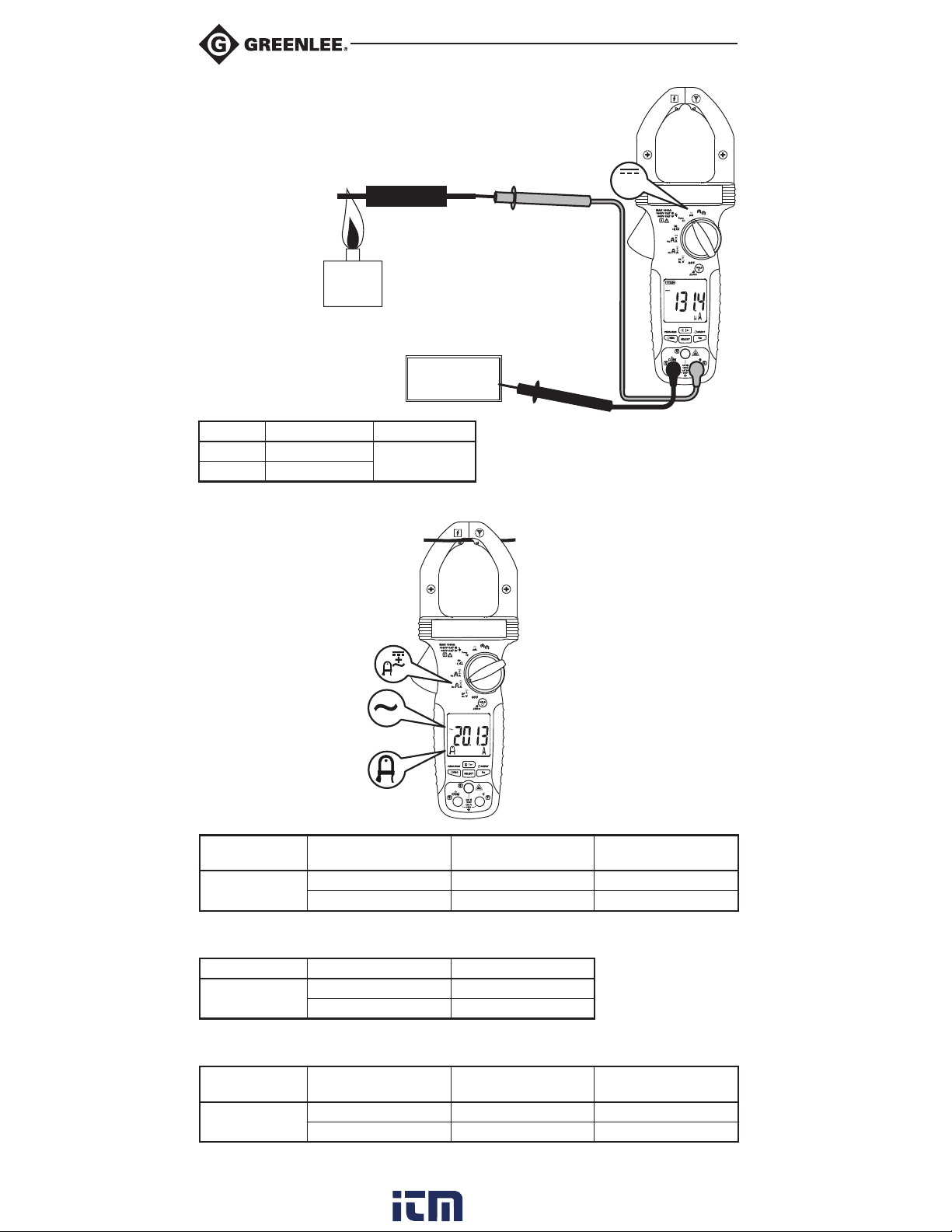

Typical Measurements and Accuracy (cont’d)
Current Measurement
µA DC Current
Flame Sensor
Pilot Flame
DC Current
(CMH-1000 and CMI-1000 only)
Range Accuracy Burden Voltage
200.0 A ± (1.0% + 0.5 A)
2000 A ± (1.0% + 5 A)
AmpTip™ Function
3.5 mV/A
µA
Control
Board
Hz
A
AmpTip™ AC Current
Range Accuracy Range
60.00 A
† Induced error for adjacent current carrying conductors is < 0.02 A/A.
AmpTip™ DC Current (CM-1560 and CMI-1000 only)
Range Accuracy Range Accuracy†
60.00 A
† Induced error for adjacent current carrying conductors is < 0.02 A/A.
AmpTip™ DC + AC Current (CM-1560 and CMI-1000 only)
Range Accuracy Range
60.00 A
† Induced error for adjacent current carrying conductors is < 0.08 A/A.
Note: Use Δ if there is an offset before the measurement is taken.
12
0.00 A to 3.99 A ± (1.5% + 0.15 A) ± (2.0% + 0.15 A)
4.00 A to 60.00 A ± (1.5% + 0.05 A) ± (2.0% + 0.05 A)
0.00 A to 3.99 A ± (1.5% + 0.15 A)
4.00 A to 60.00 A ± (1.5% + 0.05 A)
0.00 A to 3.99 A ± (2.0% + 0.17 A) ± (2.2% + 0.17 A)
4.00 A to 60.00 A ± (2.0% + 0.07 A) ± (2.2% + 0.07 A)
Accuracy at
40 Hz to 100 Hz†
Accuracy at DC,
40 Hz to 100 Hz†
www. .com
Accuracy at
100 Hz to 400 Hz†
Accuracy at
100 Hz to 400 Hz†
[email protected]1.800.561.8187
Page 13
CM-1360 • CM-1560 • CMH-1000 • CMI-1000

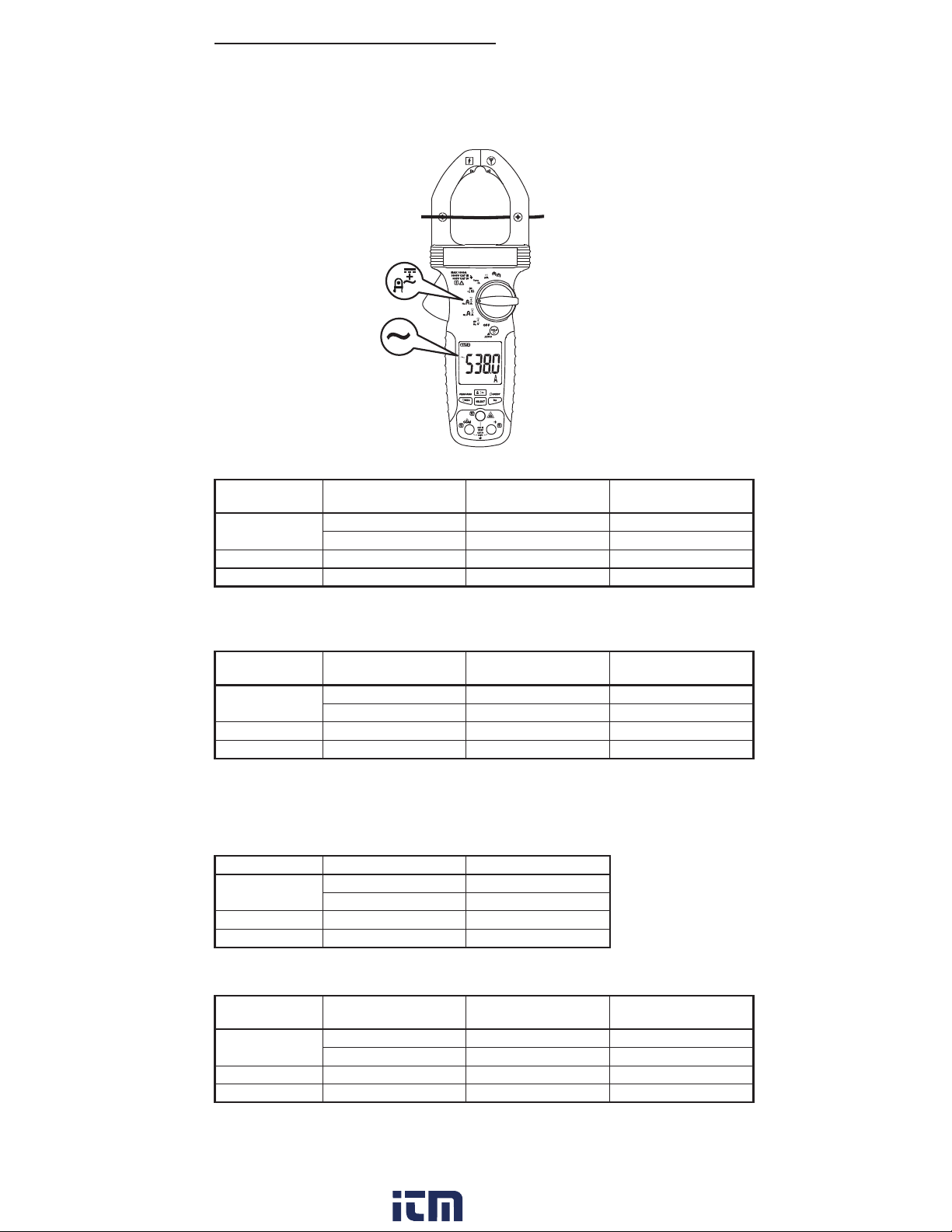

Typical Measurements and Accuracy (cont’d)
Current Measurement (cont’d)
AC and DC Clamp
Hz
A
AC Current (CM-1560 and CMI-1000 only)
Range Accuracy Range
60.00 A
600.0 A 60.0 A to 600.0 A ± (1.8% + 0.5 A) ± (2.2% + 0.5 A)
1000 A 600 A to 1000 A ± (1.8% + 5 A) ± (2.2% + 5 A)
* Maximum crest factor < 1.4:1 at full scale and < 2.8:1 at half scale.
† Induced error for adjacent current carrying conductors is < 0.02 A/A.
AC Current (CM-1360 and CMI-1360 only)
Range Accuracy Range
60.00 A
600.0 A 60.0 A to 600.0 A ± (1.8% + 0.5 A) ± (2.2% + 0.5 A)
1000 A 600 A to 1000 A ± (1.8% + 5 A) ± (2.2% + 5 A)
* Maximum crest factor < 1.4:1 at full scale and < 2.8:1 at half scale.
† Induced error for adjacent current carrying conductors is < 0.05 A/A.
^ For any measurement, when the conductor is not positioned on the center of the jaws, add 2.0% to the
accuracy for position error.
DC Current (CM-1560 and CMI-1000 only)
Range Accuracy Range Accuracy†
60.00 A
600.0 A 60.0 A to 600.0 A ± (1.8% + 0.5 A)
1000 A 600 A to 1000 A ± (1.8% + 5 A)
† Induced error for adjacent current carrying conductors is < 0.02 A/A.
AC + DC Current (CM-1560 and CMI-1000 only)
Range Accuracy Range
60.00 A
600.0 A 60.0 A to 600.0 A ± (2.2% + 0.7 A) ± (2.5% + 0.7 A)
1000 A 600 A to 1000 A ± (2.2% + 7 A) ± (2.5% + 7 A)
* Maximum crest factor < 1.4:1 at full scale and < 2.8:1 at half scale.
† Induced error for adjacent current carrying conductors is < 0.08 A/A.
0.00 A to 8.99 A ± (1.8% + 0.15 A) ± (2.2% + 0.15 A)
9.00 A to 60.00 A ± (1.8% + 0.05 A) ± (2.2% + 0.05 A)
0.00 A to 5.99 A ± (1.8% + 0.15 A) ± (2.2% + 0.15 A)
6.00 A to 60.00 A ± (1.8% + 0.05 A) ± (2.2% + 0.05 A)
0.00 A to 8.99 A ± (1.8% + 0.15 A)
9.00 A to 60.00 A ± (1.8% + 0.05 A)
0.00 A to 8.99 A ± (2.2% + 0.17 A) ± (2.5% + 0.17 A)
4.00 A to 60.00 A ± (2.2% + 0.07 A) ± (2.5% + 0.07 A)
Accuracy at
40 Hz to 100 Hz*†
Accuracy at
40 Hz to 100 Hz*†
Accuracy at DC,
40 Hz to 100 Hz*†
Accuracy at
100 Hz to 400 Hz*†
Accuracy at
100 Hz to 400 Hz*†^
Accuracy at
100 Hz to 400 Hz*†
Note: Use Δ if there is an offset before the measurement is taken.
www. .com
13
[email protected]1.800.561.8187
Page 14

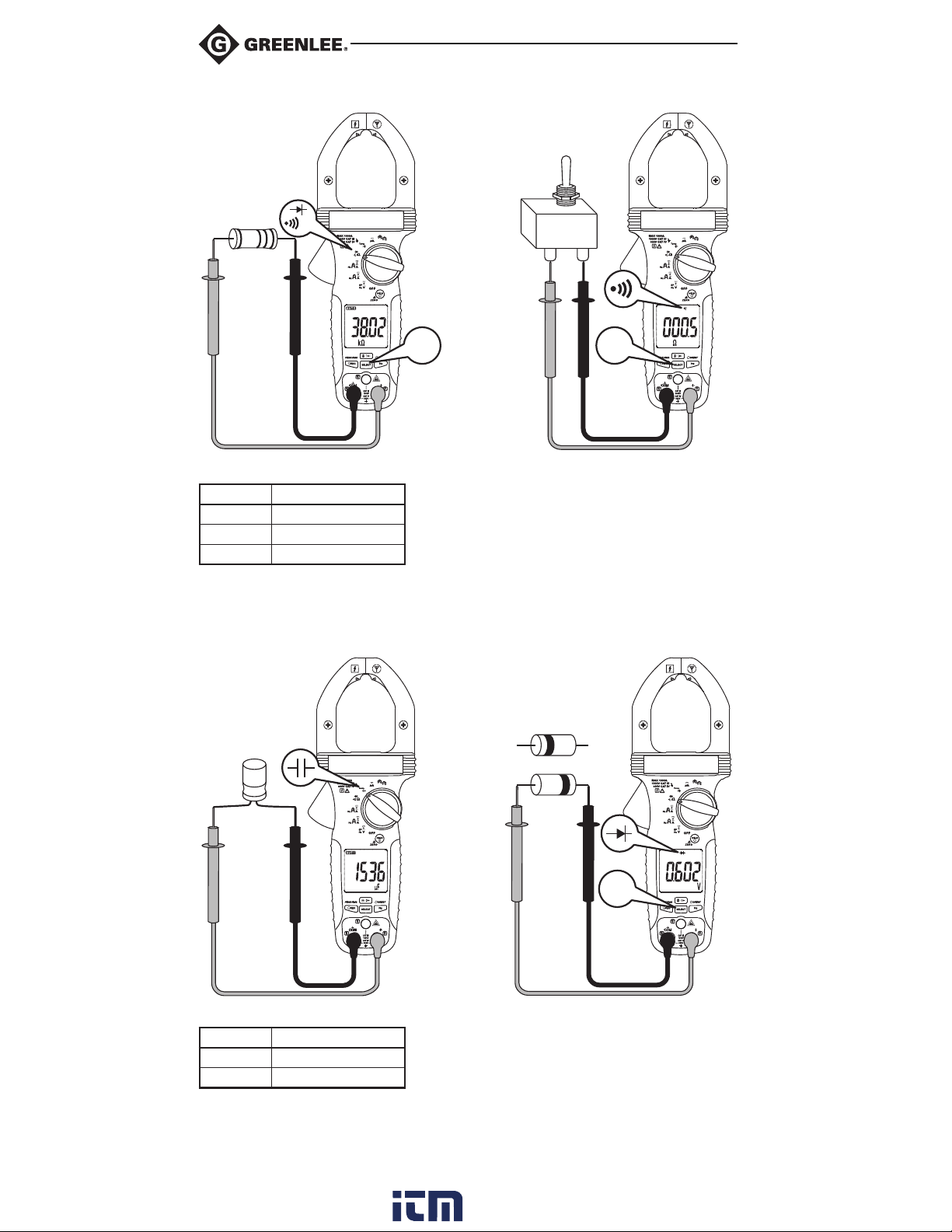

Typical Measurements and Accuracy (cont’d)
Resistance
Measurement
Ω
Resistance
Range Accuracy
600.0 ± (1.0% + 0.5 )
6.000 k ± (1.0% + 0.005 k)
60.00 k ± (1.0% + 0.05 k)
Open Circuit Voltage (typical): 1.7 VDC
SELECT
Continuity Check
SELECT
Continuity
Tone Threshold: Between 10 and 250
Response Time: Approximately 32 ms
Capacitance
Measurement
Capacitance
Range Accuracy*
200.0 F ± (2.0% + 0.4 F)
2500 F ± (2.0% + 4 F)
* For film capacitors (capacitors with
negligible dielectric absorption).
Diode
Measurement
Reverse Bias
Forward Bias
SELECT
Diode Test
Measuring Range: 2.000 V
Accuracy: ± (1.5% + 0.005 V)
Test Current (typical): 0.3 mA
Open Circuit Voltage (typical):
< 3.5 VDC
14
www. .com
[email protected]1.800.561.8187
Page 15
CM-1360 • CM-1560 • CMH-1000 • CMI-1000
Typical Measurements and Accuracy (cont’d)
Temperature
Electric Field
10 mm
(0.4")
A
SELECT
A–Non-contact OR
B–Contact, precision measurement
Temperature (CMH-1000 and CMI-1000 only)
Range Accuracy*
-40.0 °C ~ 99.9 °C ± (1.0% + 0.8 °C)
100 °C ~ 400 °C ± (1.0% + 1 °C)
-40.0 °F ~ 211.8 °F ± (1.0% + 1.5 °F)
212 °F ~ 752 °F ± (1.0% + 2 °F)
* Thermocouples supplied with meter meet
standard JIS C 1602-1981.
Non-contact EF Detection
Typical
Voltage
20 V 10 V ~ 36 V -
55 V 23 V ~ 83 V - 110 V 59 V ~ 165 V - - 220 V 124 V ~ 330 V - - - 440 V 250 V ~ 1000 V - - - - -
50 Hz to 60 Hz
Phase Rotation Motor Rotation
SELECT
B
Range at
LCD
Indication
SELECT
Clockwise Counterclockwise
www. .com
15
[email protected]1.800.561.8187
Page 16
Specifications
Display: LCD, 3-5/6 digits 6000 counts
Polarity: Automatic
Update Rate: 5 per second nominal
Operating Conditions:
-10 °C to 10 °C (14 °F to 50 °F), relative humidity non-condensing
11 °C to 30 °C (51.8 °F to 86 °F), relative humidity ≤ 90%
30 °C to 40 °C (86 °F to 104 °F), relative humidity ≤ 75%
40 °C to 50 °C (104 °F to 122 °F), relative humidity ≤ 45%
Pollution degree: 2
Indoor use only
Altitude:
Operating: Below 2000 m (6500 ft)
Storage: 3000 m (9843 ft)
Storage Temperature: -20 °C to 60 °C, relative humidity < 80%, with batteries removed
Temperature Coefficient: Nominal 0.10 x (Accuracy) per °C below 18 °C from -10 °C to 18 °C
(14 °F to 64.4 °F) and above 28 °C from 28 °C to 50 °C (82.4 °F to 122 °F) or otherwise specified
Sensing: True RMS
E.M.C.:
Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11)
In an RF field of 1 V/m, resistance modes all models and DC µA (CMH-1000 and CMI-1000):
Total Accuracy = Specified Accuracy + 80 digits
In an RF field of 1 V/m at frequencies 200 MHz ~ 300 MHz, DCA, DC+AC A and ACA mode:
Total Accuracy = Specified Accuracy + 60 digits
In an RF field of 3V/m, all other modes and models not specified above:
Total Accuracy = Specified Accuracy + 20 digits
Safety: Double insulation per UL/IEC/EN61010-1 Ed. 3, IEC/EN61010-2-033 Ed. 1, CAN/CSA C22.2 No.
61010-1 Ed. 3, IEC/EN61010-2-032 Ed. 2 & IEC/EN61010-031 Ed. 1.1 to CAT III 600V and CAT IV 300V
AC and DC
Overload Protections:
Jaws:
Current and Frequency Function: 1000 A DC/AC RMS at ≤ 400 Hz
Terminals:
Voltage and Phase Rotation Function: 1100 V DC/AC RMS
All Other Modes and Functions: 1000 V DC/AC RMS
Transient Protection: 8.0 kV (1.2/50 s surge)
Power Supply: Two 1.5 V AA batteries (IEC LR06)
Low Battery:
Capacitance and Frequency Functions: Approximately 2.85 V
All other Functions: Approximately 2.5 V
Current Consumption:
CM-1560 and CMI-1000: Typically 13 mA
CM-1360 and CMH-1000: Typically 4.3 mA
APO Timing: Idle for 32 minutes
APO Consumption: 5 A typical
Dimensions: 258 mm x 94 mm x 44 mm (10.1" x 3.7" x 1.7")
Jaw Opening and Conductor Diameter: 51 mm max (2.0")
Statement of Conformity
Greenlee Textron Inc. is certified in accordance with ISO 9001 (2000) for our Quality Management
Systems.
The instrument enclosed has been checked and/or calibrated using equipment that is traceable to the
National Institute for Standards and Technology (NIST).
16
www. .com
[email protected]1.800.561.8187
Page 17
CM-1360 • CM-1560 • CMH-1000 • CMI-1000
Measurement Categories
These definitions were derived from the international safety standard for insulation coordination as it
applies to measurement, control, and laboratory equipment. These measurement categories are explained
in more detail by the International Electrotechnical Commission; refer to either of their publications: IEC
61010-1 or IEC 60664.
Measurement Category II
Local level. Appliances, portable equipment, and the circuits they are plugged into. Some examples
include light fixtures, televisions, and long branch circuits.
Measurement Category III
Distribution level. Permanently installed machines and the circuits they are hard-wired to. Some examples
include conveyor systems and the main circuit breaker panels of a building’s electrical system.
Measurement Category IV
Primary supply level. Overhead lines and other cable systems. Some examples include cables, meters,
transformers, and other exterior equipment owned by the power utility.
Maintenance
Electric shock hazard:
Before opening the case, remove the test leads from the circuit and shut off the unit.
Failure to observe this warning could result in severe injury or death.

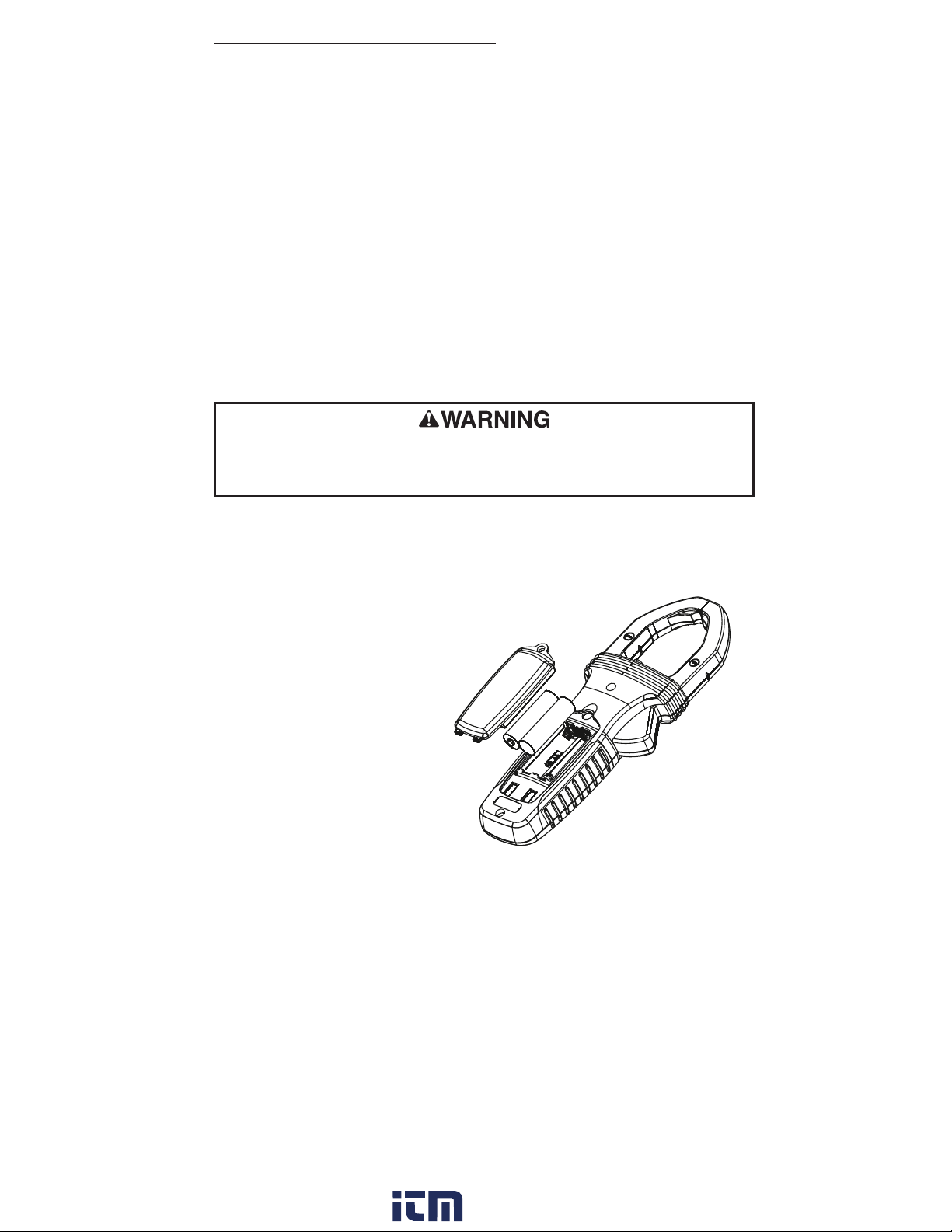

Replacing the Batteries
1. Disconnect the unit from the circuit.
Turn the unit OFF.
2. Remove the two screws from the
battery access door and remove it.
3. Replace the batteries, making sure to
observe the polarity.
Cleaning and Storage
Periodically wipe the case with a damp
cloth and mild detergent; do not use
abrasives or solvents.
If the meter will not be used for periods
longer than 60 days, remove the batteries
and store them separately.
www. .com
17
[email protected]1.800.561.8187
Page 18
Lifetime Limited Warranty
Greenlee Textron Inc. warrants to the original purchaser of these goods for use that these products
will be free from defects in workmanship and material for their useful life, excepting normal wear and
abuse. This warranty is subject to the same terms and conditions contained in Greenlee Textron Inc.’s
standard one-year limited warranty.
For items not covered under warranty (such as items dropped, abused, etc.), a repair cost quote is
available uponrequest.
Note: Prior to returning any test instrument, please check replaceable batteries or make sure the
battery is at fullcharge.
Garantía limitada válida durante la vida útil del producto
Greenlee Textron Inc. le garantiza al comprador original de estos bienes de uso, que los mismos
estarán libres de defectos de materiales y fabricación durante su vida útil, excepto en el caso de que
sean maltratados o hayan sufrido el deterioro normal. Esta garantía está sujeta a los mismos términos
y condiciones de la garantía estándar limitada válida por un año, otorgada por Greenlee Textron Inc.
Puede obtener, previa solicitud, una cotización de precios de reparación para aquellos artículos que
no están cubiertos bajo esta garantía (los que se han dejado caer o han sido maltratados).
Aviso: Antes de devolver un instrumento de verificación, revise si las baterías están bajas y es
necesario reemplazarlas.
Garantie à vie limitée
La société Greenlee Textron Inc. garantit à l’acheteur d’origine de ces produits que ces derniers ne
comportent aucun défaut d’exécution ou de matériau pour la durée de leur vie utile, sauf l’usure
normale. Cette garantie est assujettie aux mêmes conditions que celles contenues dans les modalités
et conditions de la garantie limitée standard d’un an de Greenlee Textron Inc.
Lorsque les articles ne sont pas protégés par une garantie (comme si l’appareil tombe, s’il est soumis
à un usage abusif, etc.), une soumission pour le prix de réparation sera présentée sur demande.
Remarque : Avant de renvoyer un appareil de mesure, veuillez vérifier les piles remplaçables ou vous
assurer que la batterie est complètement chargée.
Lebenslange beschränkte Garantie
Greenlee Textron Inc. garantiert dem Erstkäufer dieser Produkte, dass sie unter Ausschluss von
normalem Verschleiß oder Missbrauch für den Zeitraum ihrer Nutzungsdauer frei von Bearbeitungsund Materialfehlern sind. Diese Garantie unterliegt denselben Bedingungen, die auch für die
standardmäßige beschränkte Einjahresgarantie von Greenlee Textron Inc. gelten.
Bei Geräten ohne Garantieschutz (z.B. heruntergefallene oder missbrauchte Produkte) kann auf
Anfrage ein Kostenvoranschlag für die Reparatur erstellt werden.
Hinweis: Bitte prüfen Sie vor dem Einsenden des Geräts die austauschbaren Batterien bzw. stellen
Sie sicher, dass die Batterie vollständig geladen ist.
"O*40$PNQBOZt(SFFOMFF5FYUSPO*ODJTBTVCTJEJBSZPG5FYUSPO*OD
www. .com
[email protected]1.800.561.8187
Loading...
