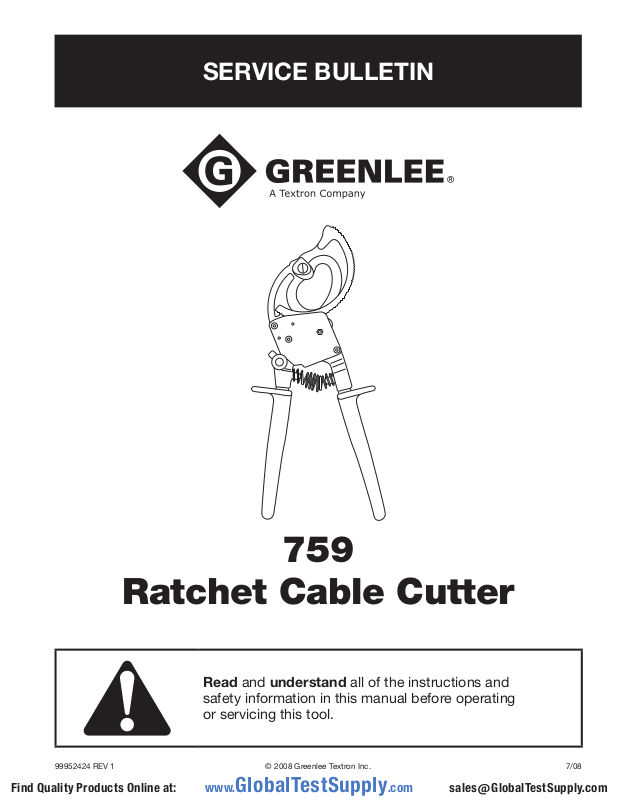

Page 1
SERVICE BULLETIN
759
Ratchet Cable Cutter
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
99952424 REV 1 © 2008 Greenlee Textron Inc. 7/08
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
IMPORTANT SAFETY INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for preventing or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result
in severe injury or death.
759 Ratchet Cable Cutter
Electric shock hazard:
This tool is not insulated. Contact
with live circuits could result in severe
injury or death.
Wear eye protection when operating
or servicing this tool.
Failure to wear eye protection could
result in serious eye injury from ying
debris.
Hazards which, if not avoided, COULD result in
severe injury or death.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning could
result in severe injury or death.
Keep hands and ngers clear of
blades.
Failure to observe this warning could
result in severe injury or death.
Note: Keep all decals clean and legible, and replace
when necessary.
All specications are nominal and may change as design
improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.
KEEP THIS MANUAL
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3

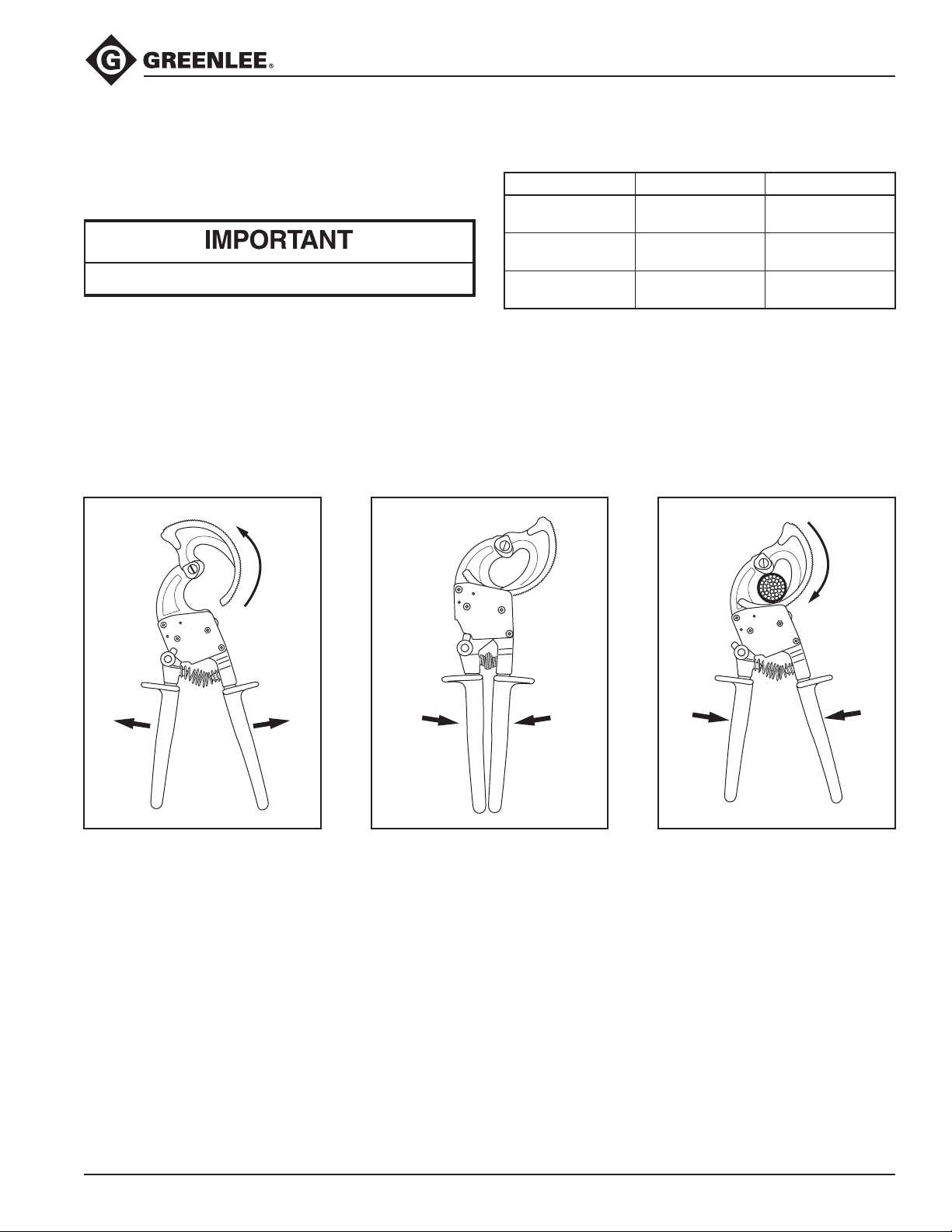

Specifications
759 Ratchet Cable Cutter
Length: 10-1/2" (266 mm)
Weight: 1.4 lb (0.6 kg)
Do not cut ACSR or steel.
Capacity
Maximum Frequent Use
Copper 500 kcmil (MCM)
Aluminum 750 kcmil (MCM)
Communications
Cable
(240 mm
(400 mm
1-1/8" diameter
(28 mm
2
)
2
)
2
)
400 kcmil (MCM)
(185 mm2)
600 kcmil (MCM)
(300 mm2)
—
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4

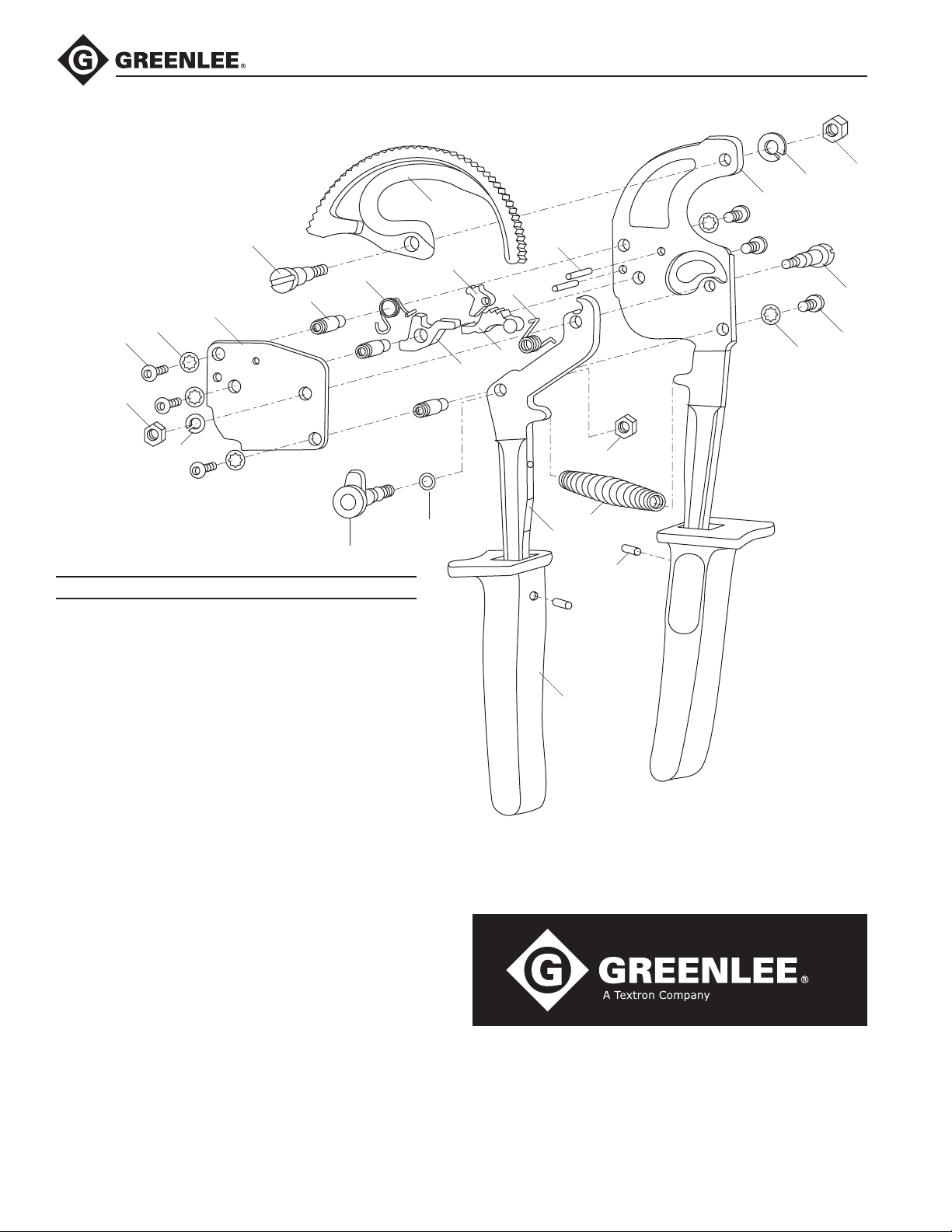

Illustration
15
14
23
21
10
4
19
16
3
5
17
22
21
23
9
13
12
20
1
2
8
6
7
18
11
16
24
and Parts List
759 Ratchet Cable Cutter
Key Part No. Description Qty
1 50452819 Fixed blade ...............................................1
2 50452827 Movable blade ..........................................1
3 Ratchet handle ..........................................1
4 50452843 Outer plate ................................................1
5 Handle grip ................................................2
6 Pawl ..........................................................1
7 Handle pawl ..............................................1
8 Release pawl .............................................1
9 Ratchet handle pin ....................................1
10 Spacer pin .................................................3
11 Pivot screw................................................1
12 M6 washer ................................................1
13 M6 lock nut ...............................................1
14 Ratchet lever knob ....................................1
15 O-ring ........................................................1
16 M4 lock nut ...............................................2
17 50452975 Coil spring .................................................1
18 Pawl spring ...............................................1
19 Ratchet pawl spring ..................................1
20 Ratchet pawl set pin .................................2
21 M4 lock tooth washer ...............................6
22 Handle grip set plug ..................................2
23 Socket head set screw..............................6
24 M4 spring washer .....................................1
Repair Kits (quantities as listed above)
50453106 Pawl kit (includes items 6–8, 18–20)
50453114 Pivot screw kit (includes items 9, 11–13, 16, 24)
50453122 Set screw kit (includes items 10, 21, 23)
50453130 Ratchet lever knob kit (includes items 14–16)
50453149 Handle with grip and plug kit
(includes one each of items 3, 5, 17, 22)
