Page 1

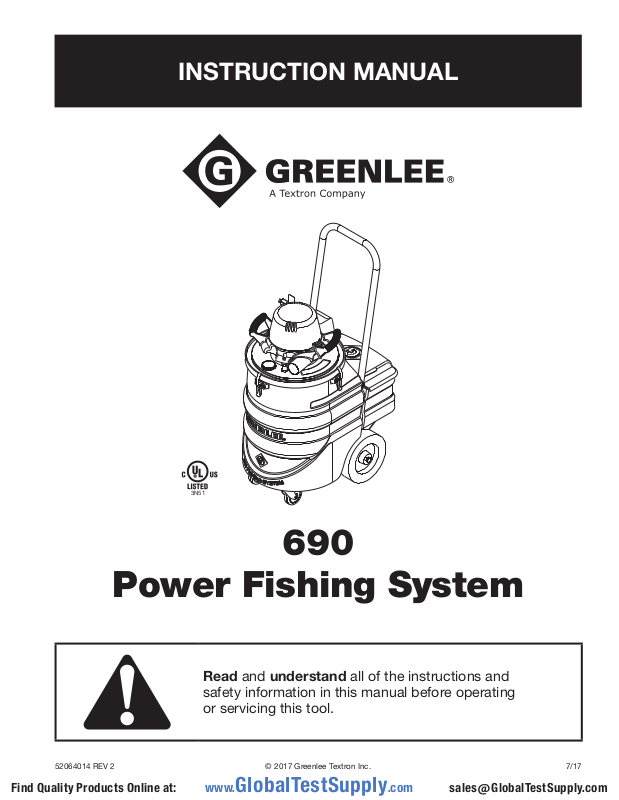

INSTRUCTION MANUAL
3N51
690
Power Fishing System
Read and understand all of the instructions and safety information in this manual before operating or servicing this tool.
52064014 REV 2 © 2017 Greenlee Textron Inc. 7/17
Find Quality Products Online at: [email protected]
Page 2
690 Power Fishing System
Table of Contents
Description .................................................................... 2
Safety ............................................................................ 2
Purpose of this Manual ................................................. 2
Important Safety Information .....................................3–4
Grounding Instructions .................................................. 4
Identication .................................................................. 5
Specications ................................................................ 5
Assembly ....................................................................... 6
Operation ....................................................................6–8
Maintenance ...............................................................8–9
Troubleshooting ............................................................. 9
Illustration .................................................................... 10
Parts List ..................................................................... 11
Wiring Diagram ............................................................ 12
Description
The Greenlee 690 Power Fishing System is intended to “sh,” or route, nylon shing line through 1/2" to 4" conduit. Optional accessories are also available for shing through 5" and 6" conduit, and for clean-up vacuuming.
This tool is intended for commercial use.
Safety
Safety is essential in the use and maintenance of Greenlee tools and equipment. This instruction manual and any markings on the tool provide information for avoiding hazards and unsafe practices related to the use of this tool. Observe all of the safety information provided.
Purpose of this Manual
This manual is intended to familiarize personnel with the safe operation and maintenance procedures for the Greenlee 690 Power Fishing System.
Keep this manual available to all personnel.
Do not discard this product or throw away!
All specications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
Mighty Mouser is a registered trademark of Greenlee Textron Inc.
KEEP THIS MANUAL
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Find Quality Products Online at: [email protected]
2
Page 3
IMPORTANT SAFETY INFORMATION
SAFETY ALERT SYMBOL
This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage. The signal word, dened below, indicates the severity of the hazard. The message after the signal word provides information for pre­venting or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result in severe injury or death.
690 Power Fishing System
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust and debris that may reduce air ow.
• Turn power OFF before unplugging.
• Use extra care when cleaning on stairs.
• Keep loose clothing and all parts of the body away from openings and moving parts.
Failure to observe these warnings could result in severe injury or death.
Hazards which, if not avoided, COULD result in severe injury or death.
Hazards or unsafe practices which, if not avoided, MAY result in injury or property damage.
Read all instructions before using.
Failure to observe this warning will result in severe injury or death.
Do not use this tool in a hazard­ous environment, or use this tool to vacuum up anything hazardous. Hazards include ammable liquids, gases, or other materials. Such use can result in a re or explosion.
Failure to observe this warning will result in severe injury or death.
SAVE THESE INSTRUCTIONS
Electric shock hazard:
• Do not leave unit unattended when plugged in. Unplug from recep­tacle when not in use and before servicing.
• For indoor use only.
• Do not expose to rain. Store indoors.
• Do not handle plug or vacuum/ blower unit with wet hands.
• Do not use with a damaged cord or plug. If the vacuum/blower is not working as it should, if it has been dropped, damaged, left outdoors or dropped into water, send it to an authorized Greenlee service center.
• Do not pull or carry by cord, use the cord as a handle, close a door on the cord, run over the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp and pull the plug — not the cord.
• Connect to a properly grounded receptacle only. Refer to “Grounding Instructions.”
• Disconnect from power before servicing.
Failure to observe these warnings could result in severe injury or death.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Find Quality Products Online at: [email protected]
3
Page 4
690 Power Fishing System

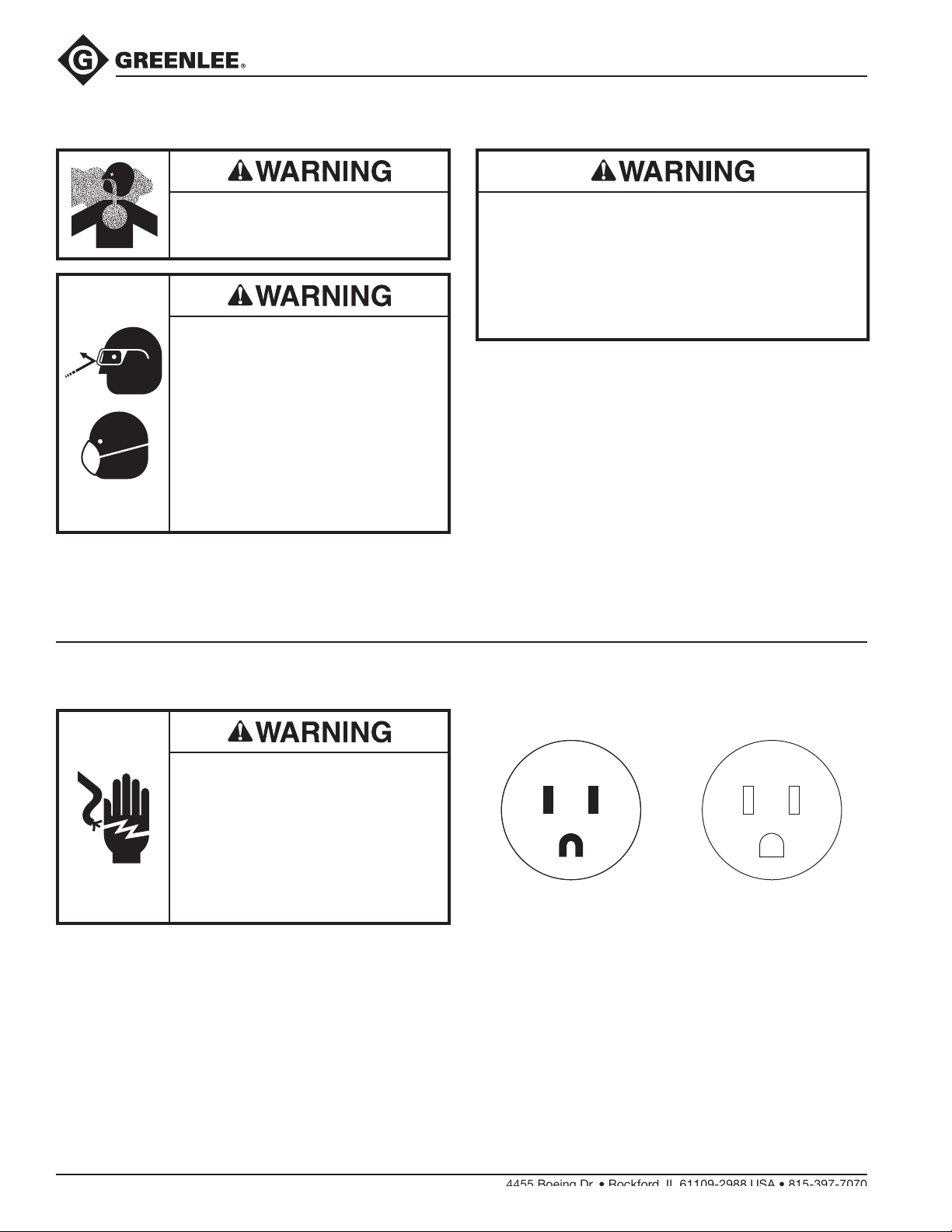

IMPORTANT SAFETY INFORMATION
Do not vacuum or blow burning or toxic materials such as carcinogens, asbestos, pesticides or heavy metals.
• Wear eye protection and a dust mask when operating or servicing this tool.
• Piston and debris will exit the conduit at high speed. Attach the warning tag at the exit end of the conduit before blowing a piston through the conduit.
Failure to wear eye protection could result in serious eye injury from ying debris.
• Do not use without a clean lter in place. Using the vacuum/blower with a clogged, damaged or missing lter will cause damage to the motor.
• Do not vacuum up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
Failure to observe these warnings could result in severe injury or death.
Note: Keep all decals clean and legible, and replace when necessary.
SAVE THESE INSTRUCTIONS
Grounding Instructions
Electric shock hazard:
• Do not modify the plug provided with the tool.
• Connect this tool to a grounded receptacle on a 15-amp GFCI­protected circuit.
Failure to observe these warnings could result in severe injury or death.
This tool must be grounded. In the event of a malfunc­tion or breakdown, an electrical ground provides a path of least resistance for the electric current. This path of least resistance is intended to reduce the risk of electric shock.
This tool’s electric cord has a grounding conductor and a grounding plug as shown. Do not modify the plug. Connect the plug to a corresponding GFCI-protected receptacle that is properly installed and grounded in accordance with all national and local codes and ordinances.
Do not use an adapter.
NEMA 5-15
ReceptaclePlug
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Find Quality Products Online at: [email protected]
4
Page 5

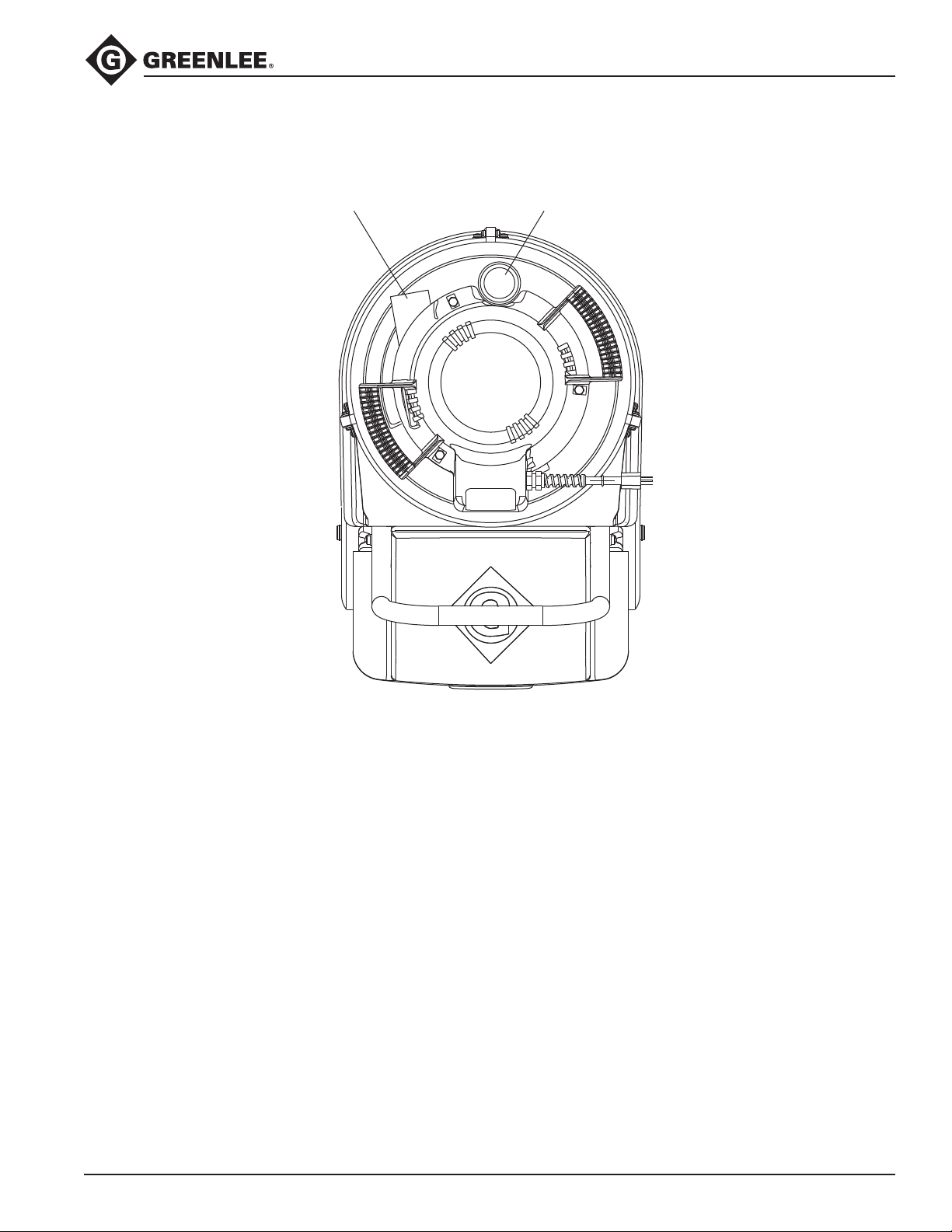

Identification
690 Power Fishing System
Exhaust Port
(for blowing)
Intake Port
(for vacuuming)
Specifications
Motor ....................................................................................12 amps / 12 VAC / 60 Hz
Pressure
Blower ............................................................................................. 4 psi (0.275 bar)
Vacuum
Column of Water ............................................................................. 112.8" (2.9 m)
Column of Mercury .........................................................................8.3" (211 mm)
Air Flow ....................................................................................... 120 CFM (3.4 m3/min)
Tank Capacity (liquid) .......................................................................... 12 U.S. gal (41 l)
Mass / Weight .............................................................................................52 lb (24 kg)
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
5
Find Quality Products Online at: [email protected]
Page 6

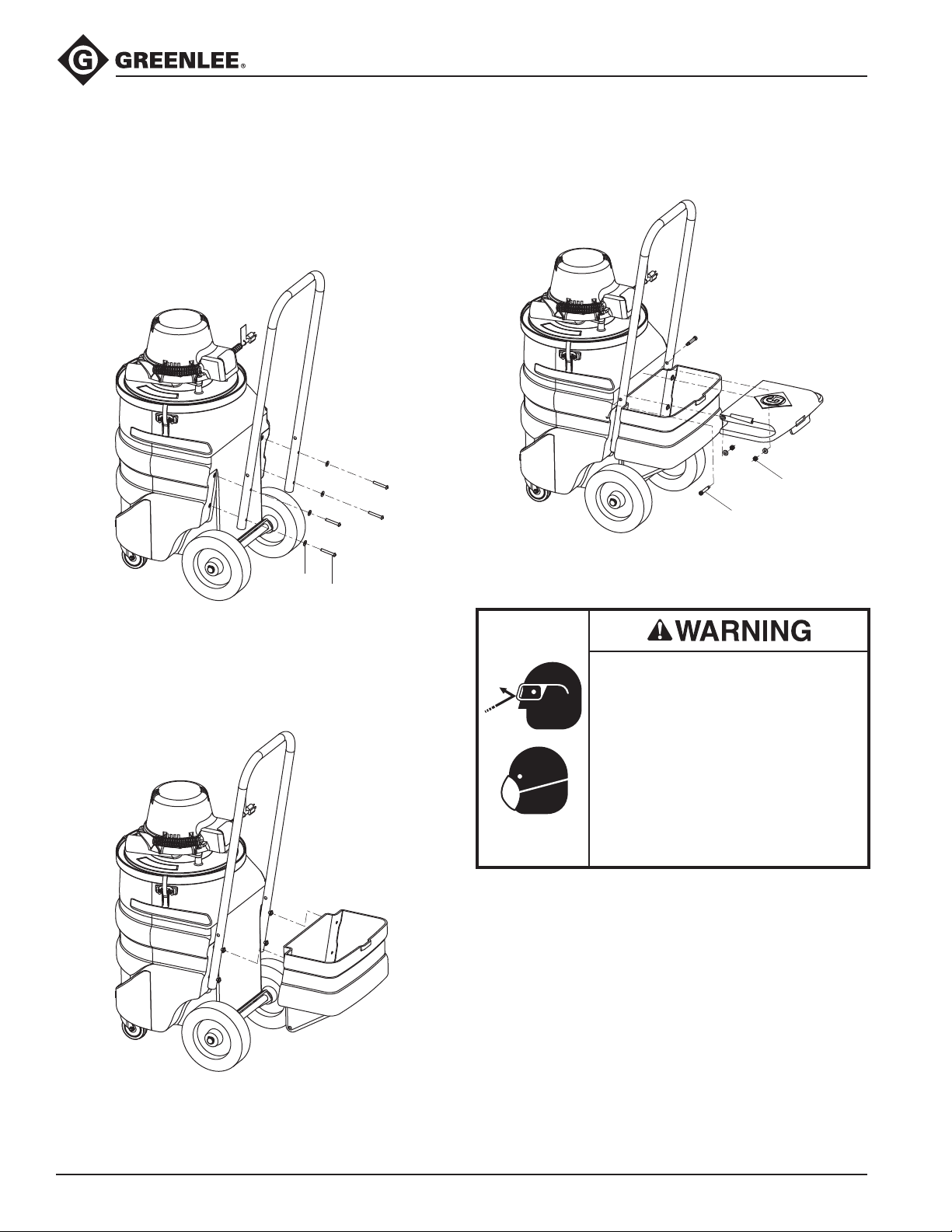

Assembly
690 Power Fishing System
Refer to the “Illustration” and “Parts List” sections of this manual.
1. Attach the handle to the tank by using four screws (44) and four washers (43). Make sure to leave enough space for the storage box. DO NOT screw the screws tight.
43
44
3. Attach the storage box lid to the handle by using two shoulder screws (47) and two nuts (48).
48
47
Operation
2. Attach the storage box to the tank by position­ing the box over the screws and washers from the handle and sliding the box down rmly until it locks into place. If preferred, tighten the screws to squeeze the storage box. Be careful NOT to overtighten.
• Wear eye protection and a dust mask when operating or servicing this tool.
• Piston and debris will exit the conduit at high speed. Attach the warning tag at the exit end of the conduit before blowing a piston through the conduit.
Failure to wear eye protection could result in serious eye injury from ying debris.
Use the 690 alone, or combine it with a 592 Mighty Mouser® Blow Gun Kit as shown here.
OPERATING TIPS
• When shing through IMC or rigid, blowing is generally more efcient than vacuuming.
• When shing through EMT, vacuuming is the better method. EMT connections are not airtight, and a piston that is blown through might not reach the exit end of the conduit run.
• Two shing lines can be vacuumed in at the same time, if desired. Leave one line in the conduit to pull additional wire into the conduit after the initial installation.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Find Quality Products Online at: [email protected]
6
Page 7

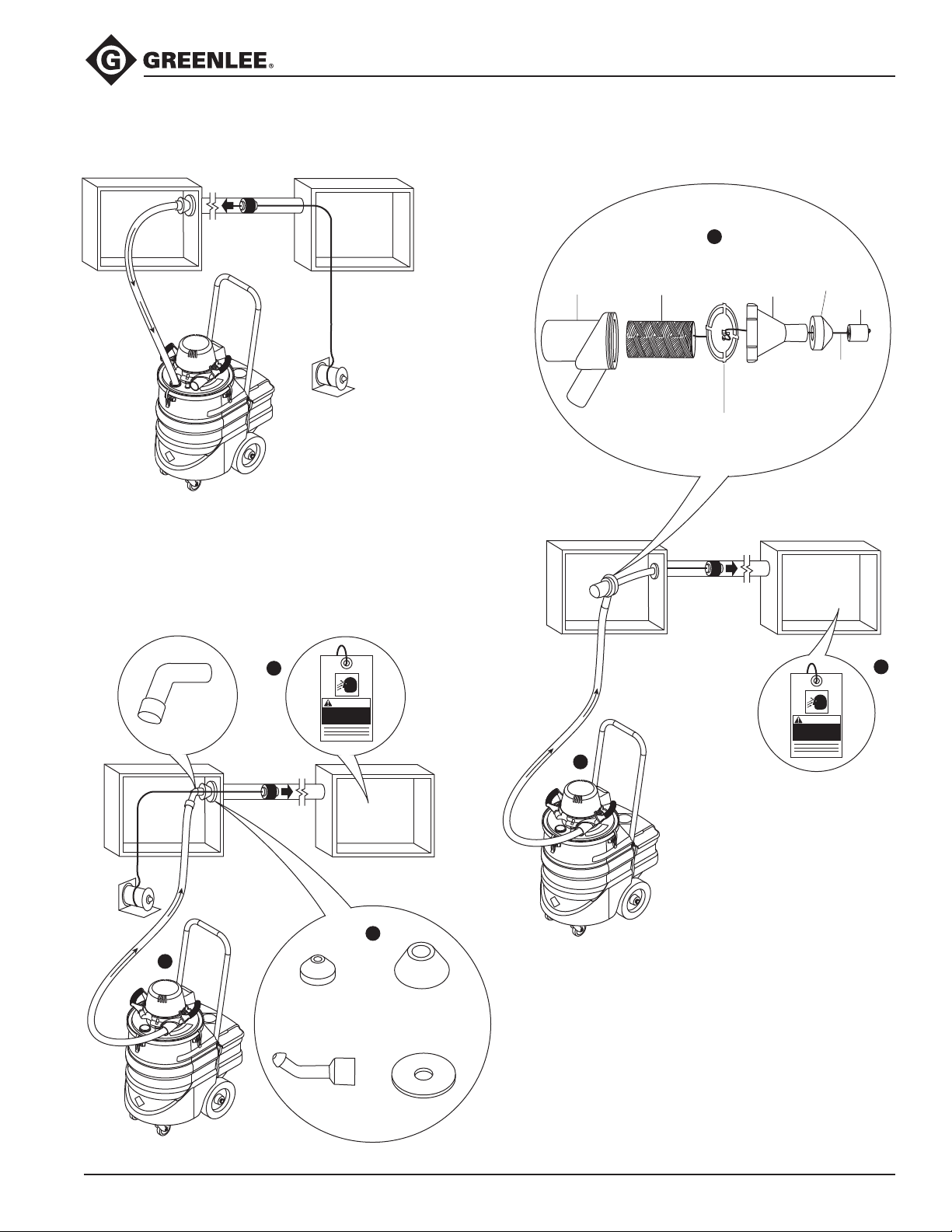

Operation (cont’d)
690 Power Fishing System
VACUUMING BLOWING WITH OPTIONAL 592 MIGHTY MOUSER
BLOW GUN KIT
2
Adapter
Canister
Fish Line
Nose Cone
Line Drag Insert
Cone
Piston
Line Tied
to Piston
®
BLOWING
1
CAUTION
CAUTION
1
3
2
3
Cone 1-1/4" to 2-1/2"
Cone 1/2" to 1"
Cone 3" to 4"
Washer 5" and 6"
(optional)
Adapters
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Find Quality Products Online at: [email protected]
7

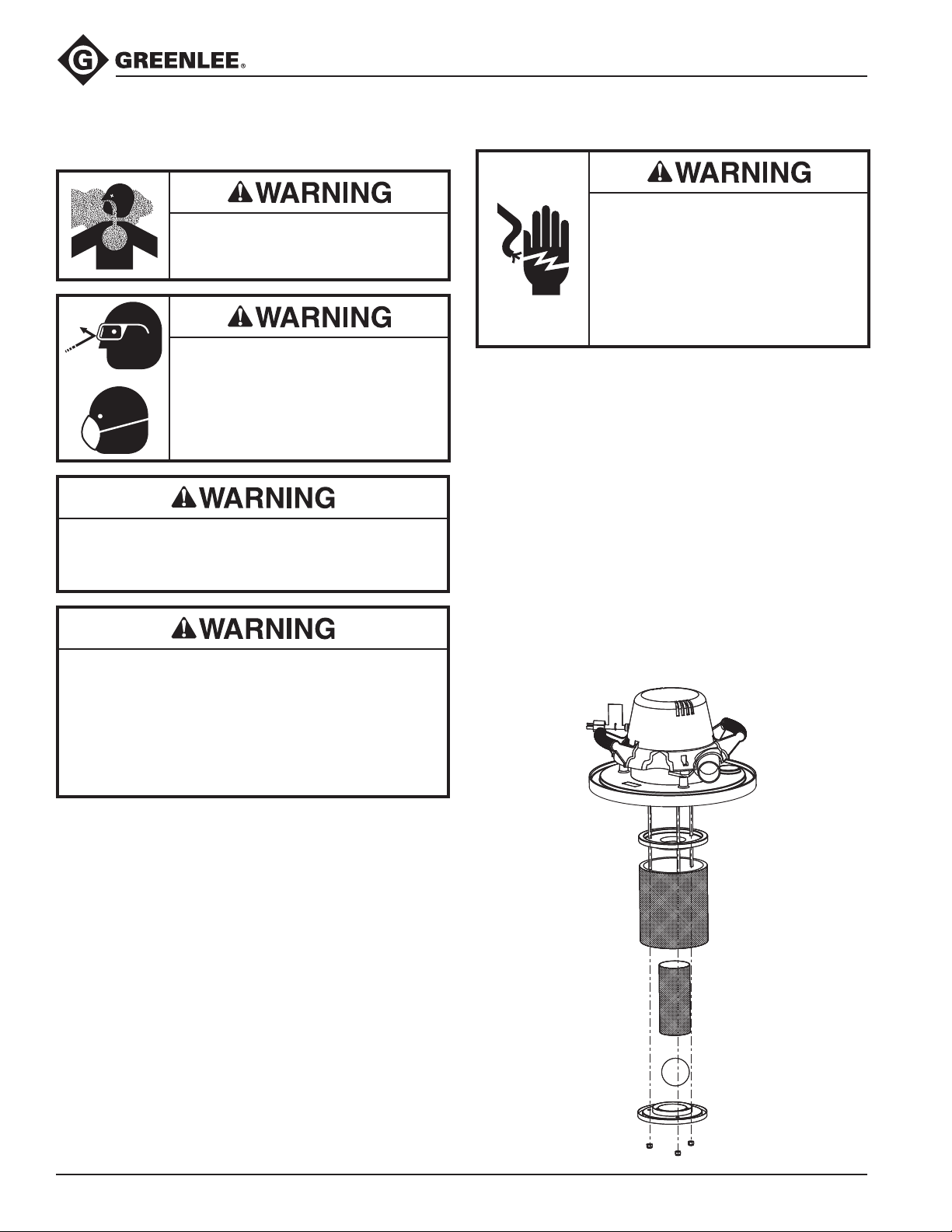

Page 8
690 Power Fishing System
Operation (cont’d)
CLEAN-UP VACUUMING
Do not vacuum or blow burning or toxic materials such as carcinogens, asbestos, pesticides or heavy metals.
Wear eye protection and a dust mask when operating or servicing this tool.
Failure to wear eye protection could result in serious eye injury from ying debris.
Use extra care when cleaning on stairs.
Failure to observe this warning could result in severe injury or death.
• Do not use without a clean lter in place. Using the vacuum/blower with a clogged, damaged or missing lter will cause damage to the motor.
• Do not vacuum up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
Failure to observe these warnings could result in severe injury or death.
Maintenance
Electric shock hazard:
• Disconnect from power before servicing.
• Servicing should be performed by an authorized service representative.
Failure to observe these warnings could result in severe injury or death.
Note: Keep filters clean. Efficiency of this vacuum is largely dependent on the cleanliness of the filters. A clogged filter can cause overheating and damage to the motor. Filters should be removed and cleaned periodi­cally to ensure proper operation. After cleaning, allow filters to dry thoroughly to prevent deterioration.
FILTERS AND GASKETS
1. Unplug the unit
2. Remove the tank cover.
3. Unscrew three nuts from lter (located under the lter).
4. Clean the lters by spraying with water. Allow them to dry thoroughly.
5. Install the lters. Install the tank cover and secure with the catches.
Wet Pickup
This unit is equipped with a shut-off oat valve. When the unit is used for wet pickup, the rising uid lifts the oat valve until it seals against the motor intake. When this happens, the sound of the motor changes to a higher pitch. Unplug the unit, empty the tank, and replace the cover.
Dry Pickup
For optional dry pickup accessories, refer to “Optional Equipment” at the end of the Parts List.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Find Quality Products Online at: [email protected]
8
Page 9
690 Power Fishing System
Maintenance (cont’d)
CLEANING AND STORAGE
Periodically wipe the outside of the tank with a damp cloth and mild detergent; do not use abrasives or solvents.
When not in use, store the 690 indoors in a cool, dry environment. Wrap the power cord loosely around the motor cover.
Troubleshooting
Problem Probable Cause Probable Remedy
Unit does not run. Faulty cord. Replace cord.
Unit does not develop adequate vacuuming or blowing pressure.
Piston does not travel through theconduit.
Faulty switch. Replace switch.
Faulty motor. Replace motor.
Filters are dirty. Clean the lters. Refer to the
“Maintenance” section of this manual.
Gaskets do not seal well. Replace gaskets. Refer to the
“Maintenance” section of this manual.
Tank is full. Empty the tank.
Wrong piston size. Select the correct piston size.
Conduit run is obstructed. Clear the conduit run. Check for
attened bends.
EMT couplings are loose. Tighten the couplings.
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Find Quality Products Online at: [email protected]
9
Page 10

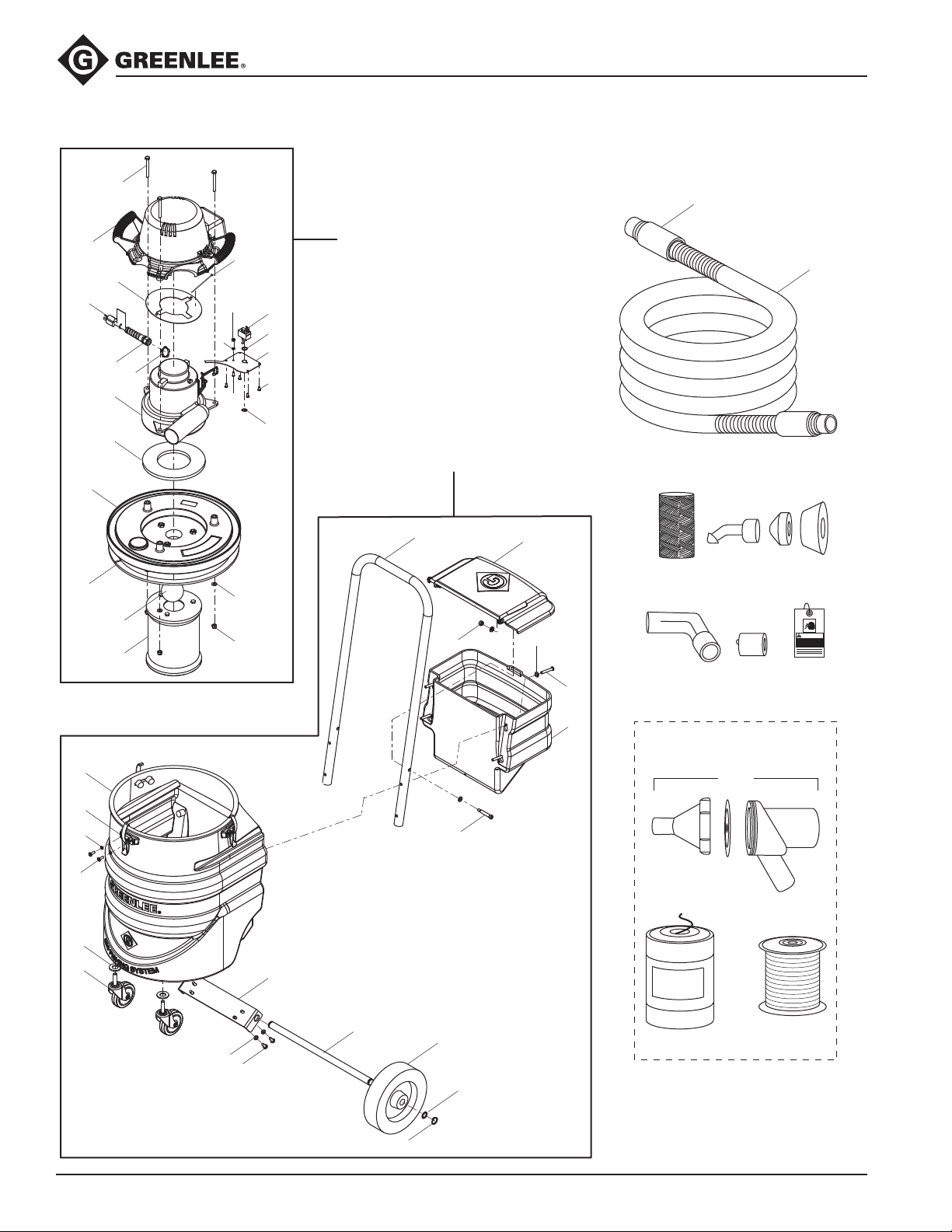

Illustration
690 Power Fishing System
19
15
18
2
1
3
4
690-RM Replacement Motor Kit
53
50–52
(includes 1–23)
11
14 12 7
8
9
13
690-RT
Replacement
Tank Kit
16
10
17
5
6
(includes 30–48)
21
20
22
23
42
48
46
43
44
54
575655
CAUTION
5958
60
31
34
38
30
33
32
38
37
36
39
41
40
45
OPTIONAL ACCESSORIES
70
47
71 72
49
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Find Quality Products Online at: [email protected]
10
Page 11

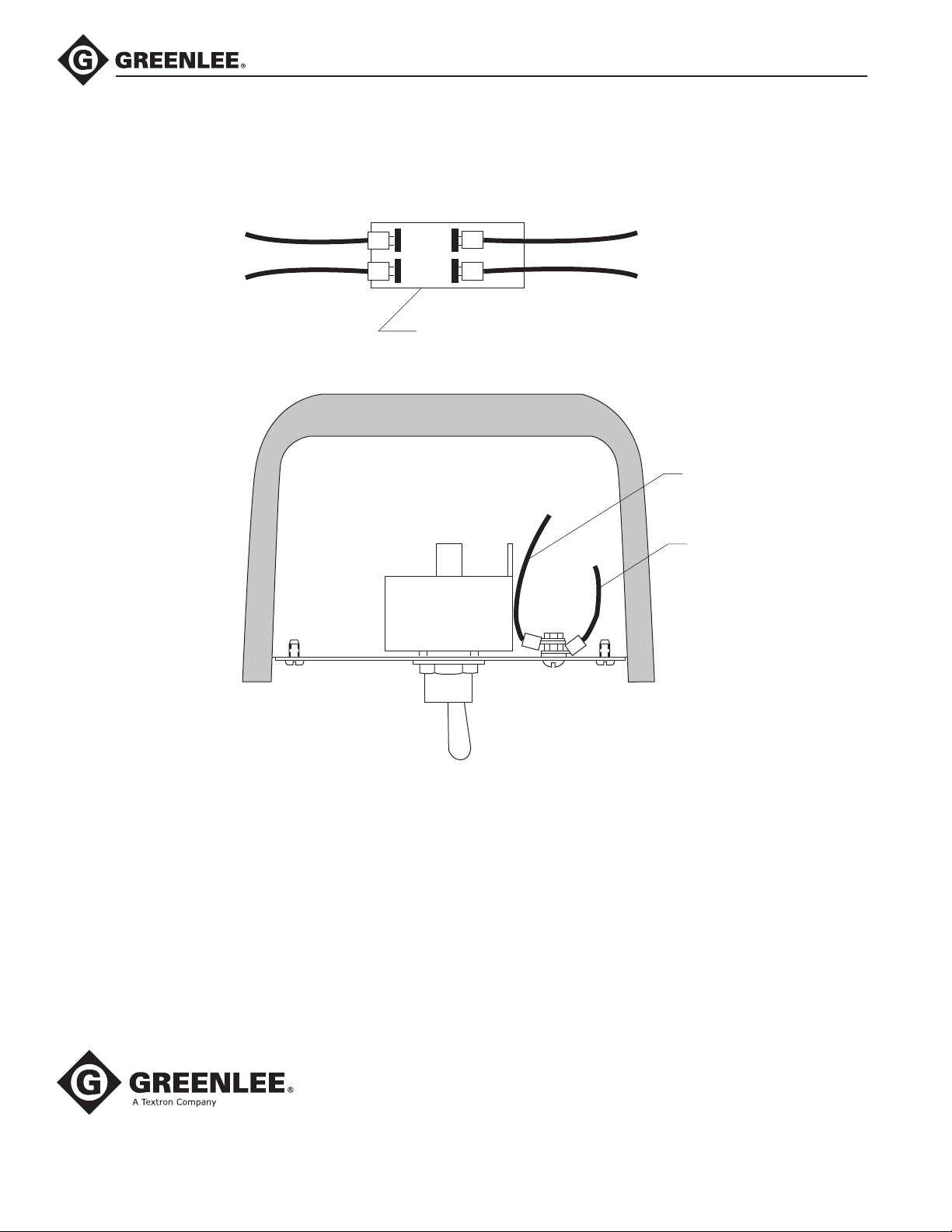

Wiring Diagram
690 Power Fishing System
White
Motor Leads Power Cord
Black
Switch
White
Black
Ground Wire from Motor
Ground Wire from Cord
Find Quality Products Online at: [email protected]
