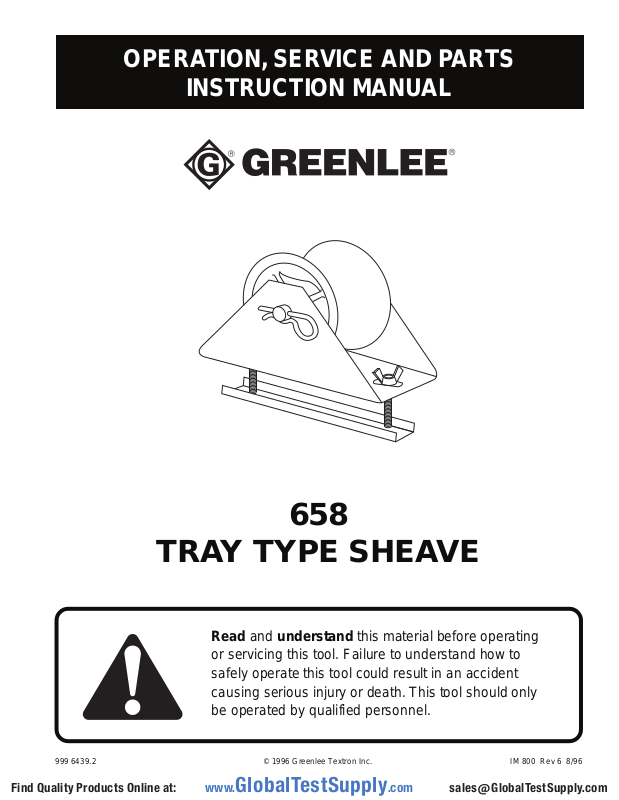

Page 1
OPERATION, SERVICE AND PARTS
INSTRUCTION MANUAL
658
TRAY TYPE SHEAVE
Read and understand this material before operating
or servicing this tool. Failure to understand how to
safely operate this tool could result in an accident
causing serious injury or death. This tool should only
be operated by qualified personnel.
999 6439.2 © 1996 Greenlee Textron Inc. IM 800 Rev 6 8/96
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
T ray Type Sheave
Description
The 658 Tray Type Sheave is designed to help roll and
guide cable during tray pulls.

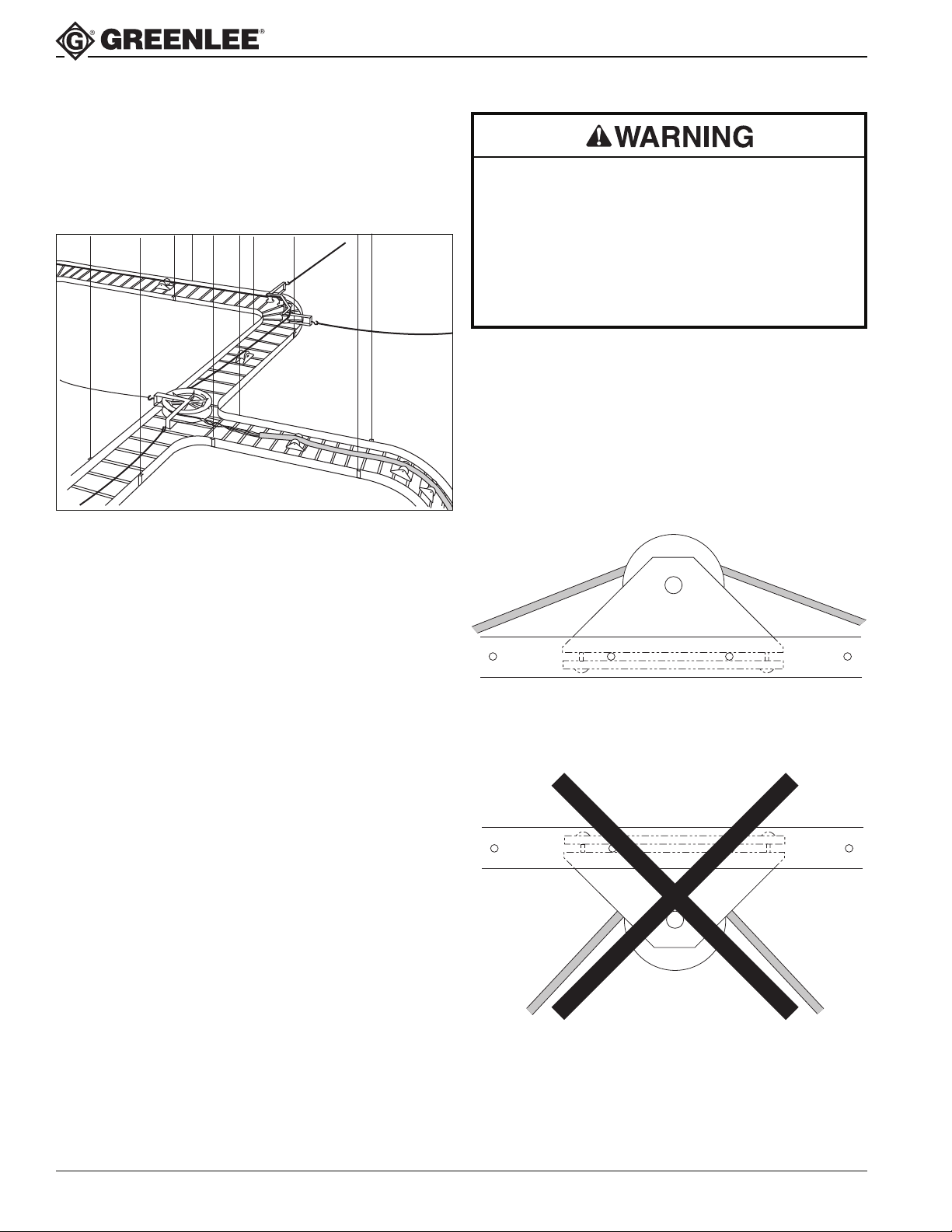

Tray-type Pulling Setup
• Follow cable tray manufacturer’s and cable
manufacturer’s instructions when pulling cable
in tray.
• Read and understand instruction manual
included with cable puller.
Failure to observe these warnings could result in
severe injury or death.
Installation
1. Position the tray frame where needed.
2. Clamp at least 2 of the of the cable tray rungs
between the tray frame and clamp plate.
3. Fasten with carriage bolts and wing nuts.
RIGHT WAY
WRONG WAY
Greenlee Textron Inc. / Subsidiary of Textron Inc.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
2
815/397-7070
Page 3

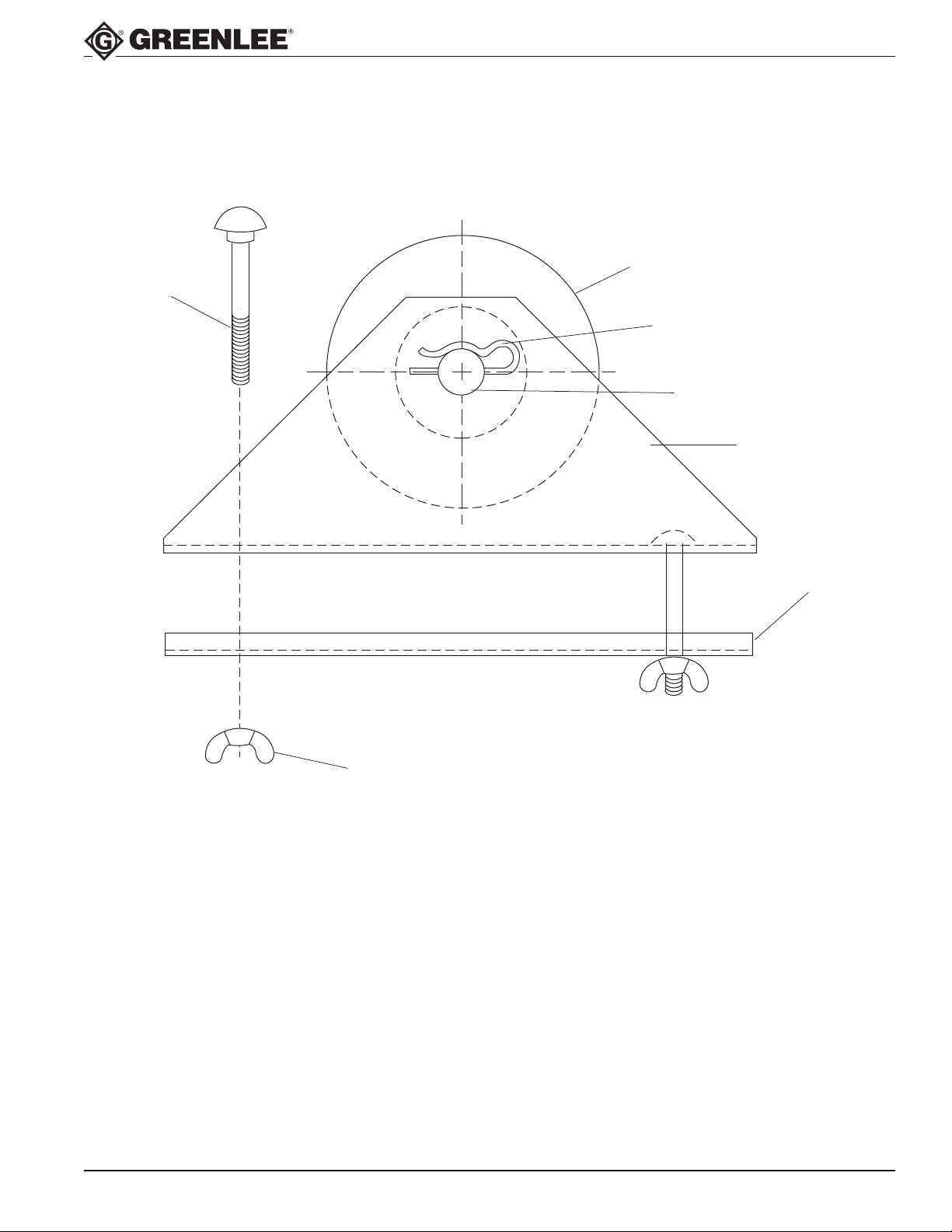

658 T ray T ype Sheave
6
T ray Type Sheave
1
2
3
4
5
7
Key Part Number Description Qty
1 501 5362.5 Sheave ..............................................................................................1
2 905 0302.3 Spring Clip .........................................................................................2
3 501 7323.5 Sheave Pin Unit, 6-1/4" (includes 2 Key #2) .....................................1
4 502 5651.3 Tray Frame ........................................................................................1
5 501 7327.8 Clamp Plate .......................................................................................1
6 501 7324.3 Carriage Bolt 7/16-14 x 3" .................................................................2
7 501 7325.1 Wing Nut, 7/16-14..............................................................................2
Greenlee Textron Inc. / Subsidiary of Textron Inc.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
3
815/397-7070
