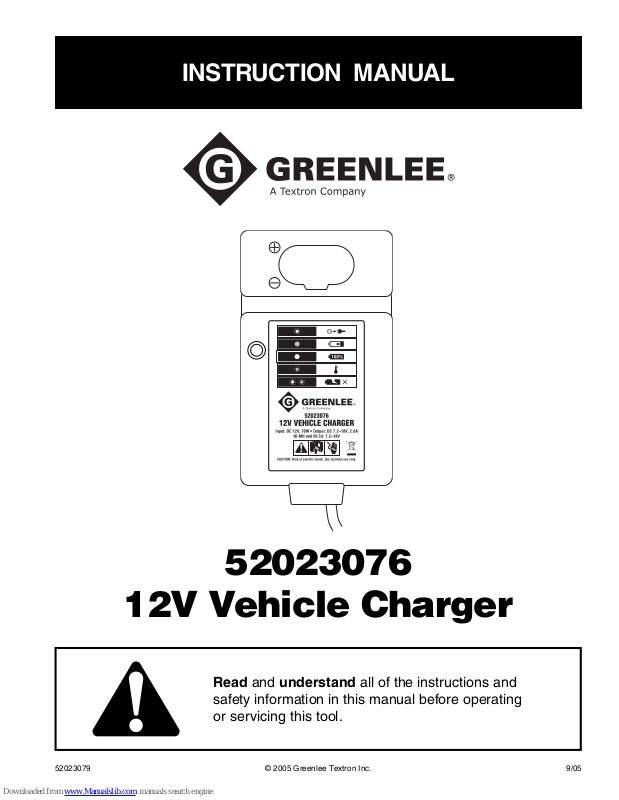

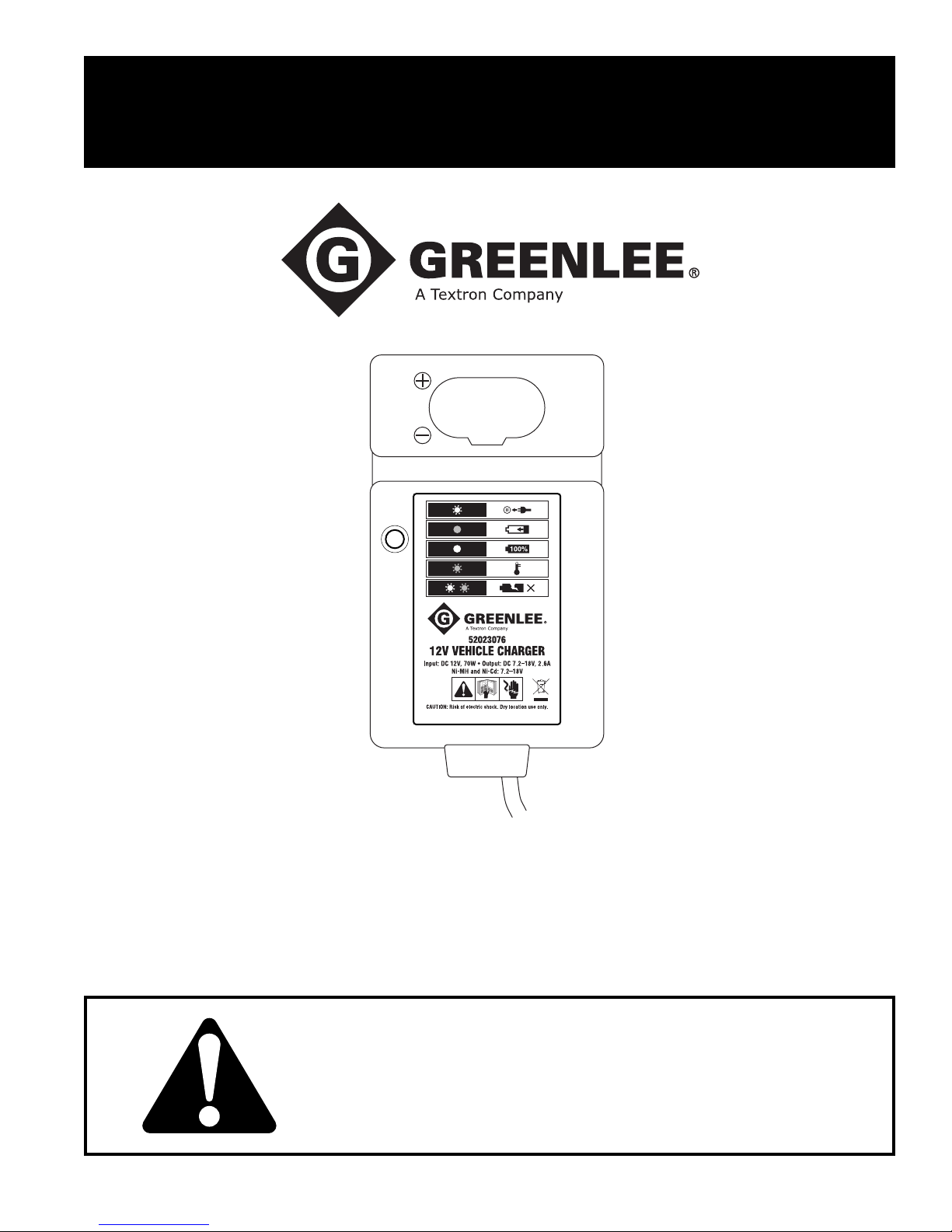

INSTRUCTION MANUAL
12V Vehicle Charger
52023079 © 2005 Greenlee Textron Inc. 9/05
52023076
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Page 2
52023076 12V Vehicle Charger
Table of Contents
Description ..................................................................... 2
Safety .............................................................................2
Purpose of this Manual .................................................. 2
Important Safety Information ...................................... 2–3
Operation ....................................................................... 4
Operating Tips................................................................ 4
Specifications .................................................................4
Maintenance................................................................... 4
Description
The Greenlee 12V Vehicle Charger is a high capacity
battery charger that plugs into a 12V power outlet to
charge the battery cartridges of the following Greenlee
tools: EK210, EK410, EK425, and ES32.
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This manual and any
markings on the tool provide information for avoiding
hazards and unsafe practices related to the use of this
tool. Observe all of the safety information provided.
IMPORTANT SAFETY
INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, defined below,
indicates the severity of the hazard. The message
after the signal word provides information for
preventing or avoiding the hazard.
Immediate hazards which, if not avoided, WILL
result in severe injury or death.
Hazards which, if not avoided, COULD result in
severe injury or death.
Purpose of this Manual
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
following Greenlee tool:
52023076 12V Vehicle Charger
Keep this manual available to all personnel.
Replacement manuals are available upon request at no
charge.
Do not discard this product or throw away!
For recycling information, go to
www.greenlee.com.
All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages
resulting from misapplication or misuse of its products.
KEEP THIS MANUAL
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand this material
before operating or servicing this
equipment. Failure to understand
how to safely operate this tool could
result in an accident causing serious
injury or death.
Explosion and fire hazard:
• Do not dispose of the battery in a fire. The battery
will vent fumes and it could explode.
• Charge only in a well vented area and never in an
area where gasoline fumes or other combustible
materials are present.
Failure to observe these warnings could result in
severe injury from harmful fumes or burns from flying
debris.
Greenlee / A Textron Company 2 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Page 3
52023076 12V Vehicle Charger
IMPORTANT SAFETY INFORMATION
Wear eye protection when operating
this tool.
Failure to wear eye protection could
result in serious eye injury from
flying debris.
Electric shock hazard:
Contact with live circuits could result
in severe injury or death.
Electric shock and fire hazard:
• Do not expose this unit to rain or moisture.
• Do not use the unit if it is wet or damaged.
• Do not cover the charger.
• Inspect accessories before use. They must be
clean and dry, and the insulation must be in good
condition.
• Use of an attachment not recommended or sold by
the vehicle charger manufacturer may result in a
risk of fire, electric shock, or injury to persons.
• Charge only Greenlee battery cartridges for tools
listed under “Description.” Other types of batteries
may burst.
• Use this unit for the manufacturer’s intended
purpose only, as described in this manual. Any
other use can impair the protection provided by
the unit.
Failure to observe these warnings could result in
severe injury or death.
• To reduce risk of damage to 12V power outlet
connector and cord, pull by connector rather than
cord when disconnecting charger.
• Make sure cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage or stress.
• Do not operate charger with damaged cord or 12V
power outlet connector. Replace it immediately.
• Do not operate charger if it has received a sharp
blow, been dropped, or otherwise damaged in any
way. Take it to a qualified service center.
Failure to observe these precautions may result in
injury and may damage the unit.
This charger can be used in any vehicle that has a
12V power outlet operated by a 12 volt negative
ground battery. If battery capacity has dropped, start
the engine of the vehicle. Charge the battery cartridge using this charger while the engine is idling.
Do not leave the vehicle while the engine is running.
Failure to observe this precaution may result in injury
and may damage the unit.
• Do not disassemble or attempt to repair this unit.
• Unplug charger and remove battery cartridge
before attempting any maintenance or cleaning.
• Do not expose the unit to extremes in temperature
or high humidity. Refer to “Specifications.”
Failure to observe these precautions may result in
injury and may damage the unit.
A battery short can cause a large current flow,
overheating, possible burns, or a breakdown.
• Do not touch the terminals with any conductive
material.
• Avoid storing battery cartridge in a container with
other metal objects such as nails or coins.
• Do not expose battery cartridge to rain or
moisture.
Failure to observe these warnings could result in
severe injury or death.
Greenlee / A Textron Company 3 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Note: Keep all decals clean and legible, and replace
when necessary.
Page 4
52023076 12V Vehicle Charger
Operation
Your new Greenlee battery cartridge needs to be
charged before use. Follow this procedure to charge it
with the 12V vehicle charger:
1. Plug the charger into a 12V power outlet. The
charging light will flash in green color.
2. Insert the battery cartridge so that the plus and
minus terminals on the battery cartridge are on the
same sides as their respective markings on the
charger. Insert the cartridge fully into the port so that
it rests on the charger port floor.
• The charging light color will change from green to
red and charging will begin. The charging light will
remain lit steadily during charging.
• When the charging light color changes from red to
green, charging is complete.
3. After charging, unplug the charger from the power
source.

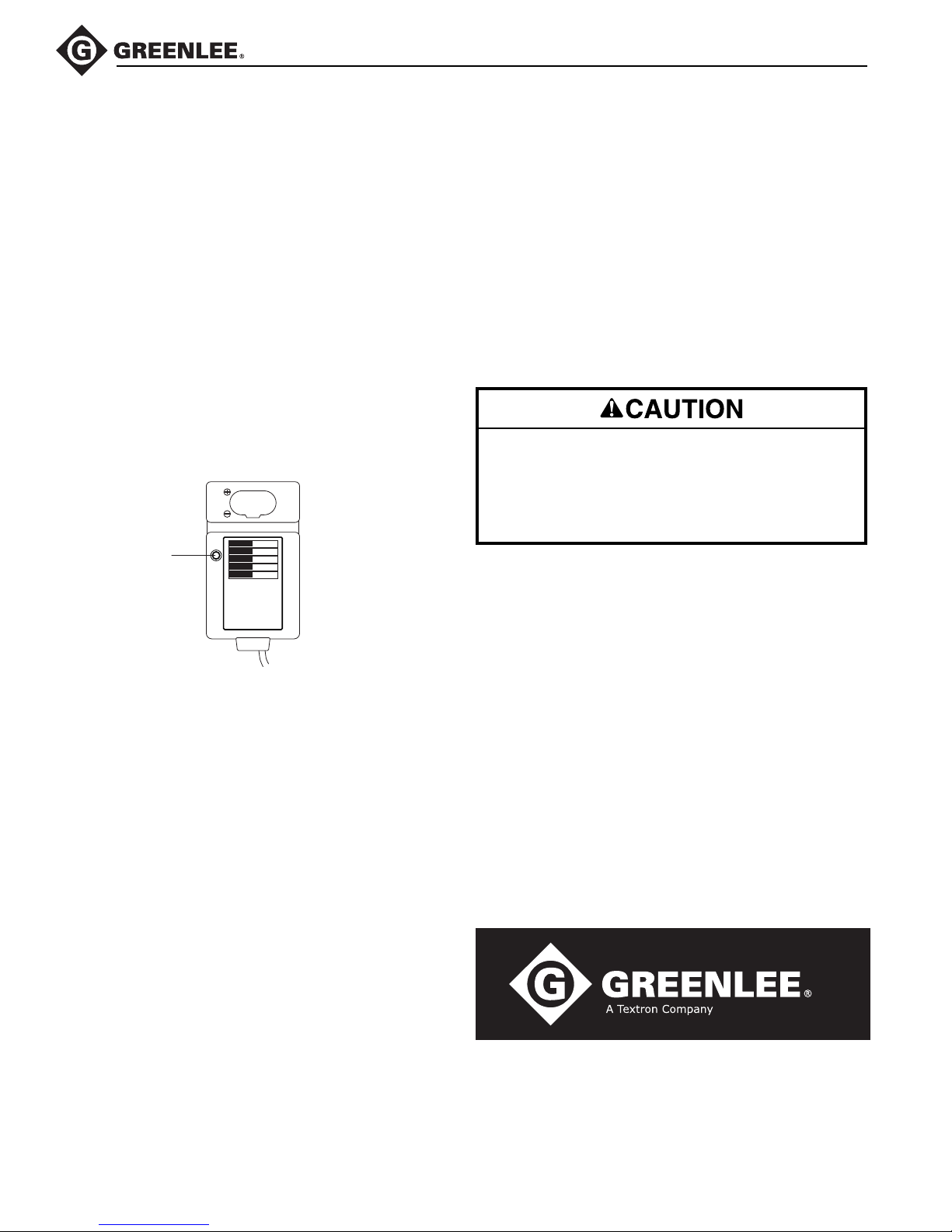

Charging
Light
Specifications
Input ................................................................... DC 12 V
Output .................................................. DC 7.2 V to 18 V
Charging Time................................................ 45 minutes
Operating Temperature ............................. 10 °C to 40 °C
(50 °F to 104 °F)
Storage Temperature ..................... Below 50 °C (122 °F)
Dimensions (L x W x H) ...... 189 mm x 105 mm x 78 mm
(7-7/16" x 4-1/8" x 3-1/16")
Net weight .................................................. 600 g (1.3 lb)
Maintenance
• Do not disassemble or attempt to repair this unit.
• Unplug charger and remove battery cartridge
before attempting any maintenance or cleaning.
Failure to observe these precautions may result in
injury and may damage the unit.
Cleaning
Periodically wipe the case with a damp cloth and mild
detergent; do not use abrasives or solvents.
Operating Tips
• A new battery cartridge or one that has not been used
for a long time may not accept a full charge. This is a
normal condition and does not indicate a problem. You
can recharge the battery cartridge fully after discharging it completely and recharging several more times.
• If you charge a battery cartridge from a recently
operated tool or a battery cartridge which has been left
in a location exposed to direct sunlight or heat for a
long time, or use a hot charger, the charging light may
flash in red color. If this occurs, wait for a while.
Charging will begin after the battery cartridge and
charger cool. The battery cartridge will cool faster if
you remove it from the charger.
• If the charging light flashes alternately in green and
red color, or flashes in green color when the battery
cartridge is inserted, a problem exists and charging is
not possible. The terminals on the charger are clogged
with dust or the battery cartridge is worn out.
USA 800-435-0786 Fax: 800-451-2632
815-397-7070 Fax: 815-397-1865
Canada 800-435-0786 Fax: 800-524-2853
International +1-815-397-7070 Fax: +1-815-397-9247
4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
An ISO 9001 Company
Greenlee / A Textron Company 4 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
