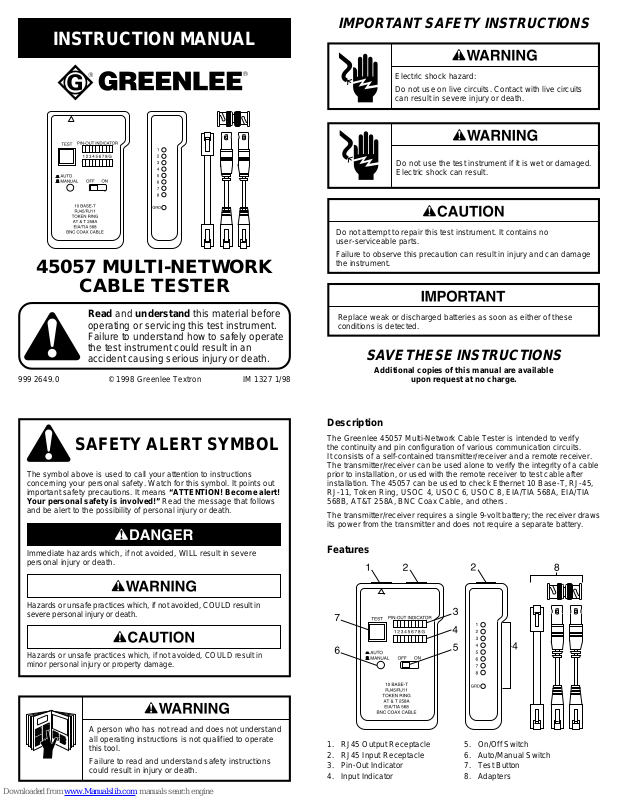

INSTRUCTION MANUAL
45057 MULTI-NETWORK
CABLE TESTER
IMPORTANT SAFETY INSTR UCTIONS
Electric shock hazard:
Do not use on live circuits. Contact with live circuits
can result in severe injury or death.
Do not use the test instrument if it is wet or damaged.
Electric shock can result.
Do not attempt to repair this test instrument. It contains no
user-serviceable parts.
Failure to observe this precaution can result in injury and can damage
the instrument.
Read and understand this material before
operating or servicing this test instrument.
Failure to understand how to safely operate
the test instrument could result in an
accident causing serious injury or death.
999 2649.0 © 1998 Greenlee Textron IM 1327 1/98
SAFETY ALERT SYMBOL
The symbol above is used to call your attention to instructions
concerning your personal safety. Watch for this symbol. It points out
important safety precautions. It means “ATTENTION! Become alert!
Your personal safety is involved!” Read the message that follows
and be alert to the possibility of personal injury or death.
Immediate hazards which, if not avoided, WILL result in severe
personal injury or death.
Hazards or unsafe practices which, if not avoided, COULD result in
severe personal injury or death.
Replace weak or discharged batteries as soon as either of these
conditions is detected.
SA VE THESE INSTRUCTIONS
Additional copies of this manual are available
upon request at no charge.
Description
The Greenlee 45057 Multi-Network Cable Tester is intended to verify
the continuity and pin configuration of various communication circuits.
It consists of a self-contained transmitter/receiver and a remote receiver.
The transmitter/receiver can be used alone to verify the integrity of a cable
prior to installation, or used with the remote receiver to test cable after
installation. The 45057 can be used to check Ethernet 10 Base-T, RJ-45,
RJ-11, Token Ring, USOC 4, USOC 6, USOC 8, EIA/TIA 568A, EIA/TIA
568B, AT&T 258A, BNC Coax Cable, and others.
The transmitter/receiver requires a single 9-volt battery; the receiver draws
its power from the transmitter and does not require a separate battery.

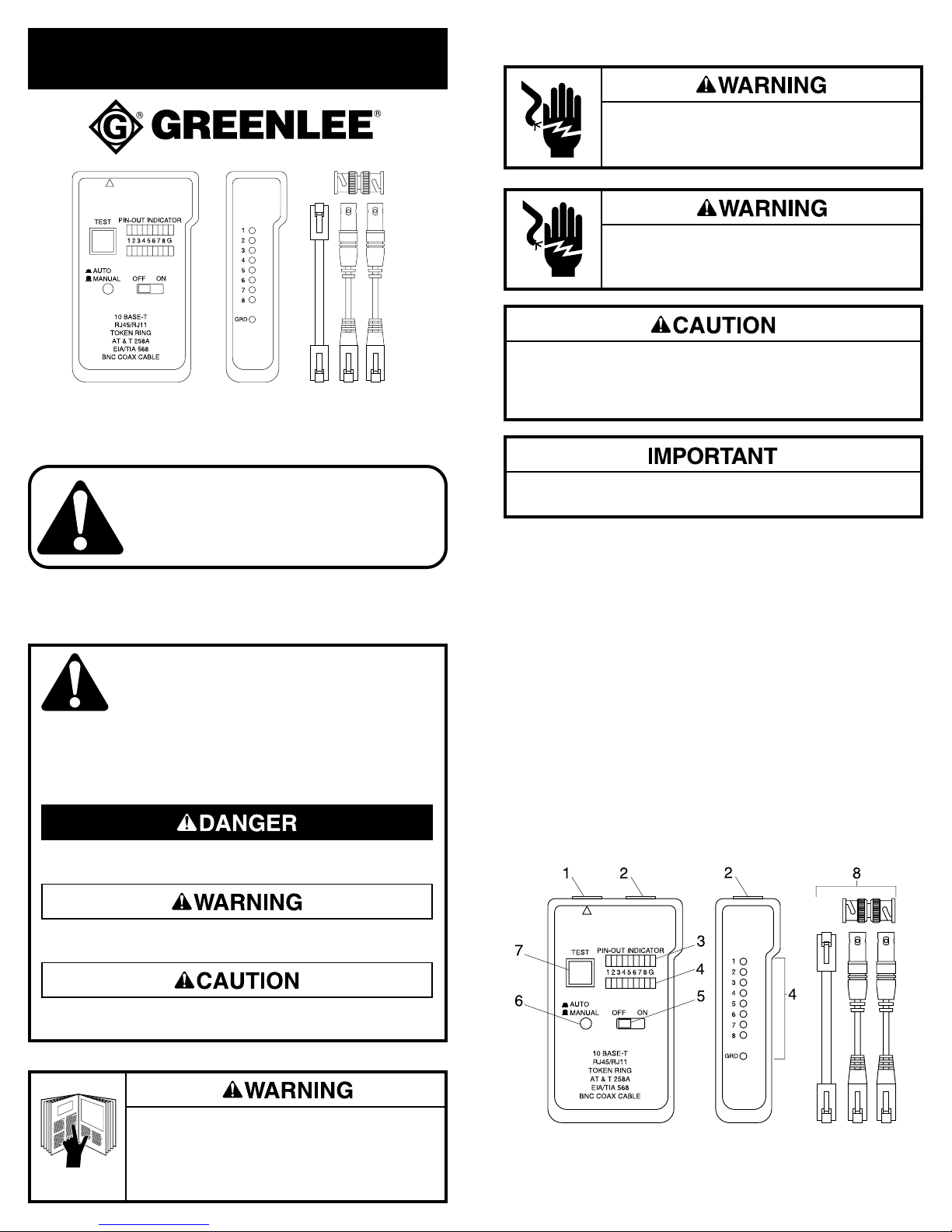

Features
Hazards or unsafe practices which, if not avoided, COULD result in
minor personal injury or property damage.
A person who has not read and does not understand
all operating instructions is not qualified to operate
this tool.
Failure to read and understand safety instructions
could result in injury or death.
1. RJ45 Output Receptacle
2. RJ45 Input Receptacle
3. Pin-Out Indicator
4. Input Indicator
5. On/Off Switch
6. Auto/Manual Switch
7. Test Button
8. Adapters
Page 2
PR1
Ethernet
10Base-T
PR2
PR3
PR4
8-position
Token Ring
PR1
PR2
PR3
USOC 4 (Prs. 1 & 2)
USOC 6 (Prs. 1, 2 & 3)
PR1
PR2
PR3
PR4
USOC 8
PR1
PR3
PR2
EIA/TIA -
568A
PR4
PR1
PR2
PR3
EIA/TIA-568B
AT & T258A
PR4
BNC Plug

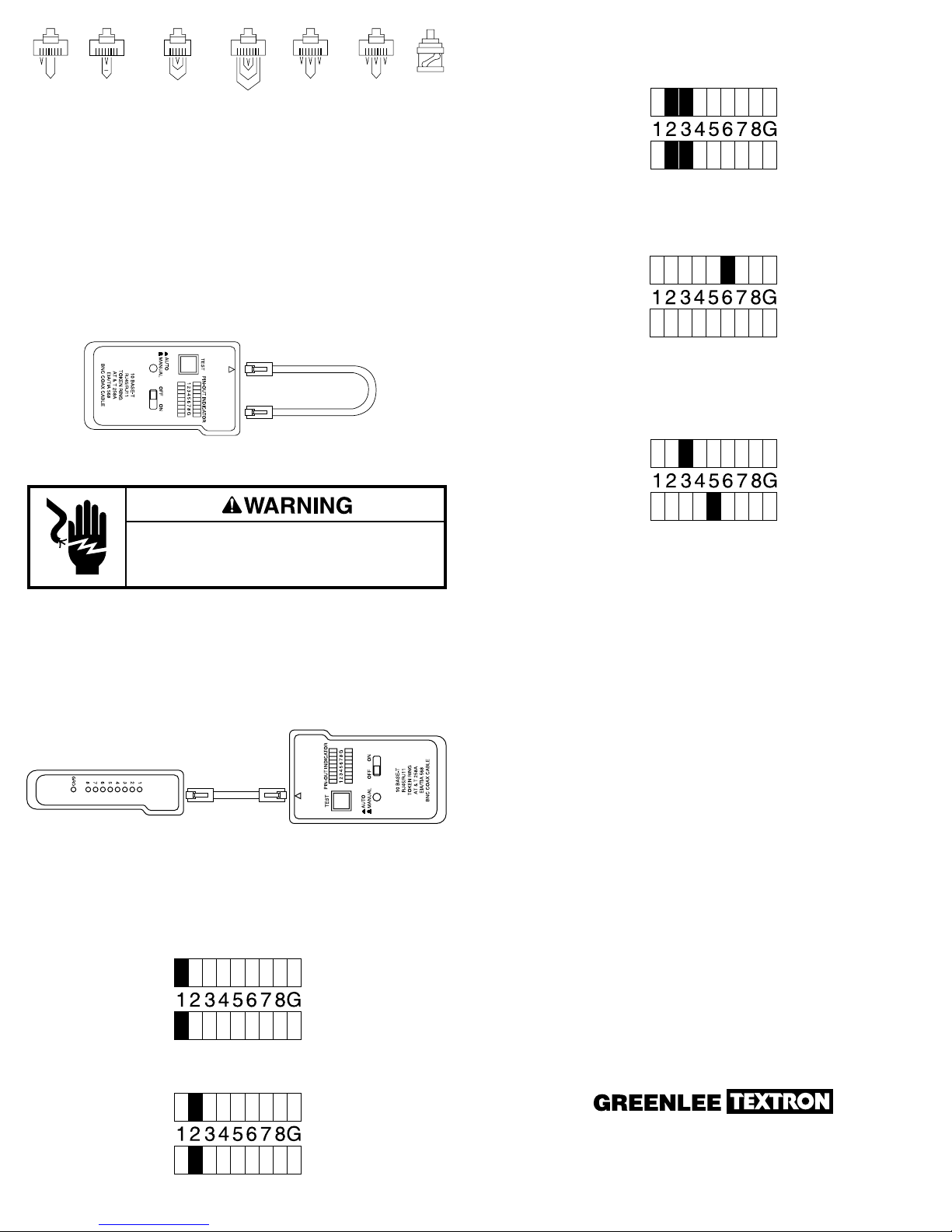

Operation
Loopback Test
1. Refer to the illustration labeled Loopback Test. Connect the cable to
the RJ45 output receptacle (labeled ▲) and the RJ45 input receptacle.
2. Turn the power ON. The Pin-Out Indicator LED’s will begin to flash in
sequence. The Input Indicator LED’s will flash in response.
Note: To test the cable manually, switch the Auto/Manual Switch to
Manual. Press the Test Button repeatedly until each conductor
has been tested.
Loopback Test
Failure Results for Any Test:
Short Circuit Indication
Multiple Pin-Out Indicator and Input Indicator LED’s flash simultaneously.
Open Circuit Indication
Input Indicator LED does not flash in response to the corresponding
Pin-Out Indicator LED.
Short Circuit across Pin 2 and Pin 3
Open at Pin 6
Remote Test
Electric shock hazard:
Do not use on live circuits. Contact with live circuits
can result in severe injury or death.
1. Refer to the illustration labeled Remote Test. Connect one end of the
cable to the RJ45 output receptacle (labeled ▲) of the transmitter/
receiver. Connect the other end of the cable to the RJ45 input jack of
another transmitter/receiver or the remote receiver. Use the adapters
if necessary.
2. Turn the power ON. The Pin-Out indicator LED’s will begin to flash in
sequence. The Input Indicators LED’s will flash in response.
Remote Test
Normal Results:
Continuity at Each Conductor
Continuity at Pin 1
Miswire
Pin 3 and Pin 5 are Reversed
Input Indicator LED flashes, but does not correspond to the correct
Pin-Out Indicator LED.
Lifetime Limited Warranty
Greenlee warrants to the original purchaser of these goods for use that
these products will be free from defects in workmanship and material for
their useful life, excepting normal wear and abuse. This warranty is
subject to the same terms and conditions contained in Greenlee’s
standard one year limited warranty.
For all Test Instrument repairs, ship units Freight Prepaid to:
Greenlee Textron at
4411 Boeing Drive, Rockford, IL 61109-2932 USA.
Mark all packages: Attention TEST INSTRUMENT REPAIR. For items not
covered under warranty (such as dropped, abused, etc.), repair cost quote
available upon request.
Note: Prior to returning any test instrument, please check replaceable
batteries or make sure the battery is at full charge.
Coaxial Cable
Continuity at Shield
LED 1 - Center conductor. LED 2 - Shield
