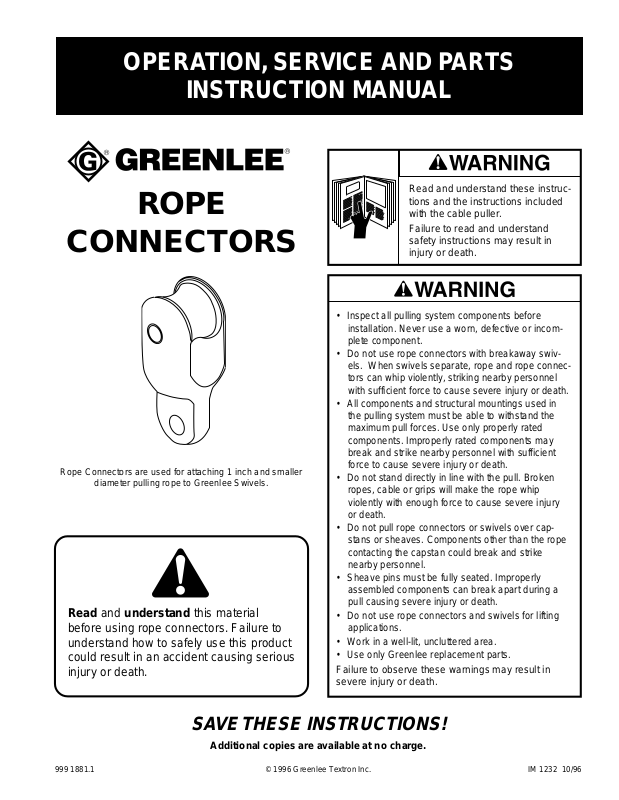

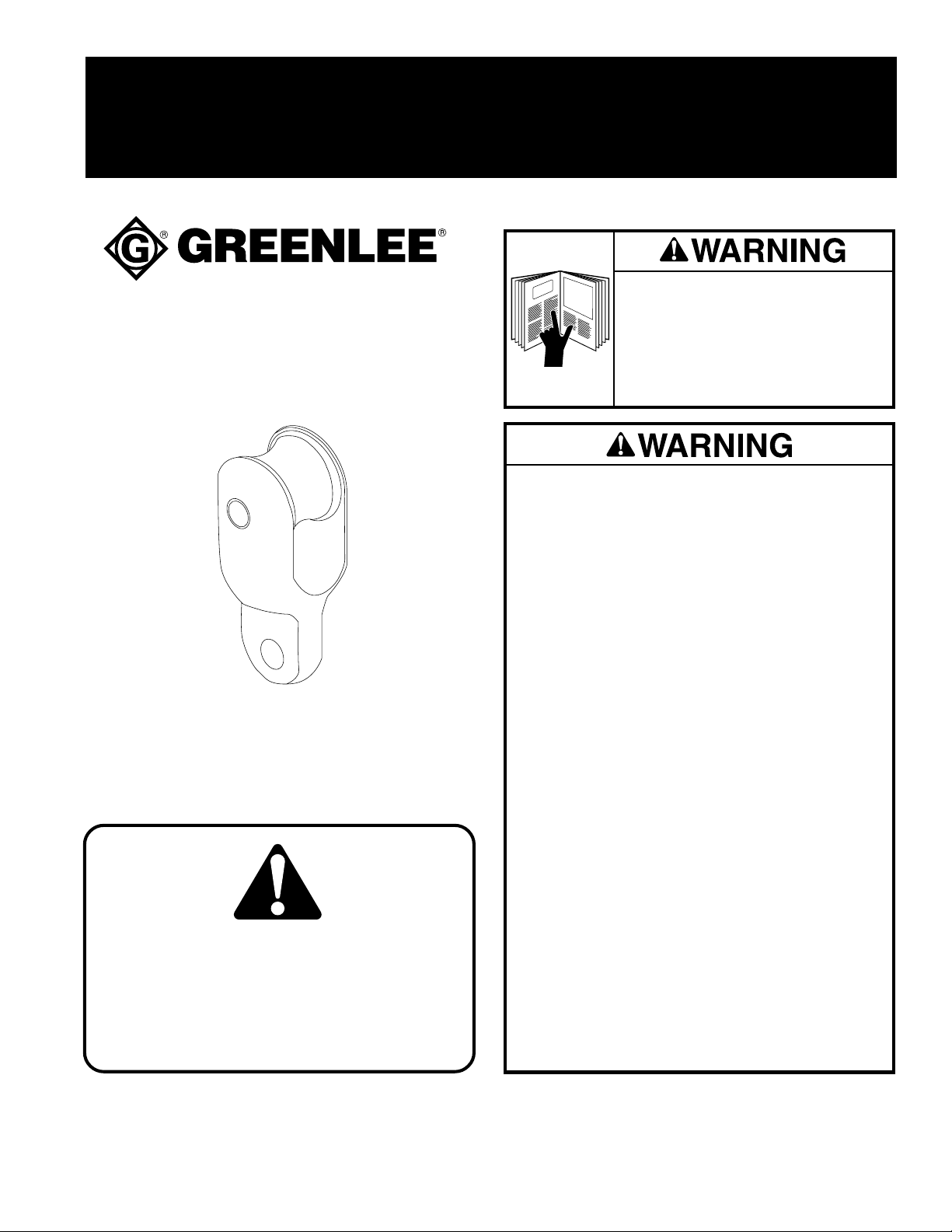

Page 1
OPERATION, SERVICE AND PARTS
INSTRUCTION MANUAL
ROPE
CONNECTORS
Rope Connectors are used for attaching 1 inch and smaller
diameter pulling rope to Greenlee Swivels.
Read and understand this material
before using rope connectors. Failure to
understand how to safely use this product
could result in an accident causing serious
injury or death.
Read and understand these instructions and the instructions included
with the cable puller.
Failure to read and understand
safety instructions may result in
injury or death.
• Inspect all pulling system components before
installation. Never use a worn, defective or incomplete component.
• Do not use rope connectors with breakaway swivels. When swivels separate, rope and rope connectors can whip violently, striking nearby personnel
with sufficient force to cause severe injury or death.
• All components and structural mountings used in
the pulling system must be able to withstand the
maximum pull forces. Use only properly rated
components. Improperly rated components may
break and strike nearby personnel with sufficient
force to cause severe injury or death.
• Do not stand directly in line with the pull. Broken
ropes, cable or grips will make the rope whip
violently with enough force to cause severe injury
or death.
• Do not pull rope connectors or swivels over capstans or sheaves. Components other than the rope
contacting the capstan could break and strike
nearby personnel.
• Sheave pins must be fully seated. Improperly
assembled components can break apart during a
pull causing severe injury or death.
• Do not use rope connectors and swivels for lifting
applications.
• Work in a well-lit, uncluttered area.
• Use only Greenlee replacement parts.
Failure to observe these warnings may result in
severe injury or death.
SA VE THESE INSTRUCTIONS!
Additional copies are available at no charge.
999 1881.1 © 1996 Greenlee Textron Inc. IM 1232 10/96
Page 2

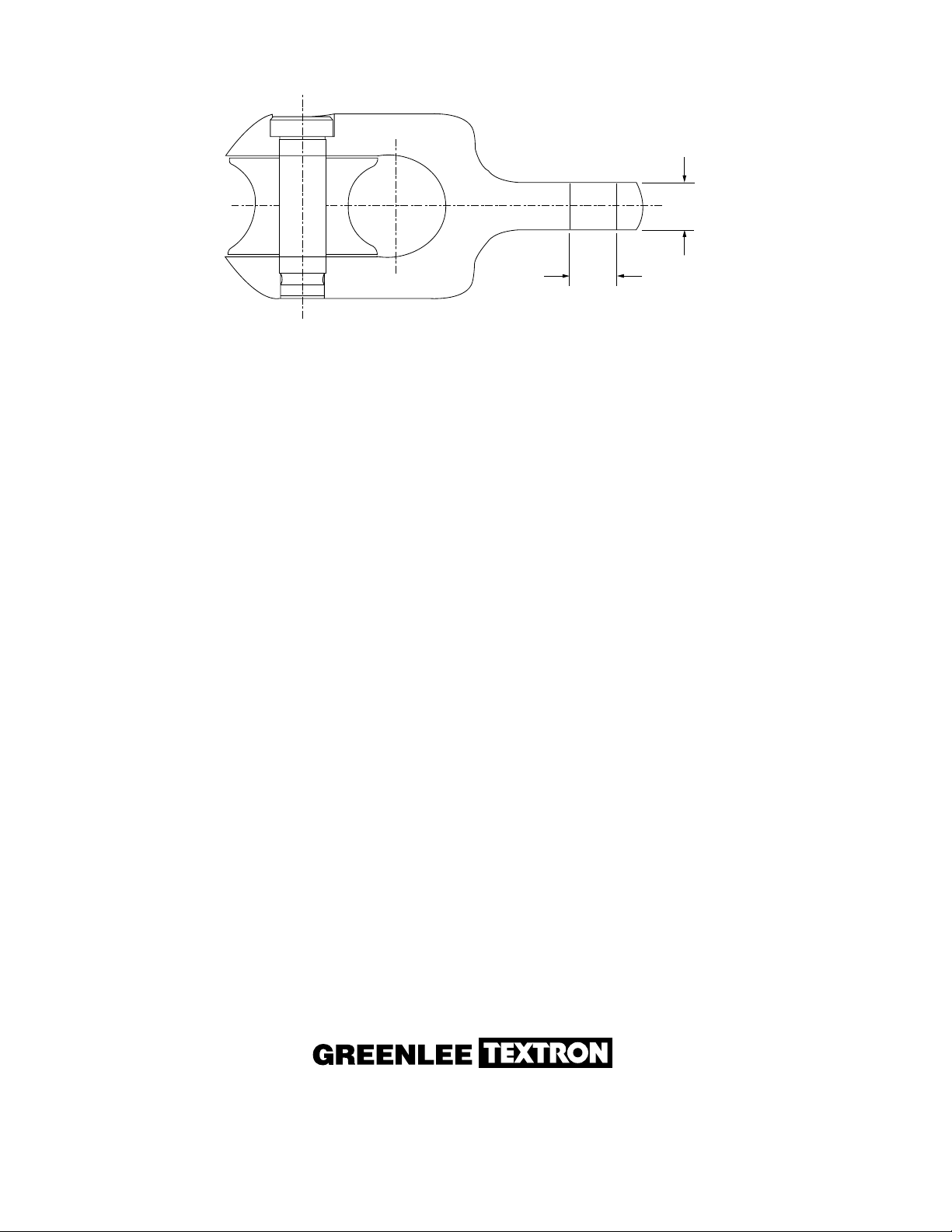

Specifications
“E”
“F”
Cat. / UPC No. Work Load Work Load Diameter Length “E” “F” Use on
78-3310- in Conduit or Overhead Dia. Swivel
Underground
39905 5,000 lbs. 3,000 lbs. 2" 4-11/16" 7/16" 13/32" 39107
39904 7,000 lbs. 4,200 lbs. 2" 4-11/16" 1/2" 1/2" 39108
39903 10,000 lbs. 6,000 lbs. 2" 4-11/16" 9/16" 5/8" 39109
39902 10,000 lbs. 6,000 lbs. 2" 4-11/16" 11/16" 11/16" 39110
Note: Overhead pulling has a lower working load rating due to the higher risk of personal injury or property damage.
To achieve rated strength, always tighten rope connector and swivel pins firmly before use. Rope connectors
are to be used with the recommended swivel only.
Replacement Parts
Cat. / UPC No. Description
78-3310-
39849 Replacement Sheave
39850 Replacement Sheave Pin
Greenlee Textron Inc. / Subsidiary of Textron Inc.
4455 Boeing Drive, Rockford, IL 61109-2988 USA
General Offices: 815/397-7070
Customer Center and Field Service: 800/435-0786
Fax (24 Hour) Customer Center: 800/451-2632 • 815/397-1865
Canada Fax (24 Hour) Customer Center: 800/524-2853 Printed in U.S.A.
