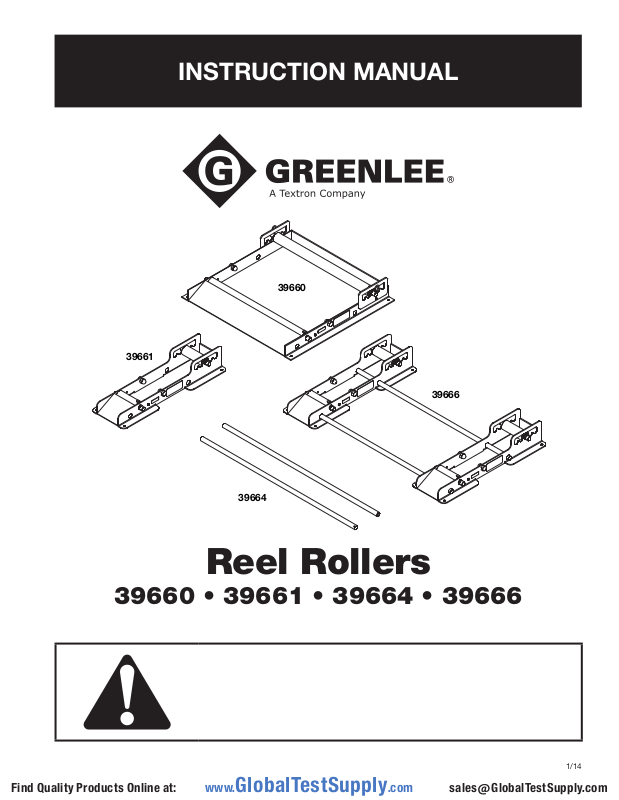

Page 1
39661
INSTRUCTION MANUAL
39660
39666
39664
Reel Rollers
39660 • 39661 • 39664 • 39666
1/14
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
39660, 39661, 39664, and 39666 Reel Rollers
Table of Contents
Description
Description .................................................................... 2
Safety ............................................................................ 2
Purpose of this Manual ................................................. 2
Important Safety Information ........................................ 3
Specications ................................................................ 4
Operation ....................................................................... 4
Illustration and Parts List ............................................... 5
The Greenlee 39660, 39661, 39664, and 39666 Reel
Rollers are intended for ground level dispensing of cable
from cable reels.
Safety
Safety is essential in the use and maintenance of
Greenlee tools and equipment. This instruction manual
and any markings on the tool provide information for
avoiding hazards and unsafe practices related to the
use of this tool. Observe all of the safety information
provided.
Purpose of this Manual
This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
Greenlee 39660, 39661, 39664, and 39666 Reel Rollers.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no
charge at www.greenlee.com.
All specications are nominal and may change as design
improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.
KEEP THIS MANUAL
2
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
39660, 39661, 39664, and 39666 Reel Rollers
IMPORTANT SAFETY INFORMATION
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for preventing or avoiding the hazard.
Immediate hazards which, if not avoided, WILL result
in severe injury or death.
Hazards which, if not avoided, COULD result in
severe injury or death.
• Make sure bystanders are clear of the work area
when loading, unloading or dispensing cable.
Nearby personnel can be injured if a cable reel
escapes.
Release roller lock before dispensing cable. A heavy
•
reel can be pulled off the rollers if the roller lock is
engaged.
Do not use the reel roller for cable with damaged
•
reels. Damaged reels may not roll freely and may be
pulled off the reel roller.
Do not attempt to stop a rotating reel by using the
•
roller stop. The reel may roll off the rollers.
Failure to observe these precautions may result in
injury or property damage.
Do not exceed the rated capacity of this tool.
Failure to observe this precaution may result in injury
or property damage.
Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.
Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.
Failure to observe this warning may
result in severe injury or death.
Keep hands and feet clear when
loading and unloading cable reels.
Use this tool for manufacturerʼs intended use
only. Use other than that which is described in this
manuals may result in injury or property damage.
Always engage the roller lock before removing a
cablereel.
Always pull cable from the top of the
reel toward the adjustable roller.
Note: Keep all decals clean and legible, and replace
when necessary.
3
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com

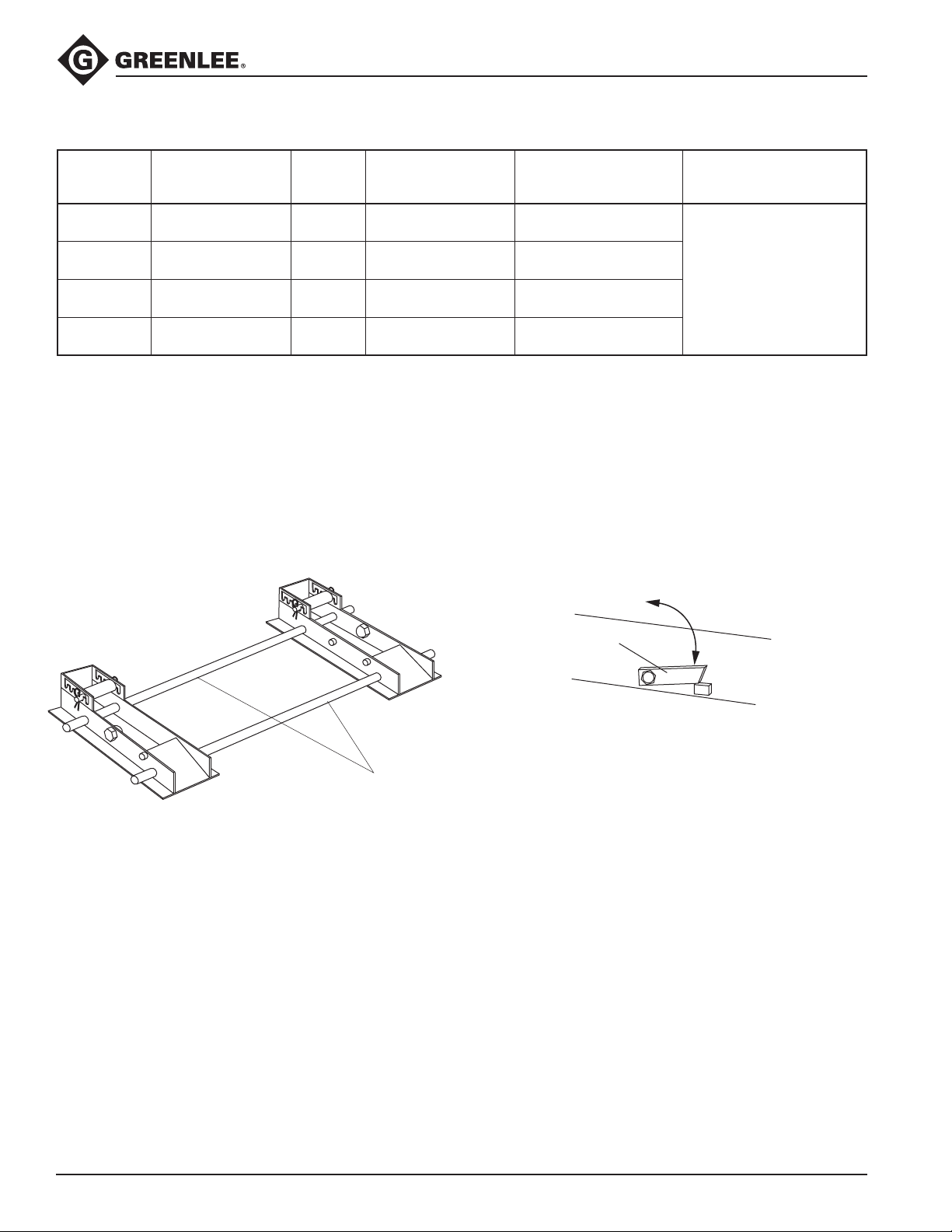

Page 4
39660, 39661, 39664, and 39666 Reel Rollers
Specifications
UPC/
Cat. No.
39660 32 x 34 (813 x 864) 87 (39) 2500 (1134) 30 (762)
39661 32 x 11 (813 x 279) 45 (20) 2000 (907) per pair 42 (1067)
39664 48 (1219) 9 (4) — —
39666 32 x 48 (813 x 1219) 99 (45) 2000 (907) 42 (1067)
Dimensions
in (mm)
Weight
lb (kg)
Capacity
lb (kg)
Maximum Reel Width
Operation
1. Position the reel roller in the desired location.
Note: Use the spreaders to align 39666 model
rollers.
3. Engage the roller stop.
Note: The roller stop may be fastened to the left or
the right side as required for the application.
in (mm)
Minimum Reel Diameter
in (mm)
21 (533)
UNLOCKED
Spreader on
39666 Model
Rollers
2. Secure the reel roller to the oor using 1/2" or 3/8"
bolts.
Roller Stop
LOCKED
4. Place the cable reel onto the reel roller so the cable
is pulled from the top of the reel toward the adjustable higher roller.
5. Disengage the roller stop and dispense the desired
length of cable.
6. Engage the roller stop and remove the reel from the
reel roller.
4
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com

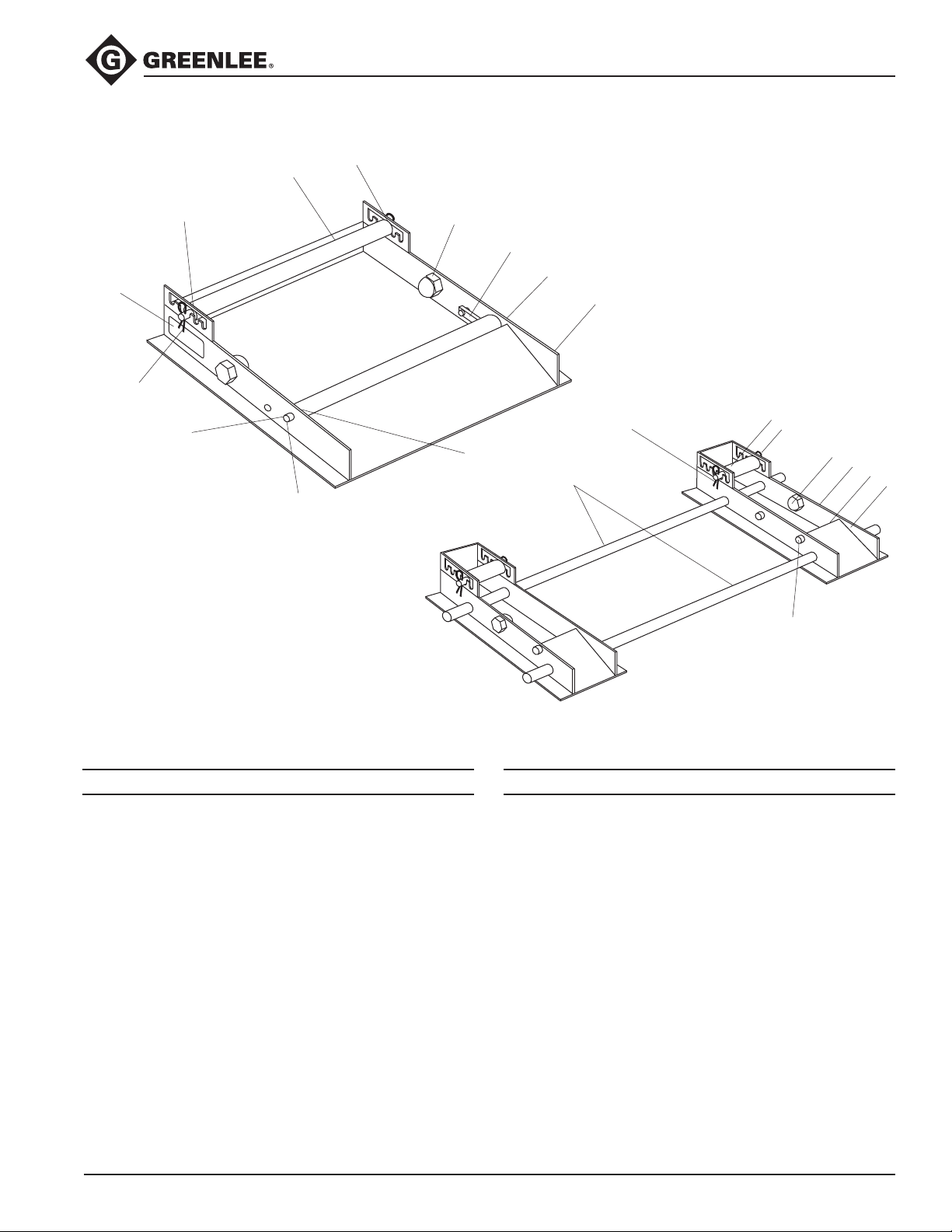

Page 5
39660, 39661, 39664, and 39666 Reel Rollers
Illustration and Parts List
Note: Install retaining ring (5)
(one each end) into inner grooves.
5
8
7
5
Note: Install retaining ring (5)
(one each end) into outer
grooves on outside of frame.
2
4
39660
5
6
9
5
1
2
7
3
10
5
6
8
9
1
39666
39660 (30")
Key Part No. Description Qty
1 Frame .................................................... 1
2 Roller ..................................................... 2
3 Bearing ..................................................4
4 Spindle .................................................. 2
5 Retaining ring, #5100-100 ....................4
6 50396838 Acorn nut and screw ............................. 2
7 Hitch pin, #8 ..........................................2
8 Product decal........................................1
9 50398849 Roller stop assembly ............................1
Kits
50396862 Roller assembly (includes one of
items 2, 4; two of items 3, 5)
4
39666 (6")
Key Part No. Description Qty
1 Frame .................................................... 1
2 Roller ..................................................... 2
3 Bearing ..................................................4
4 Spindle .................................................. 2
5 Retaining ring, #5100-100 ....................4
6 50396838 Acorn nut and screw ............................. 1
7 Hitch pin, #8 ..........................................2
8 Product decal........................................1
9 50398849 Roller stop assembly ............................1
10 Spreader ...............................................2
Kits
50396919 Roller assembly (includes one of
items 2, 4; two of items 3, 5)
50396617 6" reel rollers (includes 1–9)
50396641 39664 – spreader kit
5
