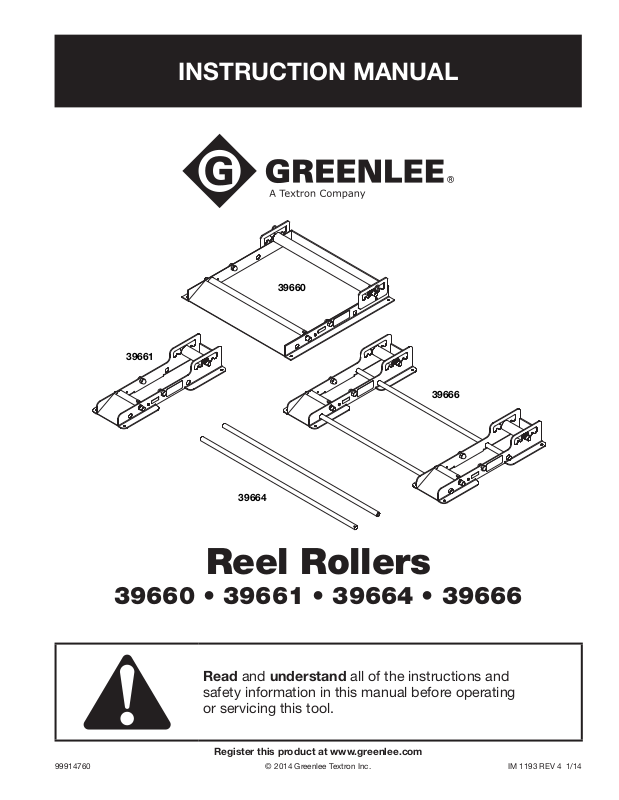

Greenlee 39660, 39661, 39664, 39666 Installation Manual

39661

INSTRUCTION MANUAL

39660

39666

39664

Reel Rollers

39660 • 39661 • 39664 • 39666

Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.

Register this product at www.greenlee.com

99914760 © 2014 Greenlee Textron Inc. IM 1193 REV 4 1/14

39660, 39661, 39664, and 39666 Reel Rollers

Table of Contents

Description .................................................................... 2

Safety ............................................................................ 2

Purpose of this Manual ................................................. 2

Important Safety Information ........................................ 3

Specications ................................................................ 4

Operation ....................................................................... 4

Illustration and Parts List ............................................... 5

Description

The Greenlee 39660, 39661, 39664, and 39666 Reel
Rollers are intended for ground level dispensing of cable
from cable reels.

Safety

Safety is essential in the use and maintenance of
Greenlee tools and equipment. This instruction manual
and any markings on the tool provide information for
avoiding hazards and unsafe practices related to the
use of this tool. Observe all of the safety information
provided.

Purpose of this Manual

This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the
Greenlee 39660, 39661, 39664, and 39666 Reel Rollers.

Keep this manual available to all personnel.

Replacement manuals are available upon request at no
charge at www.greenlee.com.

All specications are nominal and may change as design
improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.

KEEP THIS MANUAL

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

2

39660, 39661, 39664, and 39666 Reel Rollers

IMPORTANT SAFETY INFORMATION

SAFETY
ALERT
SYMBOL

This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or
property damage. The signal word, dened below,
indicates the severity of the hazard. The message
after the signal word provides information for pre­venting or avoiding the hazard.

Immediate hazards which, if not avoided, WILL result
in severe injury or death.

• Make sure bystanders are clear of the work area
when loading, unloading or dispensing cable.
Nearby personnel can be injured if a cable reel
escapes.

• Release roller lock before dispensing cable. A heavy
reel can be pulled off the rollers if the roller lock is
engaged.

• Do not use the reel roller for cable with damaged
reels. Damaged reels may not roll freely and may be
pulled off the reel roller.

• Do not attempt to stop a rotating reel by using the
roller stop. The reel may roll off the rollers.

Failure to observe these precautions may result in
injury or property damage.

Hazards which, if not avoided, COULD result in
severe injury or death.

Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.

Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.

Failure to observe this warning may
result in severe injury or death.

Keep hands and feet clear when
loading and unloading cable reels.

Do not exceed the rated capacity of this tool.

Failure to observe this precaution may result in injury
or property damage.

Use this tool for manufacturerʼs intended use
only. Use other than that which is described in this
manuals may result in injury or property damage.

Always engage the roller lock before removing a
cablereel.

Always pull cable from the top of the
reel toward the adjustable roller.

Note: Keep all decals clean and legible, and replace
when necessary.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

3

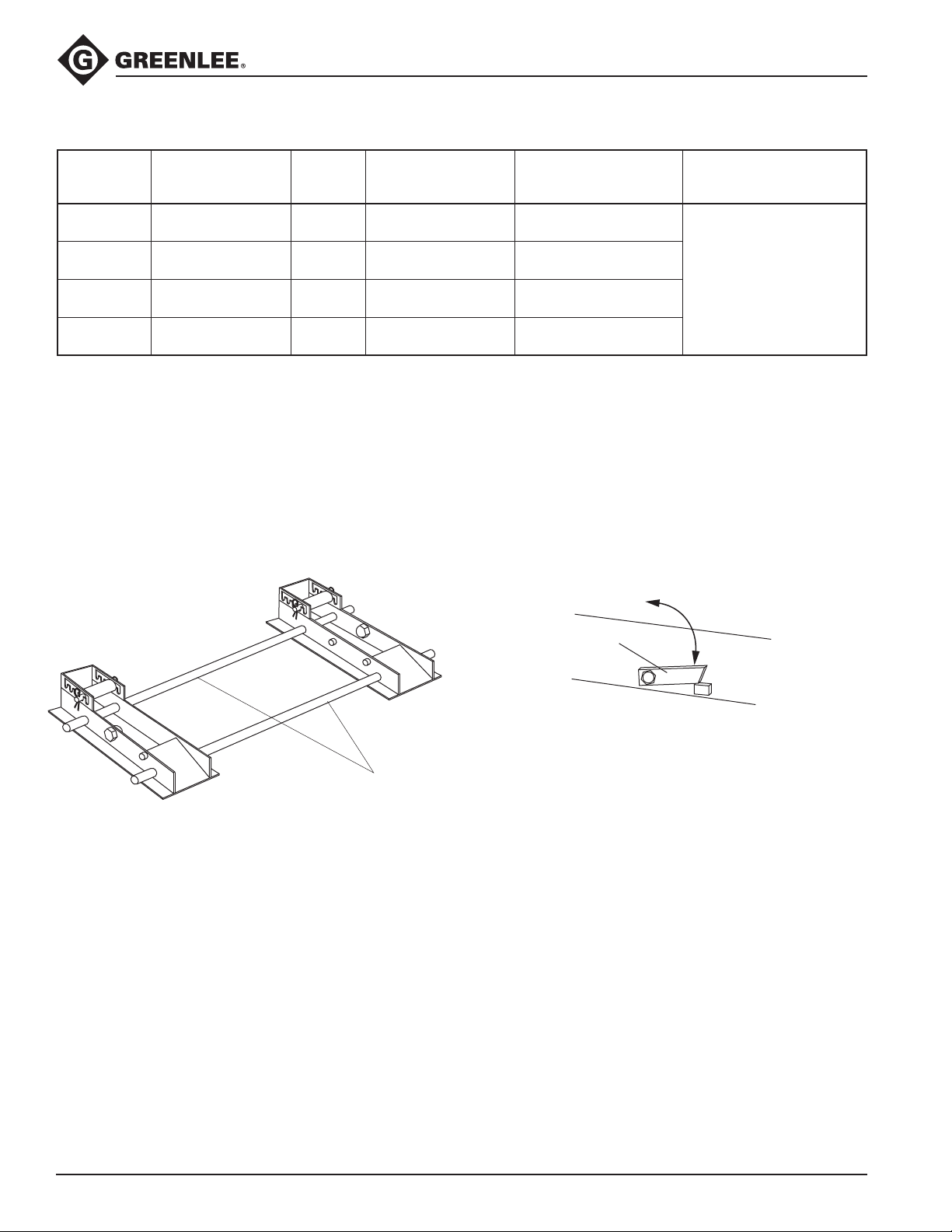

Specifications

39660, 39661, 39664, and 39666 Reel Rollers

UPC/

Cat. No.

39660 32 x 34 (813 x 864) 87 (39) 2500 (1134) 30 (762)

39661 32 x 11 (813 x 279) 45 (20) 2000 (907) per pair 42 (1067)

39664 48 (1219) 9 (4) — —

39666 32 x 48 (813 x 1219) 99 (45) 2000 (907) 42 (1067)

Dimensions

in (mm)

Weight

lb (kg)

Capacity

lb (kg)

Maximum Reel Width

Operation

1. Position the reel roller in the desired location.

Note: Use the spreaders to align 39666 model
rollers.

3. Engage the roller stop.

Note: The roller stop may be fastened to the left or
the right side as required for the application.

in (mm)

Minimum Reel Diameter

in (mm)

21 (533)

UNLOCKED

Spreader on
39666 Model
Rollers

2. Secure the reel roller to the oor using 1/2" or 3/8"
bolts.

Roller Stop

LOCKED

4. Place the cable reel onto the reel roller so the cable
is pulled from the top of the reel toward the adjust­able higher roller.

5. Disengage the roller stop and dispense the desired
length of cable.

6. Engage the roller stop and remove the reel from the
reel roller.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

4

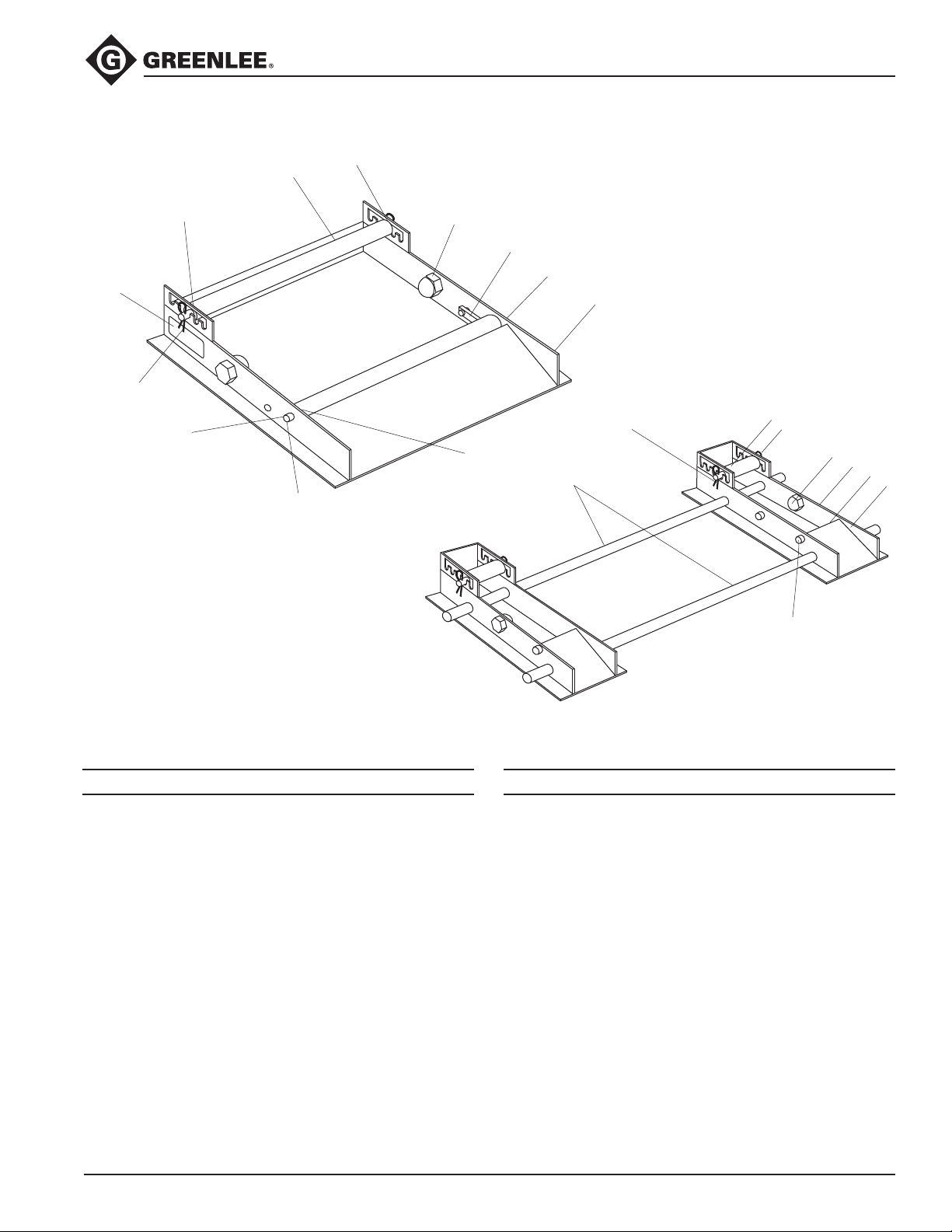

Illustration and Parts List

39660, 39661, 39664, and 39666 Reel Rollers

Note: Install retaining ring (5)
(one each end) into inner grooves.

5

8

7

5

Note: Install retaining ring (5)
(one each end) into outer
grooves on outside of frame.

2

4

39660

5

6

9

5

1

2

7

3

10

5

6

8

9

1

39666

39660 (30")

Key Part No. Description Qty

1 Frame .................................................... 1

2 Roller ..................................................... 2

3 Bearing ..................................................4

4 Spindle .................................................. 2

5 Retaining ring, #5100-100 ....................4

6 50396838 Acorn nut and screw ............................. 2

7 Hitch pin, #8 ..........................................2

8 Product decal........................................1

9 50398849 Roller stop assembly ............................1

Kits

50396862 Roller assembly (includes one of
items 2, 4; two of items 3, 5)

4

39666 (6")

Key Part No. Description Qty

1 Frame .................................................... 1

2 Roller ..................................................... 2

3 Bearing ..................................................4

4 Spindle .................................................. 2

5 Retaining ring, #5100-100 ....................4

6 50396838 Acorn nut and screw ............................. 1

7 Hitch pin, #8 ..........................................2

8 Product decal........................................1

9 50398849 Roller stop assembly ............................1

10 Spreader ...............................................2

Kits

50396919 Roller assembly (includes one of
items 2, 4; two of items 3, 5)

50396617 6" reel rollers (includes 1–9)

50396641 39664 – spreader kit

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

5
