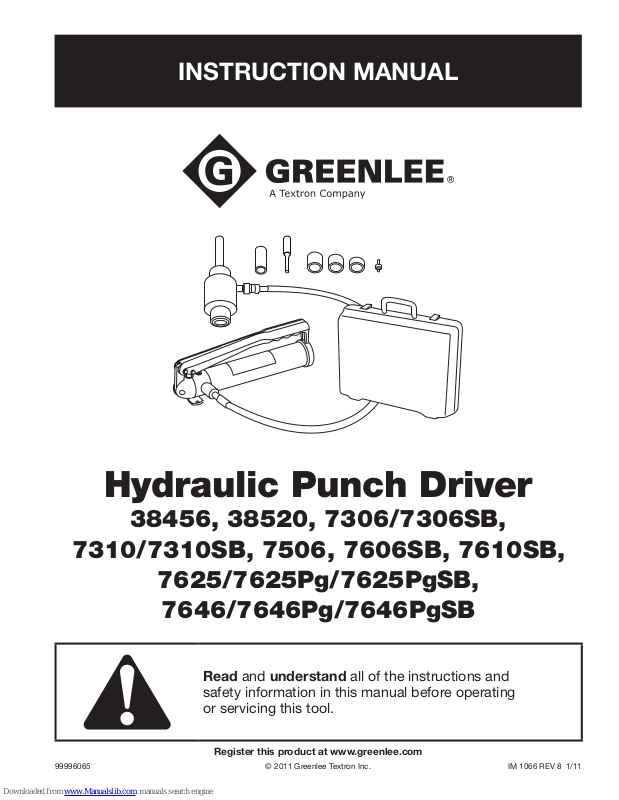

Greenlee 38456, 7306, 7310, 7606SB, 7610SB Instruction Manual

INSTRUCTION MANUAL

Hydraulic Punch Driver

38456, 38520, 7306/7306SB,

7310/7310SB, 7506, 7606SB, 7610SB,

7625/7625Pg/7625PgSB,

7646/7646Pg/7646PgSB

Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.

Register this product at www.greenlee.com

99996065 © 2011 Greenlee Textron Inc. IM 1066 REV 8 1/11

Hydraulic Punch Driver

Table of Contents

Description .................................................................... 2

Safety ............................................................................ 2

Purpose of this Manual ................................................. 2

Important Safety Information .....................................3–4

Setup and Operation Instructions ................................. 5

Illustrations and Parts Lists ........................................6–9

Maintenance ................................................................ 10

Repair .......................................................................... 10

Description

The Greenlee hydraulic punch driver sets combine

the 746 Hydraulic Ram with the 767 Hand Pump or
the 1725Foot Pump. These hydraulic driver sets

are intended to be used with either standard or

Slug-Buster® punches and dies to punch holes through
plastic, berglass, aluminum, and steel. Greenlee
Slug-Splitter® punches, dies, and draw studs are

capable of punching through all of these materials and
stainless steel.

Round punches are available for punching holes from

12.7 mm through 144 mm (1/2" through 5-5/8") in
diameter, including 1/2" through 5" conduit and pipe
sizes. Other shapes are available — square, special
square, rectangular, “D”, double “D”, electronic connec­tor, oiltight with notches, and key.

The maximum thickness of material that the punch can

penetrate depends on the size and shape of the punch.
Refer to the instruction manual supplied with the punch
for individual punch capacities.

Safety

Safety is essential in the use and maintenance of

Greenlee tools and equipment. This instruction manual

and any markings on the tool provide information for

avoiding hazards and unsafe practices related to the
use of this tool. Observe all of the safety information
provided.

Purpose of this Manual

This manual is intended to familiarize all personnel with
the safe operation and maintenance procedures for the

following Greenlee hydraulic punch driver kits:

• 38456

• 38520

• 7306/7306SB

• 7310/7310SB

• 7506

• 7606SB

• 7610SB

• 7625/7625Pg/7625PgSB

• 7646/7646Pg/7646PgSB

Keep this manual available to all personnel.

Replacement manuals are available upon request at no
charge at www.greenlee.com.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

All specications are nominal and may change as design

improvements occur. Greenlee Textron Inc. shall not be liable for
damages resulting from misapplication or misuse of its products.

Kwik-Stepper, Slug-Buster, and Slug-Splitter are registered
trademarks of GreenleeTextron Inc.

KEEP THIS MANUAL

2

IMPORTANT SAFETY INFORMATION

SAFETY
ALERT
SYMBOL

This symbol is used to call your attention to hazards
or unsafe practices which could result in an injury or

property damage. The signal word, dened below,

indicates the severity of the hazard. The message
after the signal word provides information for pre­venting or avoiding the hazard.

Immediate hazards which, if not avoided, WILL result

in severe injury or death.

Hazards which, if not avoided, COULD result in

severe injury or death.

Hazards or unsafe practices which, if not avoided,
MAY result in injury or property damage.

Read and understand all of the
instructions and safety information
in this manual before operating or
servicing this tool.

Failure to observe this warning could

result in severe injury or death.

Hydraulic Punch Driver

Electric shock hazard:

Do not use this tool near live circuits.

This includes, but is not limited to, the
following:

• near circuit breaker panels or fuse

boxes with energized circuits

• near junction boxes with energized
circuits

Failure to observe this warning could

result in severe injury or death.

Skin injection hazard:

• Hand-tighten all couplers com-

pletely before operating the pump.
Do not use tools to tighten the
couplers.

• Do not use hands to check for
leaks.

• Do not hold hose or couplers while

the hydraulic system is pressurized.

• Release the hydraulic pressure
before disconnecting the hoses or

couplers, and before servicing the

pump or accessory.

Oil under pressure easily punctures

skin causing serious injury, gan-

grene or death. If you are injured by

escaping oil, seek medical attention

immediately.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Wear eye protection when operating

or servicing this tool.

Failure to wear eye protection could

result in serious eye injury from ying
debris or hydraulic oil.

3

Hydraulic Punch Driver

IMPORTANT SAFETY INFORMATION

A component failure could throw
broken parts.

• Do not allow anyone to stand in

front of the punch or behind the
hydraulic ram.

• Close access doors or covers on

any equipment that is in line with
the punch or ram.

Failure to observe this warning could

result in severe injury or death.

Do not attempt to punch a hole
through two or more layers of mate-

rial. This will bend or break the draw
stud, and could throw parts with great

force.

Failure to observe this warning could

result in severe injury or death.

Set up the tool properly. An improper setup could
cause a component to fail and strike nearby person-

nel with great force.

• Thread the punch completely onto the draw stud.
All of the punch threads must be engaged by the

draw stud threads. Incomplete assembly could
cause a component failure.

• Use only Greenlee punches, dies, and draw studs.

Other manufacturers’ components might not with­stand the forces generated by this punch driver.

Failure to observe these warnings could result in

severe injury or death.

Replace worn, damaged or missing components
with Greenlee replacement parts. Worn or damaged
components can fail, resulting in injury or property

damage.

• Inspect the pump, hoses, couplers, and ttings for

wear or damage.

• Inspect all punch components (punch, die, draw
stud, etc.) for wear or damage.

Failure to observe these warnings could result in

severe injury or death.

Do not exceed the rated capacity of this tool.
Exceeding the rated capacity could cause a com-

ponent failure, which could throw broken parts with

great force.

Failure to observe this warning could result in severe

injury or death.

The punch driver will fall free when the punch is
complete.

• Support the weight of the tool when punching.

• Do not allow anyone to stand beneath an overhead

punch.

Failure to observe this warning may result in injury or

property damage.

Use this tool for the manufacturer’s intended purpose
only. Any other use may result in injury or property

damage.

This punch system was designed for a maximum

operating pressure of 450 bar (6500 psi).

• Use this punch system with the Greenlee 767 Hand
Pump or 1725 Foot Pump only.

• Connect the pump to the ram with Greenlee hoses

and couplers only.

Use of any other hoses or couplers could result in

injury from a component failure.

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

4

Setup and Operation Instructions

Hydraulic Punch Driver

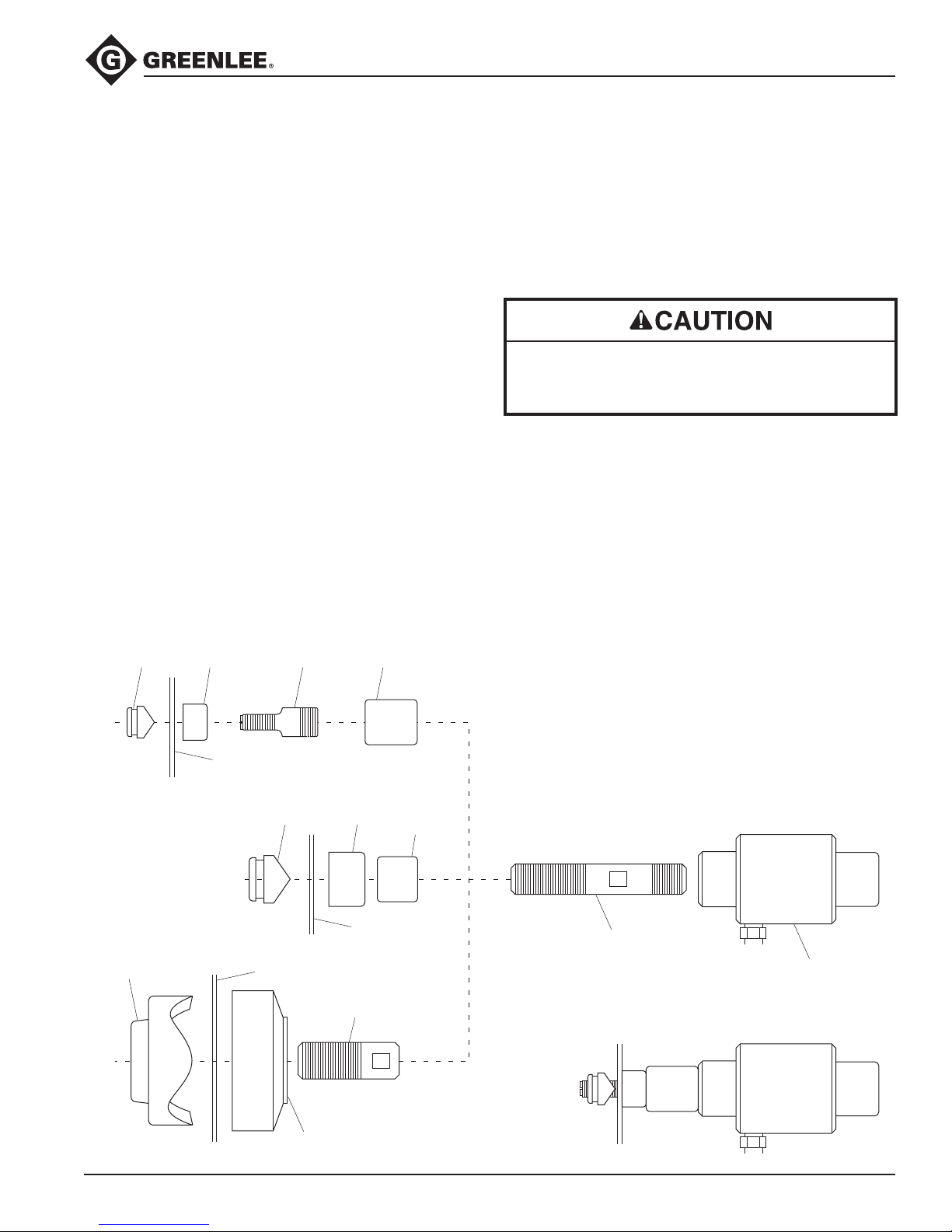

1. Remove the dust caps from the couplers; attach the
hose to the ram and to the pump. Thread the dust
caps together.

Note: Hand-tighten the couplers completely until all
threads are engaged. Do not use tools.

2. Select the punch, die, and draw stud that will make

the appropriate size hole.

3. Determine and mark the exact location for the hole.
Using a drill bit that is slightly larger than the draw
stud, drill a hole. This is the pilot hole.

4. Thread the 3/4" piston shaft (B) completely into the
ram (A). Refer to the illustration.

Note: For a punch and die with a 3/8" center hole,
thread the 3/8" adapter draw stud (F) into the end of
the piston shaft. For a punch and die with a 1-1/8"
center hole, thread the screw sleeve (E) onto the
piston shaft.

5. Install spacers as necessary. Refer to the illustra­tions on this page.

6. Slide the die over the draw stud with the open end

of the die facing away from the ram.

7. Insert the draw stud through the pilot hole.

3/8" Adapter

Punch

Die

Draw Stud

Spacer

8. Thread the punch onto the draw stud with the
cutting surfaces of the punch facing the material.

Tighten the punch by hand until the spacers, die,
material, and punch are snug.

Note: All of the punch threads must be engaged by
the draw stud threads. If any of the punch threads
are not engaged, dis-assemble the setup, remove
one of the spacers, and reassemble the setup.

Do not operate the pump after ram motion stops.

Continuing to operate the pump lever after the ram

stops will damage the ram.

Note: If the ram stops before the hole is complete,
stop pumping. Check that the setup is correct
and that you have not exceeded the tool’s capac­ity. Refer to the setup instructions. If necessary,
disassemble the setup and add a spacer.

9. Activate the pump. For specic instructions, refer to

the operating manual supplied with the pump.

Note: Support the weight of the ram when operat­ing the pump. This will prevent the ram from falling
when the punch is complete.

10. Release the pressure at the pump.

Material

Punch Die Spacer

as needed

Material

Punch

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Material

1-1/8" Sleeve

Die

5

3/4" Draw Stud

Ram

Completed Assembly

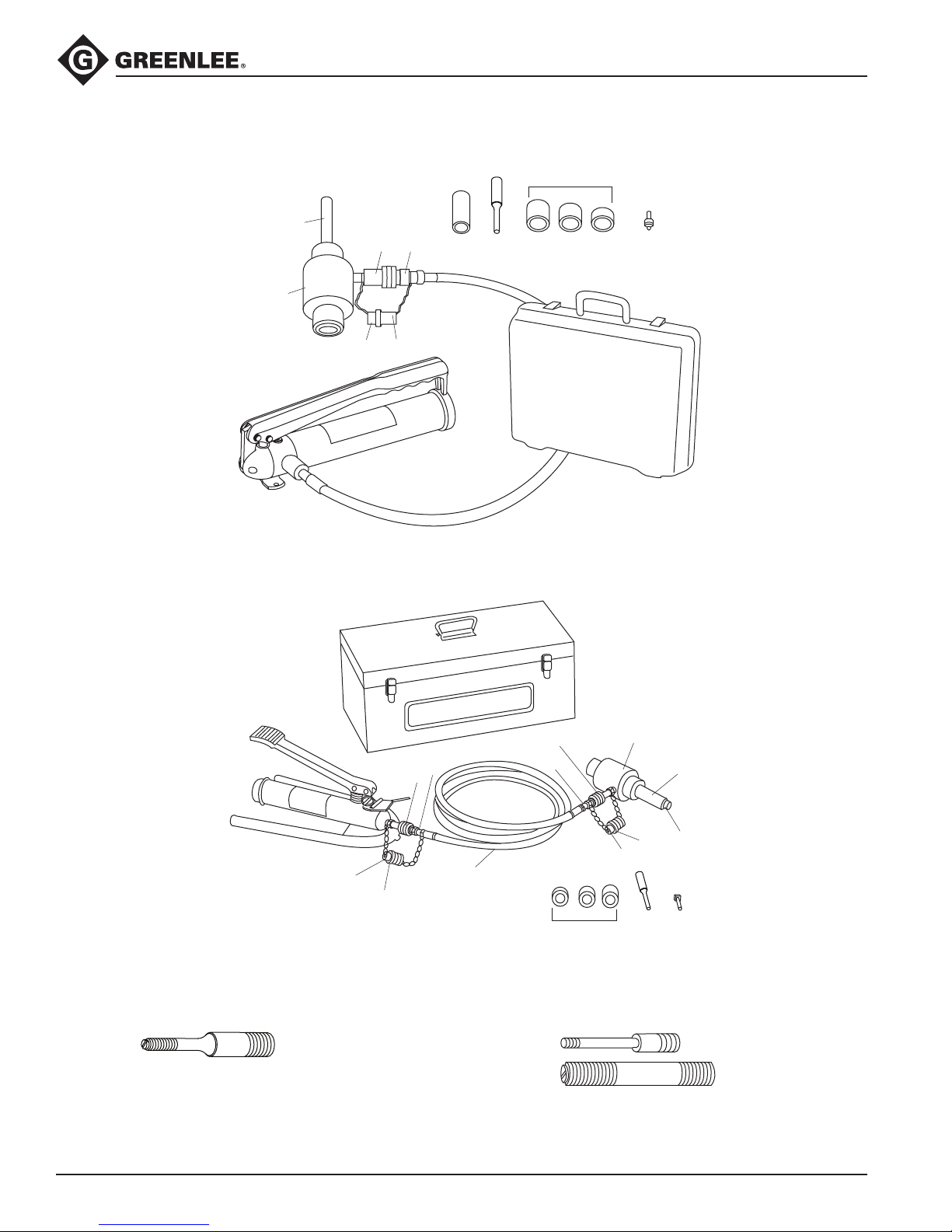

Illustration —Punch Driver

7646 Hydraulic Punch Driver with 767 Hand Pump

B

C

N

A

D

O

L

M

E F

Hydraulic Punch Driver

G

I K

HJ

R

7625 Hydraulic Punch Driver with 1725 Foot Pump

P

C

D

O

For punching mild steel, 3/8" drive:

S

C

N

Q

For punching stainless steel:

N

H I J

A

E

B

O

D

FGK

52042828

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

50294512

50294520

(for use with Slug-Splitter punches and dies)

6

Parts List—Punch Driver

Hydraulic Punch Driver

Key Cat. No.

A 746 17091 Ram (includes keys B, C, D) 1 1 1 1 1 1 1 1

746SS 30387

29451 29451 7/16" Stainless Steel Draw Stud 1

29452 29452 3/4" Stainless Steel Draw Stud 1

B 2113B 10109 3/4" Piston Shaft 1 1 1 1 1 1 1 1

C 54167 54167 1/4" Coupler Unit 1 1 1 1 1 2 2 2 1

D 54168 54168 Dust Plug 1 1 1 1 1 2 2 2 1

E 1557AA 03170 Screw Sleeve 1 1 1 1 1 1 1 1

F 20963 20963

G 15908 15908

H 1924AA 03248 Short Spacer 1 1 1 1 1 1 1 1 1

I 1925AA 03249 Medium Spacer 1 1 1 1 1 1 1 1 1

J 1926AA 06904 Long Spacer 1 1 1 1 1 1 1 1 1

K 34410 34410 Kwik-Stepper

L 767 13284 Hydraulic Hand Pump 1 1 1 1 1 1

M 38316 38316

N 54169 54169 1/4" Coupler Unit 1 1 1 1 1 2 2 2 1

O 54170 54170 Dust Cap 1 1 1 1 1 2 2 2 1

06302 06302

P 1725 31353

Q 37729 37729

52515 52515

R 30206 30206 Plastic Carrying Case 1 1 1

18402 18402 Plastic Carrying Case 1 1

S 23955 23955 Metal Carrying Case 1 1 1

30236 30236 Plastic Carrying Case 1

31068 31068 Metal Carrying Case 1

UPC No.
78-3310-

Description 7646 7306SB 7306 7310SB 7310 7625 7606SB 7610SB 7304 7506

Ram (includes keys C, D
and 29452)

3/8" Adapter Draw Stud
(3/4–16 x 3/8–24)

Spacer Group
(includes keys H, I, J)

®

Pilot Bit 1 1 1 1 1 1 1 1 1

1/4" x 3' High-Pressure Hose Unit
(includes keys N, O)

1/4" x 3' High-Pressure Hose
with Swivel (without couplers)

Hydraulic Foot Pump
(includes keys C, D)

1/4" x 10' High Pressure Hose Unit
(includes two each of keys N, O)

1/4" x 10' High Pressure Hose
Replacement (without couplers)

1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1

1 1 1 1 1 1

1 1 1 1 1 1

1 1 1

1 1 1

1

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

7

Hydraulic Punch Driver

Parts List—Punches

• Standard and Slug-Buster punches, dies, and draw studs listed in the following table
are capable of punching a maximum of 10 (0.1344", 3 mm) gauge mild steel.

• Slug-Splitter punches, dies, and draw studs listed in the following table
are capable of punching a maximum of 10 (0.1344", 3 mm) gauge stainless steel.

Cat. No.

721–1/2 31756 1/2" Slug-Buster Punch 1 1 1 1 1 1

14722 14722 1/2" Die 1 1 1 1 1 1

721–3/4 31757 3/4" Slug-Buster Punch 1 1 1 1

123AV 04008 3/4" Standard Punch 1 1

124AV 06972 3/4" Die 1 1 1 1 1 1

721–1 31758 1" Slug-Buster Punch 1 1 1 1

125AV 04010 1" Standard Punch 1 1

126AV 04011 1" Die 1 1 1 1 1 1

721–1-1/4 31759 1-1/4" Slug-Buster Punch 1 1 1 1

127AV 06974 1-1/4" Standard Punch 1 1

128AV 04013 1-1/4" Die 1 1 1 1 1 1

721–1-1/2 31760 1-1/2" Slug-Buster Punch 1 1 1 1

439AV 06978 1-1/2" Standard Punch 1 1

440AV 04061 1-1/2" Die 1 1 1 1 1 1

721–2 31761 2" Slug-Buster Punch 1 1 1 1

441AV 04062 2" Standard Punch 1 1

442AV 04063 2" Die 1 1 1 1 1 1

1429AV 04175 2-1/2" Punch 1 1 1 1

1430AV 04177 2-1/2" Die 1 1 1 1

1431AV 04180 3" Punch 1 1 1 1

1432AV 04183 3" Die 1 1 1 1

2982AV 04653 3-1/2" Punch 1 1 1 1

2981AV 04652 3-1/2" Die 1 1 1 1

2984AV 04655 4" Punch 1 1 1 1

2983AV 04654 4" Die 1 1 1 1

28154 28154 1/2" Slug-Splitter Punch 1

28155 28155 1/2" Slug-Splitter Die 1

28156 28156 3/4" Slug-Splitter Punch 1

28157 28157 3/4" Slug-Splitter Die 1

28158 28158 1" Slug-Splitter Punch 1

28159 28159 1" Slug-Splitter Die 1

28160 28160 1-1/4" Slug-Splitter Punch 1

28161 28161 1-1/4" Slug-Splitter Die 1

28162 28162 1-1/2" Slug-Splitter Punch 1

28163 28163 1-1/2" Slug-Splitter Die 1

28165 28165 2" Slug-Splitter Punch 1

28166 28166 2" Slug-Splitter Die 1

UPC No.

78-3310-

Description 7646 7306SB 7306 7310SB 7310 7625 7606SB 7610SB 7304 7506

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

8

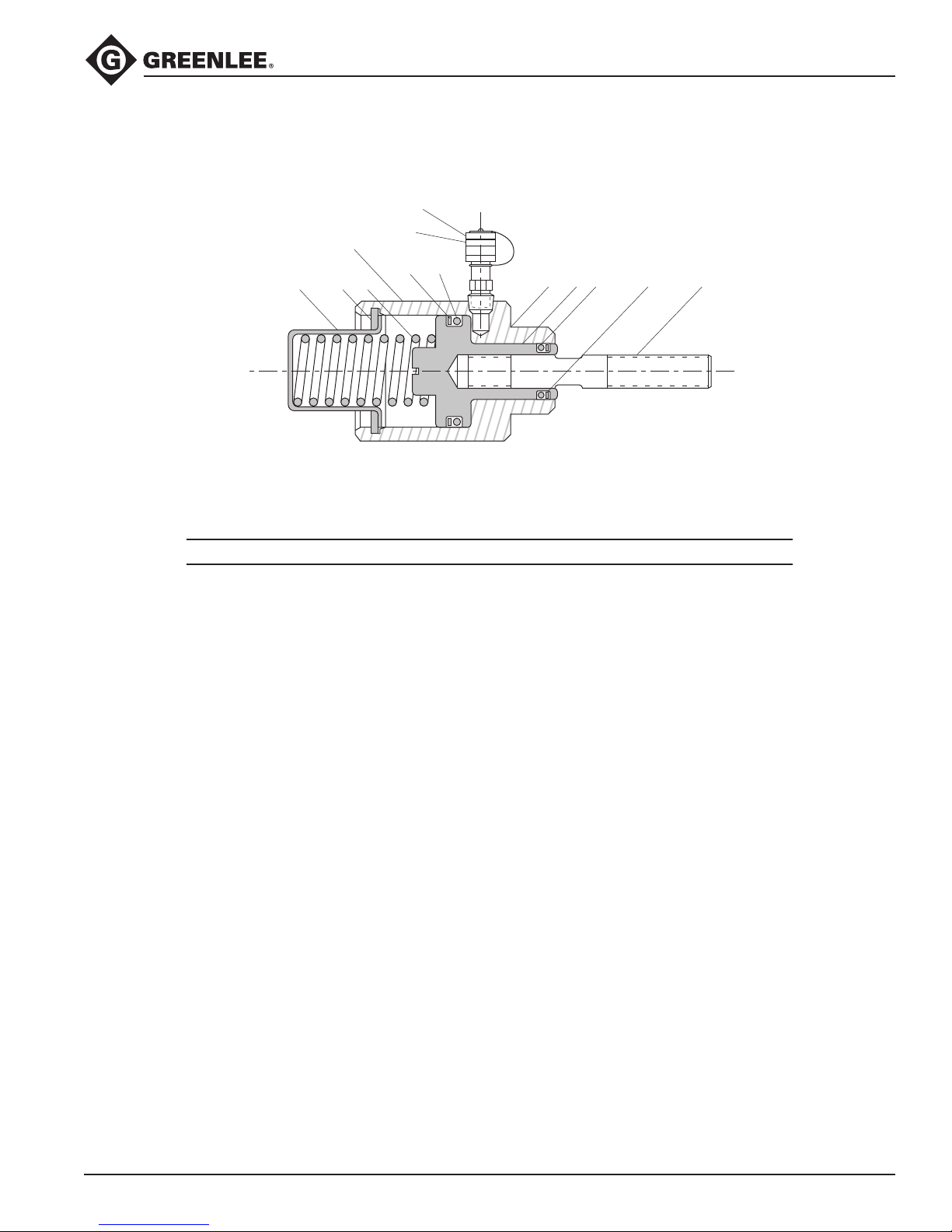

Illustration and Parts List—Ram

Hydraulic Punch Driver

Serial No.
Location

10

Key Part No. Description Qty

1* 52045040 Shaft (746 M-3) ......................................................................................... 1

50294520 Shaft (746 SS) ........................................................................................... 1

2** 50170937 Piston ........................................................................................................ 1

3 50170953 Cylinder ..................................................................................................... 1

4 50112511 Spring, Compression ................................................................................ 1

5 50112538 Retainer ..................................................................................................... 1

6 90541677 Coupler, 1/4" Quick Disconnect ................................................................ 1

7 90541685 Plug, Protective ......................................................................................... 1

8 90503384 O-ring, 7/8" x 1-1/8" x 1/8" ....................................................................... 1

9 90503899 O-ring, 2" x 2-3/8" x 3/16" ........................................................................ 1

10 90503902 Ring, Retainer ........................................................................................... 2

11 90508327 Ring, 2" x 2-3/8" x 3/16" Spiral Backup ................................................... 1

12 90513398 Ring, 7/8" x 1-1/8" x 1/8" Spiral Backup .................................................. 1

50145525 Packing Repair Kit (includes items 8, 9, 11, and 12) ................................ 1

50121219 Decal, Safety (not shown) ......................................................................... 1

6

9

11

45

3 2 8 12 1

7

* 52045041 Supplied with the 746 and used with standard punches
and Slug-Buster punches

** 50294520 Supplied with the 746 SS and used with Slug-Splitter

punches and dies

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

9

Hydraulic Punch Driver

Maintenance

The pump and ram require little maintenance. Use the
tool with care to keep dirt and grit out of the hydraulic
system. All internal working parts are lubricated by the
hydraulic oil, so that no other lubrication is necessary.

Repair

All repair work should be performed at an authorized
Greenlee service center. Use only Greenlee replacement
parts. Using any parts other than Greenlee replace-

ment parts may do irreparable damage and will void the
warranty.

USA 800-435-0786 Fax: [phone]
815-397-7070 Fax: [phone]
Canada 800-435-0786 Fax: [phone]
International [phone] Fax: [phone]

4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070

An ISO 9001 Company • Greenlee Textron Inc. is a subsidiary of Textron Inc.

www.greenlee.com
