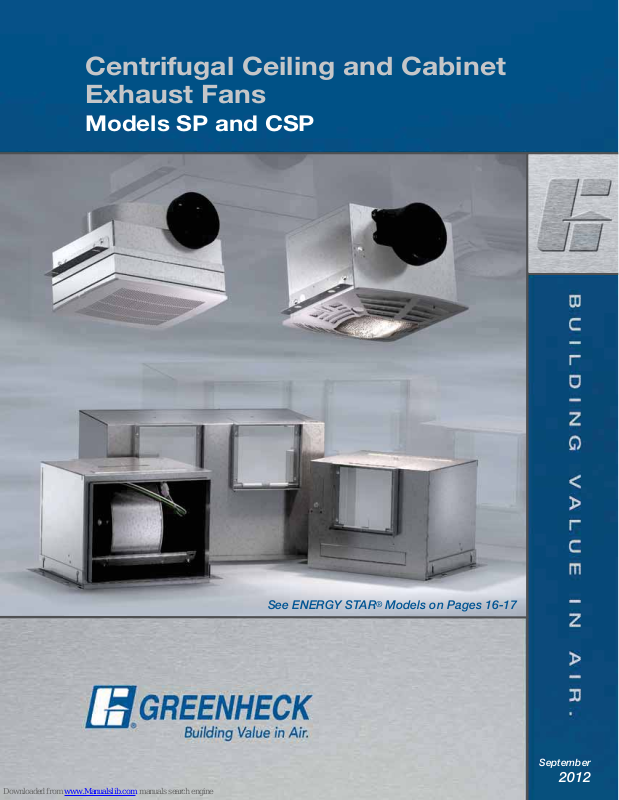

Page 1
Centrifugal Ceiling and Cabinet
Exhaust Fans
Models SP and CSP
See ENERGY STAR® Models on Pages 16-17
September
2012
Page 2
Models SP and CSP
Ceiling and Cabinet Exhaust Fans
Standard Construction Features ..........4-5
Options and Accessories ................. 6
SP Grill and Lighting Options.............. 7
Control Accessories ....................8-9
Filter and Discharge Accessories.......... 10
Flat Roof Caps ........................ 11
Wall Discharge Accessories............12-13
Sound Level Information ................ 14
Energy Star Approval ................... 15
Greenheck Fan Corporation certifies that the SP
models shown herein are licensed to bear the
AMCA seal. The ratings shown are based on tests
and procedures performed in accordance with
AMCA Publication 211 and AMCA Publication 311
and comply with the requirements of the AMCA
Certified Ratings Program. The SP models are not
AMCA certified with 50 hertz motors.
Model Number Code ................... 15
Model SP-A .......................... 16
Model SP-B and SP-C.................. 17
Model CSP-A ......................... 18
Model CSP-B ......................... 19
Model SP (50 cycle) .................... 20
Model CSP (50 cycle)................... 21
Typical Specifications.................22-23
Warranty ............................. 24
Greenheck Fan Corporation certifies that the
CSP models shown herein are licensed to bear
the AMCA seal. The ratings shown are based on
tests and procedures performed in accordance
with AMCA Publication 211 and comply with
the requirements of the AMCA Certified Ratings
Program. The CSP models are not AMCA certified
with 50 hertz motors.
Models SP and CSP are listed electric fans
(UL/cUL 507). Ceiling Exhaust Fans are also
UL Listed for above bathtub/shower with GFCI
branch protected circuit. File no. E33599.
Products that earn the ENERGY STAR®
prevent greenhouse gas emissions
by meeting strict energy efficiency
guidelines set by the U.S. Environmental
Protection Agency and the U.S.
Department of Energy.
Fans that are ENERGY STAR qualified include:
SP-A-50, 70, 90, 200, 250, 290 and 410
SP-B-50, 70, 80 and 90
2
Page 3
Models SP and CSP
li
.
Ceiling and Cabinet Exhaust Fans
Model Comparison
Location Mounting Airflow Application
Model
Outdoor
Indoor
Roof Curb
Base/Floor
Hanging
Wall
Ceiling Mounted
Exhaust
Supply
Reversible
Recirculate
General/Clean Air
SP
CSP
9999 99
99999 99
Great things come in small packages, as do our
ceiling fan SP models and cabinet fan CSP models.
Be assured when you buy any Greenheck product,
you are getting a quality product at a competitive
price. In fact, we guarantee our SP and CSP ceiling
and cabinet exhaust fans with a three-year warranty.
We offer the most comprehensive ceiling and cabinet
exhaust fan line in the commercial market. We are
your market leader!
Contaminated Air
Spark Resistant
Grease (UL 762)
Smoke Control (UL)
Drive
Type
High Wind (150 mph)
High Temp (above 200°F )
Belt
Direct
Impeller
Type
Centrifugal
Propeller/Axial
Performance
Mixed Flow
Maximum Volume
(cfm)
1,600 1 $
3,800 1 $
Benefits
• Lowest sound in the industry
• Compact size
• Five different fan styles offering you a
competitive price
• Broadest performance selections in the industry
Pressure
(in. wg)
Relative Cost
Maximum Static
SP fans are designed for
ceiling mounted applications.
Model Description
SP-A
SP-B
Ceiling Fans
SP-C
CSP-A
CSP-B
Inline Fans
for
cations
Premium Ceiling Fan:
Best choice to meet sound requirements.
Deluxe Ceiling Fan:
Compact to fit most applications with quiet
operation.
Economy Ceiling Fan:
Designed for light commercial applications.
Premium Inline Fan:
Outperforms the competition and is
preferred by specifying engineers.
Deluxe Inline Fan:
Compact design to fit in small remote
spaces.
Profile
min. height
9 inches
(229 mm)
7 inches
(178 mm)
5
⁄8 inches
3
(86 mm)
9 inches
(229 mm)
7 inches
(178 mm)
CSP fans are
designed for inline
mounted applications.
Sound
min. sones
0.5
1.2
3.0
0.8
1.5
Air Volume
(maximum)
1,600 cfm
(2718 m3/hr)
200 cfm
(340 m3/hr)
50 cfm
(85 m3/hr)
3,775 cfm
(6414 m3/hr)
185 cfm
(314 m3/hr)
UL Listing
UL/cUL Listed for above bathtub/shower
with GFCI branch protected circuit
(Sizes A390 and smaller)
UL/cUL Listed for above bathtub/shower
with GFCI branch protected circuit
UL Listed
UL/cUL Listed
UL/cUL Listed
3
Page 4
Standard Construction Features
Model SP-A
7
6
3
10
Model SP-B
9
Model CSP-A
5
8
4
9
2
1
12
11
6
10
8
7
3
5
4
13
2
1
12
11
Model CSP-B
12
2
1
11
3
10
11
1
2
3
12
78
10
7
4
8
13
Model SP-C
4
4
1
2
7
12
11
10
3
9
Page 5
Standard Construction Features
Backdraft
1
Damper
2 Outlet
Power
3
Assembly
Electrical
4
Access
Electrical
5
Knockouts
Acoustic
6
Insulation
7 Disconnect
Electrical
8
Junction Box
9 Grille
Mounting
10
Brackets
11 Housing
12 Motors
13 Access Panel
Exclusive
Electrical
Wiring Feature
Number and Description
Durable plastic to eliminate rattling & backdrafts
Aluminium to eliminate rattling & backdrafts
Round - For quick and easy connections 50-90 50-200 50 50-200
Square - For quick and easy connections 110-1550 110-3600
Removes quickly for maintenance
Includes conversion from horizontal to
vertical discharge
Vertical electrical access to eliminate
drilling holes
External electrical access to eliminate removing
motor pack, saving installation time
Eliminates drilling holes
(horizontal or vertical)
Absorbs sound
Servicing is quick and safe
Large for easy wiring
Concealed attachment screws securely fasten
grille to housing for quiet, rattle free operation
Adjustable for multiple installation conditions
Embossed galvanized steel for rigidity
A low profile for height restricted areas
Motors are compatible for use with speed
controls and have thermal overload protection
Domestic & International
• 50 cycle, 220v or 240v
• 60 cycle, 115v, 208v, 220v, 230v, & 277v options
(See CAPS for availability)
Gain easy access to internal components once
installed
Electrical access cover located on the housing exterior. This feature permits external wiring without removing
the power assembly, saving installation time and cost. Available on models SP-A and CSP-A.
Specific Features for Each Model
SP-A SP-B SP-C CSP-A CSP-B
99 9
99
99999
99
99 99
99
99999
99
99999
99 99
999
99999
99999
99 9
99
60 cycle,
115v only
99
99999
Double-Wide
Fans
Vertical
Discharge
Available for applications requiring 700 cfm or greater.
Double-wide fans have two double-width forward-curved wheels,
which are housed in separate scrolls, and driven by a single motor.
Available on models SP-A and CSP-A.
Exhaust outlet duct installed in the optional vertical position.
The power assembly must be rotated to match the duct adapter position.
Available on models SP-A and CSP-A.
5
Page 6
Options and Accessories
Ceiling Radiation Damper
The National Fire Protection Association (NFPA)
Standard 90A requires openings in fire rated ceiling
assemblies to be protected by appropriately rated
ceiling radiation dampers. As a result, many local
codes require fans installed in fire rated ceilings to
be protected by dampers which are insulated against
both heat and flame.
UL Classified ceiling radiation dampers are rated at
three to four hours of fire resistance. All model SP
fans and fan/light combinations are available with
ceiling radiation dampers. This design saves space
by allowing the damper to mount directly beneath
the fan.
Model SP-A
SP-A Fan
Hanging
Vibration
Isolation
Ceiling
Radiation
Damper
Fire
Rated
Ceiling
Fire
Rated
Ceiling
Model SP-B
3 in.
3 in.
AxB
AxB
Grille
SP-B Fan
Hanging
Vibration
Isolation
Ceiling
Radiation
Damper
Grille

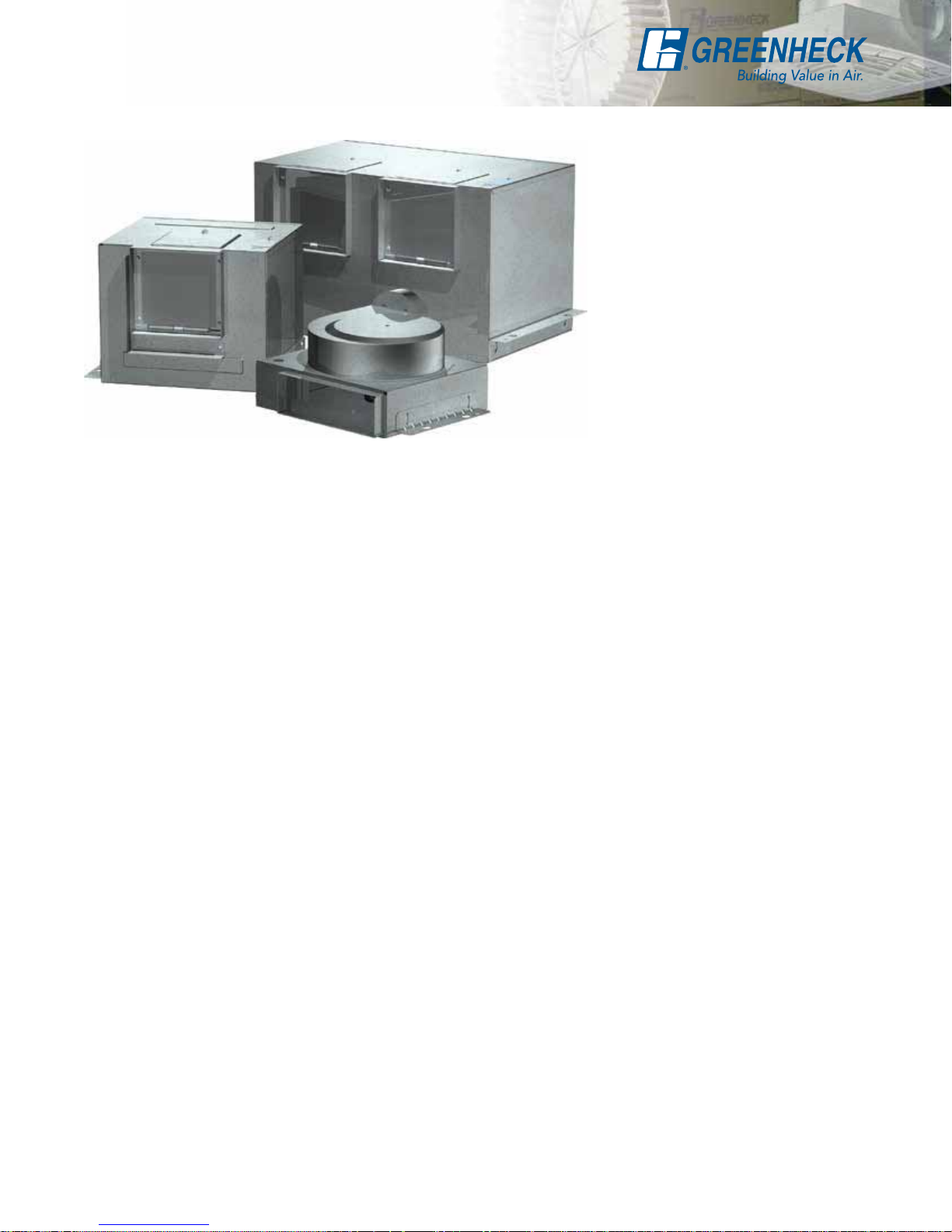

Contractor 4 Packs
Save installation time and labor by installing the
housing first, then installing the internal components
after the sheetrocking, plastering and finishing is
done. Housings are packaged in one box, power
assemblies and grilles are packaged in another box.
Components are shipped to coincide with the phase
of your project. (Model SP-B only).
Wheel Options
Greenheck’s ceiling and cabinet fans (models SP and
CSP) deliver high performance from a forward-curved
wheel. The forward-curved wheel design offers
both high-efficiency and low sound. Fan wheels are
constructed of polypropylene or steel as standard,
and all models offer an aluminum wheel option.
• Level A models utilize steel or polypropylene wheel
construction depending on size.
• Level B models are standard with a
polypropylene wheel.
Polypropylene
Steel
SP Model CRD Length (A) Width (B) Height
1
⁄2
A50 - A190 310
B50 - B200
A200 - A390
A410 - A510
A710 - A780
A700 700
A900 - A1550
All dimensions shown in inches (millimeters). Add an “L” to all CRD models if
fan & light combo is used. *CRD is approximately 1/4 inch (6 mm) larger than
housing dimension. (See Installation, Operation and Maintenance Manual)
320
350
360 24
13
(343)
14
(365)
18
(468)
24
(614)
(614)
3
⁄8
7
⁄16
3
⁄16
3
⁄16
6
111⁄8
(283)
121⁄4
(311)
1415⁄16
(379)
121⁄4
(311)
1415⁄16
(379)
(76)
(76)
(76)
(76)
(76)
3
3
3
Aluminum
3
3
Page 7
SP Grille and Lighting Options
Grille Options
Designer - standard grille
Available in white polystyrene finish,
with or without motion detector
Grille - Aluminum
White enamel finish standard for
models A410-A1550.
Optional for models A50-A390 and
B50-B200.
Grille - Stainless Steel
Polished stainless steel finish
optional for models A50-A390
and B50-B200.
Grille - Decorative
White plastic finish, with or without
light, motion detector or time delay
(see page 9 for motion detector
and time delay information).
Optional for models A50-A390
and B50-B200.
or time delay (see page 9 for
motion detector and time
delay information). Standard
on SP models A50-A390 and
B50-B200.
Lighted Grille Options
Greenheck’s fan and light combinations include either
a prismatic or a frosted lens and either compact
fluorescent or incandescent lamps. Our unique light
box is manufactured with a reflective material to
increase the light given off by either type of lamp.
UL Listed for above bathtub and showers with GFCI
branch protected circuit.
Model SP-A, sizes 50 - 390
Model SP-B, sizes 50 - 200
Prismatic Lens
The prismatic lens design provides
approximately 25% more light than
a traditional frosted lens. The lens
may be easily removed to replace
light bulbs.
Frosted Lens
The frosted lens option is a traditional
design which lets approximately 80%
of light through the lens. The lens
may be easily removed to replace
light bulbs.
Incandescent Lamps
One bulb provides up to 100 watts
of light (bulbs provided by others).
• Dimmable
• Reflective light box
Customized grille options
Molded polystyrene available in an array of colors.
Includes all the same accessory options as the
standard grilles. For more information on the many
ways this grille option can be used please contact
your Greenheck representative.
Customized
Grille Lens
Lenses can be
customized with
formed shapes or logos.
Contact your Greenheck representative for details.
Compact Fluorescent Lamps (CFL)
Features and Benefits
• GU24 Base
• Long Life, 10,000 hour average
rated life
• Lower maintenance and labor
costs for lamp replacements
• No lead glass - Better lumen
maintenance over life of bulb
• End-of-Life logic guards against violent failures
• Complies with UL 1993 End-of-Life requirements
• World Class phosphor insures high lumen output
and excellent lumen maintenance
• Replacement bulbs can be found wherever
standard light bulbs and fixtures are sold. Energy
efficient ENERGY STAR
• California Energy Title 24 compliant
®
qualified fixtures.
7
Page 8
Control Accessories
Speed Controls
Speed controls may be used
on model SP and CSP fans for
manual adjustment of the fan’s
performance (for final system
balancing) or to control the
fan’s output in confined
spaces, such as conference or
meeting rooms.
The fan can be adjusted to 60% of
design airflow with a speed control.
This reduction in airflow and fan
speed is also accompanied by a
reduction in noise level. Solid state
speed controls are available for
a range of applications up to 15
amps. Speed controls can be used to operate
more than one fan if the combined total amperage
of the fans do not exceed the control rating.
H
FULL VOLTAGE
BLACK
SPEED CONTROL
RED
WHITE
Internal Mounting
SWITCHED FULL VOLTAGE
Dotted line indicates
for use with 10W
switch only.
VARIABLE
VOLTAGE
AUX
DEVICE
Switches
Switches may be used on model
SP and CSP fans to enable manual
control of your fan or fan and light
combination. There are several
options to fit your application.
NEMA 1 - Single pole rocker
switch assembly.
• Rated for, 115v, 15 Amp, 1/2 hp
• UL Listed
Model MS-16 - Single pole rocker switch assembly
with cover and pilot light.
• Rated for, 115v, 15 Amp, 1/2 hp
• UL Listed
NEMA 1 - Two pole rocker switch assembly.
• Rated for, 220/230/240/277v, 20 Amp, 2 hp
• UL Listed
• Requires a 2x4 handy box.
EXTERNAL JUMPER
120 VAC
FAN
LOAD
N
For use with shaded pole and permanent split capacitor (PSC)
motors. Available shipped loose or mounted internal or external.
SPEED CONTROL INTERNAL AND/OR EXTERNAL MOUNTING OPTIONS
Model
Voltage Rating
Amp Rating
5WSSC
115 - 127v
5 Amp
10WSSC
115 - 127v
10 Amp
15WSSC
115 - 127v
15 Amp
5W240
220 - 240v
5 Amp
8WSSC
220 - 240v
8 Amp
5W277
227v
5 Amp
NOTES: Speed controllers are not available for 208v applications. SP-C50 Speed Controller is shipped loose only. All speed controller options listed in table are UL Listed.
Handy Box sizes are 2x4 for all options above except 10WSSC and 15WSSC, which are 4x4.
50 70 80 90 110 125 150 190 200 250 290 390 410 510 700 710 780 900 1050 1410 1550 1750 2150 3600
I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E I/E No No No No No No
EEEEEEEEEEEEEEEEEE EEEEE
EEEEEEEEEEEEEEEEEE EEEEE
No No No *I/E I/E No I/E I/E *I/E No I/E I/E No I/E No No I/E No I/E No I/E No No No
No No No *E E No E E *E No E E No E No No E No E No E No No No
No No No No I/E I/E I/E I/E *I/E No No No No No No No No No No No No No No No
E = External mounted only I/E = Available Internal and External Mounted
KEY:
* Only available on the B-series (A-series is not available) No = Not available
Fan Sizes
8
LOAD
No
No
Page 9
Control Accessories
Time Delay Switch
Time delay switches save energy by automatically
turning off equipment. They may be used with SP and
CSP fans or fan and light combinations for extended
operating time of fan. Time delay switches act in the
same manner as a standard switch, however, there is a
delay of 1 to 60 minutes after it has been turned off.
(500 Watt Max)
115 VOLT AC
60 CYCLE
(NEUTRAL)
BLACK BLUE
(HOT)
WHITE
RED
LIGHT
(7.5 Amps Max)
FAN MOTOR
Model GTD -
A single switch controls both fan
and light. Available shipped loose.
• Silent Operation
• Rated for 115v
• UL Listed
• Requires 2x4 handy box
Transformers
Transformers are available for
applications requiring voltage
reduction. Selection is based on
motor amperage. All transformers
are shipped loose.
Models Voltage Ratings Amp Ratings
T-2.0 230/277v to 115 2.0 Amps
T-4.3 230/277v to 115 4.3 Amps
T-6.5 230/277v to 115 6.5 Amps
T-8.6 230/277v to 115 8.6 Amps
Motion Detectors
Motion detectors may be used with
SP and CSP fans or fan and light
combinations. Motion detectors
use a passive infrared motion
detector to automatically turn the
fan on when a change in motion
is sensed. They have
a viewing area of 180
degrees, however they
must be placed in the
line-of-sight. They also
have an adjustable time
delay shutoff setting of
1 to 20 minutes.
Black
Motion Sensor
Fan Motor and/or
Light
Green
Gnd.
Black
Red
Load
(12.5 Amps Max.)
Hot
Neutral
Wall Mount
Grille Motion Detectors are available on models
up through size SP-A390 and SP-B200.
• Rated for 115v
• UL Listed
Model MDW
For use on fan or lights. Available shipped loose.
• Rated for 115v
• UL Listed
• Requires 2x4 handy box
White
Red
Black
Green
White
Grille Mount
Hot
Neutral
Ground
9
Page 10
Filters and Discharge Accessories
RJ-4 and RJ-6x9
D
C
B
A
E
RJ-10x10
C
D
E
A
B
Filters
Fans used in most applications will collect airborne
dirt on wheels and motors over time, even where air
is not excessively dirty. Accumulations of dirt on the
fan wheel will sharply reduce performance and cause
imbalance. Dirt buildup on the motor can cause it to
overheat. All of these conditions will shorten the life of
the fan. To help reduce this accumulation, washable
aluminum mesh filters are available to trap dirt before
it enters the fan. These filters should be regularly
cleaned to maintain performance. The Filter Loss Chart
shows the effect the filter will have on performance.
To determine the added resistance, divide the desired
cfm by the filter area (ft
with the filter loss chart to get the added resistance.
Filters reduce sound levels, in addition to reducing dirt
accumulations on the motor and wheel.
Mesh
Filter
.24
.22
.20
.18
.16
.14
.12
.10
.08
Resistance in w.c.
.06
.04
.02
.00
0 1 2 3 4 5 6 7 8 9
Velocity (FPM) x 100
SP Model
SP-A50 - A190 F-200 F-210 0.739
SP-B50 - B200, A200 - A390 F-200 F-220 0.911
SP-A410 - A510
SP-A710 - A780
SP-A900 - A155 NA F-260 2.078
*Aluminium or Stainless Steel Grille.
10
2
). This will give ft/min. Use this
SP
Grille
Filter Loss Chart
Filter Model
Designer
Grille
NA F-250 1.518
*Metal
Grille
Filter
Area
Roof Discharge Accessories
Model RJ - Pitched Roof Cap
• Steel construction with black enamel finish
• Integral flashing flange
• Built-in birdscreen and damper
RJ-4 and RJ-6x9
RJ-10x10
Model Use for sizes: A B C D E Throat
91⁄4
81⁄4
55⁄16
41⁄2
RJ-4 C50, B50-B80
RJ-6x9
RJ-10x10 A410-A1050
All dimensions shown in inches (millimeters).
B90-B200,
A50-A390
11
(279)
3
18
(476)
181⁄2
(470)
(235)
(210)
(135)
⁄4
141⁄4
141⁄2
(368)
153⁄4
(400)
103⁄8
(264)
235⁄8
(600)
(362)
271⁄2
(699)
Model EL-10x3 -
Elbow Discharge with Grille
• Designed for installation under roof eaves
• Black epoxy finish (elbow and grille)
• Built-in damper
• For model SP and
CSP sizes 50-290
(254)
3.5 (89)
2.875 (73)
2
(ft
)
6.5 (165)
1.625 (42)
3.375 (86)
5.125
All dimensions shown in inches (millimeters).
10
(130)
11.125
(283)
11.5 (292)
(114)
61⁄2
(165)
91⁄2
(241)
4 (102)
diameter
6 x 9
(152 x 229)
10 x 10
(254 x 254)
9.375
(238)
Page 11
Flat Roof Caps
Model RCC-7 - Curb Cap
• Weathertight aluminum
construction
• Integral birdscreen
• Built-in curb cap
• Requires roof curb
Model
RCC-7 50-390 15
All dimensions shown in inches (millimeters).
For all
sizes:
ABCD
(381) 12 (305) 10 (254) 6
B
Dia.
A
C
D
Throat
Dia.
3
⁄8 (162) 7 (178)
1.5
(38)
Model GRS - Curb Cap
• All aluminum exterior
construction
• Galvanized steel
internal supports
• Integral birdscreen
• Built-in curb cap
• Requires roof curb
Model
GRS-10 410-710 19
GRS-12 780-1050 22 (559) 29 (737) 10 (254) 31⁄2 (89) 121⁄4 (311)
GRS-16 1410-2150 26 (660) 29 (737) 11 (279) 41⁄4 (108) 165⁄16 (414)
GRS-20 3600 30 (762) 351⁄2 (902) 111⁄4 (286) 33⁄4 (95) 205⁄16 (516)
All dimensions shown in inches (millimeters).
For all
sizes:
ABCD
(483) 20
B
C
D
(44)
Dia.
1.75
A
Throat
Dia.
1
⁄2 (521) 73⁄4 (197) 2 (51) 101⁄4 (260)
Model GRSF - Flashing Flange
• All aluminum exterior
construction
• Galvanized steel internal
supports
• Integral birdscreen
• Built-in flashing flange
Model
GRSF-10 410-710 23
GRSF-12 780-1050 26 (660) 29 (737) 10 (254) 31⁄2 (89) 121⁄4 (311)
GRSF-16 1410-2150 30 (762) 29 (737) 11 (279) 41⁄4 (108) 165⁄16 (414)
GRSF-20 3600 34 (864) 351⁄2 (902) 111⁄4(286) 33⁄4 (95) 205⁄16 (516)
All dimensions shown in inches (millimeters).
For all
sizes:
ABCD
1
(584) 20
⁄2 (521) 73⁄4 (197) 2 (51) 101⁄4 (260)
B
C
D
Dia.
A
Throat
Dia.
Hanging Vibration Isolators
Vibration isolator kits are available for suspended
installations. Kits include all hardware necessary
to mount one unit, with the exception of 1/4-20
threaded rod to be supplied by others. Fan mounting
brackets include prepunched mounting holes for ease
of installation.
A
B
1/4-20
hanging
support
rod by
others
Model RFC-7 - Flashing Flange
• Weathertight aluminum
construction
• Integral birdscreen
• Built-in flashing flange
Model
RFC-7 50-390 18
All dimensions shown in inches (millimeters).
For all
sizes:
ABCD
(457) 12 (305) 10 (254) 6
B
Dia.
A
D
Throat
Dia.
3
⁄8 (162) 7 (178)
Unit Size A B
C
B50-B200 41⁄2 (114) 155⁄8 (397)
A50-A190 51⁄2 (140) 145⁄8 (371)
A200-A390 63⁄4 (171) 151⁄2 (394)
A410, A510, A710, A780 91⁄4 (235) 195⁄8 (498)
A700 51⁄2 (140) 251⁄8 (638)
A900-A1050, A1410-A1550 91⁄4 (235) 253⁄8 (645)
A1750, A2150 91⁄4 (235) 363⁄4 (933)
A3600 91⁄4 (235) 485⁄8 (1235)
All dimensions shown in inches (millimeters).
11
Page 12
Wall Discharge Accessories
Model WC (Round Connection) -
Hooded Wall Cap
• Aluminum construction - aluminum finish
• For outside wall applications
• Built-in birdscreen (not available on WC-4)
and damper
B
C
A
Model Use with sizes: A B C D E
WC-4 C50
B50-B200,
WC-6
A50-A190
WC-8 A200-A510
All dimensions shown in inches (millimeters).
E
E
1
⁄2
6
(165)6 (152)4 (102)
8
(203)8 (203)6 (152)
11
(279)
11
(279)8 (203)
D
23⁄4
(70)5 (127)
41⁄8
(105)5 (127)
51⁄8
(130)
31⁄2
(89)
Model WL - Wall Louvred Discharge
• Anodized aluminum grille
• Built-in damper
• Not recommended for exterior applications exposed
to severe weather conditions. An external wall
louver is recommended for such applications.
Model RDC - Round Duct Connector
• Replaces the standard square discharge
duct-connector and damper
• Uses existing mounting holes
• RDC-6 includes a damper (polypropylene
construction)
• RDC-8 does not
include a damper
RDC-8
(galvanized
construction)
Model Use with sizes: Diameter
RDC-6 A110-A190 6
RDC-8 A200-A510 8 (203)
All dimensions shown in inches (millimeters).
(152)
6x4 - Transition Duct Reducer
• Reduces duct from 6 to 4 inches.
• Durable plastic construction
6
5
(157)
/32
C
E
D
Model Use with all sizes: A B C D E
51⁄4
WL-10x3 50-290
WL-18x6 390-1550
All dimensions shown in inches (millimeters).
12
(305)
(133)
3
⁄4
19
(502)8 (203)
12
B
A
10
73⁄4
(254)
(197)
18
(457)9 (229)6 (152)
31⁄2
(89)
15
/16
4
(157)
Model For use with sizes:
B50-B200
473324
All dimensions shown in inches (millimeters).
* Used in conjunction with RDC-6
A50-A90
A110-A190*
15
/32
4
(114)
Page 13
Wall Discharge Accessories
30
20
10
9
8
7
6
5
4
3
2
.01 .02 .03 .04 .05 .06
.07 .08 .09
.10
.2 .3 .4 .5 .6
Pressure Drop (Inches wg)
Above accessories tested with 4 feet of inlet duct
WC-10x3,
WC-6,
RJ-6x9,
EL-10x3,
WL-10x3,
BVE-808,
RFC-7,
RCC-7
BVE-128,
WC-8x8
WC-8
BVE-157,
WC-18x8
RJ-10x10
WL-18x6
Volume (cfm x 100)
Model WC - Hooded Wall Cap
(Square or Rectangular Connections)
• Steel construction with black enamel finish
• For outside wall applications
• Built-in birdscreen and damper
G
D
B
C
A
Model
WC-10x3 50-290
WC-8x8 200-510
WC-18x8 700-1550
All dimensions shown in inches (millimeters).
Use with all
sizes:
ABCDEFG
1
⁄2
123⁄4
(324)
101⁄4
(260)
201⁄4
(514)
31⁄2
(89)
81⁄4
(210)
81⁄4
(210)
5
(140)
101⁄4
(260)
101⁄4
(260)
101⁄4
(260)
(210)
181⁄4
(464)
81⁄4
F
E
111⁄8
(283)
81⁄4
(210)
181⁄4
(464)
Accessory Pressure Drops
The chart below can be used with all of the
discharge accessories shown on these two pages.
Specific pressure drop values for these accessories
must be included in total system calculations for
proper fan selection.
41⁄4
(108)5 (127)
63⁄4
(171)5 (127)
63⁄4
(171)5 (127)
Model BVE - Brick Vent
• Designed for installation in masonry walls
• Anodized aluminum construction
• Built-in aluminum mesh insect screen
Model
BVE808 50-290
BVE128 390-510
BVE157 700-1050
All dimensions shown in inches
(millimeters).
Use with all
sizes:
ABC
8
(206)
12
(305)
15
(397)
1
⁄8
5
⁄8
73⁄4
(197)4 (102)
73⁄4
(197)4 (102)
73⁄4
(197)4 (102)
13
Page 14
Things to know when
sound is critical
Sound Data
The sound data shown in this catalog has been
presented to aid the system designer in selecting a
fan which will meet the desired sound criteria. Sone
levels have been included on the performance pages
to provide a means of quickly evaluating the relative
loudness of a fan selection.
What is a sone?
Sones are an internationally recognized unit of
loudness. In practical terms, the loudness of one sone is
equivalent to the sound of a quiet refrigerator measured
from five feet away in an acoustically average room.
A sone is a single number rating, which indicates the
inlet noise derived from the eight audible octave bands.
Sones are a linear measurement of sound level. For
example, a sound level of 10 sones is twice as loud
as 5 sones.
Can radiated noise increase the
sound levels?
Radiated noise from fan housings can cause
unacceptable sound levels, on any brand of fan. The
size of these fans allows them to be placed in areas
where this noise will be transmitted to the conditioned
space through walls or ceilings. Where possible,
cabinet fans should be located in remote parts of the
ventilation system.
insulated housings and vibration isolators between
the motor and housing contribute to quiet, efficient
operation. Applied and installed as recommended,
SP and CSP sound levels will fall well within the
ranges shown in the Suggested Limits for Room
Loudness chart. For applications where sound levels
are critical, a remote mounted CSP with ductboard is
recommended. Placement of SP and CSP fans should
take into account the desired sound level at the
location of the listener.
The compact size of the SP and CSP fans provides
the system designer greater flexibility in locating these
fans for lowest sound levels. In critical sound areas,
insulated ductwork, flexible duct connections, or
placing the fan in a remote section of the ductwork
(away from the critical area) offers the best means of
meeting desired sound levels.
Fiberglass
Remote mounted
model CSP with
vibration isolators
and insulated
ductwork provides
the quietest
installation.
When should a SP or CSP fan be used?
Model SP and CSP fans are designed for the lowest
possible sound levels. Forward-curved wheels,
Model SP mounted directly
overhead may be too
loud for sound critical
applications.
Suggested Limits for Room Loudness
Sones DBA
1.3-4 32-48 Private homes (rural and suburban)
1.7-5 36-51 Conference rooms
2-6 38-54 Hotel rooms, libraries, movie theatres, executive offices
2.5-8 41-58 Schools and classrooms, hospital wards and operating rooms
3-9 44-60 Court rooms, museums, apartment houses, private homes (urban)
4-2 48-64 Restaurants, lobbies, general open offices, banks
5-15 51-67 Corridors and halls, cocktail lounges, washrooms and toilets
7-21 56-72 Hotel kitchens and laundries, supermarkets
Reprinted from AMCA Publication 302 (Application of Sone Ratings for Non-ducted
Air Moving Devices, with room—sone—dBA correlations) with the written permission
from the AMCA International, Inc., 30 West University Drive, Arlington Heights,
IL 60004-1893.
NOTE: Values above are for room loudness and are not sound ratings. Room loudness
is the resulting level in a conditioned space after the acoustical qualities of the room
have been accounted for.
When room sound levels are
critical, such as in executive
offices, conference rooms, hospital
operating rooms, and school study
areas, a CSP fan is the best choice.
Shown here is a comparison of SP
and CSP fans of the same size,
with equal performance in typical
installations. The CSP shows lower
sone values.
Model CFM WG FRPM Sones
SP-A410 405 1/8 1000 3.0
CSP-A410 403 1/8 1000 1.5
*Sone value with insulated inlet duct.
14
Page 15
Variable Volume
What is ENERGY STAR®?
ENERGY STAR® is the trusted, government-backed
symbol for energy efficiency helping us all save
money and protect the environment through
energy-efficient products and practices.
The ENERGY STAR® label was
established to:
• Reduce greenhouse gas emissions and other
pollutants caused by the inefficient use of energy;
and
• Make it easy for consumers to identify and
purchase energy-efficient products that offer
savings on energy bills without sacrificing
performance, features, and comfort.
For a ventilation fan to achieve ENERGY STAR®
approval it must meet strict efficiency standards for
both sound and performance.
By using Greenheck model SP ENERGY STAR
qualified fans you are helping to provide an energy
efficient alternative that helps save money
and resources.
See pages 16 and 17 for ENERGY STAR
qualified models.
More information on the certification process and a
complete list of qualified products can be found on
the ENERGY STAR
Products that earn the ENERGY STAR®
prevent greenhouse gas emissions
by meeting strict energy efficiency
guidelines set by the U.S. Environmental
Protection Agency and the U.S.
Department of Energy.
®
website (www.energystar.gov).
®
®
Model Number Code
The model number code system is designed to completely identify the fan. The correct code letters
must be specified to designate belt or direct drive. The remainder of the model code is determined by
the size and performance.
SP - A 50 FL
Light Options:
L - Fan/Light (Incandescent) Combination
FL - Fan/Light (Fluorescent) Combination
Nominal cfm at 0.10 inches static pressure
Level of Construction:
A - Premium unit; lowest sound, insulated housing
B - Deluxe unit; low sound, low profile
C - Standard unit; lowest profile, inexpensive
Model:
SP - Silent Partner
CSP - Cabinet Silent Partner
15
Page 16
Model SP-A
Premium Ceiling Fan
Model SP-A Dimensions
Model A B C D E
1
⁄4
105⁄8
50, 70, 90
110, 125, 190
200, 250, 290,
390
410, 510
700
710, 780
900, 1050,
1410, 1550
All dimensions are in inches (millimeters) and weight in pounds (kilograms).
Outlet connection width is 1 in. (25 mm) - Mounting bracket width is 1½ in. (38 mm).
For complete dimensional information, see CAPS submittal drawings.
* Sizes 410 and larger have an aluminum grille as standard.
13
(337)
(270)9(229)6 (152)
1
⁄4
105⁄8
13
(337)
(270)9(229)8 (203)6 (152)
117⁄8
14
(356)
(302)
18
143⁄8
(457)
(365)
235⁄8
115⁄8
(600)
(295)
18
143⁄8
(457)
(365)
3
⁄4
143⁄8
23
(603)
(365)
111⁄4
(286)8 (203)8 (203)
141⁄2
(368)8 (203)8 (203)
115⁄8
191⁄2
(295)
(495)8 (203)
141⁄2
10
(368)
(254)8 (203)
141⁄2
183⁄4
(368)
(476)8 (203)
Designer
Grille*
147⁄8 x 131⁄4
(378 x 337)
193⁄8 x 163⁄8
(492 x 416)
251⁄8 x 131⁄2
(638 x 343)
193⁄8 x 163⁄8
(492 x 416)
25 x 163⁄8
(635 x 416)
Decorative
Grille
151⁄4
(387) sq.
SP-A 50-90
15
/16
3
A
Unit
B
Weight
12
(5)
C
17
(8)
24
(11)
31
(14)
34
—
(15)
34
(15)
56
(25)
B
C
E
D
A
E
D
SP-A 110-510,
710, 780
B
C
SP-A 700,
*Note: Amp draw is approximate and may vary based on motor manufacturer.
CFM / Static Pressure in Inches wg
2, 3, 4, 5, 6
2, 3, 5, 6
2, 3, 4, 5, 6
2, 3, 5
2, 3, 5
2, 3, 4, 5
2, 3, 4, 5
3
3, 4
3
3
3, 4
3
3, 4
3
3, 4
Energy
Star
RPM Amps* Watts
700 0.31 18.3
850 0.27 20.2
900 0.34 29.4
950 0.58 48.7
1100 0.62 52.5
1400 1.30 113
900 0.43 48.2
1000 0.77 83.1
1050 0.72 80.7
1350 1.34 135
1000 1.74 121
1070 3.30 224
1100 3.20 350
1080 4.40 285
1600 3.30 348
950 4.00 285
1095 6.30 420
1450 7.40 786
1610 8.60 818
(See page 20 for performance)
0 0.1 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1
CFM 76 51 48 31
Sones 0.5 0.7 0.8 1.3
CFM 83 70 67 42
Sones 0.8 0.8 0.8 1.6
CFM 99 88 84 61 25
Sones 0.8 1.0 0.9 1.2 1.4
CFM 119 110 106 88
Sones 0.8 0.8 1.0 1.1
CFM 135 123 121 104
Sones 0.9 1.2 1.3 1.3
CFM 216 197 192 167 133
Sones 2.5 2.5 2.5 2.5 2.5
CFM 247 225 220 196 172 142 105 67
Sones 1.4 2.0 2.0 2.5 3.0 3.5 3.5 4.0
CFM 272 251 246 227 210 185 157 119
Sones 2.5 2.5 2.5 2.5 3.5 4.0 4.0 4.0
CFM 315 293 287 257 231 207 175 124
Sones 2.5 2.5 2.5 3.0 3.0 3.5 3.5 4.5
CFM 410 395 391 368 345 325 307 279
Sones 4.5 4.5 4.5 4.5 5.0 5.0 5.5 5.5
CFM 443 413 405 351 306
Sones 3.5 3.0 3.0 3.0 3.5
CFM 557 512 501 439 392 325
Sones 5.0 4.5 4.5 4.5 4.5 4.0
CFM 757 730 723 700 679 649 613 560 494 396
Sones 5.0 5.0 5.0 5.5 5.5 6.0 6.0 6.5 6.5 6.5
CFM 752 714 701 653 588 486 320
Sones 6.0 6.0 6.0 6.0 6.0 5.5 5.5
CFM 812 782 775 741 704 665 625 581
Sones 8.5 8.5 8.5 8.0 8.0 8.0 8.0 8.0
CFM 955 907 896 841 773 701
Sones 4.0 5.0 5.0 5.0 5.0 5.0
CFM 1125 1059 1043 964 885 796 662
Sones 6.0 6.0 6.0 6.0 5.5 5.5 5.5
CFM 1455 1415 1404 1353 1307 1262 1218 1174
Sones 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0
CFM 1607 1558 1558 1506 1449 1407 1369 1323
Sones 10.5 10.0 10.0 10.0 10.0 10.5 11.5 13.0
5 UL Listed for use above tubs.
6 Available with 277 volt motor.
Model
SP-A50
2, 3, 5
SP-A70
2, 3, 5
SP-A90
2, 3, 5
SP-A110
SP-A125
SP-A190
SP-A200
SP-A250
SP-A290
SP-A390
SP-A410
SP-A510
SP-A700
SP-A710
SP-A780
SP-A900
SP-A1050
SP-A1410
SP-A1550
2 Available with light
3 Available with CRD - Ceiling Radiation Damper
4 Also available with 50 Hz motors
Performance certified is for model SP exhaust for installation type B: Free inlet, Ducted outlet. Performance ratings include the effects of an inlet grille and backdraft
damper. Speed (rpm) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in spherical fan sones at 5 ft (1.5m)
in a spherical free field calculated per Annex B of AMCA 311. Values shown are for installation type B: free inlet spherical fan sone levels.
900-1550
16
A
E
D
Page 17
Model SP-B and SP-C
Deluxe and Standard Ceiling Fan
Model SP-B Dimensions
Model A B C* D E
7
⁄8
111⁄2
2, 3, 4, 5, 6
2, 3, 4, 5, 6
3, 4, 5, 6
13
(352)
7
⁄8
13
(352)
Energy
Star
(292)7(179)6 (152)
111⁄2
(292)7(179)6 (152)
RPM Amps* Watts
625 0.50 37.8
675 0.53 45.1
900 0.60 54.3
700 0.65 49.7
950 1.14 80.2
1050 1.70 128
1100 2.20 172
50, 70 & 80
90, 110, 150,
200
All dimensions are in inches (millimeters) and weight in pounds (kilograms). *Add 1½ in. (38 mm) to C
dimension for incandescent light. Mounting bracket width is 1½ in. (38 mm). For complete dimensional
information, see CAPS submittal drawings.
*Note: Amp draw is approximate and may vary based on motor manufacturer.
Model
SP-B50
2, 3, 5
SP-B70
2, 3, 5
SP-B80
2, 3, 5
SP-B90
2, 3, 4, 5
SP-B110
SP-B150
SP-B200
Designer
Grille
11⁄4
(32)
147⁄8 x 131⁄4
(378 x 337)
11⁄4
(32)
CFM 67 54 51 40 29
Sones 1.2 1.4 1.4 2.0 3.0
CFM 77 71 68 57 49 39
Sones 1.2 1.4 1.4 2.0 2.5 3.0
CFM 87 80 78 68 61 54 44 30
Sones 2.0 2.0 2.5 2.5 3.0 3.5 4.5 4.5
CFM 101 89 88 75 59 45 30
Sones 1.5 2.0 2.0 2.5 3.0 3.5 4.0
CFM 133 114 110 97 95 94 91 85 72 50
Sones 1.5 1.5 1.5 2.0 2.0 2.0 3.0 3.5 4.0 4.5
CFM 160 156 155 154 152 149 147 138 123 92
Sones 2.5 2.5 2.5 3.0 3.5 3.5 4.0 4.5 4.5 5.0
CFM 197 195 194 191 187 184 181 166 151 128
Sones 3.5 4.0 4.0 4.5 4.5 5.0 5.0 5.5 5.5 5.5
2 Available with light
3 Available with CRD - Ceiling Radiation Damper
Decorative
Grille
151⁄4 (387) sq.
Unit
Weight
9
(4)
10
(5)
CFM / Static Pressure in Inches wg
0 0.1 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1
5 UL Listed for use above tubs.
6 Available with 277 volt motor.
B
A
D
C
E
4 Also available with 50 Hz motors (See page 20 for performance)
Performance certified is for model SP exhaust for installation type B: Free inlet, Ducted outlet. Performance ratings include the effects of an inlet grille and backdraft
damper. Speed (rpm) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in spherical fan sones at 5 ft (1.5m)
in a spherical free field calculated per Annex B of AMCA 311. Values shown are for installation type B: free inlet spherical fan sone levels.
Model SP-C Dimensions
Model A B C D E F
1
⁄2
71⁄2
(191)
35⁄8
(92)3 (76)
50
All dimensions are in inches (millimeters) and weight in pounds (kilograms). For
complete dimensional information, see CAPS submittal drawings.
*Note: Amp draw is approximate and may vary based on motor manufacturer.
7
(191)
Model RPM Amps* Watts
SP-C50 1680 0.80 46
Performance certified is for model SP exhaust for installation type B: Free inlet, Ducted outlet. Performance ratings include the effects of
an inlet grille and backdraft damper. Speed (rpm) shown is nominal. Performance is based on actual speed of test. The sound ratings shown
are loudness values in spherical fan sones at 5 ft (1.5m) in a spherical free field calculated per Annex B of AMCA 311. Values shown are for
installation type B: free inlet spherical fan sone levels.
15⁄8
(41)
B
Decorative
1/2
91⁄4 x 9
(13)
(235 x 229)5 (2)
Grille
Unit
Weight
E
C
F
CFM / Static Pressure in Inches wg
0 0.1 0.125 0.25 0.375 0.5 0.625
CFM 52 49 49 47 44 38 29
Sones 3.0 3.0 3.0 3.0 3.5 4.0 4.0
A
D
17
Page 18
Model CSP-A
Premium Inline Fan
Model CSP-A Dimensions
91⁄4
(235)
10
(254)
131⁄4
(337)
101⁄2
(267)
131⁄4
(337)
131⁄4
(337)
13
(330)
145⁄8
(371)
Unit
Weight
16
(7)
23
(10)
36
(16)
34
(15)
36
(16)
59
(27)
68
(31)
122
(55)
Model A B C D E F G
1
⁄4
105⁄8
110, 125, 190
200, 250, 290,
390
410, 510
700
710, 780
900, 1050,
1410, 1550
1750, 2150
3600
All dimensions are in inches (millimeters) and weight in pounds (kilograms). Inlet and outlet
connection widths are 1 in. (25 mm) - Mounting bracket width is 1½ in. (38 mm). For
complete dimensional information, see CAPS submittal drawings.
13
(337)
(270)9(229)8 (203)6 (152)
117⁄8
14
(356)
18
(457)
23
(600)
18
(457)
23
(603)
35
(889)
45
(1156)
5
⁄8
3
⁄4
1
⁄2
111⁄4
(302)
(286)8 (203)8 (203)
143⁄8
141⁄2
(365)
(368)8 (203)8 (203)
115⁄8
115⁄8
(295)
(295)
143⁄8
141⁄2
(365)
(368)
143⁄8
141⁄2
(365)
(368)
143⁄4
143⁄4
(375)
(375)
161⁄2
161⁄2
(419)
(419)
191⁄2
(495)8 (203)
10
(254)8 (203)
183⁄4
(476)8 (203)
28
(711)6 (152)
40
(279)
(1016)
11
12
(305)
127⁄8
(327)
167⁄8
(429)
225⁄8
(575)
167⁄8
(429)
225⁄8
(575)
323⁄4
(832)
431⁄4
(1099)
F
G
E
B
B
G
CSP-110-510
C
D
A
CSP-700-3600
A
E
D
C
F
*Note: Amp draw is approximate and may vary based on motor manufacturer.
Model RPM Amps* Watts
CSP-A110
CSP-A125
CSP-A190
950 0.62 48.7
4
1100 0.63 52.5
6
1400 1.10 100
4, 6
CSP-A200 900 0.43 48.2
CSP-A250 1000 0.79 82.7
CSP-A290 1050 0.71 80.7
CSP-A390
1350 1.33 140
4
CSP-A410 1000 1.87 135
CSP-A510 1070 3.11 217
CSP-A700 1100 3.20 350
CSP-A710 1080 4.40 325
CSP-A780
1600 3.77 405
4
CSP-A900 950 4.87 328
CSP-A1050
1095 6.65 455
4
CSP-A1410 1450 7.80 822
CSP-A1550
1610 8.32 830
4
CSP-A1750 1130 6.60 550
CSP-A2150 1100 7.80 735
CSP-A3600 1100 7.10 1330
CFM 124 112 110 102 77
Sones 0.8 0.8 0.8 0.9 0.9
CFM 138 126 124 114 91
Sones 1.1 1.1 1.1 1.0 1.2
CFM 215 202 198 180 159 121
Sones 2.0 1.5 2.0 2.0 2.5 2.5
CFM 254 231 226 203 178 145 109 70
Sones 0.6 0.4 0.5 0.9 1.0 1.3 1.5 1.5
CFM 266 246 241 221 205 187 165 132
Sones 0.9 1.0 1.0 2.0 2.5 3.0 2.5 2.5
CFM 318 299 292 265 248 229 201 144
Sones 1.1 1.2 1.3 2.0 2.5 3.5 3.0 3.0
CFM 412 400 397 382 363 339 324 309
Sones 2.0 2.0 2.0 2.5 3.0 4.0 4.5 4.5
CFM 447 441 403 364 317 217
Sones 1.5 1.5 1.5 2.0 2.0 2.0
CFM 545 514 506 464 405 324
Sones 2.5 2.0 2.0 2.0 2.0 2.5
CFM 766 755 752 739 726 702 678 635 549 418
Sones 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.5 2.5 4.0
CFM 737 698 688 635 567 475 334
Sones 2.5 2.5 2.5 2.5 2.0 2.0 2.0
CFM 813 784 777 742 707 672 638 603 567 527
Sones 3.0 3.0 3.0 3.0 3.0 2.0 3.0 3.0 3.0 3.5
CFM 908 852 841 782 715 631
Sones 1.4 1.4 1.4 2.0 2.5 3.0
CFM 1182 1110 1093 1013 922 832 743
Sones 2.5 2.5 2.5 2.5 2.5 2.5 2.5
CFM 1584 1543 1533 1483 1439 1395 1345 1293 1238 1181
Sones 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 4.0 4.0
CFM 1672 1618 1604 1543 1484 1427 1367 1307 1240 1172
Sones 5.0 4.5 4.5 4.5 4.5 4.0 4.0 4.5 4.5 4.5
CFM 1842 1768 1749 1619 1464 1284 1032 772 484
Sones 5.0 5.0 5.0 4.5 4.0 4.0 3.5 3.0 3.0
CFM 2249 2175 2156 2044 1900 1701 1424 1114
Sones 5.0 4.5 4.5 4.0 4.0 4.0 3.0 3.0
CFM 3778 3653 3622 3460 3280 3091 2844 2551 2232 1750
Sones 5.0 5.0 5.0 5.0 4.5 4.0 4.0 4.0 3.5 3.5
0 0.1 0.125 0.25 0.375 0.5 0.625 0.75 0.875 1
4 Units also available with 50 Hz motors (See page 21 for performance) 6 Available with 277 volt motor.
Performance certified is for model CSP inline for installation type D: Ducted inlet, Ducted outlet. Performance ratings include the effects of a backdraft damper. Speed
(rpm) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in spherical fan sones at 5 ft (1.5m) in a spherical
free field calculated per Annex B of AMCA 311. Values shown are for installation type D: ducted inlet spherical fan sone levels. Ratings do not include the effect of duct
end correction. Ratings are based on 10 ft of insulated duct. The AMCA Certified Ratings Seal applies to air performance ratings only.
Inlet
CFM / Static Pressure in Inches wg
18
Page 19
Model CSP-B
Deluxe Inline Fan
Model CSP-B Dimensions
Model A B C D E F G
7
⁄8
111⁄2
110, 150, 200
All dimensions are in inches (millimeters) and weight in pounds (kilograms).
Outlet connection width is 1 in. (25 mm) - Mounting bracket width is 1½ in. (38 mm).
For complete dimensional information, see CAPS submittal drawings.
*Note: Amp draw is approximate and may vary based on motor manufacturer.
Model RPM Amps* Watts
CSP-B110
CSP-B150
CSP-B200
4 Units also available with 50 Hz motors
(See page 21 for performance)
Performance certified is for model CSP inline for installation type D: Ducted inlet, Ducted outlet. Performance ratings include the effects of a backdraft
damper. Speed (rpm) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in spherical fan sones
at 5 ft (1.5m) in a spherical free field calculated per Annex B of AMCA 311. Values shown are for installation type D: ducted inlet spherical fan sone levels.
Ratings do not include the effect of duct end correction. Ratings are based on 10 ft of insulated duct. The AMCA Certified Ratings Seal applies to air
performance ratings only.
13
(352)
(292)7(178)6 (152)
4, 6
4, 6
4, 6
950 1.14 80
1050 1.70 129
1100 2.20 173
11⁄4
131⁄2
(32)
(260)
CFM 103 100 100 98 97 96 94 86
Sones 1.5 1.5 1.5 2.0 2.0 2.0 2.5 2.5
CFM 151 150 149 148 144 146 142 135
Sones 2.0 2.0 2.0 2.0 2.5 2.5 3.0 3.0
CFM 186 184 184 182 181 179 175 170
Sones 3.0 3.0 3.0 3.0 3.5 3.5 3.5 3.5
6 Available with 277 volt motor.
Unit
Weight
31⁄4
101⁄4
(83)
(5)
0 0.1 0.125 0.25 0.375 0.5 0.625 0.75
Inlet
FxG
B
CFM / Static Pressure in Inches wg
A
D - diameter
C
E
19
Page 20
Model SP
50 Cycle Performance
For uses in countries with 50 cycle (50 Hz) power,
SP-A 110-510, 710, 780
Greenheck offers the same reliability and performance
for ceiling mounted exhaust fans model SP.
• Same dimensions and outlet options
• Performance shown in 50 cycle RPMs
C
• Full-line of grille and discharge accessories available
Model SP Dimensions
11⁄4
(32)
11⁄4
(32)
Designer
Grille*
147⁄8 x 131⁄4
(378 x 337)
193⁄8 x 163⁄8
(492 x 416)
193⁄8 x 163⁄8
(492 x 416)
25 x 163⁄8
(635 x 416)
Designer
Grille
147⁄8 x 131⁄4
(378 x 337)
147⁄8 x 131⁄4
(378 x 337)
SP-A A B C D E
1
⁄4
105⁄8
50, 70, 90
110, 125, 190
200, 250, 290,
390
410, 510
710, 780
900, 1050,
1410, 1550
Outlet connection width is 1 in. (25 mm) - Mounting bracket width is 1½ in. (38 mm).
13
(337)
(270)9(229)6 (152)
1
⁄4
105⁄8
13
(337)
(270)9(229)8 (203)6 (152)
14
117⁄8
(356)
(302)
143⁄8
18
(457)
(365)
143⁄8
18
(457)
(365)
233⁄4
143⁄8
(603)
(365)
111⁄4
(286)8 (203)8 (203)
141⁄2
(368)8 (203)8 (203)
141⁄2
10
(368)
(254)8 (203)
141⁄2
183⁄4
(368)
(476)8 (203)
SP-B A B C D E
7
⁄8
111⁄2
50, 70 & 80
90, 110, 150,
200
All dimensions are in inches (millimeters) and weight in pounds (kilograms). *Add 1½ in. (38 mm) to C
dimension for incandescent light. Mounting bracket width is 1½ in. (38 mm). For complete dimensional
information, see CAPS submittal drawings. *Sizes 410 and larger have an aluminum grille as standard.
13
(352)
(292)7(178)6 (152)
137⁄8
111⁄2
(352)
(292)7(152)6 (152)
Decorative
Grille
151⁄4 (387)
square
—
Decorative
Grille
151⁄4 (387)
square
Unit
Weight
12
(5)
17
(8)
24
(11)
31
(14)
34
(15)
56
(25)
Unit
Weight
9
(4)
10
(5)
SP-A 50-90
B
A
E
D
SP-A (double-wide) 700, 900-1550
C
B
A
E
C
SP-B 50-200
B
D
A
E
15
/16
B
D
3
A
E
D
C
*Note: Amp draw is approximate and may vary based on motor manufacturer.
Model RPM Amps* Watts
SP-A110
(50 Hertz Motor)
SP-A190
(50 Hertz Motor)
SP-A290
(50 Hertz Motor)
SP-A390
(50 Hertz Motor)
SP-A510
(50 Hertz Motor)
SP-A780
(50 Hertz Motor)
SP-A1050
(50 Hertz Motor)
SP-A1550
(50 Hertz Motor)
SP-B90
(50 Hertz Motor)
SP-B110
(50 Hertz Motor)
SP-B150
(50 Hertz Motor)
SP-B200
(50 Hertz Motor)
Model SP with 50 hertz motor is not AMCA certified or ENERGY STAR® qualified.
950 0.29 49
1400 0.65 113
1050 0.36 81
1350 0.67 135
900 1.65 224
1334 1.65 348
950 3.15 420
1340 4.3 818
700 0.325 50
950 0.57 80
1050 0.85 129
1100 1.1 173
CFM 119 115 110 106 103 88
Sones 1.3 1.3 1.2 1.2 1.3 1.6
CFM 216 206 197 192 187 167 133
Sones 3.2 3.0 2.8 2.9 2.9 3.1 3.4
CFM 329 315 302 296 290 262 222 164
Sones 3.2 3.3 3.3 3.3 3.4 3.7 4.0 4.9
CFM 410 402 395 392 387 368 345 325
Sones 5.4 5.4 5.4 5.4 5.5 5.7 6.0 6.3
CFM 447 425 400 388 376 315 159
Sones 3.7 3.5 3.3 3.3 3.3 3.1 2.6
CFM 677 659 642 633 625 591 544 493
Sones 8.8 8.9 8.8 8.7 8.6 8.2 8.1 8.1
CFM 990 945 905 886 867 769 531
Sones 7.2 7.0 6.8 6.8 6.8 6.6 6.5
CFM 1337 1314 1290 1279 1266 1211 1161 1112
Sones 11.1 10.7 10.6 10.6 10.6 10.5 11.6 13.5
CFM 102 97 92 88 86 75 59 45
Sones 1.9 2.2 2.6 2.7 2.7 3.0 3.6 4.1
CFM 133 124 114 110 107 97 95 94
Sones 2.0 2.0 2.1 2.2 2.2 2.4 2.7 2.8
CFM 160 158 156 155 155 154 152 149
Sones 3.0 3.1 3.3 3.3 3.4 3.7 4.3 4.5
CFM 197 196 195 194 194 191 187 184
Sones 4.4 4.7 4.6 4.7 4.9 5.1 5.6 5.8
0.000 0.050 0.100 0.125 0.150 0.250 0.375 0.500
20
CFM / Static Pressure in Inches of wg.
Page 21
Model CSP
50 Cycle Performance
For uses in countries with 50 cycle (50 Hz) power,
Greenheck offers the same reliability and performance
for inline cabinet fans model CSP.
• Same dimensions and outlet options
• Performance shown in 50 cycle RPMs
• Full line of discharge accessories available
Model CSP Dimensions
10
(254)
131⁄4
(337)
101⁄2
(267)
131⁄4
(337)
131⁄4
(337)
13
(330)
145⁄8
(371)
31⁄4
(83)
Unit
Weight
16
(7)
23
(10)
36
(16)
34
(15)
36
(16)
59
(27)
68
(31)
122
(55)
Unit
Weight
101⁄4
(5)
CSP-A A B C D E F G
110, 125, 190
200, 250, 290,
390
410, 510
700
710, 780
900, 1050,
1410, 1550
1750, 2150
3600
105⁄8
13
(337)
(270)9(229)8 (203)6 (152)
14
117⁄8
(356)
18
(457)
23
(600)
18
(457)
233⁄4
(603)
35
(889)
45
(1156)
5
⁄8
1
⁄2
111⁄4
(302)
(286)8 (203)8 (203)
143⁄8
141⁄2
(365)
(368)8 (203)8 (203)
115⁄8
115⁄8
(295)
(295)
143⁄8
141⁄2
(365)
(368)
143⁄8
141⁄2
(365)
(368)
143⁄4
143⁄4
(375)
(375)
161⁄2
161⁄2
(419)
(419)
191⁄2
(495)8 (203)
10
(254)8 (203)
183⁄4
(476)8 (203)
28
(711)6 (152)
40
(1016)
(279)
11
12
(305)9(235)
127⁄8
(327)
167⁄8
(429)
225⁄8
(575)
167⁄8
(429)
225⁄8
(575)
323⁄4
(832)
431⁄4
(1099)
1
⁄4
CSP-B A B C D E F G
7
⁄8
111⁄2
110, 150, 200
All dimensions are in inches (millimeters) and weight in pounds (kilograms). Inlet and outlet
connection widths are 1 in. (25 mm) - Mounting bracket width is 1½ in. (38 mm). For
complete dimensional information, see CAPS submittal drawings.
13
(352)
(292)7(178)6 (152)
11⁄4
(32)
101⁄4
(260)
CSP-A 110-510, 710, 780
F
G
E
D
B
A
CSP-A (double wide) 700, 900-3600
B
A
E
G
D
F
Inlet
CSP-B
Inlet
FxG
C
C
D - diameter
C
E
*Note: Amp draw is approximate and may vary based on motor manufacturer.
Model RPM Amps* Watts
CSP-A110
(50 Hertz Motor)
CSP-A190
(50 Hertz Motor)
CSP-A390
(50 Hertz Motor)
CSP-A780
(50 Hertz Motor)
CSP-A1050
(50 Hertz Motor)
CSP-A1550
(50 Hertz Motor)
CSP-B110
(50 Hertz Motor)
CSP-B150
(50 Hertz Motor)
CSP-B200
(50 Hertz Motor)
Model CSP with 50 hertz motor is not AMCA certified or ENERGY STAR® qualified.
950 0.31 51
1400 0.55 100
1350 0.665 144
1334 1.885 405
950 3.325 455
1340 4.16 830
950 0.57 80
1050 0.85 129
1100 1.1 173
CFM 124 116 112 110 109 102 77
Sones 1.1 1.1 1.1 1.1 1.1 1.3 1.3
CFM 215 202 198 180 159 121
Sones 2.3 2.0 2.2 2.7 2.9 3.0
CFM 412 400 397 382 363 339 324 309
Sones 2.8 2.7 2.8 3.2 3.7 4.7 5.5 6.5
CFM 685 656 648 609 562 520 481
Sones 5.0 4.9 4.8 4.7 4.6 4.7 4.9
CFM 1079 1031 982 957 934 841 655
Sones 6.3 6.3 6.0 5.9 5.9 6.0 5.5
CFM 1391 1326 1311 1240 1171 1098 1019 929
Sones 7.5 7.4 7.4 7.3 7.4 7.3 7.3 7.2
CFM 103 102 100 99 99 98 97 96 93
Sones 2.0 1.9 2.0 2.1 2.1 2.3 2.6 2.7 3.1
CFM 151 150 149 149 149 148 148 145 142
Sones 2.5 2.7 2.7 2.7 2.7 2.9 3.1 3.4 3.6
CFM 186 185 184 183 183 182 180 178 175
Sones 3.4 3.7 3.6 3.7 3.7 4.0 4.1 4.1 4.3
0.000 0.050 0.100 0.125 0.150 0.250 0.375 0.500 0.625
B
A
CFM / Static Pressure in Inches of wg
21
Page 22
Model SP Specifications
1
n
rons
ly
s
c
er
Models SP-A50 thru A1550
Models SP-B50, B70, B80, B90,
B110, B150, and B200
1
Ceiling mounted exhaust fans shall be of the
eili
centrifugal direct drive type. The fan housing shall be
ent
constructed of galvanized steel. The polypropylene
duct collar shall be 6 inches (152 mm) in diameter and
uct
shall include a backdraft damper. The designer grille
hall
shall be constructed of non-yellowing high-impact
hall
polystyrene and attached to the housing with hidden
o
attachment screws. The access for wiring shall be
tta
external. The motor disconnect shall be internal and
xt
of the plug-in type.
Ceiling mounted exhaust fans shall be of the centrifugal
direct drive type. The fan housing shall be constructed
of heavy-gauge galvanized steel. The housing interior
shall be lined with 1/2 inch (13 mm) acoustical
insulation. The outlet duct collar shall include a
polypropylene backdraft damper on SP-A50 - 90 and a
spring loaded aluminum backdraft damper on SP-A110
and larger. Outlet shall be adaptable for horizontal or
vertical discharge. The designer grille for sizes SP-A50
through SP-A390 shall be constructed of high-impact
polystyrene and for sizes SP-A410 through SP-A1550,
the grille shall be constructed of aluminum. Grilles shall
be non-yellowing.
The access for wiring shall be external. The motor
disconnect shall be internal and of the plug-in type.
The motor shall be mounted on vibration isolators.
The fan wheel shall be of the forward-curved
centrifugal type and dynamically balanced. All fans
shall bear the AMCA Certified Ratings program
AMCA Sound and Air Performance seal and shall
be UL/cUL Listed. Ceiling or wall mount fans shall
be model SP as manufactured by Greenheck Fan
Corporation, Schofield, Wisconsin.
*Model SP-A fans with 50 hertz motors are not AMCA certified
or ENERGY STAR® qualified.
The motor shall be mounted on vibration isolators.
The fan wheel shall be of the forward-curved
centrifugal type, constructed of calcium carbonate
filled polypropylene and dynamically balanced. All
fans shall bear the AMCA Certified Ratings program
AMCA Sound and Air Performance seal and shall be
UL/cUL Listed. Ceiling or wall mount fans shall be
model SP-B50, B70, B80, B90, B110, B150 or B200
as manufactured by Greenheck Fan Corporation,
Schofield, Wisconsin.
*
Model SP-B fans with 50 hertz motors are not AMCA certified
or ENERGY STAR
®
qualified.
Model SP-C50
Ceiling mounted exhaust fans shall be of the
centrifugal direct drive type. The fan housing shall be
constructed of galvanized steel. The polypropylene
duct collar shall be a sleeve for ease of connection to
3 inch (76 mm) and 4 inch (102 mm) round ductwork
and shall include a backdraft damper. The grille
shall be constructed of non-yellowing high-impact
polystyrene and attached to the housing with
torsion springs.
The wheels shall be constructed of high-strength
polymer. The access for wiring shall be easily
accessible internally. The motor disconnect shall be
internal and of the plug-in type. All fans shall bear
the AMCA Certified Ratings program AMCA Sound
and Air Performance seal. Model SP-C50 shall be UL
Listed. Fans shall be model SP-C50 as supplied by
Greenheck Fan Corporation, Schofield, Wisconsin.
*Model SP-C fans with 50 hertz motors are not AMCA certified
or ENERGY STAR® qualified.
Complete specifications, in Construction Specifications Institute (CSI) format, are available on greenheck.com.
22
Page 23
Model CSP Specifications
Models CSP-A110 thru A3600
Duct-mounted exhaust, supply or return air fans
shall be of the centrifugal direct drive type. The
fan housing shall be constructed of heavy-gauge
galvanized steel. The housing interior shall be lined
with 1/2 inch (13 mm) acoustical insulation. The
outlet duct collar shall include an aluminum backdraft
damper and shall be adaptable for horizontal or
vertical discharge. The access for wiring shall be
external. The motor disconnect shall be internal and
of the plug-in type.
The motor shall be mounted on vibration isolators.
The fan wheel shall be of the forward-curved
centrifugal type and dynamically balanced. All fans
shall bear the AMCA Certified Ratings program
AMCA Air Performance seal and shall be UL/
cUL Listed. Ceiling or wall mount fans shall be
model CSP as manufactured by Greenheck Fan
Corporation, Schofield, Wisconsin.
*Model CSP-A fans with 50 hertz motors are not AMCA certified or
ENERGY STAR® qualified.
Models CSP-B110, B150 and B200
Duct-mounted exhaust, supply or return air fans
shall be of the centrifugal direct drive type. The fan
housing shall be constructed of galvanized steel. The
polypropylene duct collar shall be 6 inch (152 mm) in
diameter to accept 6-inch (152 mm) round ductwork
and shall include a backdraft damper. The access for
wiring shall be external. The motor disconnect shall
be internal and of the plug-in type.
The motor shall mounted on vibration isolators. The
fan wheel shall be of the forward-curved centrifugal
type, constructed of calcium carbonate filled
polypropylene and dynamically balanced. All fans
shall bear the AMCA Certified Ratings program AMCA
Air Performance seal and shall be UL/cUL Listed.
Ceiling or wall mount fans shall be model CSP-B110,
B150 or B200 as manufactured by Greenheck Fan
Corporation, Schofield, Wisconsin.
*Model CSP-B fans with 50 hertz motors are not AMCA certified or
ENERGY STAR® qualified.
Complete specifications, in Construction Specifications Institute (CSI) format, are available on greenheck.com.
23
Page 24
ENERGY STAR® Qualified SP Fans
ENERGY STAR® qualified Greenheck SP fans
provide an energy efficient alternative to help save
money and resources.
See Pages 16 and 17 for specific model selections.
SP-A Models
SP-B Models
Building Value in Air
Greenheck delivers value
to mechanical engineers by
helping them solve virtually
any air quality challenges
their clients face with a
comprehensive selection of
top quality, innovative airrelated equipment. We offer
extra value to contractors
by providing easy-to-install,
competitively priced, reliable
products that arrive on time.
Our Commitment
As a result of our commitment to continuous improvement, Greenheck reserves the right to change
specifications without notice.
Specific Greenheck product warranties are located on greenheck.com within the product
area tabs and in the Library under Warranties.
P.O. Box 410 • Schofield, WI 54476-0410 • Phone (715) 359-6171 • greenheck.com
And building owners and
occupants value the energy
efficiency, low maintenance
and quiet dependable operation
they experience long after the
construction project ends.
Prepared to Support
Green Building Efforts
00.F&V.1013 R9 9-2012 SN
Copyright © 2012 Greenheck Fan Corp.
Loading...
