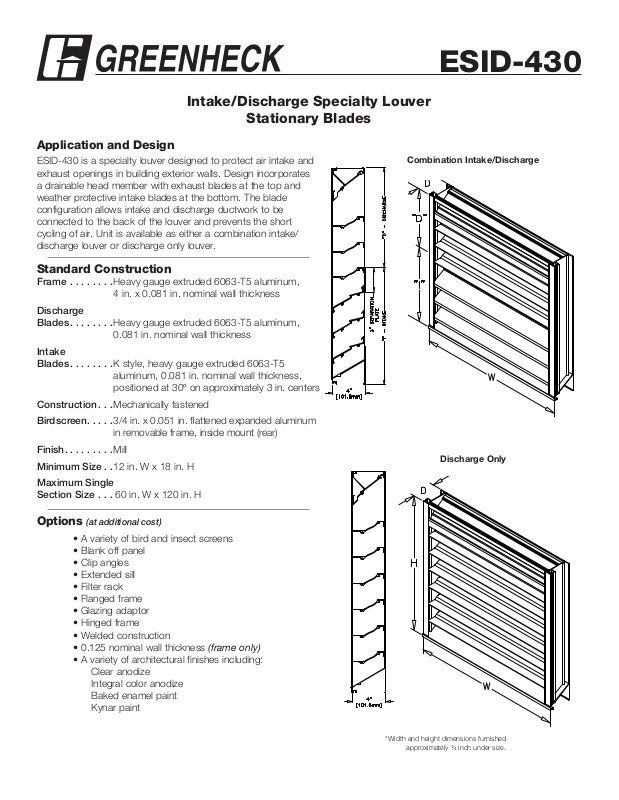

Page 1
Intake/Discharge Specialty Louver
Stationary Blades
Application and Design
ESID-430 is a specialty louver designed to protect air intake and
exhaust openings in building exterior walls. Design incorporates
a drainable head member with exhaust blades at the top and
weather protective intake blades at the bottom. The blade
configuration allows intake and discharge ductwork to be
connected to the back of the louver and prevents the short
cycling of air. Unit is available as either a combination intake/
discharge louver or discharge only louver.
Standard Construction
Frame . . . . . . . .Heavy gauge extruded 6063-T5 aluminum,
4 in. x 0.081 in. nominal wall thickness
Discharge
Blades . . . . . . . .Heavy gauge extruded 6063-T5 aluminum,
0.081 in. nominal wall thickness
Intake
Blades . . . . . . . .K style, heavy gauge extruded 6063-T5
aluminum, 0.081 in. nominal wall thickness,
positioned at 30º on approximately 3 in. centers
Construction . . .Mechanically fastened
Birdscreen . . . . .3/4 in. x 0.051 in. fl attened expanded aluminum
in removable frame, inside mount (rear)
Finish . . . . . . . . . Mill
Minimum Size . . 12 in. W x 18 in. H
Maximum Single
Section Size . . . 60 in. W x 120 in. H
Options (at additional cost)
• A variety of bird and insect screens
• Blank off panel
• Clip angles
• Extended sill
• Filter rack
• Flanged frame
• Glazing adaptor
• Hinged frame
• Welded construction
• 0.125 nominal wall thickness (frame only)
• A variety of architectural finishes including:
Clear anodize
Integral color anodize
Baked enamel paint
Kynar paint
ESID-430
Combination Intake/Discharge
Discharge Only
*Width and height dimensions furnished
approximately ¼ inch under size.
Page 2
Free Area Chart (Sq. ft.)
ESID-430PERFORMANCE DATA
Intake/Discharge Specialty Louver
Extruded Aluminum
Intake Dimensions
Intake
Height
Inches
12 18 24 30 36 42 48 54 60
12 0.18 0.29 0.41 0.52 0.64 0.73 0.84 0.96 1.07
18 0.42 0.69 0.96 1.23 1.50 1.70 1.97 2.24 2.51
24 0.65 1.07 1.50 1.92 2.34 2.66 3.08 3.50 3.93
30 0.89 1.46 2.04 2.62 3.19 3.62 4.20 4.78 5.35
36 1.12 1.85 2.76 3.30 4.03 4.58 5.30 6.03 6.76
42 1.37 2.26 3.15 4.04 4.93 5.59 6.48 7.37 8.26
48 1.62 2.67 3.72 4.77 5.82 6.61 7.66 8.71 9.76
54 1.87 3.08 4.29 5.50 6.72 7.63 8.84 10.05 11.26
60 2.12 3.49 4.86 6.24 7.61 8.64 10.02 11.39 12.76
66 2.34 3.96 5.38 6.90 8.42 9.56 11.08 12.60 14.12
72 2.58 4.25 5.92 7.59 9.26 10.52 12.19 13.86 15.53
78 2.81 4.64 6.46 8.28 10.11 11.48 13.30 15.12 16.95
84 3.05 5.03 7.00 8.98 10.96 12.44 14.42 16.40 18.37
90 3.29 5.42 7.55 9.68 11.82 13.41 15.55 17.68 19.81
96 3.52 5.81 8.09 10.38 12.67 14.38 16.66 18.95 21.24
Louver Width in Inches
Discharge Unit Only
Louver
Height
Inches
102 4.81 7.93 11.05 14.17 17.30 19.54 22.76 25.58 29.00
108 5.13 8.46 11.78 15.11 18.44 20.93 24.26 27.59 30.91
114 5.44 8.96 12.50 15.02 19.55 22.20 25.72 29.25 32.78
120 5.74 9.46 13.19 15.91 20.54 23.43 27.15 30.88 34.50
12 18 24 30 36 42 48 54 60
12 0.22 0.36 0.51 0.65 0.80 0.90 1.05 1.19 1.33
18 0.52 0.85 1.20 1.55 1.89 2.14 2.48 2.82 3.15
24 0.84 1.38 1.92 2.45 3.00 3.41 3.95 4.49 5.03
30 1.15 1.90 2.55 3.40 4.15 4.71 5.46 6.20 6.95
36 1.47 2.43 3.38 4.34 5.29 6.01 6.95 7.91 8.86
42 1.77 2.92 4.07 5.22 6.37 7.23 8.38 9.53 10.68
48 2.08 3.42 4.76 6.11 7.46 8.46 9.81 11.16 12.50
54 2.38 3.92 5.45 7.00 8.54 9.70 11.24 12.78 14.33
60 2.58 4.42 6.15 7.89 9.63 10.93 12.57 14.41 16.15
66 2.98 4.91 6.85 8.78 10.72 12.16 14.10 15.03 17.96
72 3.28 5.41 7.54 9.57 11.80 13.40 15.53 17.56 19.79
78 3.59 5.91 8.24 10.55 12.89 14.53 16.96 19.28 21.51
84 3.89 6.41 8.93 11.45 13.97 15.86 18.39 20.91 23.43
90 4.19 6.91 9.53 12.34 15.05 17.10 19.82 22.53 25.25
96 4.49 7.41 10.33 13.24 16.16 18.34 21.26 24.17 27.09
Louver Width in Inches
Discharge Dimensions
Discharge
Height
Inches
9.125 0.35 0.58 0.81 1.04 1.25 1.44 1.66 1.89 2.12
12.25 0.51 0.84 1.17 1.50 1.84 2.08 2.42 2.75 3.08
15.375 0.57 1.10 1.54 1.97 2.41 2.73 3.17 3.60 4.04
18.5 0.83 1.37 1.90 2.44 2.98 3.38 3.92 4.45 5.00
21.625 0.99 1.63 2.27 2.91 3.55 4.03 4.57 5.31 5.95
24.75 1.15 1.89 2.54 3.38 4.12 4.58 5.43 6.17 6.91
27.875 1.31 2.15 3.00 3.85 4.69 5.33 6.18 7.02 7.87
34.125 1.52 2.58 3.73 4.78 5.84 6.63 7.58 8.74 9.79
37.25 1.78 2.94 4.10 5.25 6.41 7.28 8.43 9.59 10.75
40.375 1.94 3.20 4.45 5.72 6.98 7.93 9.19 10.45 11.71
43.5 2.10 3.45 4.83 6.19 7.55 8.58 9.94 11.30 12.66
45.625 2.25 3.73 5.19 6.55 8.13 9.22 10.59 12.16 13.62
49.75 2.42 3.99 5.55 7.13 8.70 9.87 11.44 13.01 14.58
52.875 2.58 4.25 5.92 7.50 9.27 10.52 12.20 13.87 15.54
59.125 2.90 4.78 6.55 8.53 10.41 11.82 13.70 15.58 17.46
62.25 3.05 5.04 7.02 9.00 10.98 12.47 14.45 16.43 18.42
65.375 3.21 5.30 7.38 9.47 11.56 13.12 15.20 17.29 19.37
68.5 3.37 5.55 7.75 9.94 12.13 13.77 15.95 18.14 20.33
71.625 3.53 5.82 8.12 10.41 12.70 14.42 16.71 19.00 21.29
74.75 3.59 6.09 8.48 10.88 13.27 15.07 17.46 19.86 22.25
77.875 3.85 6.35 8.85 11.34 13.84 15.72 18.21 20.71 23.21
84.125 4.17 6.87 9.58 12.28 14.99 17.01 19.72 22.42 25.13
87.25 4.33 7.14 9.94 12.75 15.55 17.55 20.47 23.28 26.08
90.375 4.49 7.40 10.31 13.22 16.13 18.31 21.22 24.13 27.04
93.5 4.55 7.55 10.57 13.59 16.70 18.96 21.97 24.99 28.00
96.625 4.81 7.92 11.04 14.15 17.27 19.61 22.73 25.84 28.95
99.75 4.96 8.18 11.40 14.62 17.84 20.26 23.48 26.70 29.92
102.875 5.12 8.45 11.77 15.09 18.42 20.91 24.23 27.55 30.88
10.5 5.28 8.71 12.13 15.55 18.99 21.56 24.98 28.41 31.84
109.125 5.44 8.97 12.50 16.03 19.56 22.21 25.74 29.27 32.79
112.25 5.50 9.23 12.87 16.50 20.13 22.86 25.49 30.12 33.75
12 18 24 30 36 42 48 54 60
6 0.19 0.32 0.44 0.57 0.69 0.79 0.91 1.04 1.16
31 1.47 2.42 3.37 4.32 5.27 5.98 6.93 7.88 8.83
55 2.74 4.51 6.29 8.05 9.84 11.17 12.95 14.72 16.50
81 4.01 6.61 9.21 11.81 14.41 16.36 18.97 21.57 24.17
Louver Width in Inches
Page 3

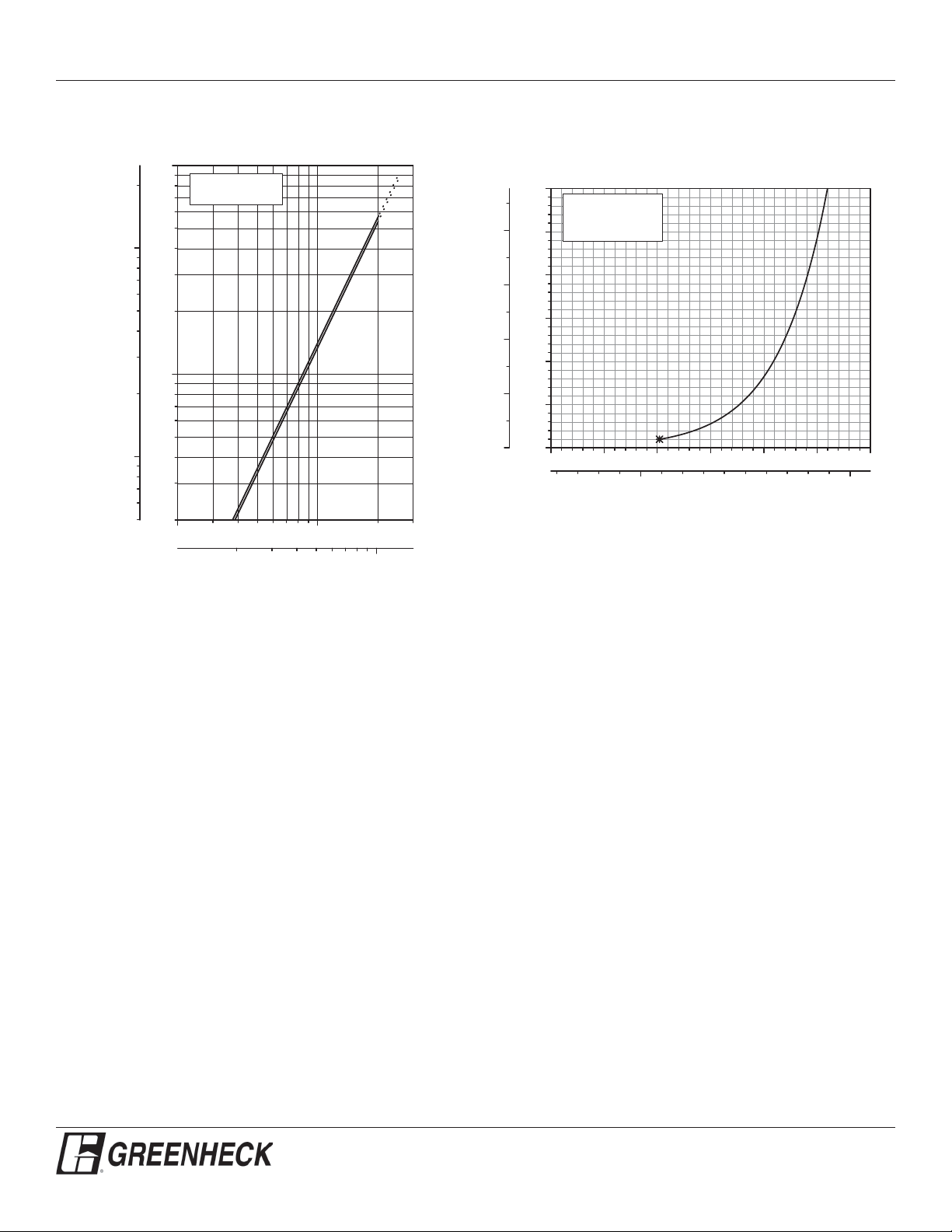

Airflow Resistance (Standard Air - .075 lb/ft
Pa
in. wg
1
0.9
200
100
90
80
70
60
50
40
30
20
Static Pressure Drop
10
9
8
7
6
5
ft/min
m/s
Test Size 48 in. x 48 in.
0.8
Standard Air - .075 lb/ft
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.09
0.08
0.07
0.06
0.05
0.04
0.03
0.02
200200 300 400 500 600 700 8009001000 2000 3000
3
Intake
Exhaust
2345678910
3
)
Free Air Velocity
Model ESID-430 resistance to airflow (pressure drop) varies
depending on louver application (air intake or air exhaust).
Free area velocities (shown) are higher than average
velocity through the overall louver size. See louver selection
information.
ESID-430PERFORMANCE DATA
Intake/Discharge Specialty Louver
Extruded Aluminum
Water Penetration (Standard Air - .075 lb/ft
Test size 48 in. x 48 in. Test duration of 15 min.
ml/m2 oz/ft2
Water Penetration per Unit Free Area
The AMCA Water Penetration Test provides a method for comparing
various louver models and designs as to their efficiency in resisting
the penetration of rainfall under specific laboratory test conditions. The
beginning point of water penetration is defined as that velocity where the
water penetration curve projects through .01 oz. of water (penetration)
per sq. ft. of louver free area.
penetration for Model ESID-430 is 1002 fpm free area velocity.
These perfor mance ratings do not guarantee a louver to be weather proof
or stormproof and should be used in combination with other factors
including good engineering judgement in selecting louvers.
0.30
Test Size 48 in. x 48 in.
80
60
40
20
0
ft/min:
m/s:
Test Period 15 minutes
0.25
Standard Air - .075 lb/ft
0.20
0.15
0.10
0.05
0.00
900 950 1000 1050 1100 1150 1200
4.6 4.7 4.8 4.9 5.0 5.1 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9 6.0
3
Free Area Velocity
The beginning point of water
*
3
)
This half intentionally left blank.
Page 4

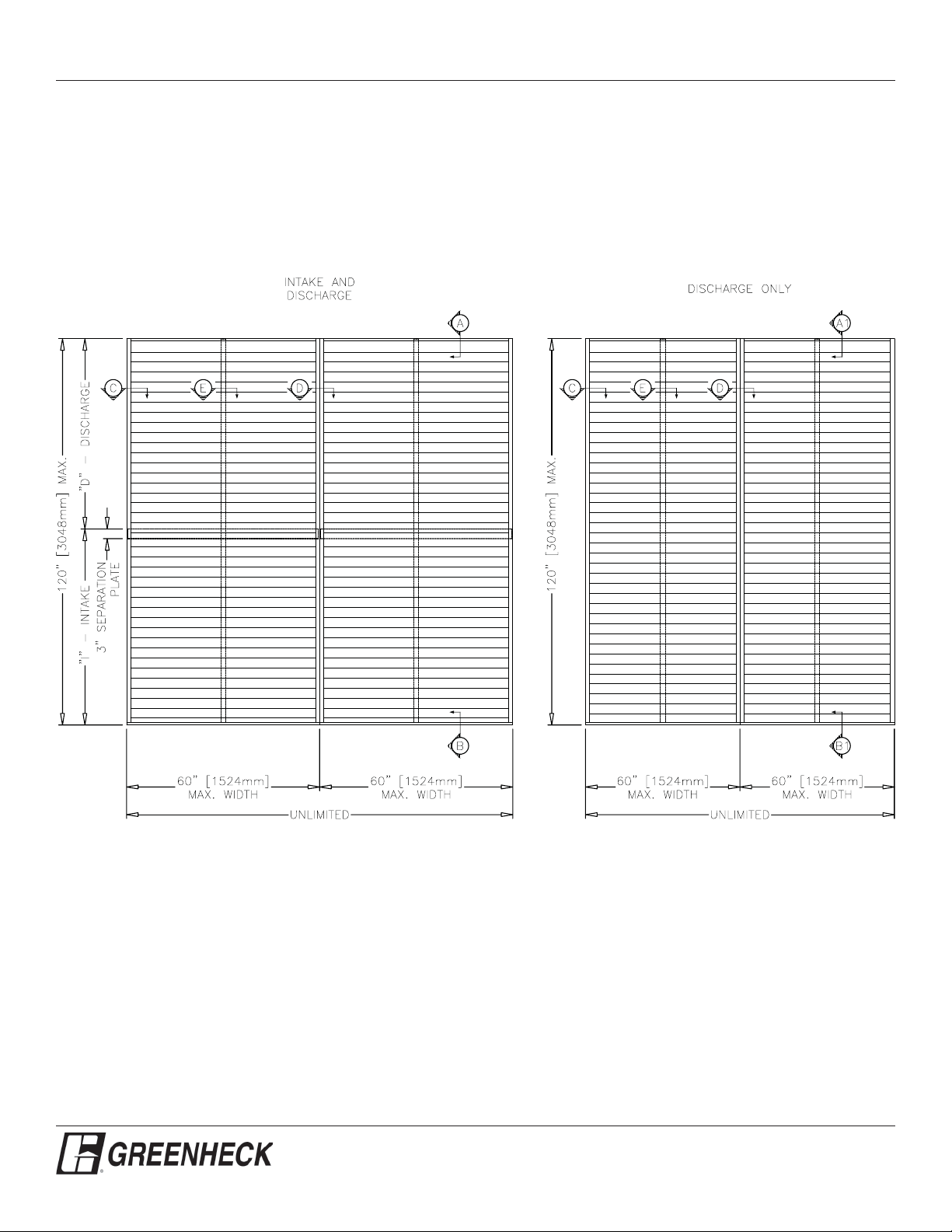

ESID-430INSTALLATION DETAILS
Maximum Size and Installation Information
Maximum single section size for model ESID-435 is 60 in. W x 120 in. H. Larger openings require field assembly of multiple louver
panels to make up the overall opening size. Individual louver panels are designed to withstand a 25 PSF wind-load (please consult
Greenheck if the louvers must withstand higher wind-loads). Structural reinforcing members may be required to adequately support
and install multiple louver panels within a large opening. Structural reinforcing members along with any associated installation
hardware is not provided by Greenheck unless indicated otherwise by Greenheck. Additional information on louver installation may
be found in AMCA Publication #501, Louver Application Manual.
Intake/Discharge Specialty Louver
Extruded Aluminum
Minimum Single Section Size
12 in. W x 18 in. H
Maximum Single Section Size
60 in. W x 120 in. H
Page 5

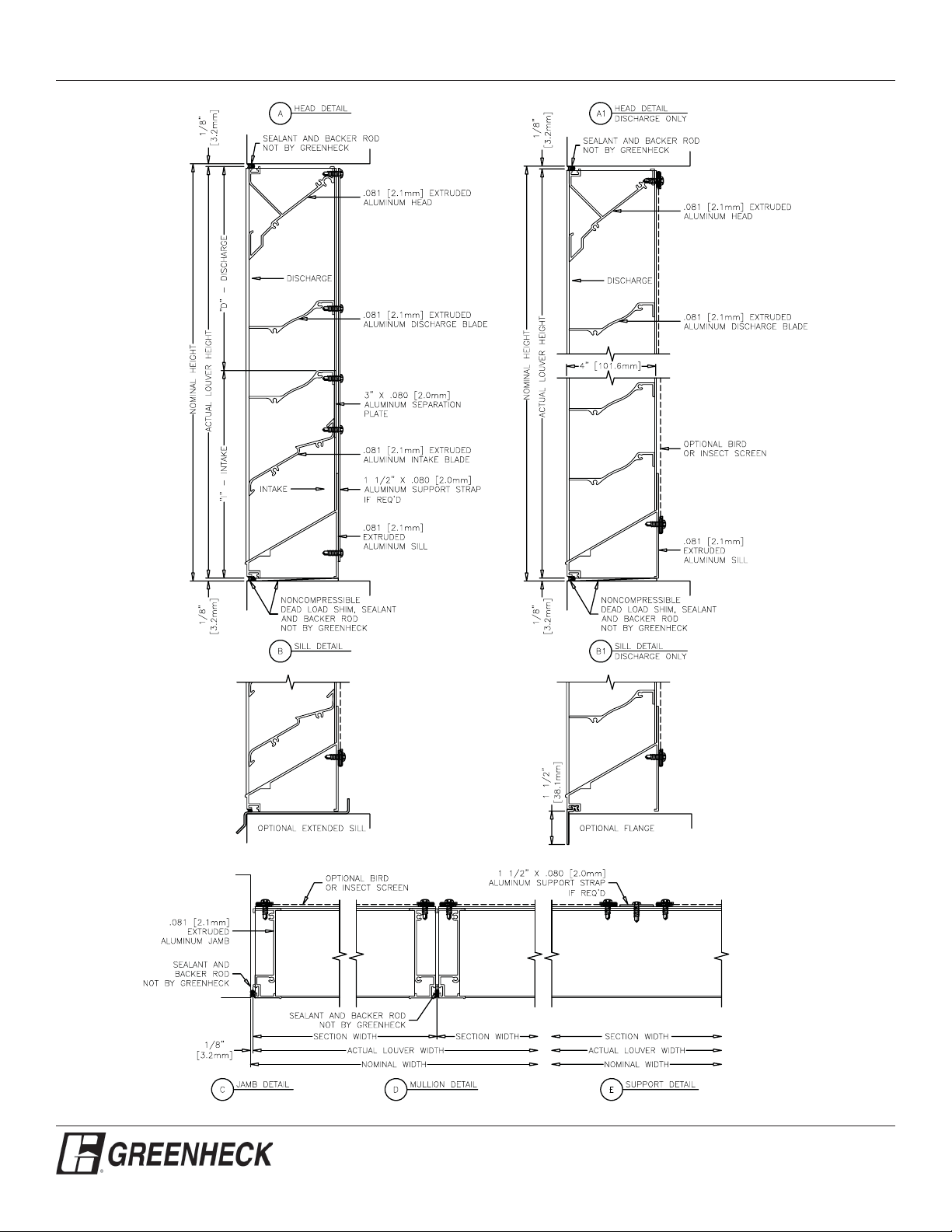

ESID-430PRODUCT DETAILS
Intake/Discharge Specialty Louver
Extruded Aluminum
Page 6
Discharge Only

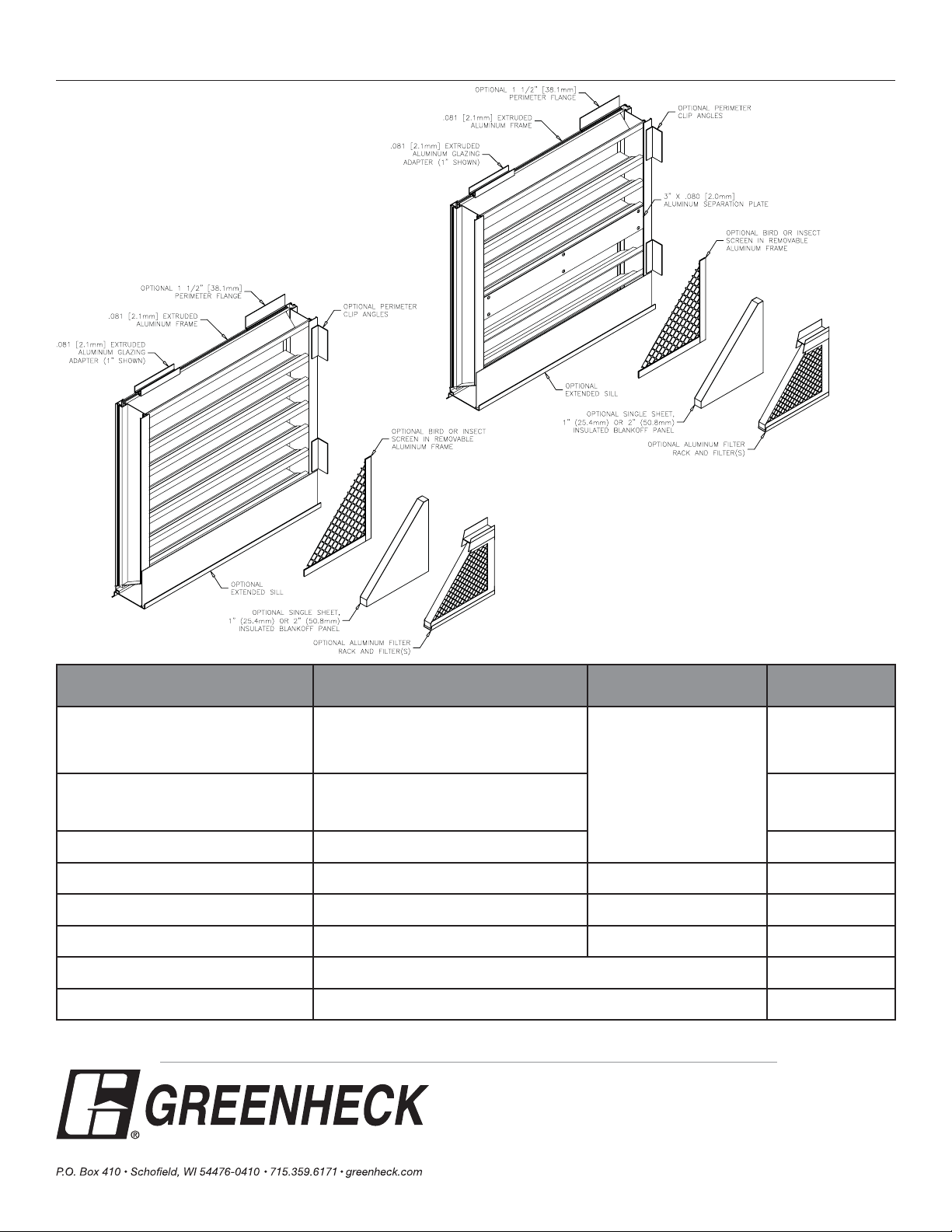

ESID-430OPTION DRAWINGS
Intake/Discharge Specialty Louver
Extruded Aluminum
Combination Intake/Discharge
FINISHES
Finish Type Description/Application Color Selection
2-coat 70% KYNAR 500®/HYLAR 5000® AAMA 2605 –
Dry fi lm thickness 1.2 mil. (AKA: Duranar®, Fluoropon®,
Trinar®, Flouropolymer, Polyvinylidene Fluoride, PVDF2)
2-coat 50% KYNAR 500®/HYLAR 5000® AAMA 2604
– Dry fi lm thickness 1.2 mil. (AKA: Acrofl ur®, Acrynar®)
Baked Enamel AAMA 2603 – Dry fi lm thickness 0.8 mil.
(AKA: Acrabond Plus®, Duracron®)
Integral Color Anodize AA-M10C22A42 (>0.7 mil)
Clear Anodize 215 R-1 AA-M10C22A41 (>0.7 mil)
Clear Anodize 204 R-1 AA-M10C22A31 (0.4-0.7 mil)
Industrial coatings
Mill
“Best.” The premier fi nish for extruded aluminum. Tough,
long-lasting coating has superior color retention and
abrasive properties. Resists chalking, fading, chemical
abrasion and weathering.
“Better.” Tough, long-lasting coating has excellent color
retention and abrasive properties. Resists chalking, fading,
chemical abrasion and weathering.
“Good.” Provides good adhesion and resistance to
weathering, corrosion and chemical stain.
“Two-step” anodizing is produced by following the normal
anodizing step with a second, colorfast process.
Clear, colorless and hard oxide aluminum coating that resists
weathering and chemical attack.
Clear, colorless and hard oxide aluminum coating that resists
weathering and chemical attack.
Greenheck offers a number of industrial coatings such as Hi-Pro Polyester, Epoxy, and Permatector®.
Consult a Greenheck Product Specialist for complete color and application information.
Materials may be supplied in natural aluminum or galvanized steel fi nish when normal weathering is
acceptable and there is no concern for color or color change.
Finishes meet or exceed AAMA 2605, AAMA 2604, and AAMA 2603 requirements. Please consult www.greenheck.com for complete information on standard and
extended paint warranties. Paint fi nish warranties are not applicable to steel products.
Standard Colors: Any of the 24
standard colors shown can be
furnished in 70% or 50% KYNAR
500®/HYLAR 5000® or Baked Enamel.
2-Coat Mica:
Greenheck offers 9 standard 2coat Mica colors. Other colors are
available. Consult Greenheck for
possible extra cost when selecting
non-standard colors or special
fi nishes.
Light, Medium or Dark Bronze;
Champagne; Black
Clear 5 years
Clear 1 Year
Copyright © 2007 Greenheck Fan Corporation
Standard Warranty
(Aluminum)
10 Years
(Consult Greenheck for
availability of extended
warranty)
5 Years
1 Year
5 years
Consult Greenheck
n/a
ESID-430
July 2007 Rev. 2
Greenheck Fan Corporation reserves the right
to make product changes without notice.
Loading...
