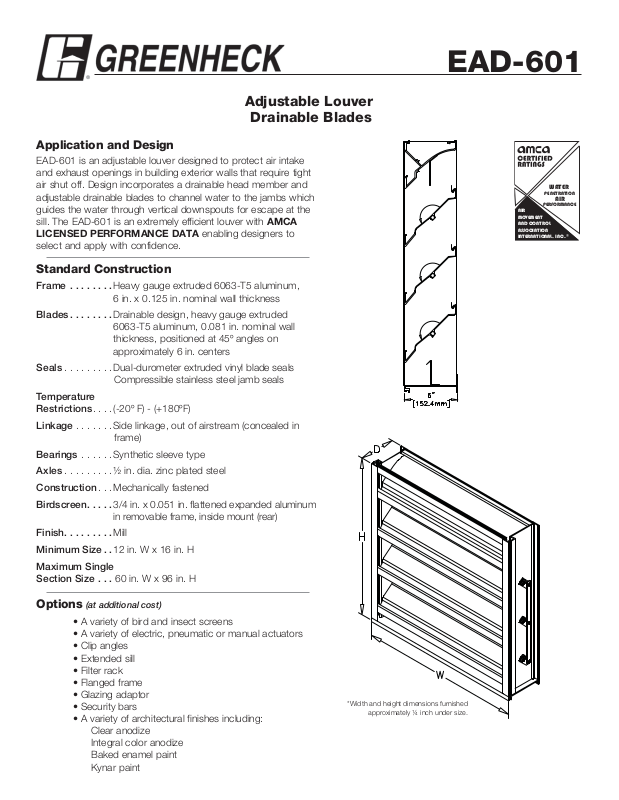

Adjustable Louver
Drainable Blades
Application and Design
EAD-601 is an adjustable louver designed to protect air intake
and exhaust openings in building exterior walls that require tight
air shut off. Design incorporates a drainable head member and
adjustable drainable blades to channel water to the jambs which
guides the water through vertical downspouts for escape at the
sill. The EAD-601 is an extremely efficient louver with AMCA
LICENSED PERFORMANCE DATA enabling designers to
select and apply with confidence.
Standard Construction
Frame . . . . . . . .Heavy gauge extruded 6063-T5 aluminum,
6 in. x 0.125 in. nominal wall thickness
Blades . . . . . . . .Drainable design, heavy gauge extruded
6063-T5 aluminum, 0.081 in. nominal wall
thickness, positioned at 45º angles on
approximately 6 in. centers
Seals . . . . . . . . .Dual-durometer extruded vinyl blade seals
Compressible stainless steel jamb seals
Temperature
Restrictions . . . .(-20º F) - (+180ºF)
Linkage . . . . . . .Side linkage, out of airstream (concealed in
frame)
Bearings . . . . . .Synthetic sleeve type
Axles . . . . . . . . .½ in. dia. zinc plated steel
Construction . . .Mechanically fastened
Birdscreen . . . . .3/4 in. x 0.051 in. fl attened expanded aluminum
in removable frame, inside mount (rear)
Finish . . . . . . . . .Mill
Minimum Size . . 12 in. W x 16 in. H
Maximum Single
Section Size . . . 60 in. W x 96 in. H
Options (at additional cost)
• A variety of bird and insect screens
• A variety of electric, pneumatic or manual actuators
• Clip angles
• Extended sill
• Filter rack
• Flanged frame
• Glazing adaptor
• Security bars
• A variety of architectural finishes including:
Clear anodize
Integral color anodize
Baked enamel paint
Kynar paint
EAD-601
*Width and height dimensions furnished
approximately ¼ inch under size.
WATER
PENETRATION
AIR
PERFORMANCE
AIR
MOVEMENT
AND CONTROL
ASSOCIATION
INTERNATIONAL, INC.
®
Page 2
Free Area Chart (Sq. ft.)
3
Louver Width in Inches
ake
Exhaust
Int
Water Penetration (Standard Air - .075 lb/ft
Test size 48 in. x 48 in. Test duration of 15 min.
3
)
The AMCA Water Penetration Test provides a method for comparing
various louver models and designs as to their efficiency in resisting
the penetration of rainfall under specific laboratory test conditions. The
beginning point of water penetration is defined as that velocity where the
water penetration curve projects through .01 oz. of water (penetration)
per sq. ft. of louver free area.
penetration for Model EAD-601 is 1007 fpm free area velocity.
These perfor mance ratings do not guarantee a louver to be weather proof
or stormproof and should be used in combination with other factors
including good engineering judgement in selecting louvers.
Louver
Height
Inches
12 15 18 21 24 27 30 33 36 39 42 48 54 60
16 0.34 0.45 0.56 0.67 0.78 0.89 1.00 1.11 1.21 1.32 1.43 1.65 1.87 2.09
21 0.58 0.77 0.95 1.13 1.32 1.50 1.68 1.87 2.05 2.24 2.42 2.79 3.16 3.52
24 0.58 0.77 0.95 1.13 1.32 1.50 1.68 1.87 2.05 2.24 2.42 2.79 3.16 3.52
30 0.82 1.08 1.34 1.60 1.85 2.11 2.37 2.63 2.89 3.15 3.41 3.93 4.44 4.96
33 0.82 1.08 1.34 1.60 1.85 2.11 2.37 2.63 2.89 3.15 3.41 3.93 4.44 4.96
39 1.06 1.39 1.72 2.06 2.39 2.73 3.06 3.39 3.73 4.06 4.39 5.06 5.73 6.40
42 1.29 1.70 2.11 2.52 2.93 3.34 3.75 4.16 4.56 4.97 5.38 6.20 7.02 7.84
48 1.53 2.02 2.50 2.98 3.47 3.95 4.43 4.92 5.40 5.89 6.37 7.34 8.31 9.27
51 1.53 2.02 2.50 2.98 3.47 3.95 4.43 4.92 5.40 5.89 6.37 7.34 8.31 9.27
60 2.01 2.64 3.27 3.91 4.54 5.18 5.81 6.44 7.08 7.71 8.34 9.61 10.88 12.15
66 2.24 2.95 3.66 4.37 5.08 5.79 6.50 7.21 7.91 8.62 9.33 10.75 12.17 13.59
78 2.48 3.27 4.05 4.83 5.62 6.40 7.18 7.97 8.75 9.54 10.32 11.89 13.46 15.02
84 2.72 3.58 4.44 5.30 6.15 7.01 7.87 8.73 9.59 10.45 11.31 13.03 14.74 16.46
96 3.19 4.20 5.21 6.22 7.23 8.24 9.25 10.26 11.26 12.27 13.28 15.30 17.32 19.34
Greenheck Fan Corporation certifies that the
EAD-601 louvers shown herein are licensed
to bear the AMCA Seal. The ratings shown
WATER
PENETRATION
PERFORMANCE
AIR
MOVEMENT
AND CONTROL
ASSOCIATION
INTERNATIONAL, INC.
are based on tests and procedures performed
AIR
in accordance with AMCA Publication 511
and comply with the requirements of the
AMCA Certified Ratings Program. The
®
AMCA Certified Ratings Seal applies to air
performance and water penetration ratings.
Airflow Resistance (Standard Air - .075 lb/ft
Pa
in. wg
1
0.9
200
100
90
80
70
60
50
40
30
20
Static Pressure Drop
10
9
8
7
6
5
ft/min:
m/s:
Model EAD-601 resistance to airflow (pressure drop) varies
depending on louver application (air intake or air exhaust).
Free area velocities (shown) are higher than average
velocity through the overall louver size. See louver selection
information.
Test Size 48 in. x 48 in.
0.8
Standard Air - .075 lb/ft
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.09
0.08
0.07
0.06
0.05
0.04
0.03
0.02
200 300 400 500 600 700 800 900 1000 2000 3000
2345678910
Free Air Velocity
EAD-601PERFORMANCE DATA
Adjustable Louver Drainable Blade
Extruded Aluminum
Air Leakage (with damper section closed)
Test size 48 in. x 48 in.
kPa
in. wg
2
0.475
0.45
0.425
0.375
0.325
Pressure
0.275
0.225
0.30
Test Size 48 in. x 48 in.
80
60
40
20
Water Penetration per Unit Free Area
0
ft/min:
m/s:
Test Period 15 minutes
0.25
Standard Air - .075 lb/ft
0.20
0.15
0.10
0.05
0.00
900 950 1000 1050 1100 1150 1200
1
0.9
0.4
0.8
0.7
0.6
0.35
0.5
0.4
0.3
0.3
0.2
0.25
0.1
0.09
2
112345678910
cfm/ft
2
cmh/m
20 30 40 50 60 70 80 90100 200
Leakage
3
5.5 6.0
Free Area Velocity
The beginning point of water
*
3
)
Page 3
EAD-601INSTALLATION DETAILS
Maximum Size and Installation Information

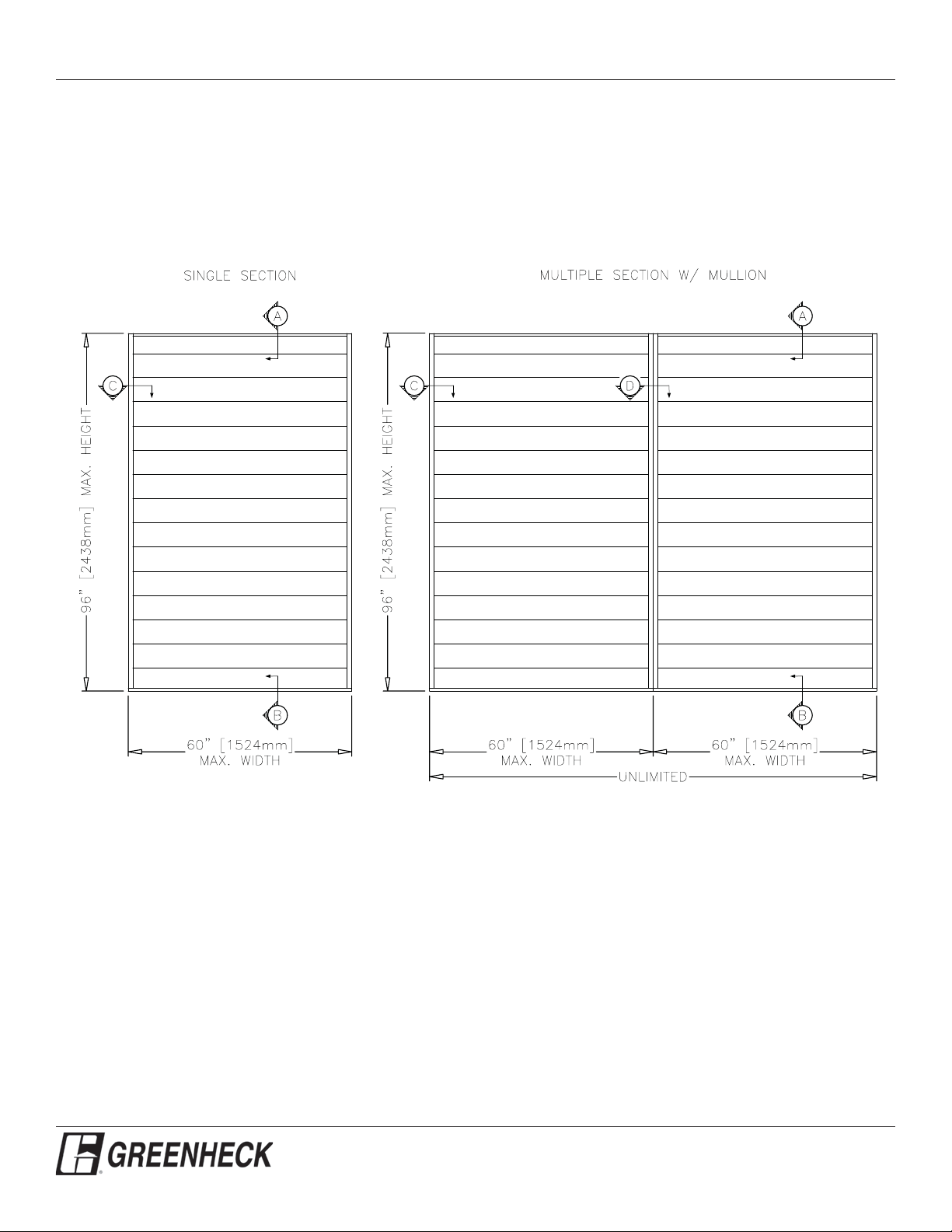

Maximum single section size for model EAD-601 is 60 in. W x 96 in. H. Larger openings require field assembly of multiple louver
panels to make up the overall opening size. Individual louver panels are designed to withstand a 25 PSF wind-load (please consult
Greenheck if the louvers must withstand higher wind-loads). Structural reinforcing members may be required to adequately support
and install multiple louver panels within a large opening. Structural reinforcing members along with any associated installation
hardware is not provided by Greenheck unless indicated otherwise by Greenheck. Additional information on louver installation may
be found in AMCA Publication #501, Louver Application Manual.
Adjustable Louver Drainable Blade
Extruded Aluminum
Minimum Single Section Size
12 in. W x 16 in. H
Maximum Single Section Size
60 in. W x 96 in. H
Page 4

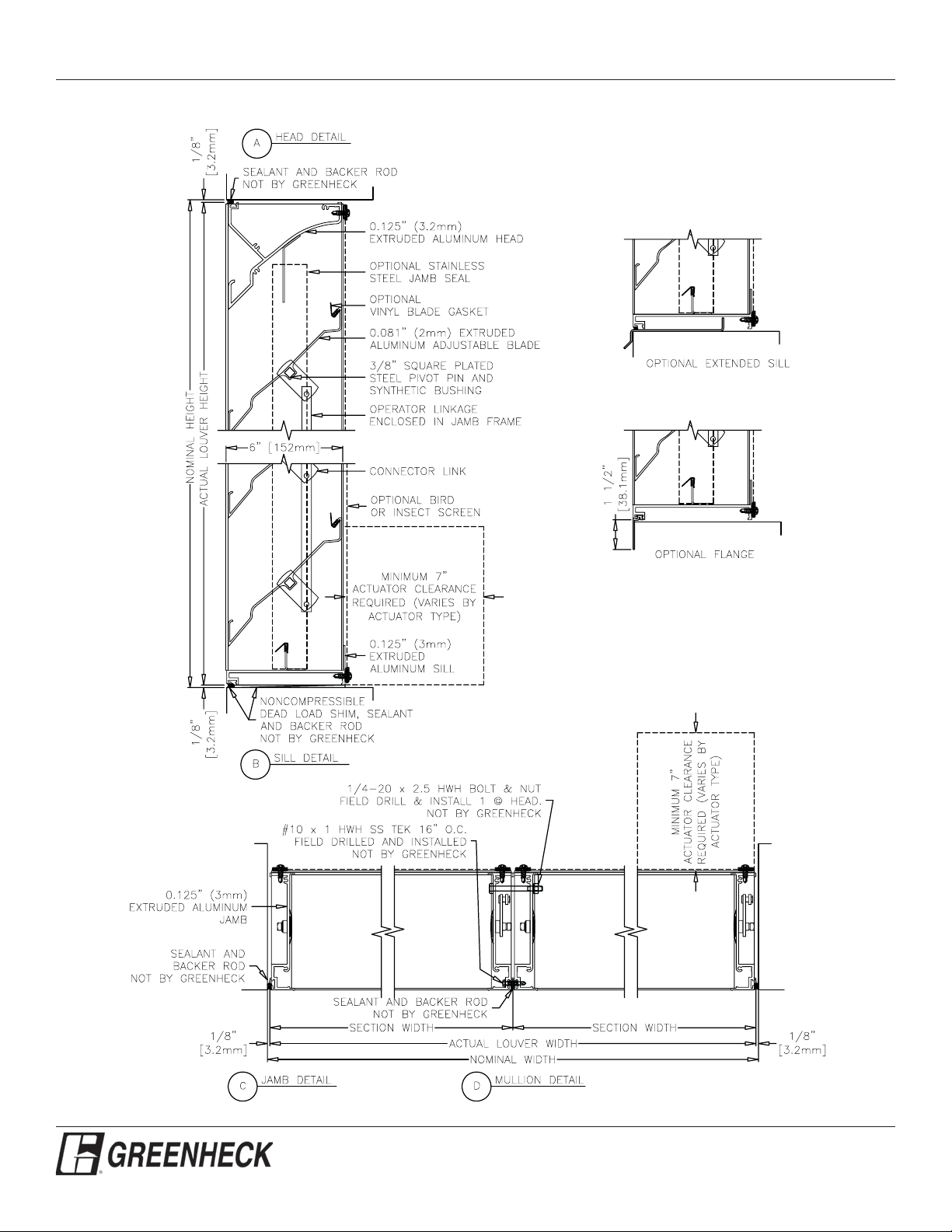

EAD-601PRODUCT DETAILS
Adjustable Louver Drainable Blade
Extruded Aluminum
Page 5

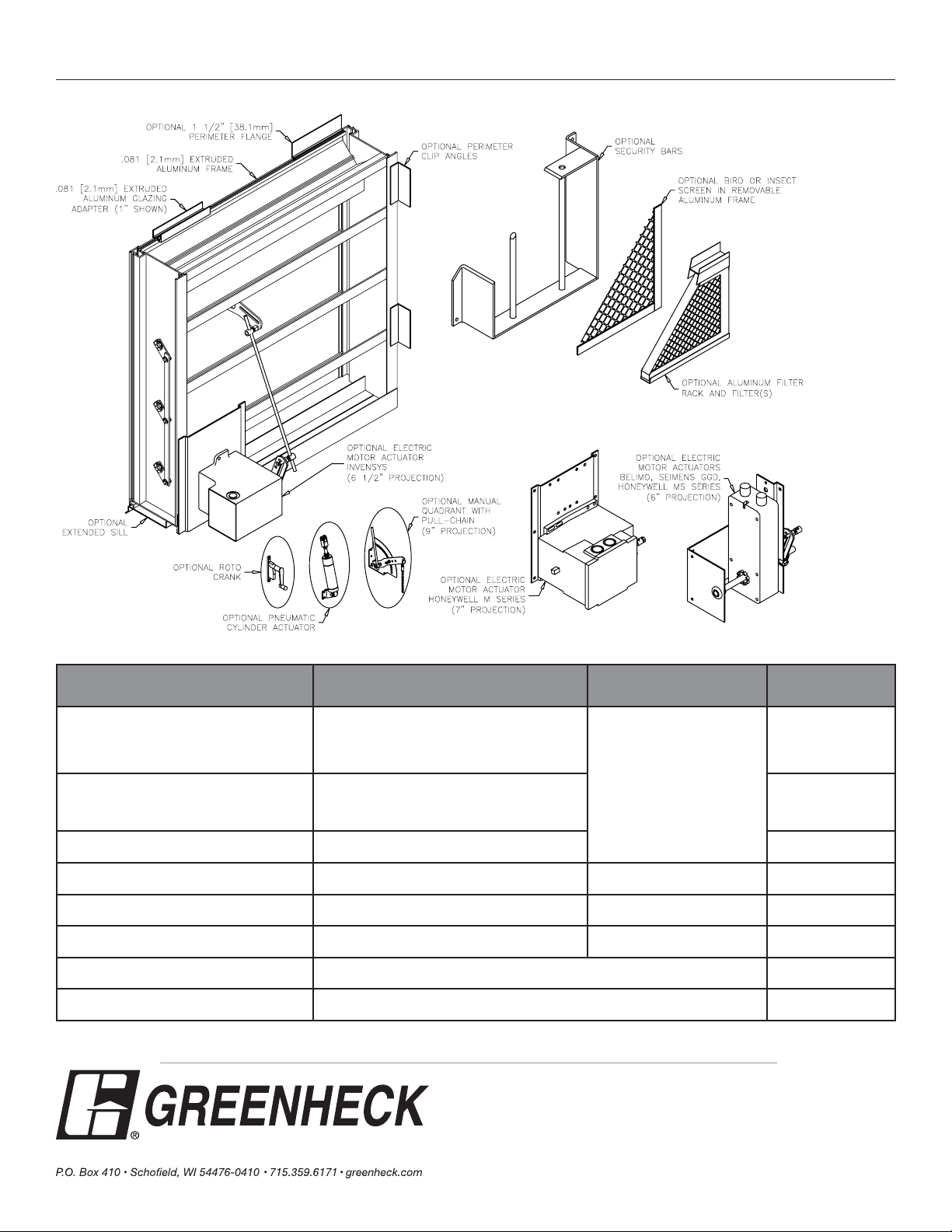

EAD-601OPTION DRAWINGS
Adjustable Louver Drainable Blade
Extruded Aluminum
FINISHES
Finish Type Description/Application Color Selection
2-coat 70% KYNAR 500®/HYLAR 5000® AAMA 2605 –
Dry fi lm thickness 1.2 mil. (AKA: Duranar®, Fluoropon®,
Trinar®, Flouropolymer, Polyvinylidene Fluoride, PVDF2)
2-coat 50% KYNAR 500®/HYLAR 5000® AAMA 2604
– Dry fi lm thickness 1.2 mil. (AKA: Acrofl ur®, Acrynar®)
Baked Enamel AAMA 2603 – Dry fi lm thickness 0.8 mil.
(AKA: Acrabond Plus®, Duracron®)
Integral Color Anodize AA-M10C22A42 (>0.7 mil)
Clear Anodize 215 R-1 AA-M10C22A41 (>0.7 mil)
Clear Anodize 204 R-1 AA-M10C22A31 (0.4-0.7 mil)
Industrial coatings
Mill
“Best.” The premier fi nish for extruded aluminum. Tough,
long-lasting coating has superior color retention and
abrasive properties. Resists chalking, fading, chemical
abrasion and weathering.
“Better.” Tough, long-lasting coating has excellent color
retention and abrasive properties. Resists chalking, fading,
chemical abrasion and weathering.
“Good.” Provides good adhesion and resistance to
weathering, corrosion and chemical stain.
“Two-step” anodizing is produced by following the normal
anodizing step with a second, colorfast process.
Clear, colorless and hard oxide aluminum coating that resists
weathering and chemical attack.
Clear, colorless and hard oxide aluminum coating that resists
weathering and chemical attack.
Greenheck offers a number of industrial coatings such as Hi-Pro Polyester, Epoxy, and Permatector®.
Consult a Greenheck Product Specialist for complete color and application information.
Materials may be supplied in natural aluminum or galvanized steel fi nish when normal weathering is
acceptable and there is no concern for color or color change.
Finishes meet or exceed AAMA 2605, AAMA 2604, and AAMA 2603 requirements. Please consult www.greenheck.com for complete information on standard and
extended paint warranties. Paint fi nish warranties are not applicable to steel products.
Standard Colors: Any of the 24
standard colors shown can be
furnished in 70% or 50% KYNAR
500®/HYLAR 5000® or Baked Enamel.
2-Coat Mica:
Greenheck offers 9 standard 2coat Mica colors. Other colors are
available. Consult Greenheck for
possible extra cost when selecting
non-standard colors or special
fi nishes.
Light, Medium or Dark Bronze;
Champagne; Black
Clear 5 years
Clear 1 Year
Copyright © 2007 Greenheck Fan Corporation
Standard Warranty
(Aluminum)
10 Years
(Consult Greenheck for
availability of extended
warranty)
5 Years
1 Year
5 years
Consult Greenheck
n/a
EAD-601
September 2007 Rev. 1
Greenheck Fan Corporation reserves the right
to make product changes without notice.
