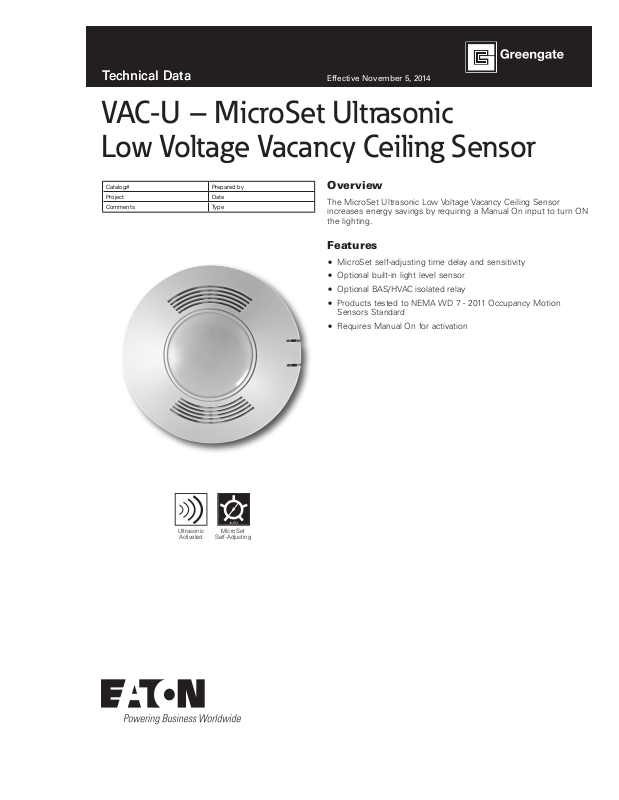

Technical Data
Technical Data
Effective November 5, 2014
VAC-U – MicroSet Ultrasonic
Low Voltage Vacancy Ceiling Sensor
Catalog# Prepared by
Project Date
Comments Type
Overview
The MicroSet Ultrasonic Low Voltage Vacancy Ceiling Sensor
increases energy savings by requiring a Manual On input to turn ON
the lighting.
Features
MicroSet self-adjusting time delay and sensitivity
Optional built-in light level sensor
Optional BAS/HVAC isolated relay
Products tested to NEMA WD 7 - 2011 Occupancy Motion
Sensors Standard
Requires Manual On for activation
Ultrasonic
Activated
MicroSet
Self-Adjusting

Technical Data
November 2014
VAC-U – MicroSet Ultrasonic Low Voltage Vacancy Ceiling Sensor
Specifications
Technology Ultrasonic (US)
Power
Requirements
Time Delays Self-adjustable, 15 seconds/test (10 min. Auto), or
Coverage 500, 1000 and 2000 sq. ft. (56 ft. x 16 ft. corridor)
Light Level
Sensing
(-R Models)
Operating
Environment
Housing Durable, injection molded housing. Polycarbonate
Size 1.42”H x 4.5”W (36.068mm x 114.3mm)
Mounting Mounts directly to a ceiling tile, to a 4” square box
LED Indicators Green LED for Ultrasonic detection
Standards FCC Compliant
Input
10-30 VDC from Greengate Switchpack or
Greengate system
Maximum current needed is 25mA per sensor
Output
Open collector output to switch up to ten
Greengate Switchpacks
BAS with an Isolated Form C Relay in (-R) model
Isolated Form C Relay Ratings: 1A 30 VDC/VAC
Selectable 5, 15, 30 minutes, or Zero Time Delay
0 to 300 foot-candles
Temperature: 32°F - 104°F (0°C - 40°C)
Relative humidity: 20% to 90%, non-condensing
For indoor use only
resin complies with UL 94V-0
and round mud ring or to a 4" octagon box
cULus Listed
RoHS Compliant
Description/Operation
The Ultrasonic Sensor uses the Doppler principle. It produces a
low intensity, inaudible sound and detects changes in sound waves
caused by motion, such as walking into the room, reaching for the
telephone or turning in a chair. They are volumetric in nature and
therefore not line-of-sight dependant. Since they fill the space with
these sound waves, they are excellent in bathrooms with stalls,
enclosed hallways, or other oddly shaped rooms. In addition, they
are much more sensitive to smaller motions. The sensor includes
self-adaptive technology that continuously self-adjusts sensitivity
and Time Delay in real-time, maximizing the potential energy savings
that are available in the particular application. The lights are turned
ON by activating a momentary switch (model # GMDS-*) that is
connected to the sensor. The MicroSet Ultrasonic Low Voltage
Ceiling Sensor has an ambient light level sensor. When enabled, the
Daylighting feature prevents lights from turning ON when the room
is adequately illuminated by natural light.
Applications
Conference Rooms
Open Office Areas
Restrooms (With Partitions)
Restrooms (Non-Partitioned)
Hallways
Other Indoor Office Spaces
2
www.coopercontrol.com

VAC-U – MicroSet Ultrasonic Low Voltage Vacancy Ceiling Sensor
BLACK (COMMON)
BROWN (BLUE CONTROL)
YELLOW (CONTROL-OCC/DAY)
PURPLE (NORMALLY CLOSED)
GRAY (ISOLATED RELAY COMMON)
ORANGE (NORMALLY OPEN)
WHITE/BROWN (YELLOW CONTROL)
OAC AND VAC MANUAL MODE OPERATION:
1. SWITCHES ARE REQUIRED TO TURN
CORRESPONDING LOADS ON.
2. LOADS TURN OFF WHEN SENSOR
TIMES OUT OR WITH SWITCHES.
3. IF DAYLIGHT SENSOR IS ENABLED AND
LIGHT LEVEL IS ABOVE SETPOINT,
SWITCHPACK CONNECTED TO YELLOW
LEAD WILL NOT TURN LOAD ON.
OAC AUTOMATIC MODE OPERATION:
1. WHEN SENSOR ACTIVATES, BOTH
LOADS TURN ON.
2. SWITCHES CAN BE USED TO TURN
LOADS ON OR OFF.
3. IF DAYLIGHT SENSOR IS ENABLED AND
LIGHT LEVEL IS ABOVE SETPOINT,
SWITCHPACK CONNECTED TO YELLOW
LEAD WILL NOT TURN LOAD ON.
RECOMMENDED WIRE:
18-3 AWG STRANDED WIRE SHIELDED OR
NON/SHIELDED
BLUE (CONTROL-OCC)
RED (10-30 VDC)
LOAD "A"
BLUE
NEUTRAL
HOT
**USE BLACK LEAD FOR 120 VAC.
USE ORANGE LEAD FOR 277 VAC.
CAP UNUSED LEAD.
LINE
**HOT
WHITE
BLUE
SWITCH-
PACK
LOAD "B"
BLUE
NEUTRAL
HOT
**USE BLACK LEAD FOR 120 VAC.
USE ORANGE LEAD FOR 277 VAC.
CAP UNUSED LEAD.
LINE
**HOT
WHITE
BLUE
SWITCH-
PACK
BLACK (COMMON)
BLUE (CONTROL)
RED (15 VDC)
MODEL GMDS - LOAD "B"
(NORMALLY OPEN
MOMENTARY SWITCH)
MODEL GMDS - LOAD "A"
(NORMALLY OPEN
MOMENTARY SWITCH)
BLACK (COMMON)
BLUE (CONTROL)
RED (15 VDC)
NOTES
1. LOADS MAY BE ON SAME
CIRCUIT OR DIFFERENT
CIRCUITS OR VOLTAGES.
2. SP20-MV SWITCHPACK SHOWN.
120/277 VAC 20 AMP RATING.
9 ft
(2.74 m)
9 ft
(2.74 m)
0
12 ft
(3.65 m)
12 ft
(3.65 m)
20 ft
(6.096m)
20 ft
(6.096m)
5 ft
(1.52 m)
10 ft
(3.05 m)
15 ft
(4.57 m)
23 ft
(7.01 m)
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
Maximum coverage area may
vary somewhat according to room
shape and the presence of obstacles.
DT1k
9 ft
(2.74 m)
0
12 ft
(3.65 m)
20 ft
(6.096m)
9 ft
(2.74 m)
12 ft
(3.65 m)
20 ft
(6.096m)
17 ft
(5.18 m)
10 ft
(3 m)
5 ft
(1.5 m)
0
5 ft
(1.5 m)
10 ft
(3 m)
17 ft
(5.18 m)
23 ft
(7.01 m)
23 ft
(7.01 m)
15 ft
(4.57 m)
15 ft
(4.57 m)
Recommended Mounting Height 8 to 12 feet
Corridor Coverage OAC-U-2000, OAC-U-2000-R models only
0
12 ft
(3.65 m)
16 ft
(4.87 m)
12 ft
(3.65 m)
16 ft
(4.87 m)
20 ft
(6.096m)
20 ft
(6.096m)
23 ft
(7.01 m)
5 ft
(1.52 m)
5 ft
(1.52 m)
32 ft
(9.75 m)
32 ft
(9.75 m)
15 ft
(4.57 m)
23 ft
(7.01 m)
15 ft
(4.57 m)
10 ft
(3 m)
10 ft
(3 m)
0
28 ft
(8.53 m)
28 ft
(8.53 m)
8 ft
(2.44 m)
8 ft
(2.44 m)

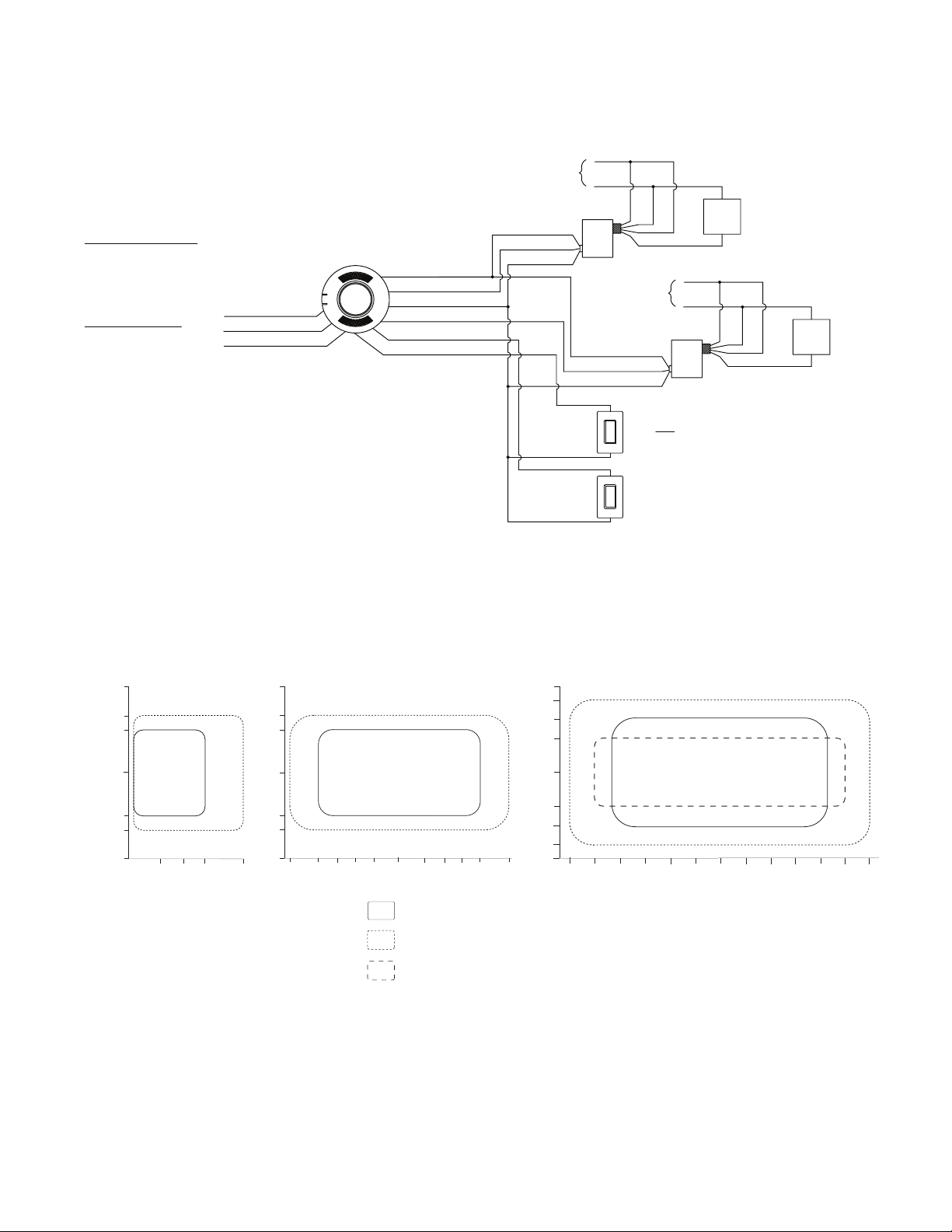

Wiring Diagrams
VAC-U-2000-R Model
*Wiring diagram for single sensor application.
Visit our website for other wiring diagrams.
Technical Data
November 2014
Coverage
VAC-U-0501-R
500 sq. ft.
VAC-U-1000-R
1,000 sq. ft.
VAC-U-2000-R
2,000 sq. ft.
www.coopercontrol.com
3

Technical Data VAC-U – MicroSet Ultrasonic Low Voltage Vacancy Ceiling Sensor

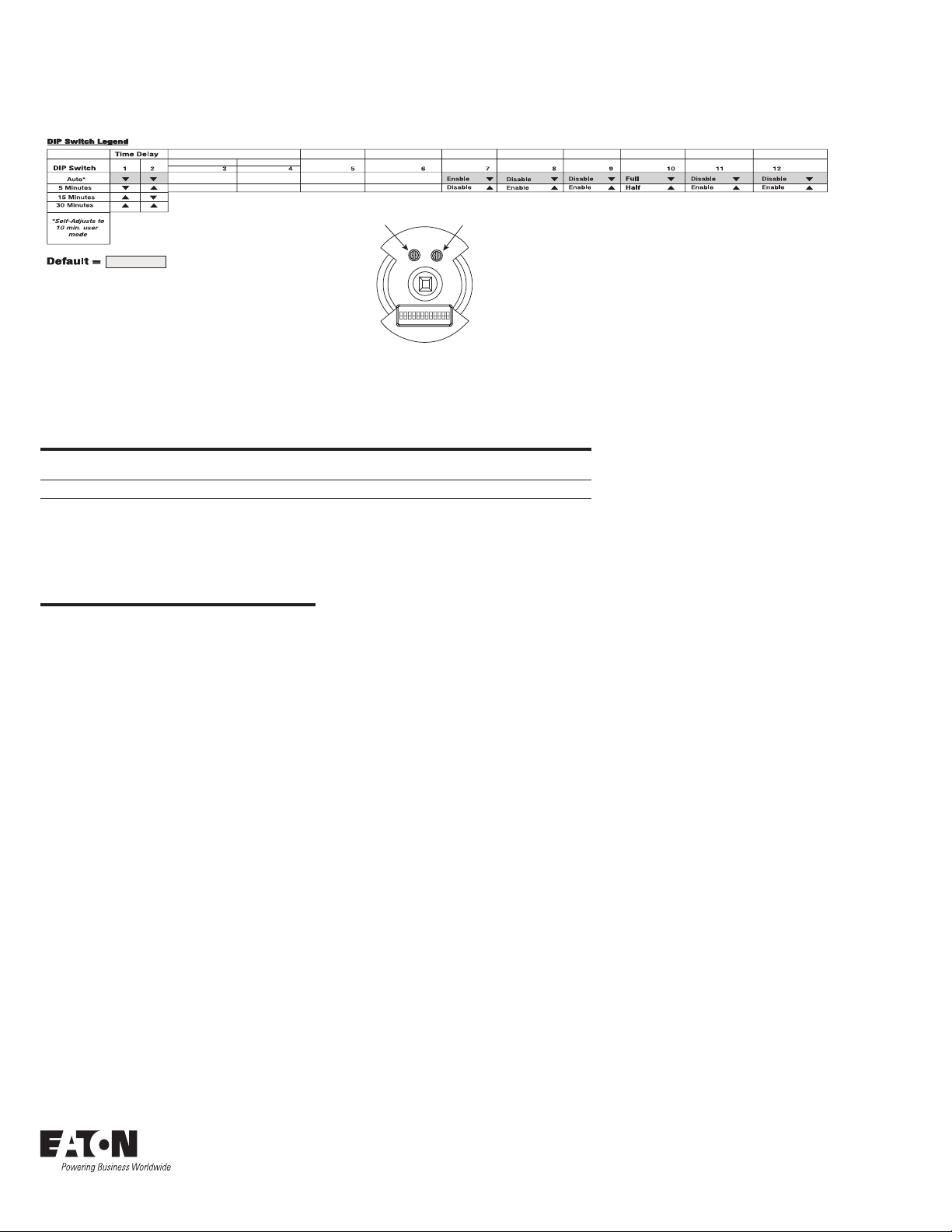

SweepOverride
LEDs
(-R model only)
(-R model only)
Full/Half Logic HVAC/Tracking
Zero Time Delay
Not UsedNot Used Not Used
Controls
Daylight Sensor Adjustment
Ultrasonic Sensitivity Adjustment
ON
11 12
12345678910
Ordering
Catalog # Recommended
Room Size
VAC-U-2000-R 2,000 sq. ft.
(56 ft. x 16 ft. corridor)
VAC-U-1000-R 1,000 sq. ft. Two Way (360°) w/ BAS Relay & Daylight Sensor
VAC-U-0501-R 500 sq. ft. One Way (180°) w/ BAS Relay & Daylight Sensor
Field of View Features
Two Way (360°) w/ BAS Relay & Daylight Sensor
Accessory Components
Suggested Low Voltage Manual ON Switch(es)
GMDS-W
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
Eaton’s Cooper Controls Business
203 Cooper Circle
Peachtree City, GA 30269
coopercontrol.com
© 2014 Eaton
All Rights Reserved
Printed in USA
Publication No. ACC141013
November 5, 2014
