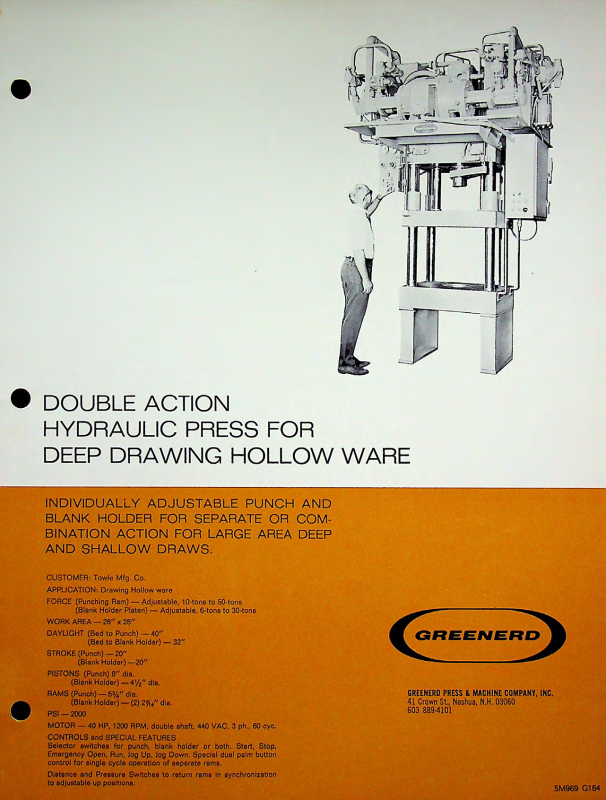

DOUBLE ACTION
—
gs
05
f
/
HYDRAULIC PRESS FOR
DEEP DRAWING HOLLOW WARE
INDIVIDUALLY ADJUSTABLE PUNCH AND
BLANK HOLDER FOR SEPARATE OR COM
BINATION ACTION FOR LARGE AREA DEEP
AND SHALLOW DRAWS.
CUSTOMER: Towle Mfg. Co.
APPLICATION: Drawing Hollow ware
FORCE (Punching Ram) — Adjustable, 10-tons to 50-tons
(Blank Holder Platen) — Adjustable, 6-tons to 30-tons
WORK
AREA
—
28" x 28"
DAYLIGHT (Bed to Punch) — 40"
STROKE (Punch) — 20"
PISTONS (Punch) 8"
RAMS (Punch) —
PSI — 2000
MOTOR —
CONTROLS and SPECIAL FEATURES
Selector switches for punch, blank holder or both. Start, Stop,
Emergency Open, Run, Jog Up, Jog Down. Special dual palm button
control for single cycle operation of separate rams.
Distance and Pressure Switches to return rams in synchronization
to adjustable up positions.
(B.ed to Blank Holder) — 32"
(Blank Holder) —20"
(Blank Holder) — 4,/2//
(Blank Holder) — (2) 2?,*" dia.
40
dia.
dia.
53/4" dia.
HP. 1200 RPM, double shaft, 440 VAC. 3 ph., 60 eye.
GREENERD PRESS & MACHINE COMPANY, INC.
41 Crown St., Nashua, N.H. 03060
603 8894101
5M969 G164
