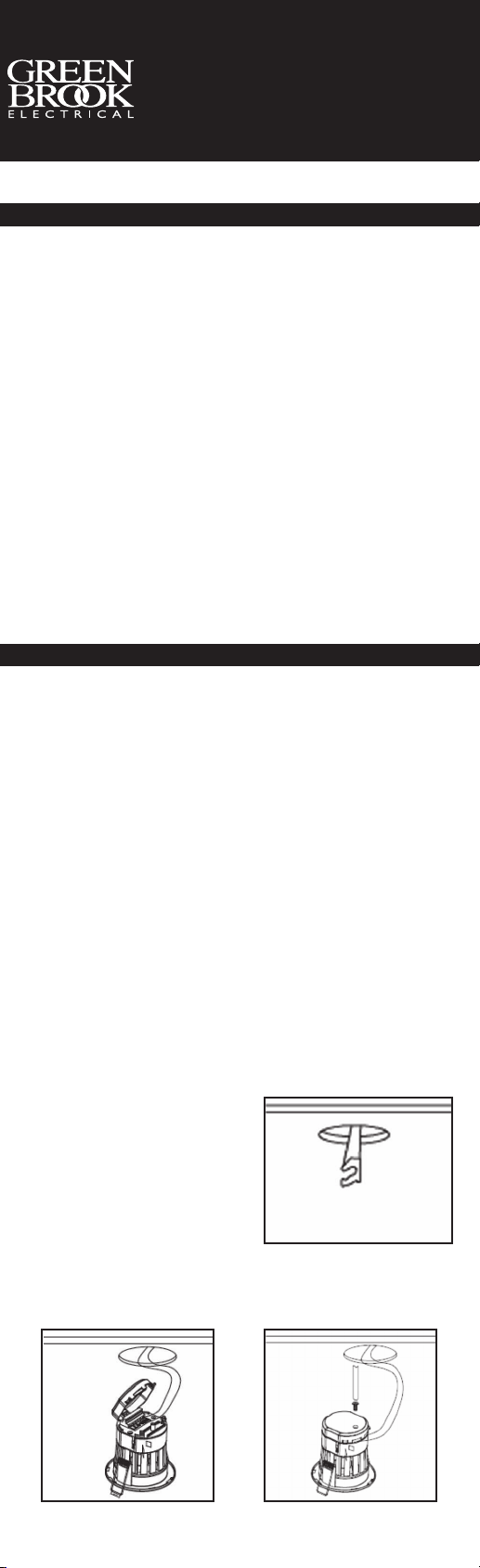

GreenBrook VSWITCHC, VSWITCHF Installation Instructions

nstallation Instructions for:-
I
‘Vela
LED 30, 60 & 90 Mins
-
Switch
’ Range
Fire Rated Mains Voltage
Dimmable Downlights
art numbers:
P Fixed:- VSWITCHC & VSWITCHF
IMPORTANT INFORMATION
It is recommended that luminaires are installed and fitted by a qualified electrician ensuring the installation complies to the current IET wiring regulation.
If replacing existing fitting, please ensure you follow these instructions and the appropriate wiring regulations. This product is designed for connection to a 230V AC Mains supply.
Always switch off mains supply before servicing a fitting. Special attention should be paid for any installations with low ceiling voids. This fitting is compatible with most leading and trailing edge dimmers for best results use a dimmer designed for LED drivers. Please note that many dimmers have a minimum load requirement which may mean multiple units have to be connected for the dimmer to function correctly. Please see GreenBrook website for compatible dimmers ­www.greenbrook.co.uk. Do not stare directly in to the light fitting.
INSTALLATION INSTRUCTIONS
We recommend that a sample hole is cut in some scrap material to familiarise yourself with the installation. Once you are completely satisfied, locate the areas suitable to install these luminaires. Cut a suitable round hole in the ceiling 73mm and ensure there is sufficient space in the ceiling void without infringing on joist, water pipes or electrical cables.
Fit this product as illustrated. Connect this product to a mains 230V supply only. Connect the Brown feed wire to “L”, connect the Blue feed wire to “N”. Driver is class 1 and does require an earth connection. Also earth connections are provided on the driver to maintain earth circuit continuity. Ensure cables are clamped in position and secured into place with the supplied screw. See Dia.3.
Ensure there is adequate free air ventilation around the fitting. The nearest illuminated surface must be at least
0.5m distance from the front of the fitting. Do not install this product into new plaster or damp areas.
Stage 1 -
Read instructions and check you have all the tools and accessories to complete installation correctly. These luminaires are suitable for a 30, 60 or 90 minute fire rated ceiling only. Cut a suitable hole (73mm).
Stage 2 -
Wire as per installation instructions above . See Dia.2.
Cut Out: 73mm
Dia.1
Dia.2
Dia.3
Stage 3 -
To select the chosen colour temperature choice, move the switch to either 3,000K or 4,000K. See Dia.4.
Selector switch for
3,000K or 4,000K
Dia.4
Stage 4 -
Press springs back and push luminaire body into aperture. Connect wires as per instructions to fit.
Dia.5 Dia.6
Additional Bezels:­Fixed
DVBEZG Gold
A ADVBEZMB Matt Black ADVBEZSC Satin Chrome
DVBEZPC Polished Chrome
A
Air Circulation Information -
To prevent accidental damage to the luminaire and to ensure good air flow around the fitting we recommend the minimum clearances as shown
A = 50 - 75mm B = 25mm
B
A
.
TECHNICAL INFORMATION
Rated Voltage: 230V~50Hz Circuit Wattage: 7.5W Ballast Type: LED driver Class: I CRI: >80
Operating Temperature: -20°C - +40°C
IP Rating (Front face): IP65 Hole Cut Out: 73mm Life Span: 50,000 hours Conforms To: Part B, C, E & L
VSWITCHC - Clear Diffuser
Beam Angle: 60° Colour Temp: 3,000K Luminaire Lumens Output: 580, 76 lm/W Colour Temp: 4,000K Luminaire Lumens Output: 610, 81 lm/W
VSWITCHF - Frosted Diffuser
Beam Angle: 95° Colour Temp: 3,000K Luminaire Lumens Output: 400, 52 lm/W Colour Temp: 4,000K Luminaire Lumens Output: 450, 62 lm/W
Your GreenBrook LED Fire Rated Downlight
is guaranteed for 3 years from the
This is in addition to your statutory rights.
GUARANTEE
date of purchase.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
