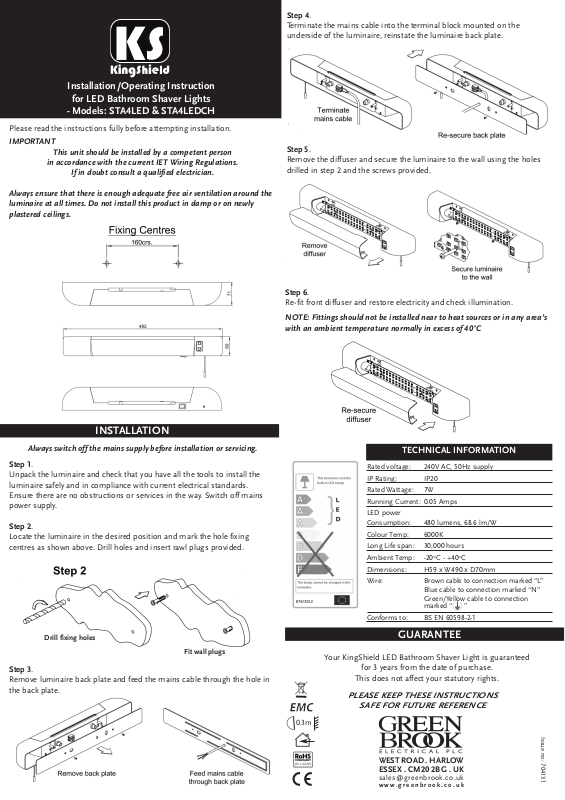

Installation/ Operating Instruction
or LED Bathroom Shaver Lights
f
- Models: STA4LED & STA4LEDCH
Please read the instructions fully before attempting installation.
IMPORTANT
his unit should be installed by a competent person
T
in accordance with the current IET Wiring Regulations.
If in doubt consult a qualified electrician.
lways ensure that there is enough adequate free air ventilation around the
A
luminaire at all times. Do not install this product in damp or on newly
plastered ceilings.
Step 4.
Terminate the mains cable into the terminal block mounted on the
underside of the luminaire, reinstate the luminaire back plate.
Step 5.
Remove the diffuser and secure the luminaire to the wall using the holes
drilled in step 2 and the screws provided.
INSTALLATION
Always switch off the mains supply before installation or servicing.
Step 1.
Unpack the luminaire and check that you have all the tools to install the
luminaire safely and in compliance with current electrical standards.
Ensure there are no obstructions or services in the way. Switch off mains
power supply.
Step 2.
Locate the luminaire in the desired position and mark the hole fixing
centres as shown above. Drill holes and insert rawl plugs provided.
Step 6.
Re-fit front diffuser and restore electricity and check illumination.
NOTE: Fittings should not be installed near to heat sources or in any area’s
with an ambient temperature normally in excess of 40°C
TECHNICAL INFORMATION
Rated voltage: 240V AC, 50Hz supply
IP Rating: IP20
Rated Wattage: 7W
Running Current: 0.05 Amps
LED power
Consumption: 480 lumens, 68.6 lm/W
Colour Temp: 6000K
Long Life span: 30,000 hours
Ambient Temp: -20oC - +40oC
Dimensions: H59 x W490 x D70mm
Wire: Brown cable to connection marked “L”
Blue cable to connection marked “N”
Green/Yellow cable to connection
marked “ ”
Conforms to: BS EN 60598-2-1
Drill fixing holes
Fit wall plugs
Step 3.
Remove luminaire back plate and feed the mains cable through the hole in
the back plate.
0.3m
GUARANTEE
Your KingShield LED Bathroom Shaver Light is guaranteed
for 3 years from the date of purchase.
This does not affect your statutory rights.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sales@green brook.co.uk
w ww. g re e nb r o o k. c o .u k
Issue no: 704131
