GreenBrook LEDDL4000W, LEDDLT3000W, LEDDLAG4000W, LEDDLT4000W, LEDDL3000W Installation Instructions

Installation Instructions for:-

Vela’ Range -

‘

LED 30, 60 & 90 Mins

Fire Rated Mains Voltage

immable Downlights

D

Part numbers:

ixed:- LEDDL3000W & LEDDL4000W

F
Anti-glare:- LEDDLAG3000W & LEDDLAG4000W
Tilt:- LEDDLT3000W & LEDDLT4000W

IMPORTANT INFORMATION

It is recommended that luminaires are installed and fitted by
a qualified electrician ensuring the installation complies to
the current IET wiring regulation.

If simply replacing existing fitting, please ensure you follow
these instructions and the appropriate wiring regulations.

his product is designed for connection to a 230V AC Mains

T
supply.

Always switch off mains supply before servicing a fitting.
Special attention should be paid for any installations with low
ceiling voids.
This fitting is compatible with most leading and trailing edge
dimmers for best results use a dimmer designed for LED

rivers.

d
Please note that many dimmers have a minimum load
requirement which may mean multiple units have to be
connected for the dimmer to function correctly.

INSTALLATION INSTRUCTIONS

We recommend that a sample hole is cut in some scrap
material to familiarise yourself with the installation.
Once you are completely satisfied, locate the areas suitable
to install these luminaires. Cut a suitable round hole in the
ceiling (see cut out size in table overleaf) and ensure there
is sufficient space in the ceiling void without infringing on
joist, water pipes or electrical cables.

Fit this product as illustrated in Dia 2. Connect this product
to a mains 230V supply only. Connect the Brown feed wire
to “L”, connect the Blue feed wire to “N”.
Driver is class 2 and does NOT require an earth
connection. However 2 earth connections are provided on
the driver to maintain circuit earth continuity.
Ensure there is adequate free air ventilation around the
fitting. The nearest illuminated surface must be at least

0.5m distance from the front of the fitting. Do not install
this product into new plaster or damp areas.

Stage 1 -

Read instructions and check you have all the tools and
accessories to complete installation correctly.

Dia.1

Stage 2 -

These luminaires are suitable for a 30, 60 or 90 minute fire
rated ceiling only.
Cut a suitable hole (sizes shown in the technical information
table overleaf).

Dia.2

Stage 3 -

Press springs back and push luminaire body into aperture.
Connect the luminaire to the supplied driver.

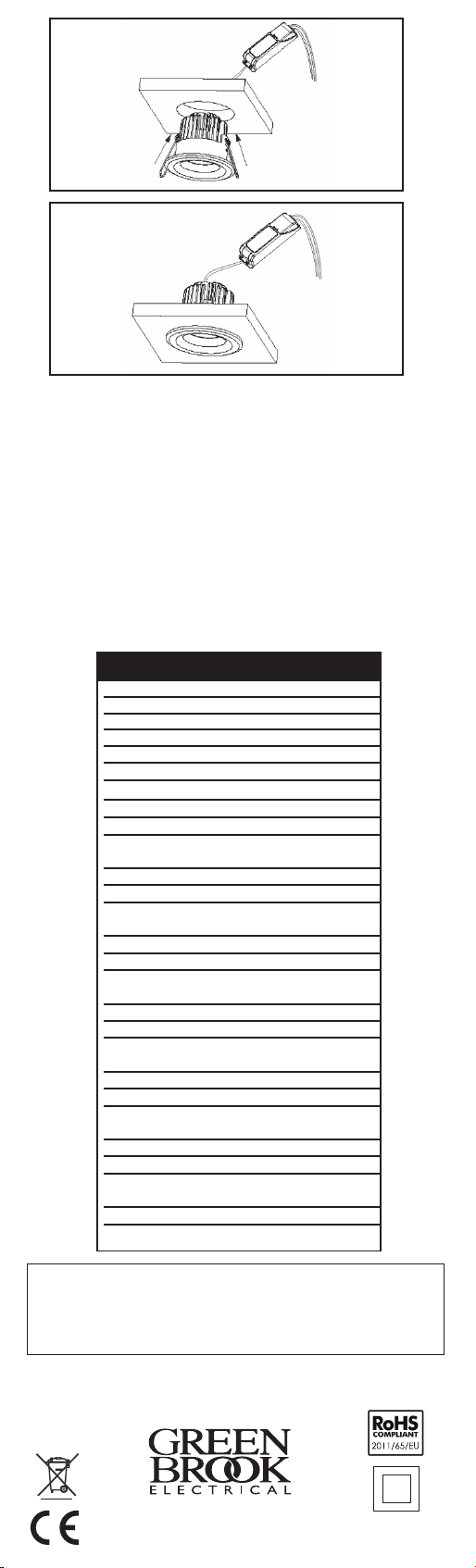

Dia.3

Dia.4

Additional Bezels:-

ixed

F

EDDLBEZG Gold

L

EDDLBEZMB Matt Black

L
LEDDLBEZSC Satin Chrome

EDDLBEZPC Polished Chrome

L

nti-Glare

A

EDDLAGBEZG Gold

L
LEDDLAGBEZMB Matt Black
LEDDLAGBEZSC Satin Chrome
LEDDLAGBEZPC Polished Chrome

ilt

T

LEDDLTBEZG Gold
LEDDLTBEZMB Matt Black
LEDDLTBEZSC Satin Chrome

EDDLTBEZPC Polished Chrome

L

TECHNICAL INFORMATION

ated Voltage: 230V～50Hz

R
Circuit Wattage: 9W
Ballast Type: LED driver
Class: II
Current: 200mA

RI: >85

C

Beam Angle: 55º
IP Rating: IP65
Life Span: 30,000 hours

LEDDL3000W

Cut Out: 73mm
Colour Temp: 3000K
Luminaire Lumens Output: 617, 69lm/W

LEDDLAG3000W

Cut Out: 70mm
Colour Temp: 3000K
Luminaire Lumens Output: 595, 66lm/W

LEDDLT3000W

Cut Out: 83mm
Colour Temp: 3000K
Luminaire Lumens Output: 616, 69lm/W

LEDDL4000W

Cut Out: 73mm
Colour Temp: 4000K
Luminaire Lumens Output: 659, 73lm/W

LEDDLAG4000W

Cut Out: 70mm
Colour Temp: 4000K
Luminaire Lumens Output: 608, 68lm/W

LEDDLT4000W

Cut Out: 83mm
Colour Temp: 4000K
Luminaire Lumens Output: 630, 70lm/W

Your KingShield LED Fire Rated Downlight is guaranteed for

3 years from the date of purchase.

This is in addition to your statutory rights.

GUARANTEE

PLEASE KEEP THESE INSTRUCTIONS

SAFE FOR FUTURE REFERENCE
