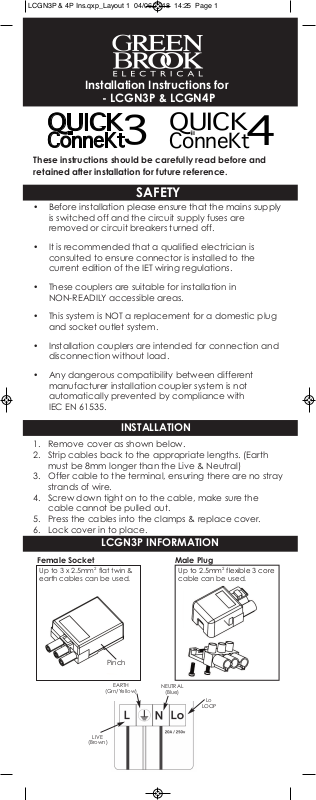

Installation Instructions for
QUICK
ConneKt
3
QUICK
ConneKt
4
- LCGN3P & LCGN4P
These instructions should be carefully read before and
retained after installation for future reference.
SAFETY
• Before installation please ensure that the mains supply
s switched off and the circuit supply fuses are
i
removed or circuit breakers turned off.
• It is recommended that a qualified electrician is
consulted to ensure connector is installed to the
current edition of the IET wiring regulations.
• These couplers are suitable for installation in
NON-READILY accessible areas.
• This system is NOT a replacement for a domestic plug
and socket outlet system.
• Installation couplers are intended for connection and
disconnection without load.
• Any dangerous compatibility between different
manufacturer installation coupler system is not
automatically prevented by compliance with
IEC EN 61535.
INSTALLATION
1. Remove cover as shown below.
2. Strip cables back to the appropriate lengths. (Earth
must be 8mm longer than the Live & Neutral)
3. Offer cable to the terminal, ensuring there are no stray
strands of wire.
4. Screw down tight on to the cable, make sure the
cable cannot be pulled out.
5. Press the cables into the clamps & replace cover.
6. Lock cover in to place.
LCGN3P INFORMATION
Female Socket Male Plug
Up to 3 x 2.5mm
earth cables can be used.
2
flat twin &
Up to 2.5mm2flexible 3 core
cable can be used.
LIVE
(Brown)
Pinch
EARTH
(Grn/Yellow)
NEUTRAL
(Blue)
Lo
LOOP
LCGN4P INFORMATION
Female Socket Male Plug
Up to 3 x 2.5mm2flat twin &
earth cables can be used.
Up to 1 x 2.5mm2flexible 4
core cable can be used.
LIVE
(Brown)
EARTH
(Grn/Yellow)
NEUTRAL
(Blue)
Auxillary
20A/250V
L1
Lo
LOOP
TECHNICAL INFORMATION
Max Voltage: 250V/ 20Amp
IP Rating: IP20
Connector Material: Solid Ni plated Brass
Dimensions (LCGN3P): L110 x W42 x H22.3mm
Dimensions (LCGN4P): L113 x W55 x H23.5mm
Weight (LCGN3P): 0.055Kg
Weight (LCGN4P): 0.079Kg
Conforms To: EN 61535
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
Your GreenBrook Lighting Connector
is guaranteed for 1 year from
This is in addition to your statutory rights.
GUARANTEE
the date of purchase.
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
info@greenbrook.co.uk
www.greenbrook.co.uk
Issue no: 705304
