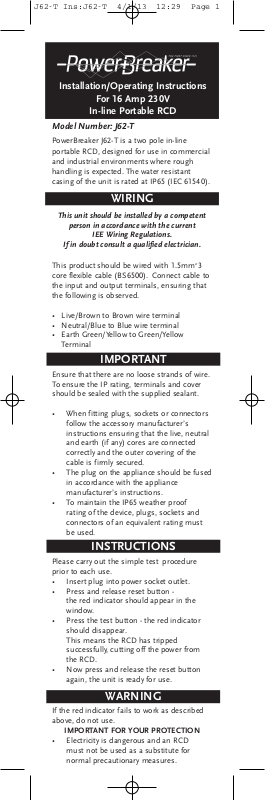

nstallation/Operating Instructions
I
For 16 Amp 230V
n-line Portable RCD
I
Model Number: J62-T
PowerBreaker J62-T is a two pole in-line
portable RCD, designed for use in commercial
and industrial environments where rough
handling is expected. The water resistant
casing of the unit is rated at IP65 (IEC 61540).
WIRING
This unit should be installed by a competent
person in accordance with the current
IEE Wiring Regulations.
If in doubt consult a qualified electrician.
This product should be wired with 1.5mm23
core flexible cable (BS6500). Connect cable to
the input and output terminals, ensuring that
the following is observed.
• Live/Brown to Brown wire terminal
• Neutral/Blue to Blue wire terminal
• Earth Green/Yellow to Green/Yellow
Terminal
IMPORTANT
Ensure that there are no loose strands of wire.
To ensure the IP rating, terminals and cover
should be sealed with the supplied sealant.
• When fitting plugs, sockets or connectors
follow the accessory manufacturer’s
instructions ensuring that the live, neutral
and earth (if any) cores are connected
correctly and the outer covering of the
cable is firmly secured.
• The plug on the appliance should be fused
in accordance with the appliance
manufacturer’s instructions.
• To maintain the IP65 weather proof
rating of the device, plugs, sockets and
connectors of an equivalent rating must
be used.
INSTRUCTIONS
Please carry out the simple test procedure
prior to each use.
• Insert plug into power socket outlet.
• Press and release reset button -
the red indicator should appear in the
window.
• Press the test button - the red indicator
should disappear.
This means the RCD has tripped
successfully, cutting off the power from
the RCD.
• Now press and release the reset button
again, the unit is ready for use.
WARNING
If the red indicator fails to work as described
above, do not use.
IMPORTANT FOR YOUR PROTECTION
• Electricity is dangerous and an RCD
must not be used as a substitute for
normal precautionary measures.
• Always unplug from mains supply before
any inspection or repair to equipment.
• Do not allow children to tamper with
electrical devices.
• Should your PowerBreaker repeatedly trip
with an appliance connected, or fail to trip
when tested, seek advice immediately
from a competent electrician or return to
place of purchase.
• This device will protect against live and
neutral faults to earth. It will not protect
against electric shock due to contact with
both conductors, short circuits between live
and neutral, or a fault in the wiring
supplying this device.
TECHNICAL INFORMATION
Rated voltage: 230V AC
No of Poles: 2
Rated Current: 16 Amps
Rated Tripping Current: 30 mA
Frequency: 50/60Hz
Environmental Protection
Rating: IP65
Conforms to: IEC 61540
Note:
The PowerBreaker Safety In-line Portable RCD
has been designed for storage and use between
-5°C and +40°C at an altitude no greater than
2000m above sea level. Care must be taken not
to subject your PowerBreaker to abnormal
pollution by smoke chemical or flammable
fumes, salt laden spray, prolonged periods of
high humidity, immersion, repeated dropping,
or any other abnormal conditions.
(4 amps inductive load)
GUARANTEE
Your PowerBreaker 16A
in-line Portable RCD
is guaranteed for 12 months.
Each unit is individually tested
before leaving the factory.
PLEASE KEEP THESE
INSTRUCTIONS SAFE
FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sa le s@g re enbr o o k .co . u k
W W W . G R E E N B R O OK . C O . U K
Issue no: 703067
