SIX - MONTHLY - In addition to the monthly test, the lamps should be illuminated from the
battery cell pack supply for a continuous period of at least one hour.
THREE - YEARS - In addition to the monthly tests the lamps should be illuminated from the
battery cell pack supply for the full rated duration of the luminaire (180 minutes).
ANNUALLY THEREAFTER - As above, i.e, Check that the luminaire operates for the full rated
duration (180 minutes).
At the end of each test period the mains supply should be restored and a check made to ensure
that all three green LED battery charging/lamp failure indicators are illuminated.

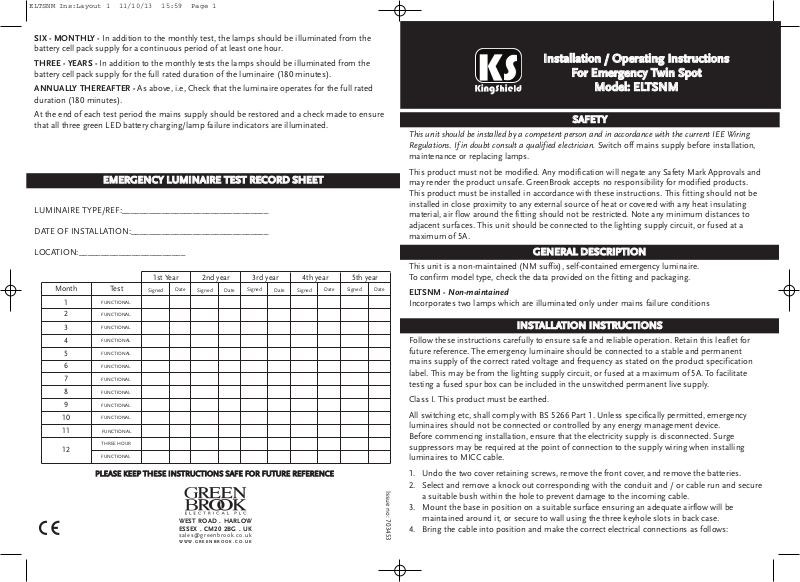

IInnssttaallllaattiioonn // OOppeerraattiinngg IInnssttrruuccttiioonnss
FFoorr EEmmeerrggeennccyy TTwwiinn SSppoott
MMooddeell:: EELLTTSSNNMM
SSAAFFEETTYY
This unit should be installed by a competent person and in accordance with the current IEE Wiring
Regulations. If in doubt consult a qualified electrician. Switch off mains supply before installation,
maintenance or replacing lamps.
EEMMEERRGGEENNCCYY LLUUMMIINNAAIIRREE TTEESSTT RREECCOORRDD SSHHEEEETT
LUMINAIRE TYPE/REF:_________________________________
DATE OF INSTALLATION:_______________________________
LOCATION:________________________
2nd year
Signed
Date
3rd year
Signed
Month
1
2
3
4
5
6
7
8
9
10
11
12
Test
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
FUNCTIONAL
THREE HOUR
FUNCTIONAL
1st Year
Signed
Date
Date
4th year
Signed
5th year
Signed
This product must not be modified. Any modification will negate any Safety Mark Approvals and
may render the product unsafe. GreenBrook accepts no responsibility for modified products.
This product must be installed in accordance with these instructions. This fitting should not be
installed in close proximity to any external source of heat or covered with any heat insulating
material, air flow around the fitting should not be restricted. Note any minimum distances to
adjacent surfaces. This unit should be connected to the lighting supply circuit, or fused at a
maximum of 5A.
GGEENNEERRAALL DDEESSCCRRIIPPTTIIOONN
This unit is a non-maintained (NM suffix), self-contained emergency luminaire.
To confirm model type, check the data provided on the fitting and packaging.
DateDate
ELTSNM - Non-maintained
Incorporates two lamps which are illuminated only under mains failure conditions
IINNSSTTAALLLLAATTIIOONN IINNSSTTRRUUCCTTIIOONNSS
Follow these instructions carefully to ensure safe and reliable operation. Retain this leaflet for
future reference. The emergency luminaire should be connected to a stable and permanent
mains supply of the correct rated voltage and frequency as stated on the product specification
label. This may be from the lighting supply circuit, or fused at a maximum of 5A. To facilitate
testing a fused spur box can be included in the unswitched permanent live supply.
Class I. This product must be earthed.
All switching etc, shall comply with BS 5266 Part 1. Unless specifically permitted, emergency
luminaires should not be connected or controlled by any energy management device.
Before commencing installation, ensure that the electricity supply is disconnected. Surge
suppressors may be required at the point of connection to the supply wiring when installing
luminaires to MICC cable.
PPLLEEAASSEE KKEEEEPP TTHHEESSEE IINNSSTTRRUUCCTTIIOONNSS SSAAFFEE FFOORR FFUUTTUURREE RREEFFEERREENNCCEE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sa les@ green broo k.co .uk
W W W. G R EE N B R O OK . C O . UK
1. Undo the two cover retaining screws, remove the front cover, and remove the batteries.
2. Select and remove a knock out corresponding with the conduit and / or cable run and secure
Issue no: 703453
a suitable bush within the hole to prevent damage to the incoming cable.
3. Mount the base in position on a suitable surface ensuring an adequate airflow will be
maintained around it, or secure to wall using the three keyhole slots in back case.
4. Bring the cable into position and make the correct electrical connections as follows:
NON-MAINTAINED
NEUTRAL
(BLUE)
EARTH
GREEN/YELLOW
N
L
E
PERMANENT LIVE
(BROWN)
Class I. This product must be earthed.
Terminal (L): This is the live supply to the charging circuit and must be permanent
and unswitched.
Terminal ( E): This is for the earth and must be connected.
Terminal (N): This is the neutral supply and must be permanent.
Colour code: Brown=Live Blue=Neutral Green/Yellow=Earth
Conductor Size 1.0mm
2
- 2.5mm2Solid or Stranded.
Ensure that no strands of bare wire have escaped the terminals.
On completion of the electrical connections, the BATTERIES can be placed UPRIGHT within the
enclosure, taking care to avoid any harmful contact between the battery terminals and the metal
enclosure.
WWAARRNNIINNGG
Incorrect connection of the battery polarity could be dangerous. The battery+positive supply is
protected by a 6 AMP MAXIMUM RATED FUSE, which is supplied in a plastic bag in fitting.
Insert one 6A fuse into fuseholder on control board.
CCOOMMMMIISSSSIIOONNIINNGG && TTEESSTTIINNGG
Switch on the mains supply and check to ensure that all three green LED battery charging/lamp
failure indicators are illuminated.
a. All green LEDs illuminated indicate supply is present, batteries are charging and both lamp
filaments are intact.
b. If L1 or L2 green LED is off this indicates the corresponding lamp filament has failed.
c. If charge green LED is off then check supply is present and 3A internal fuse has not blown.
Allow a brief time for initial partial charging and then isolate the permanent live supply by
removing the fuse from the fused spur box. Check to ensure the lamps are illuminated from the
battery cell pack supply. After a further 60 hours on a continuous charge, and only at a safe and
appropriate time, mains failure should be simulated to ensure that full duration rating is
achieved. Thereafter the recharge time is 24 hours.
MMAAIINNTTEENNAANNCCEE
Servicing should only be carried out after the luminaire has been made electrically safe.
Lamps should be replaced at set intervals for maximum system integrity, use only lamps of the
correct type and rating and follow the lamp manufacturers instructions.
Cleaning should be carried out at regular intervals to ensure that dirt does not accumulate to an
extent that will impair the electrical and / or thermal safety of the luminaire. Regular cleaning will
also ensure that the optical performance is maintained.
Battery packs should be replaced when the luminaire fails to meet its rated duration, regardless all
batteries must be replaced after 4 years service.
The disposal of components from the luminaire may require consultation with local authorities.
The disposal of batteries is subject to Local Authority Regulations, and the By-Laws Department
for disposal of toxic waste should be consulted for specific guidance. Battery cell packs must not
be incinerated. Do not dispose with household waste, subject to conditions in the WEEE directive.
5. Mark the battery cell pack with the date of installation and then RECONNECT the battery
terminals to the main circuit using the flying leads as follows.
BLACK
LEAD
RED
LEAD
RED+
BLACK-
BLACK
LEAD
RED
LEAD
RED+
BLACK-
6. Refit the front cover, taking care to ensure that no wires are trapped and that all fastenings are
secure.
7. To adjust the position of the lamp heads, loosen the axis screws before positioning so as not
to cause excess strain on the lamp fixings.
WARNING
The battery cell pack must be RECONNECTED before the mains is switched on.
Failure to comply with these installation instructions may result in irreparable damage to the
main circuit.
DO NOT HIGH-VOLTAGE INSULATION TEST THIS UNIT, OR THE LIGHTING SYSTEM WITH
THIS UNIT CONNECTED.
SSPPEECCIIFFIICCAATTIIOONN
Battery Type: Sealed Lead-Acid : 2 x 12 Volt: 7 Ampere Hour Rating, Part No ELBTS
Lamp Type: 2 x 12 Volt: 21 watt BA15D Tungsten Filament
IP Rating: IP20
Emergency Lamp Output: 393 Lumens
Rated Duration: 180 minutes
Please be advised: Lighting levels are only provided to allow checking of correct operation and
determination of correct lighting levels on an escape route can only be made with full
photometric data.
ROUTINE INSPECTION & TEST PROCEDURE
All tests should be undertaken during daylight hours at times of minimum risk and be in
accordance with the recommendations of BS 5266 Part 1: 2005.
DAILY - Check that the three green LED battery charging / lamp failure indicators are illuminated.
MONTHLY - In addition to the daily check, a functional test through simulation of mains supply
failure should be carried out to confirm lamps are illuminated from the battery cell pack supply.
This test need only be approximately 30 seconds. It should not exceed one quarter of the rated
luminaire duration.
